Cone Crusher Parts

Ma’anshan ONA Intelligent Equipment Co., Ltd. is a professional foundry specializing in core components for mining equipment. We focus on providing high-performance, long-lasting wear-resistant casting solutions for cone crushers worldwide, including key spare parts such as concave, mantle, arm guard, feed plate, adjustment ring, bowl and etc. Leveraging advanced casting technology, a rigorous full-process quality control system, and a deep understanding of equipment operating conditions, we ensure that every product possesses superior mechanical properties and wear resistance. We are also committed to promoting intelligent operation and maintenance, using precise data matching and product support to help customers significantly reduce overall costs, improve equipment reliability and production efficiency, becoming your trusted strategic partner.

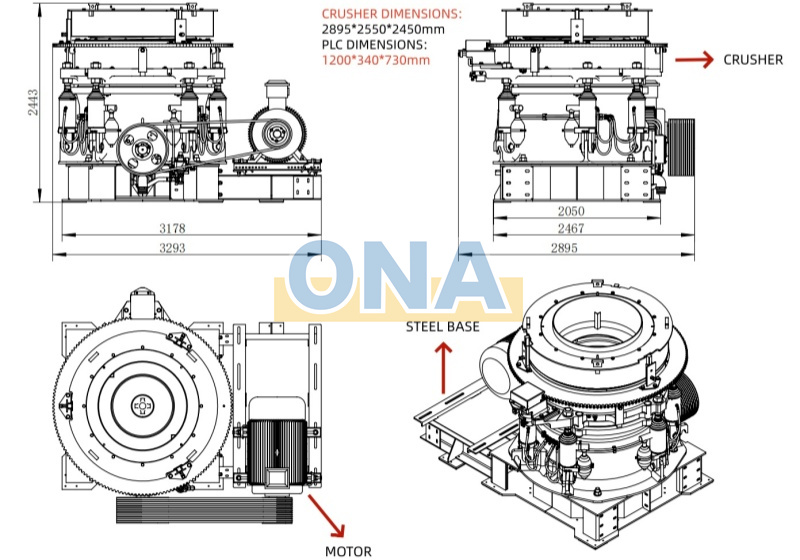

The cone crusher is a core piece of equipment for medium and fine crushing of materials with medium to high hardness. Its working principle is based on layered crushing; the mantle cone, driven by an eccentric sleeve, performs a gyratory motion, causing the material in the crushing chamber to be crushed by compression and impact. Its main components include the socker liner, main, countershaft, eccentric bushing, and hydraulic adjustment system. The equipment is known for its high crushing efficiency, superior particle shape, and stability, and the product particle size can be controlled by adjusting the discharge opening size. It is widely used in mining, metallurgy, and building materials industries for medium and fine crushing of materials such as granite, basalt, and iron ore, and is a key crushing equipment in modern aggregate and mineral processing production lines.



We Provide All Kinds Of Cone Crusher Parts: Seal kit, Protection plate, Concave, Countershaft bushing, Eccentric, Low head bush, Head ball, Bowl, Socker liner, Lock bolt, Head, Arm guard, Gear, Washer, Main frame pin, Support, Adjustment ring, Feed cone, Eccentric bushing, Filter,  Tramp release cylinder, Thrust bearing assembly and etc.

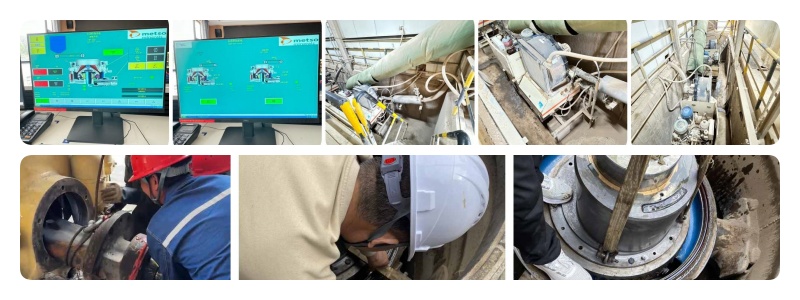

Regarding the daily maintenance of cone crushers

Routine Maintenance: Weekly Inspection.

• Check the wear of the liner plates and distribution plate.

• Lubricate the adjustment ring with grease.

• Check the tension of the V-belts.

• Check the tightness of the distribution plate bolts.

• Check if the indicator lights on the hydraulic station control box are working properly.

• Check the wear of the horizontal shaft frame, reinforcing plates, counterweight guard plates, movable cone, and main frame.







ONA crushers are suitable for the following brands

Model	Original Brand
GP100	Metso
CH430	Metso
GP300	Metso
GP500	Metso
GP11F	Metso
GP220	Metso
GP330	Metso
GP550	Metso
GP100S	Metso
GP200S	Metso
GP300S	Metso
GP500S	Metso
GP7	Metso
HP100	Metso
HP200	Metso
HP300,	Metso
HP400	Metso
HP500	Metso
HP700	Metso
HP800	Metso
HP900	Metso
HP3	Metso
HP4	Metso
HP5	Metso
HP6	Metso
MP800	Metso
MP1000	Metso
MP1250	Metso
SG4265	Metso
SG5475	Metso
SG6089	Metso
SG60110	Metso
CH420	Sandvik
CH430	Sandvik
CH440	Sandvik
CH540	Sandvik
CH550	Sandvik
CH660	Sandvik
CH830i	Sandvik
CH840	Sandvik
CH840i	Sandvik
CH860i	Sandvik
CH865i	Sandvik
CH870	Sandvik
CH870i	Sandvik
CH880	Sandvik
CH890	Sandvik
CH895i	Sandvik
CS420	Sandvik
CS430	Sandvik
CS440	Sandvik
CS540	Sandvik
CS550	Sandvik
CS660	Sandvik
CS840i	Sandvik
CS865	Sandvik
2ft	Symons
3ft	Symons
4ft	Symons
4 1/4ft	Symons
5 1/5ft	Symons
7ft	Symons
C-1540	Terex
C-1540R	Terex
C-1545	Terex
C-1545P	Terex
C-1550	Terex
C-1550P	Terex
C-1554	Terex
T300	Telsmith
T400	Telsmith
T500	Telsmith
T900	Telsmith
36 S&FC	Telsmith
48 S&FC	Telsmith
52 S&FC	Telsmith
57 S&FC	Telsmith
66 S&FC	Telsmith
38 SBS	Telsmith
44 SBS	Telsmith
52 SBS	Telsmith
57 SBS	Telsmith
68 SBS	Telsmith
TP260	Trio
TP350	Trio
TP450	Trio
TP600	Trio
TP900	Trio

All names, marks, models, symbols and descriptions are used for reference purposes only and it is not implied that any of the parts/brands listed are the product of any company other than ONA. We are not agents or distributors for any of the above mentioned brands nor do we have any commercial relationship or association with them.
