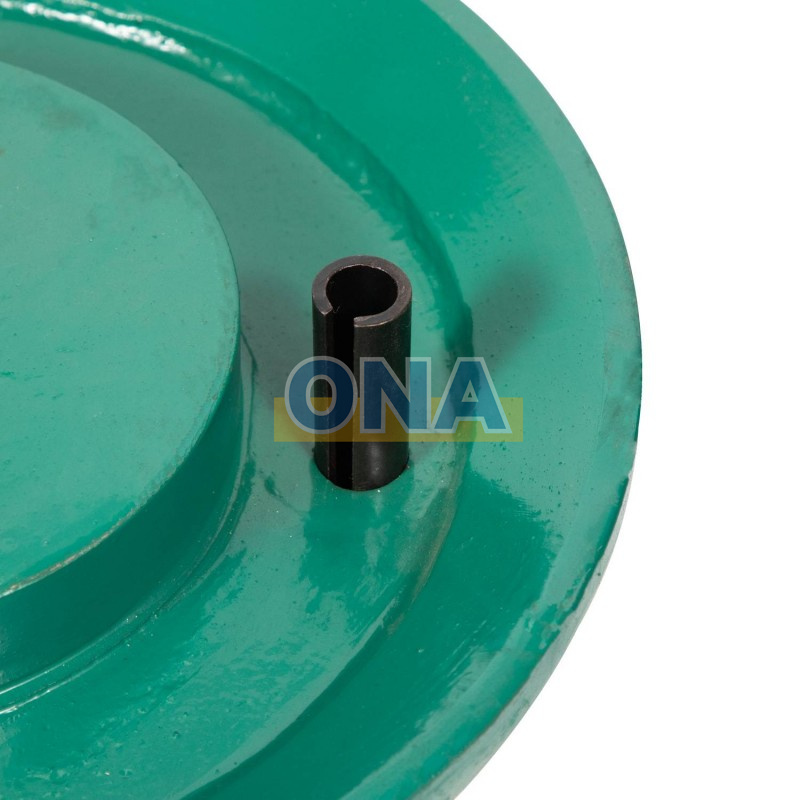

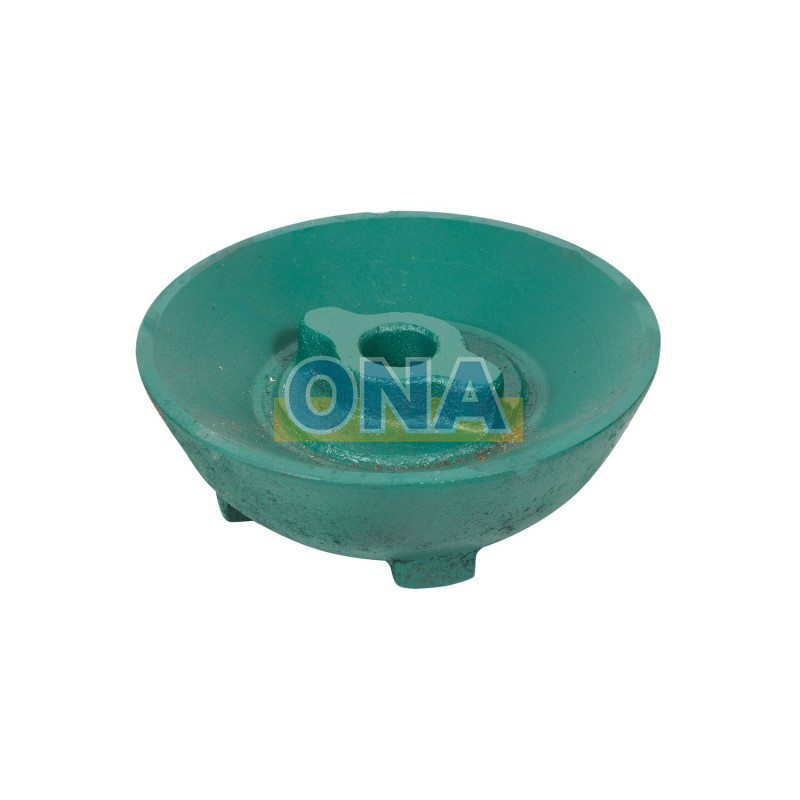

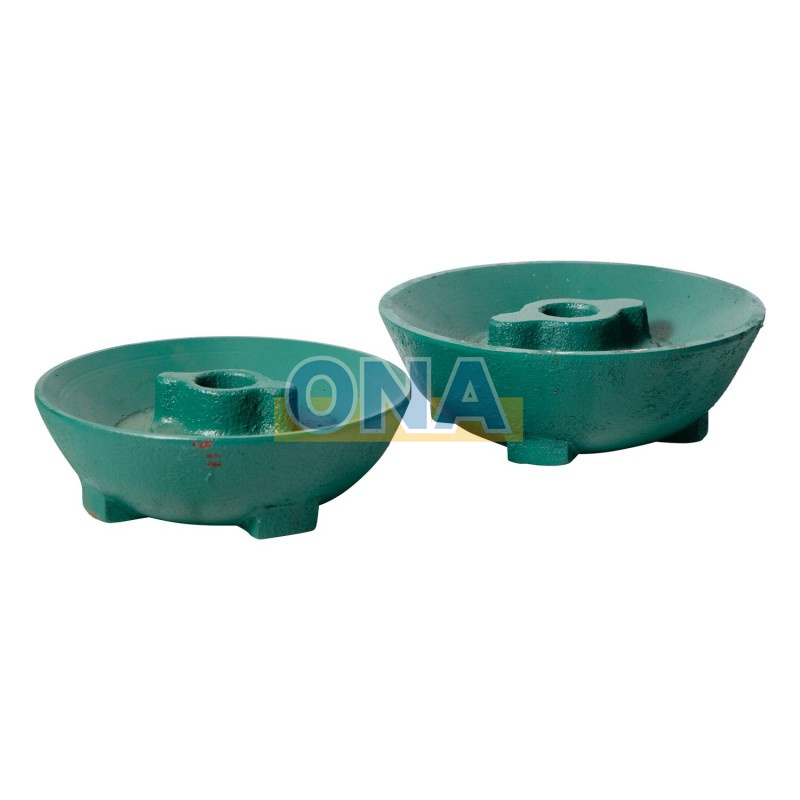

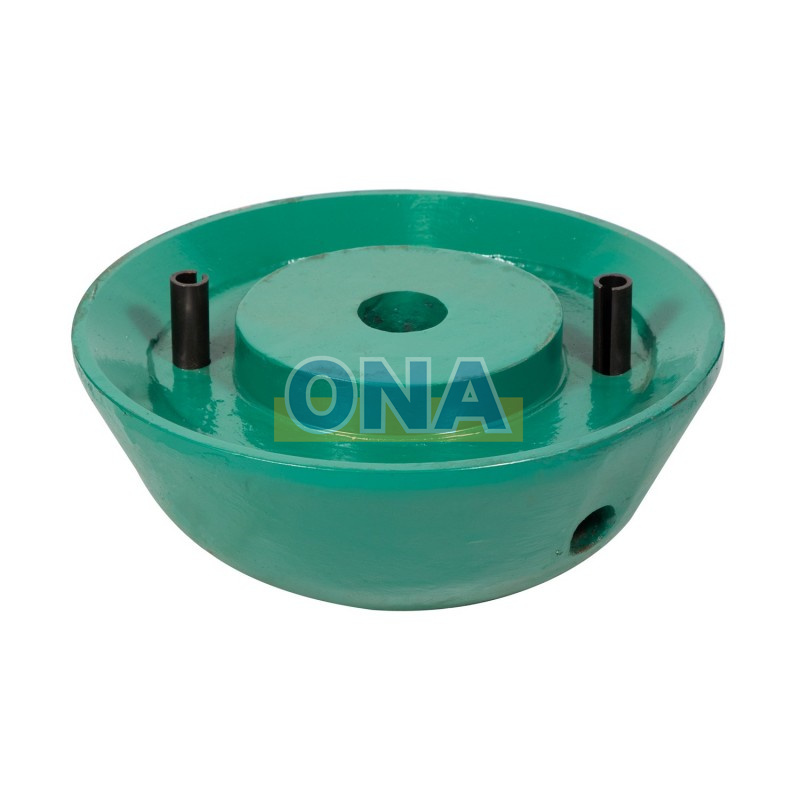

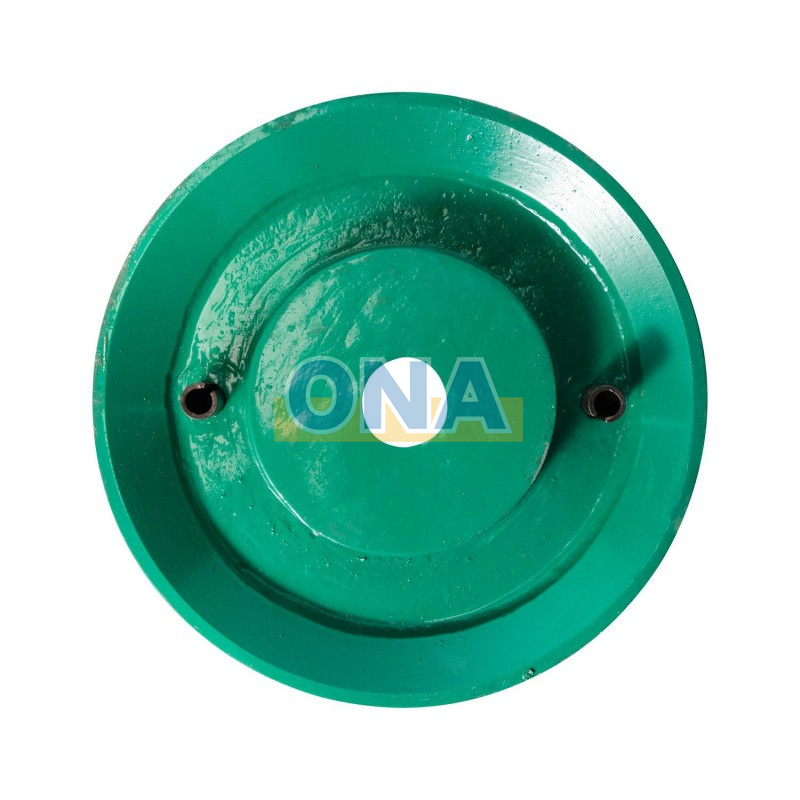

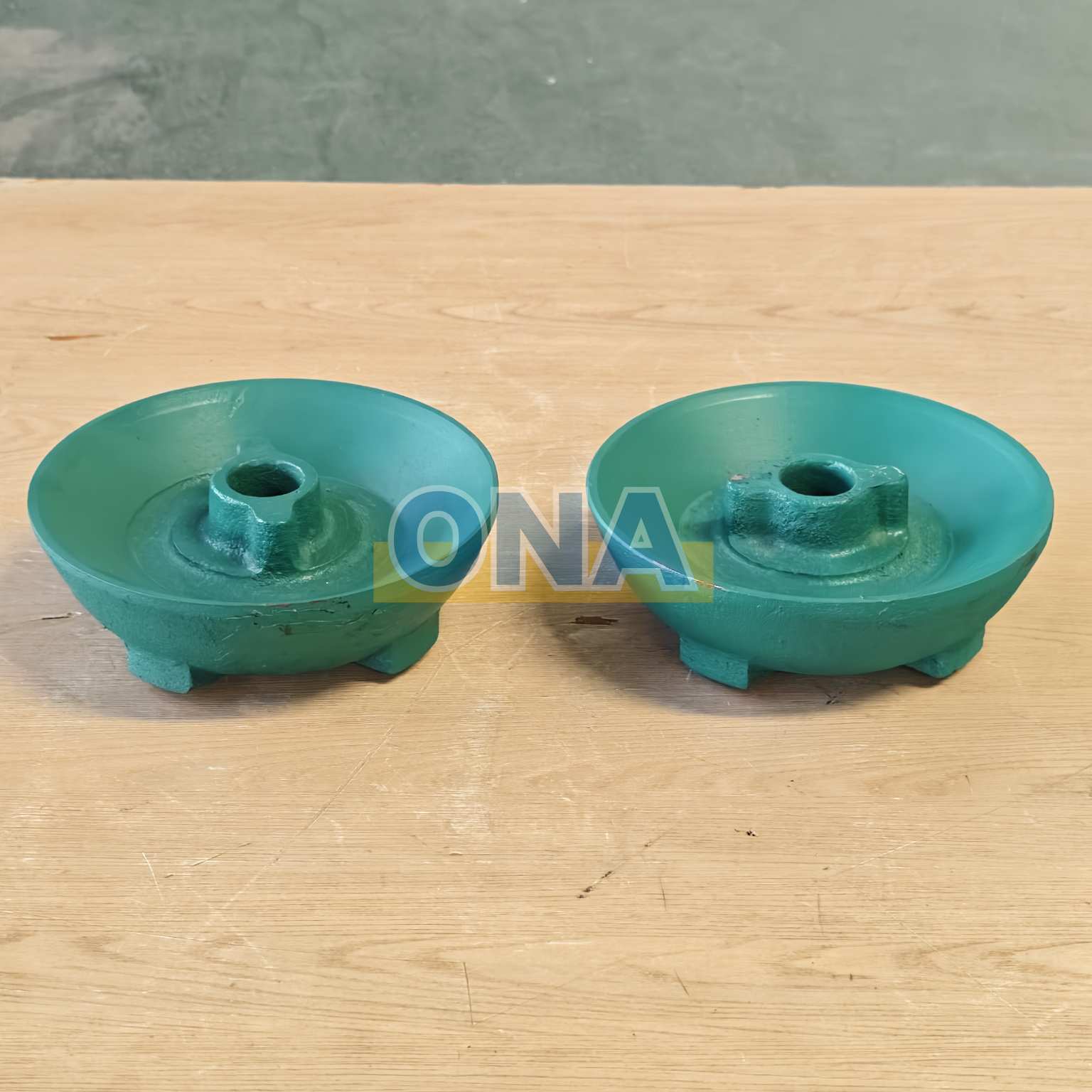

The crusher feed cone is a key wear-resistant part designed to evenly distribute material, prevent uneven feeding and clogging, protect impeller liners, and improve the particle shape of the finished product.
Item No :
HP3, HP4, HP5, HP6, HP100, HP200, HP300, HP400, HP500, HP700, HP800Part Number :
ONA-1055981159Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
StockOrder(MOQ) :
1
The feed cone is a critical, high-wear feed part for VSI crushers and cone crushers. Mounted on the locking bolt at the top of the crushing chamber, it plays a pivotal role in controlling material distribution and regulating the crushing rhythm.
Function: After passing through the material feed cone, the ore is evenly distributed within the crushing chamber.

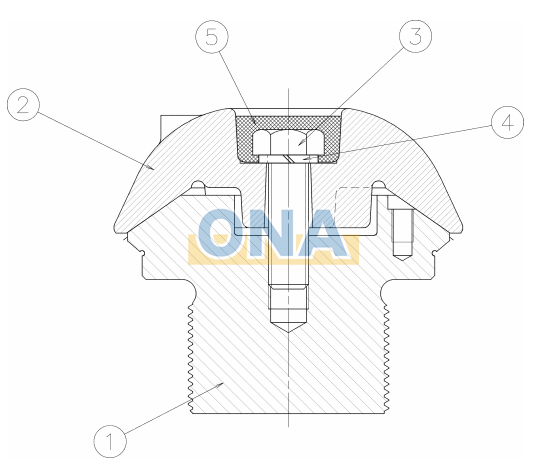

Installation Location
Eg: ONA-7090058307 FEED CONE SET
| Pos. | Part No. | Description | Qty | Net Wght |
| 1 | ONA-7041068005 |
BOLT, LOCK
|
1 | 24 |
| 2 | ONA-7065558094 |
FEED CONE
|
1 | 18.1 |
| 3 | ONA-7001530623 |
SCREW, HEXAGONAL
|
1 | 0.72 |
| 4 | ONA-7001632030 |
WASHER, SPRING
|
1 | 0.04 |
| 5 | ONA-7008010040 |
SILICONE SEAL
|
1 | 0.36 |
✅ Application Scenarios
Mining operations, sand and aggregate production, construction waste processing, highway and railway infrastructure construction, fine crushing and shaping of ore, and industrial raw material crushing; suitable for complex operating conditions involving hard or standard stone materials as well as dry and wet mixed materials.
Advantages:
✅ Uniform Material Distribution: Conical flow guidance ensures excellent particle shape and a high pass rate.
✅ Superior Wear Resistance: Options for high-chrome or ceramic materials (HRC 58–62) extend service life several-fold.
✅ Anti-Clogging: Steep-angle curved surfaces prevent clogging with wet or sticky materials, ensuring continuous operation.
✅ Noise Reduction & Stability: Dual-layer cushioning protects the impeller liner and reduces mechanical failures.
✅ Quick Replacement: OEM-spec dimensions allow for direct installation and minimal downtime.
✅ High-Temperature Resistance: One-piece casting ensures impact resistance and prevents deformation.

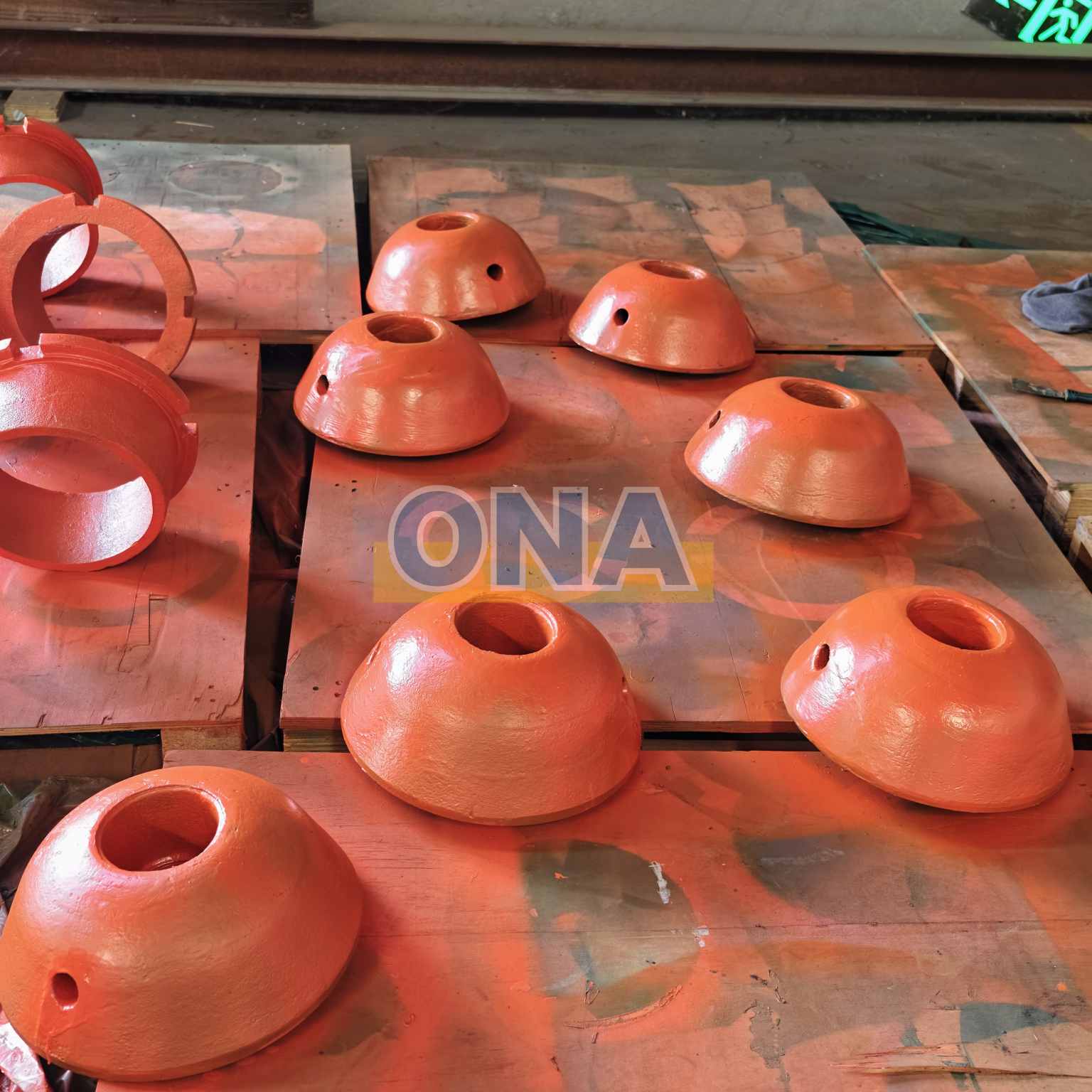

✅ Customization: Supports custom colors and coatings to meet specific requirements.
Data Sheet
| Production Name | Feed Cone |
| OEM Number | ONA-1055981159 |
| Material | MN13CR2 |
| Compatible devices | VSI Crusher and Cone Crusher |
| Production Process | Precision casting + heat treatment + precision grinding |
| Customized Services | Customizable colors and sizes |

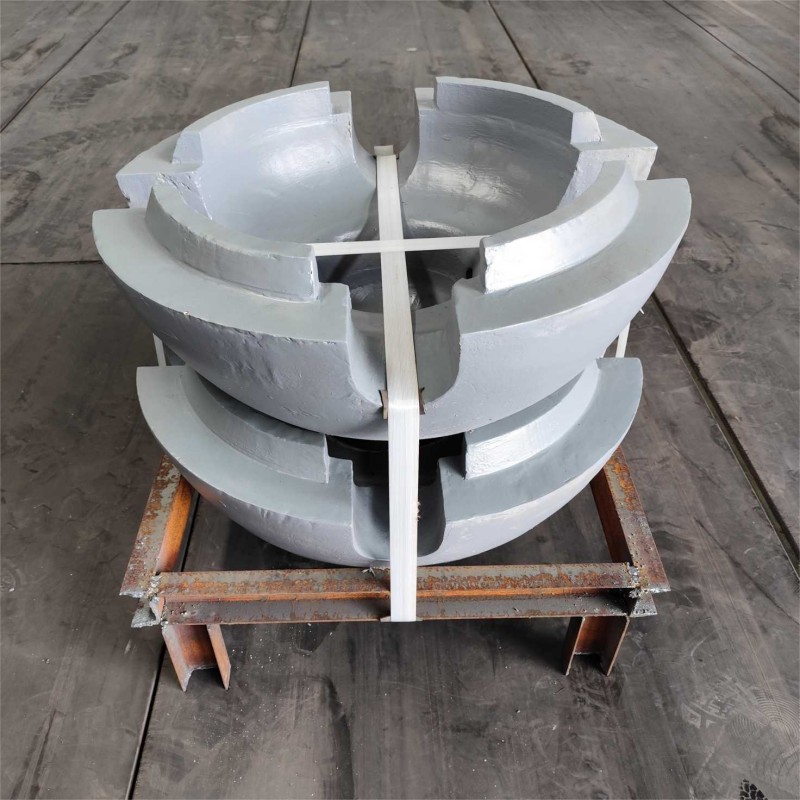

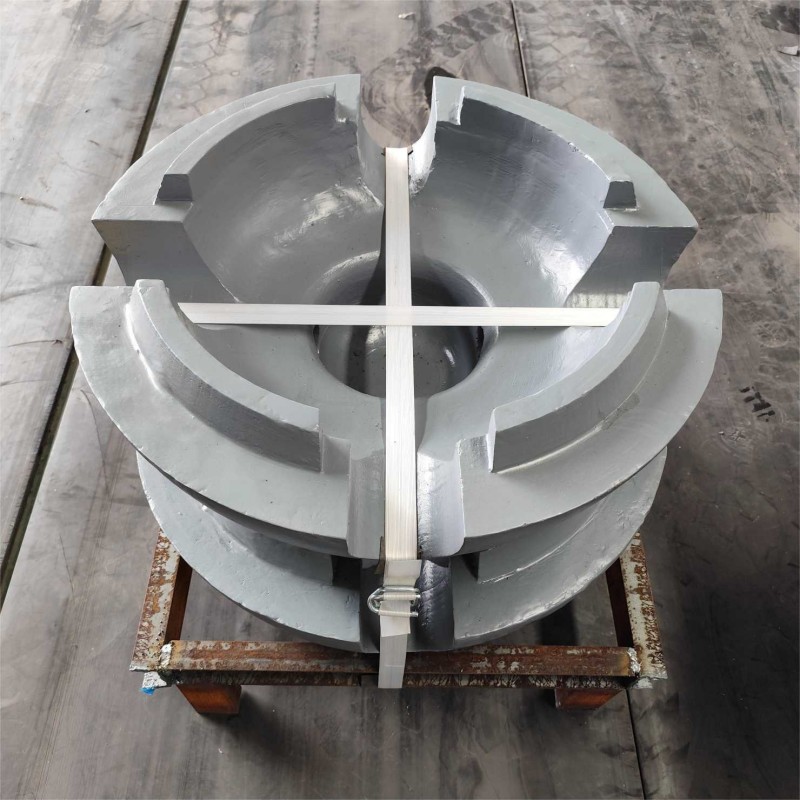

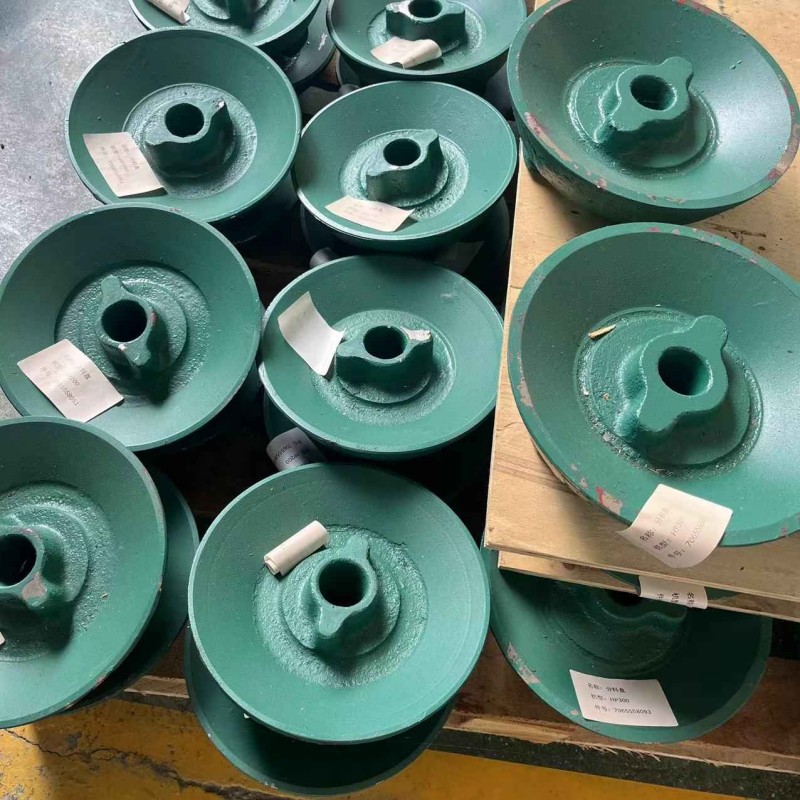

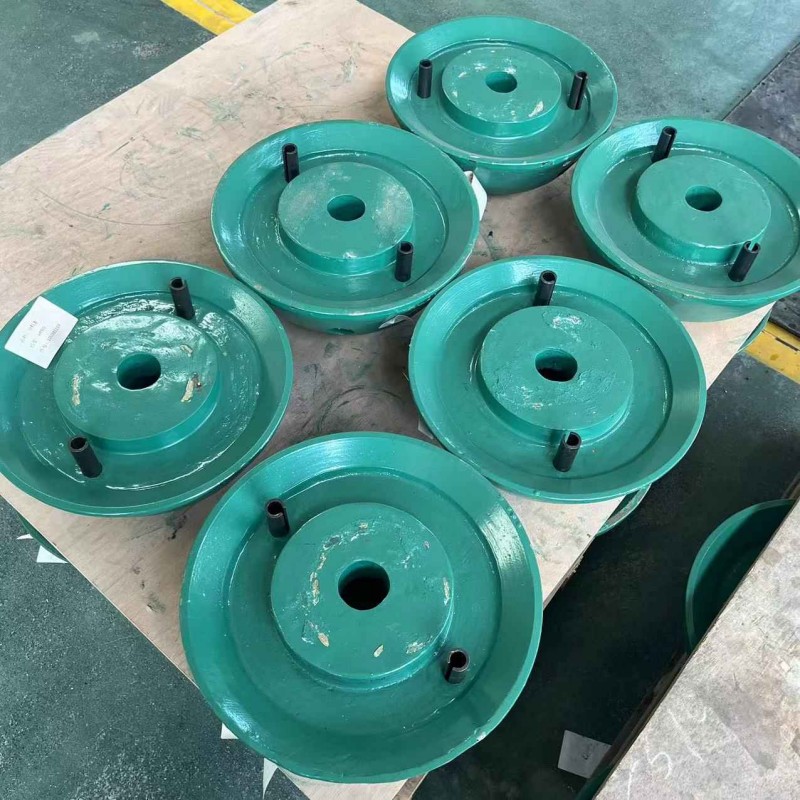

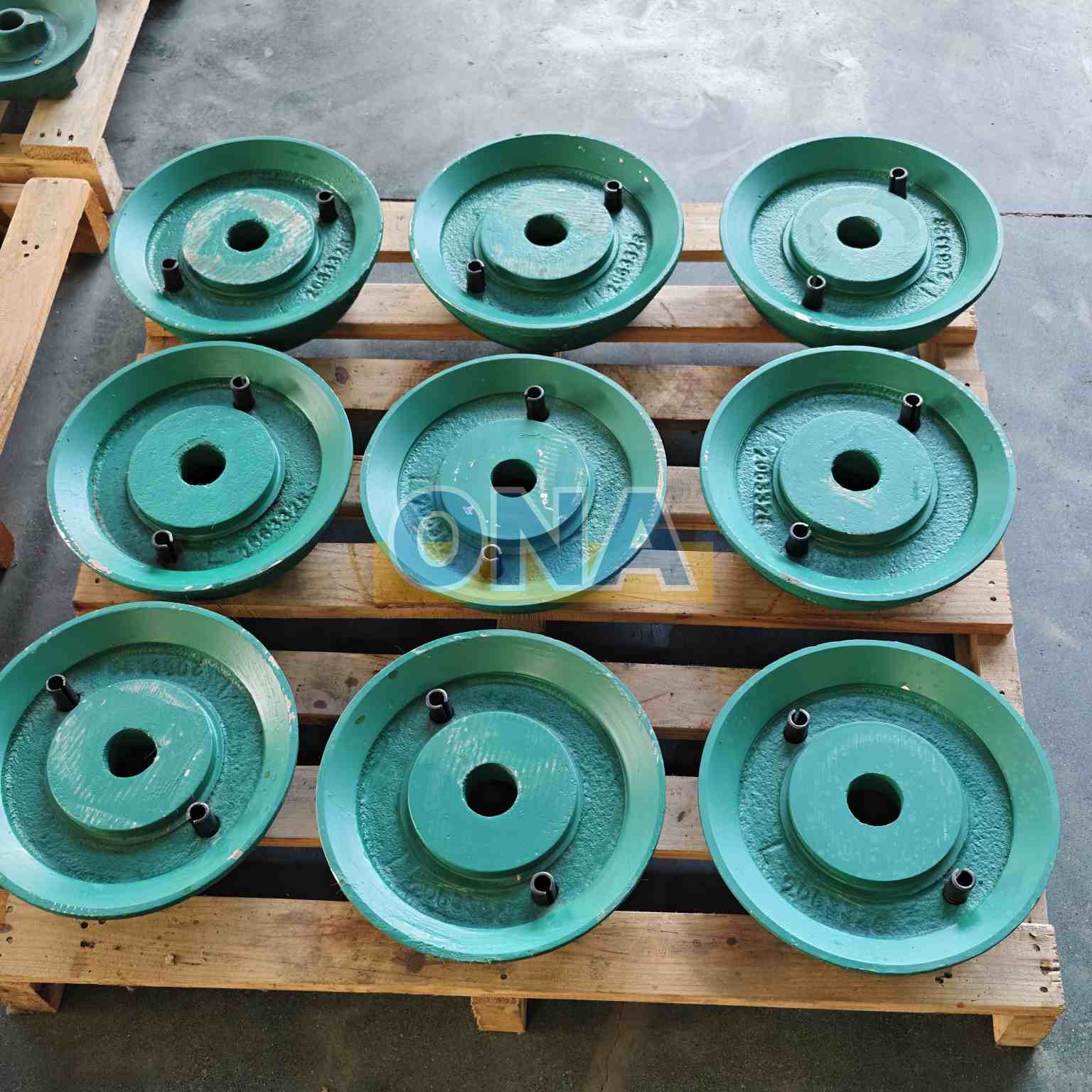

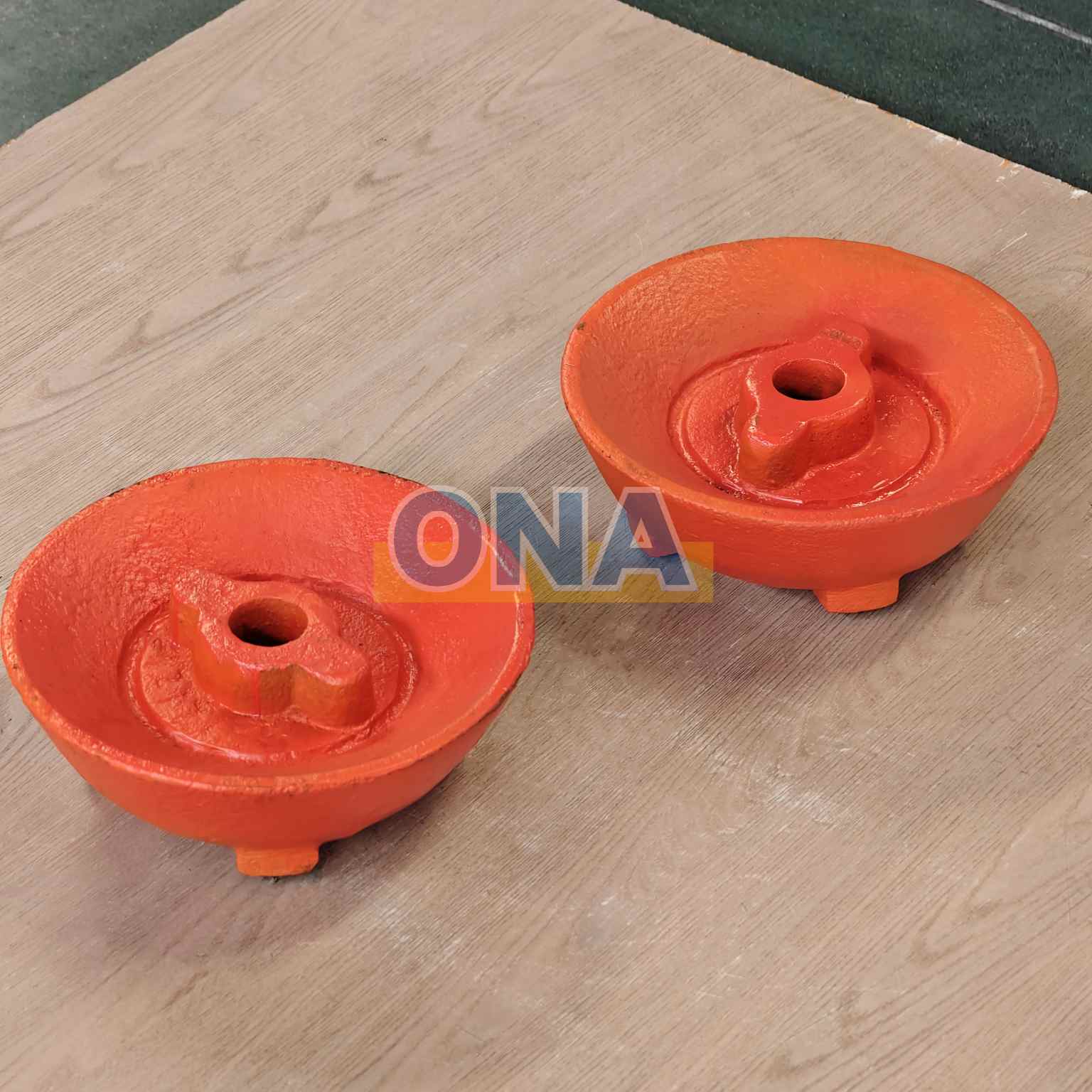

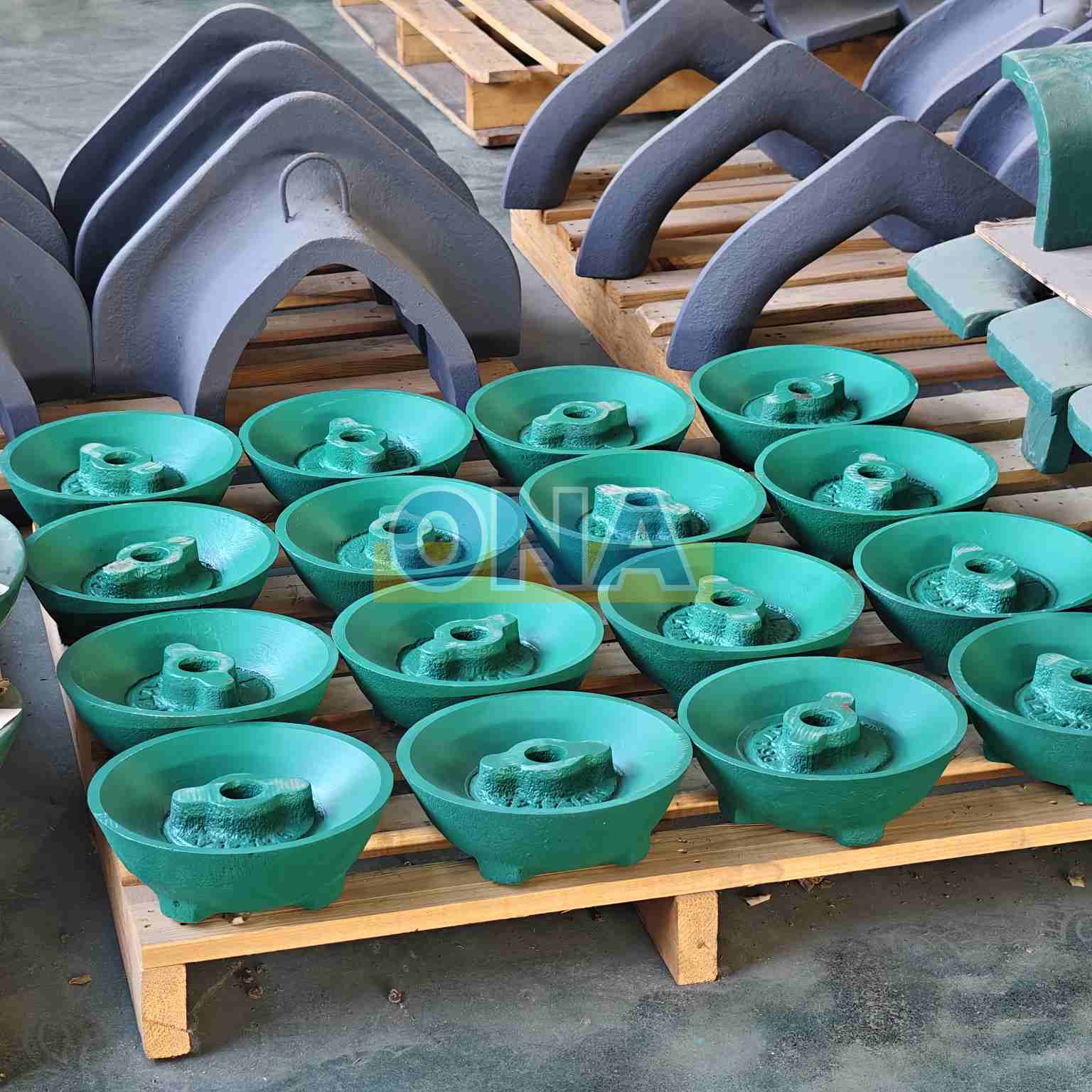

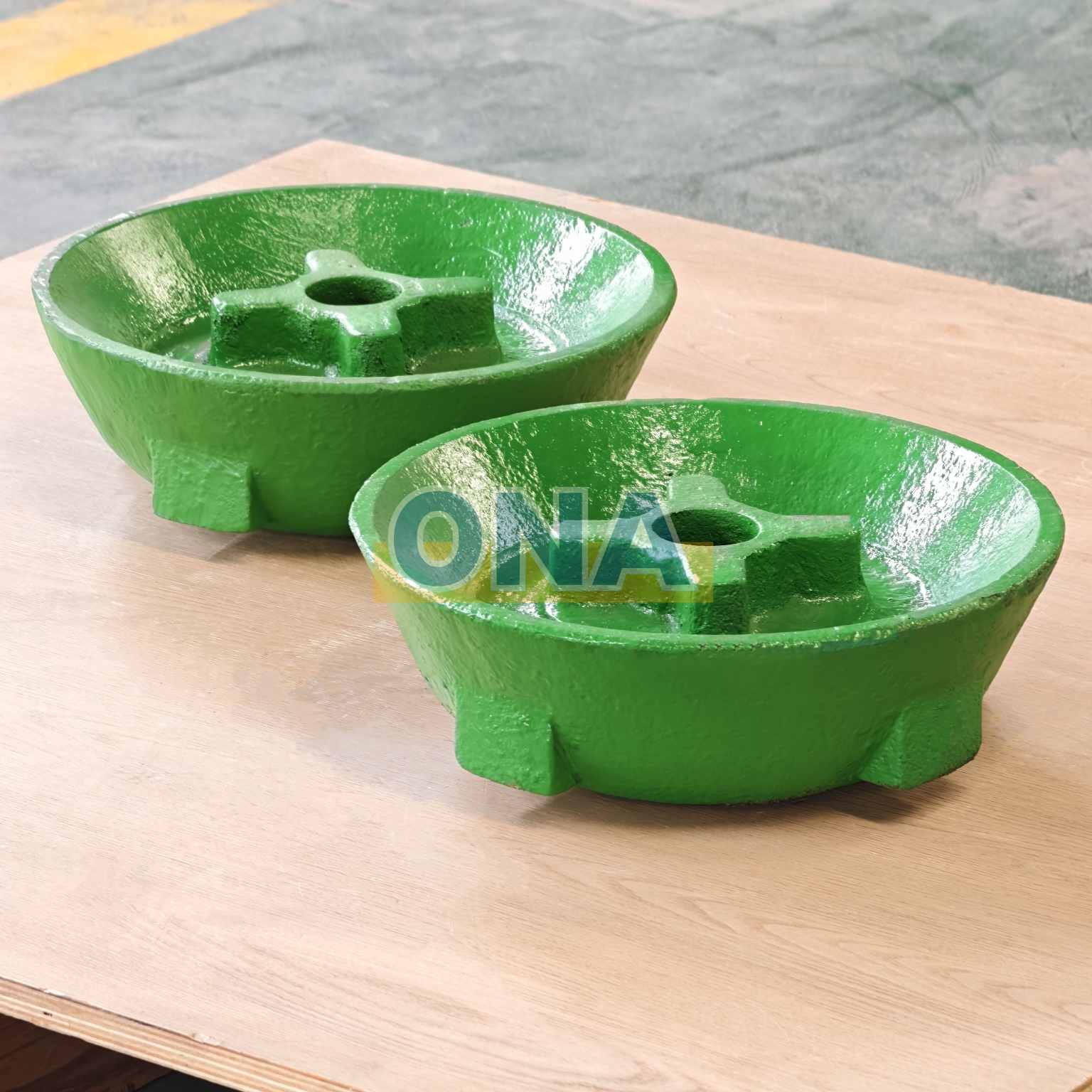

Material feed cone trays in stock; actual photos included.

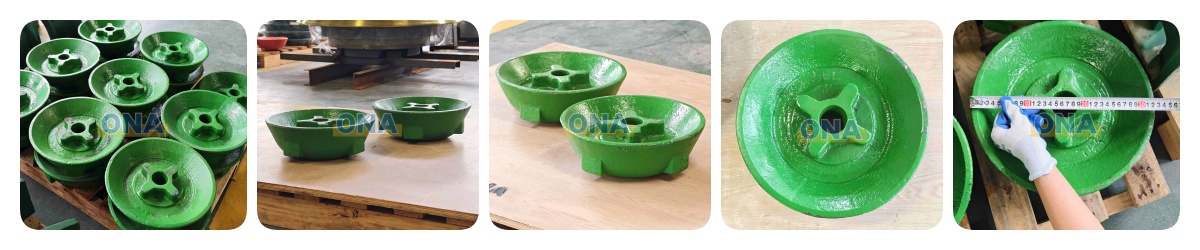

1. HP6 Feed Cone ONA-N65558322

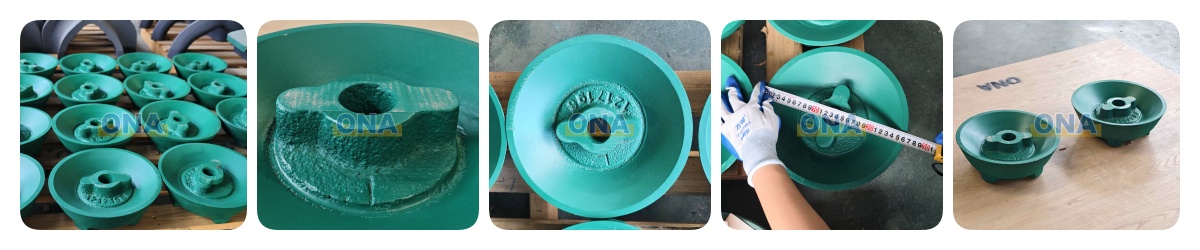

2. HP300 Feed Cone ONA-7065558093

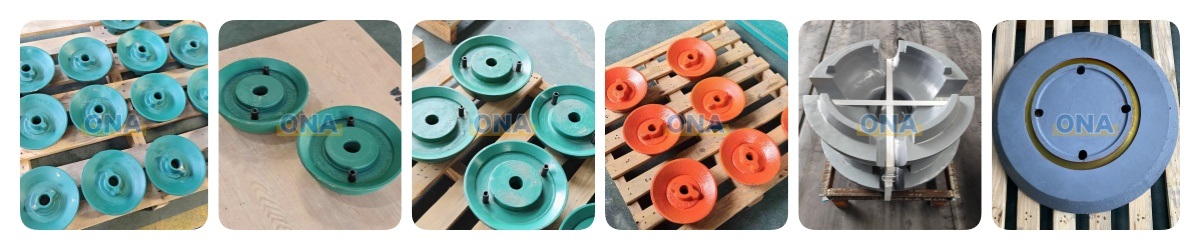

In addition, ONA has more actual photos of stock material feed cone trays available; please feel free to contact us if you are interested in viewing them.
Other Best-Selling ONA Feed Cone Part Numbers
| HP800 | ONA-1055981161 | GP100 | ONA-386960 | GP100S | ONA-MM0243918 |
| HP6 | ONA-7065550291 | GP11F | ONA-MM0260737 | HP400 | ONA-1093040077 |
| HP6 | ONA-N65558322 | GP200S | ONA-912509 | HP400 | ONA-N90058315 |
| HP6 | ONA-N98000239 | GP300 | ONA-340082 | HP4 | ONA-N98000139 |
| HP6 | ONA-N98000238 | MP800 | ONA-MM0361751 | HP4 | ONA-N98001023 |
| HP6 | ONA-N98001025 | HP400 | ONA-1055981158 | HP300 | ONA-7065558093 |
| HP500 | ONA-N65558252 | HP400 | ONA-N65558201 | HP300 | ONA-N65558321 |
| HP500 | ONA-SN204086 | GP300 | ONA-MM0572854 | HP300 | ONA-N98000008 |
| HP300 | ONA-7065558094 | HP3 | ONA-N98000821 | Symons 7 ft Cone Crusher | ONA5598-7941 |
| OMNI1560 | ONA-1055985805 | HP200 | ONA-N65558054 | Symons 7 ft Cone Crusher | ONA-5598 7941 |
| MP800 | ONA-1055988665 | HP200 | ONA-7065558051 | HP400 | ONA-7065558201 |
| GP550 | ONA-582360 | HP200 | ONA-7065558050 | HP3 | ONA-MM1373352 |
| MP1250 | ONA-MM0368073 | HP100 | ONA-7065558000 | HP3 | ONA-N98000820 |
| MP1250 | ONA-MM0372243 | MP1000 | ONA-1055988675 | / | / |
| SY7SH | ONA-1055988781 | MP1000 | ONA-1055988676 | / | / |
| HP300 | ONA-N90058318 | HP100 | ONA-N65558006 | / | / |
FAQ
Q: Are standard models in stock?
A: Yes. We have a large stock of standard feed distributors for VSI impact crushers and conventional cone crushers.
Q: What problems arise if the feed cone is not replaced promptly after wearing out?
A: Uneven feed causes vibration, clogging, poor shape, faster liner wear, higher costs, and downtime. Replace worn liners promptly.
Q: Is there a warranty? How is after-sales support handled?
A: All products are brand-new, genuine, and factory-tested. The warranty covers damage resulting from non-human factors. We provide one-on-one installation guidance and comprehensive technical support to ensure a worry-free after-sales experience.
