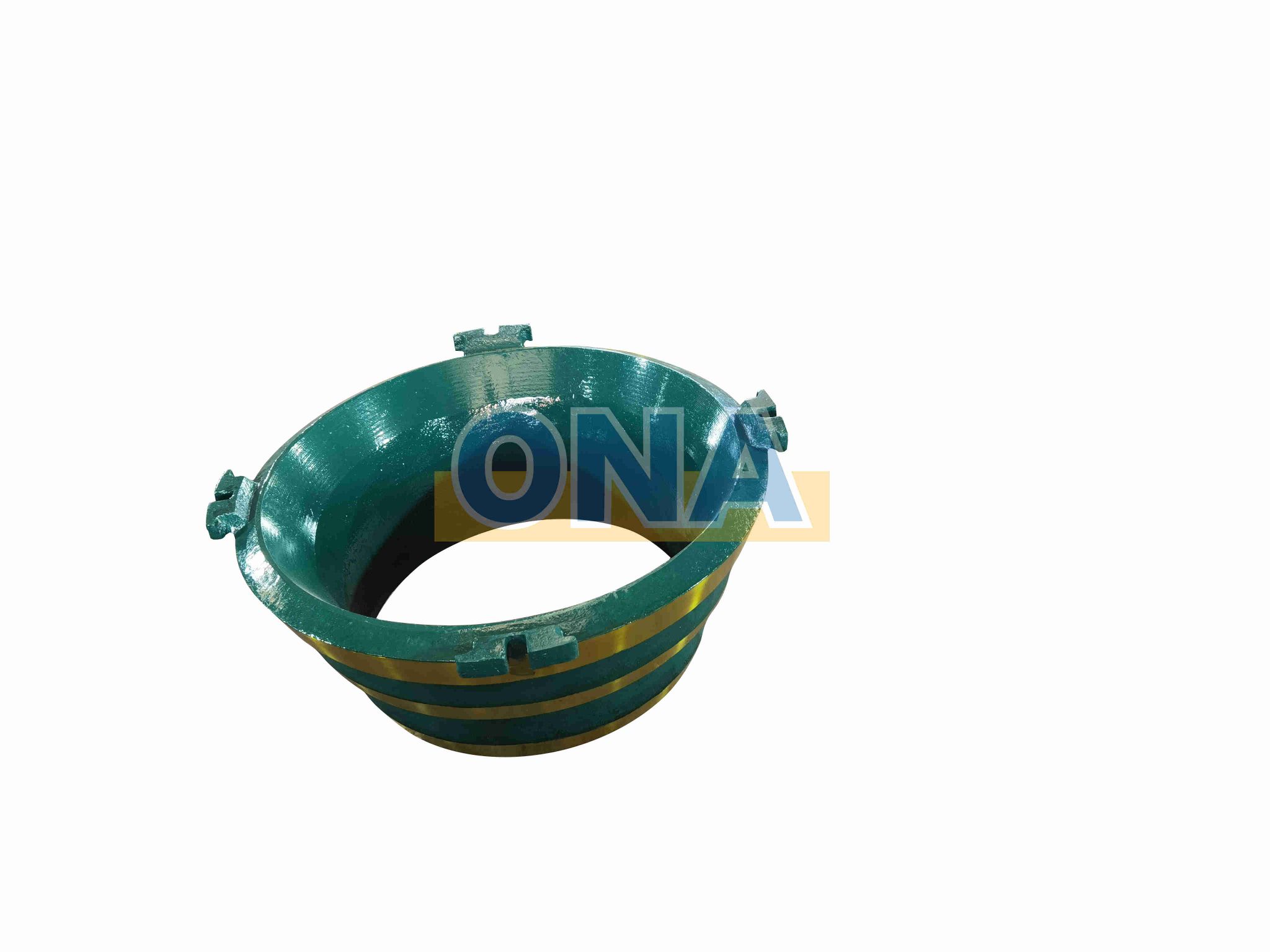

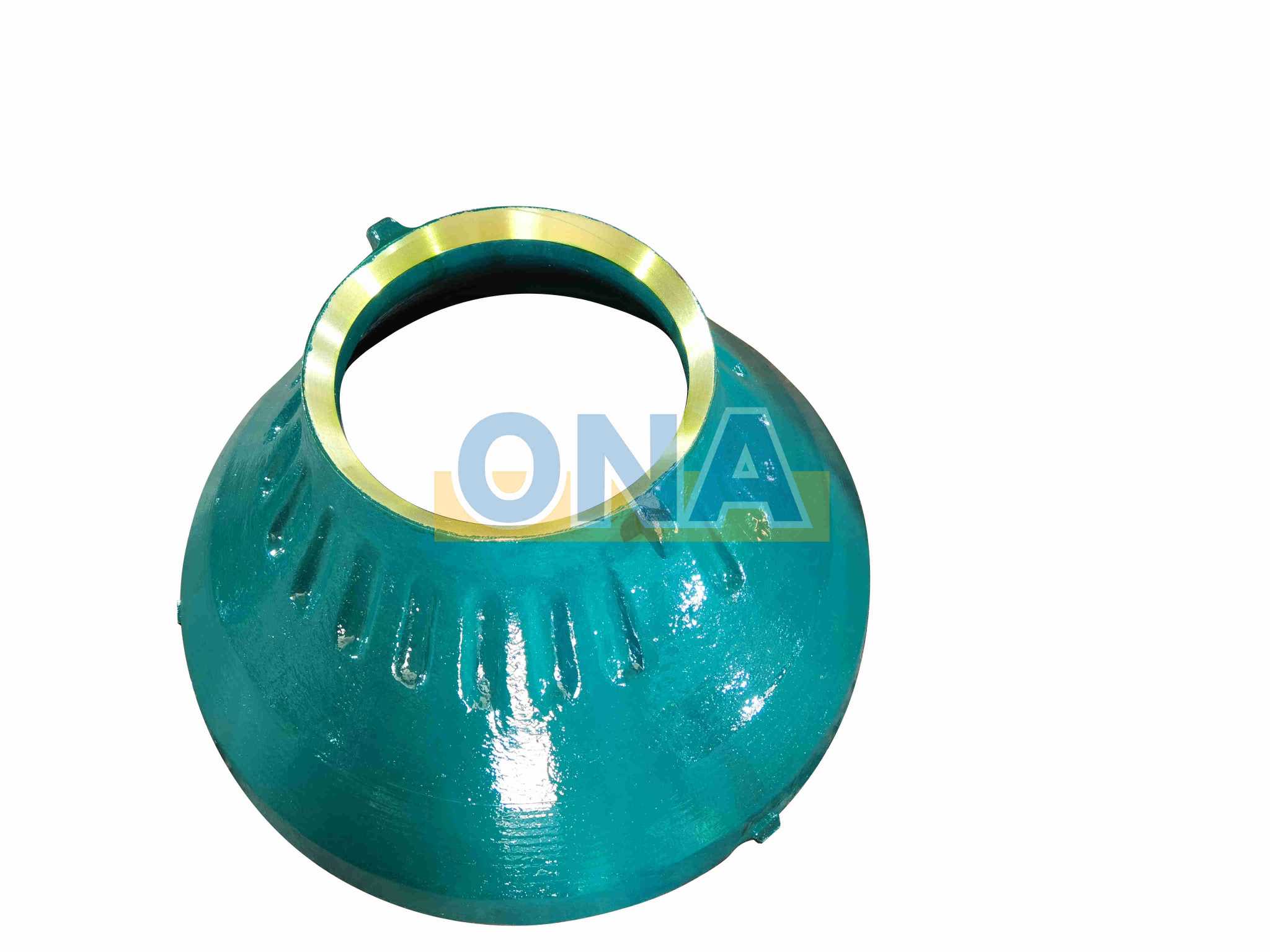

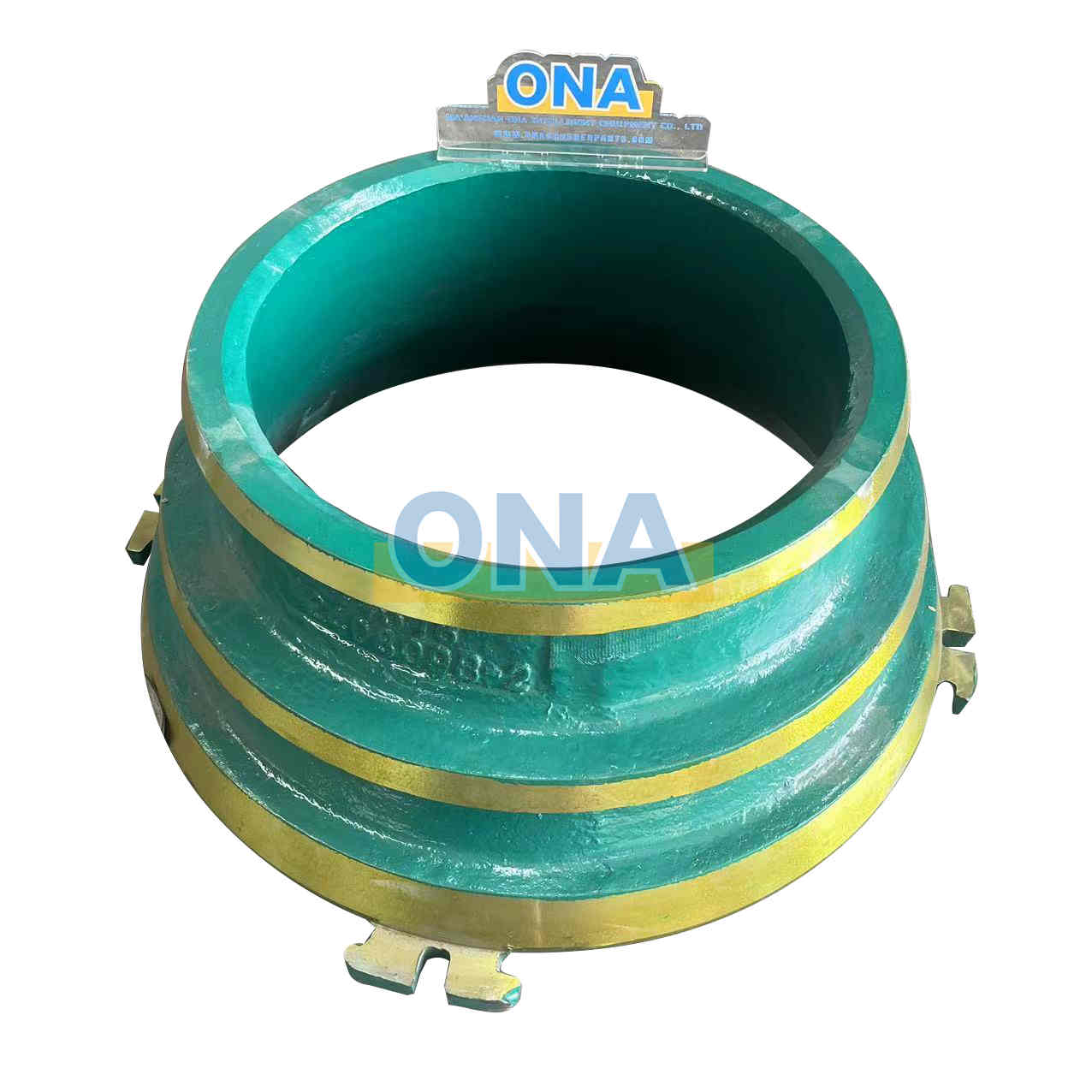

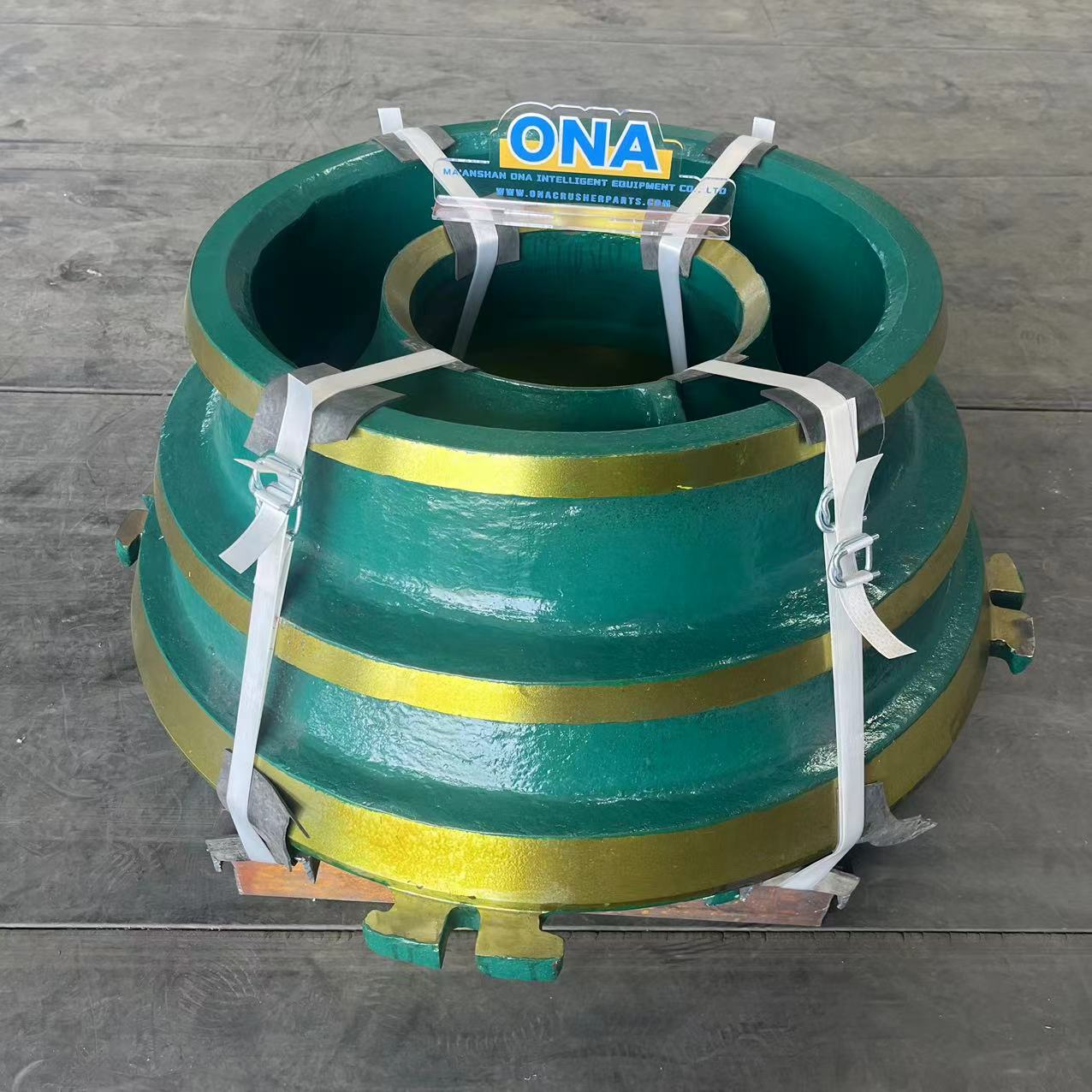

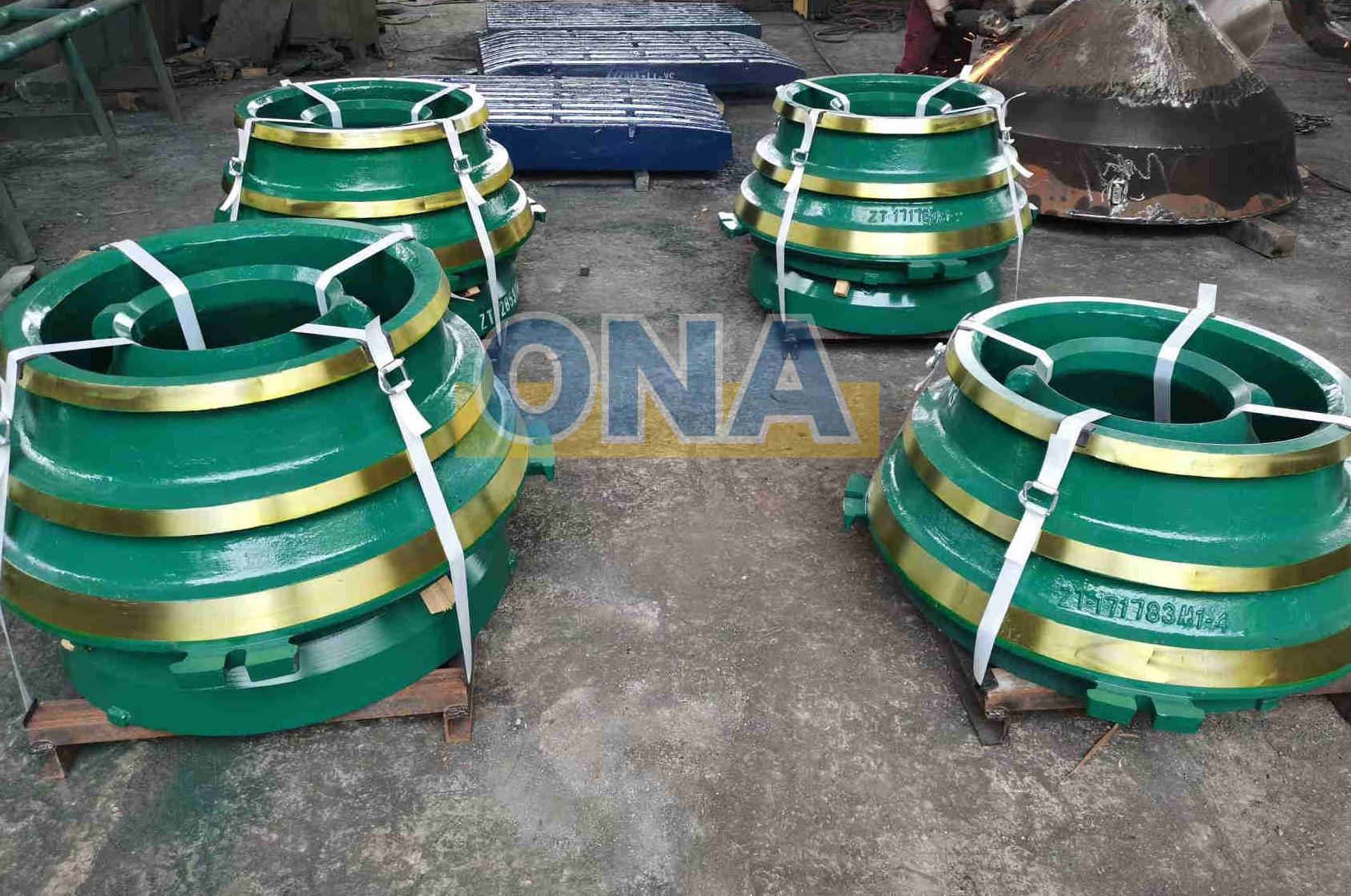

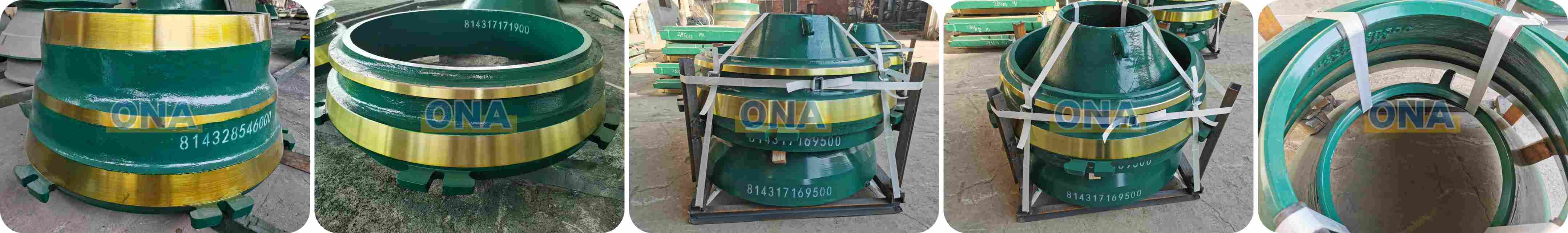

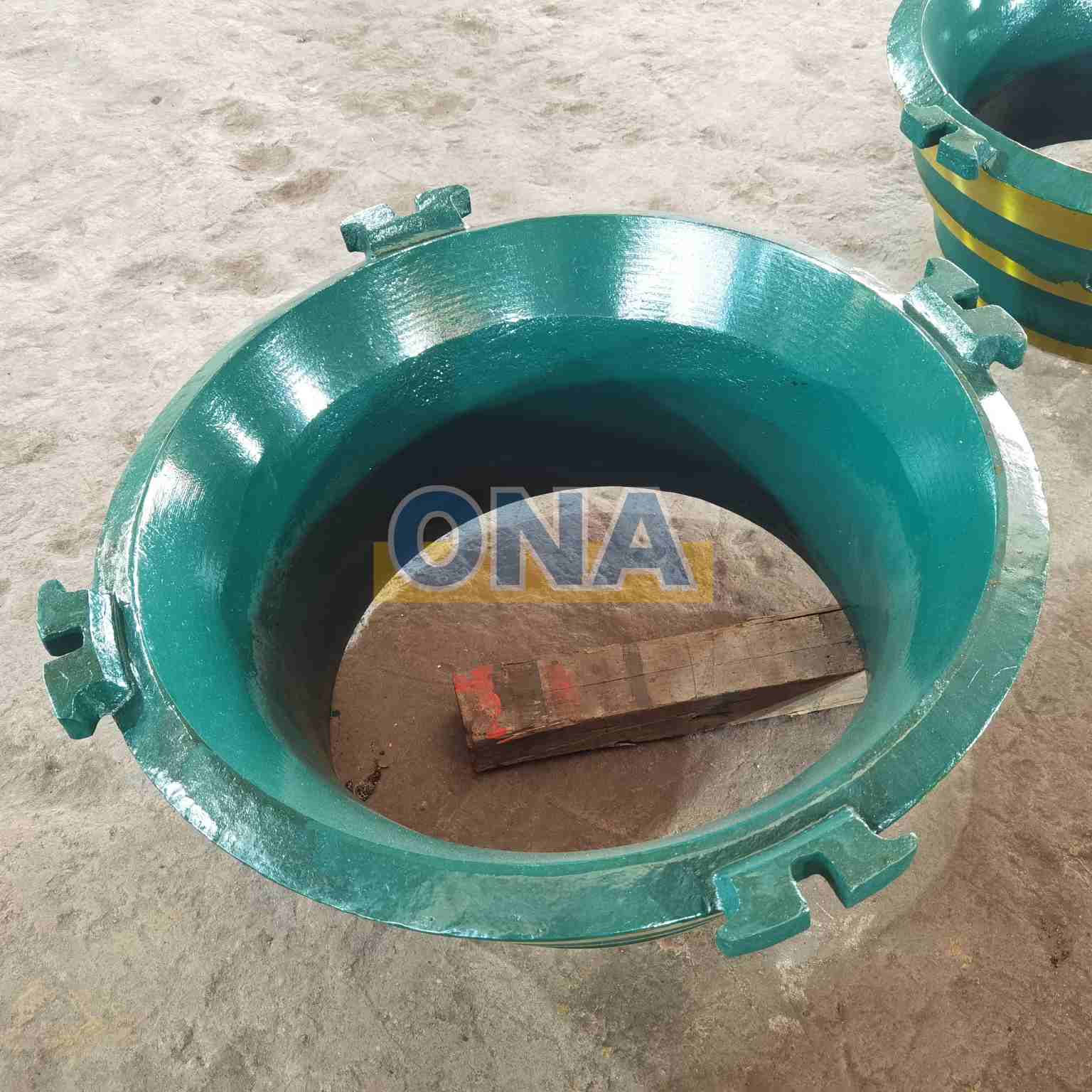

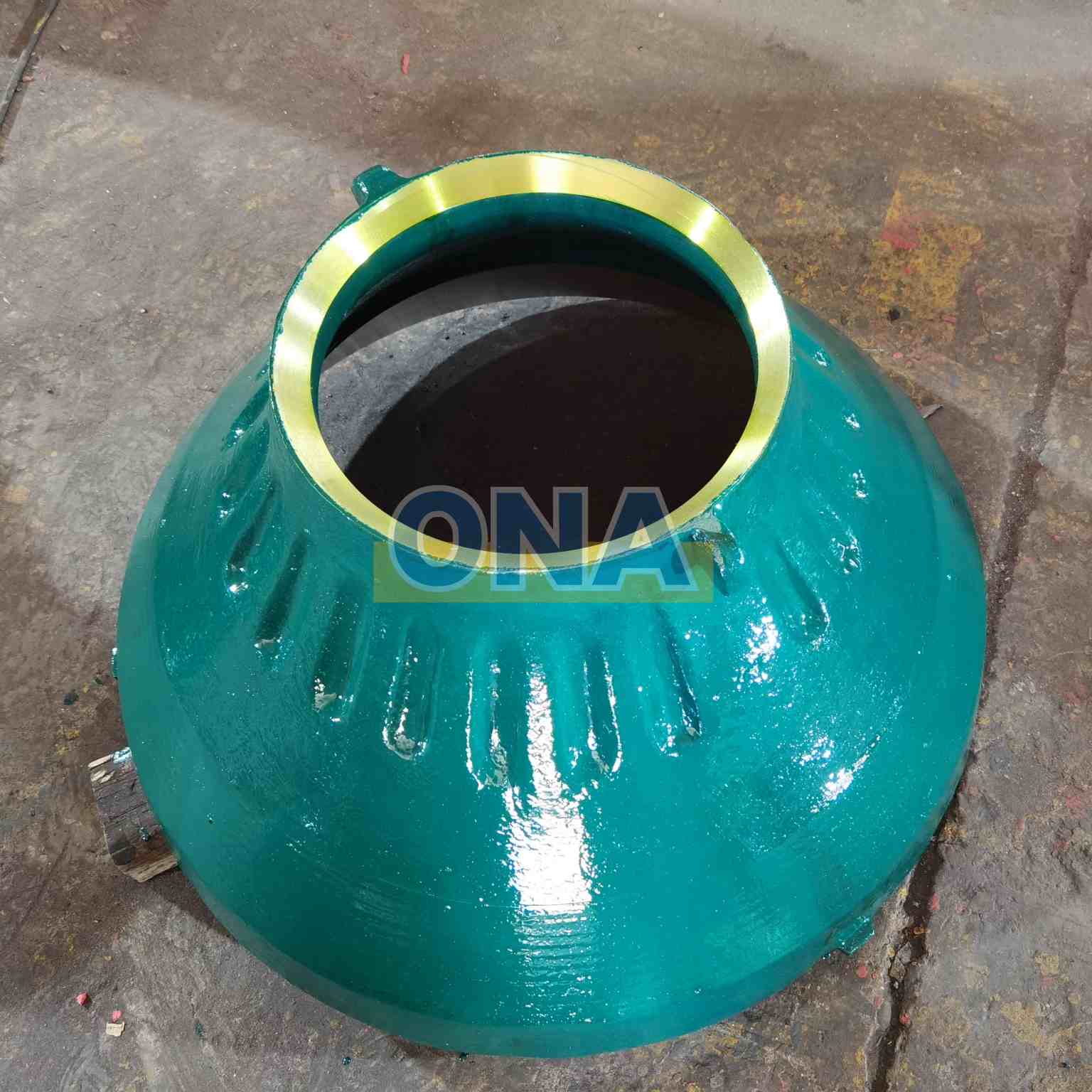

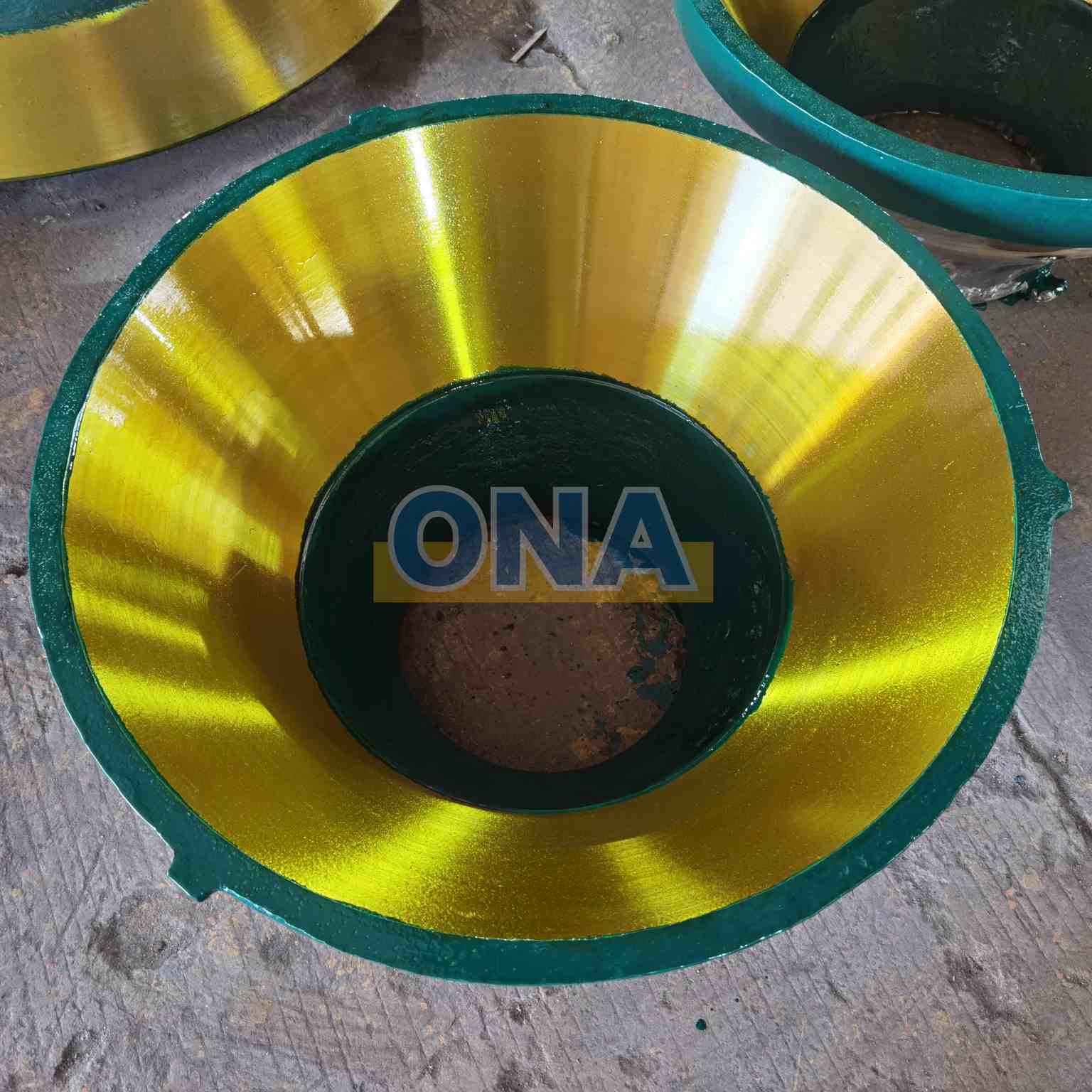

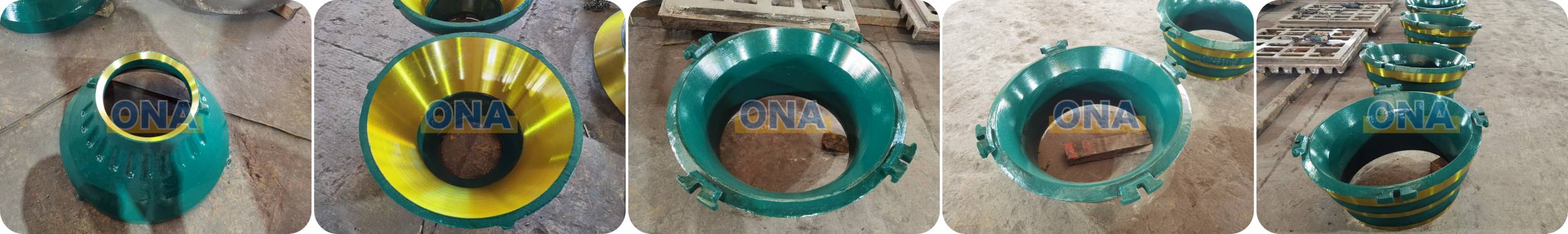

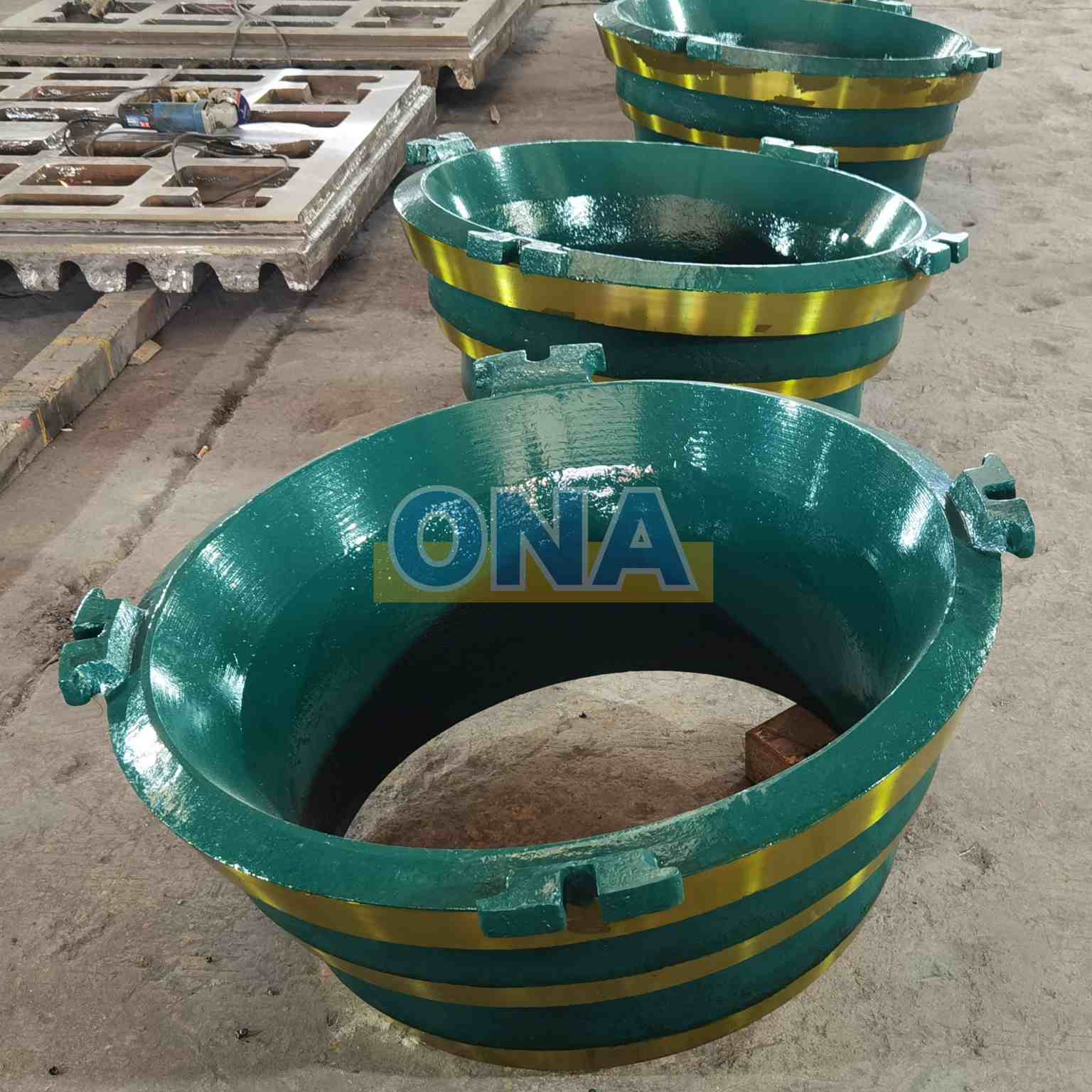

GP100 mantle and concave (bowl liner) are core consumable wear components inside GP100 cone crusher. The rotating mantle squeezes rocks against stationary concave to realize secondary & fine crushing for ores and aggregates.
Item No :
GP100Payment :
T/T, Western Union, PaypalProduct Origin :
Anhui, ChinaColor :
Green, Orange, CustomizedShipping Port :
ShanghaiLead Time :
25-30 dayOrder(MOQ) :
1
✅ Available Chamber
- EF, F, MF, M, C, EC. Multiple cavity options fit coarse, medium and fine crushing requirements for different output sizes.
Our Products
GP11F
ONA-814317169500, Crusher Mantle
ONA-814317171900, Crusher Concave
ONA-814328546000, Concave

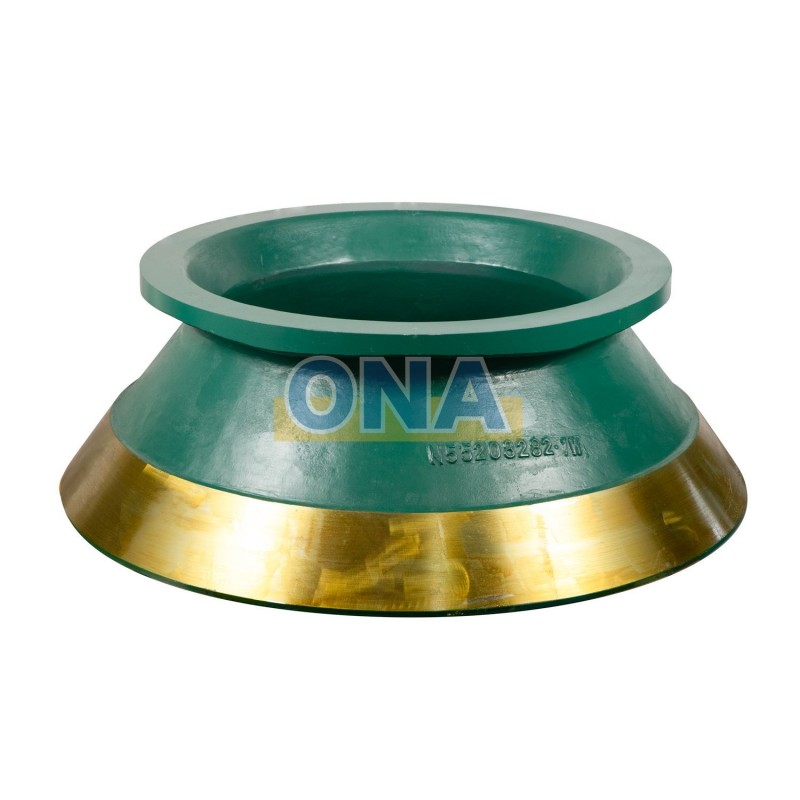

GP100 Cone Mantle & Bowl Liner
✅ Material Options
‑ Mn13Cr2: Cost‑effective for general‑abrasion quarry, limestone, aggregate crushing
‑ Mn18Cr2: Superior work‑hardening performance, longer service life for hard ore, granite, iron ore
‑ Mn22Cr2: For extreme abrasive heavy‑duty mining conditions & extremely cold weather
All castings go through strict water‑toughening heat treatment to achieve good toughness and impact hardening property. Dimension strictly follows OEM drawings for perfect interchangeable installation without modification.

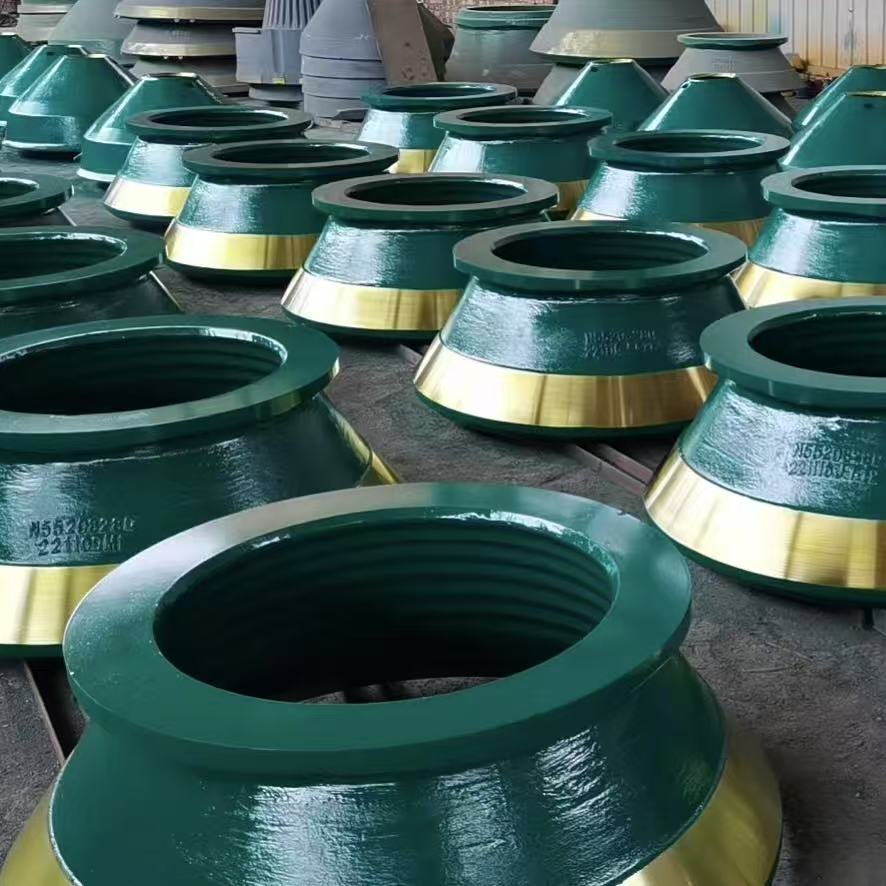

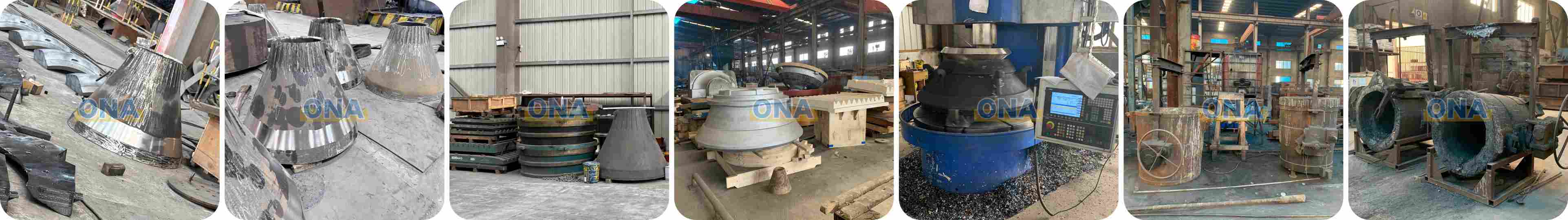

Factory Showcase
✅ Application Scenarios
Mining, quarrying, aggregate plant, mineral processing, construction material recycling. Suitable for crushing granite, basalt, iron ore, copper ore, limestone and other medium‑hard & hard stones
✅ Our Service
1. Direct aftermarket replacement matching original part numbers
2. Custom casting supported by customer technical drawings
3. Full inspection documents: chemical report, mechanical property, hardness test, UT/MT non‑destructive testing report

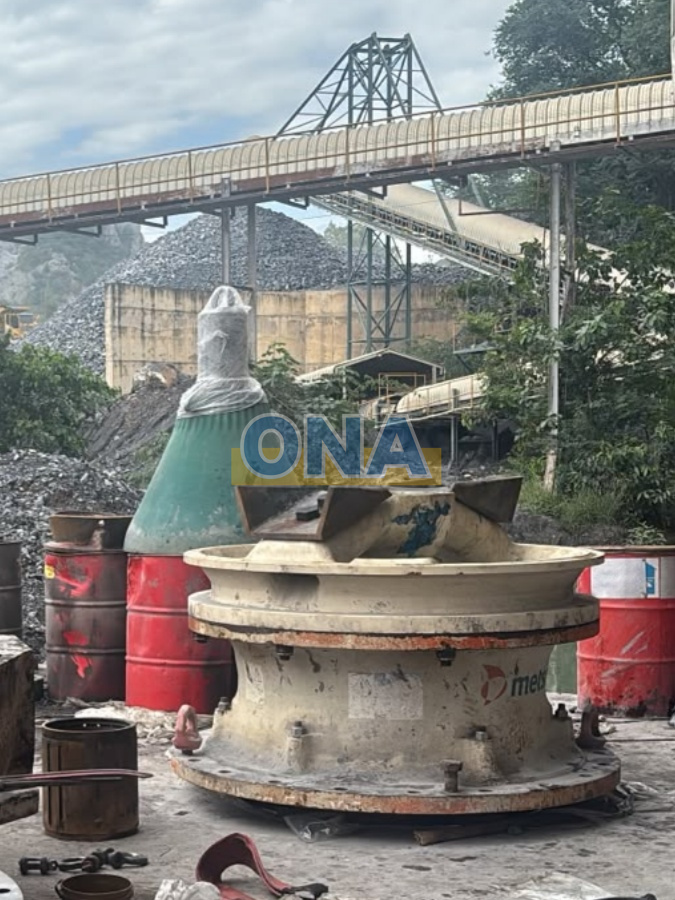

Customer Cases: Cone Crusher Wear Parts for Thailand Aggregate Quarry
Project Background
Thailand has huge demand for construction‑grade aggregates, with quarries processing granite, limestone and basalt projects. This long‑term Thai customer operates a local quarry plant, running Metso crushers for secondary and fine aggregate production.
They faced frequent liner consumption challenges: high‑abrasive rock causes fast wear on mantle and concave, short service cycles, frequent machine shutdowns for replacement, raising operation cost.
After comparing multiple aftermarket suppliers, the quarry partnered with ONA Casting for cone crusher wear spares, including GP11F, GP300S mantle, concave and other critical wear components.
After our parts were put into service at Thai quarry site:
✅ Service life of mantle & concave is improved, reducing downtime by frequent liner replacement
✅ Perfect fitting, no re‑work needed during installation
✅ Stable output gradation, less unplanned maintenance stops
✅ Customer keeps repeat bulk orders, and expands cooperation to jaw plates, blow bars, bronze bushings and other crusher spares.
Related Parts
| ONA-N11951712 | GP550 Mantle | ONA-814328537700 | GP100 Concave |
| ONA-N11951717 | GP550 Concave | ONA-814317178300 | GP100 Bowl Liner |
| ONA-N11944214 | GP200 Bowl Liner | ONA-814390523400 | GP11M Concave |
| ONA-814391704400 | GP200S Concave Lower | ONA-814391704500 | GP200S Concave Upper |
| ONA-814329276100 | GP300S Concave Lower | ONA-814329276200 | GP300S Concave Upper |
| ONA-814320046000 | GP11F Concave |
FAQ
Q: How do I determine the right liner plate for my crusher model?
A: Provide us with your crusher’s make, model, and part number. We’ll match OEM specifications or recommend upgrades for improved performance.
Q: What signs indicate that a liner plate needs replacement?
A: Monitor for:
Decreased production output.
Irregular product sizing.
Visible cracks, thinning, or 60–70% wear depth.
Q: Can GP liners be customized for non-standard crushers?
A: Yes! We offer CAD-based design services to create liners for obsolete or modified equipment.
Q: Do you provide installation guidance?
A: Absolutely. We supply step-by-step manuals, torque specifications, and 24/7 technical support.

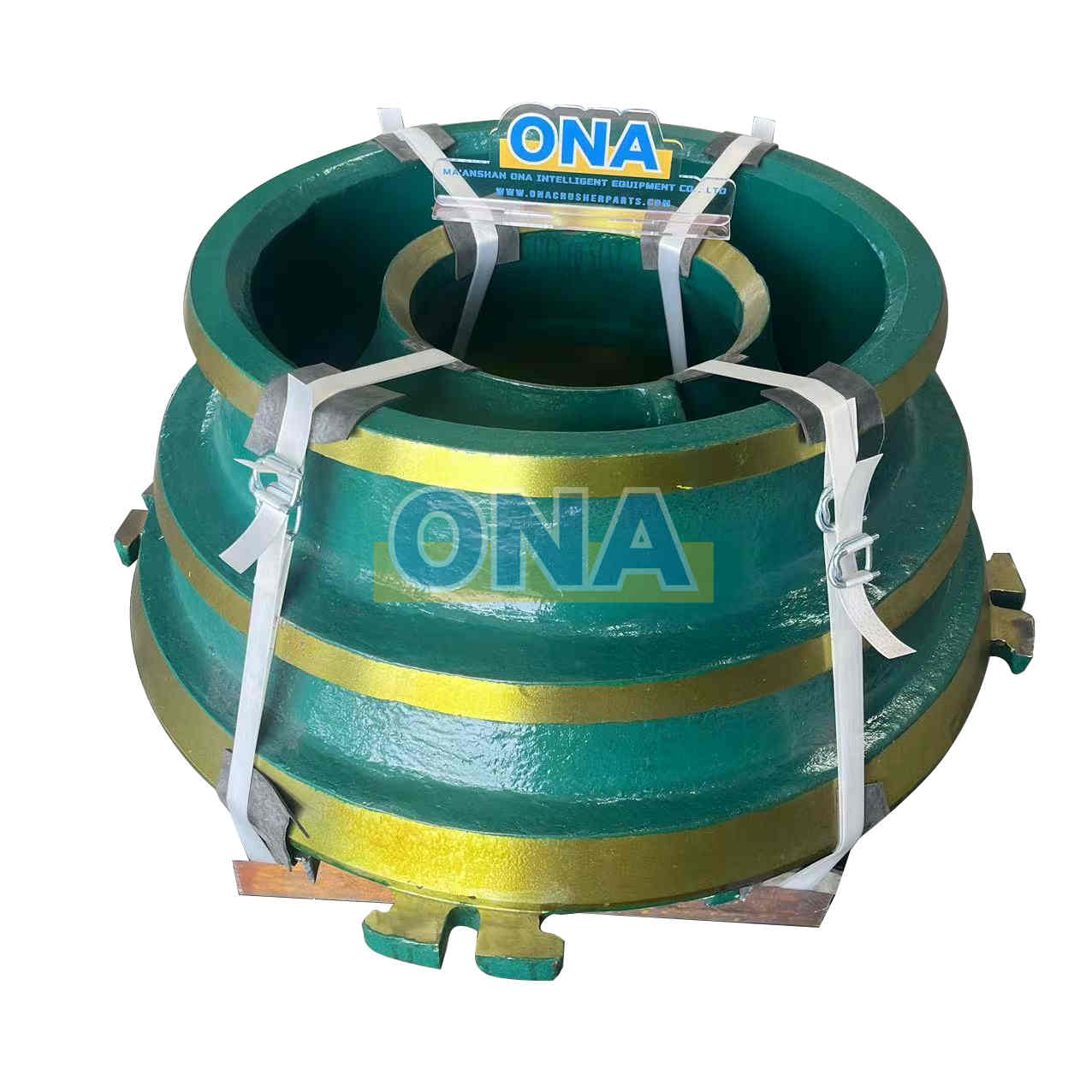

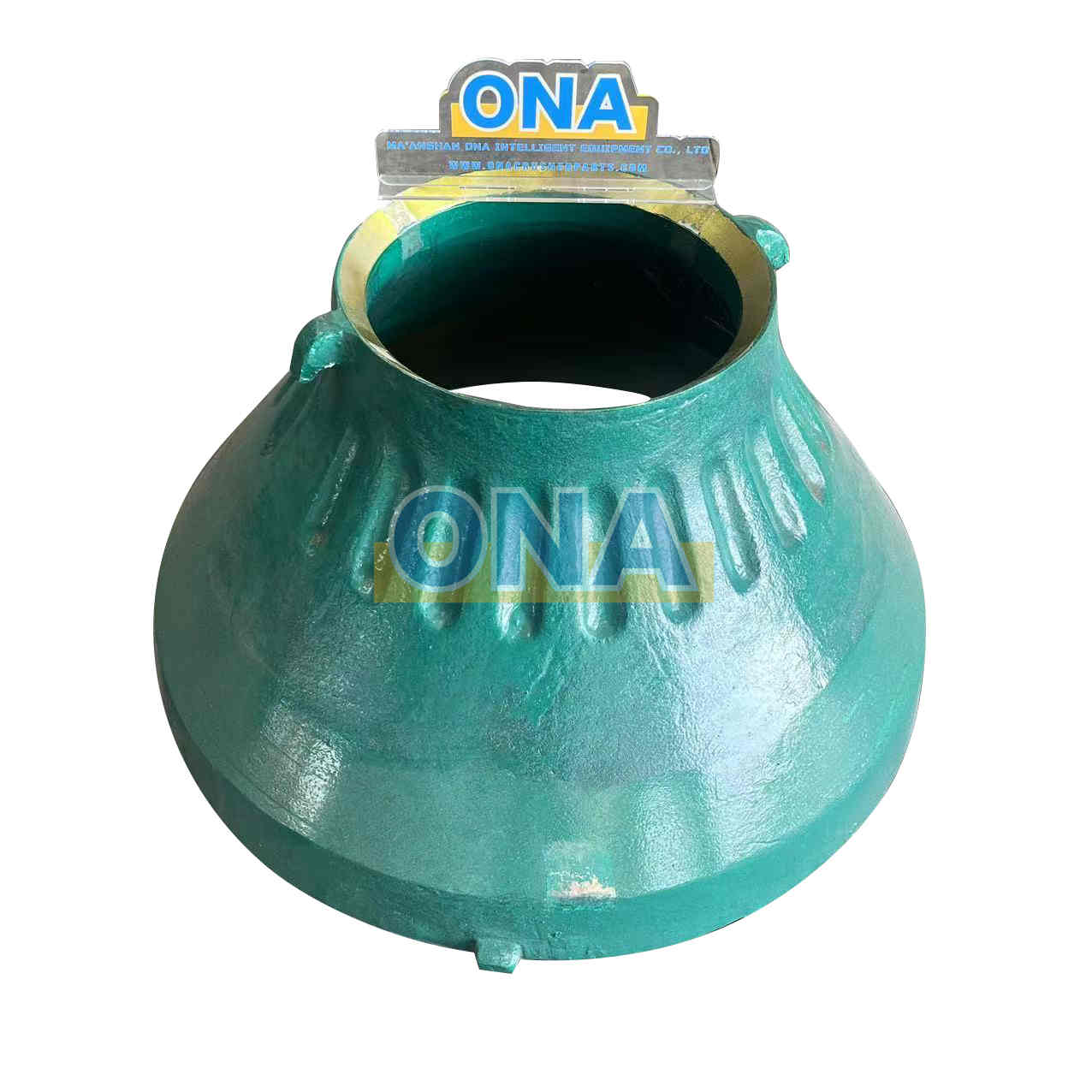

Mantle and concave, which suit to Metso Nordberg cone crusher HP100, HP200, HP300, HP400, HP500, HP800, HP3, HP4, HP5, HP6.
Details

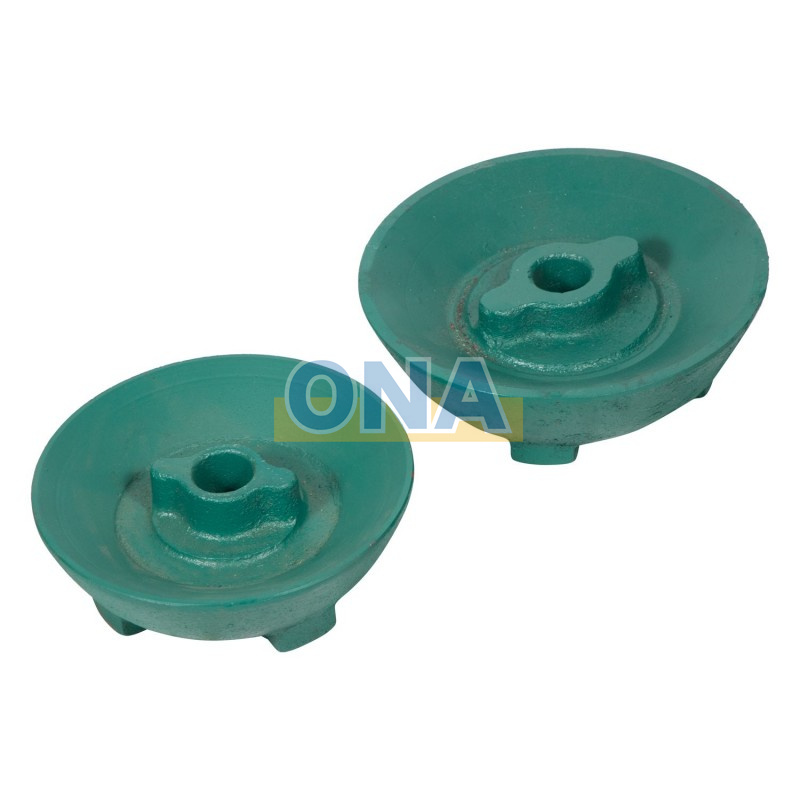

The crusher feed cone is a key wear-resistant part designed to evenly distribute material, prevent uneven feeding and clogging, protect impeller liners, and improve the particle shape of the finished product.
Details

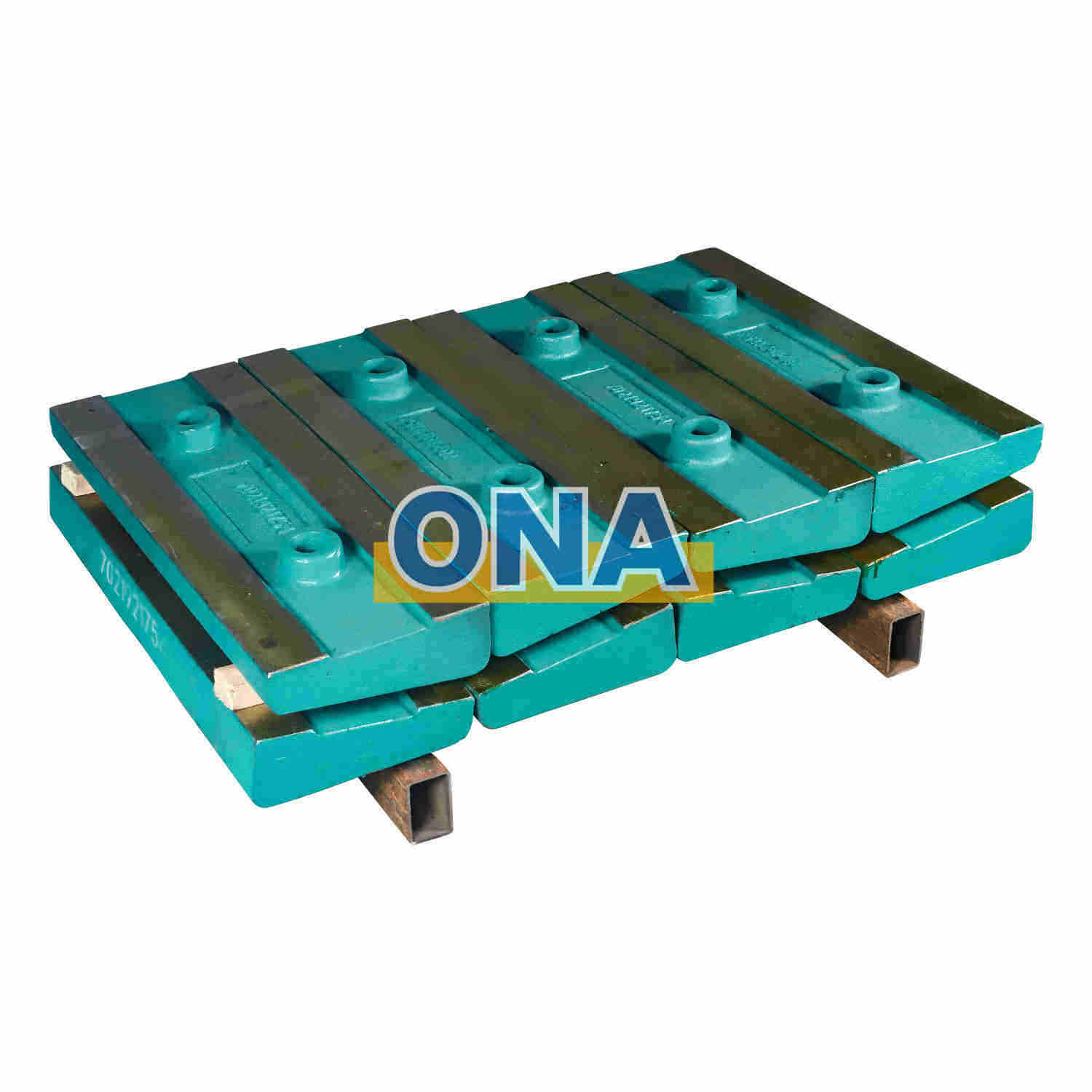

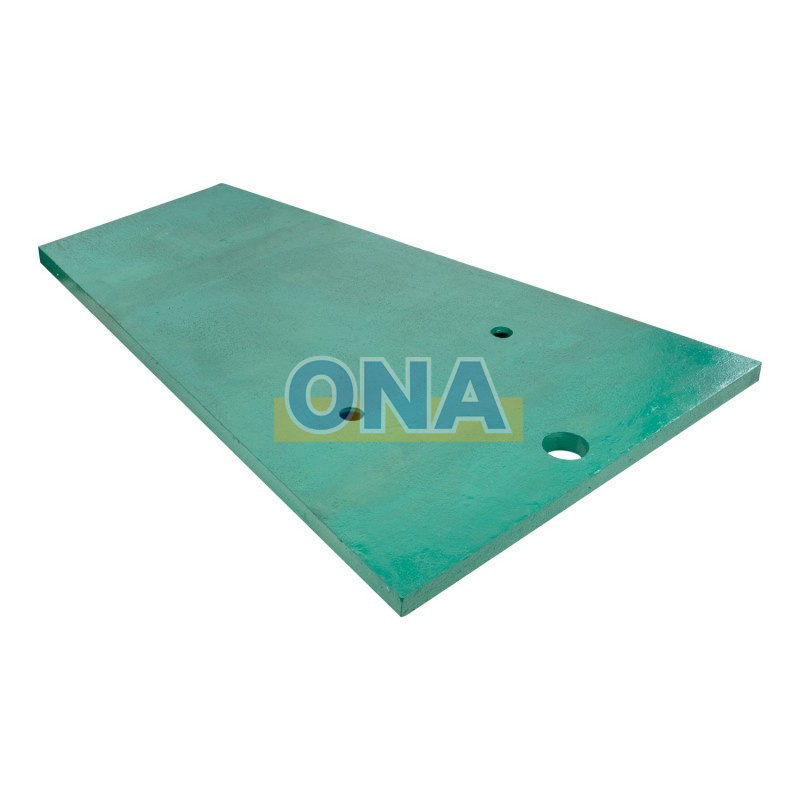

ONA Casting produced jaw crusher wear parts cheek plate with OEM quality. As a key wear‑resistant spare part, it protects the crusher side plate from abrasion and impact of raw materials, extends the service life, and maintains stable crushing performance.
Details

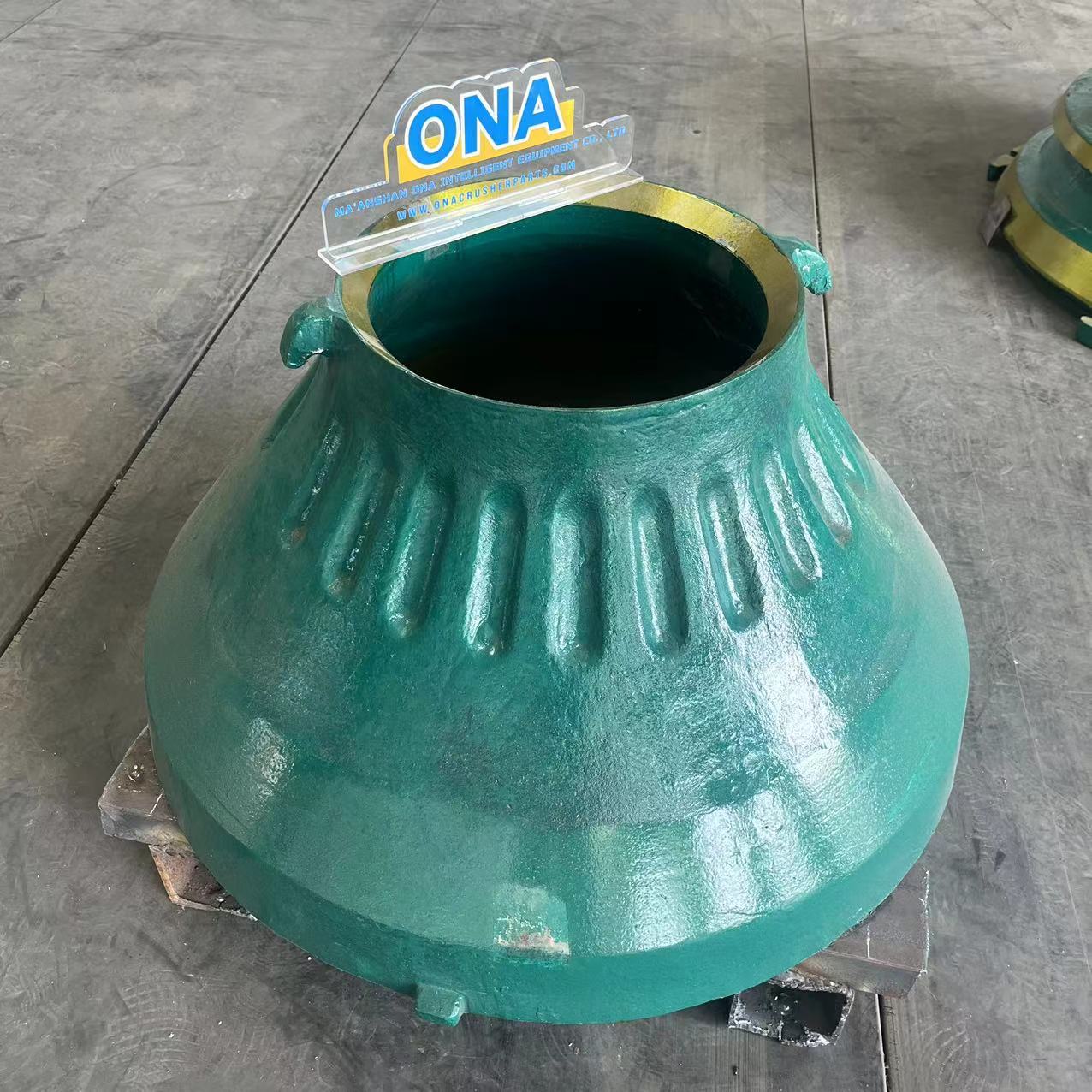

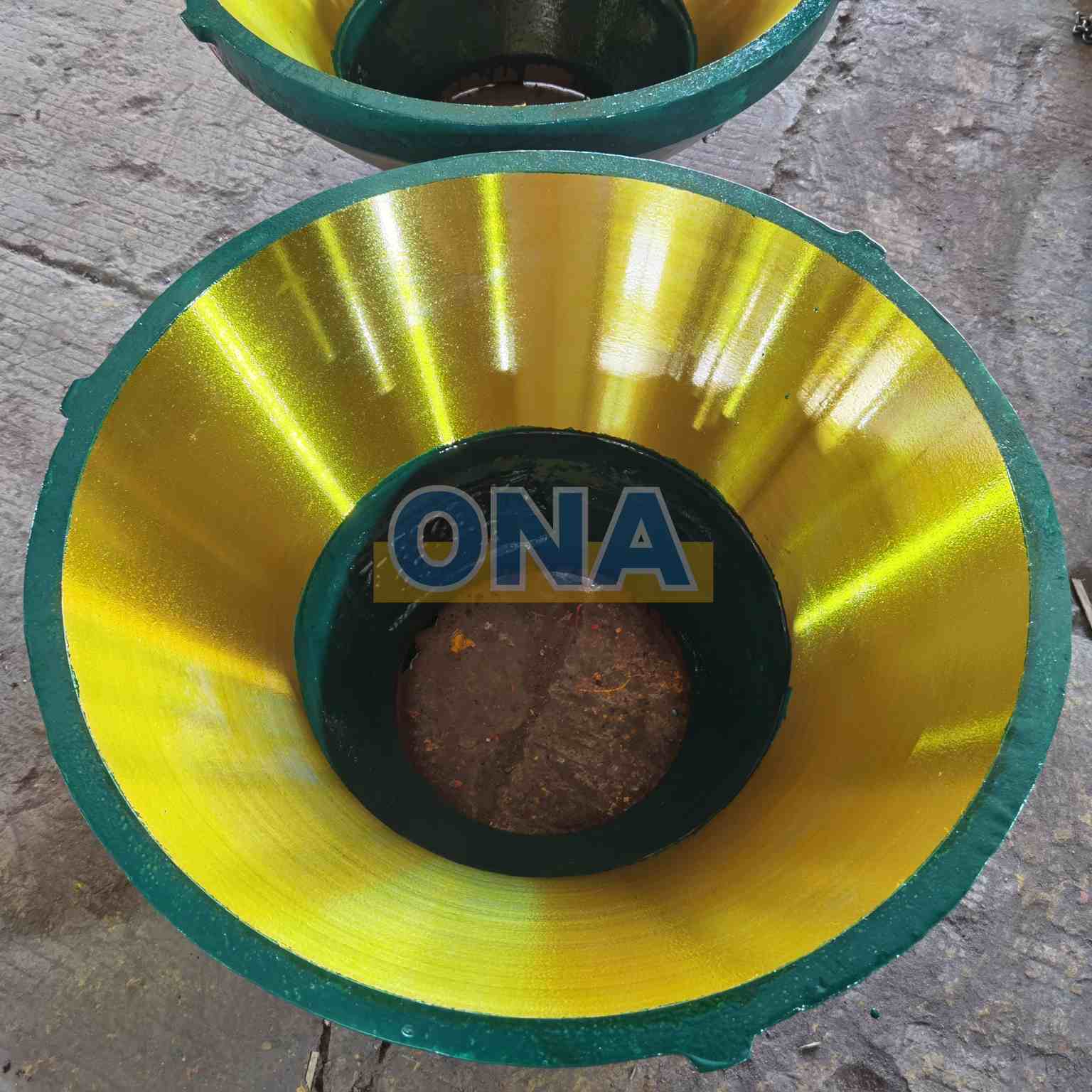

GP100 mantle and concave (bowl liner) are core consumable wear components inside GP100 cone crusher. The rotating mantle squeezes rocks against stationary concave to realize secondary & fine crushing for ores and aggregates.
Details
ONA is a foundry for high manganese casting parts and high chrome casting liners which suit to Metso, Sandvik, Symons, Telsmith, Trio, Terex, etc..
Details

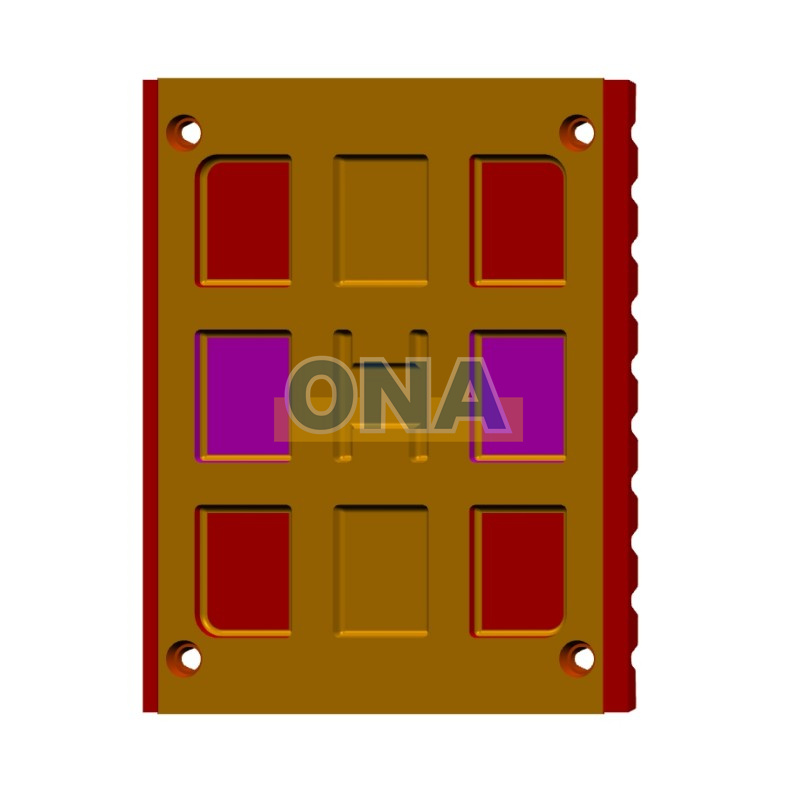

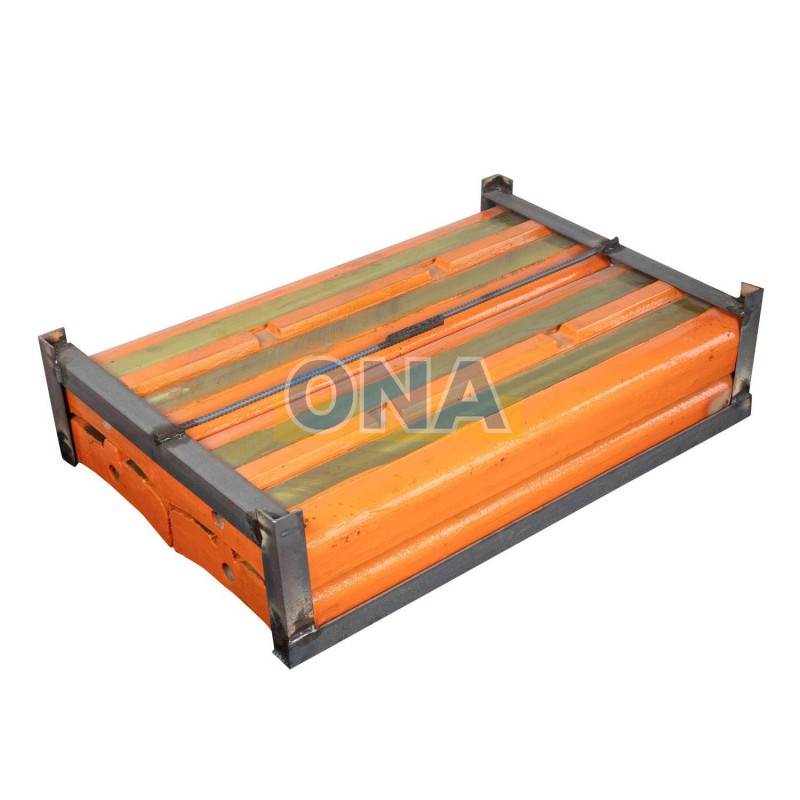

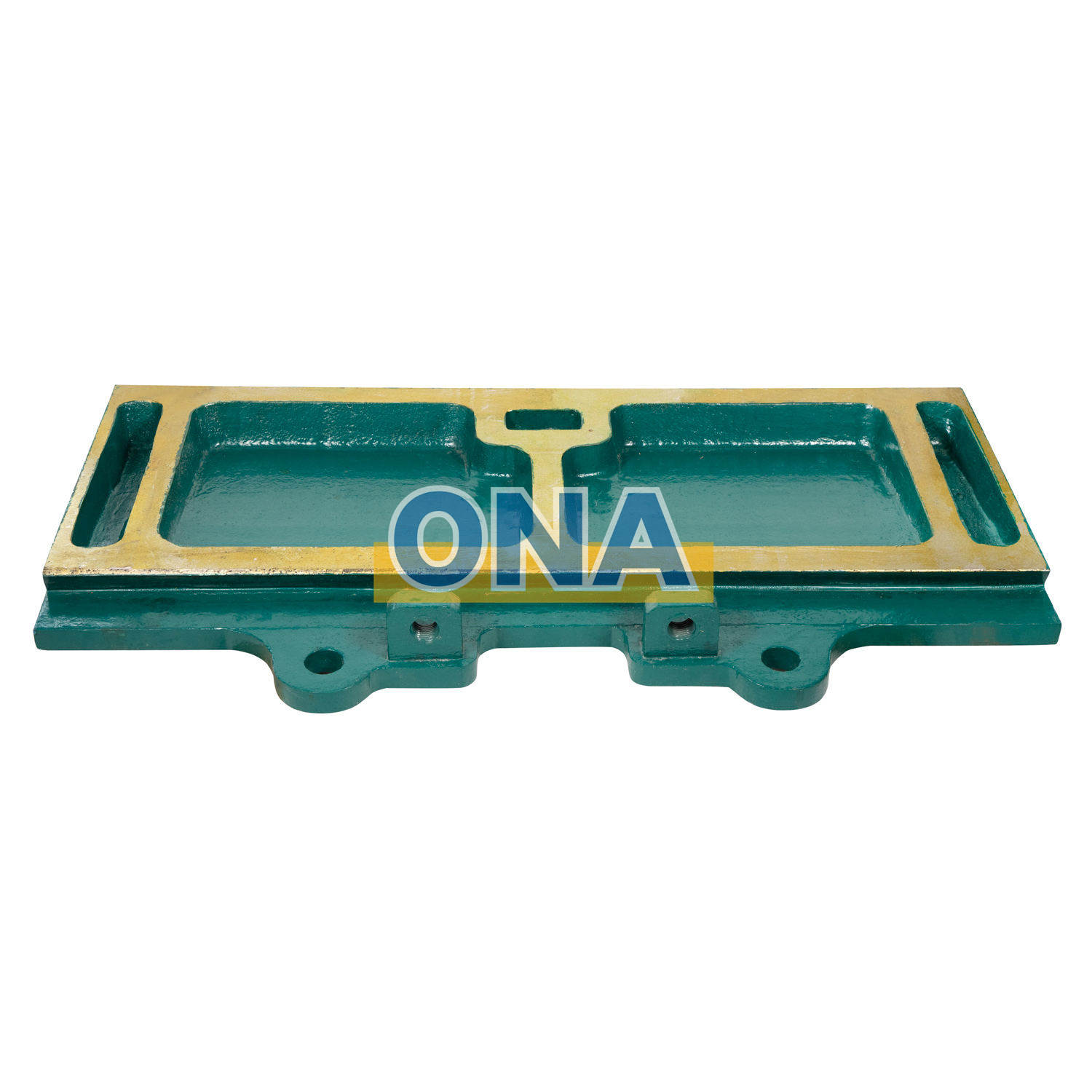

NP Series Breaker Plate Liner It can also be customized according to the drawings or samples provided by customers to meet the needs of different users.
