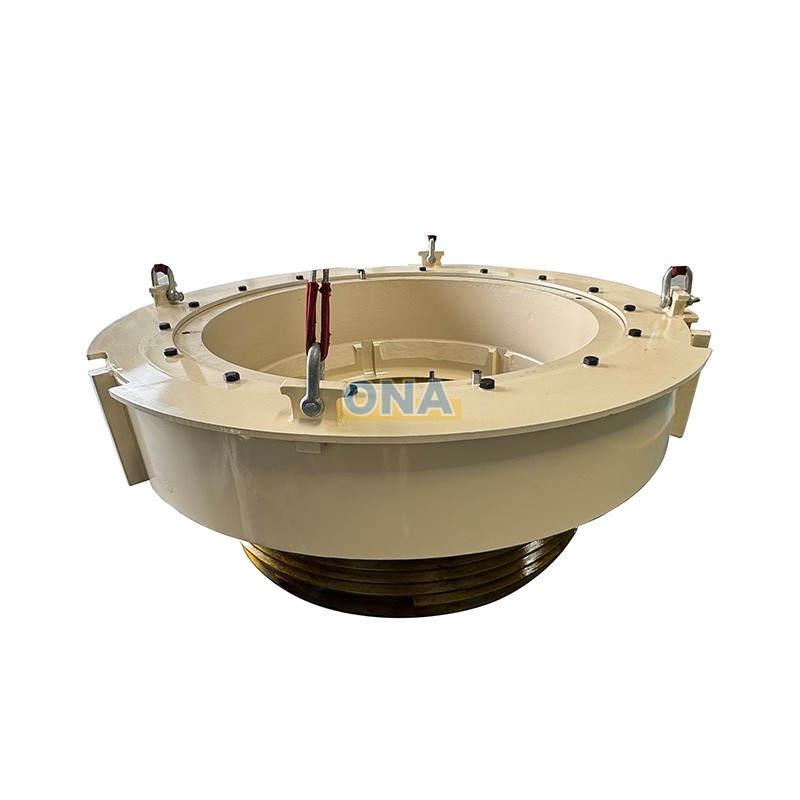

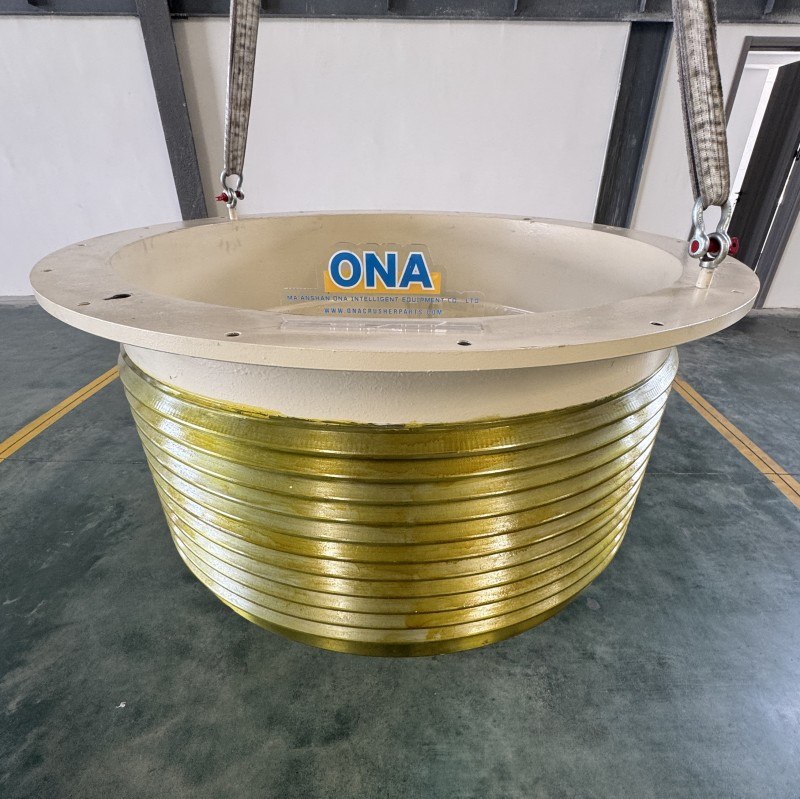

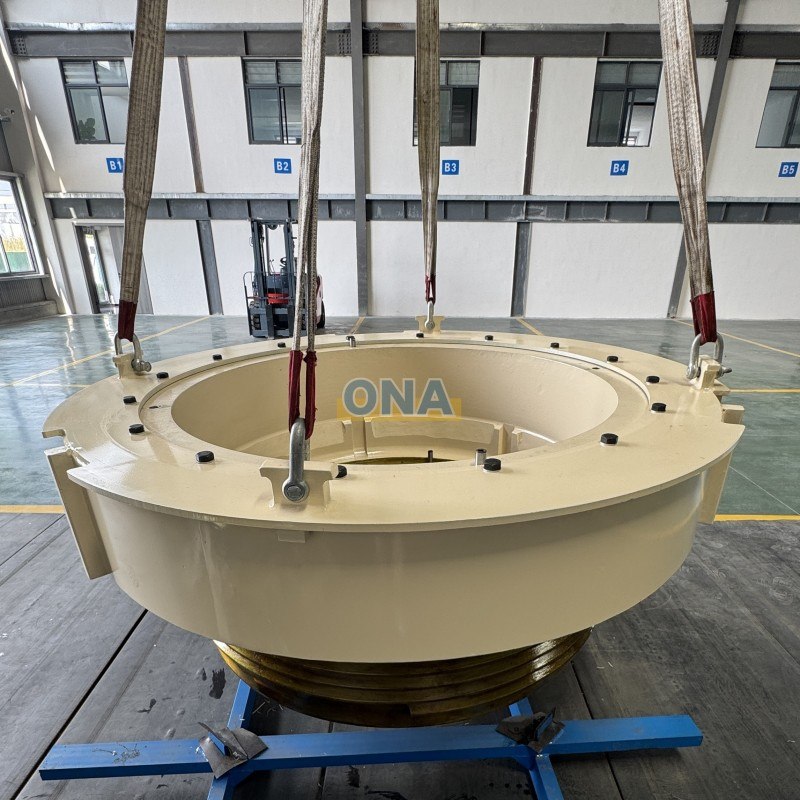

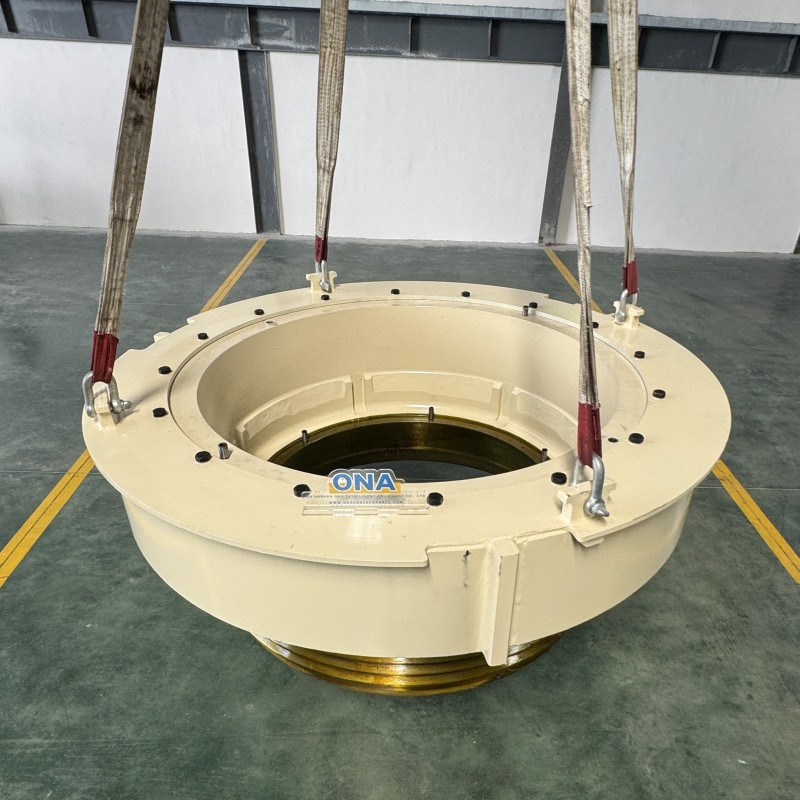

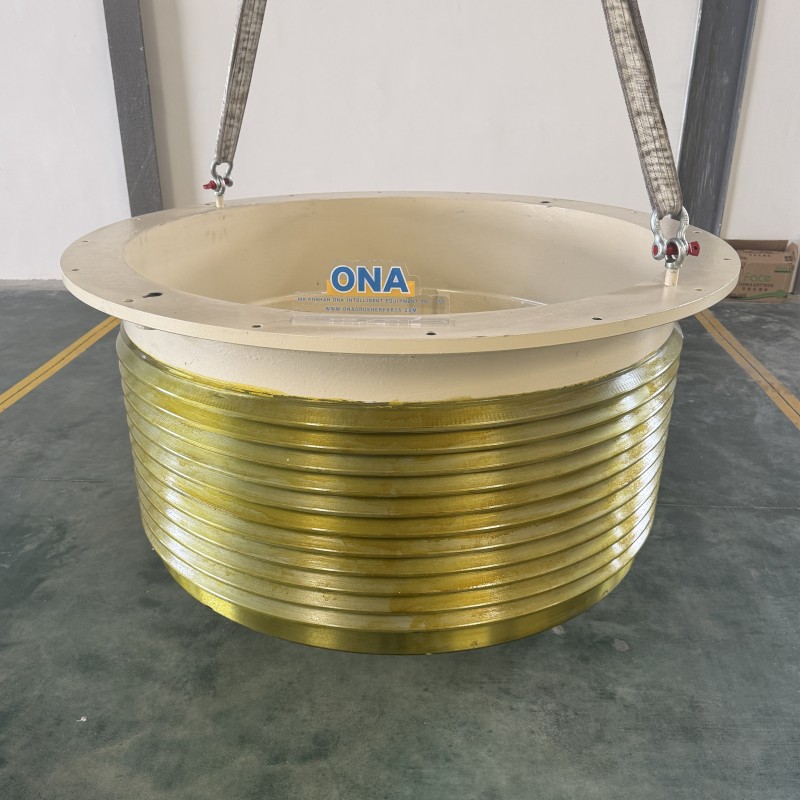

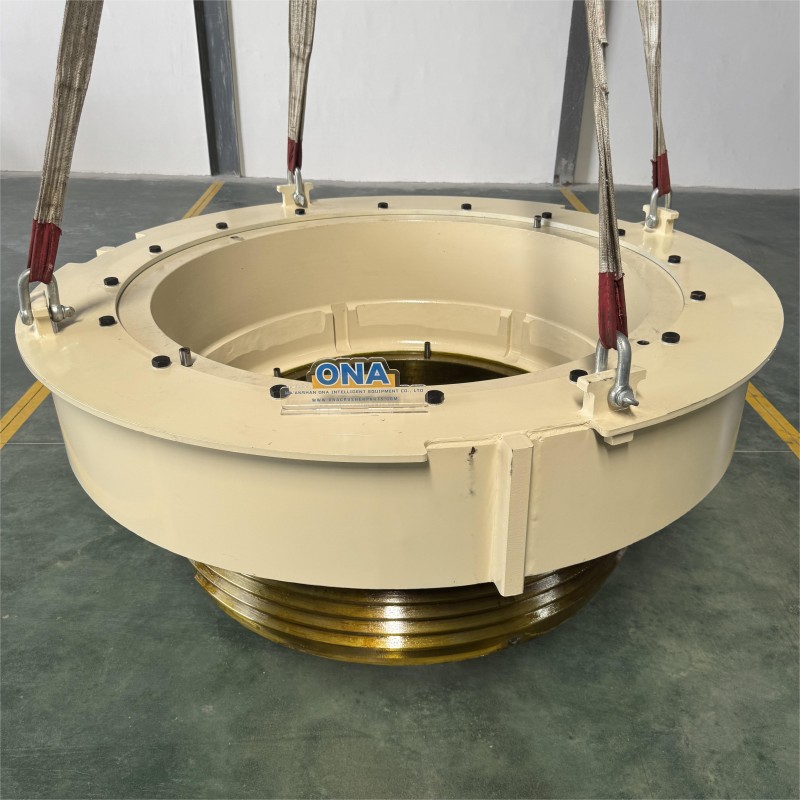

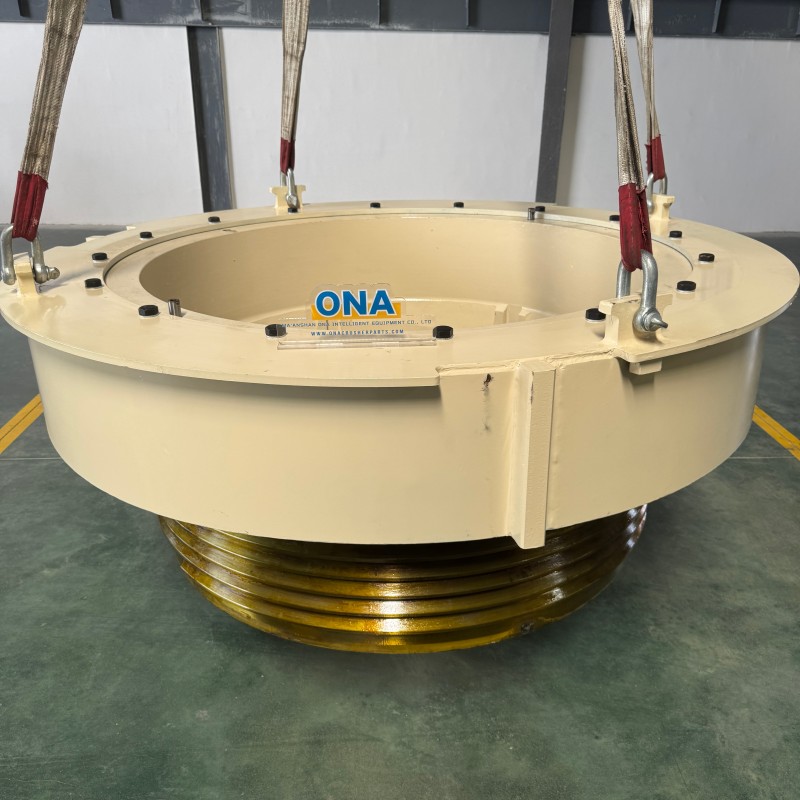

Cone Crusher Parts HP400 Bowl Assembly

Bowl Assembly: 1093040116 Suit Metso HP 400

Quantity: 1 piece/unit

Material: Alloy Steel

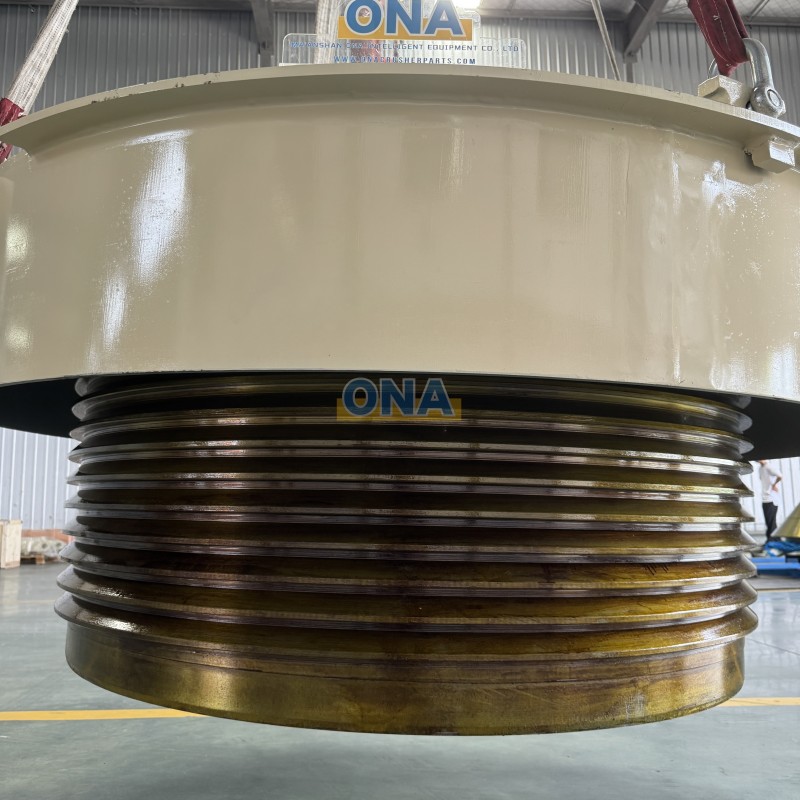

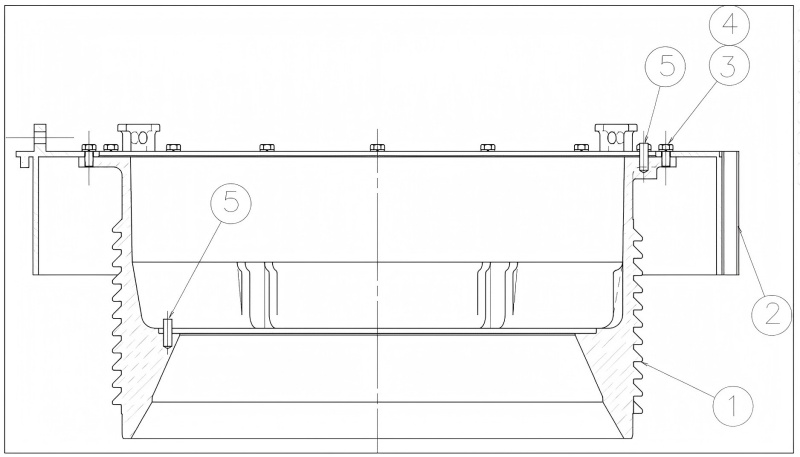

Installation Location: Externally threaded, the external threads screw onto the threads of the clamping ring and adjusting ring. The bowl liner is mounted internally. This is one of the machine's key components for crushing ore.

Bowl in Bowl Assy:

The main functions of the bowl assy in a crusher include the following:

1. Forming the Crushing Chamber: The bowl assembly works in conjunction with the head assembly to form the crushing chamber. The crushing chamber is the working area for crushing material, responsible for storing and squeezing the material. The interaction between the crushing wall and the mortar wall achieves material crushing.

2. Support and Fixation: The bowl assembly is fixed to the foundation via the frame, providing support and fixation. It ensures stable operation of other crusher components, transmits crushing force, and provides rigid support.

3. Cooperating with the head assembly for crushing: The bowl assembly works in conjunction with the head assembly, crushing the material through the slow rotation and lateral stroke of the head assembly. The bowl assembly does not rotate, while the head assembly rotates slowly and performs a lateral stroke, generating a crushing load to complete the material crushing operation.

4. Bearing the crushing load: During the crushing process, the bowl assembly bears radial and circumferential loads, ensuring the stability and efficiency of the crushing process. The coordination between mantle liner and concave cone crusher creates a stable crushing environment.

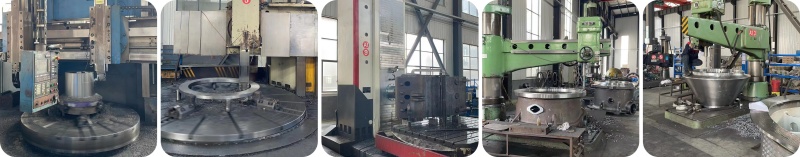

Production

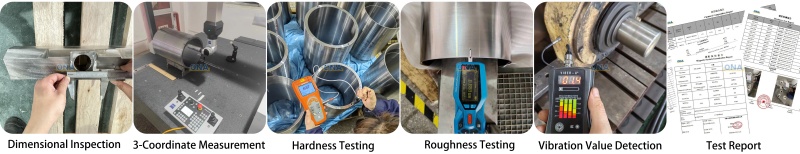

Test
