Reliable Stone Crusher Parts Socket Liner for Cone Crusher

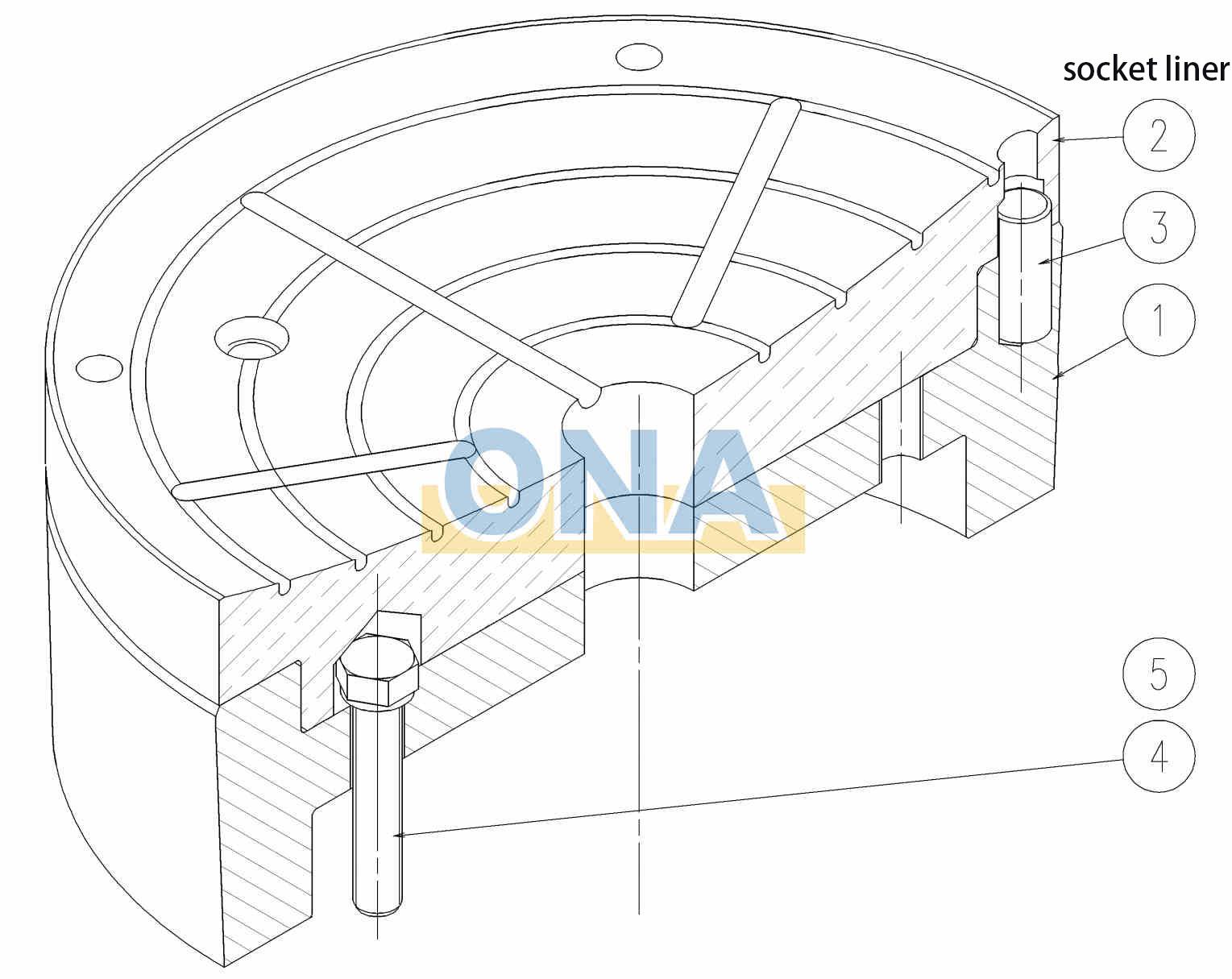

The socket liner serves as the support and positioning component of the head ball. The socket liner is made of copper alloy and is installed on the socket through interference fitting. It is installed on the top of the main shaft together with the socket.

The main functions of the socket liner include the following:

1. Load bearing: The socket liner withstands the axial crushing load and lateral load transmitted from the head, restraining the head from rotating and swinging about the bearing's center, thereby ensuring stable operation of the crusher.

2. Friction and wear reduction: The socket liner is typically spherical in shape, which reduces friction between the head and the bearing, reducing wear and extending the service life of the equipment. The surface of the socket liner often features raised geometric features, which increase the contact area with the material and improve wear resistance. Resistance

3. Support and Guidance: In a multi-cylinder cone crusher, the socket liner supports and guides effectively, maintaining the head at an optimal working angle and improving crushing efficiency.

4. By reducing the coefficient of friction and energy consumption, the crushed material is evenly crushed in all directions, ensuring that the final product meets the required particle size.

5. Self-Alignment: The socket liner features a self-alignment function that automatically adjusts the bearing centerline angle, ensuring consistent axial contact between the bearing's tungsten metal surface and the journal. This ensures a constant bearing center, reducing vibration and wear.

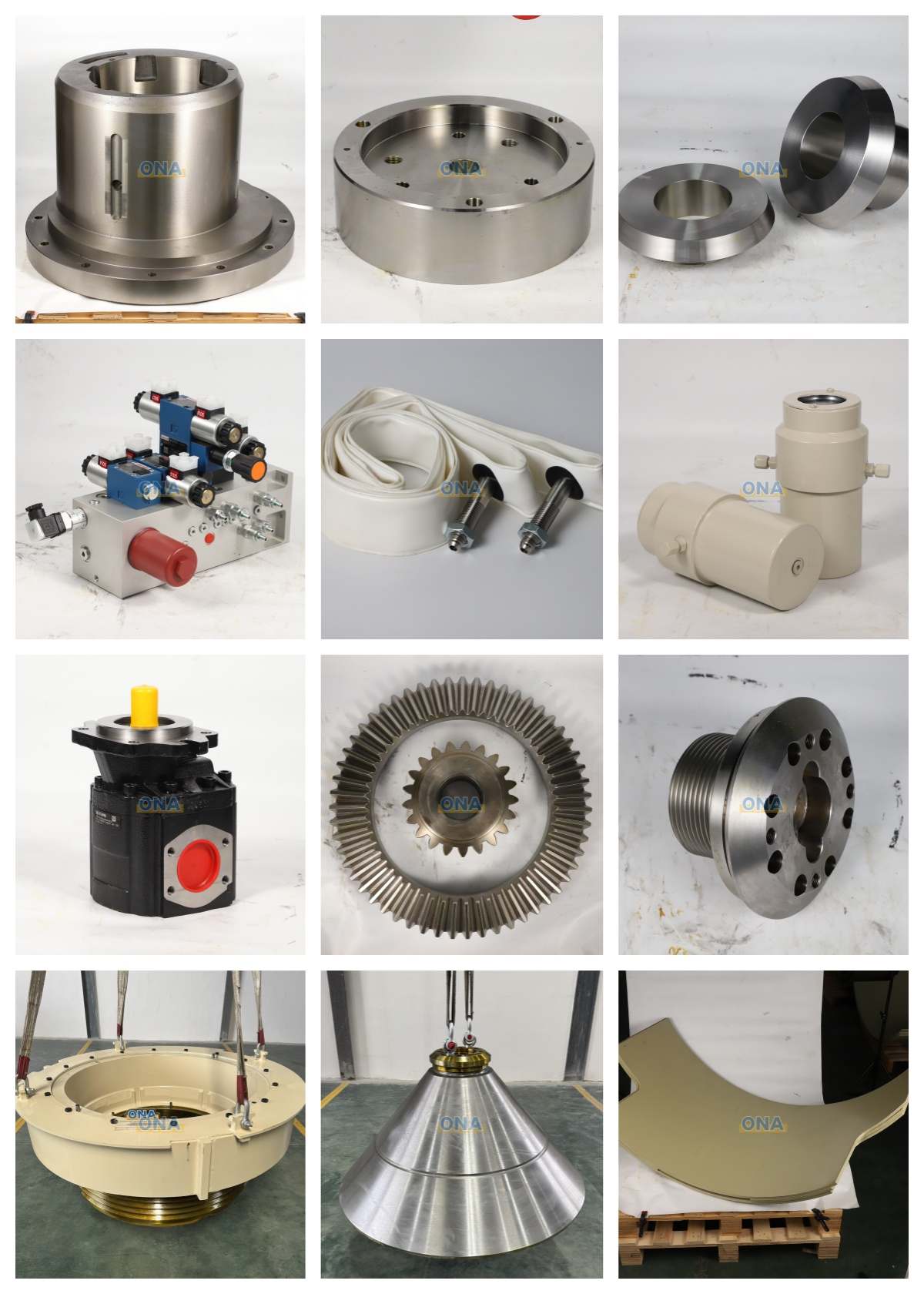

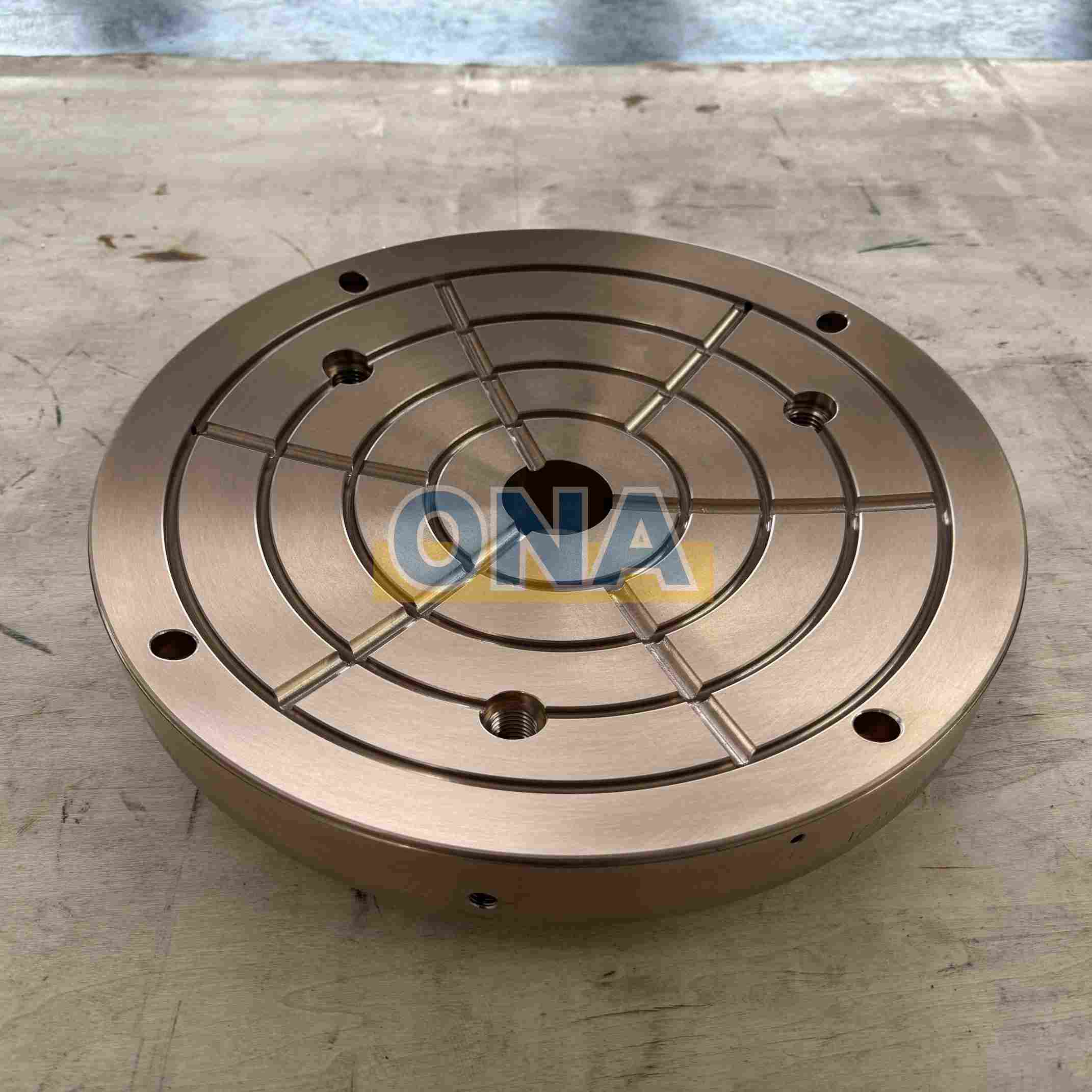

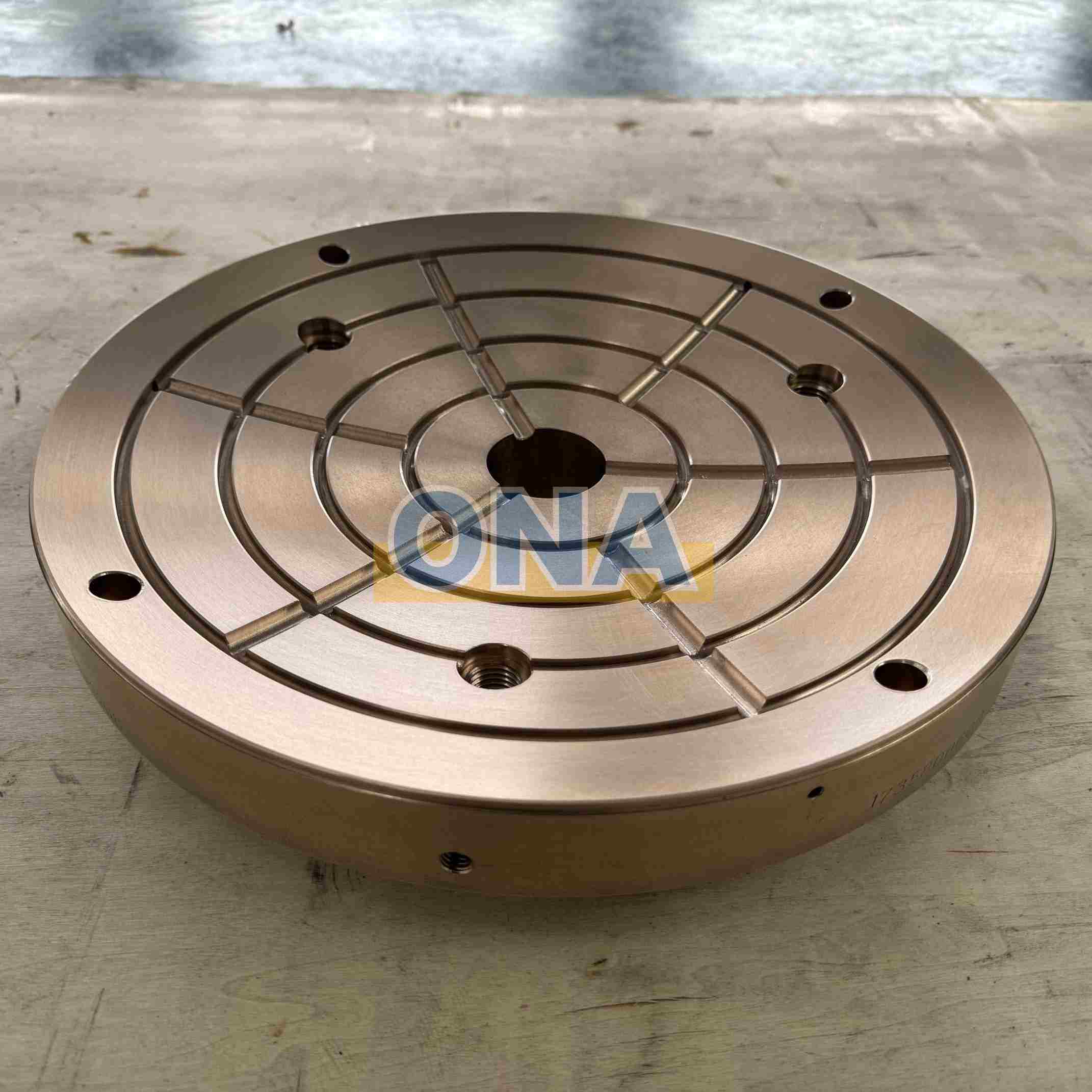

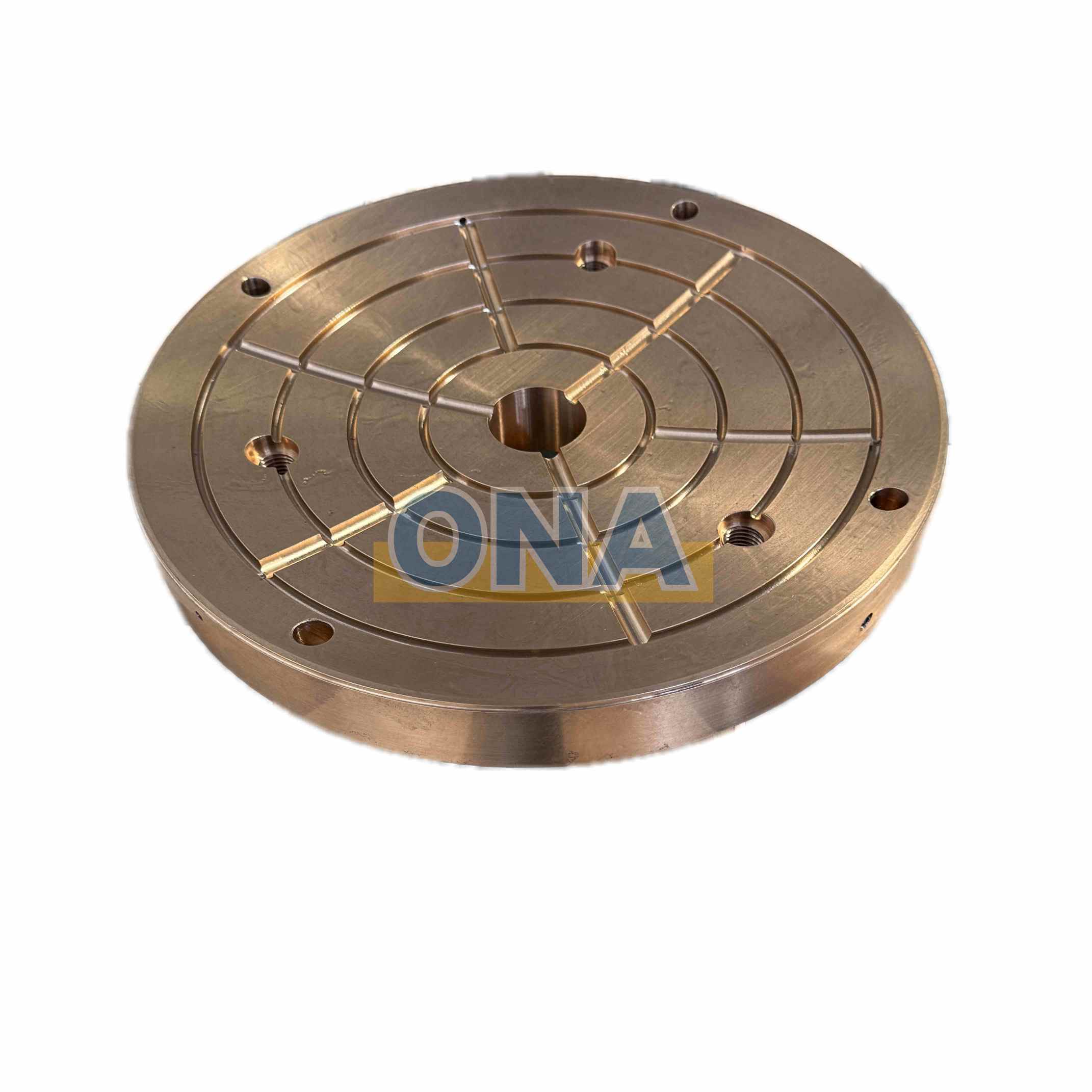

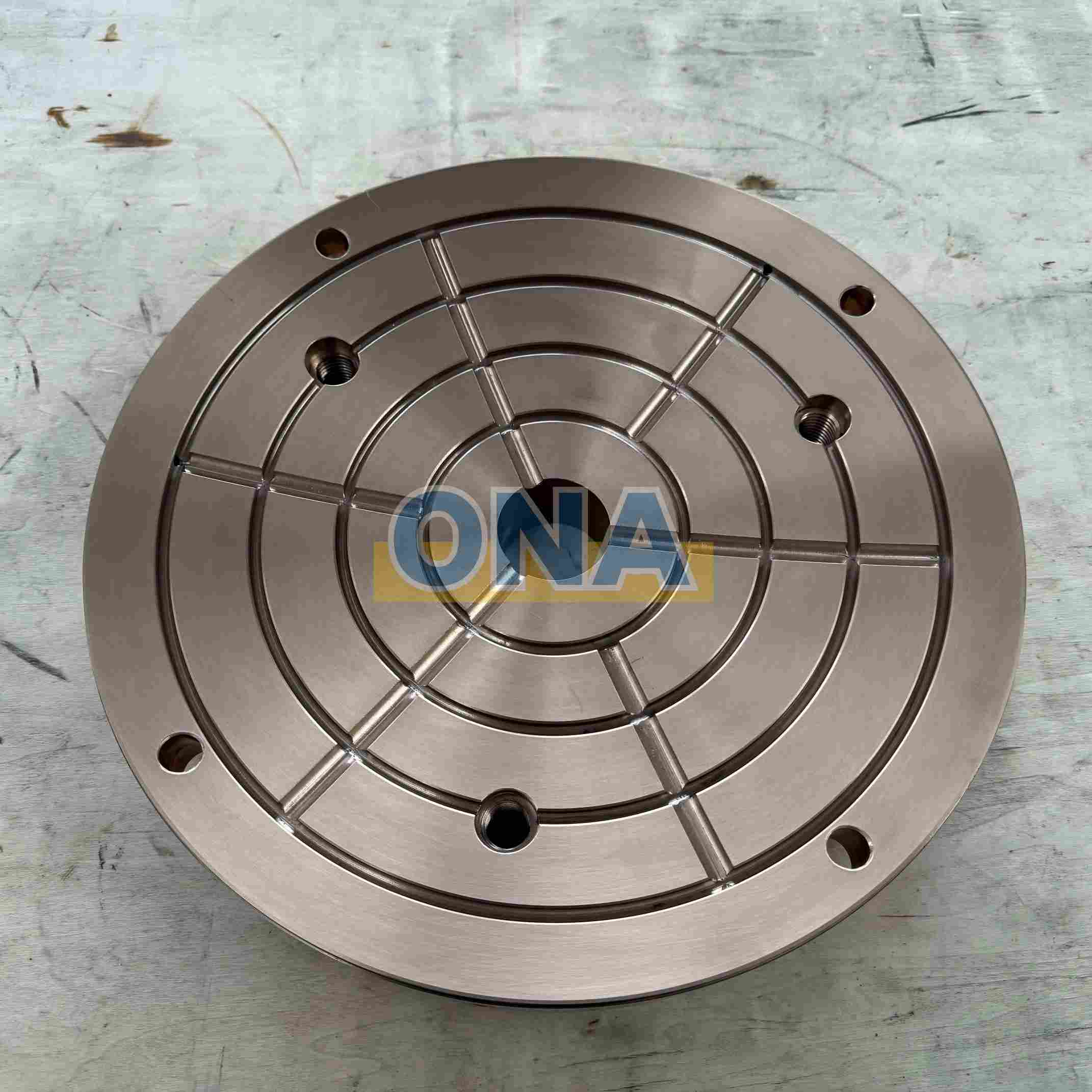

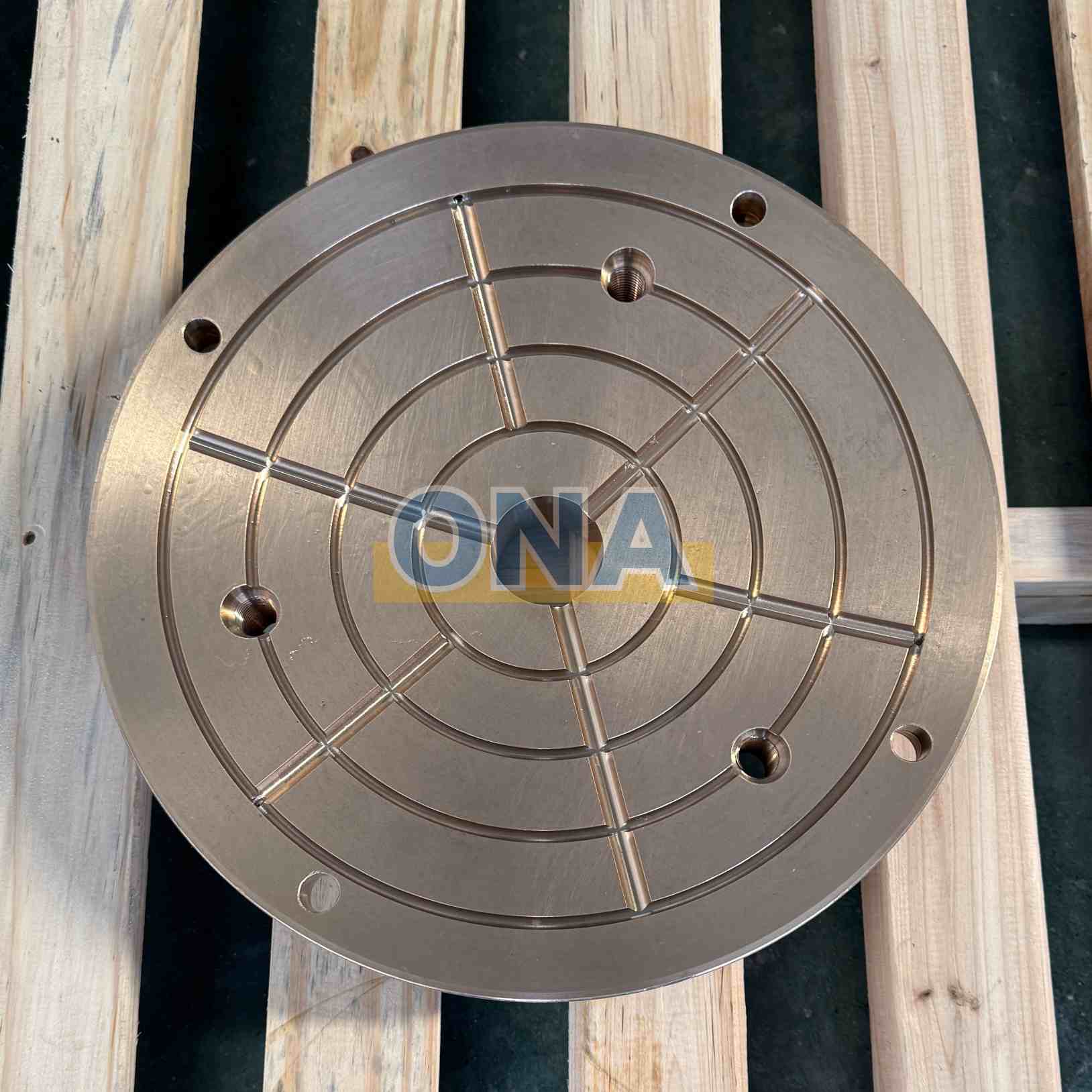

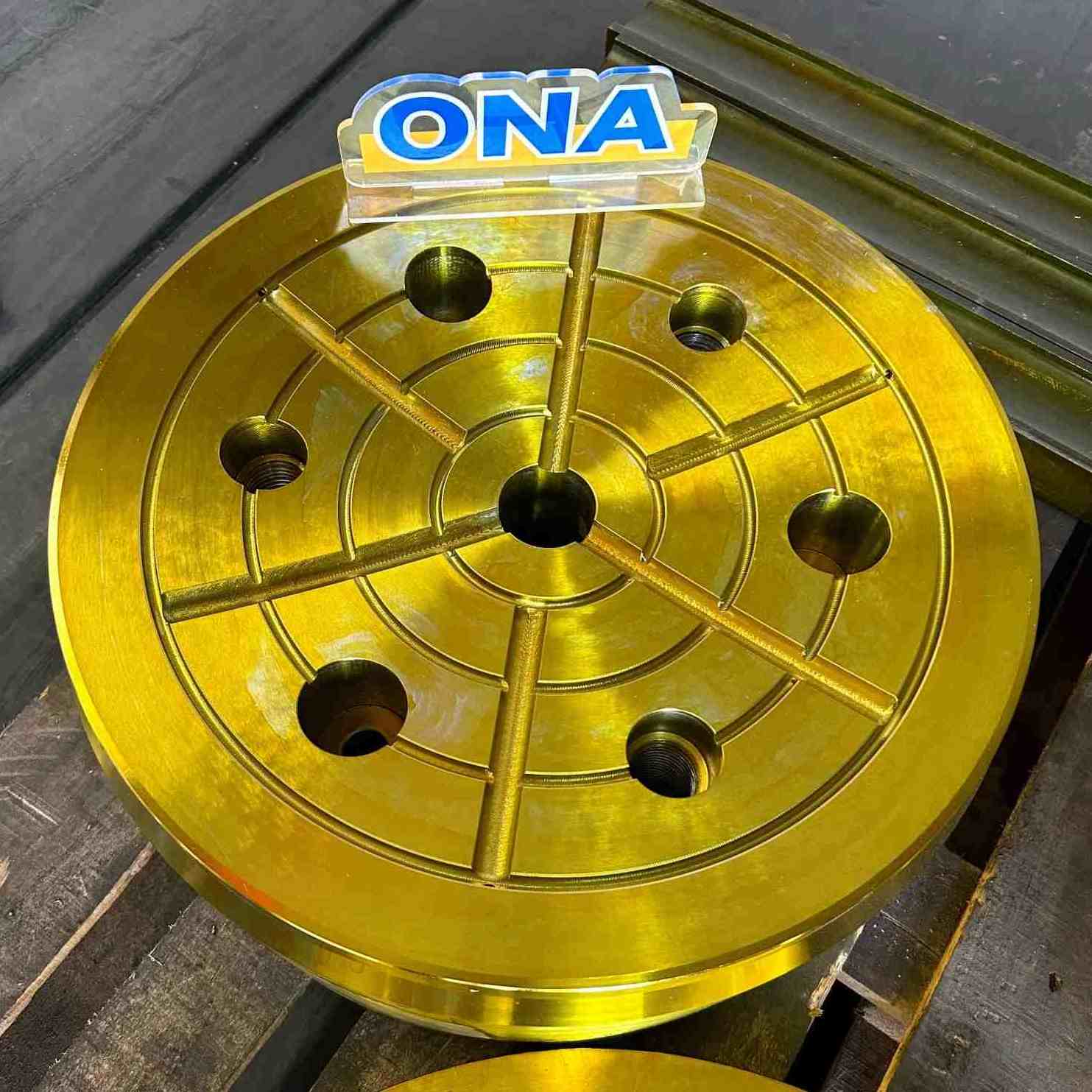

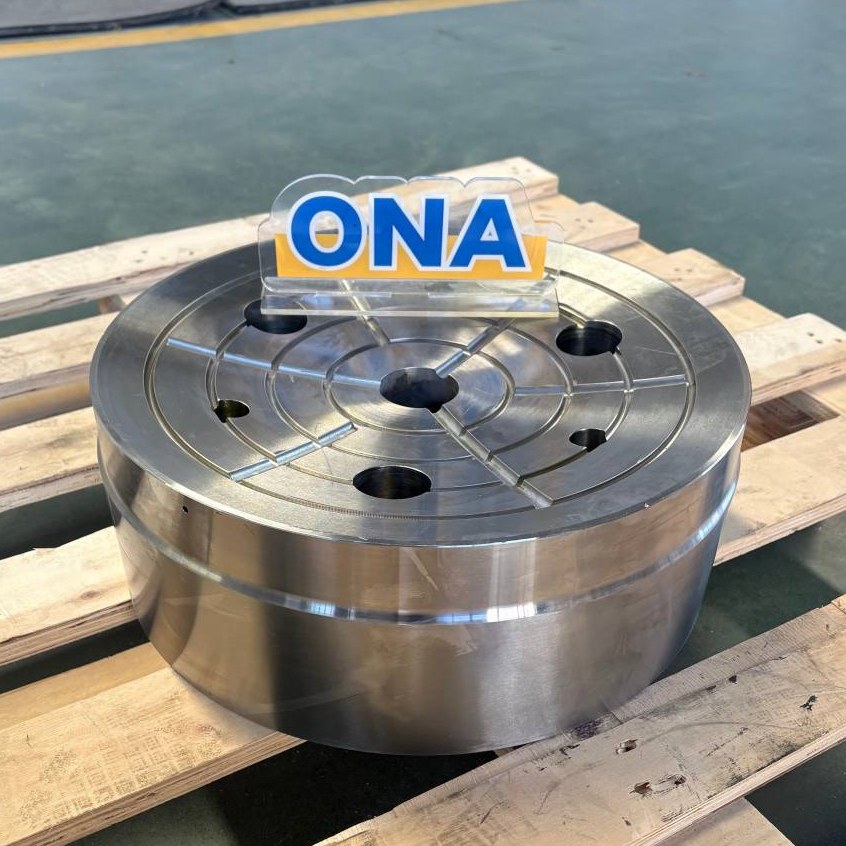

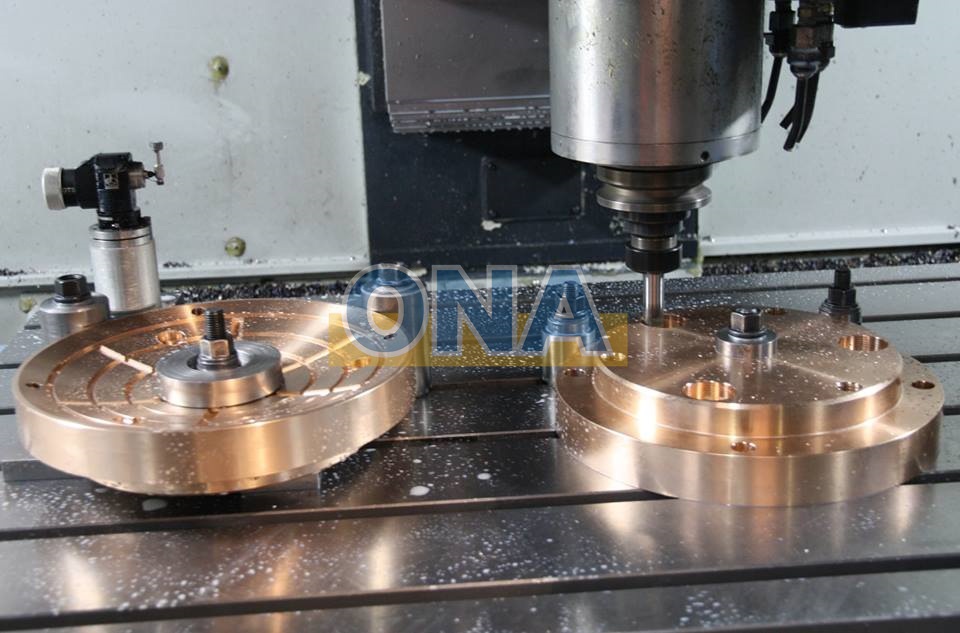

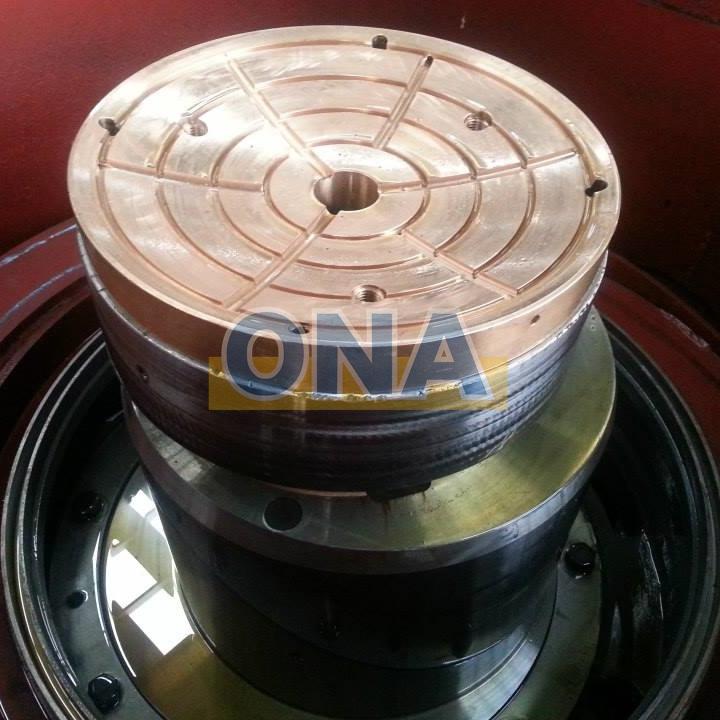

If you need it, you can bring the part number to inquire. Below are some photos of our products.
