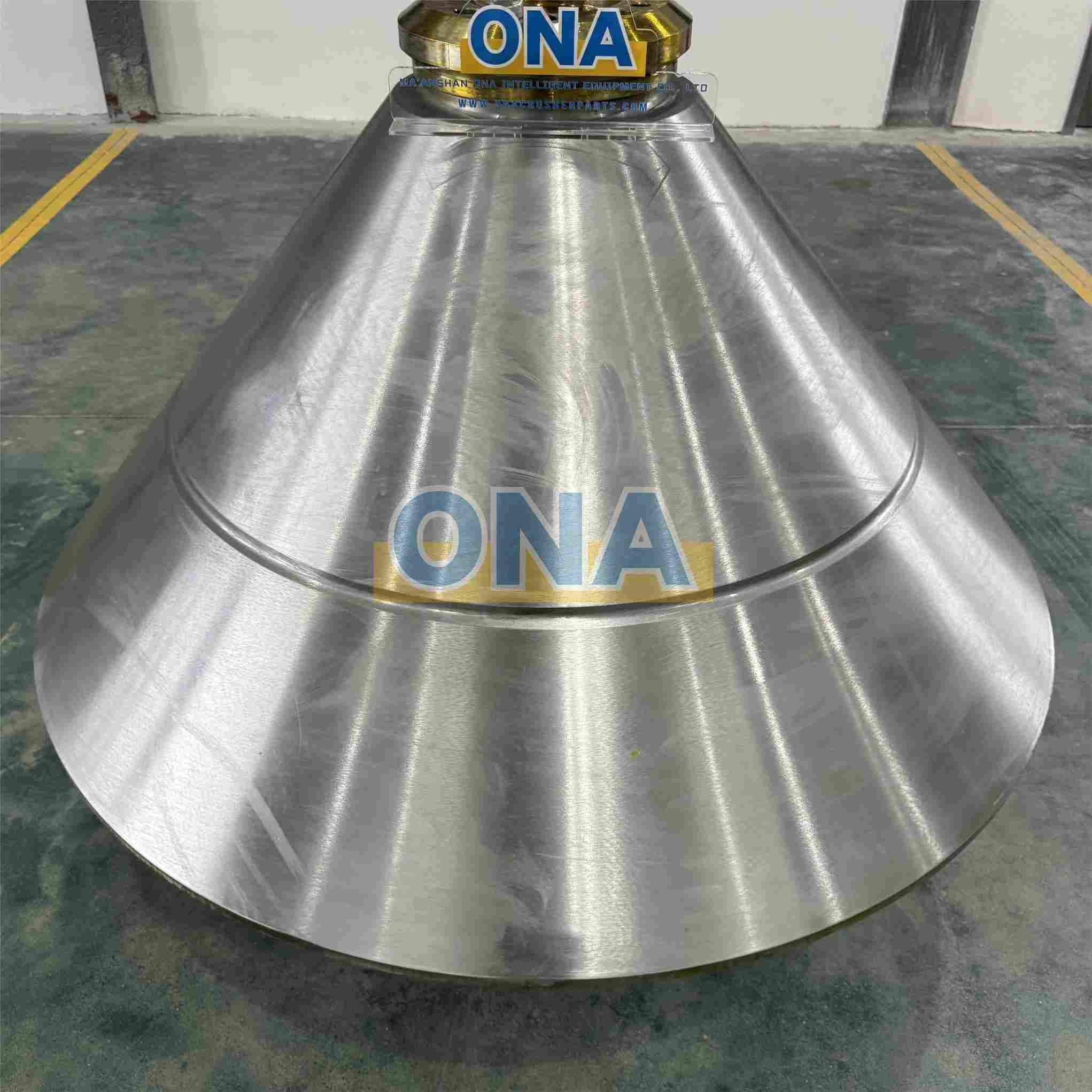

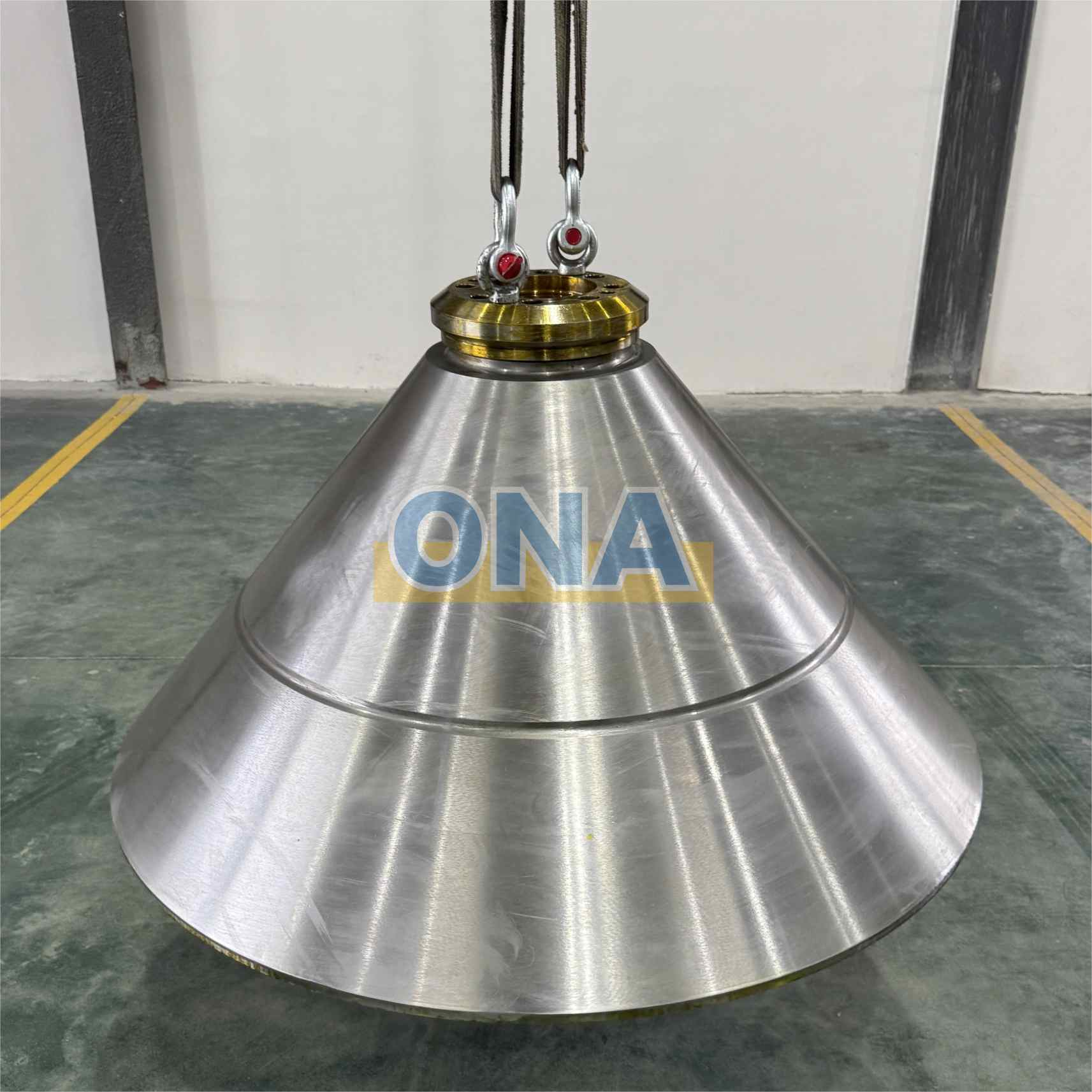

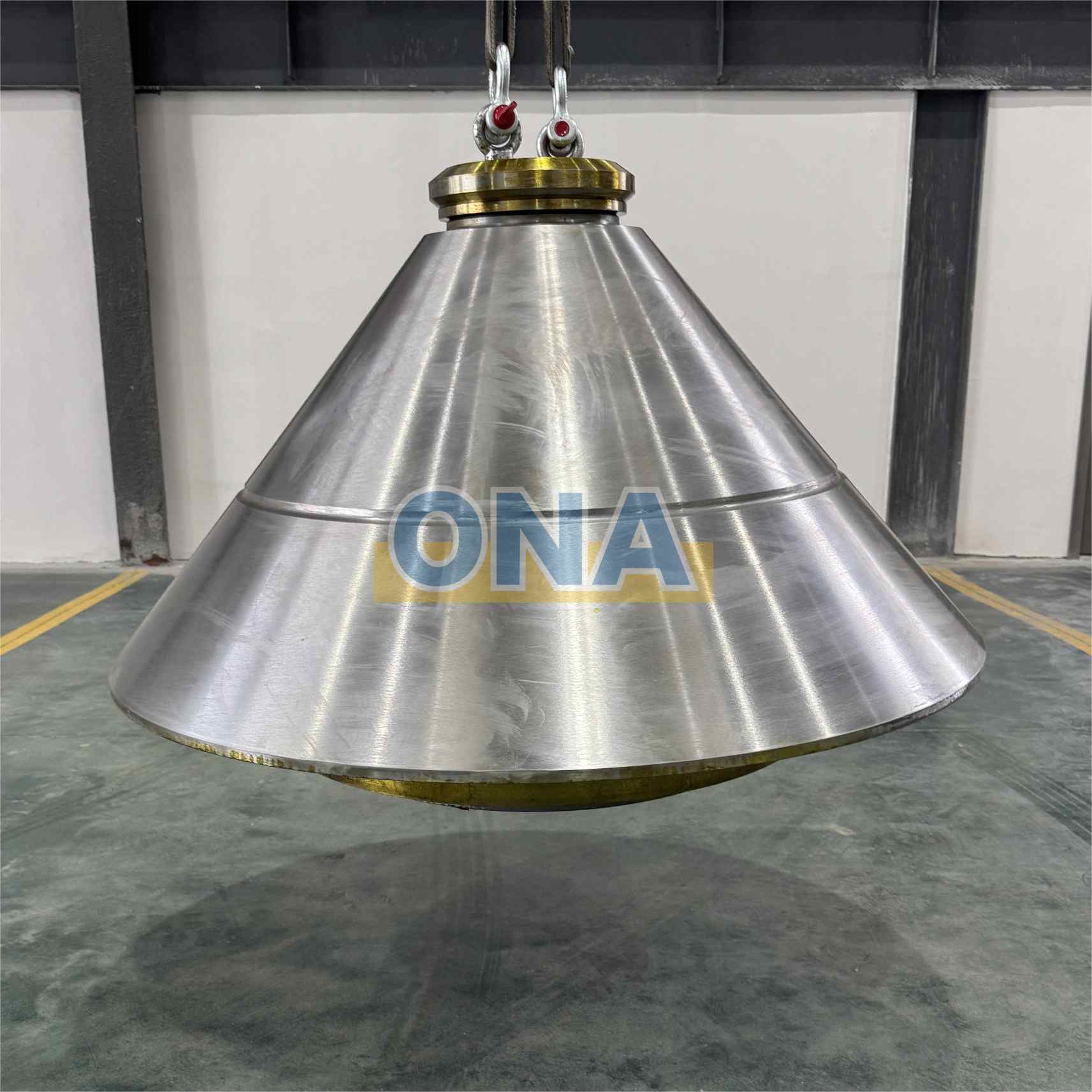

Cone Crusher Replacement Parts Head Assembly
ONA produce head assembly with original blueprint, included the head, head ball, upper/lower head bushing...
Item No :
HP100/HP200/HP300/HP400/HP500/HP700/HP800/HP900/HP3/HP4/HP6Part Number :
ONA-7090058000 ONA-7090058015 ONA-7090058016 ONA-7090058013 ONA-N90058041 ONA-N90058060 ONA-N90058026 ONA-N90058026 ONA-MM0901559 ONA-N98000001 ONA-N98000002 ONA-MM0901565Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
StockOrder(MOQ) :

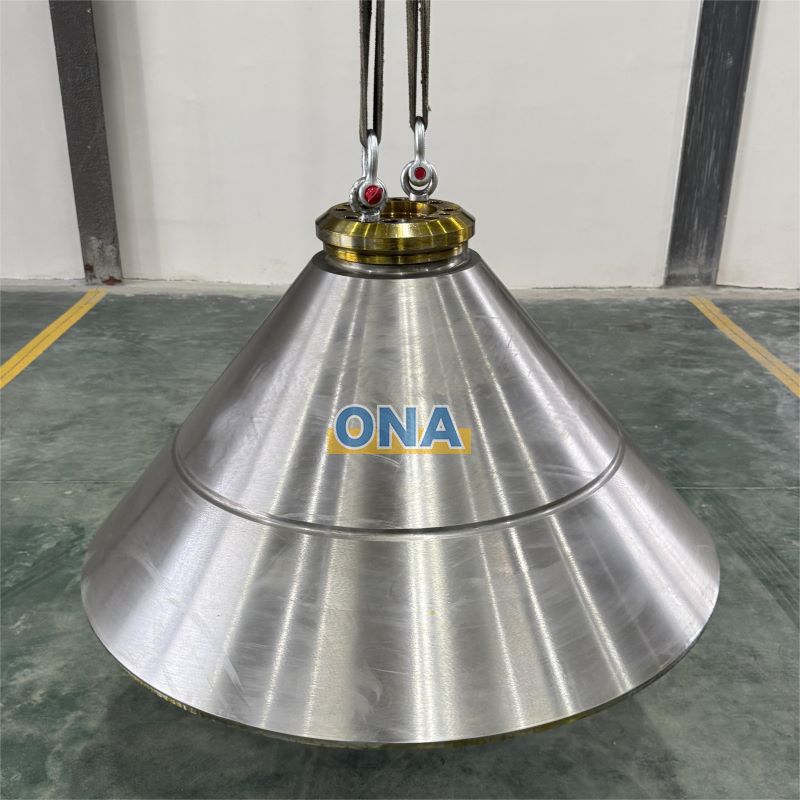

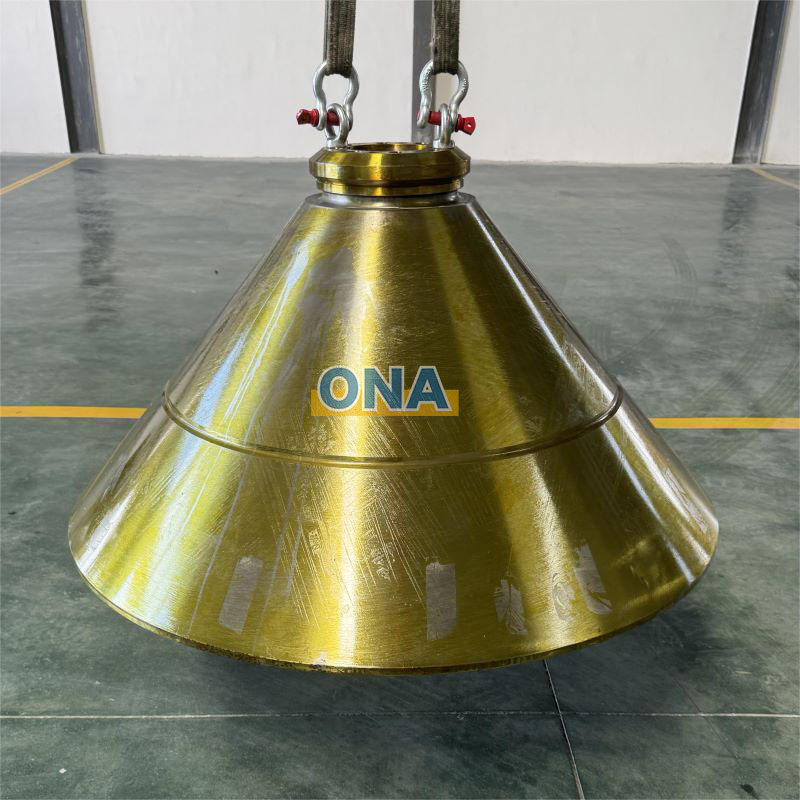

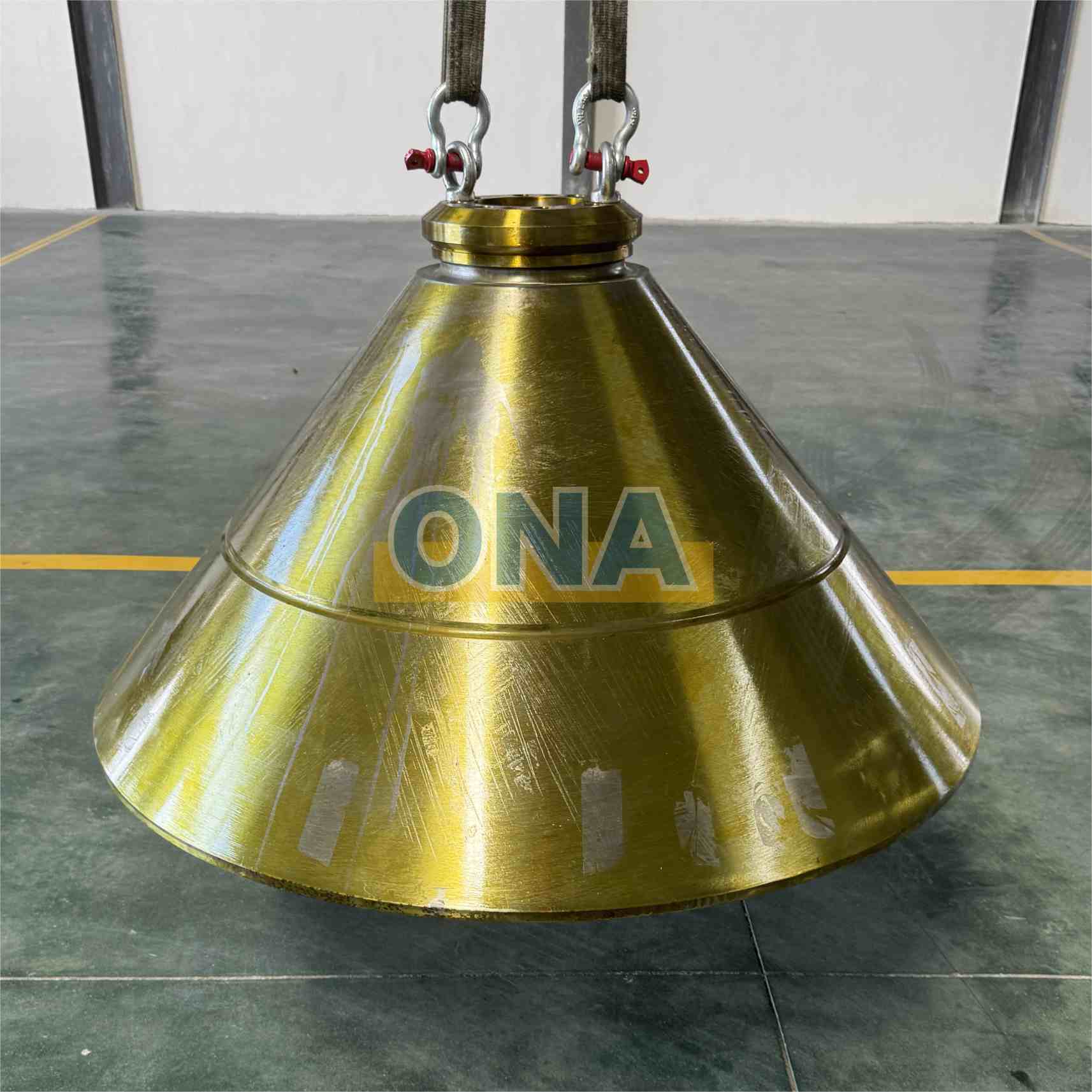

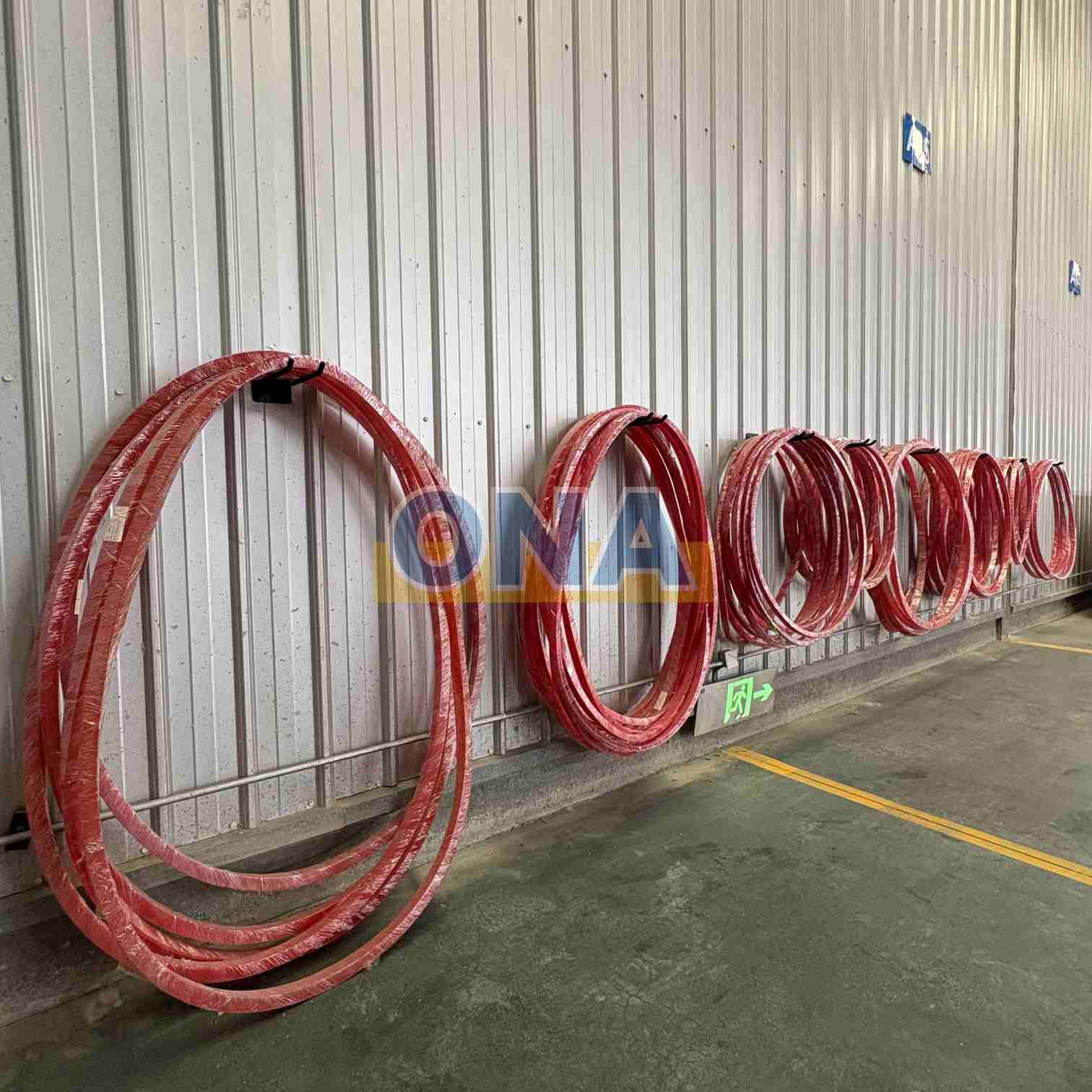

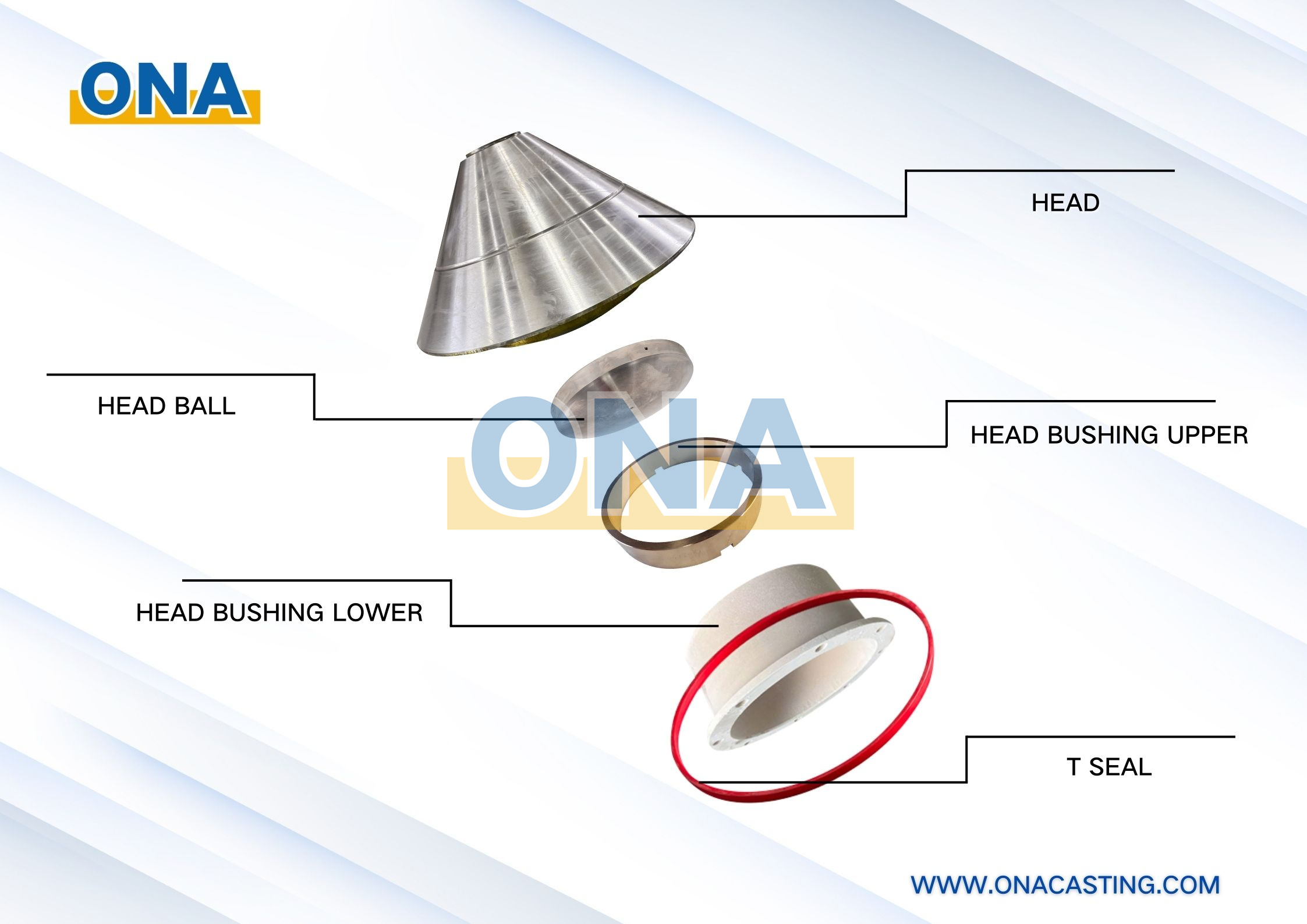

1The crusher head assembly is a crucial component of the crusher. Its main function is to crush and pulverize raw materials through friction and compression. Its components include the head, the head ball , the head bushing upper, the head bushing lower, and the T seal. The head assembly crushes the raw materials through rotational motion and frictional force, achieving the desired particle size and granularity.
More Related Product：
The crusher head assembly, and the crusher as a whole, are crucial for the mining industry. They reduce the size of mined materials, making them suitable for further processing or transportation. The assembly's durability and resistance to wear are vital for maintaining efficient and reliable crushing operations.
Hot Sale Parts:
| ONA-7090058000 | ONA-N90058041 | ONA-N98000001 | ONA-N90058026 | ONA-MM0901559 |
| ONA-7090058015 | ONA-N90058060 | ONA-MM0901559 | ONA-N90058049 | ONA-N98000488 |
| ONA-7090058016 | ONA-N98000002 | ONA-N90058026 | ONA-N98000488 | ONA-MM0901565 |
| ONA-7090058013 | ONA-7090058000 | ONA-7090058020 | ONA-N90058049 | ONA-MM0901565 |
Model Apply To:
HP100/HP200/HP300/HP400/HP500/HP700/HP800/HP900/HP3/HP4/HP6
Eg：HP300 ONA—7090058000

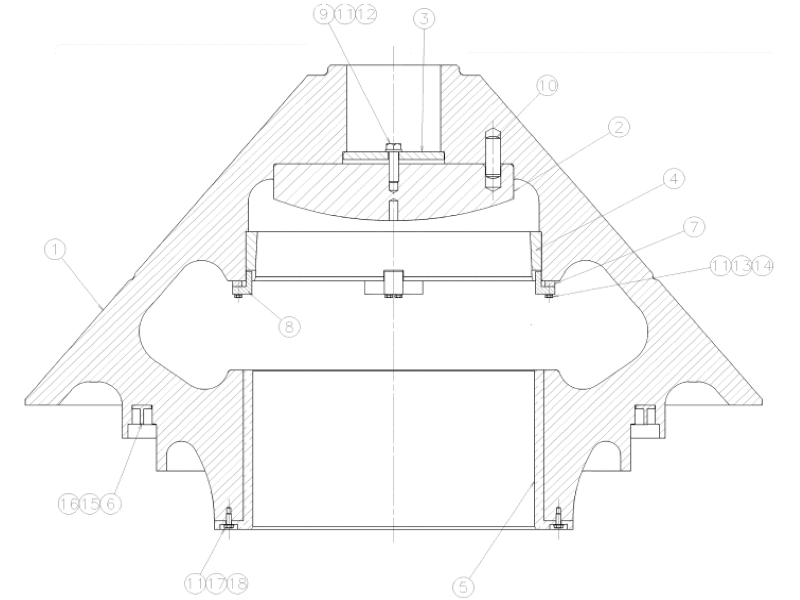

| Location | Part Number | Description | Quantity | Weight |
| 1 |
7082404300
|
Head | 1 | 1100 |
| 2 |
7024950500
|

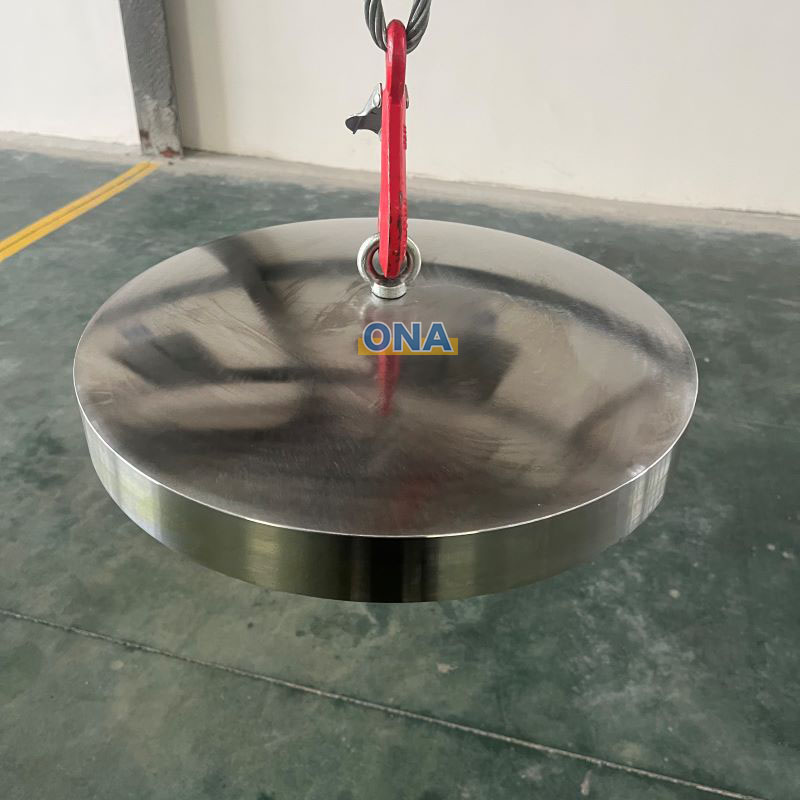

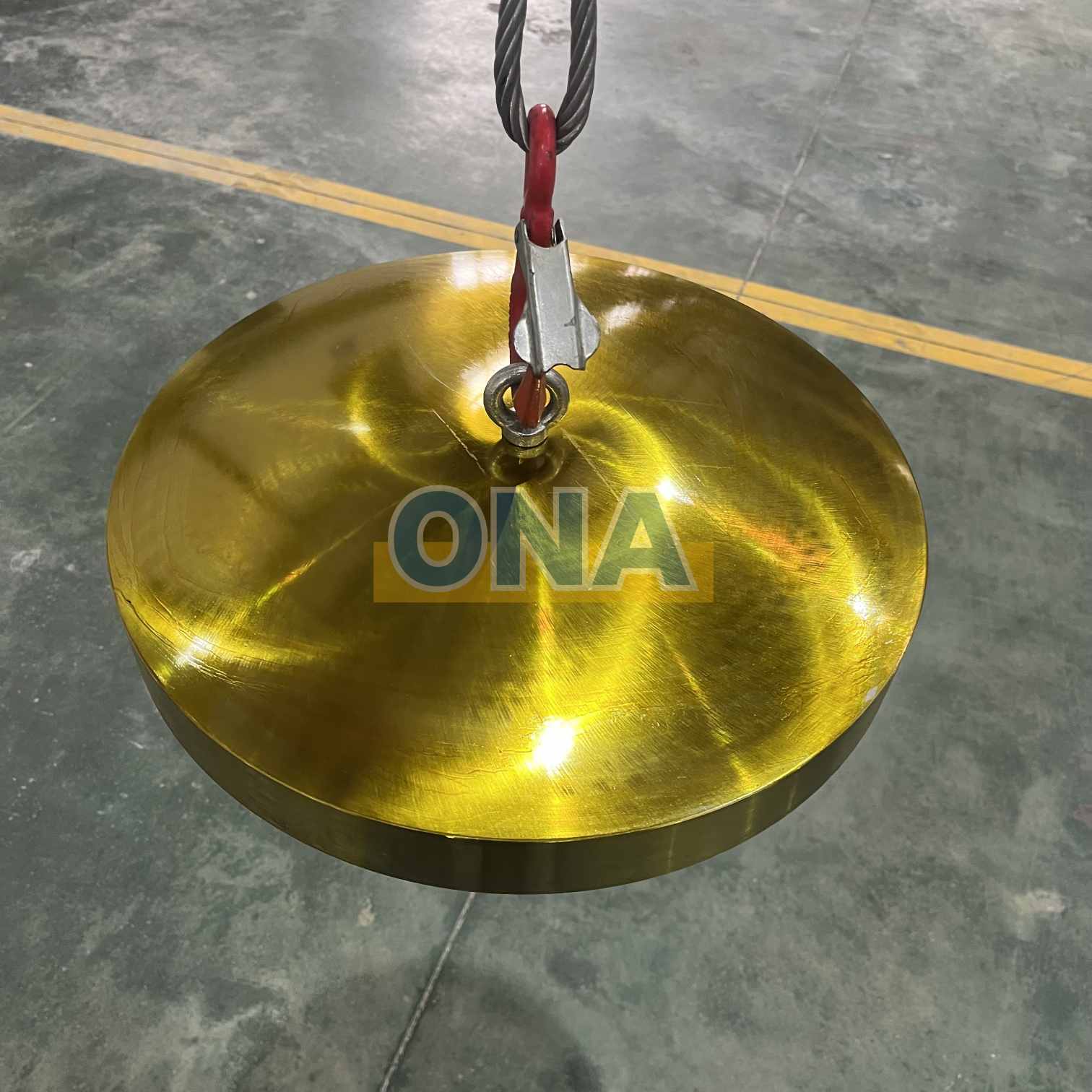

Head BAll | 1 | 60 |
| 3 |
7001530318
|
SCREW, HEXAGONAL
|
1 | 0.1 |
| 4 |
7008010002
|
THREADLOCKER, HARD
|
1 | 32 |
| 5 |
7015656200
|

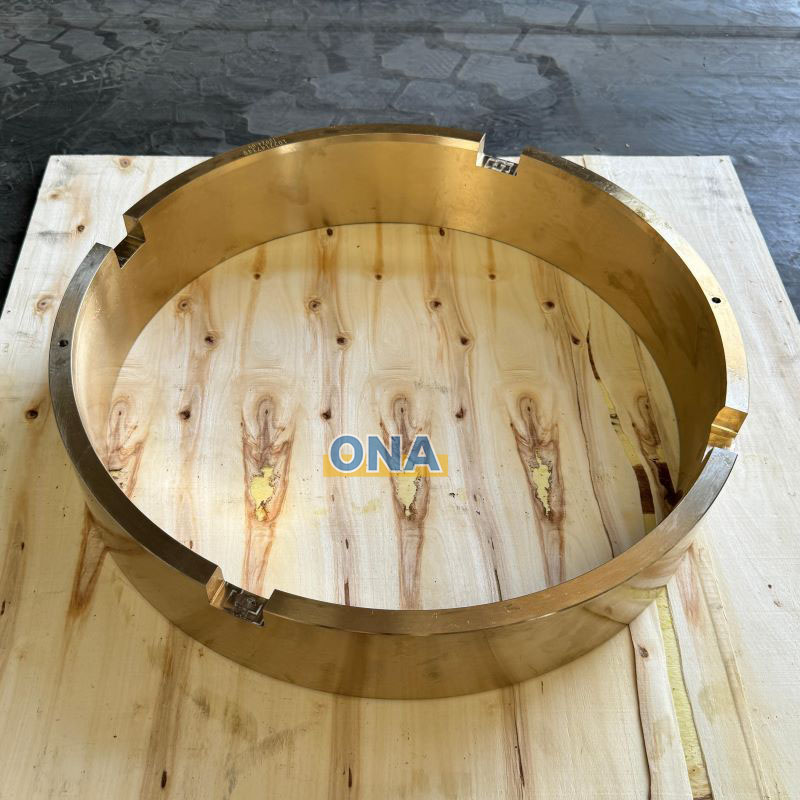

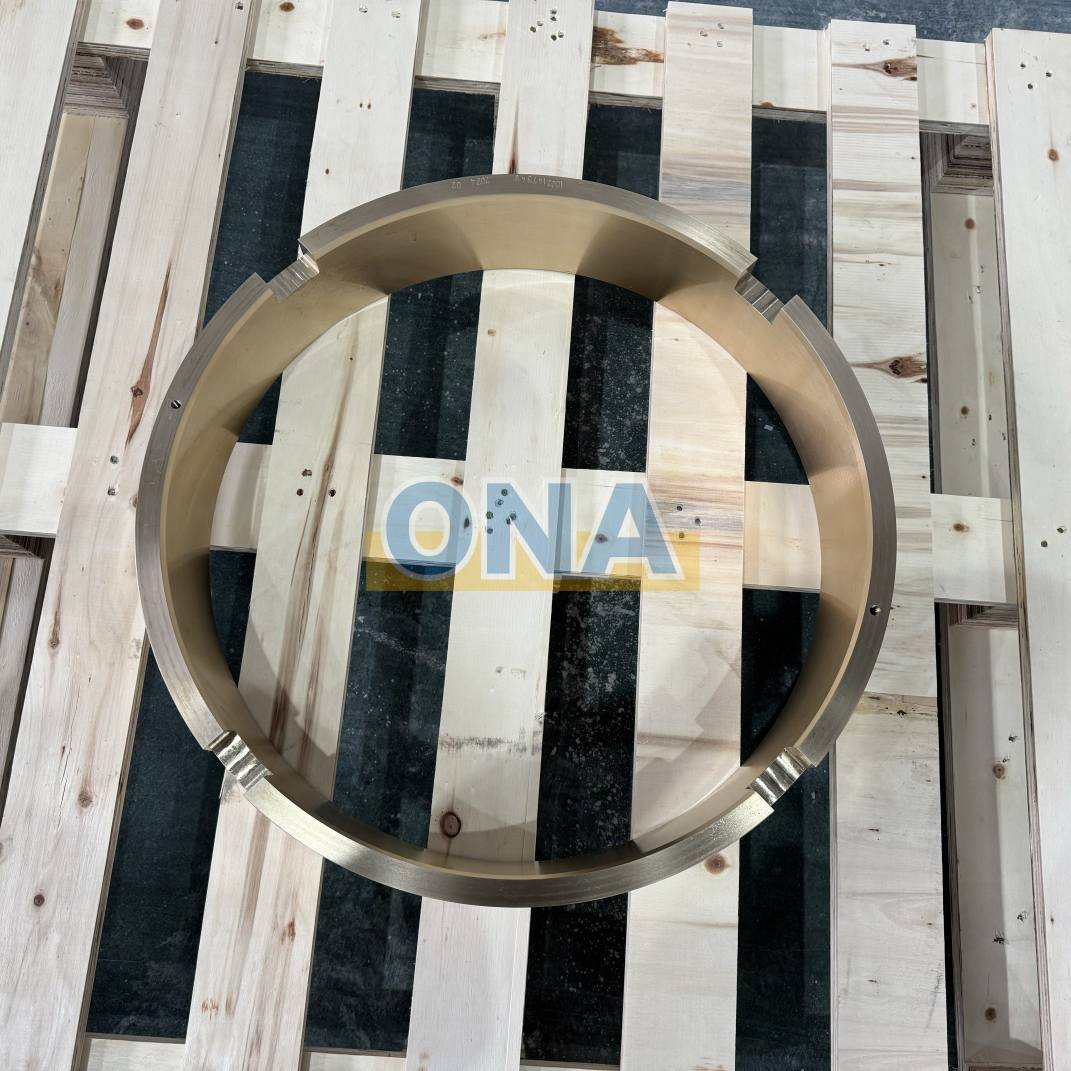

HEAD BUSHING, UPPER
|
1 | 14.8 |
| 6 |
1022145975
|
HEAD BUSHING, LOWER
|
1 | 48 |
| 7 |
7001532140
|
SCREW, HEXAGONAL
|
4 | 0.02 |
| 8 |
1003063296
|
PLATE, LOCKING
|
4 | 0.0148 |
| 9 |
1063518725
|
RING, SEAL
|
1 | 0.8815 |
| 10 |
7008010102
|
GLUE
|
1 | 0.5 |
| 11 |
7008010103
|
ACTIVATOR
|
1 | 0.16 |
| 12 |
1047098031
|
SHAFT KEY
|
4 | 1.2 |
| 13 |
1061340015
|
SUPPORT
|
4 | 0.3 |
| 14 |
7001548126
|
SCREW, SET, HEXAGON SOCKET, CUP POINT
|
4 | 0.04 |
| 15 |
7001634016
|
WASHER, ELASTIC
|
1 | 0.128 |
| 16 |
7049330250
|
PIN | 3 | 0.3 |
| 17 |
1013305030
|
STRAP
|
1 | 1.2 |
| 18 |
7008010005
|
SUPER BONDER ADHESIVE
|
1 | 0.5 |
Importance in Mining: The brand we can offer these brands which suit to: Metso, Sanvick, Telsmith, Shanbao, Nordberg Symons, Liming, Shaorui, etc
Maintenance and Care Recommendations
To extend the service life of the moving cone assembly and improve crushing efficiency, the following measures are recommended:
Install a Suitable Iron Remover: Install an iron remover at the head of the feeding belt to effectively remove iron blocks entering the crushing cavity, ensure uniform load distribution, and optimize operational performance.
Ensure Thorough Mixing of Filling Material Components: The components of the filling material should be thoroughly mixed and uniformly stirred to enhance the strength of the cured filler. Ensure approximately 16 hours of curing time to allow the filler to fully solidify.
Ensure Secure Welding of the Cutting Ring: During the installation of the liner, ensure that the pressing and cutting ring is firmly welded to the liner to prevent wear and seam opening in the weld, which could lead to liner loosening.
Eccentric, which widely used in Metso, Nordberg HP series eccentric assembly. ONA offers assembly services, you can use it as soon as you receive the goods.
Details
Counterweight liner, which widely used in Metso, Nordberg HP series counterweight assembly. We have many stock which suit to HP200, HP300, HP400, HP500!
Details
Gear and Pinion, which widely used in Metso, Sandvik,Symons cone crusher. You can send us part number to check, or provide drawings to confirm price!
Details
Feed cone, which also known as feed plate, which suit to Metso, Nordberg, Sandvik, etc..
Details
Air cooler, which widely used in Metso, Sandvik cone crusher. You can provide air cooler's part number and nameplate to check!
Details
Precision-engineered Drilled (HP500) and Perforated (HP6) Blocks are core housing components suit for the Metso Nordberg HP series hydraulic power unit. They are equipped with high-performance valves imported from Germany, ensuring OEM-equivalent reliability and performance.
Details
Socket, which widely used in Metso, Nordberg HP series socket assembly. We also can provide other parts like main shaft assembly, tramp release cylinder assy, adjustment ring assy, etc...
Details
Head ball, which widely used in Metso, Nordberg HP series cone crusher head assembly. You can send us part number to confirm if we have stock!
Details
