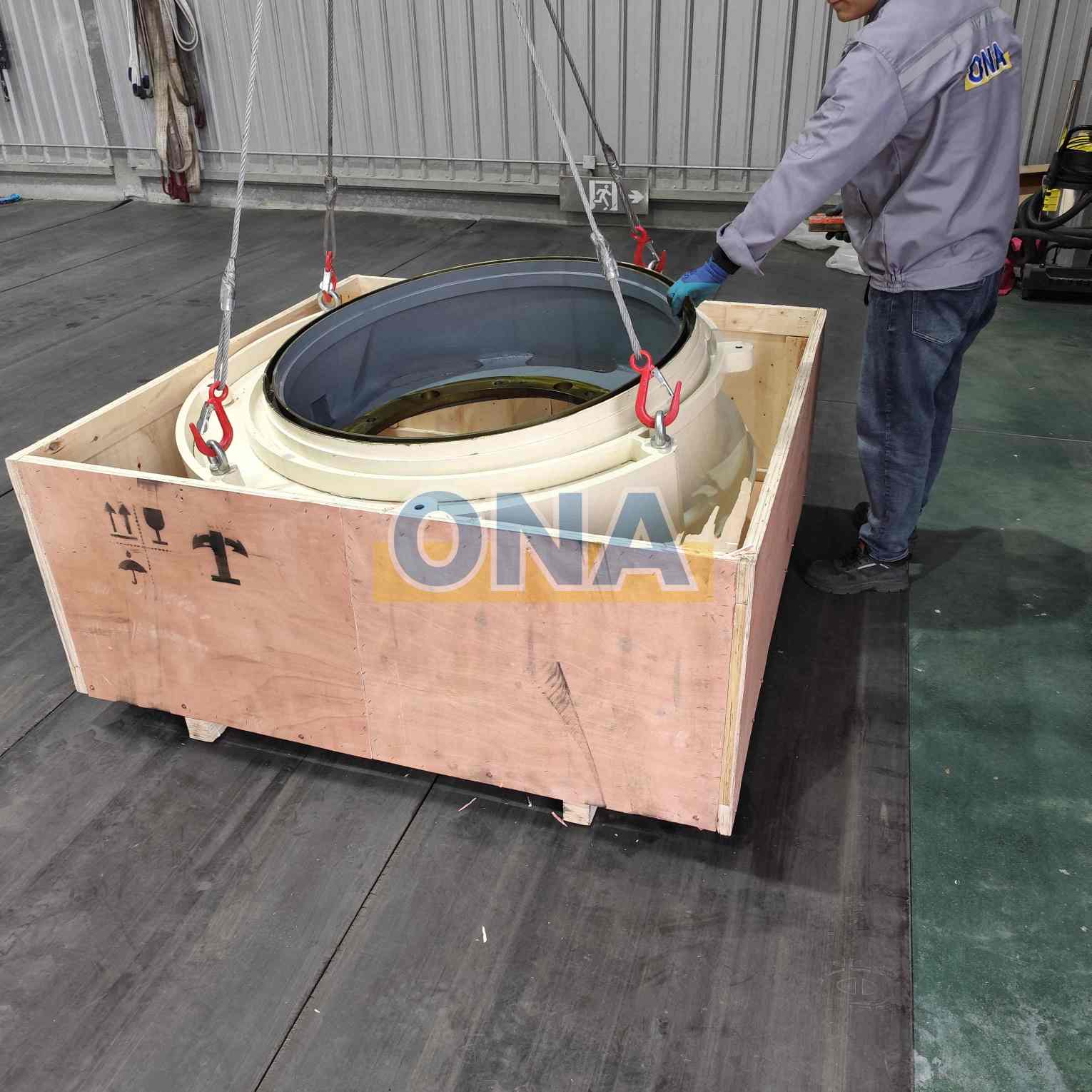

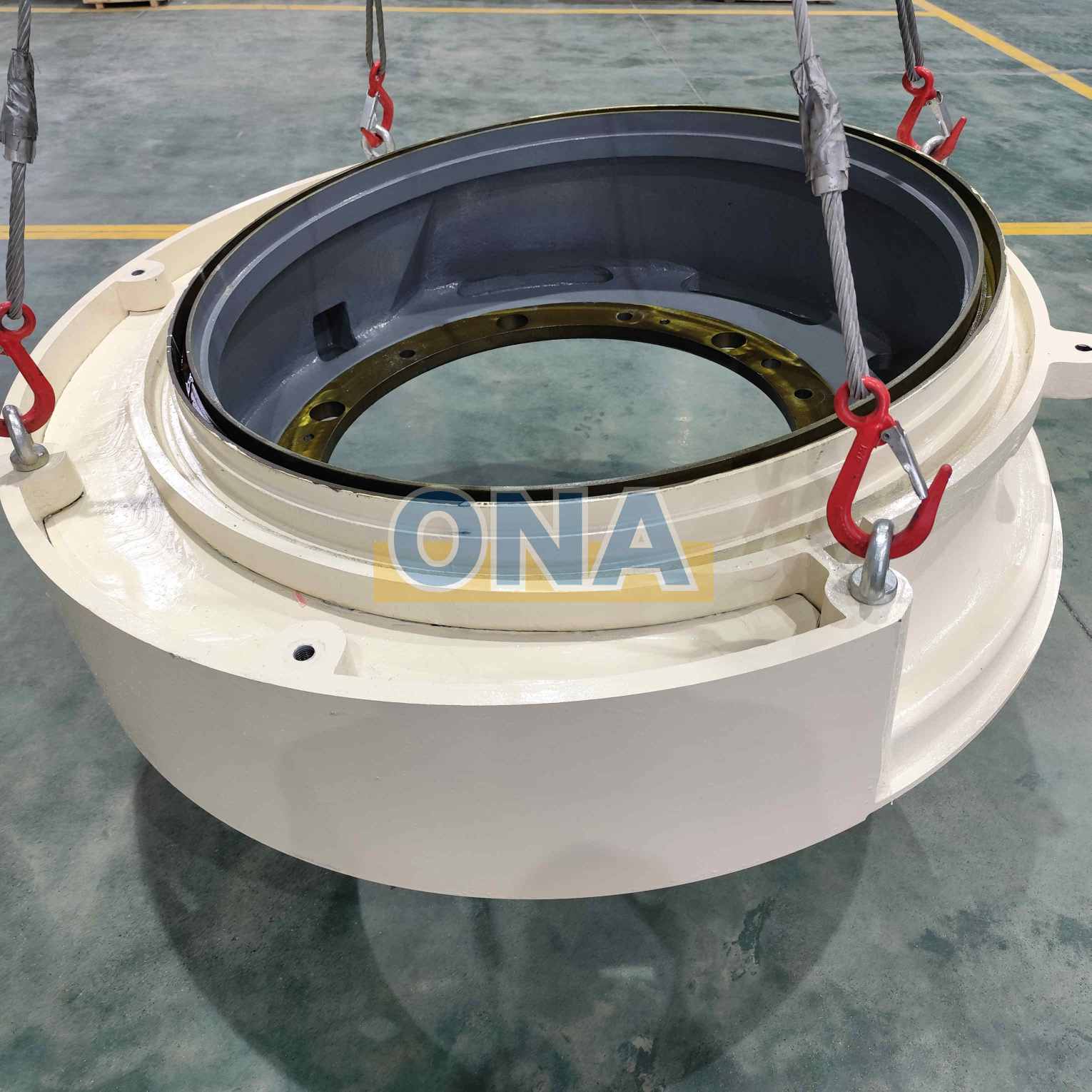

HP400 Crusher Parts Counterweight Assembly suit Mining Machine
Our crusher parts counterweight assembly is a direct aftermarket replacement for Metso Nordberg Crusher, fully interchangeable with OEM specifications.
Item No :
HP200, HP300, HP400, HP500, HP4, HP6Part Number :
ONA-7090228112Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
20-30 daysWeight :
887.4Order(MOQ) :
1

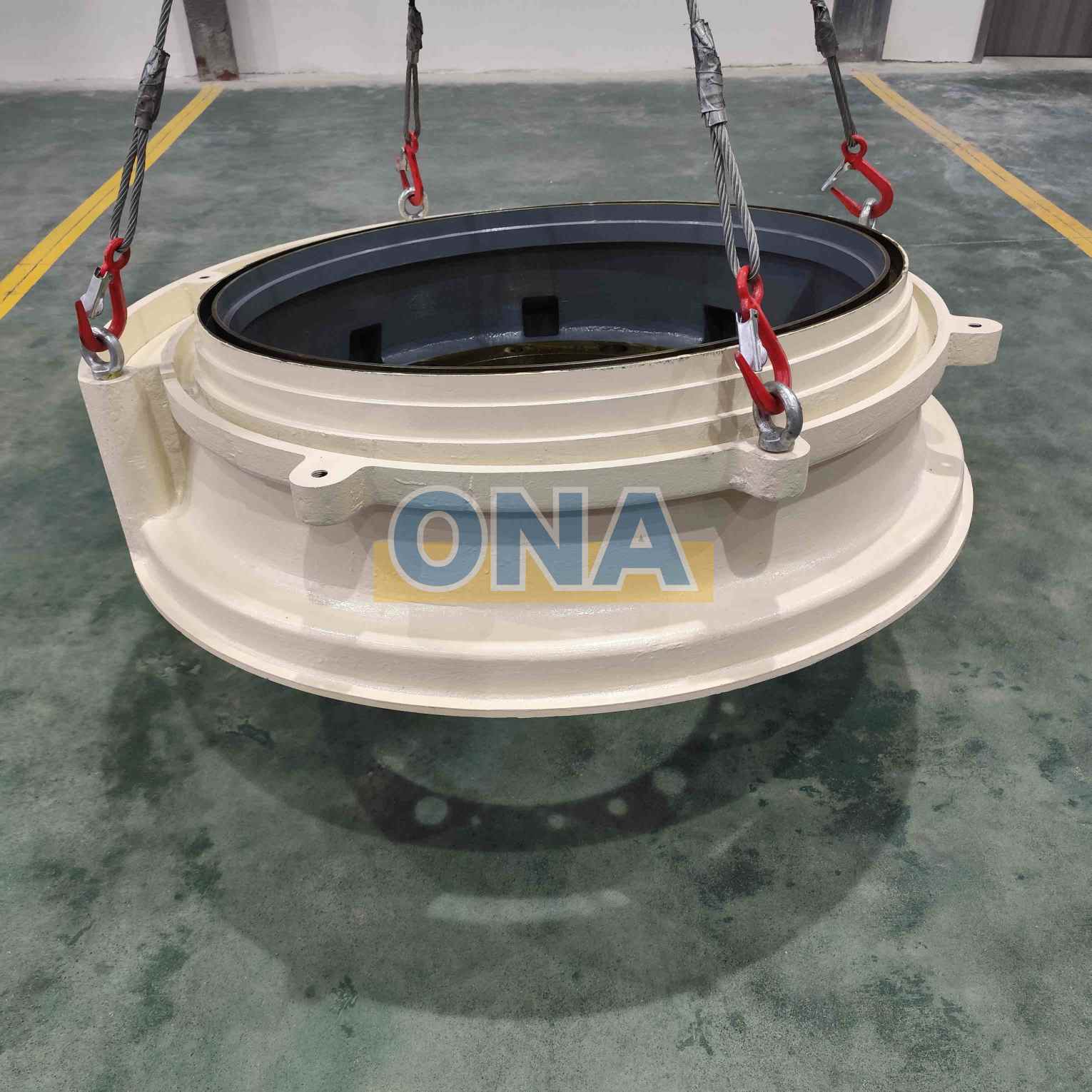

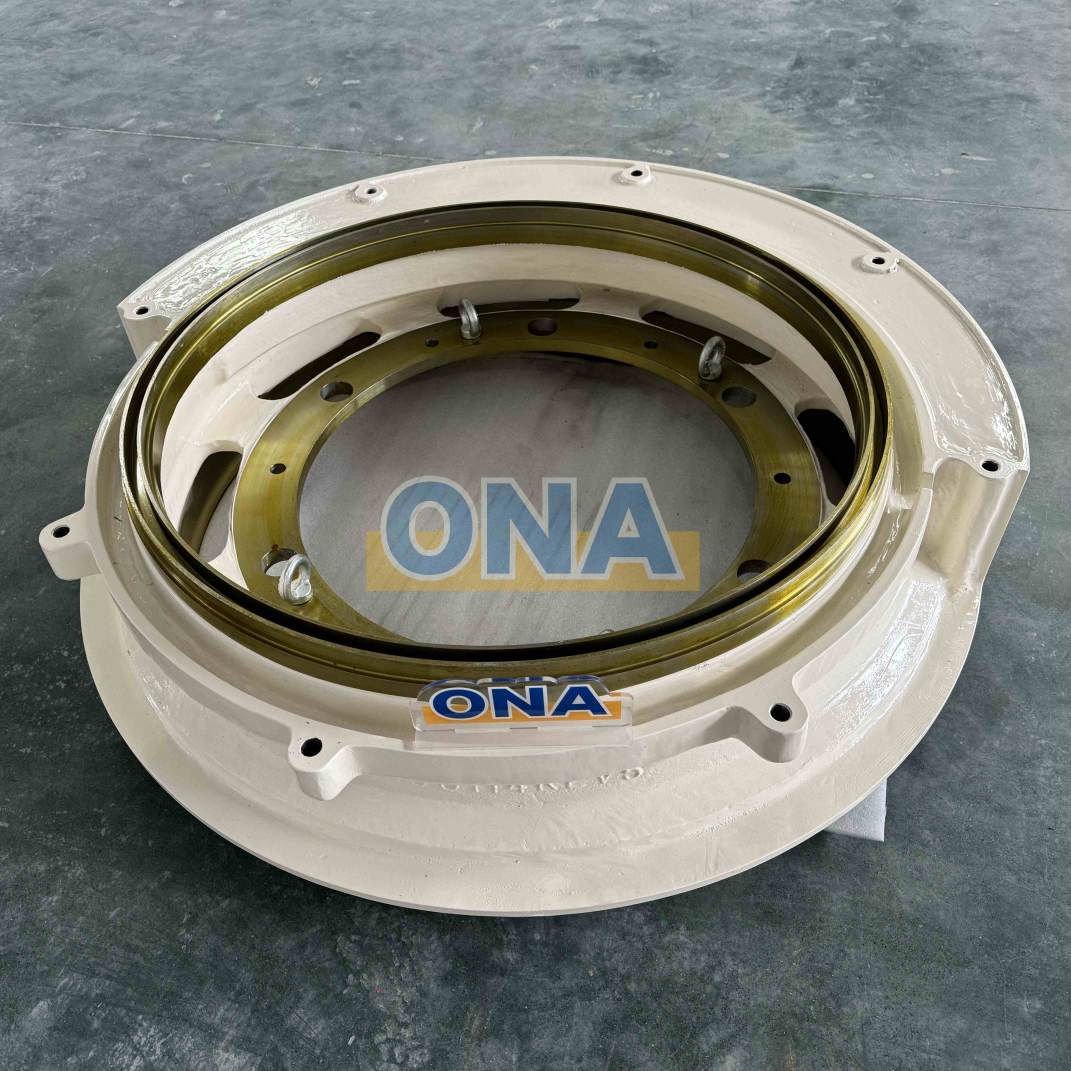

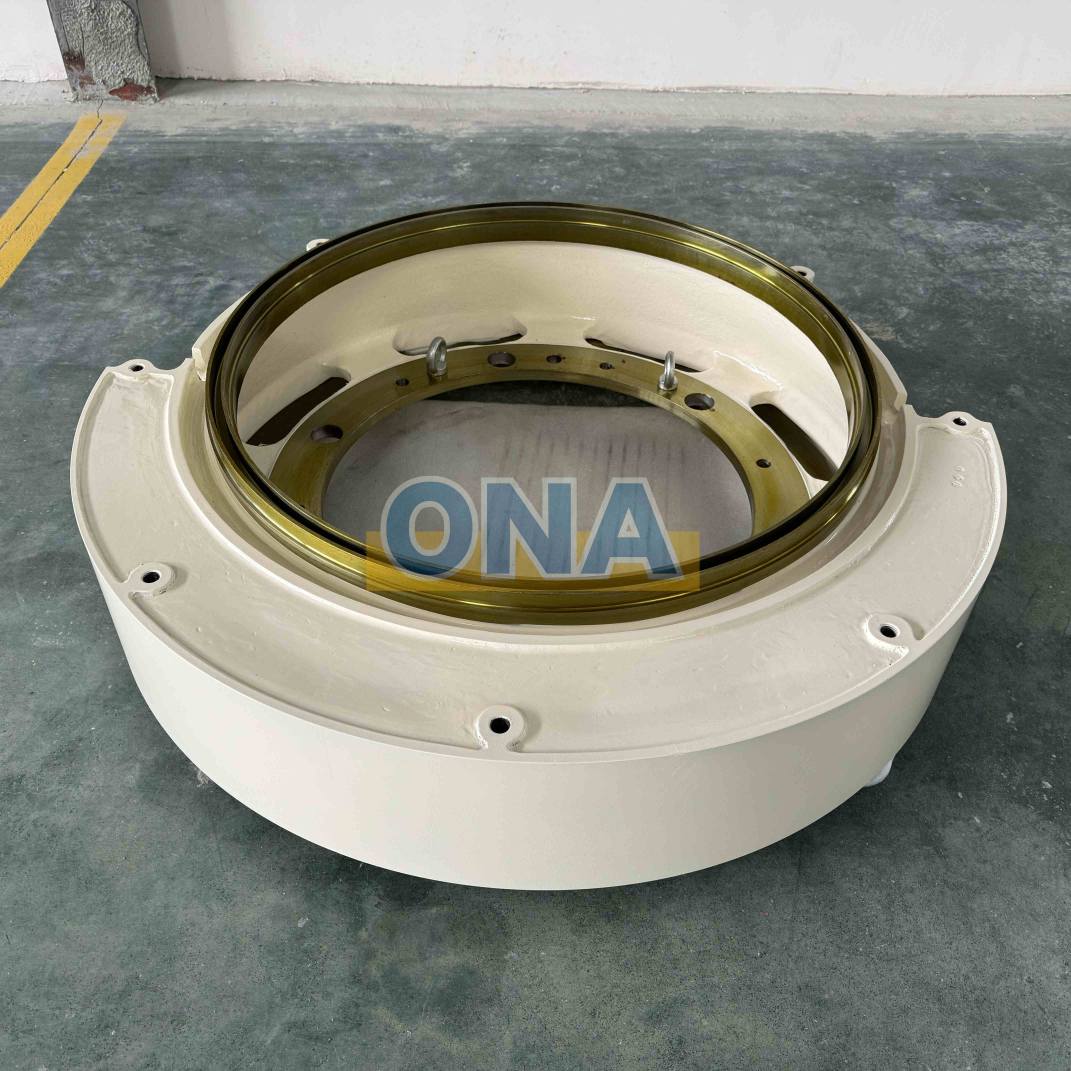

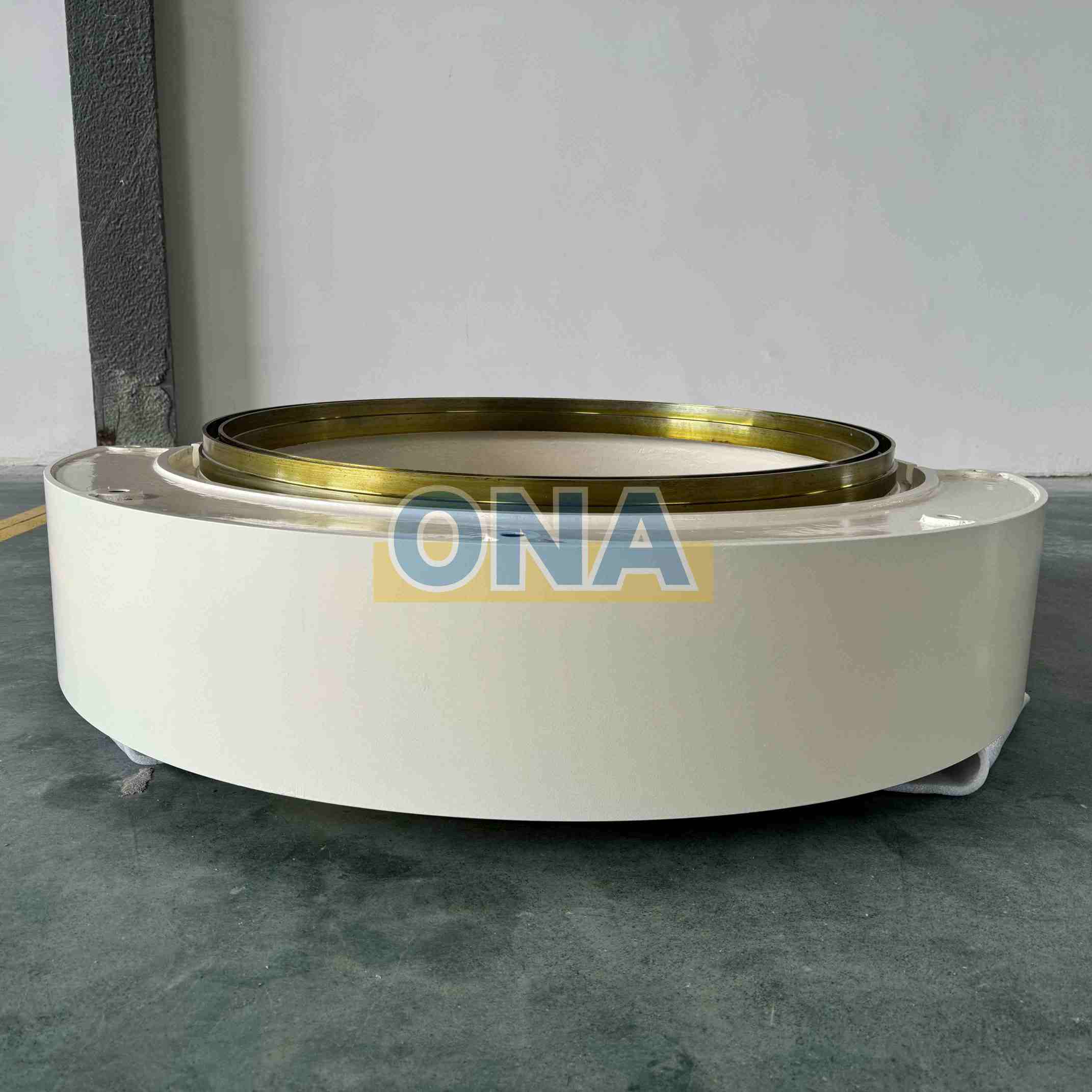

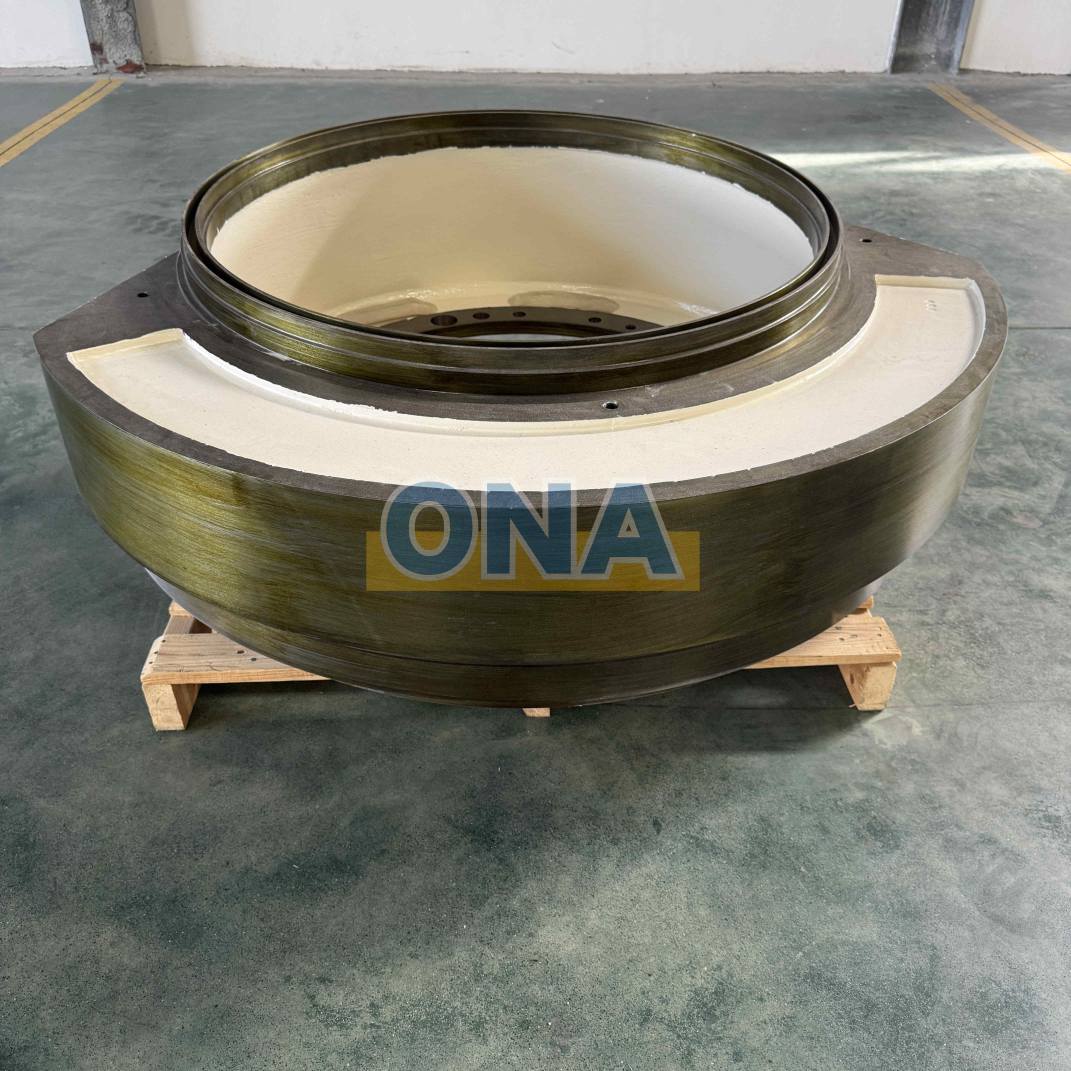

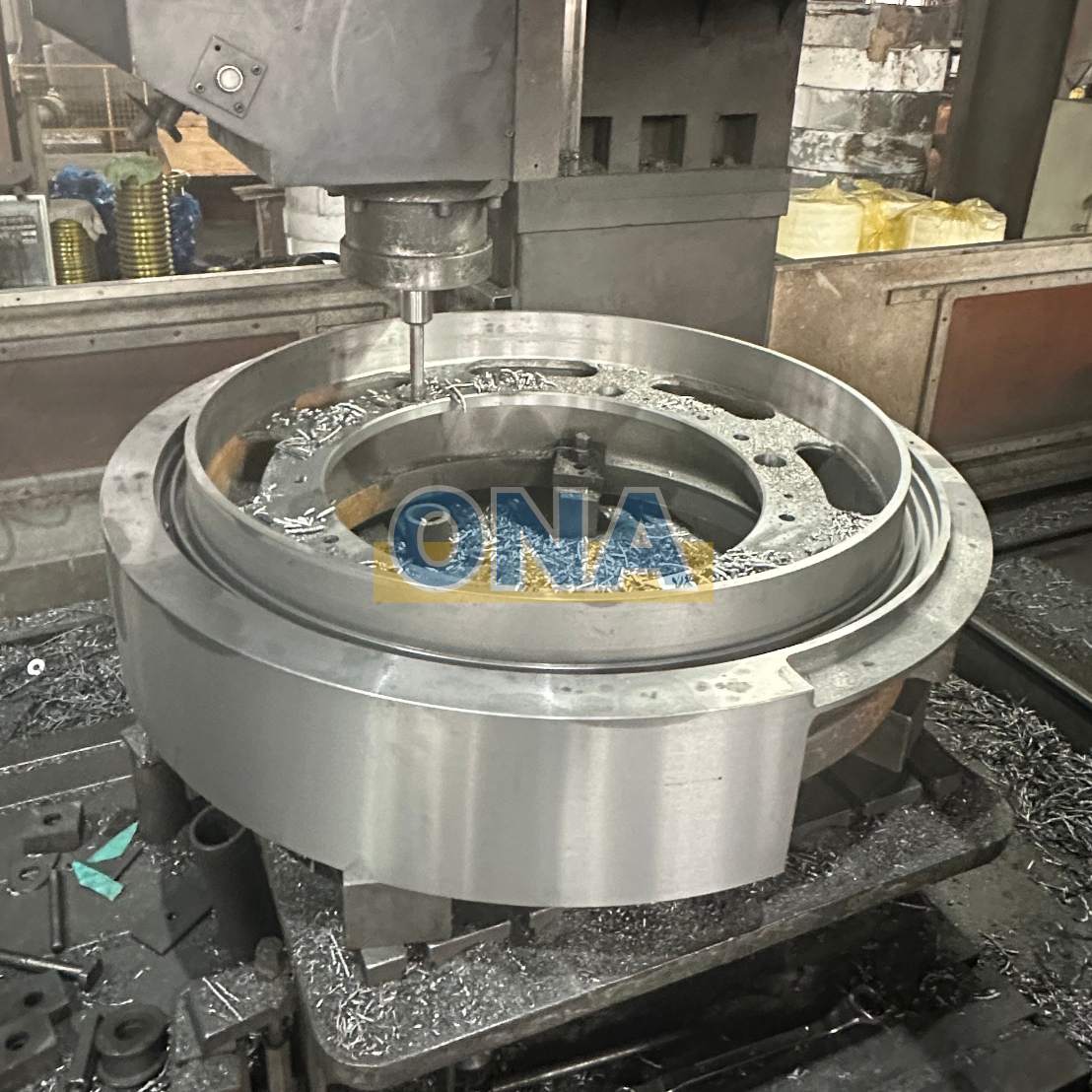

Our counterweight assembly serves as a critical spare part suit for Metso cone crushers. We produce it matching original dimensional tolerances, mounting holes and weight parameters. Every casting undergoes heat treatment, visual inspection and dimensional checking before shipment. Material certificates are available upon request.

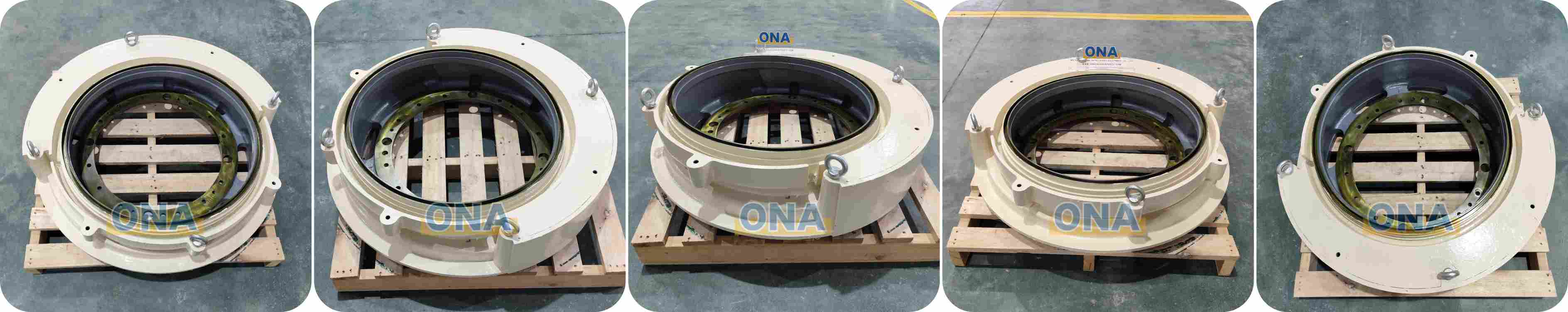

HP300 Cone Crusher, ONA-N16200115

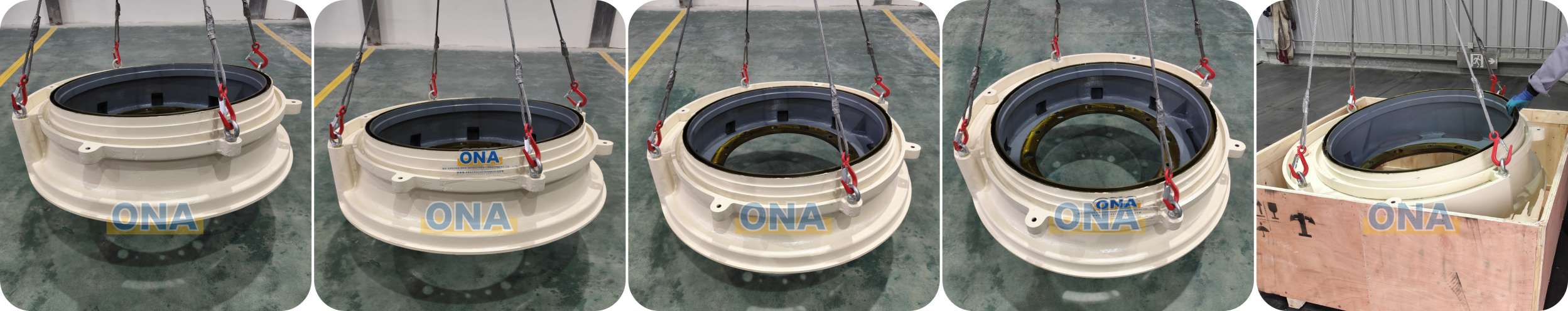

HP500 Cone Crusher, ONA-N16200123

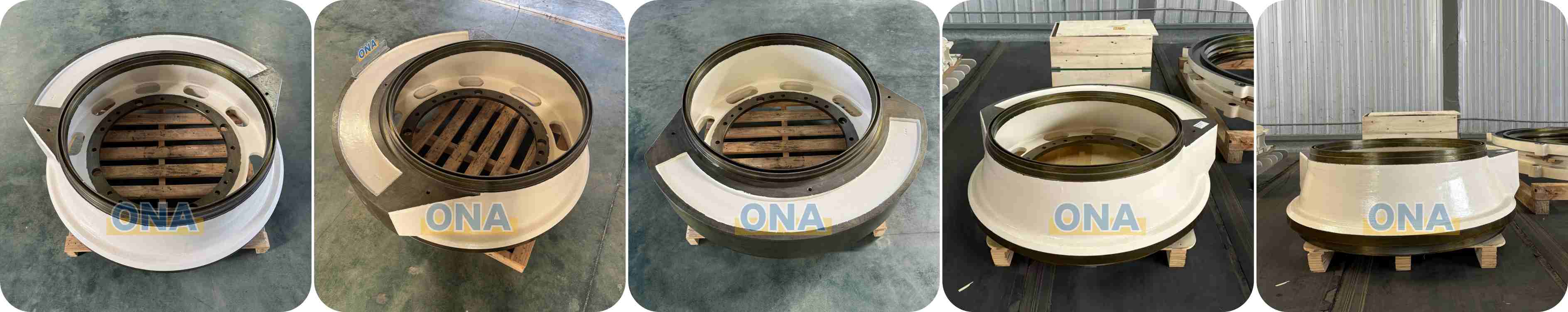

HP6, ONA-MM1375731
The main functions of a crusher's counterweight include the following:
1. Balancing Equipment Vibration: The counterweight's primary function is to counteract the vibrations generated by the equipment during operation. Proper counterweight design can effectively reduce the equipment's vibration frequency, making the crusher more stable during operation and thus ensuring the overall stability of the process system.
2. Improving Operating Efficiency: A well-designed counterweight ensures optimal operating conditions for the crusher in all operating modes, thereby improving operating efficiency. This has a direct impact on the crushing efficiency of the ore.
3. Extended Service Life: Counterweights reduce wear on mechanical components and lower failure rates, thereby extending the life of the crusher and reducing maintenance and replacement costs.
4. Reduced Downtime and Maintenance: Counterweights made of wear-resistant materials withstand impact, reducing wear on critical components, thereby reducing equipment downtime and maintenance costs.

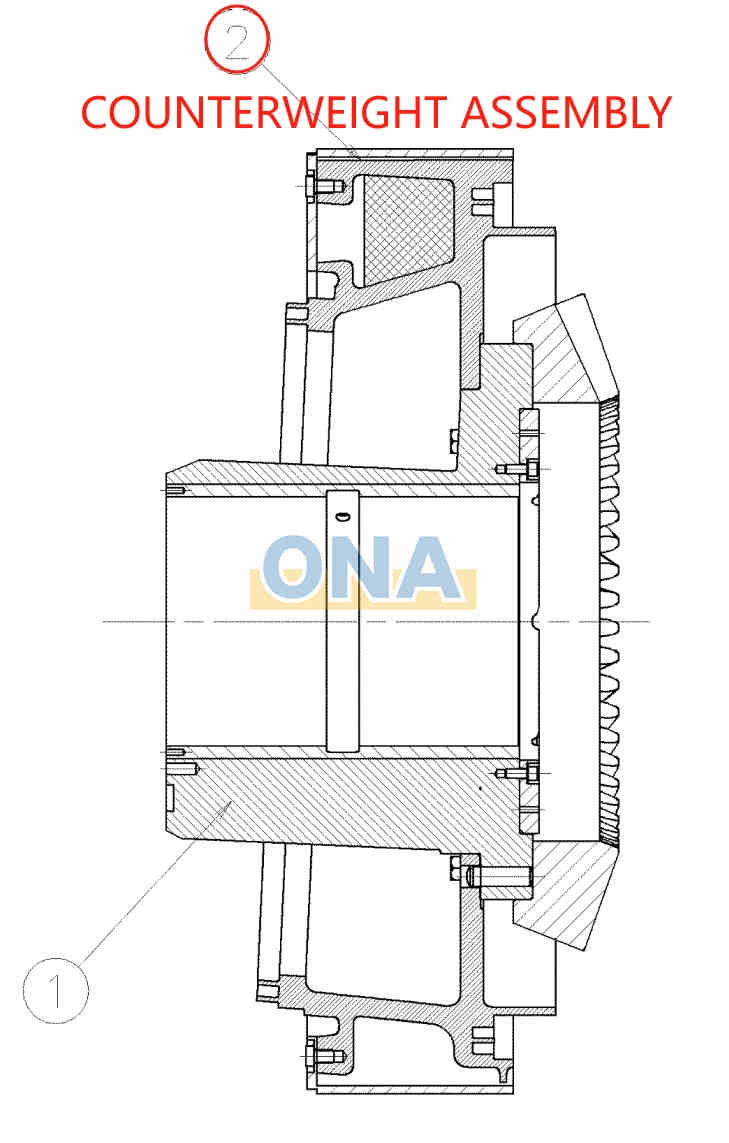

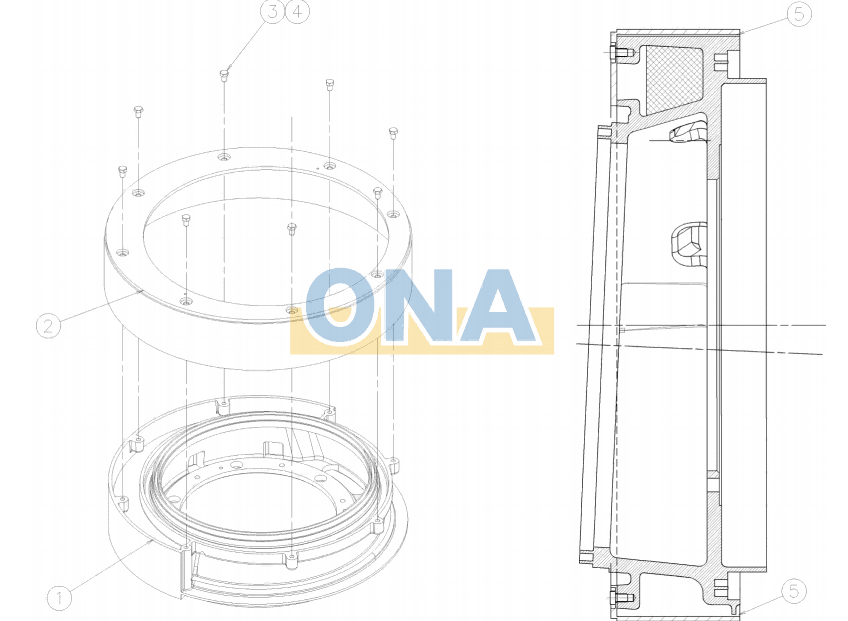

5. Dynamic Balancing: Counterweights are typically made of high-density material and are installed at the lower end of the crusher's main shaft or on the eccentric, symmetrically arranged with the head. Their mass distribution is precisely calculated to generate an inertial force that opposes the movement of the crushing cone during operation, achieving dynamic balancing.
| PN | Machine | PN | Machine |
| N90228114 | HP200 | N98000229 | HP4 |
| N90228115 | HP300 | N90228127 | HP500 |
| 7090228201 | HP300 | 1093055003 | HP500 |
| 7090228112 | HP400 | N98000263 | HP6 |
| N98000228 | HP4 | N98001181 | HP6 |
Company Info:

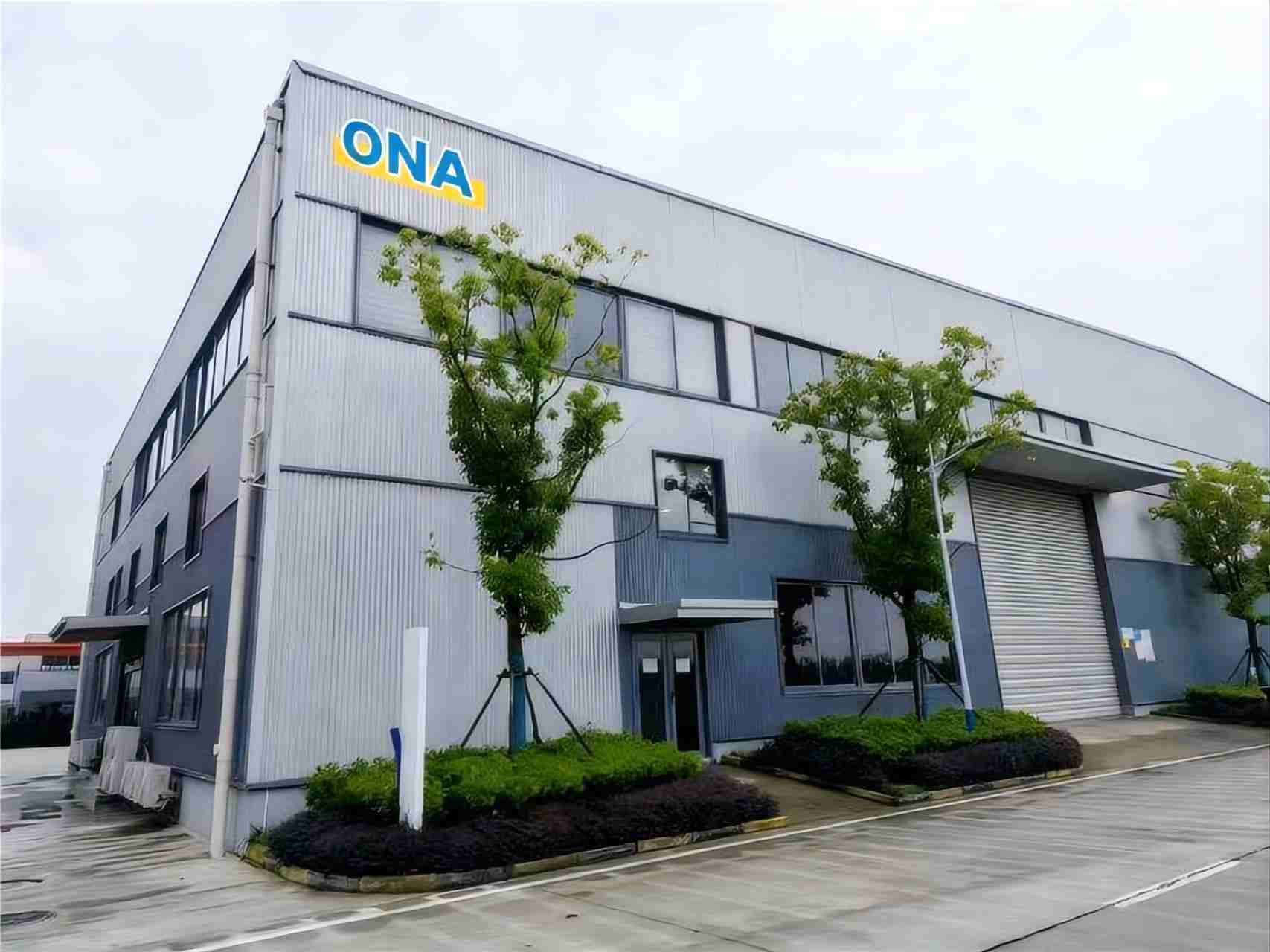

Ma’anshan ONA Intelligent Equipment Co., Ltd. is a professional crusher spare parts manufacturer based in Maanshan, China.

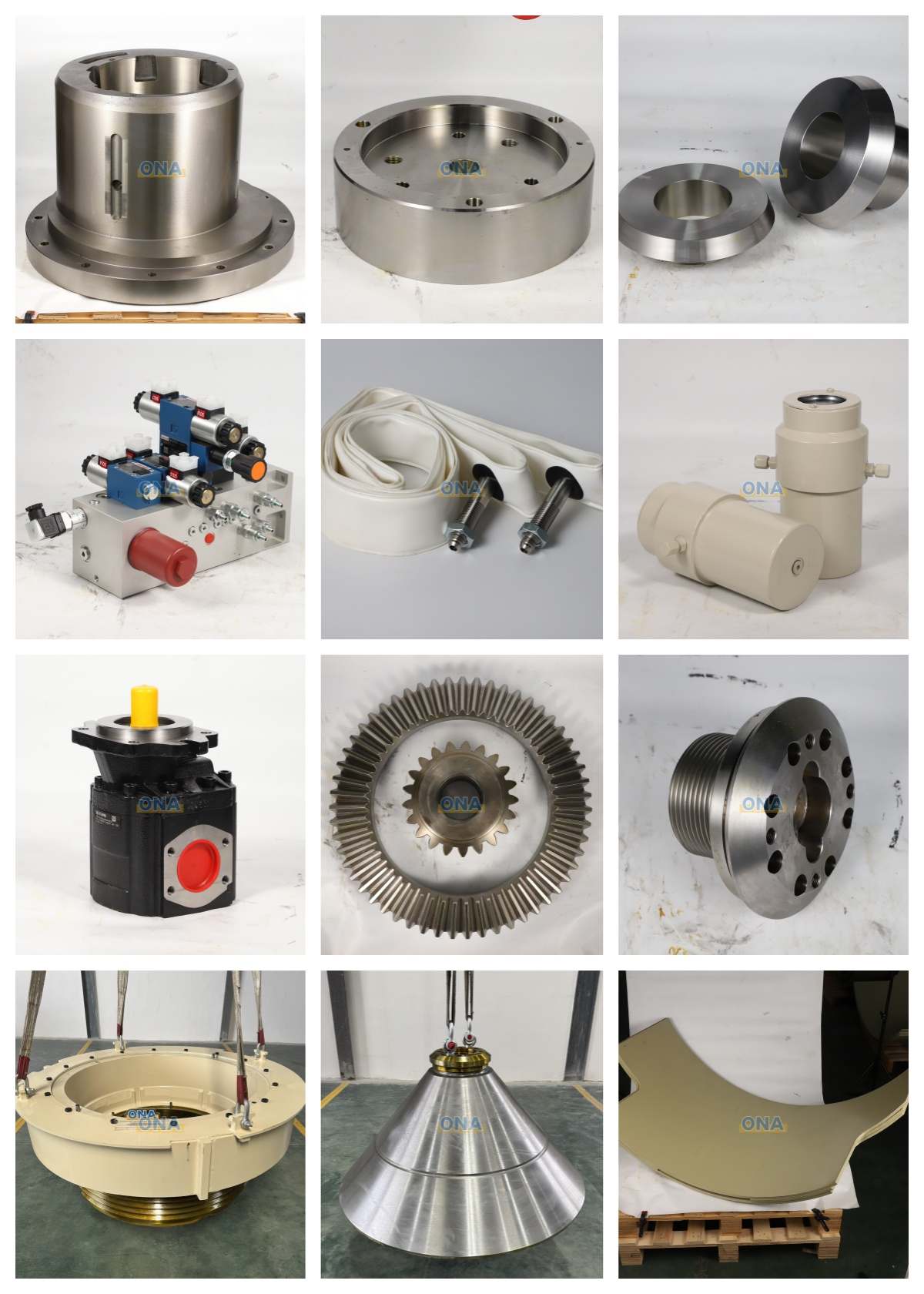

We supply OEM replacement wear parts & assemblies suit for Metso, Sandvik, Terex and other crushers, including cone counterweight assembly, adjustment ring, rear end & front end, pitman, bronze bushings and bolts.
Stock available suit for common Metso HP/GP series items. Factory direct export, custom casting by drawings/samples supported.
Advantage:
✅ Direct fit aftermarket replacement for Metso cone crushers
✅ Precision casting, stable weight & accurate mounting dimensions
✅ Reduces machine vibration, protects key crusher components
✅ Strict QC process, material test report supplied
✅ Available for multiple Metso HP cone crusher models
Common replacement scenarios:
- Original counterweight cracked, deformed or weight loss
- Excessive crusher vibration after mantle and bowl liner replacement
- Overhaul of cone crusher rotating assembly
- Plant upgrade and spare parts stock preparation
FAQ
1. Can I have it with other colors?
Yes, we accept customized color, logo, packing.
2. Can I get video during production?
Yes, we can provide photos, video for each process.
3. Can I get material test certificate (MTC) showing the chemical composition?
Yes, we can provide it, we can also provide dimensions report, hardness report.
