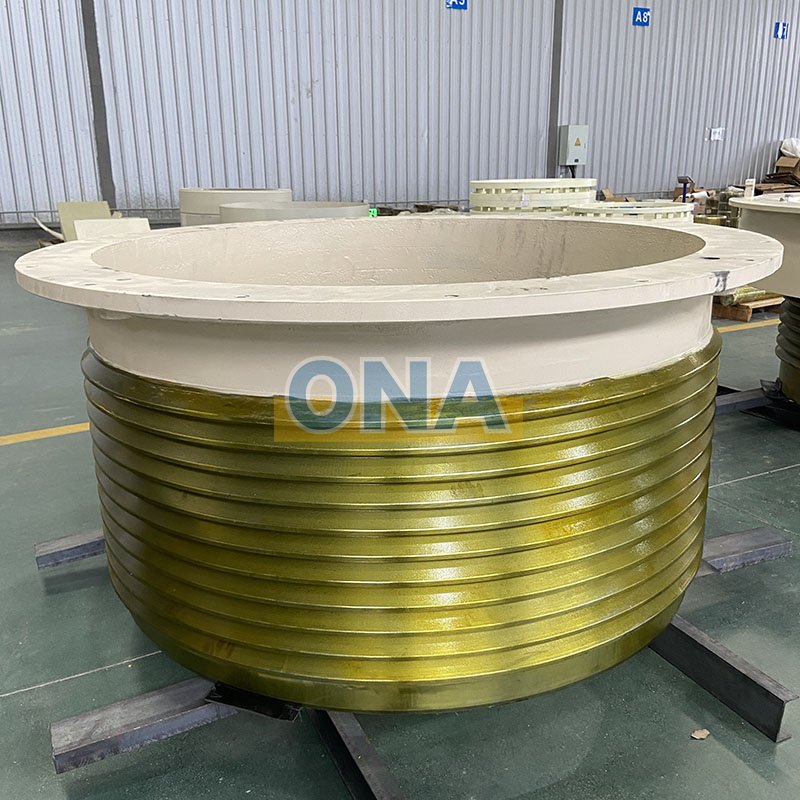

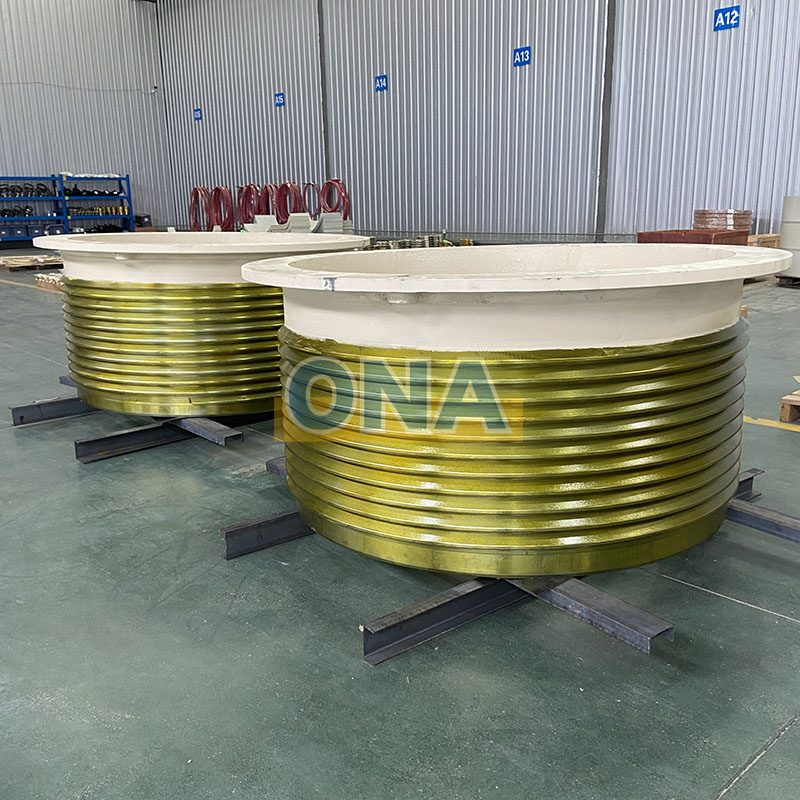

The bowl is the fixed outer shell of an HP cone crusher. ONA supplies bowls suitable for Metso HP4, HP6, HP200, HP300, HP400, HP500, HP800 and more.
Item No :
HP4, HP6, HP200, HP300, HP400, HP500, HP800, MP800, MP1000Part Number :
ONA-N23508503, ONA-N23508552, ONA-7023508000, ONA-7023508200, ONA-1020053002, ONA-N23508202, ONA-1020055034, ONA-1020057555, ONA-1020059614Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1What Does Bowl Mean in HP Series

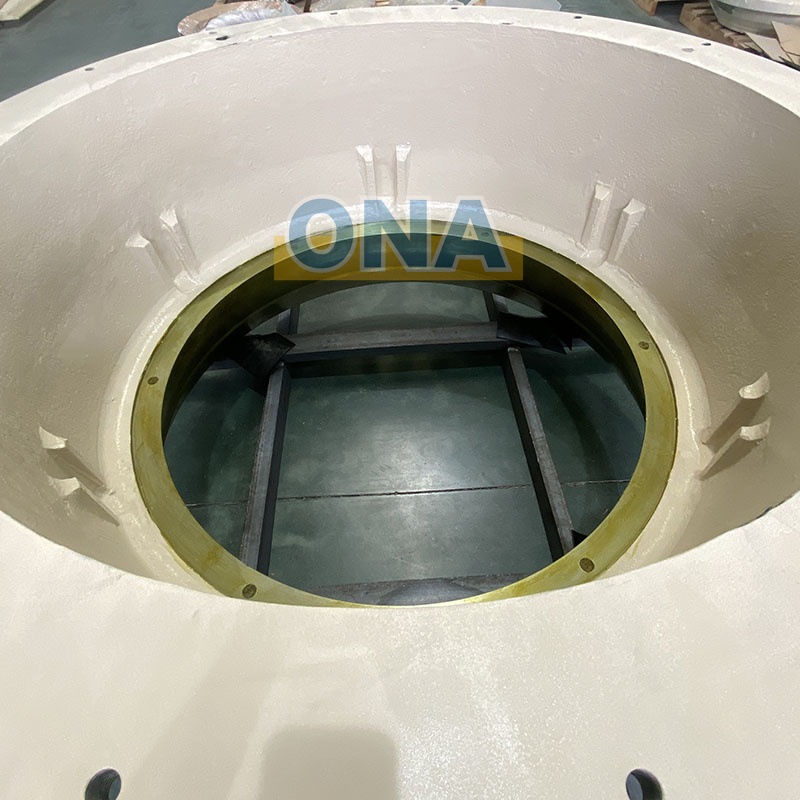

In crushers suitable for Metso HP series, the bowl refers specifically to the fixed outer shell, a heavy cast steel structure that holds the bowl liner and engages with the adjustment ring via external threads. It is a long-life component, not a wear part.
The Position of the Bowl in a Cone Crusher

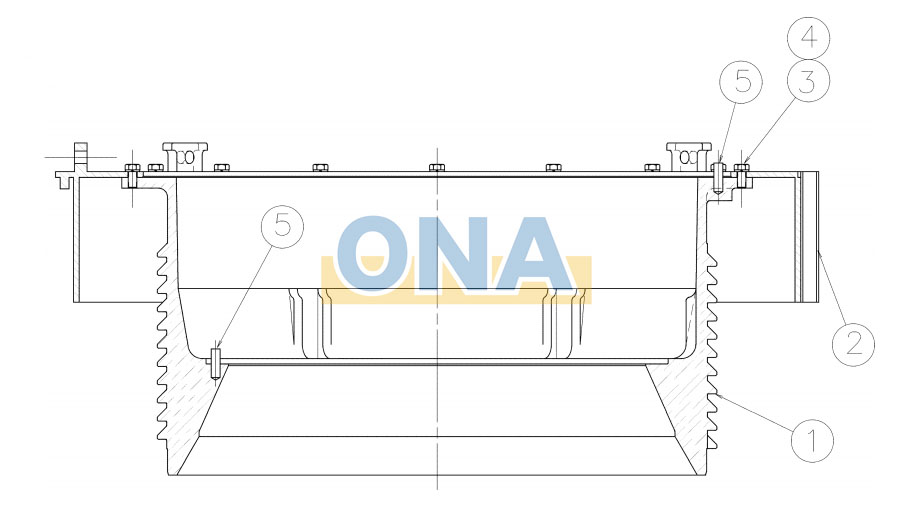

Eg: HP400 ONA-1093040116 bowl assy drawing
| Pos. | Part No. | Description | Qty | Net Wght |
| 1 | ONA-1020053002 | BOWL | 1 | 2279 |
| 2 | ONA-1022815026 | ADJUSTMENT CAP | 1 | 488 |
| 3 | ONA-7001532453 | SCREW, HEXAGONAL | 16 | 0.3 |
| 4 | ONA-N01632024 | WASHER, SPRING | 16 | 0.022 |
| 5 | ONA-7001619336 | PIN, PARALLEL | 8 | 0.3 |
Alternative Terms for Bowl
In crushers suitable for Metso GP series, the fixed bowl is rarely called the bowl alone; the wear liner inside it is often referred to as the bowl liner or concave. In crushers suitable for Sandvik CH and CS series, the structural shell is called the top shell or bowl assembly, while the liner is called the concave. Similar naming differences exist for crushers suitable for Symons, Trio, and other brands. The table below lists some hot-selling bowl part numbers：
| ONA-N23508500 | ONA-N98000671 | ONA-N23508003 | ONA-N23508004 | ONA-N23508214 | ONA-N98001282 |
| ONA-N23508209 | ONA-1020055255 | ONA-1020057059 | ONA-MM0264428 | ONA-TRIO17002267 | ONA-2005-5006 |
Key Functions of the Bowl
The bowl provides a rigid mounting surface for the bowl liner. Its external threads allow the adjustment ring to raise or lower the bowl, changing the closed side setting. It transmits crushing forces into the main frame and is made of high-strength alloy steel. A damaged bowl can lead to liner misalignment or frame cracking. Inspect the bowl threads during major overhauls.
Related Components of Bowl
The bowl liner (concave) is the wear part that contacts rock, made of high manganese steel. The bowl assembly is the complete unit, including shell, liner, and wedges. The adjustment ring threads onto the bowl to control the discharge setting. The clamping ring locks the adjustment ring after setting. The counterweight assembly balances eccentric motion. The main shaft and mantle form the moving crushing part opposite the bowl.

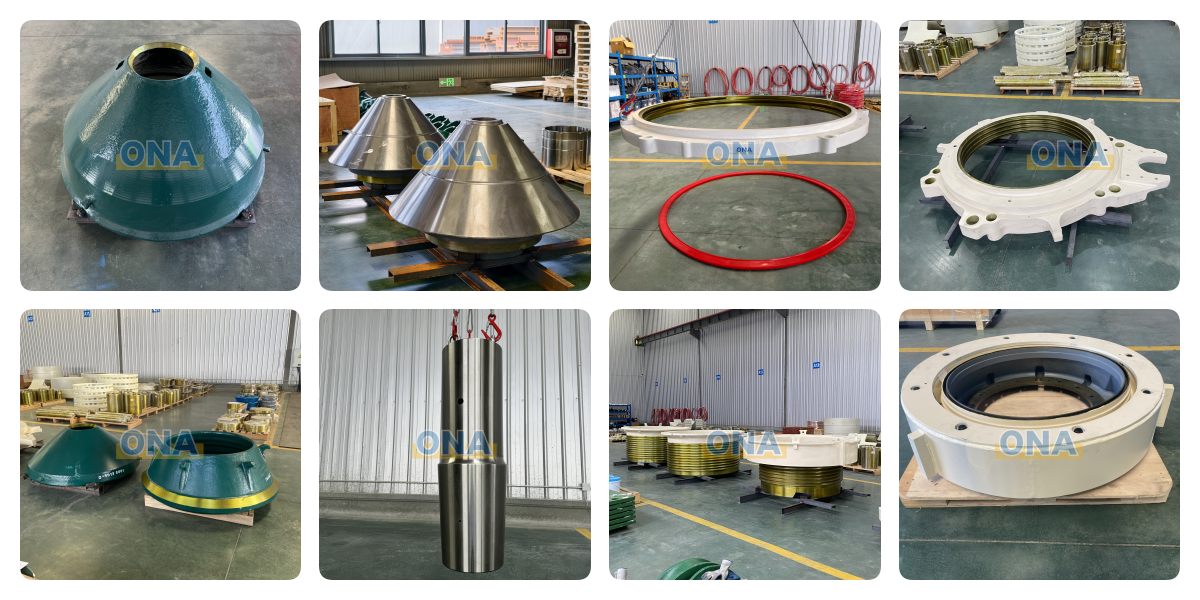

Feed cone, which also known as feed plate, which suit to Metso, Nordberg, Sandvik, etc..
Details
Air cooler, which widely used in Metso, Sandvik cone crusher. You can provide air cooler's part number and nameplate to check!
Details
Gear and Pinion, which widely used in Metso, Sandvik,Symons cone crusher. You can send us part number to check, or provide drawings to confirm price!
Details
Head ball, which widely used in Metso, Nordberg HP series cone crusher head assembly. You can send us part number to confirm if we have stock!
Details
Precision-engineered Drilled (HP500) and Perforated (HP6) Blocks are core housing components suit for the Metso Nordberg HP series hydraulic power unit. They are equipped with high-performance valves imported from Germany, ensuring OEM-equivalent reliability and performance.
Details
Counterweight liner, which widely used in Metso, Nordberg HP series counterweight assembly. We have many stock which suit to HP200, HP300, HP400, HP500!
Details
Eccentric, which widely used in Metso, Nordberg HP series eccentric assembly. ONA offers assembly services, you can use it as soon as you receive the goods.
Details
Socket, which widely used in Metso, Nordberg HP series socket assembly. We also can provide other parts like main shaft assembly, tramp release cylinder assy, adjustment ring assy, etc...
Details
