ONA's crusher parts are precise and compatible with multiple models, made of high-quality materials, and of original factory quality.
Item No :
HP200, HP300, HP400, HP500, HP4, HP6, HP800, MP1000Part Number :
ONA-N12030505, ONA-MM1226994Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiOrder(MOQ) :

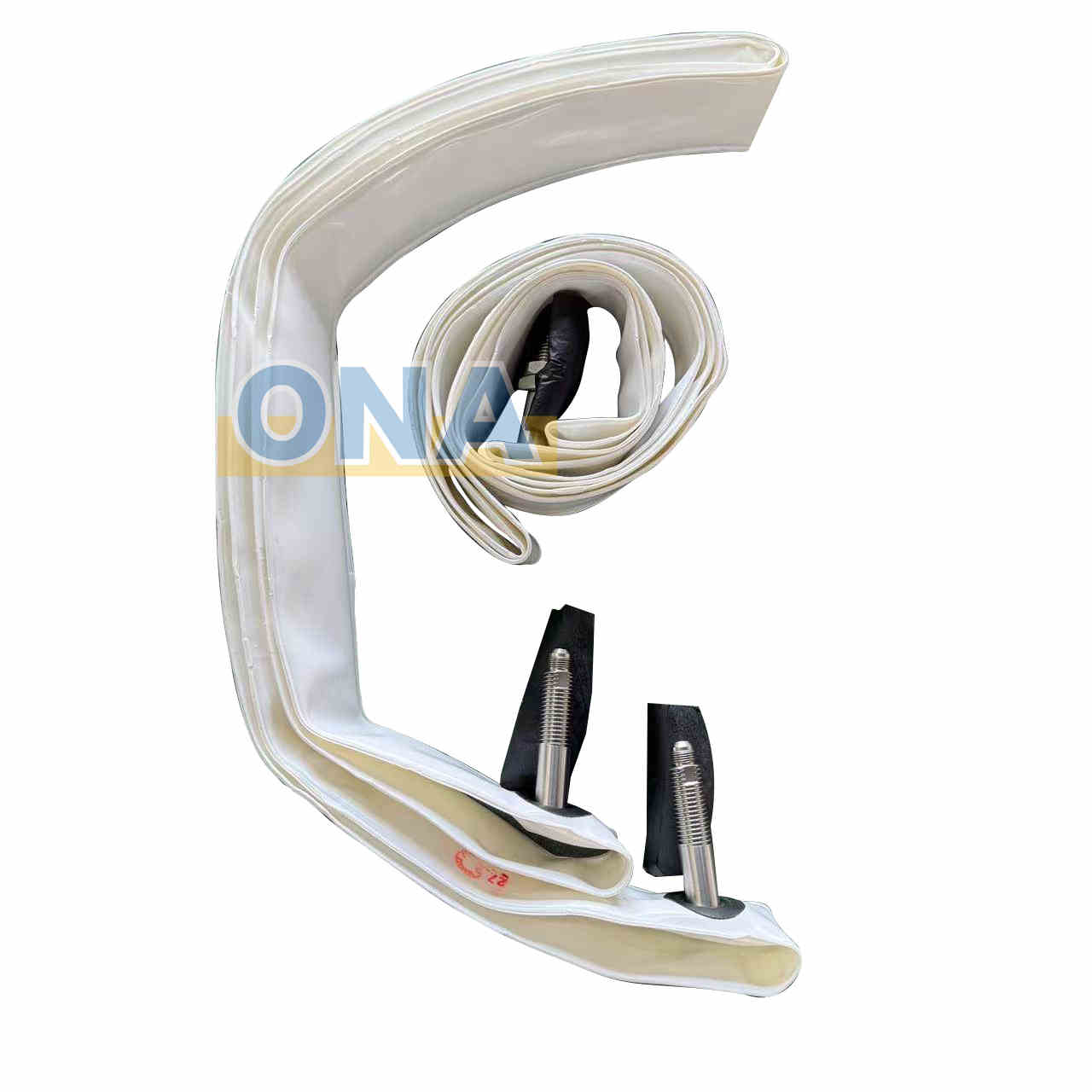

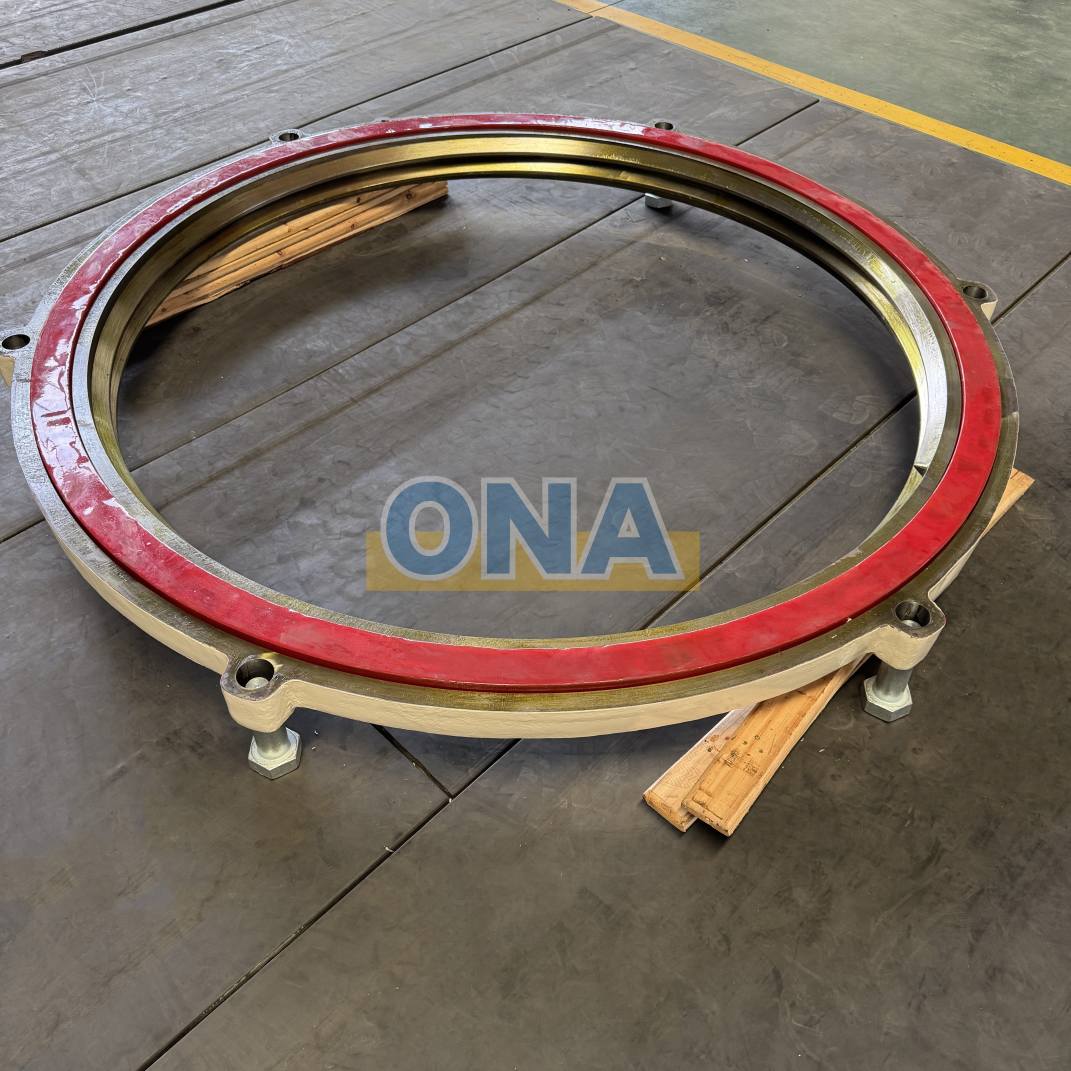

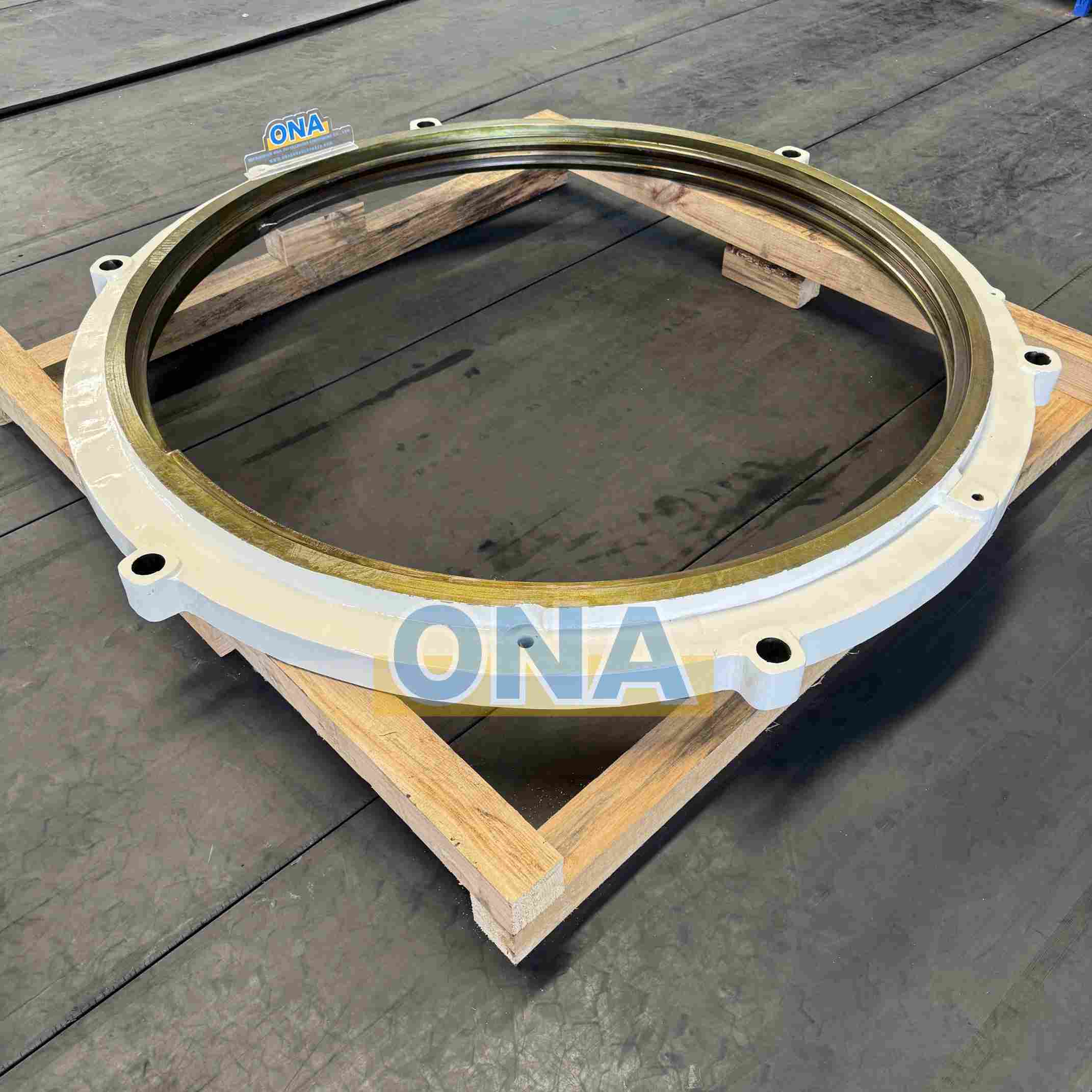

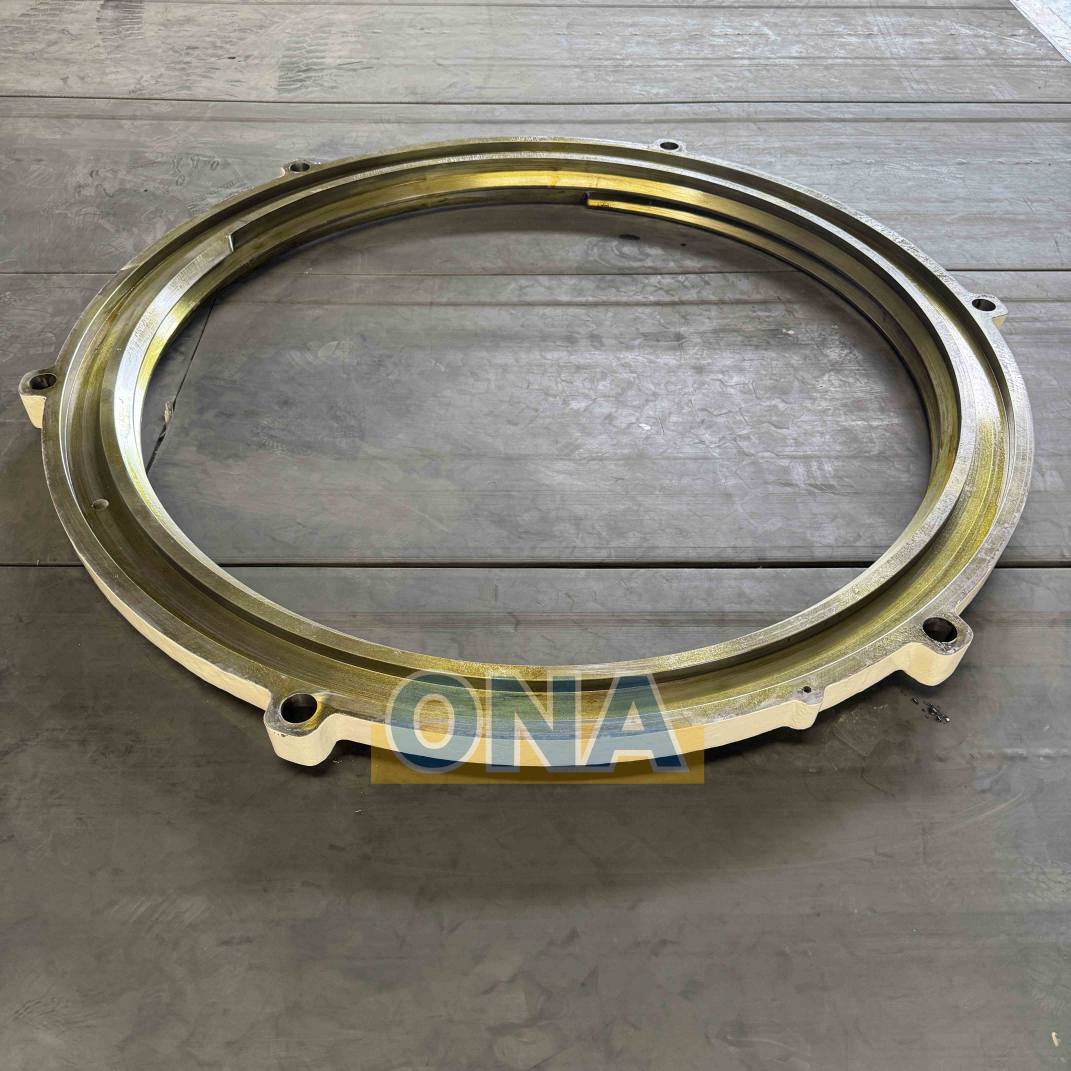

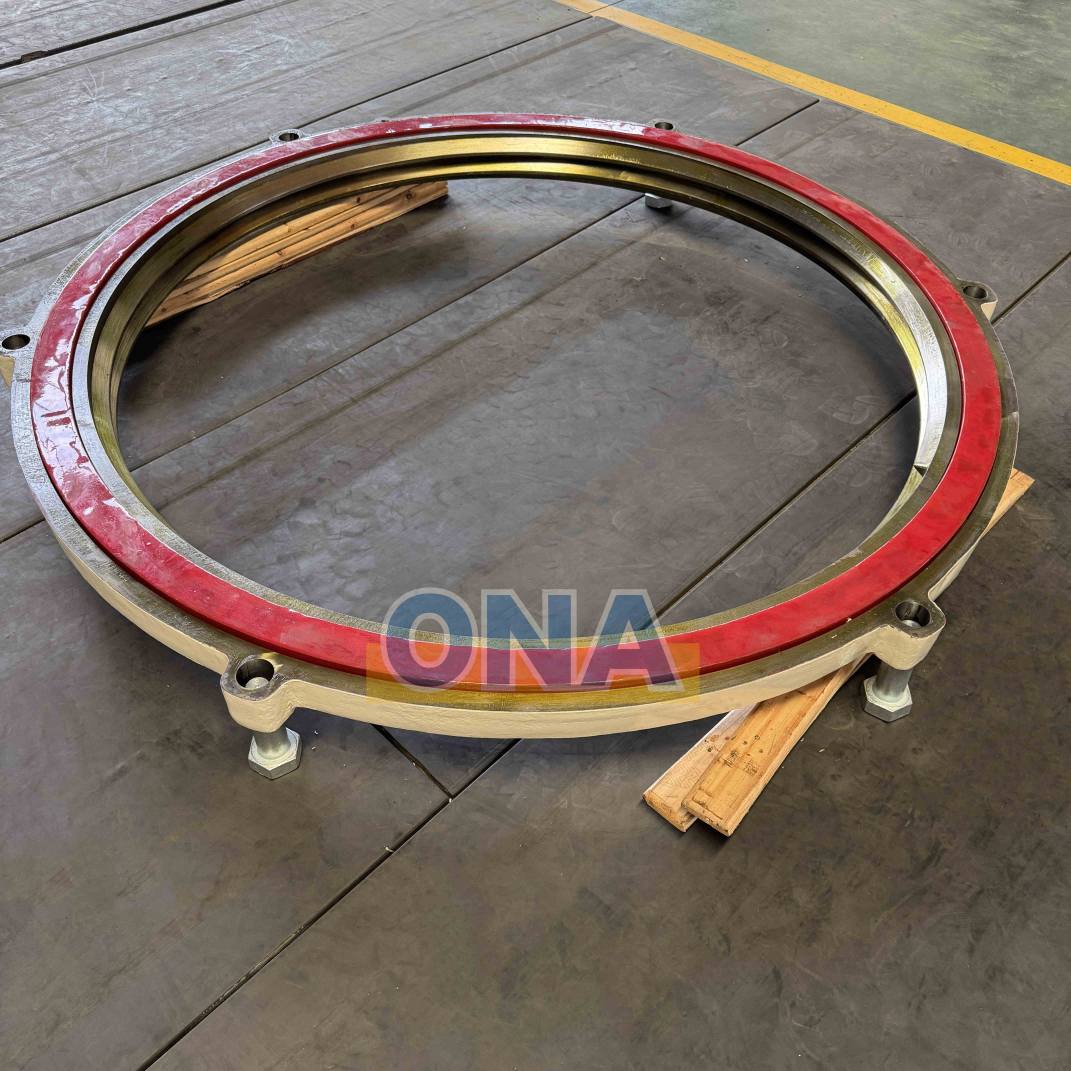

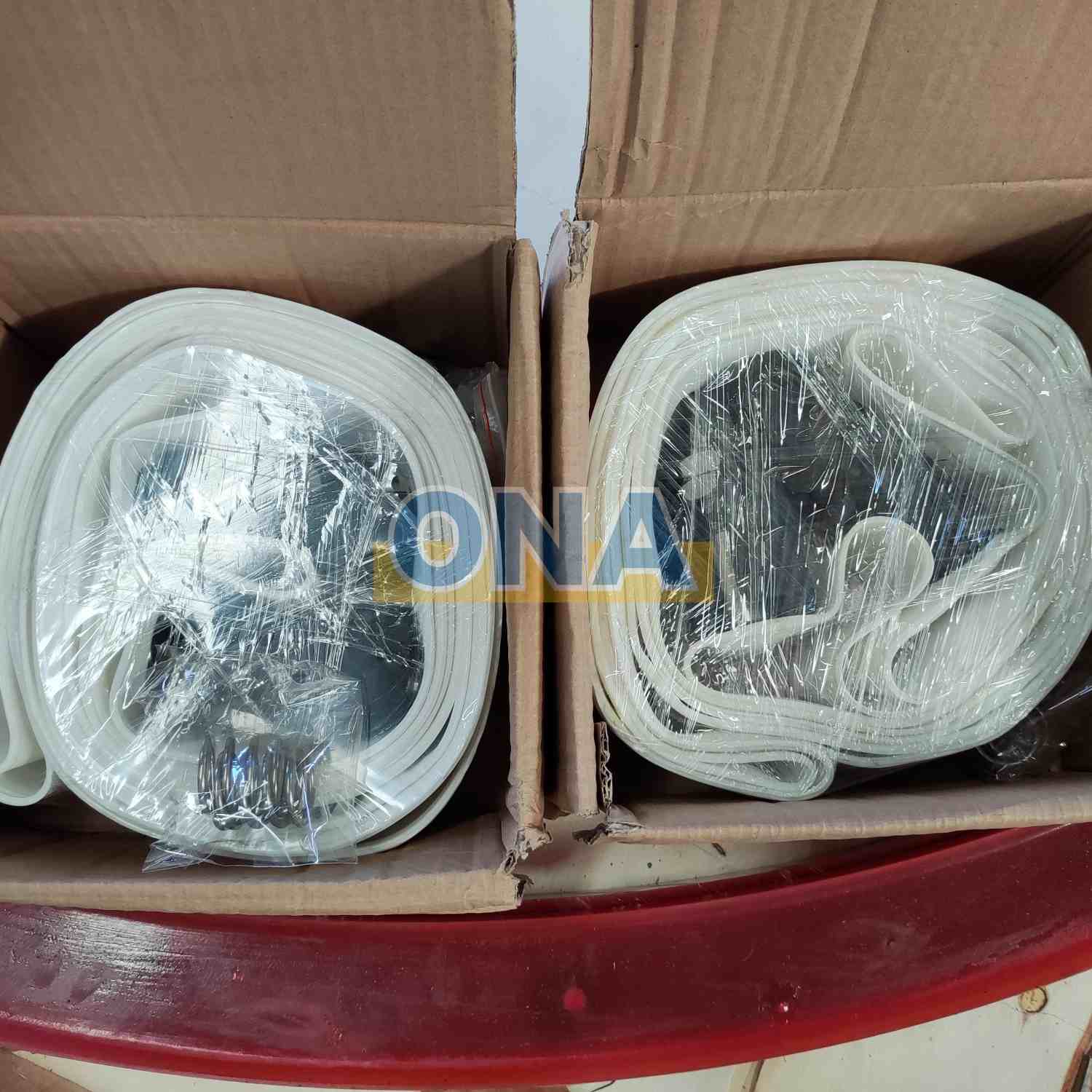

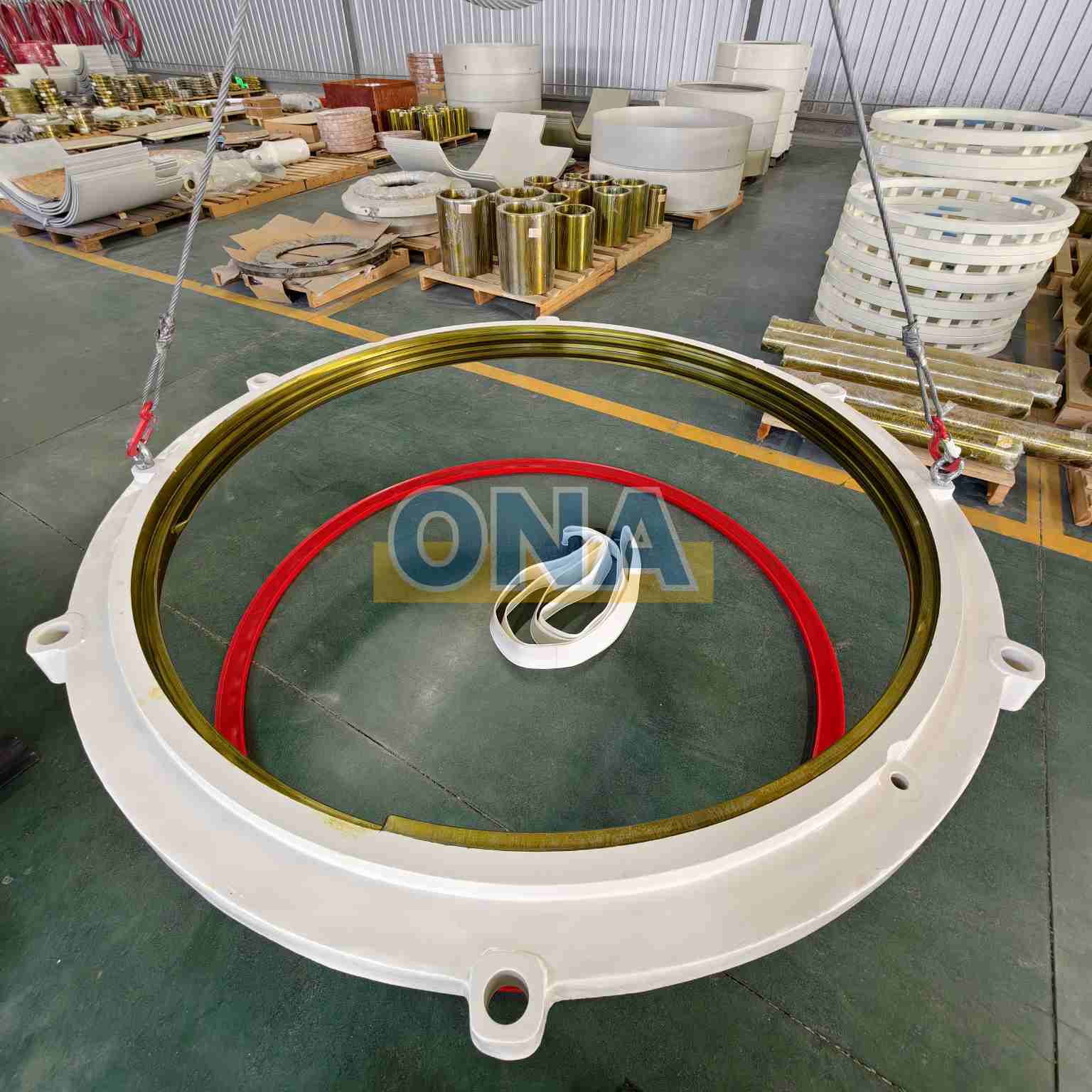

1The crusher part clmping ring assembly is a key fixing device for the cone crusher, including clmping rings, hydraulic ring clamping set, dust covers, and other accessories. It is mainly used to prevent the bowl assembly from rotating spontaneously due to vibration during crusher operation, ensuring stable discharge port dimensions and thus guaranteeing the crusher's working efficiency.
Installation location: Installed between the adjusting ring and the lower frame.
Material: Steel.
Applicable Scenarios: Suitable for spring & hydraulic cone crushers: medium-fine crush granite, basalt, iron ore, limestone & C&D waste; for aggregates, mining, stone processing, building materials & metallurgy.

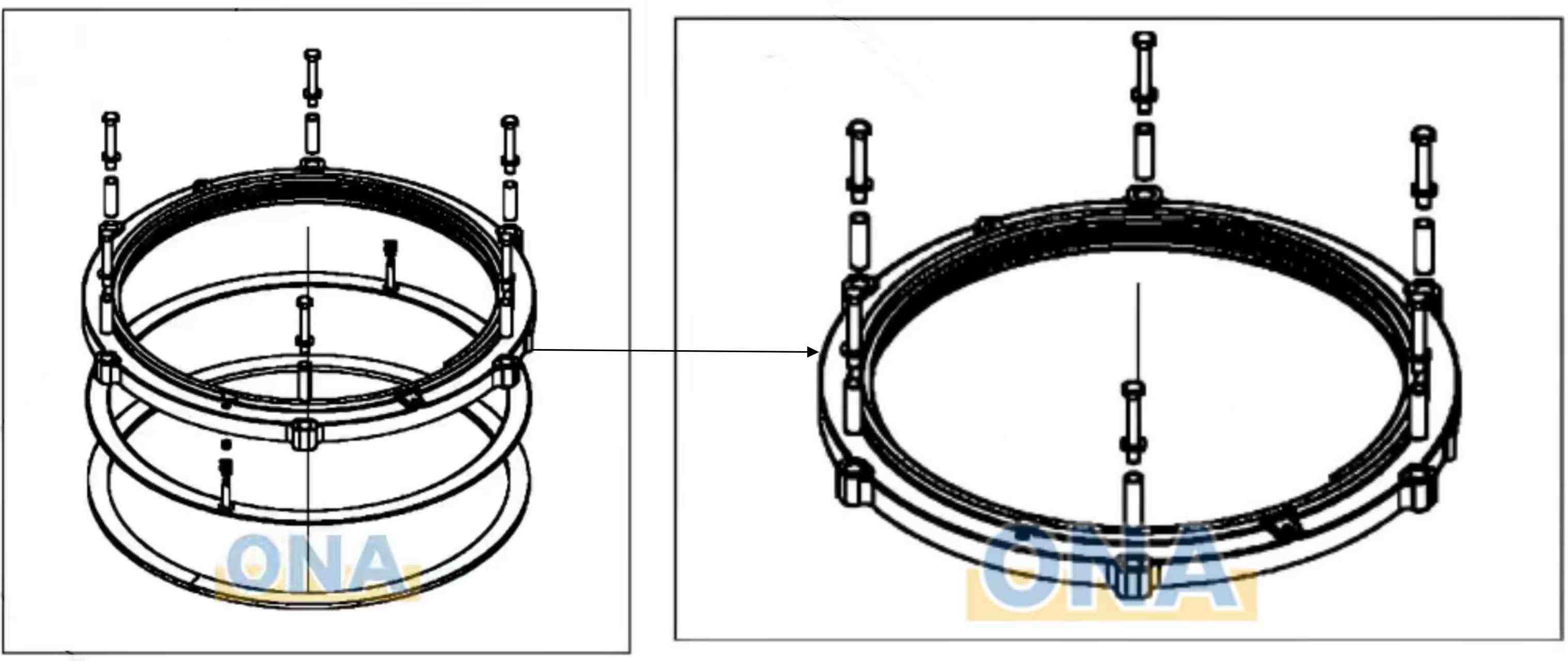

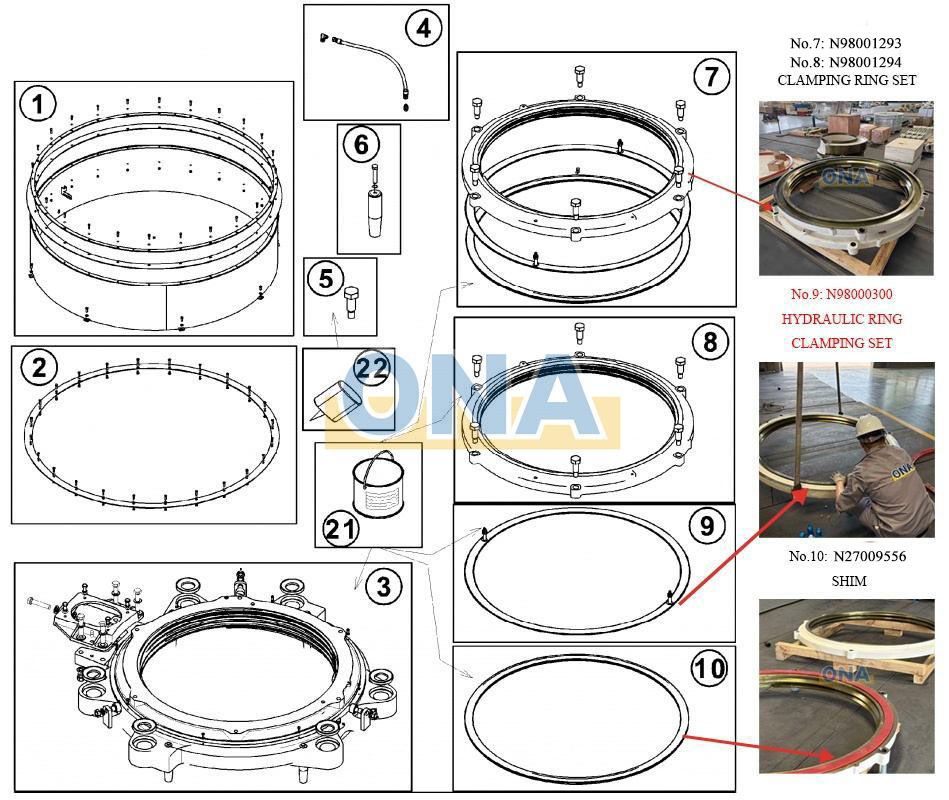

Which Parts Included in The Clamping Ring Assembly?

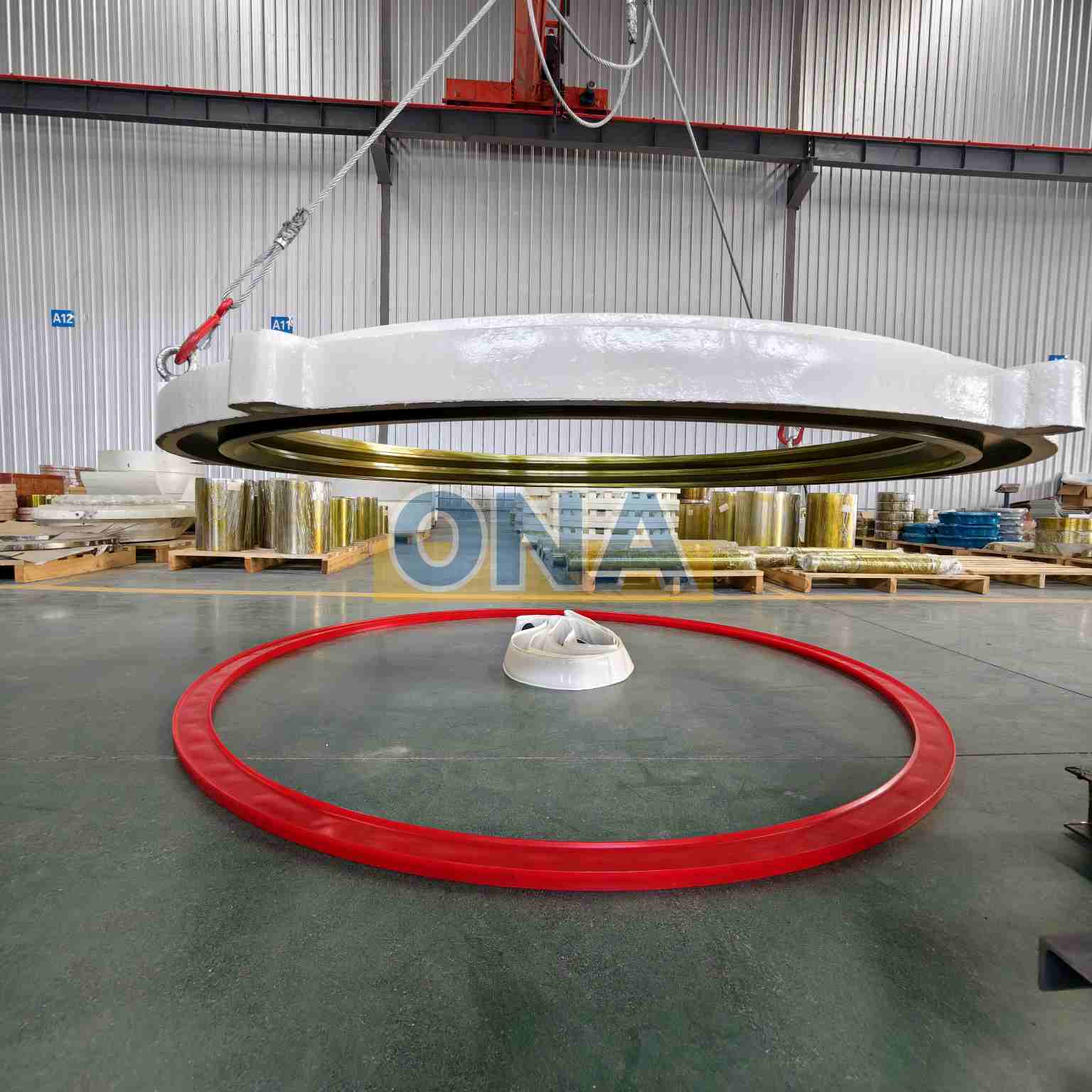

Eg: HP6 ONA-N98001293/ONA-N98001294 Clamping Ring Assembly

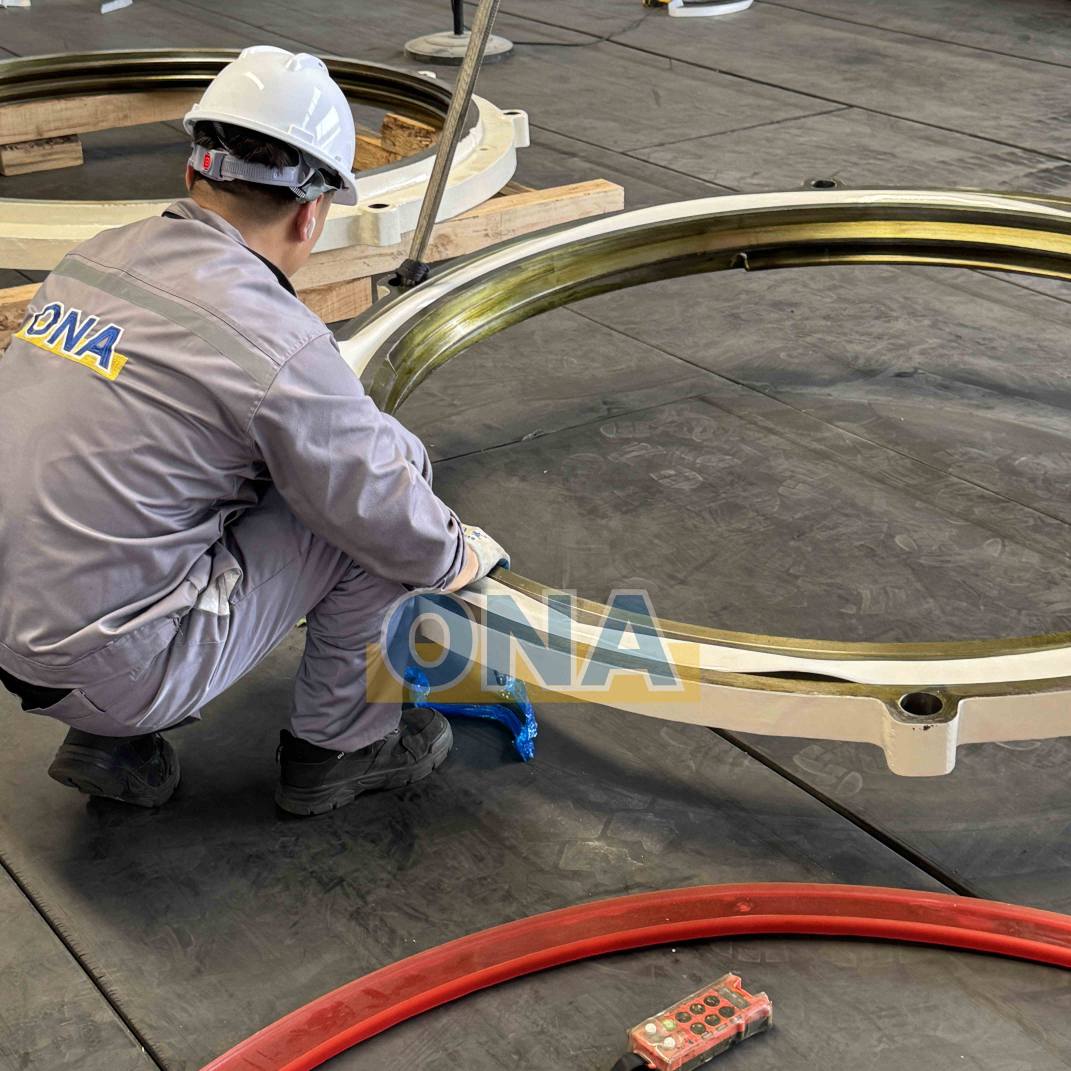

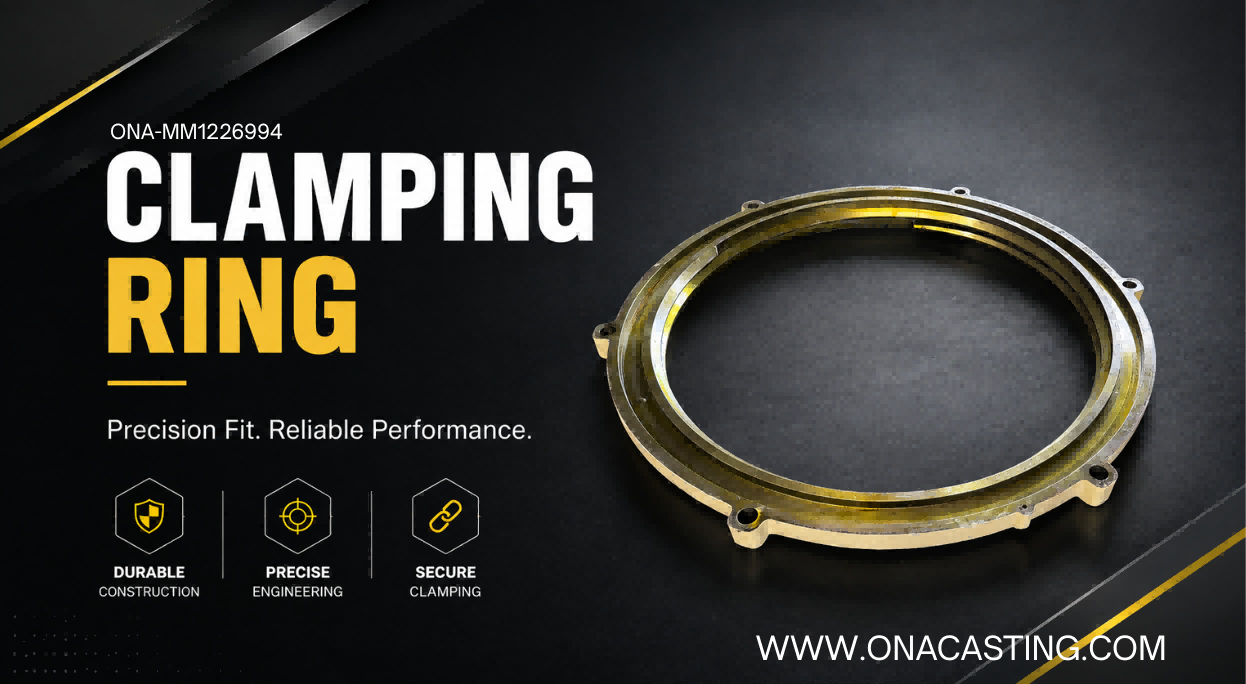

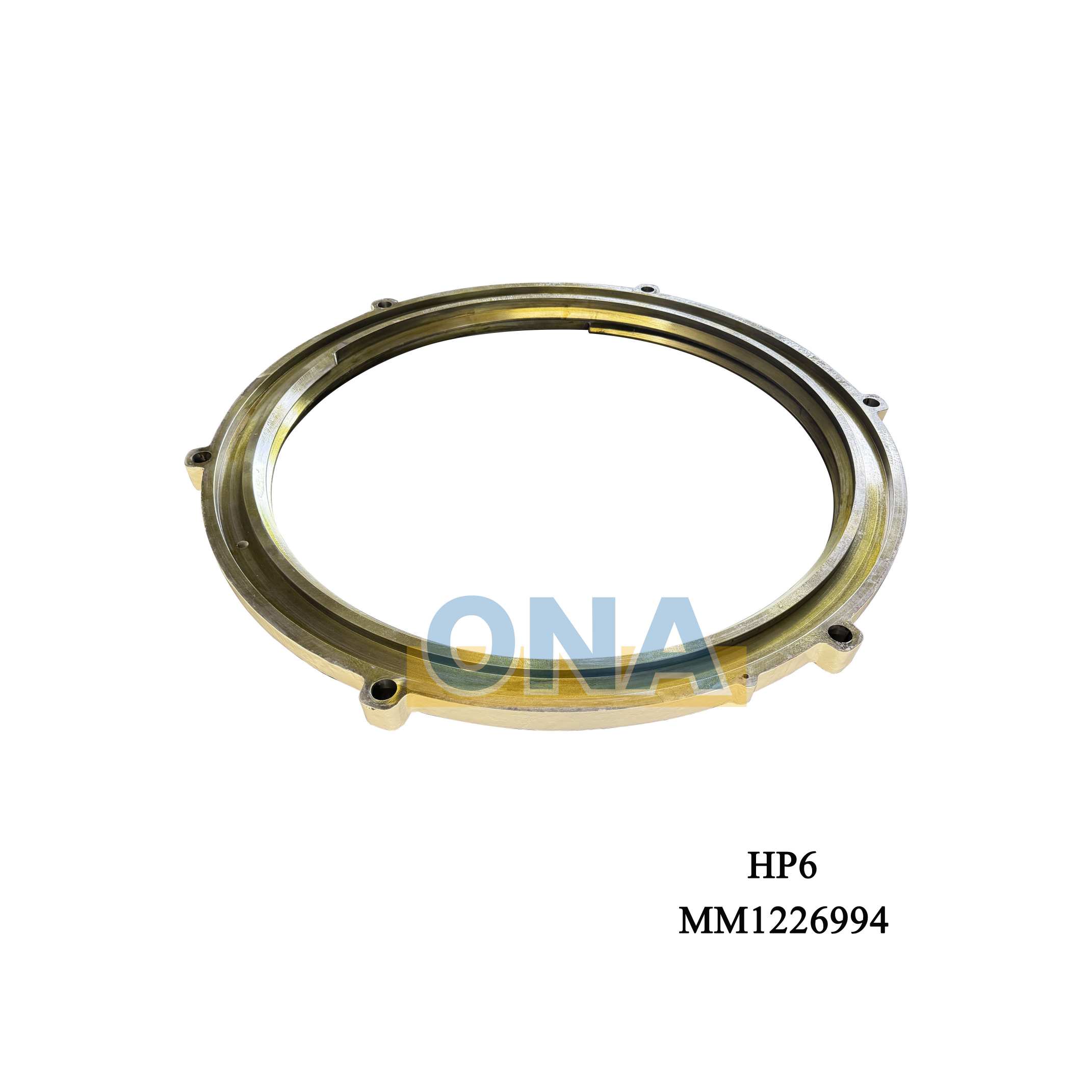

No.7 – ONA-MM1226994: Clamping Ring Assembly

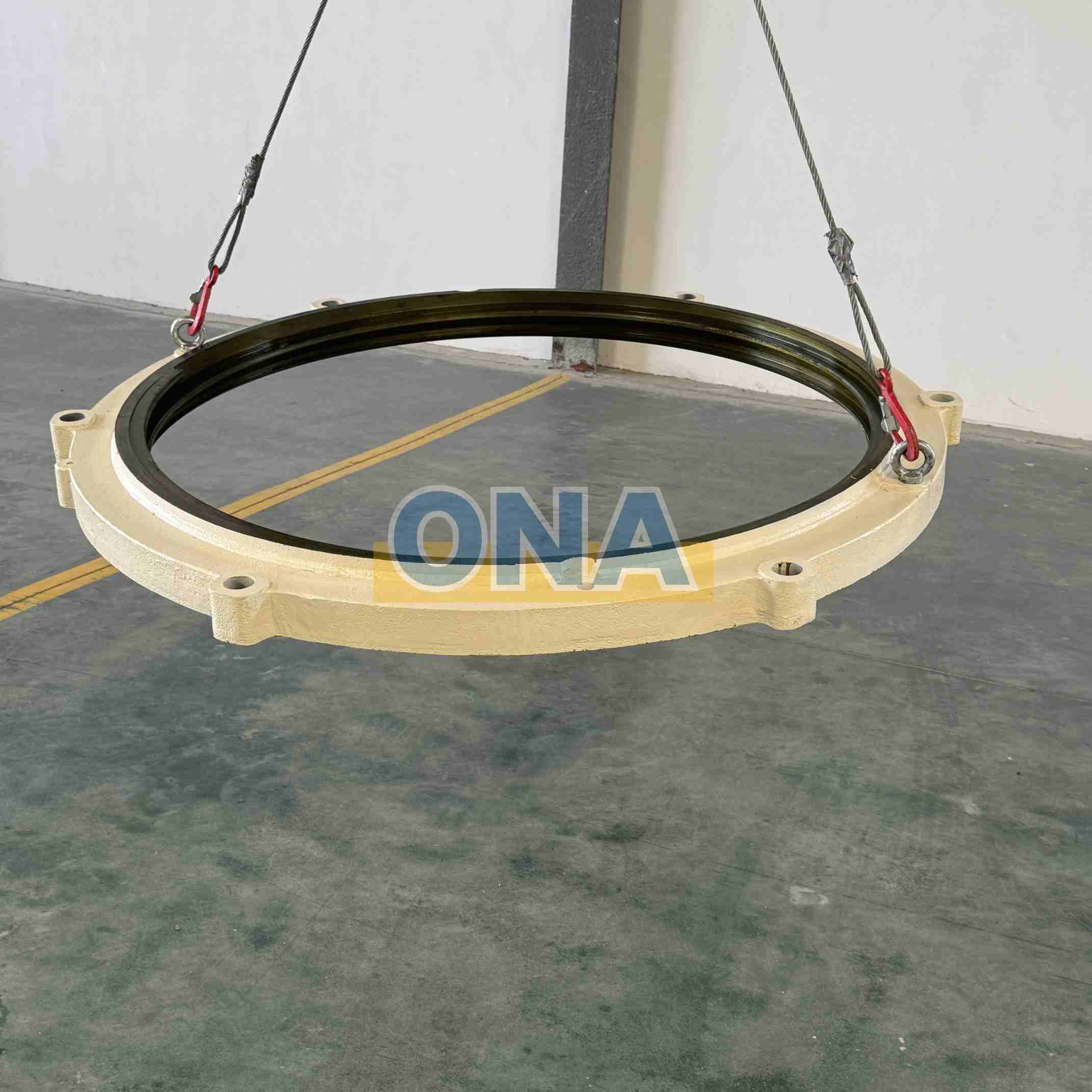

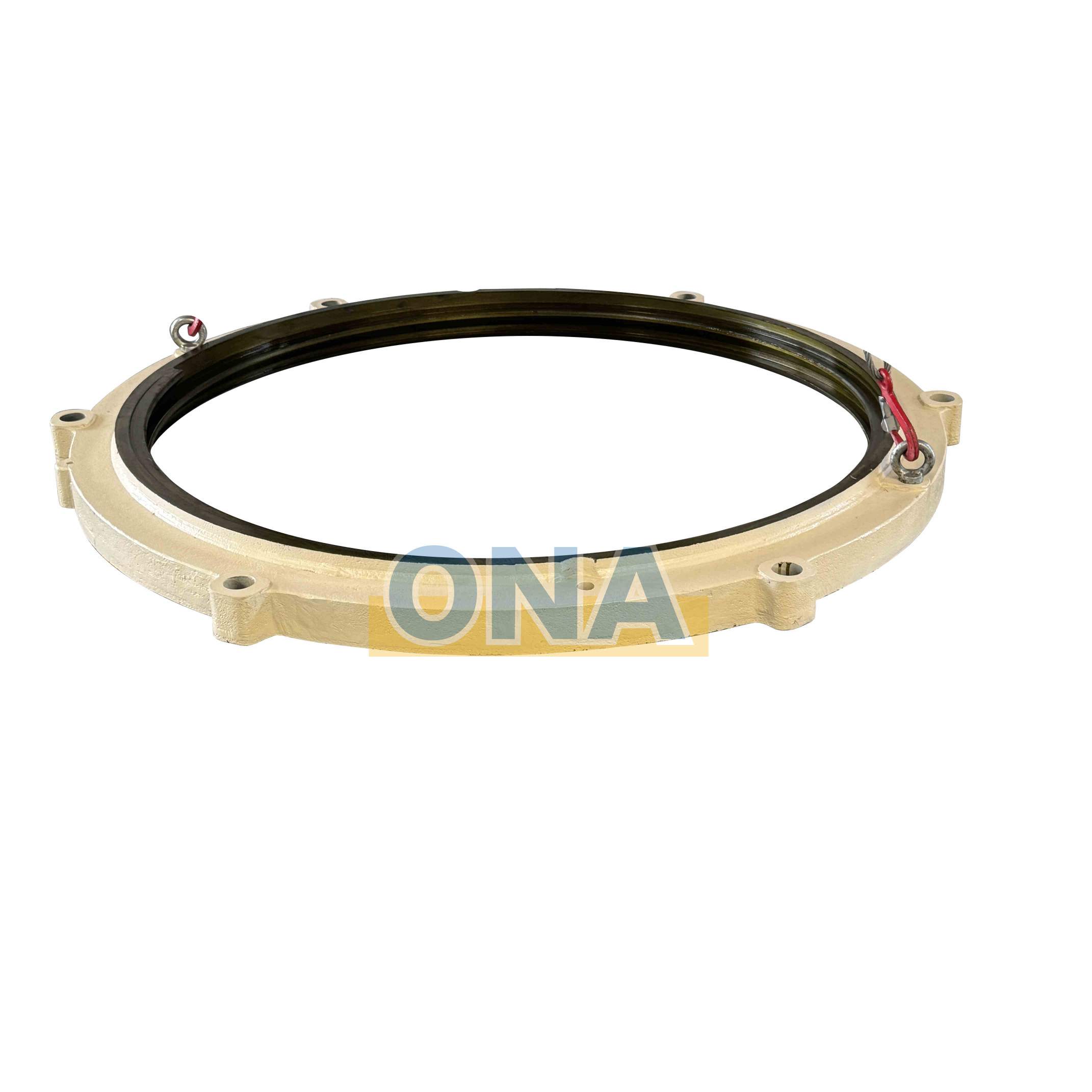

The main clamping ring that secures the adjustment ring to prevent rotation during crushing. Ensures stable CSS (Closed Side Setting) and consistent product gradation. Manufactured from high-strength alloy steel with precision-machined threads for reliable clamping force and long service life.
No.8 – ONA-MM1226996: (Companion part)
Likely a seal ring, retaining ring, or hydraulic cylinder component that works with the clamping ring assembly to complete the locking system. Ensures proper sealing and hydraulic pressure retention for effective locking performance.
Related parts
| Ring body | ZG270-500 / ZG35SiMn (customizable); normalized and tempered (HB180–240) |
| Thread | Buttress / Trapezoidal (per OEM standards) |
| Clamping ring | Forged steel; precision bored; pressure tested |

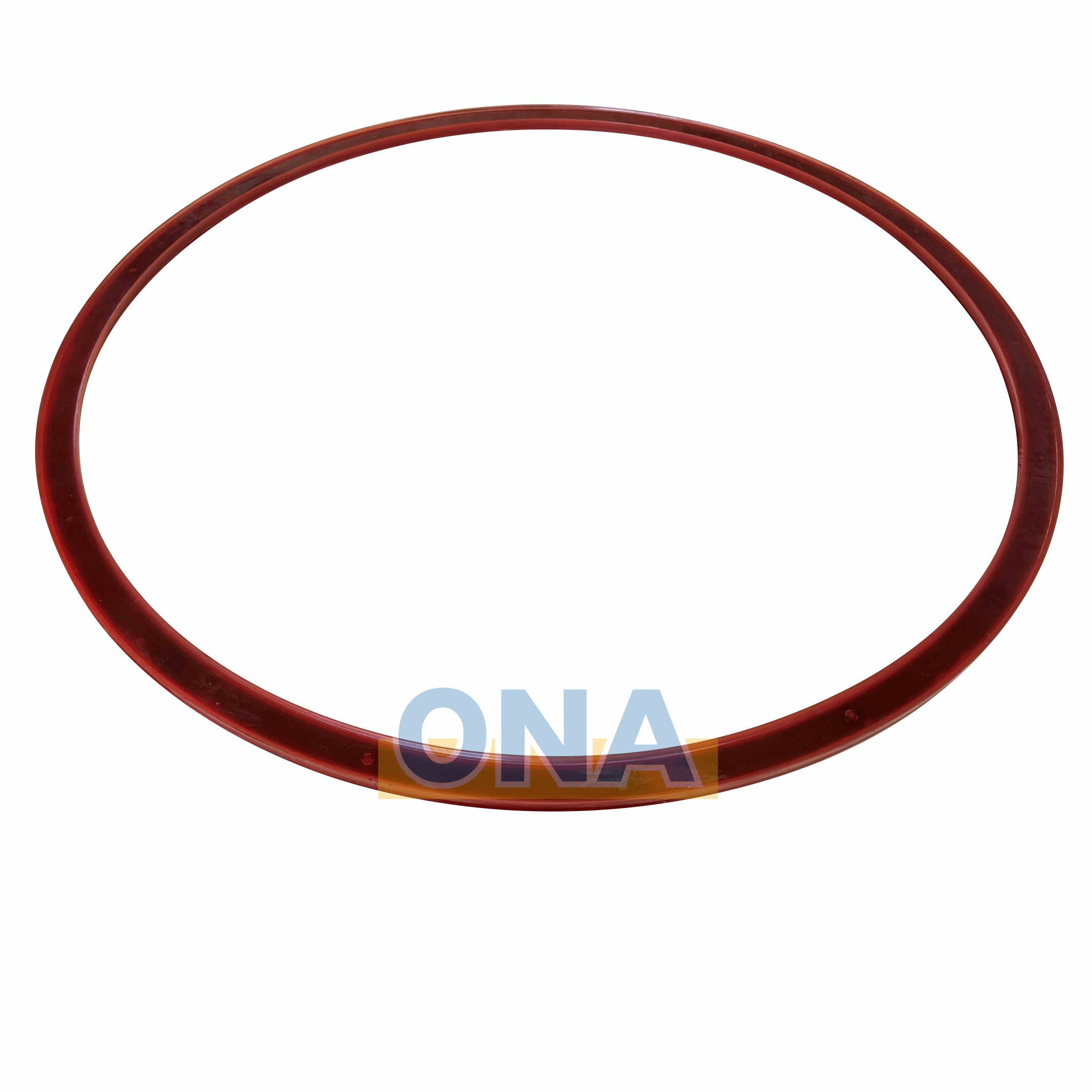

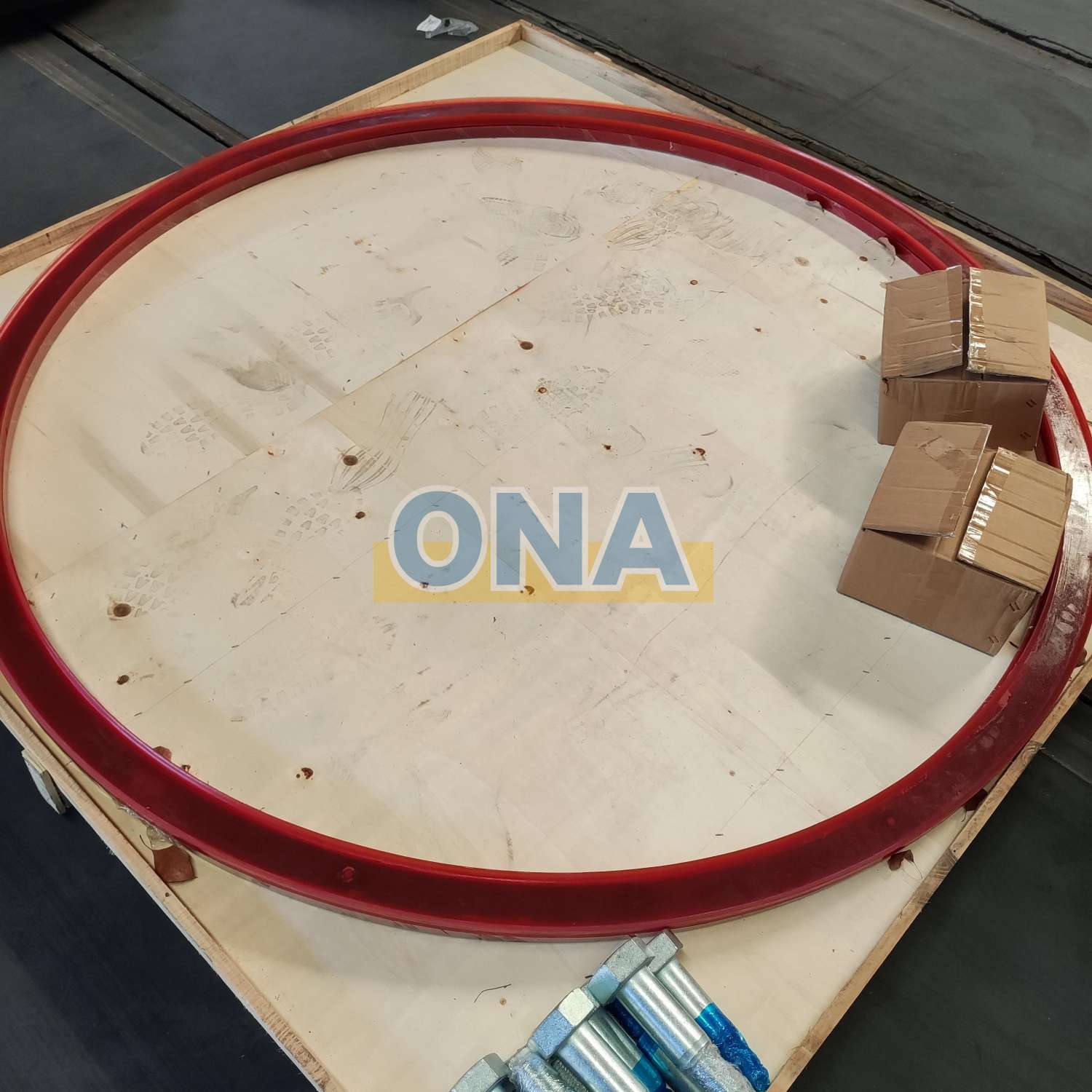

| Dust Cover | Wear-resistant rubber / Polyurethane / Steel (model-dependent) |

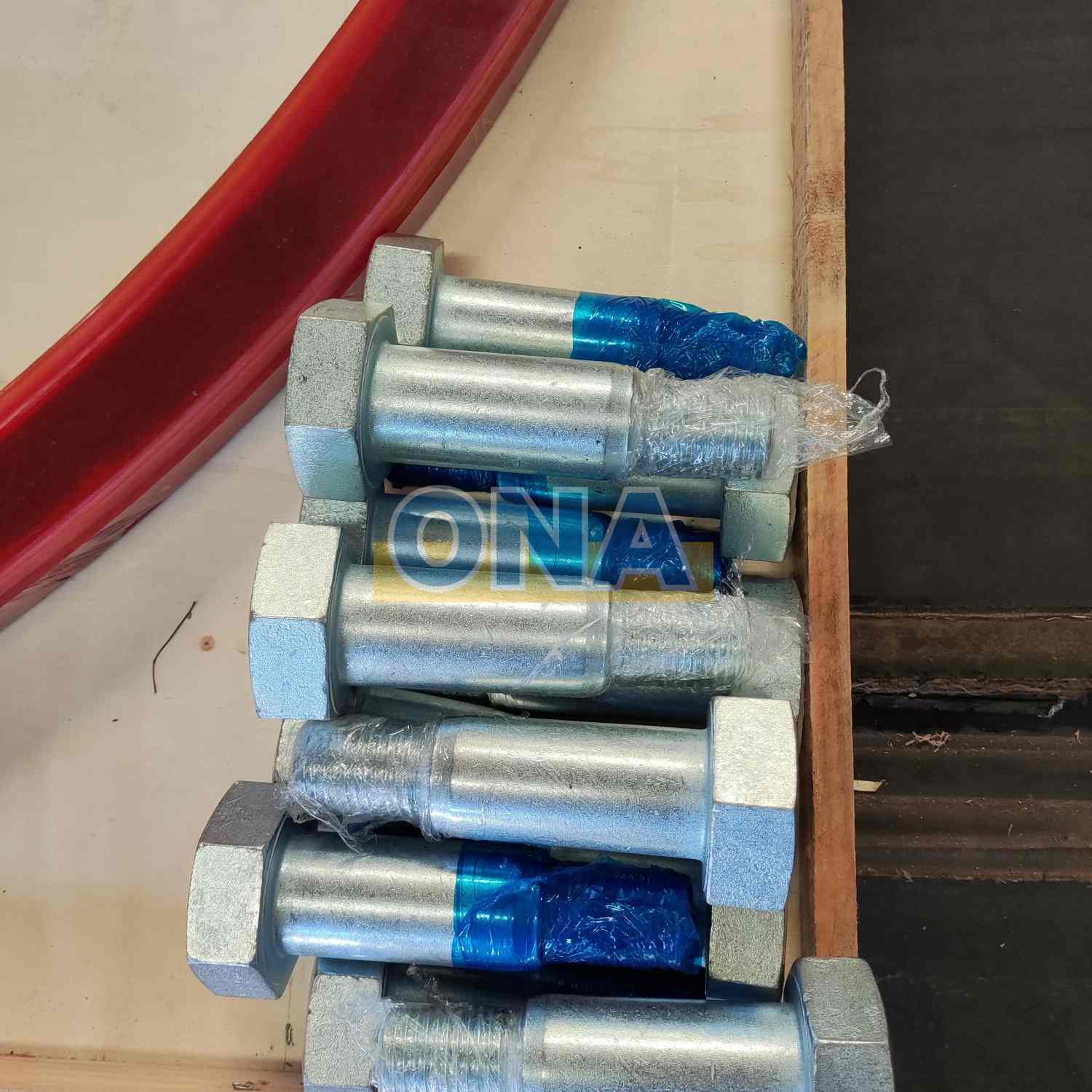

| Fasteners | Grade 8.8 / 10.9 high-strength bolts + lock nuts |

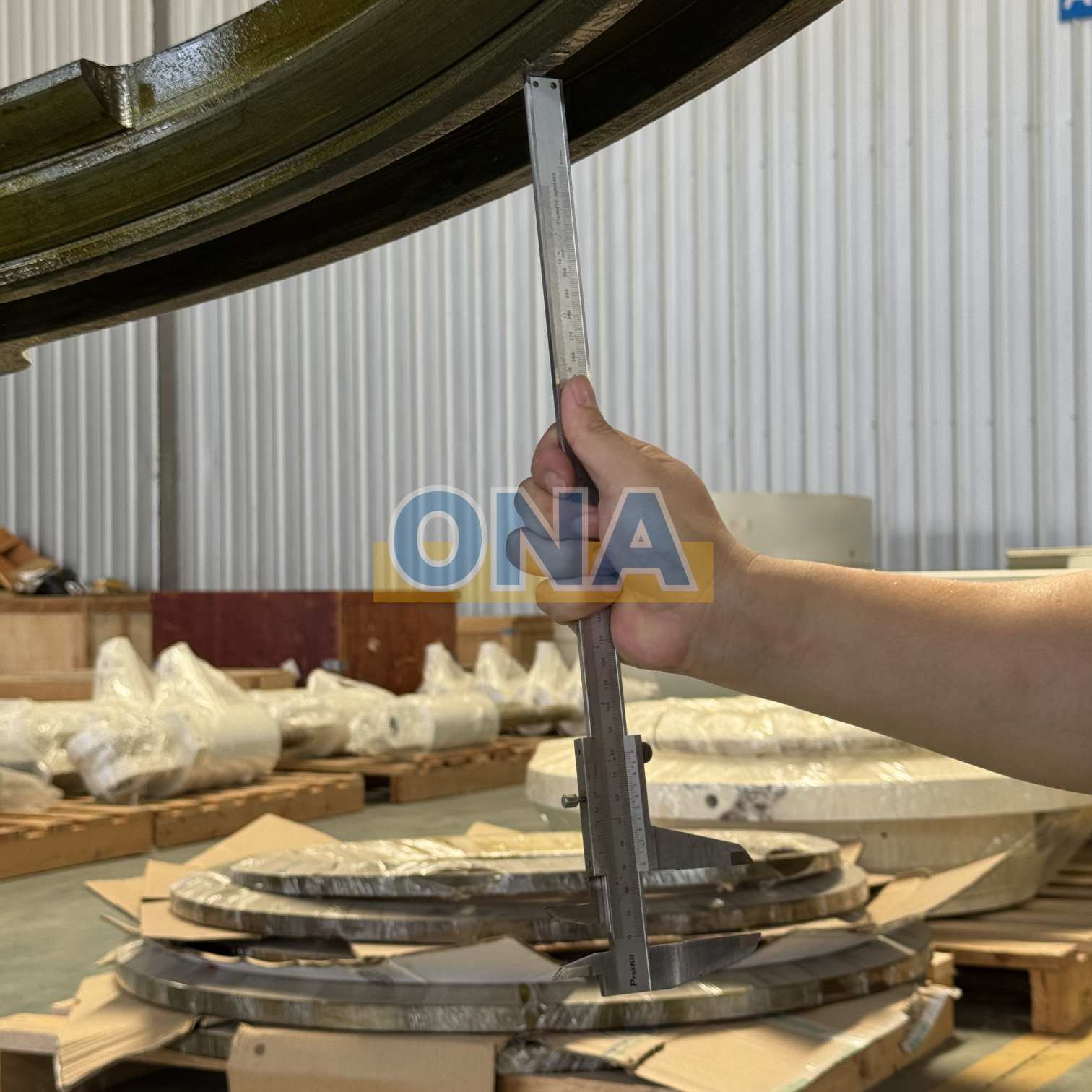

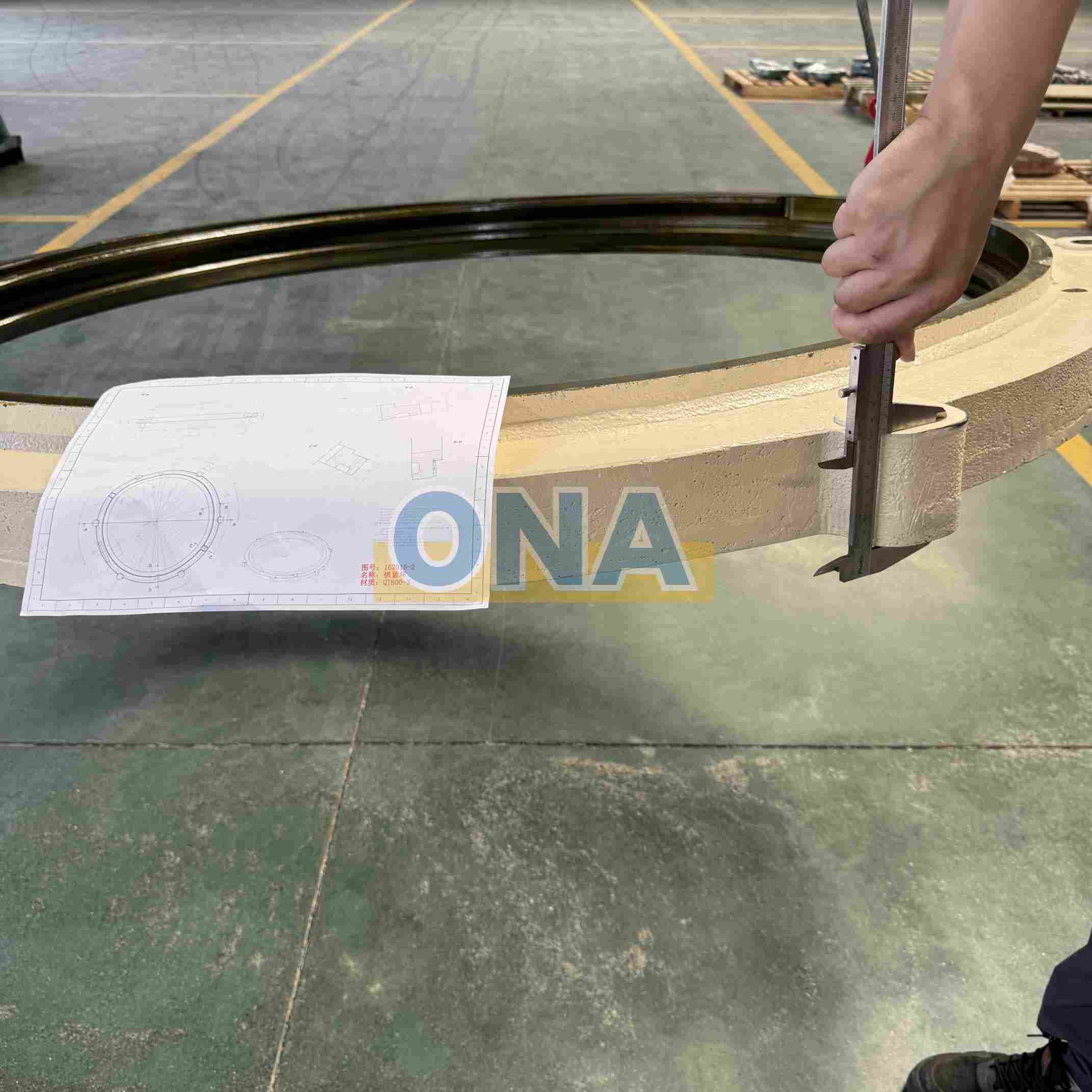

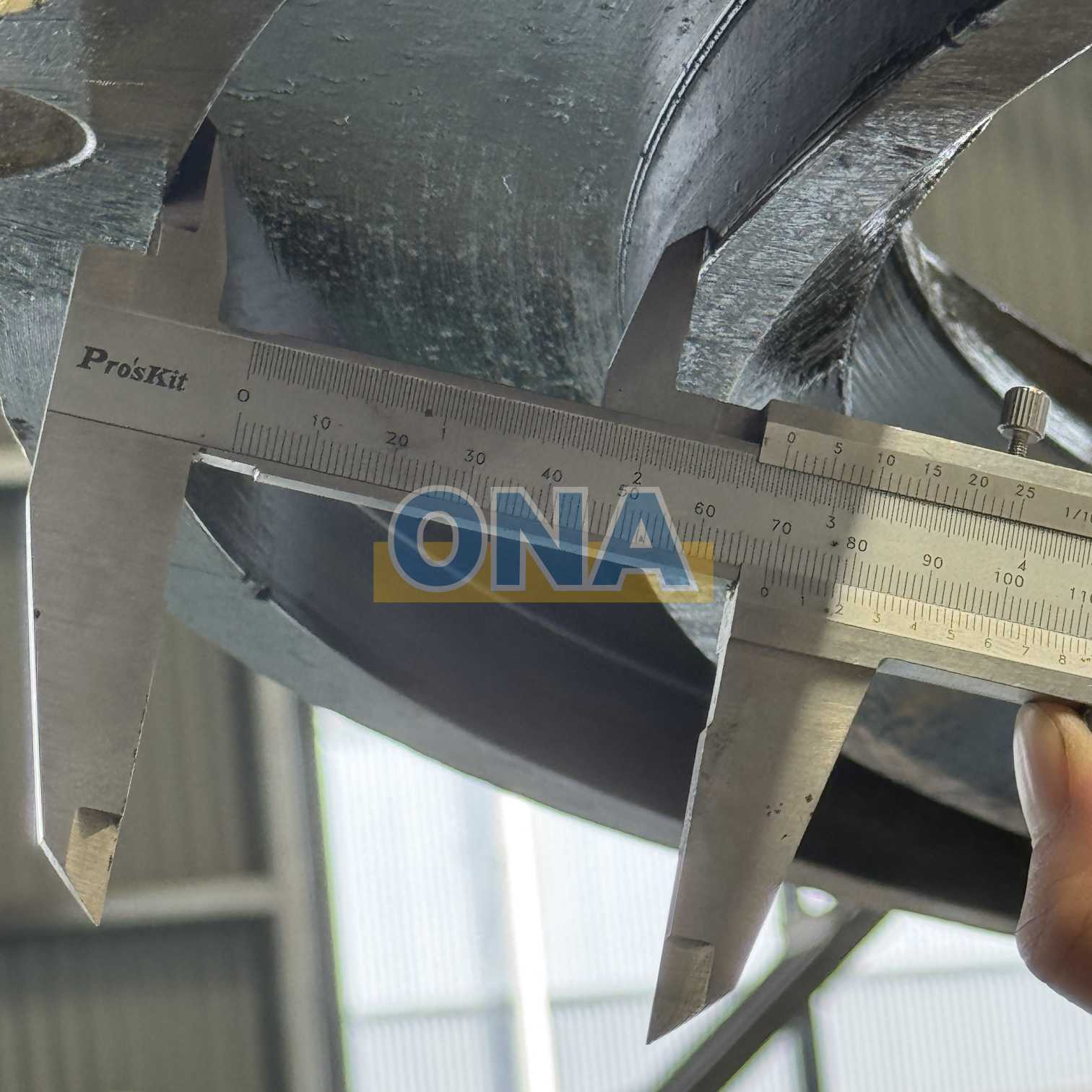

| Quality | ISO 9001:2015; 100% dimensional inspection |
| Surface | Anti-rust primer + topcoat (customizable color); threads coated with anti-rust grease |

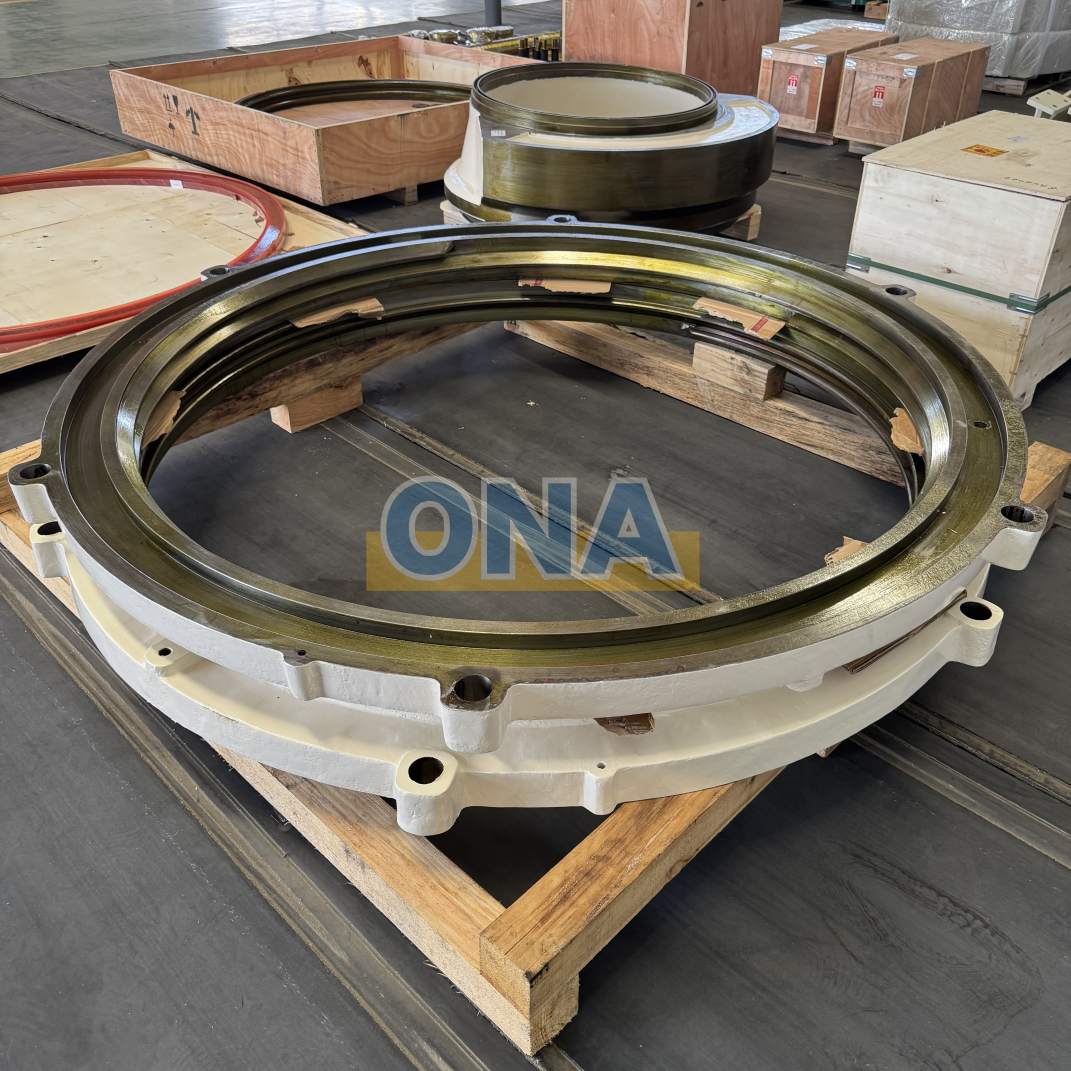

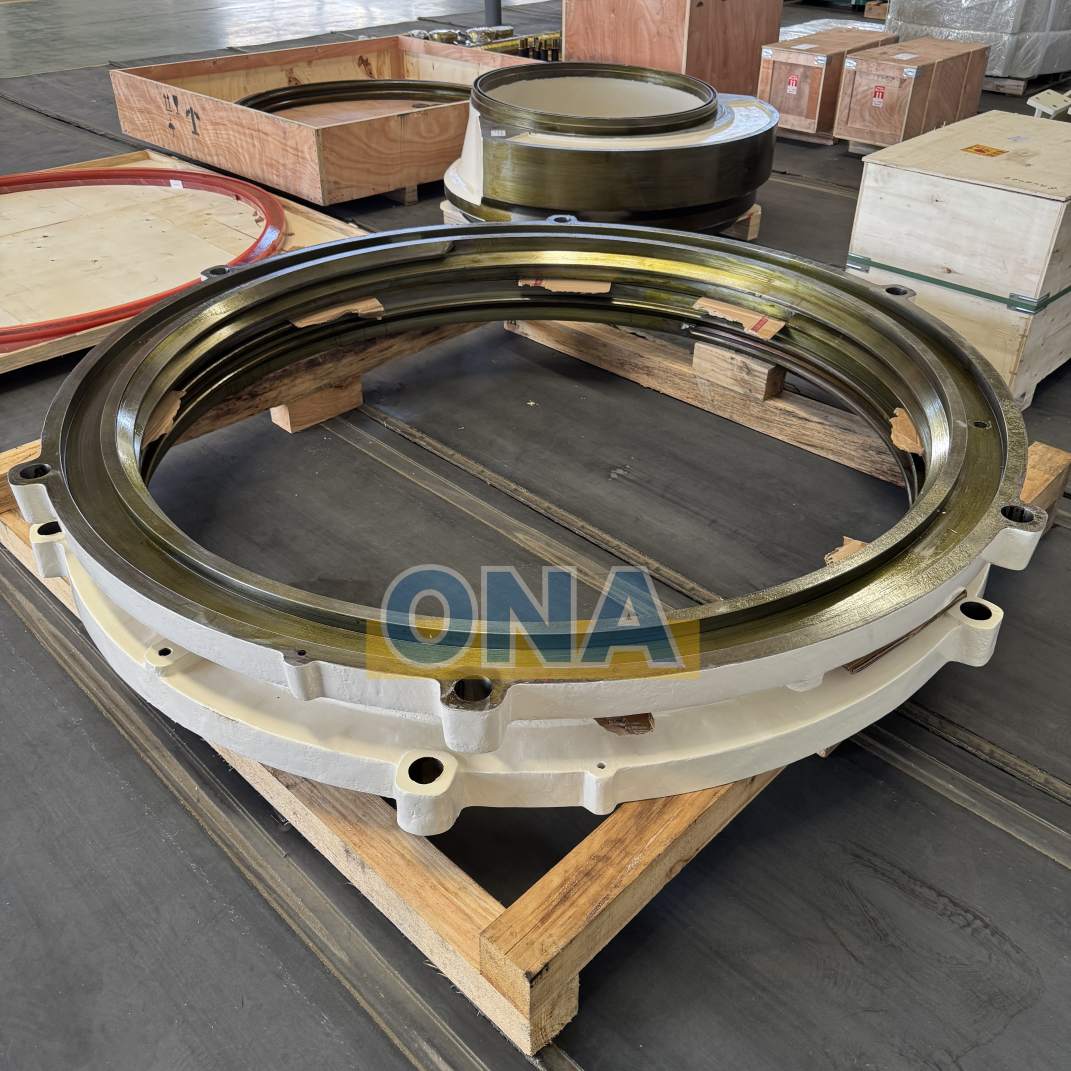

Packaging and Shipping

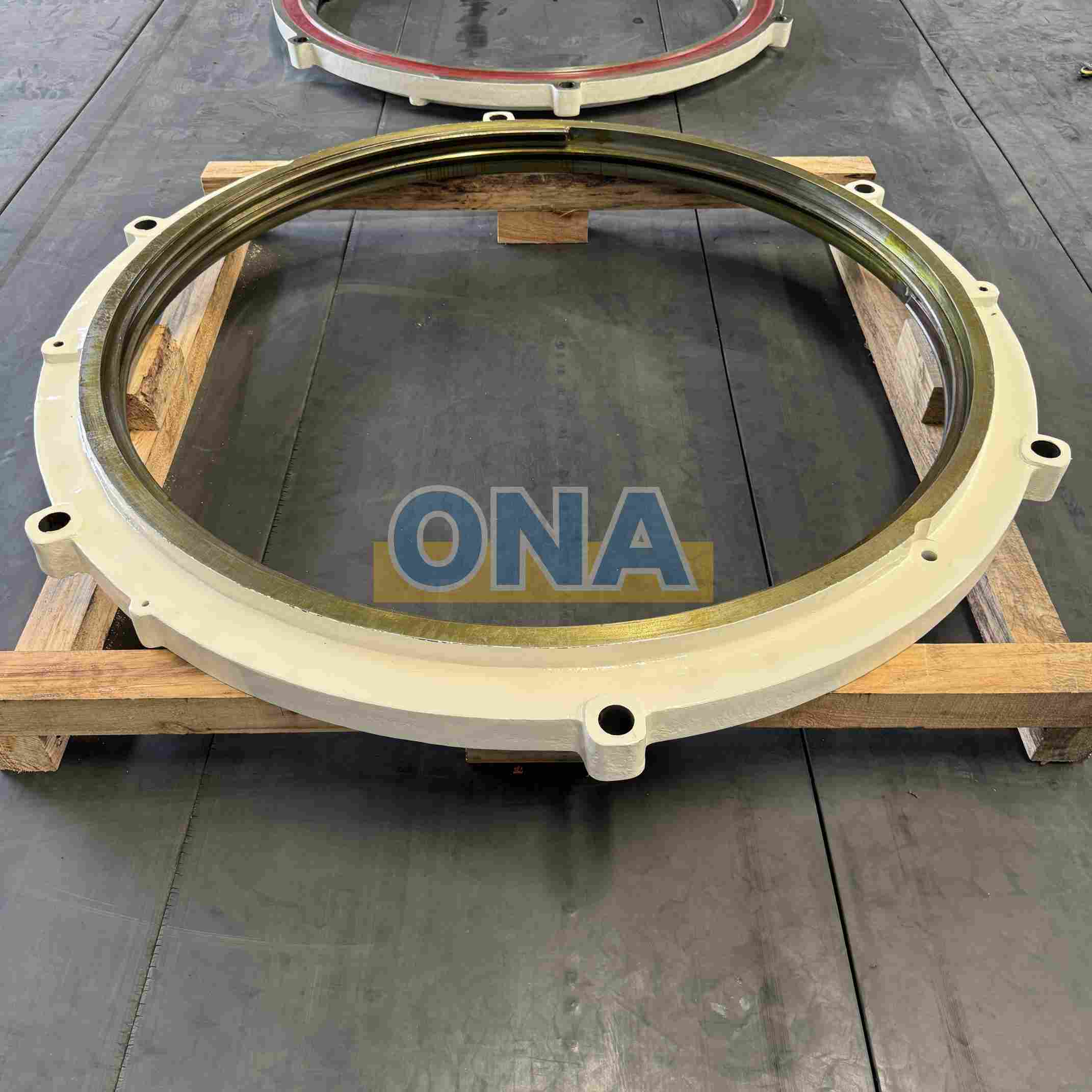

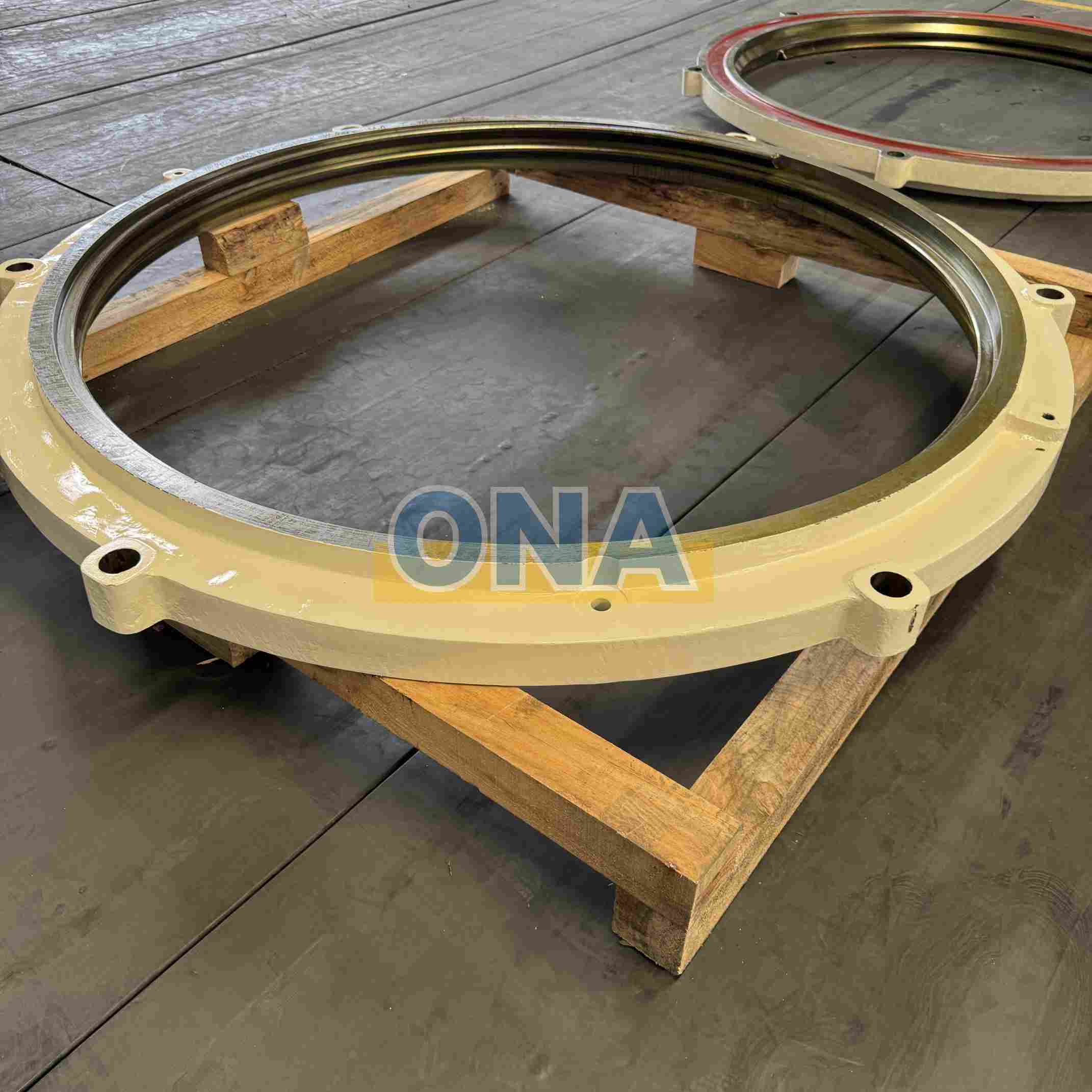

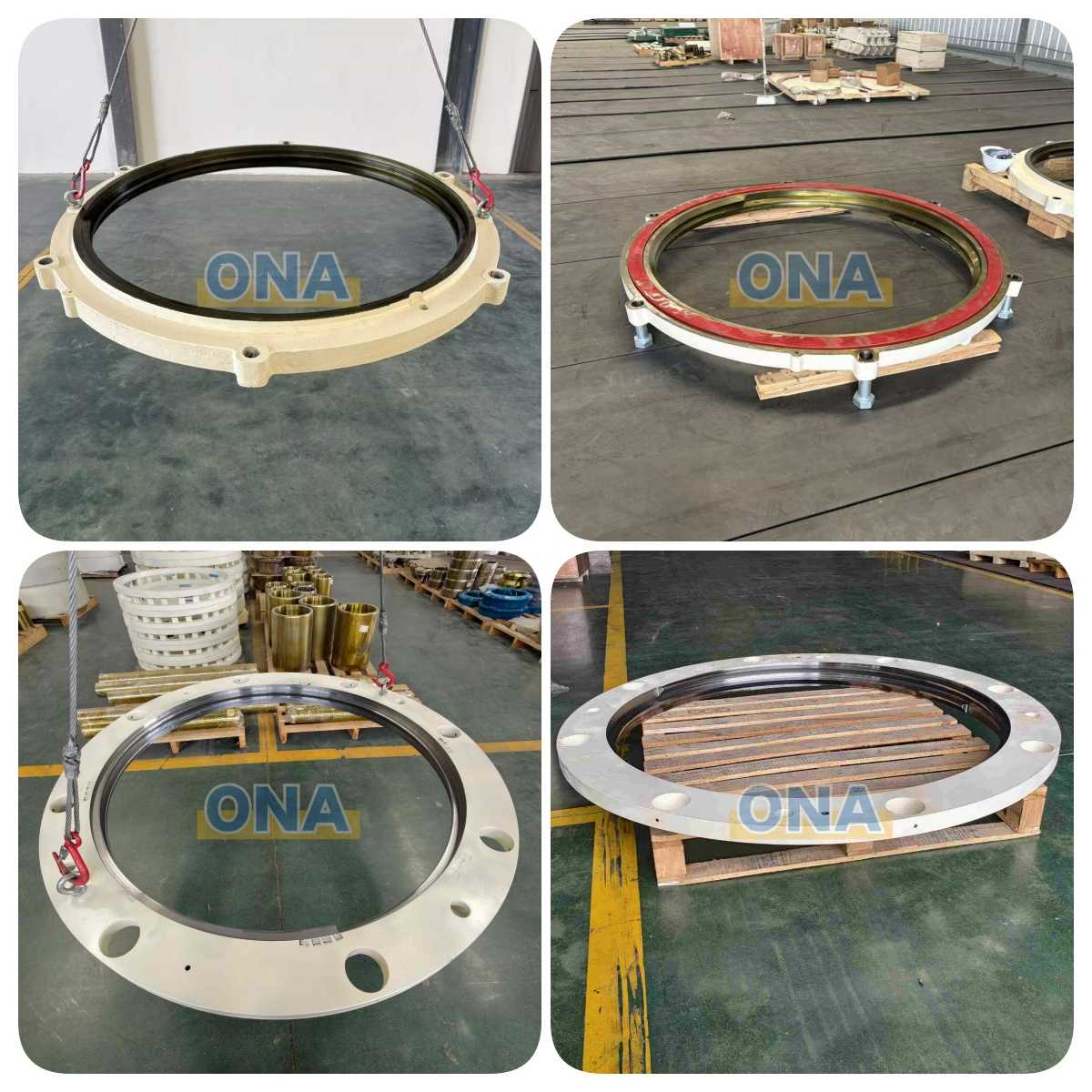

These are clamping rings for other ONA models.
| ONA-1061876265 | ONA-1062731601-LOC | ONA-1062731601-IMP | ONA-1061875592 |
| ONA-1064667330 | ONA-1061872992 | ONA-1064668526 | ONA-N12030503 |
| ONA-N98000040 | ONA-N65011647 | ONA-1061873757 | ONA-1064667128 |
| ONA-1061871913 | ONA-1064666460 | ONA-1061879701 | ONA-452.8403-001 |
FAQ
1. Is it possible to replace just a single component instead of the entire assembly?
Yes, individual components such as clamping rings, hydraulic rings, dust covers, and fasteners are available separately. However, if a clamping ring shows cracks or the threads are severely worn, replacing the entire assembly is recommended to ensure reliable locking performance.
2. What should I do if the pressure won't build up?
Check for hydraulic leaks or seal degradation → Check threads for foreign matter or damage → If everything is normal, the threads are severely worn and need replacement.
3. Do you support custom production for non-standard models?
Yes, we do. We can manufacture custom products based on your drawings, samples, or crusher model specifications.
