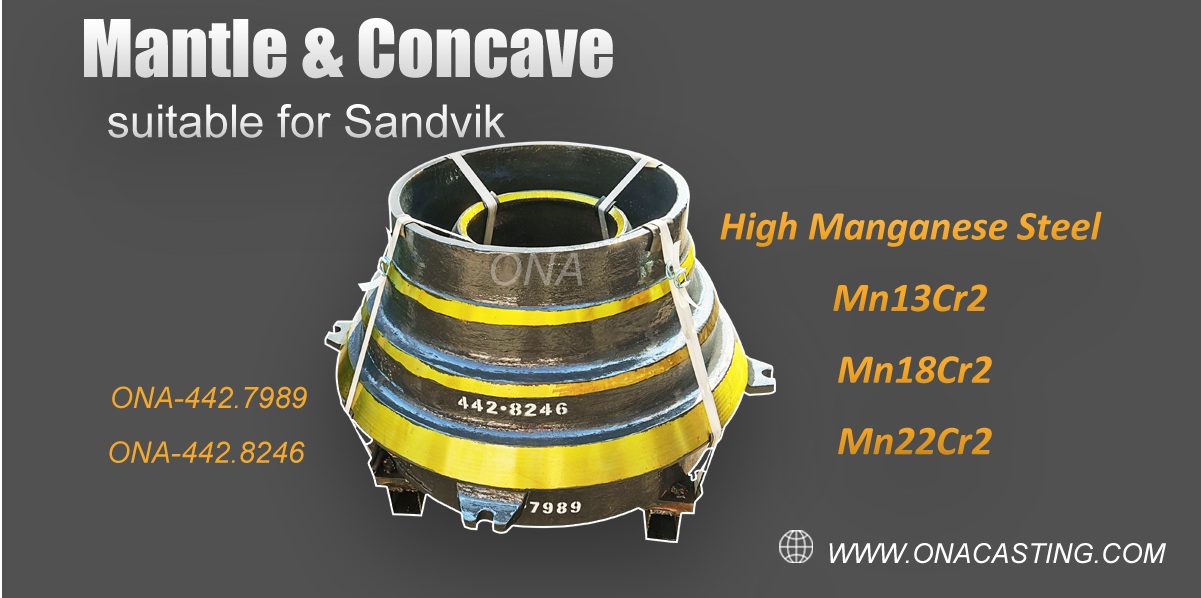

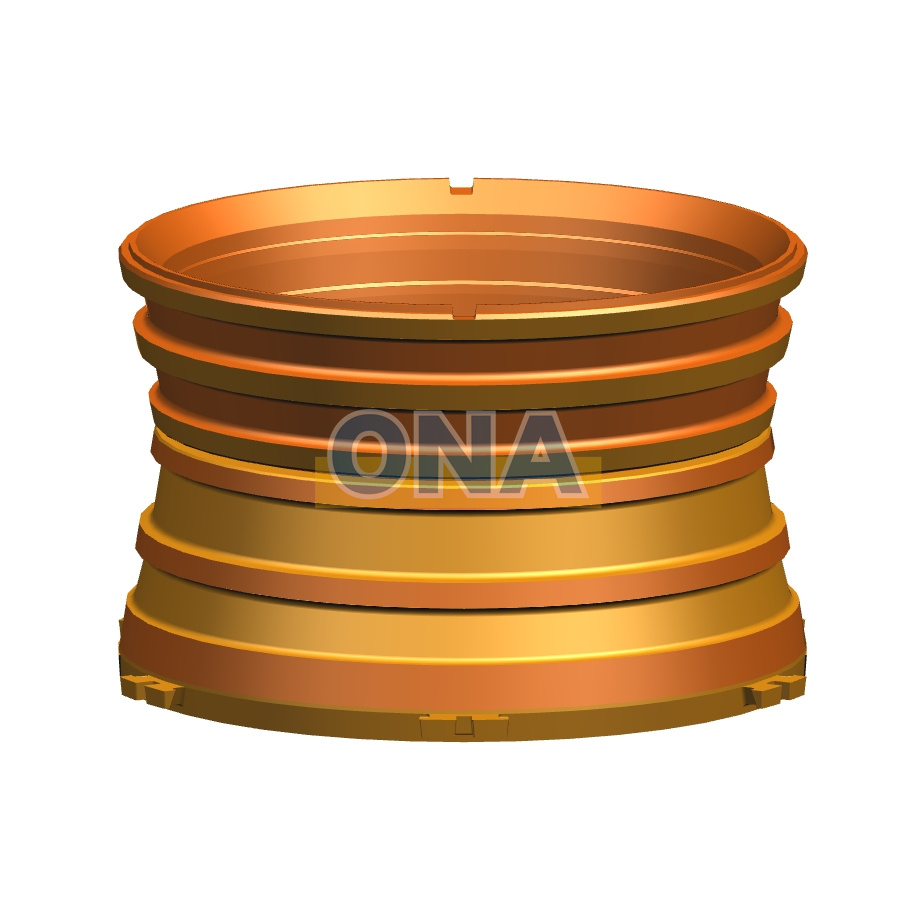

Crusher wear liner, which suit to Sandvik cone crusher CH/CS series. We can custom your logo and color.
Item No :
CH420, CH430, CH440, CH550, CH660, CH840, CH870, CH880, CH890, CH895, CS420, CS430, CS440, CS660Part Number :
ONA-442.9698-01, ONA-442.6197-01, ONA-442.9761-01, ONA-442.7000-01, ONA-442.9569-01, ONA-442.9587-01, ONA-442.9586-01, ONA-442.9585-01, ONA-442.9584-01, ONA-442.9583-01, ONA-442.7988-01, ONA-442.7989-01Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1

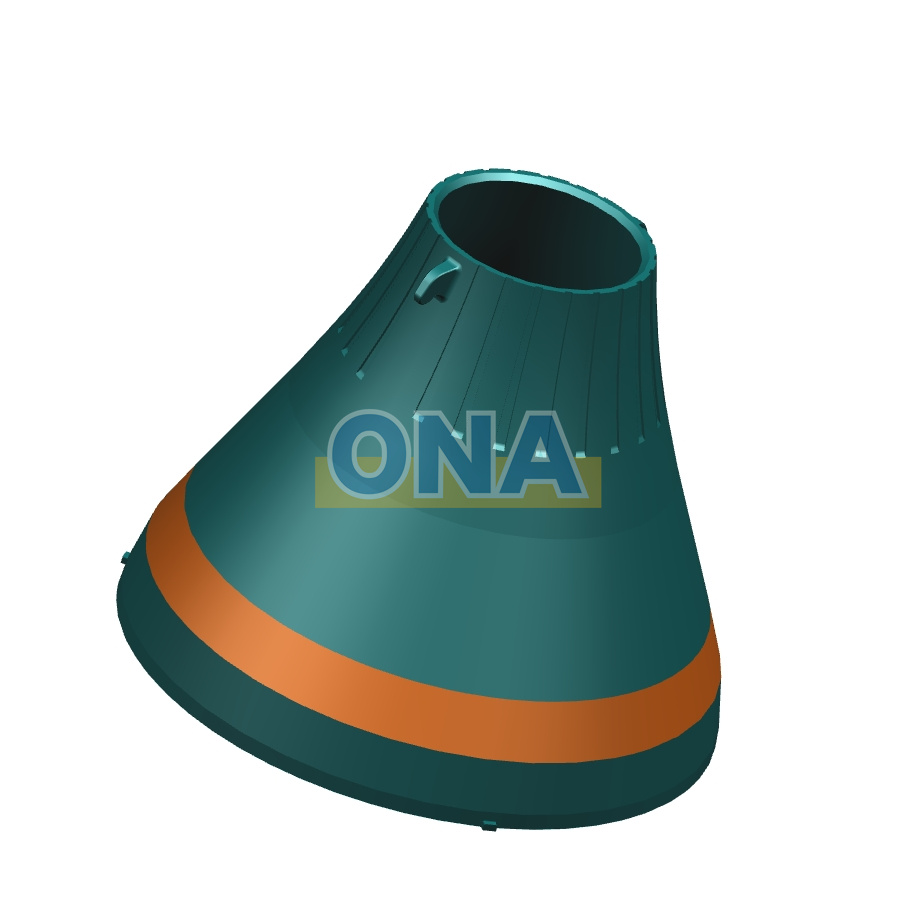

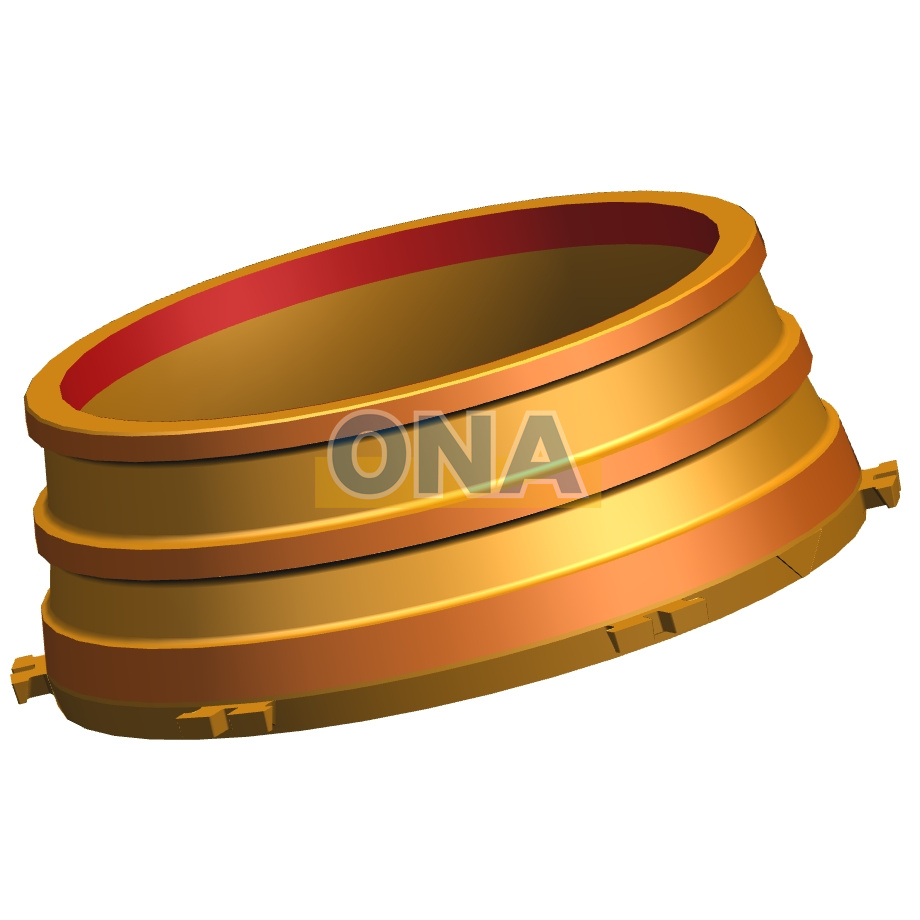

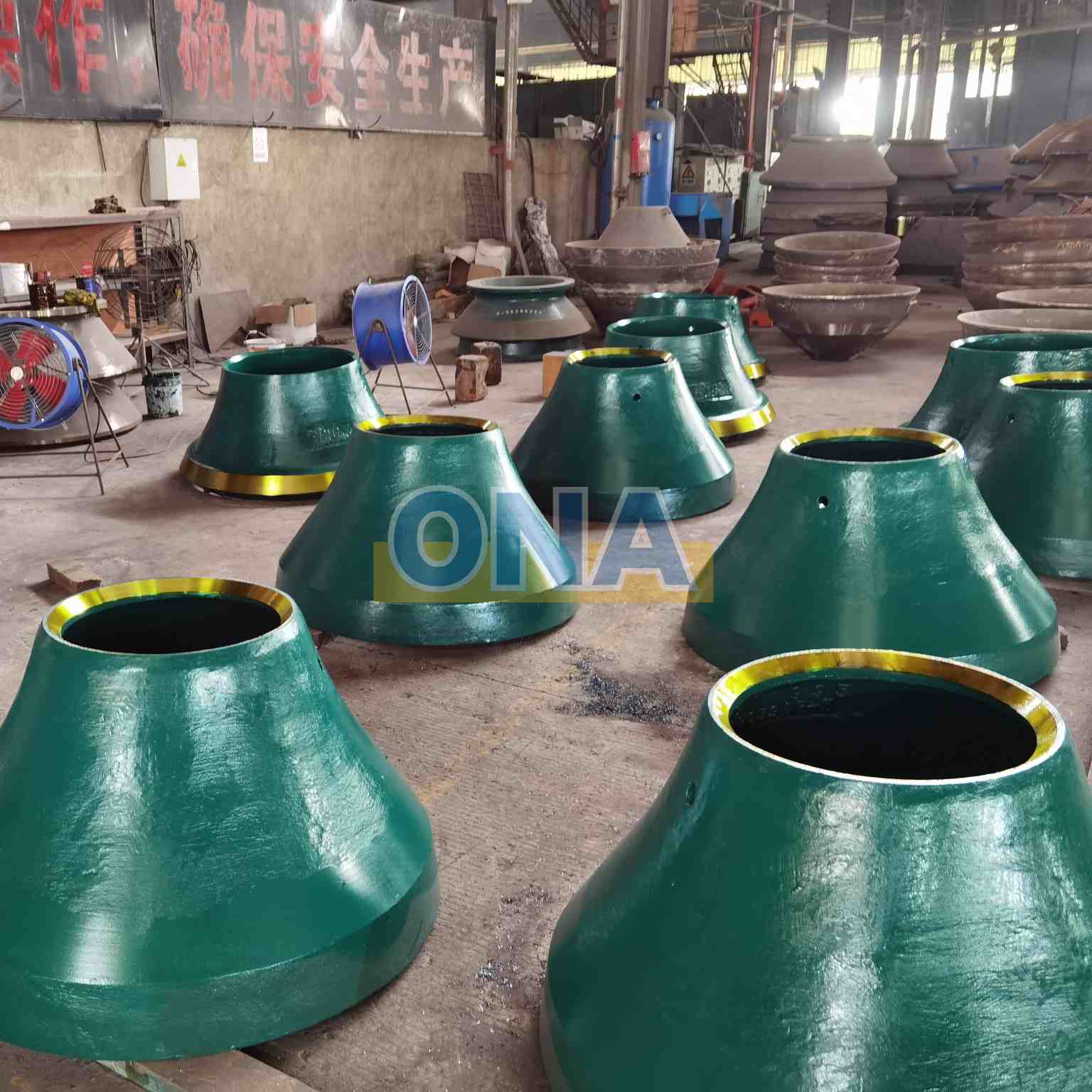

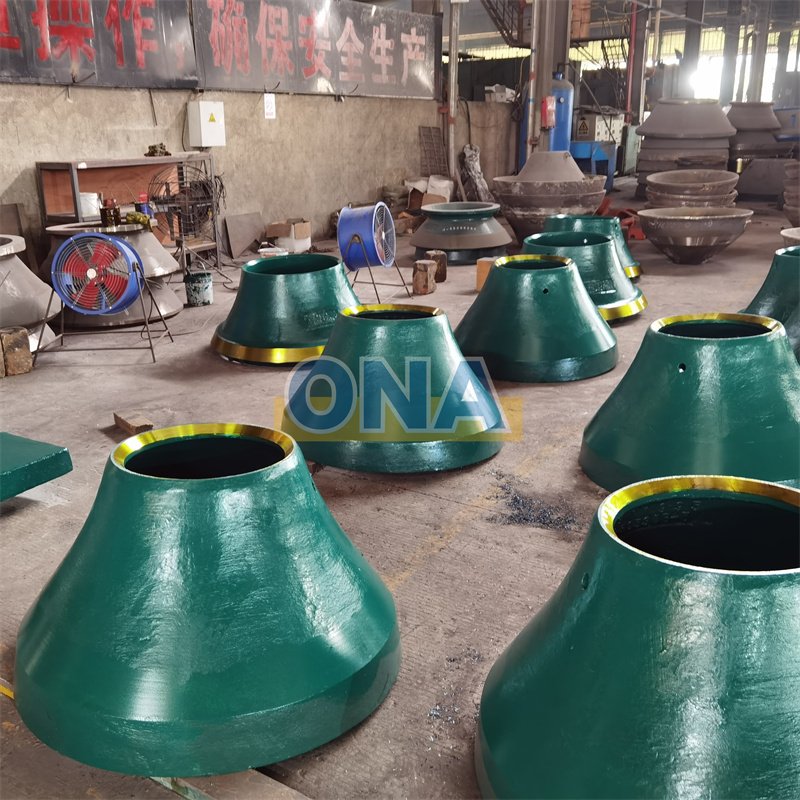

The mantle and concave are the two primary wear components that form the crushing chamber in a cone crusher suitable for Sandvik CH and CS series. The mantle is the moving part that gyrates within the crusher, compressing the material against the concave – the stationary bowl liner that provides the fixed crushing surface. Together, they determine product size, shape, and overall crushing efficiency.
Manufacturing Process
ONA manufactures mantles and concaves suitable for Sandvik CH & CS series cone crushers using high-quality manganese steel, available in Mn13Cr2, Mn18Cr2, and Mn22Cr2 grades to match different crushing conditions.
The production process follows strict quality control at every stage:
Pattern Making: Precision molds are created based on original drawings.
Melting: Raw materials are carefully proportioned and melted in electric furnaces at controlled temperatures.
Casting: Advanced V-method (vacuum-sealed molding) or lost foam casting ensures smooth surfaces and precise dimensions.
Cleaning: Castings are shot-blasted and gates/risers are removed.
Heat Treatment: Solution treatment (water toughening) at 1050–1100°C gives the material a tough austenitic structure that work-hardens under impact.
Machining: Critical mating surfaces are precision-machined for accurate fit.
Quality Inspection: Every casting undergoes chemical analysis, hardness testing, dimensional inspection, and non-destructive testing (UT/MT).

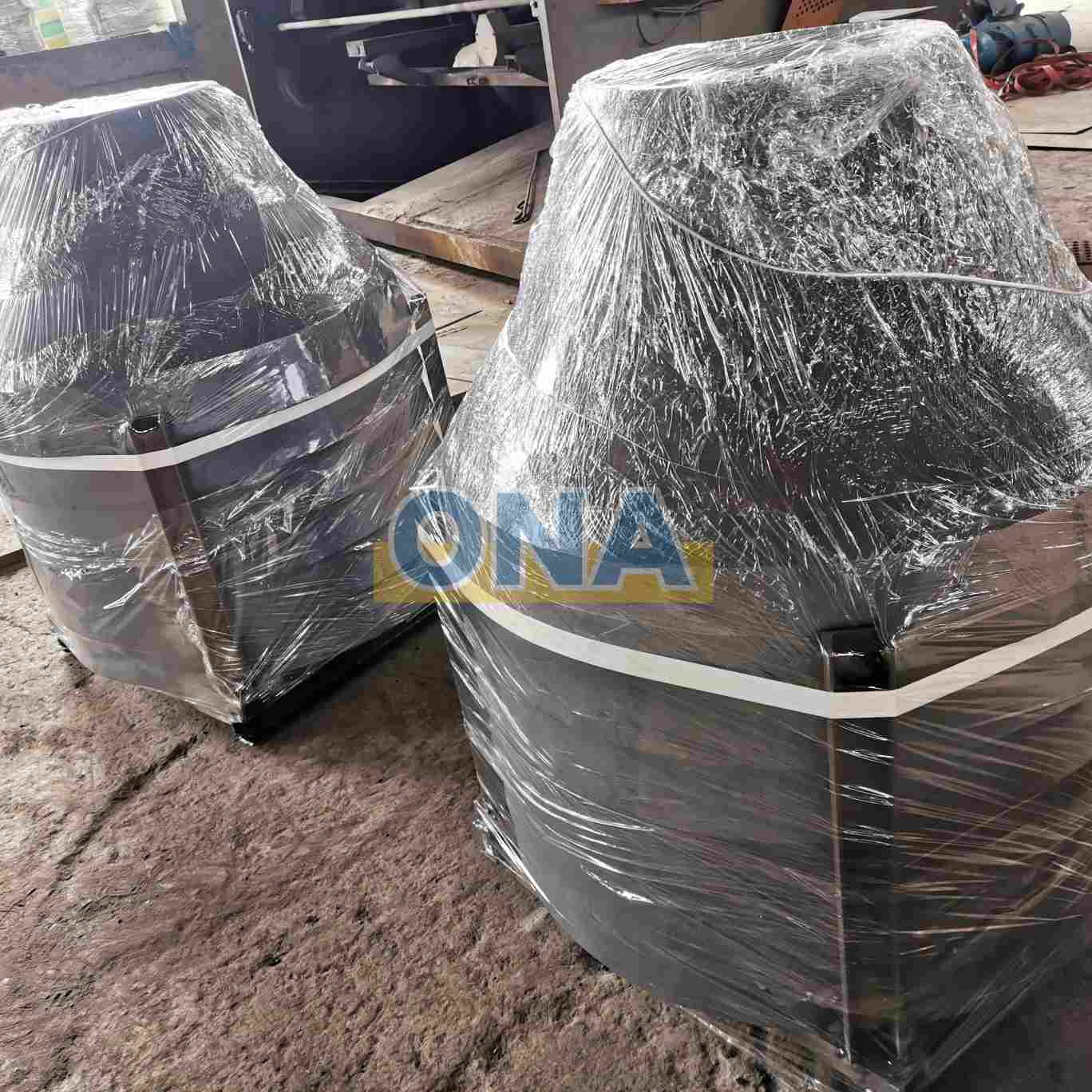

Packaging: Rust-proof coating is applied, and parts are secured in wooden or steel frames for safe shipment.
Each step is documented with photos and inspection records, ensuring full traceability and consistent quality.

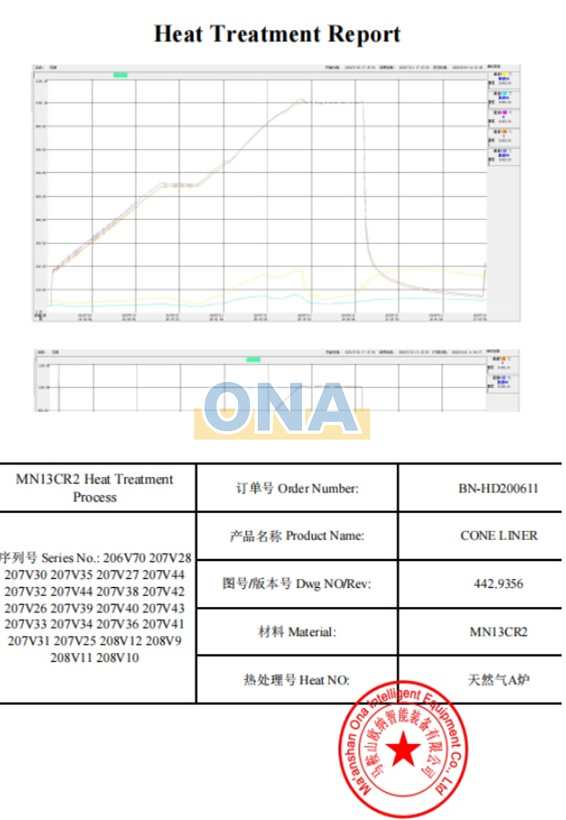

Material Inspection Data---Mn13Cr2 (ONA-442.9356 Concave)

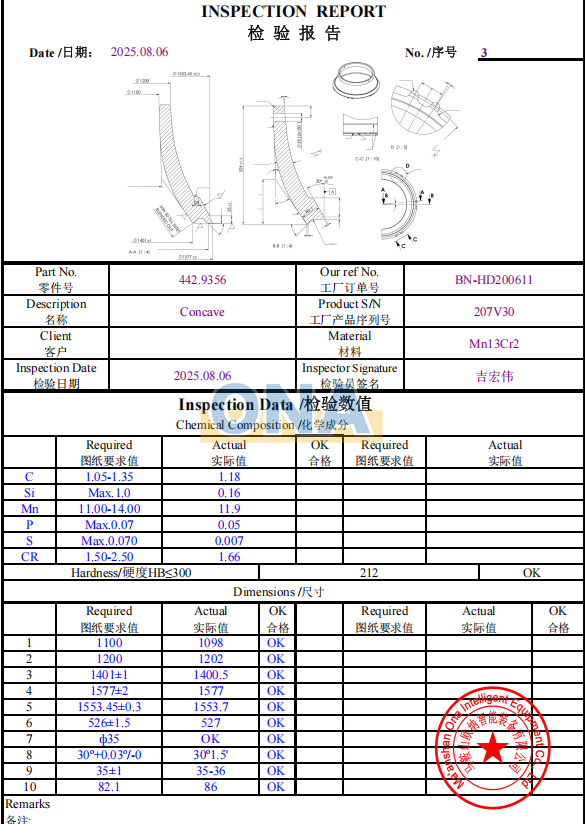

The table below shows the actual chemical composition and hardness test results for ONA-442.9356 concave, confirming full compliance with material specifications.
| Part Number | Material | Grade | Data | C | Si | Mn | P | S | Cr | Hardness (HB) |
| ONA-442.9356 Concave |
Mn13Cr2 | Standard | Required | 1.05-1.35 | Max.1.0 | 11.00-14.00 | Max.0.07 | Max.0.070 | 1.50-2.50 | ≤300 |
| Actual | 1.18 | 0.16 | 11.9 | 0.05 | 0.007 | 1.66 | 212 |

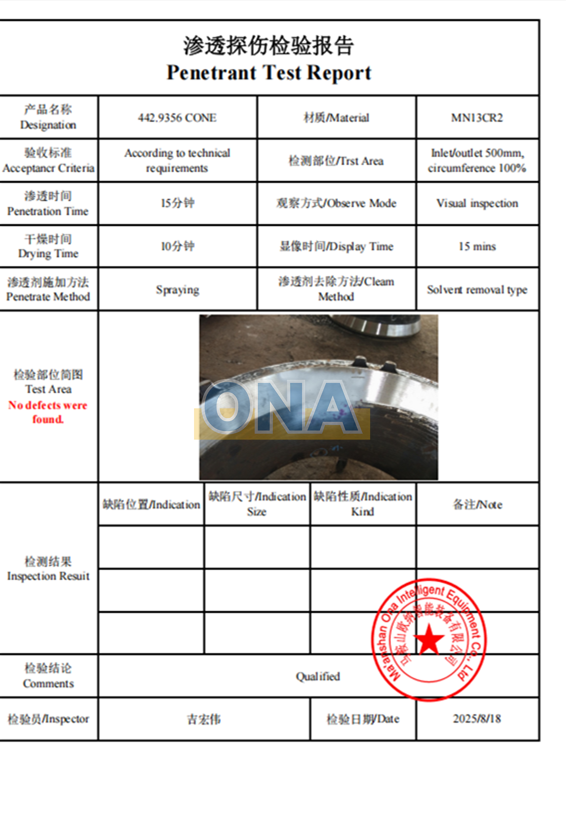

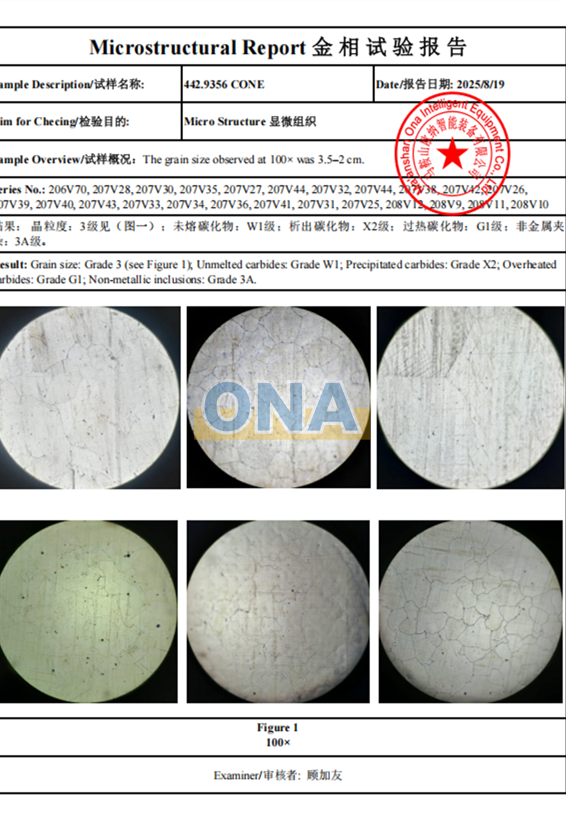

Additional inspection reports, including Dimensional Inspection, Heat Treatment Records, Penetrant Test, Ultrasonic Test, and Microstructural (Metallographic) Analysis, are also available upon request.

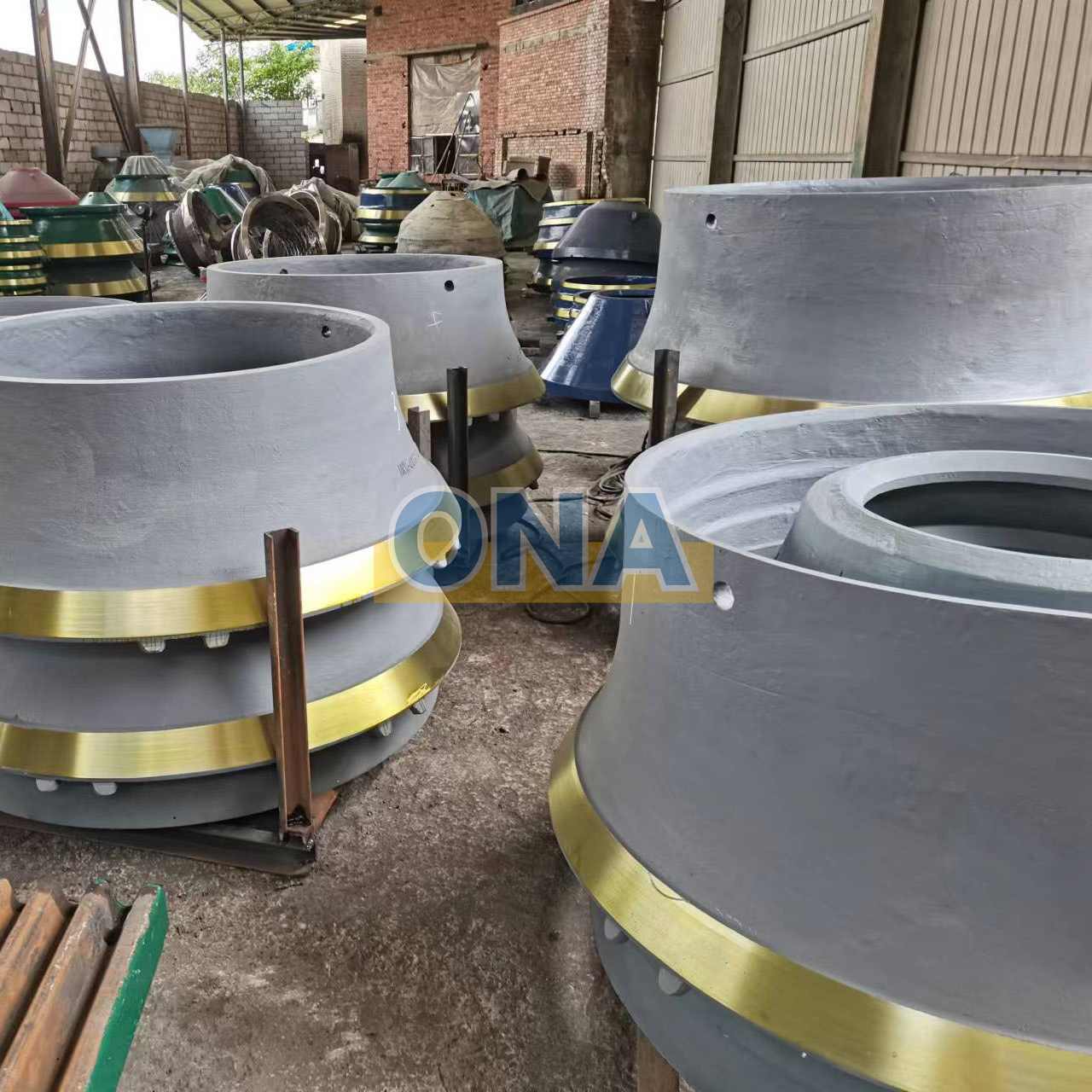

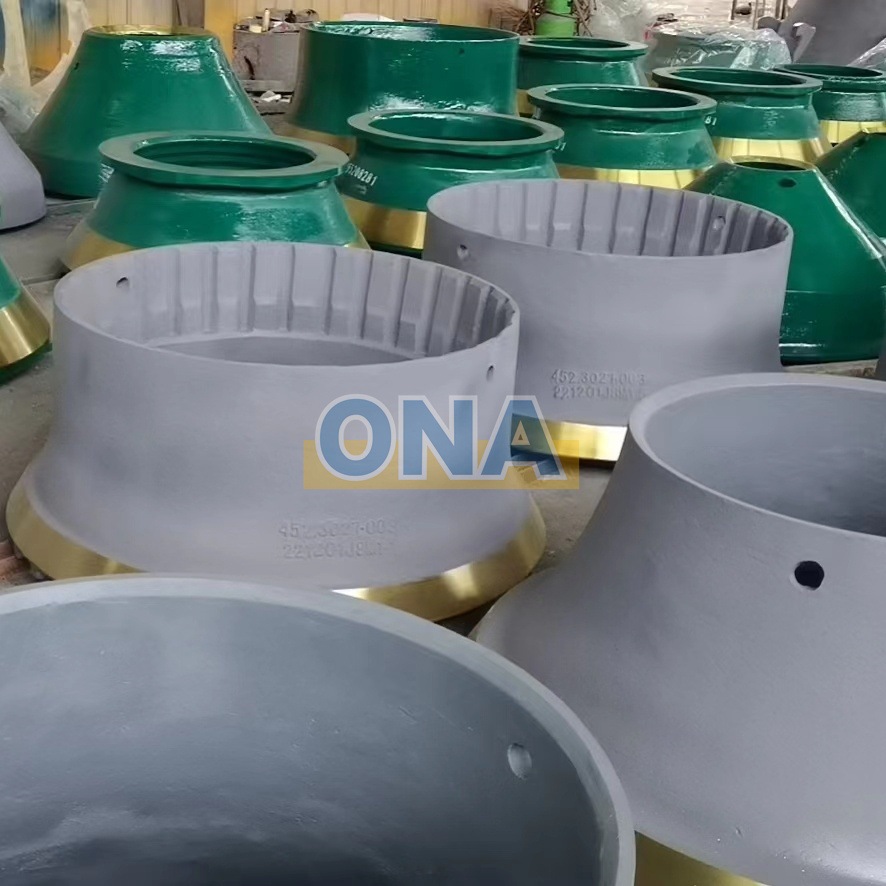

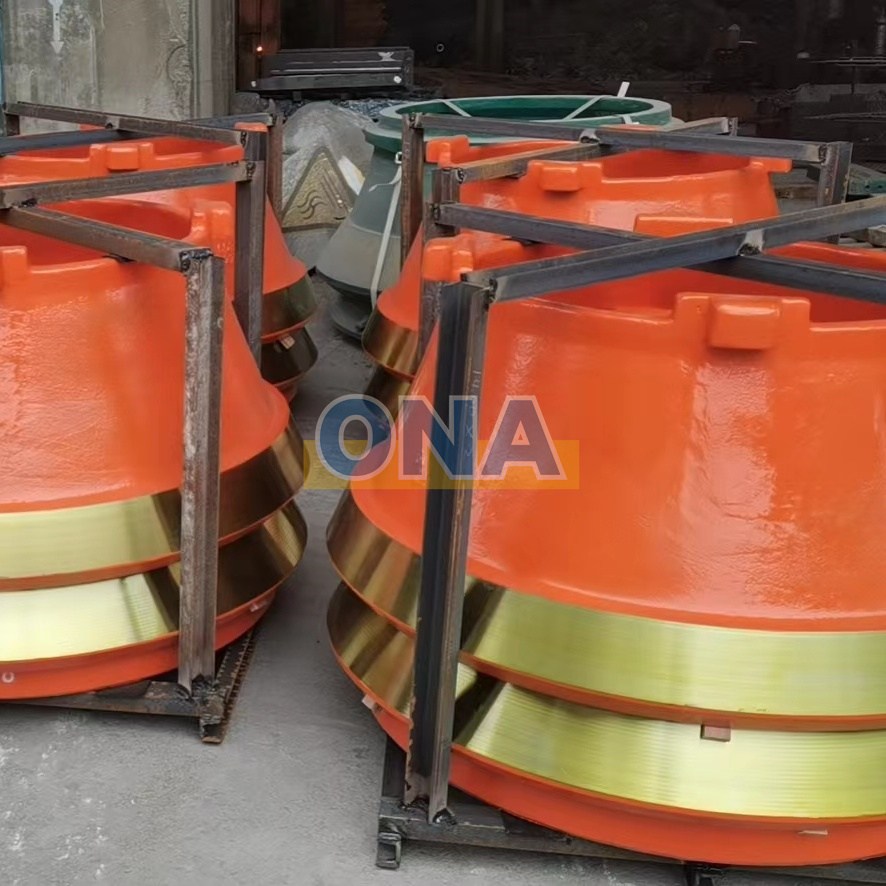

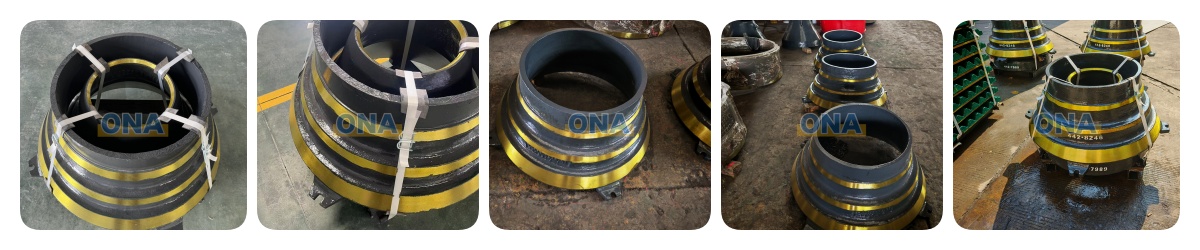

Product Gallery – Mantle & Concave for Sandvik CH & CS Series

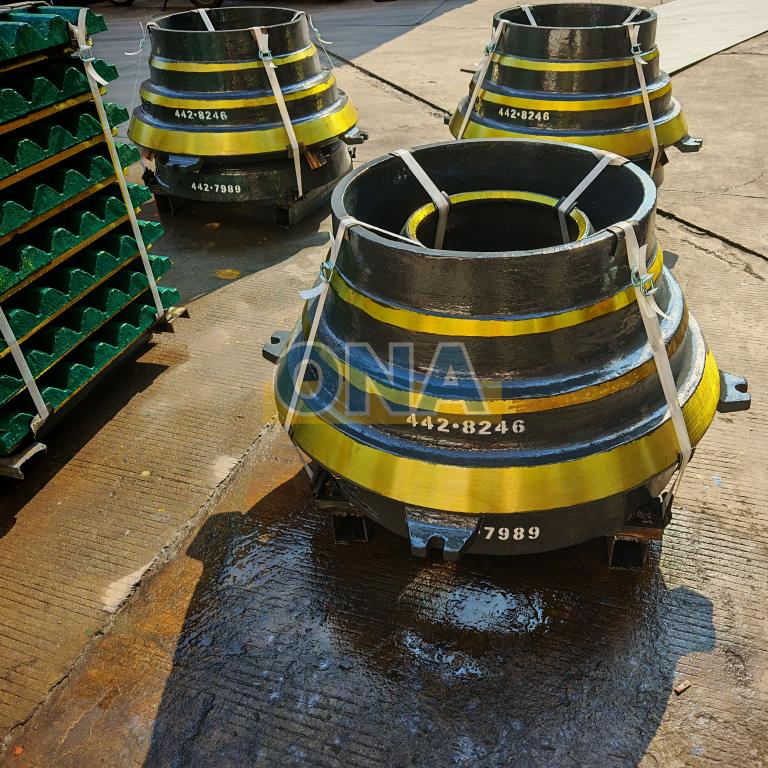

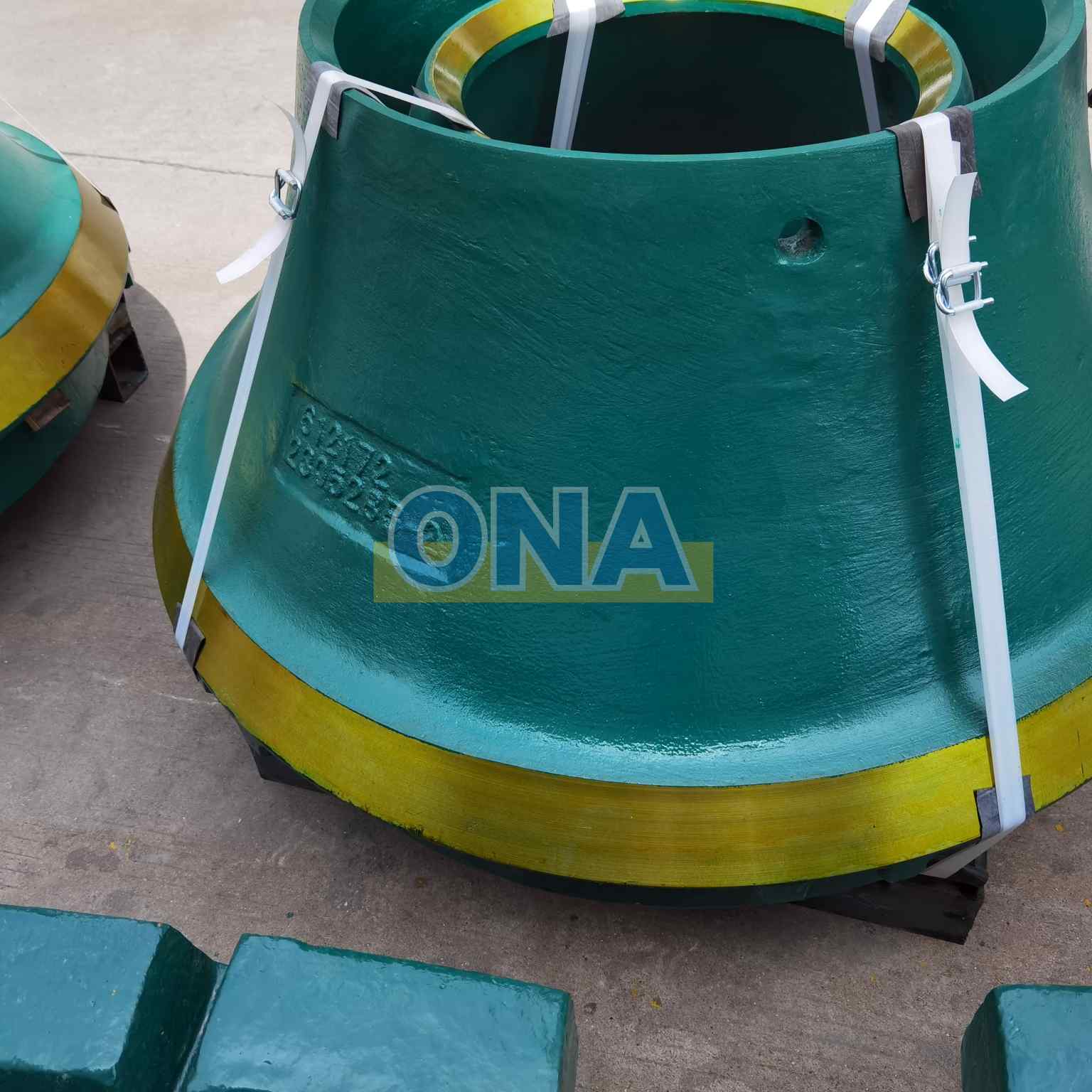

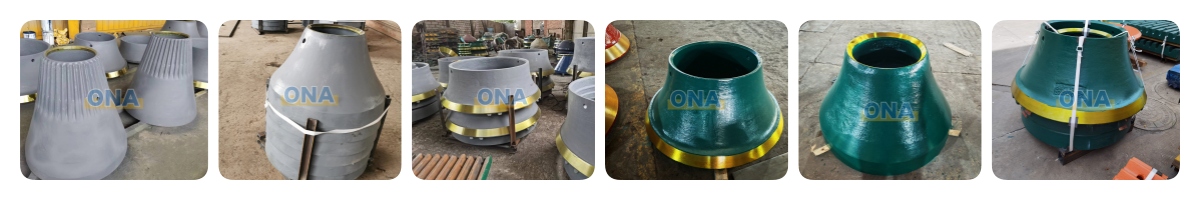

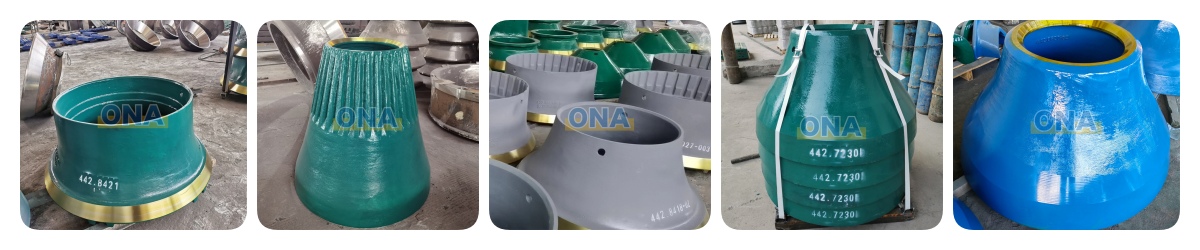

2. CH440/H4800 Mantle ONA-442.7230, CH440/H4800 Concve ONA-442.8418-02, CH440/H4800 Concve ONA-442.8421, CH660/H6800 Mantle ONA-442.8820-02
ONA has extensive experience in manufacturing these wear parts across a wide range of models and cavity configurations – both with and without part numbers. We can help you identify the right fit.
| Brands | Models | Part Numbers |
| Suit to Metso/Nordberg | HP4, HP6, HP100, HP200, HP300, HP400, HP500, HP700, MP800, MP1000, GP7, GP11F, GP11M, GP100, GP100S, GP200, GP200S, GP220, GP300, GP300S, GP330, GP500, GP500S, GP550 | ONA-N55209253, ONA-MM0395366, ONA-7055208001, ONA-N55208144, ONA-N55208282, ONA-1048300039, ONA-1048314243, ONA-1048314349, ONA-1048315258, ONA-MM0376932, ONA-N55309500, ONA-7055308508, ONA-N55308512, ONA-N55309259, ONA-N55309258, ONA-7055308121, ONA-814318836900, ONA-814317169500, ONA-N11951712, ONA-MM1120649 |
| Suit to Sandvik | CH440, CH540, CH660, CH865i, CH870, H2800, H3800, H4800, H6800, H7800, H8800 | ONA-442.8821, ONA-442.9698, ONA-442.7988, ONA-442.7225, ONA-442.8819, ONA-452.0845, ONA-442.9314, ONA-452.0872-001, ONA-452.0837-001, ONA-BG00369684 |
| Suit to Terex | EL-JAY CEDARAPIDS RC54, POWERSCREEN, Pegson 1000 Maxtrak | ONA-02-540-022-0003, ONA-02-540-023-0003, ONA-603/9106E, ONA-603/6020, ONA-603/915 |
| Suit to Symons | 3FT, 4FT, 4-1/4FT, 5.5FT, 7FT | ONA-4829 9481, ONA-4830-1350, ONA-4829 6530, ONA-4830 5421, ONA-4830 7496 |
| Suit to Telsmith | 36FC, gyraspshere 36S, TELSMITH 48'' STANDARD/FC, 48s, 44H (Gyrasphere 44SBS), K300+ Medium | ONA-B272-453C, ONA-D-272-307, ONA-E-272-2432, ONA-B-272-451C, ONA-E-272-308C, ONA-C-272-308, ONA-456262SX |
| Suit to Tri0 | TC36, TC51 | ONA-5713 1148, ONA-21131148, ONA-SA0554DP, ONA-TRI017001816, ONA-TC362 2002, ONA-TRI0 17000514 |
| Suit to Kleeman | ONA-MCO90 evo2 |

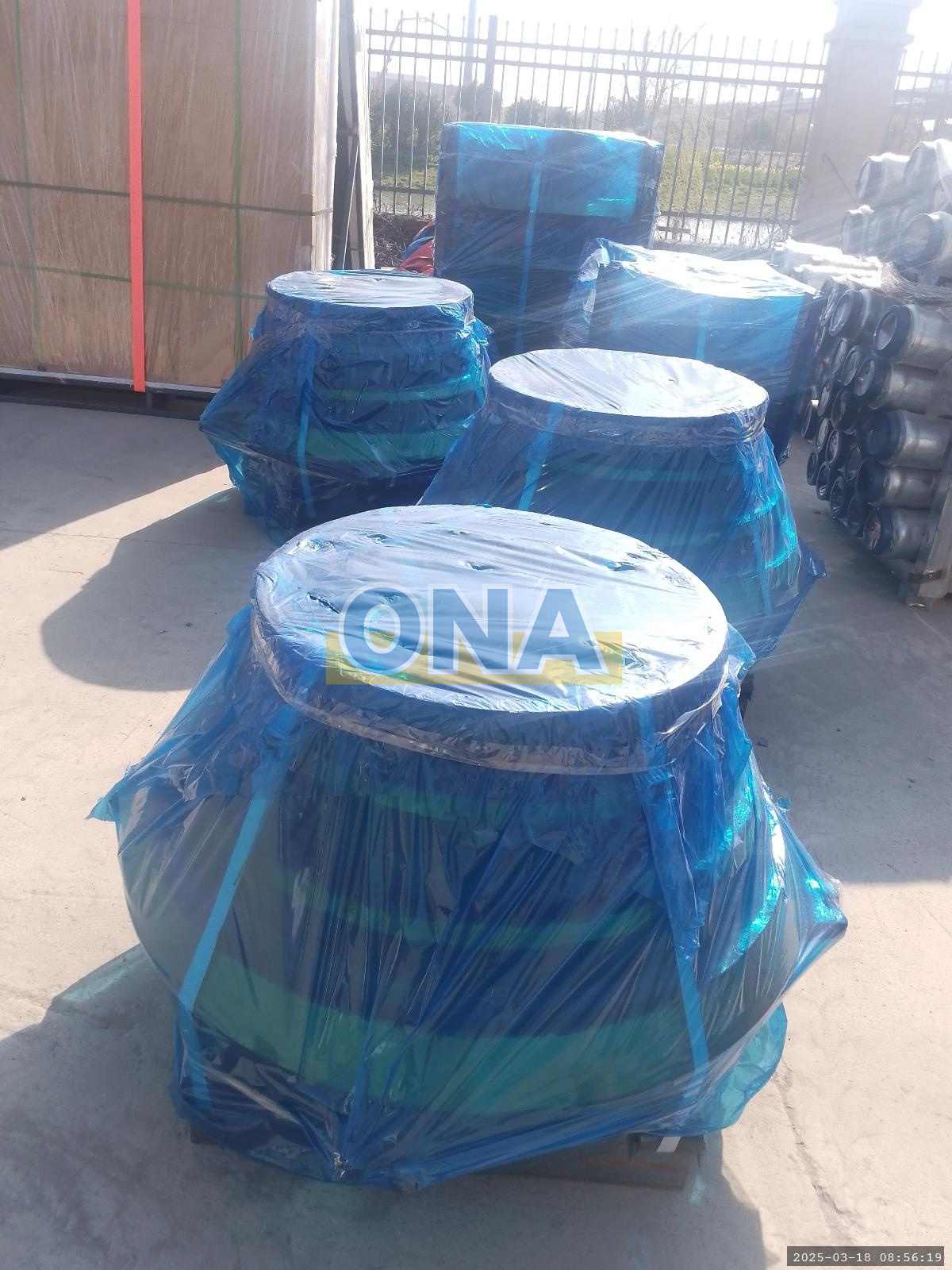

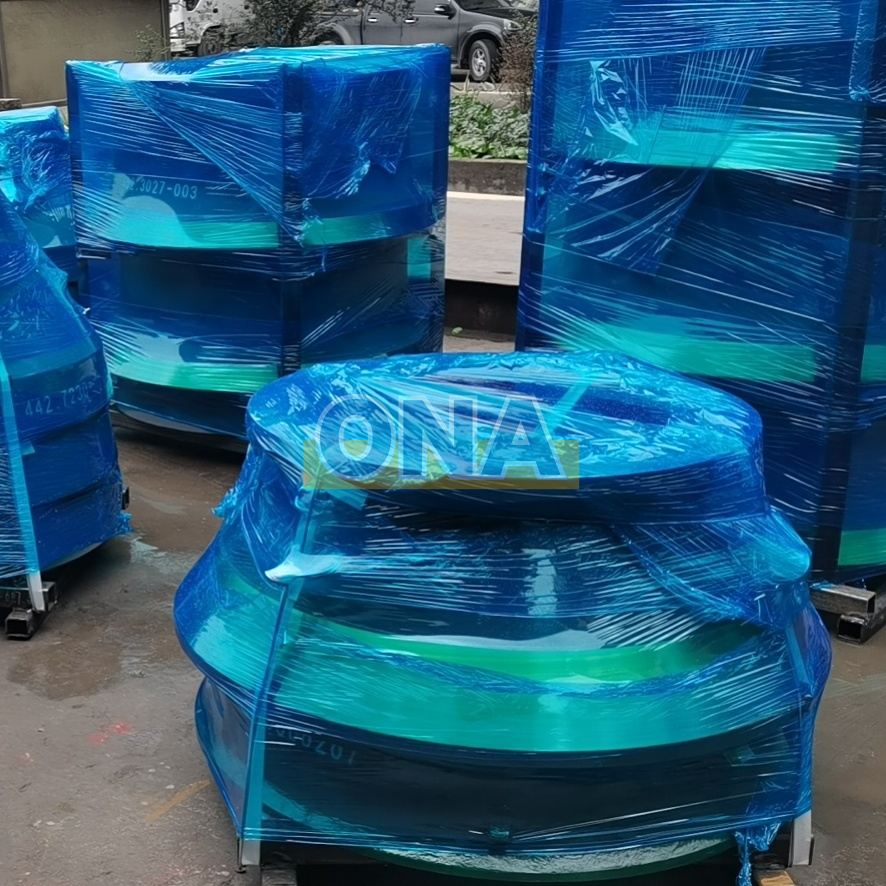

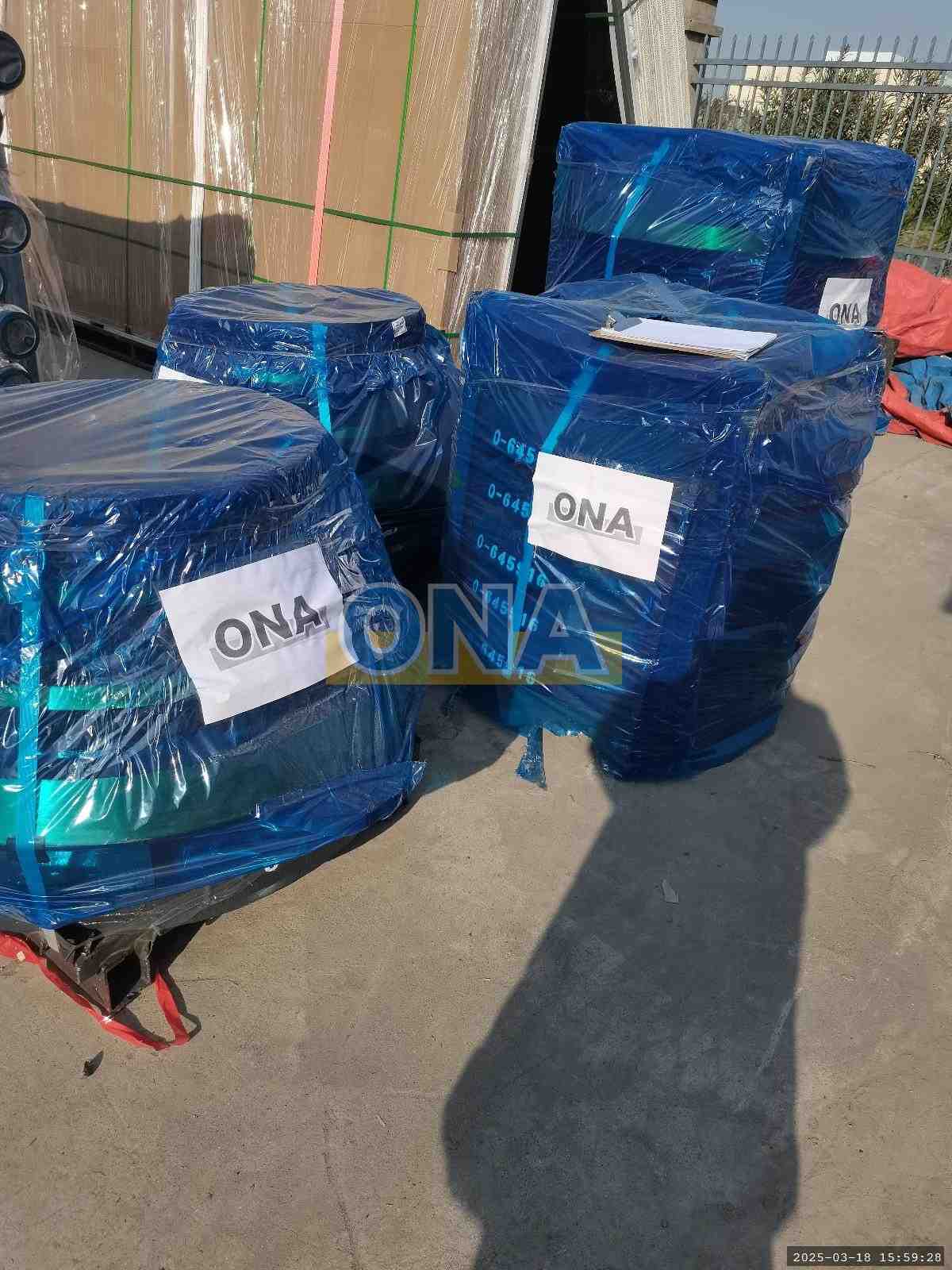

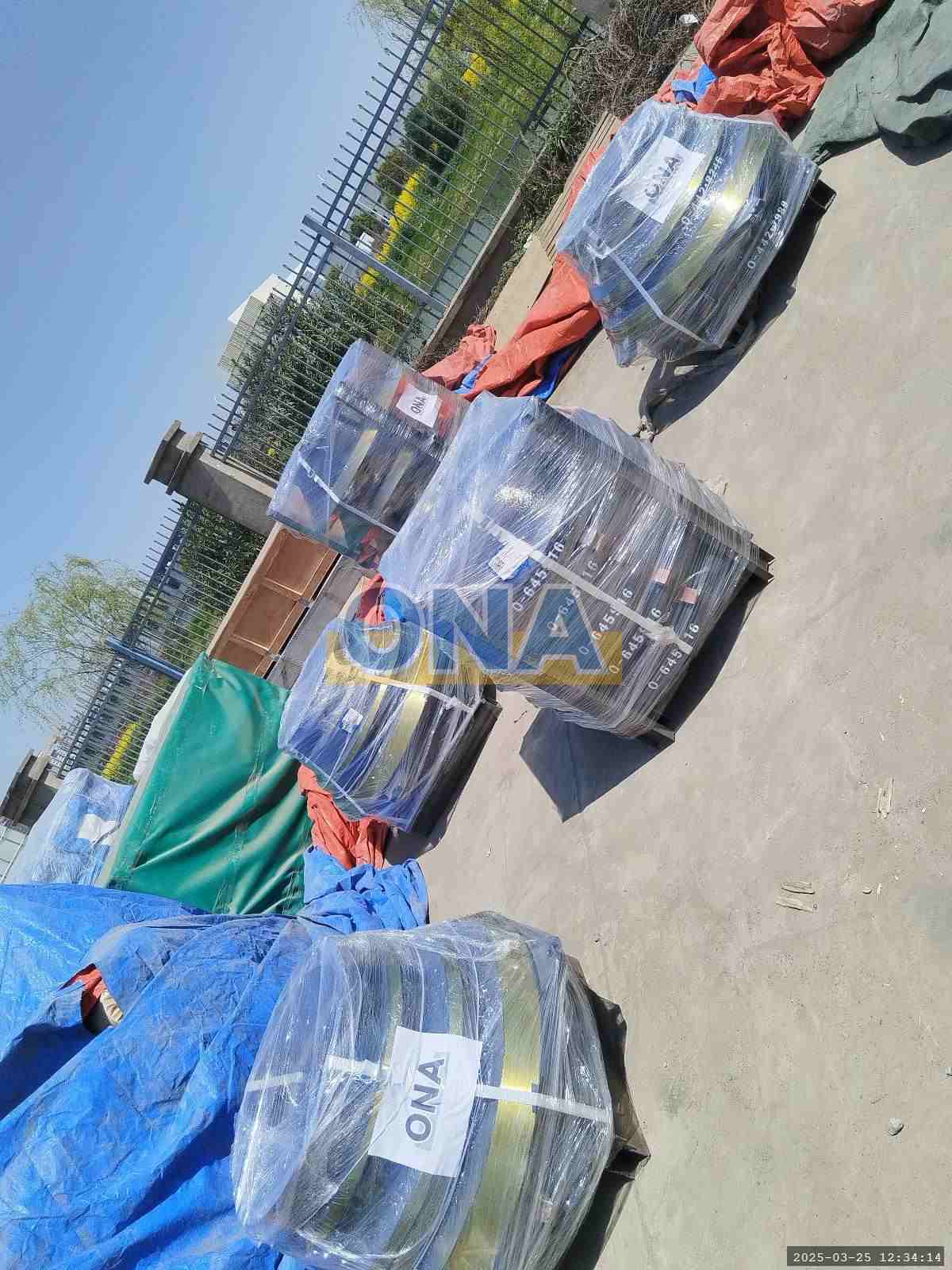

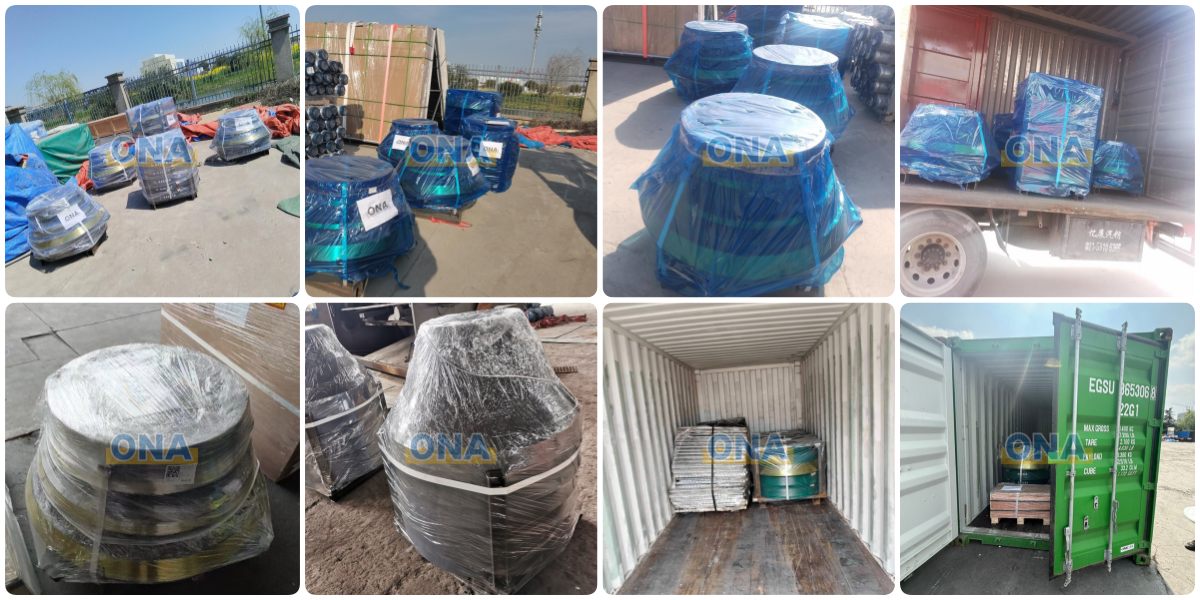

ONA provides flexible packaging options, including customized packing, custom part numbering, and waterproof protection. Multiple shipping methods are available to suit different delivery requirements. We handle each shipment based on your specific packaging and shipping needs — just let us know your requirements.
ONA can produce high manganese parts, which suit to Metso, Nordberg, Sandvik, etc..
Details
A deflector plate is a component for guiding material towards the crushing chamber of the crusher. It contributes to the protection of other internal crusher parts by preventing excessive wear and minimizing the risk of damage from oversized or abrasive materials.
Details
Crusher wear liner, which suit to Sandvik cone crusher CH/CS series. We can custom your logo and color.
Details
