Barmac VSI Vertical Shaft Impact Crusher Rotor Tip
The rotor tip is a core wear-resistant component of the vertical shaft impact (VSI) crusher, and it is also one of the most frequently replaced and most severely worn parts in the entire equipment.
Item No :
B9000, B9600, B7150SE, B7150Part Number :
ONA-B96394049G, ONA-SN501757, ONA-B96394049O, ONA-B96394060B, ONA-SN51759, ONA-B90394060A, ONA-B96394049E, ONA-B96394047OPayment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1

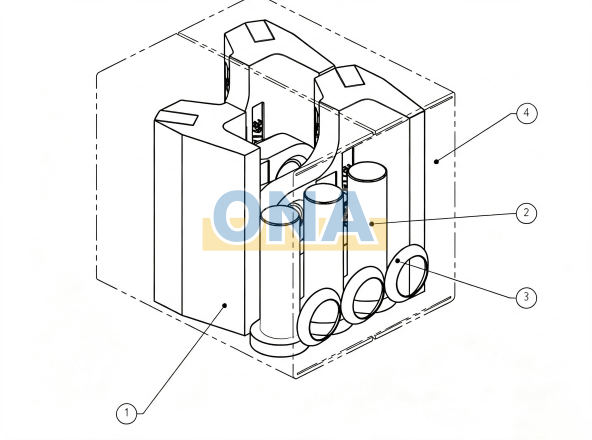

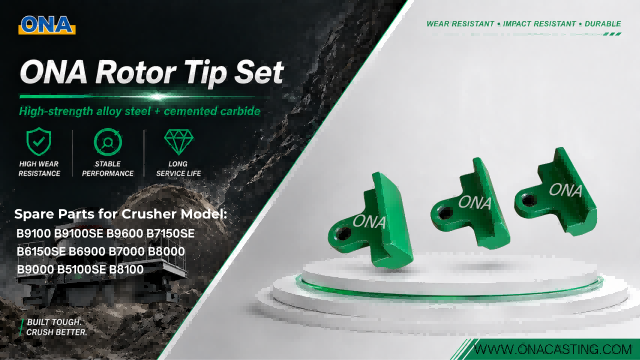

The ONA Barmac crusher impact rotor tip set features a three-piece design, for example, ONA-B96394049G, which includes three taper bolt (ONA-B96394052D), tip split red hard hanger (ONA-B96394047G) and three dedicated copper washers (ONA-B96394053A). The impact rotor tip set uses high-quality tungsten carbide blades embedded in a high-chromium alloy steel matrix, responsible for high-speed impact crushing of materials; the copper washers provide cushioning and sealing; and the bolts ensure a secure connection. This assembly is a complete set, allowing for precise matching and easy installation without additional accessories, effectively reducing downtime. The ONA rotor tip set assembly is suitable for stone shaping and sand-making operations in quarries and aggregate processing plants.

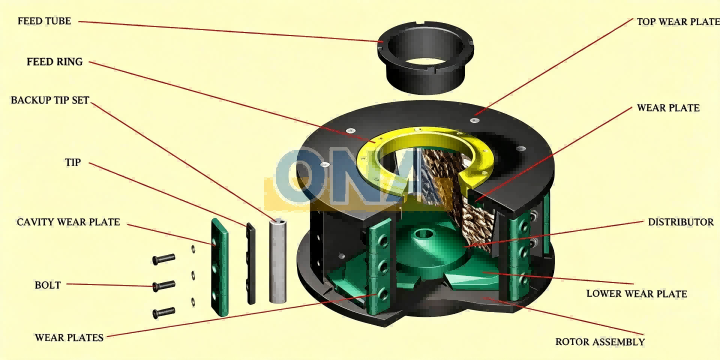

ONA supplies a complete set of wear-resistant parts for Barmac crushers. From the moment the material enters the crushing chamber, the feed pipe guides the material into the rotor. After being evenly distributed by the distribution plate, the material is thrown out at high speed by the main throwing tip, while the auxiliary throwing tip provides auxiliary protection to prevent damage to the rotor body. Wear-resistant plates in various parts (including upper wear plates, lower wear plates, and feed ring) provide all-round protection for the rotor assembly, resisting the impact and wear of the material.
The recommended replacement interval for ONA rotor tip is 5–10 days; however, actual service life depends on operating conditions and on-site wear inspections. It is recommended to determine the replacement timing flexibly based on the wear status observed during regular inspections.
ONA VSI Parts

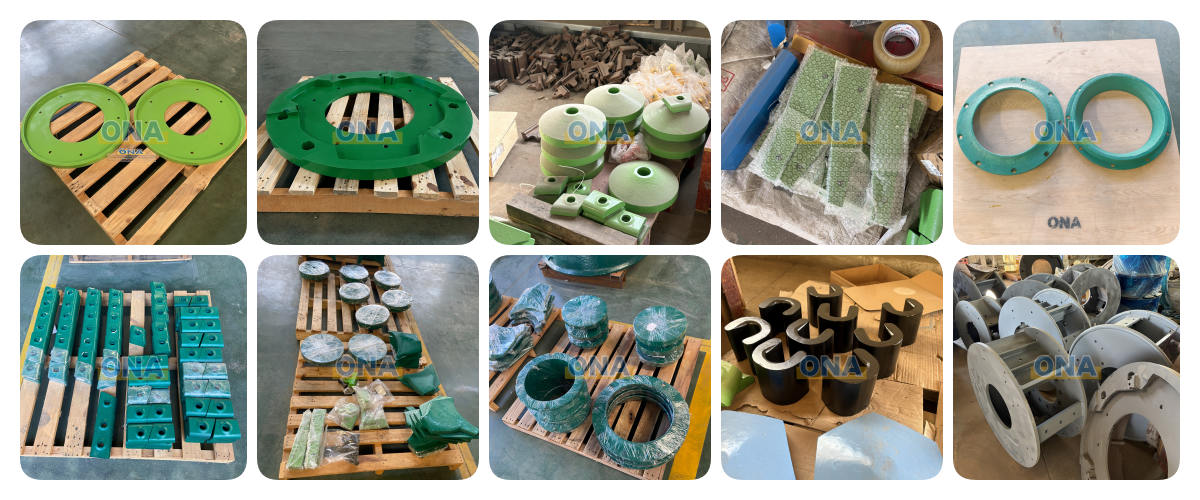

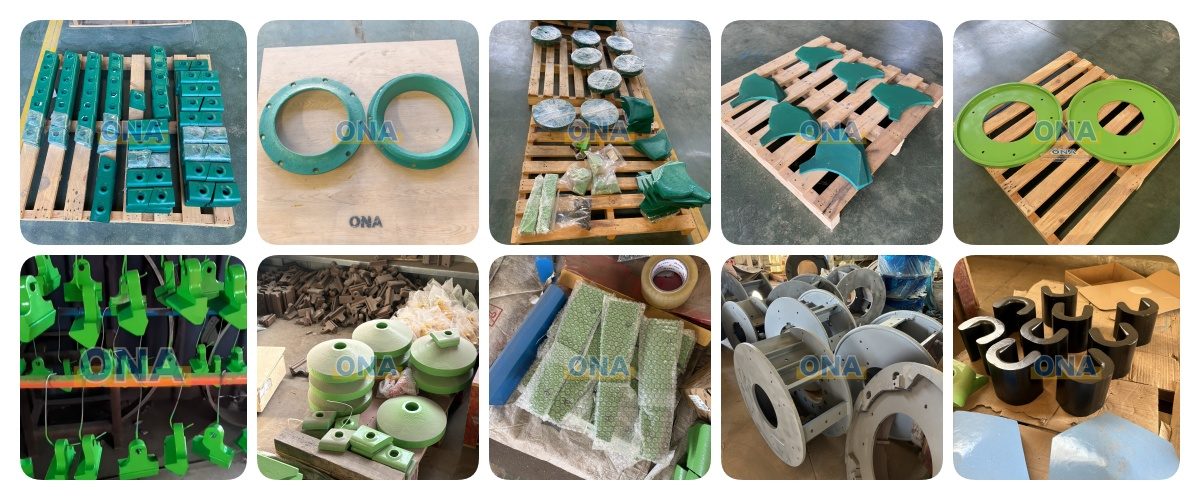

ONA offers a comprehensive range of wear parts and related accessories for VSI crushers, including rotor assemblies, distribution plates, wear plates, trail plates, and cavity wear plates. All ONA parts are manufactured according to original manufacturer drawings for precise matching and easy installation. ONA also offers customization services for rotor tip—dimensions, alloy strip shapes, and colors can be tailored to customer drawings to meet the requirements of diverse operating conditions.
Below are some of ONA's best-selling rotor tip assembly part numbers.
| ONA-B90394060B | ONA-B96394048N | ONA-MM1234913 | ONA-MM1353609 |
| ONA-MM1234905 | ONA-MM1353270 | ONA-488.1458-901 | ONA-B96394049K |
| ONA-B96394049M | ONA-MM1234916 | ONA-MM1373583 | ONA-B96394049I |
| ONA-B96394049S | ONA-B96394049T | ONA-B96394049Q | ONA-B96394048R |
| ONA-B96394049I | ONA-B48204045B | ONA-B96394048F | ONA-B96394048H |
| ONA-B96394048J | ONA-B96394048L | ONA-B69274048A | ONA-B69274048B |
| ONA-B69274048D | / | / | / |
Bramac rotor assembly wear parts often included rotor tip, back up tip, cavity wear plate, upper/lower wear plate, top/bottom wear plate, distributor plate, feed tube, feed eye ring, trial plate...
Details
The rotor tip is a core wear-resistant component of the vertical shaft impact (VSI) crusher, and it is also one of the most frequently replaced and most severely worn parts in the entire equipment.
