What is the counterweight assembly?

In the high-stakes world of aggregate and mining processing, the efficiency of your cone crusher relies on the seamless integration of its components. Among these, the counterweight assembly plays a critical role in ensuring smooth operation by balancing the dynamic forces generated during crushing. For operators using HP series equipment, sourcing high-quality hp crusher wear parts is essential, and the counterweight assembly is a key part of that system, directly impacting machine stability and longevity.

What is the Counterweight Assembly?

The counterweight assembly is a crucial mechanical component designed to offset the centrifugal force created by the eccentric bushing and the crushing head during rotation. By providing this dynamic balance, it significantly reduces harmful vibrations that would otherwise stress the main frame and other structural elements. For professionals seeking reliability, partnering with a trusted supplier of china metso crusher wear parts ensures that this assembly maintains the precise weight and dimensional tolerances required for optimal machine performance.

Key Components of a Counterweight Assembly

A high-quality counterweight assembly is composed of several precisely engineered parts working in unison:

• Counterweight: This is the main cast iron or steel body, precision-machined to a specific weight that dynamically balances the crusher’s gyrations.
• Counterweight Liner: A sacrificial wear plate, often made of high-strength steel or rubber, that protects the main counterweight body from material buildup and abrasion.
• Hexagonal Screw: These high-strength fasteners are used to securely mount the counterweight liner to the main body, ensuring no loosening under extreme vibrational forces.
• Silicone Seal: A flexible sealing element that prevents fine dust, moisture, and debris from infiltrating the counterweight area, which could lead to premature wear or imbalance.
• Hard Thread Locker: A chemical adhesive applied to the threads of the screws to create a vibration-proof bond, preventing critical fasteners from backing out during operation.

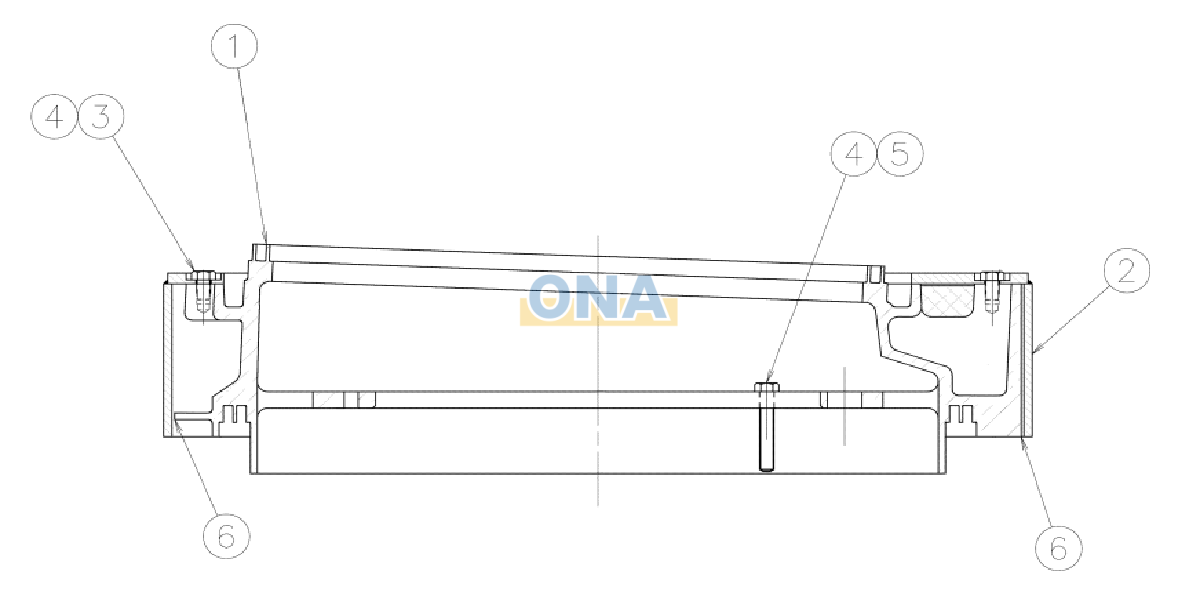

What are the Parts Included in the Counterweight Assembly?
Eg: HP400 ONA-7090228112

Why Precision in Balancing Matters
The primary function of the counterweight assembly is to manage the machine’s inertia. In a cone crusher, the rotating eccentric creates a powerful unbalanced force. Without a properly weighted and assembled counterweight, this force manifests as excessive radial runout and “hammering” on the main frame. A precision-engineered counterweight assembly ensures the crusher’s rotational forces are neutralized, allowing the machine to run smoothly at its rated speed. This directly translates to higher throughput and prevents premature fatigue failures in the main shaft and bushings.

Signs of Counterweight Assembly Failure

Given that the counterweight operates in a high-stress, rotating environment, regular inspection is vital. Common indicators of a failing counterweight assembly include unusual vibrations that can be felt in the crusher’s base frame, excessive noise from the lower section of the crusher, and premature wear on the main shaft bushings. Additionally, if the silicone seal is compromised, operators may notice an accumulation of dust or “fines” packed tightly around the counterweight area, which can lead to an imbalance condition and catastrophic wear if left unaddressed.

Our Full Range of Counterweight Assemblies

We offer a comprehensive range of aftermarket counterweight assemblies engineered to meet or exceed OEM specifications for durability and balance.

The following is a list of the main counterweight assemblies suitable for Metso cone crushers:

Ensure Your Crusher’s Balance and Longevity

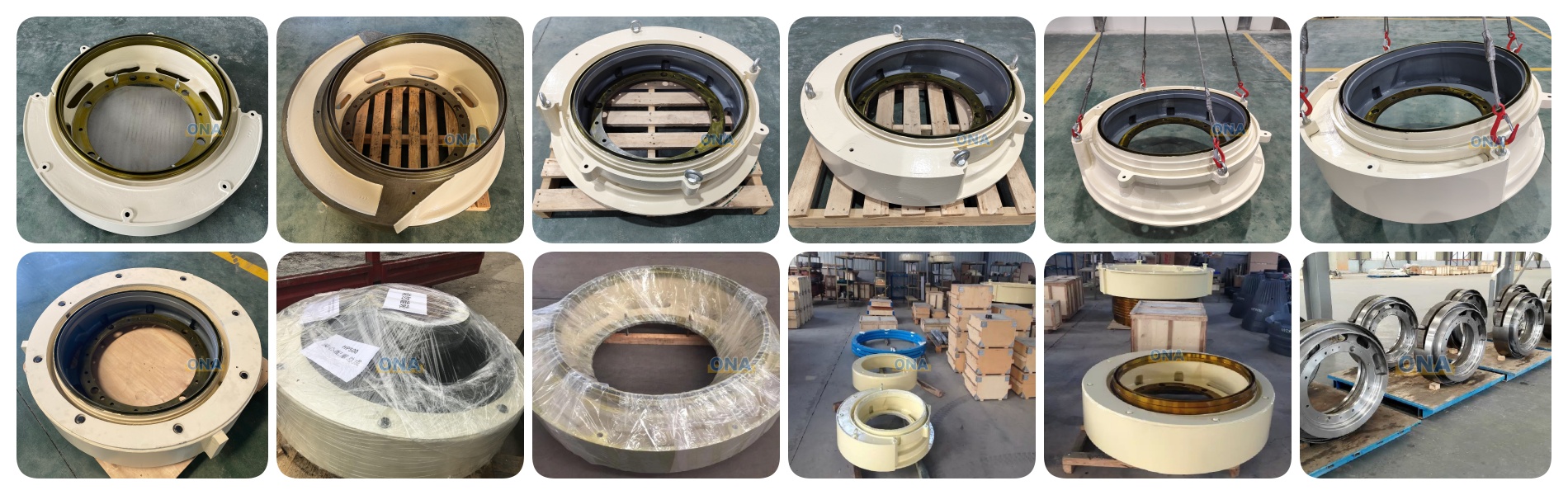

The counterweight assembly may not be the most visible part of your cone crusher, but its role in maintaining dynamic stability is non-negotiable. By investing in high-quality, precisely balanced assemblies and genuine components like silicone seals and hard thread locker, you protect your entire crushing circuit from destructive vibrations. Browse our gallery below to see our range of counterweight assemblies, and contact us today to find the perfect suit for your Metso or Sandvik crusher to ensure peak performance and uptime.
