What is the crusher hammer head?

When we talk about hammer crusher spare parts, the most critical component that comes to mind is the hammer head. It is the heart of any crushing operation—the part that actually does the breaking. Whether you are running a stone crusher in a quarry or recycling materials, understanding this simple yet vital piece can save you thousands in operating costs.

What Exactly Is a Crusher Hammer Head?

A crusher hammer head is a wear-resistant component mounted on the rotor of a hammer crusher. As the rotor spins at high speed, the hammer head swings out and strikes the fed material—limestone, coal, gypsum, or demolition debris—breaking it into smaller pieces. Think of it as the “teeth” of the crusher; without it, no crushing happens.

How Does It Work?
The working principle is simple but powerful:

• Impact: The hammer head hits the incoming material with tremendous force.
• Crushing: The material is shattered against the breaker plates or other rocks inside the crushing chamber.
• Discharge: Once the pieces are small enough, they pass through the grate bars at the bottom.

Because the hammer head takes the brunt of the impact, it is classified as a wear part—it will eventually wear out and need replacement. That’s why choosing the right crusher parts is essential for maintaining production efficiency.

Common Materials for Hammer Heads

Not all hammer heads are created equal. Depending on what you are crushing, the metallurgy should change. Here are the three most common types used in stone crusher applications:

• High Manganese Steel: Excellent toughness; work-hardens under impact. Common grades include Mn13Cr2, Mn18Cr2, and Mn22Cr2 – with higher manganese content providing greater work-hardening capacity for severe impact conditions. Ideal for large, hard rocks like granite.
• High Chrome Iron: Extremely hard and wear-resistant; lasts 3–4 times longer in abrasive conditions (e.g., silica-rich materials). However, it is more brittle.
• Bi-Metal Composite: Combines a tough steel shank with a wear-resistant alloy head—offering both safety for the rotor and long wear life.

When Should You Replace Them?

Even the best hammer heads wear down over time. Running a worn hammer too long leads to:

• Reduced crushing efficiency
• Higher energy consumption
• Risk of damaging the rotor (which is 10x more expensive to repair)

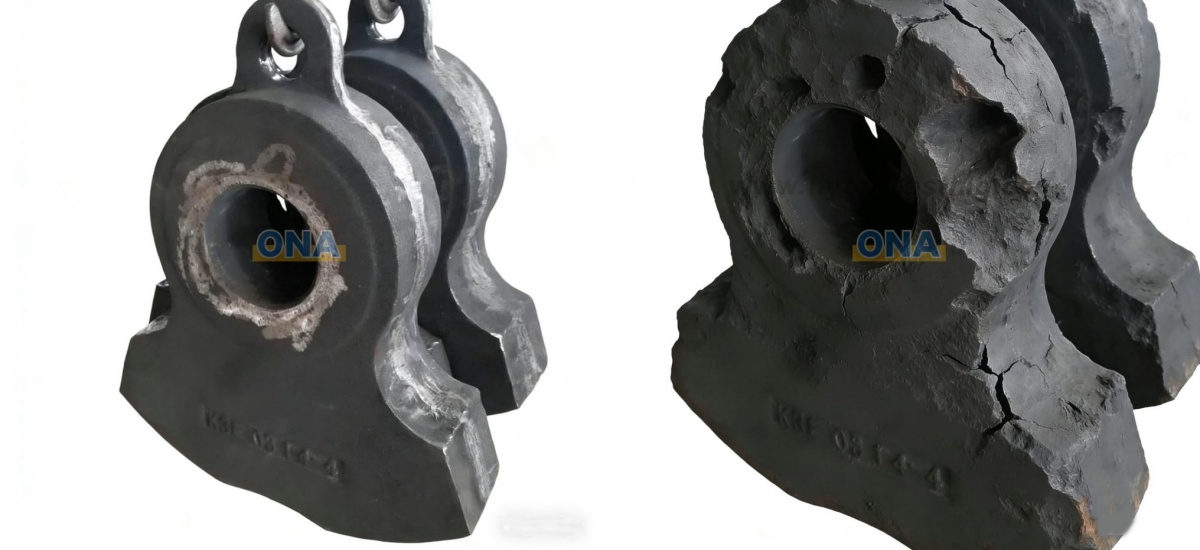

This is where having a new vs. worn comparison becomes valuable. Look at the image below: the hammer on the left is new, with a full profile. The one on the right is heavily worn and must be replaced immediately.


Simple Maintenance Tips to Extend Life

• Rotate Regularly: Wear is uneven. By flipping or swapping positions, you can use the full mass of the hammer and increase service life by up to 50%.
• Check for Cracks: A cracked hammer can break apart and damage the crusher. Inspect them weekly.
• Remove Tramp Metal: Install a magnetic separator. One stray piece of steel can destroy an entire set of hammers.

Why the Right Hammer Head Matters

As a hammer crusher spare part, the hammer head directly affects your bottom line. The initial purchase price is only part of the equation—what really counts is cost per ton crushed. A hammer that lasts twice as long, even if it costs a bit more, almost always delivers better ROI.
Whether you are a purchasing manager looking for the best value or a maintenance engineer trying to keep the plant running, understanding the basics of hammer heads helps you make smarter decisions.

Need Help Choosing?

Every stone crusher and material is unique. If you’re unsure which hammer head suits your operation, send us your details (rock type, crusher model, current wear life). We’ll help you find the perfect match—and keep your crusher running at its best.
