What's the parts in Sandvik CV229 Rotor Assembly?

Sand making machines are generally only used in stone mines and stone factories. Rotor assembly is the complete spinning-rotor assembly that fits inside VSI (Vertical Shaft Impact) crusher.

Which mian parts in the Sandvik cv229 rotor assembly?

A high-strength welded plate hub that carries the tungsten-carbide-tipped wear parts (rotor tips, back up tip sets, trial plate etc.) and accelerates the feed rock to high speed so the particles shatter against the anvils and produce cubical sand or aggregates.

Other components（feed tube, feed eye ring, distributor plate, cavity wear plate, upper/lower wear plate）are made of high chromium alloy Cr26Mo0.5. Top/bottom wear plate are made of high-strength wear-resistant plate.

What's the using life for each part?

In general:

Rotor tip/cavity wear plate: Around 5/7/10 days

Others: About 1 month

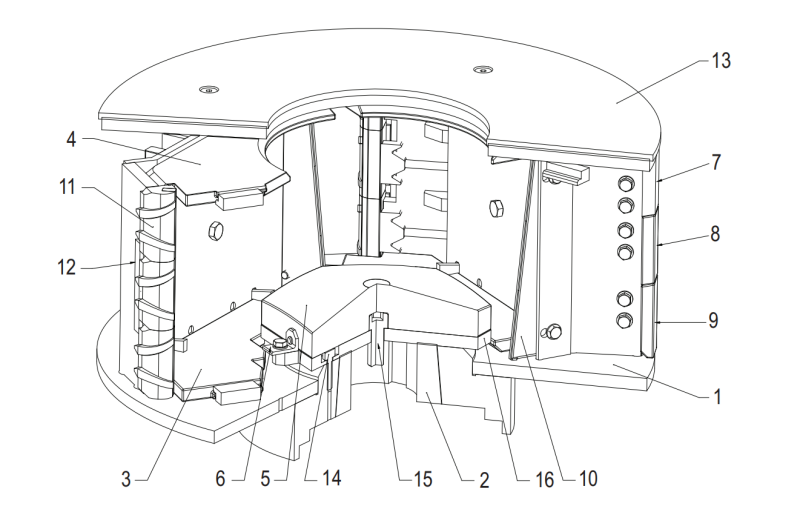

Below is the anatomy diagram of CV229:

Pos No.	Qty	PN	Description
1	1	488.0219-901	High profile rotor body
2	1	488.0029-001	Taper lock
3	1	488.0361-901	Lower wear plate set
4	1	488.0360-901	Upper wear plate set
5	1	488.0076-001	Distributor plate
6	1	488.1513-901	Distributor locating pin set
7	1	488.1644-901	Cavity wear plate set Turbo (upper)
8	1	488.1703-901	Cavity wear plate set Turbo (middle)
9	1	488.1704-901	Cavity wear plate set Turbo (lower)
10	1	488.0362-901	Trail plate 330 set
11	3	488.1456-901	Turbo tip set 110 mm (hard)
12	1	488.0368-901	Backup tip set
13	1	488.0369-901	Top wear plate set
14	8	840.0077-00	Screw M6S 20x50 8.8 ISO 4017
15	1	841.0502-00	Screw MC6S 24x60 12.9
16	1	488.0841-001	Top plate
