The toggle plate, suitable for Sandvik jaw crusher, transfers crushing force while acting as a mechanical fuse that breaks first to protect the crusher from damage.
Item No :
CJ411, CJ412, CJ615, CJ815, JMJM1511, JM1513, JB2412Part Number :
ONA-89-242-894-000, ONA-10-214-523-000, ONA-402.4606-01, ONA-402.4605-01, ONA-10-315-266-000, ONA-10-214-523-000Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1The toggle plate is a critical component in single-toggle jaw crushers suitable for Sandvik. It performs two essential functions: transmitting crushing force and protecting the crusher from damage. A properly designed toggle plate for jaw crusher ensures both efficient power transfer and reliable overload protection. Made from high-quality alloy steel and heat-treated for each specific model, ONA toggle plates balance strength with controlled fracture characteristics. These dual roles make it one of the most important parts in the machine.
Power Transmission

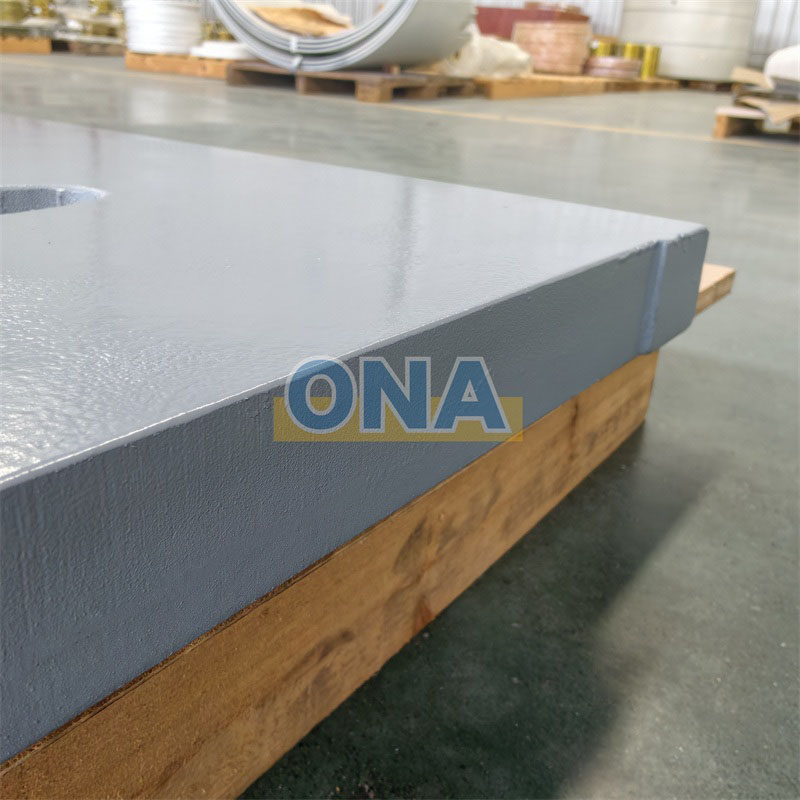

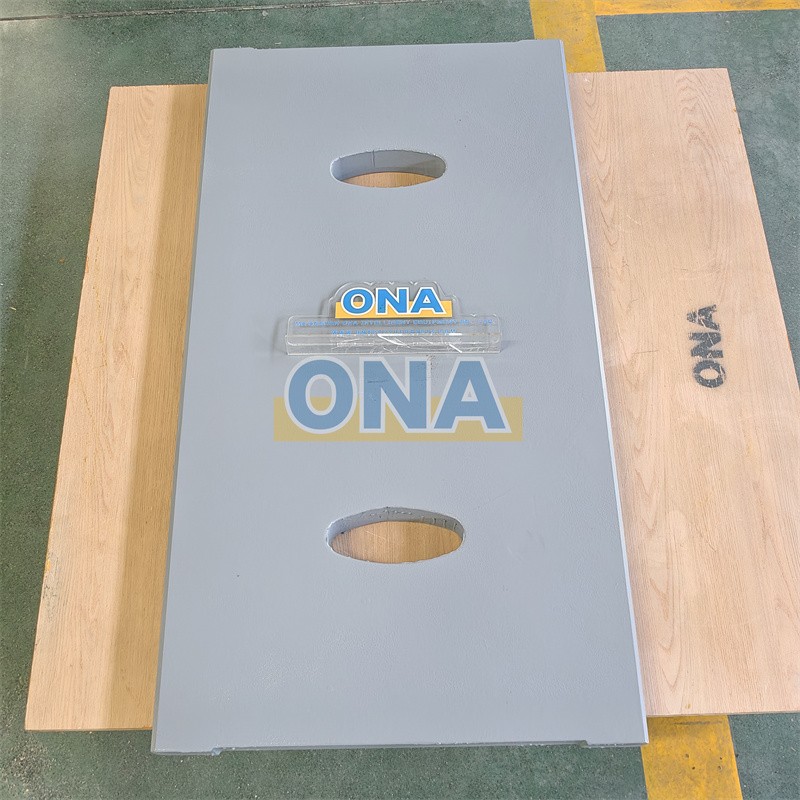

During normal operation, the toggle plate converts the eccentric shaft's rotary motion into the reciprocating motion of the swing jaw. This transfer creates the crushing force that breaks the rock. The toggle seat jaw crusher interface must maintain precise alignment to ensure smooth motion and even load distribution. A properly maintained toggle plate ensures efficient power transmission, maximising production while reducing energy waste. Left image: CJ412 toggle plate (part no. ONA-10-214-523-000).
Mechanical Fuse and Overload Protection

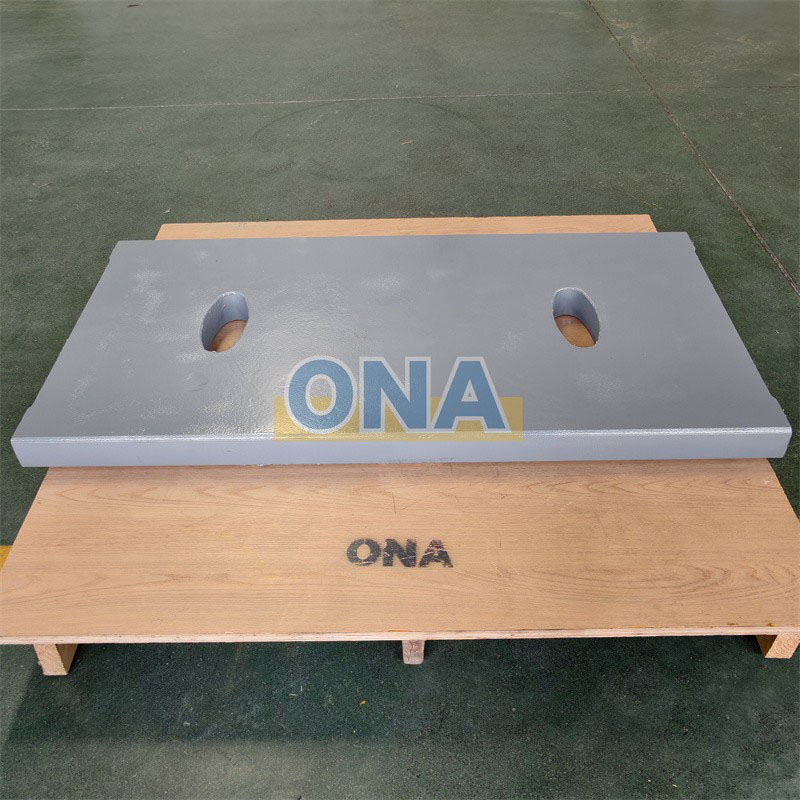

The toggle plate acts as the crusher's mechanical fuse. When tramp iron or oversized rock enters the chamber, the plate breaks before overload damages the pitman, shaft, or frame. This opens the discharge to clear the object. Replacing a broken toggle plate costs far less than repairing a damaged frame, saving thousands. Right image: JM1511 toggle plate (part no. ONA-402.4606-01).
Applications and Compatibility
ONA supplies precision-engineered toggle plates suitable for a wide range of jaw crusher brands, including CJ, QJ, and JM series suitable for Sandvik (CJ411, CJ412, CJ615, CJ815, JM1513, etc.), C series suitable for Metso (C120, C106, C150, etc.), as well as CT series suitable for TRI0 (CT3042, CT2436, CT2036, etc.). The table below shows the current ONA toggle plate inventory.
| ONA-949647106000 | ONA-MM1064765 | ONA-917751 | ONA-402.4605 | ONA-C2036-11 |
| ONA-922849 | ONA-949647114600 | ONA-916946 | ONA-10-315-266-000 | ONA-T6090-15JC |
| ONA-MM0215574 | ONA-MM1006270 | ONA-418517 | ONA-10-214-523-000 | ONA-T7510-11JC |
| ONA-MM0567612 | ONA-319142 | ONA-906828 | ONA-89-242-894-000 | ONA-C2036-11JC |
| ONA-341202 | ONA-905628 | ONA-578157 | ONA-402.4605-01 | ONA-MJ-T7510-11JCPC |
| ONA-591360 | ONA-MM1002997 | ONA-MM0507891 | ONA-T7510-11B | ONA-CR005-055-001 |
| ONA-MM0543491 | ONA-949647154700 | ONA-MM0221467 | ONA-T6090-15 | ONA-MM1155334 |
Related Parts

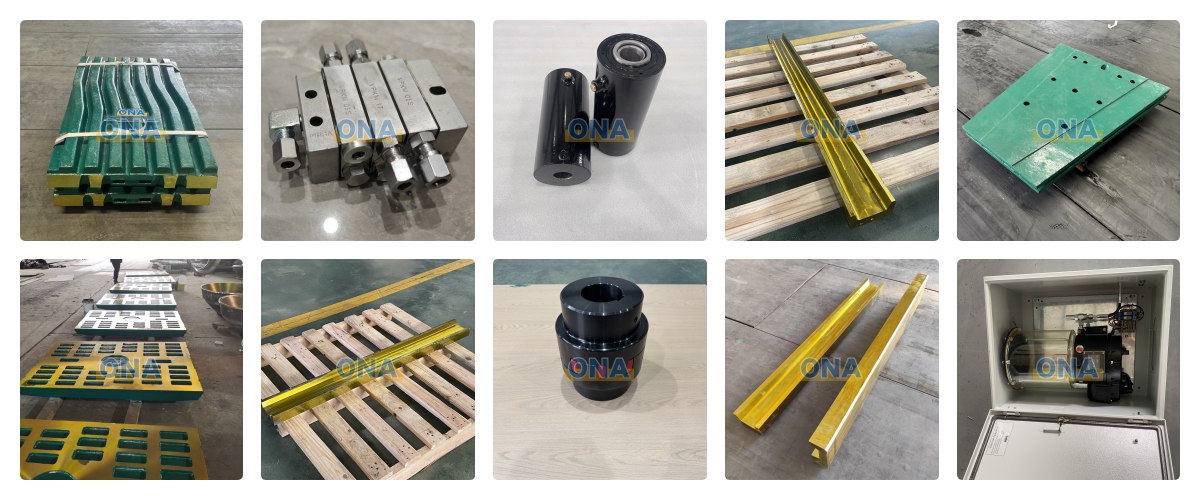

In addition to toggle plates, ONA also supplies a wide range of other key components suitable for Sandvik jaw crushers, including jaw plates, toggle seats, side plates, couplings, lubrication units, progressive feeders, and hydraulic cylinders. All ONA parts are manufactured to OEM specifications for perfect fit and reliable performance. Just contact us with your model or part number.
