The main shaft assembly is the core rotating component of cone crushers suitable for Sandvik CH and CS series.
Item No :
CH420, CH430Part Number :
ONA-442.7591-00, ONA-452.6149-90Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 daysOrder(MOQ) :
1

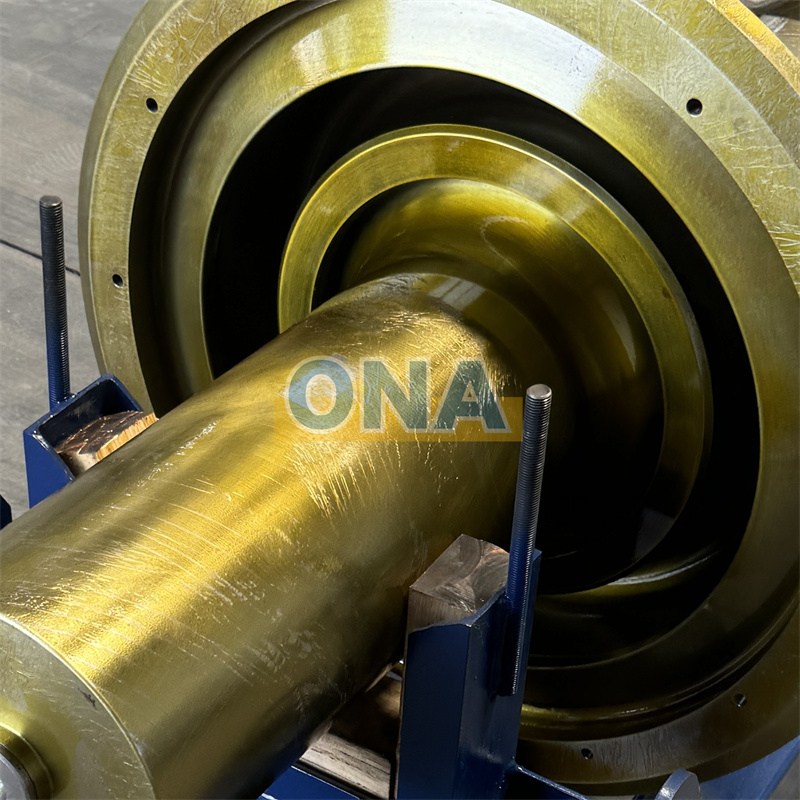

The main shaft assembly is the structural backbone of cone crushers suitable for Sandvik CH and CS series. Its head center is hydraulically press-fitted onto the shaft in a controlled workshop—not assembled in the field—eliminating concentricity errors that could damage the shaft. The shaft is forged from vacuum-degassed alloy steel for fatigue resistance; the head center is cast and heat-treated. This forged-cast combination matches each section's stress profile. ONA builds to original specifications, ensuring interface geometry and load-bearing characteristics match the crusher.

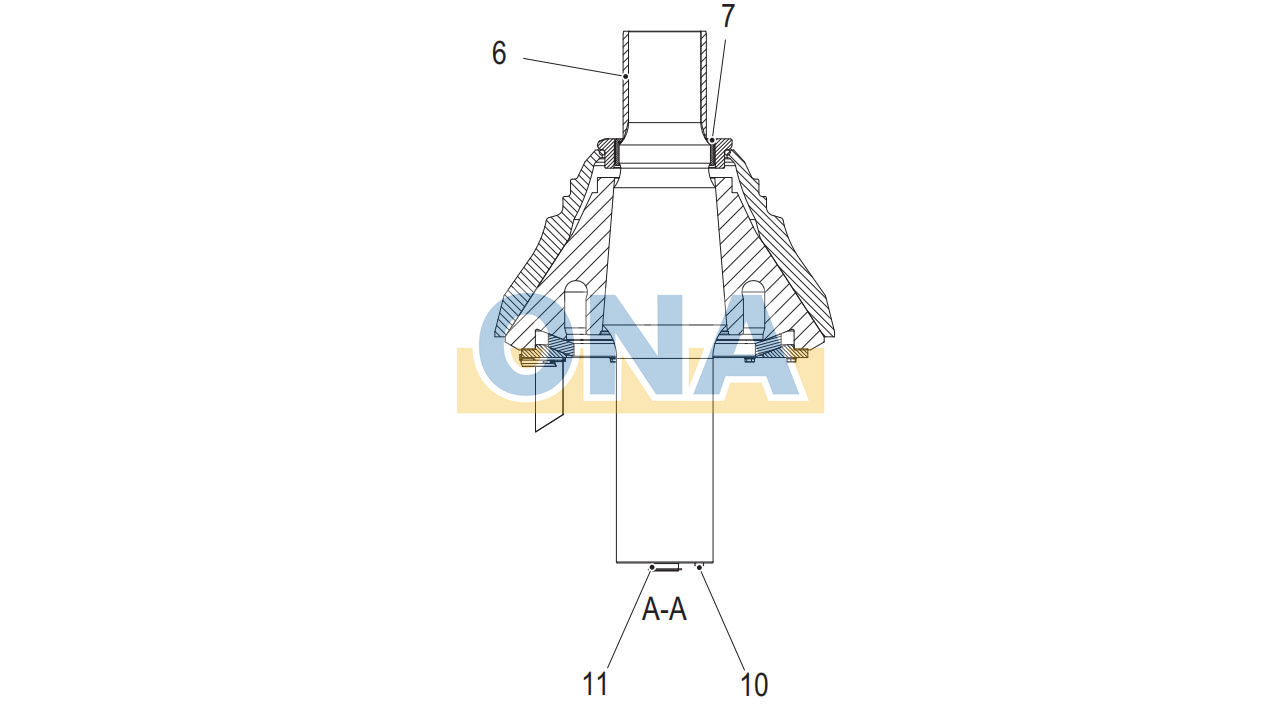

Main Shaft Assembly Excl. Mantle
Eg： CH430 ONA-442.8313-901
| Pos. | Part Number | Description | Qty | Net Wght |
| 6 | 442.7913-01 | main shaft sleeve | 1 | 25 |
| 7 | 442.7918-01 | inner head nut | 1 | 8 |
| 10 | 853.0118-00 | Parallel pin 25x50 m6 | 1 | 0.5 |
| 11 | 855.0103-00 | Retaining ring SgA 80 | 1 |
Data Sheet
| Production Name | Main Shaft Assembly for Sandvik |
| Material | Main Shaft: Vacuum-degassed forged alloy steel Head Center: Cast heat-treated alloy steel Sleeve: Bronze alloy |
| Applicable Models | For Sandvik CH series: CH420, CH430, CH440, CH660, CH870, CH880 For Sandvik CS series: CS420, CS430, CS440, CS660 For Sandvik H series: H2800, H3800, H4800, H6800, H7800, H8800 For Sandvik S series: S2800, S3800 |
| HS Code | 847490 |
| Brand | ONA |
| Customized Services | Custom manufacturing per drawings or samples |

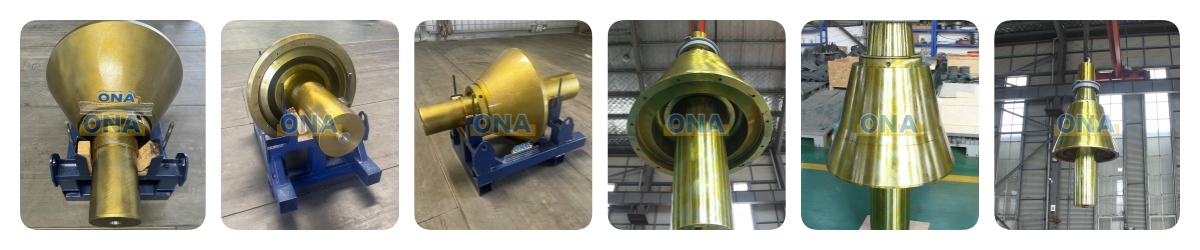

Product Show

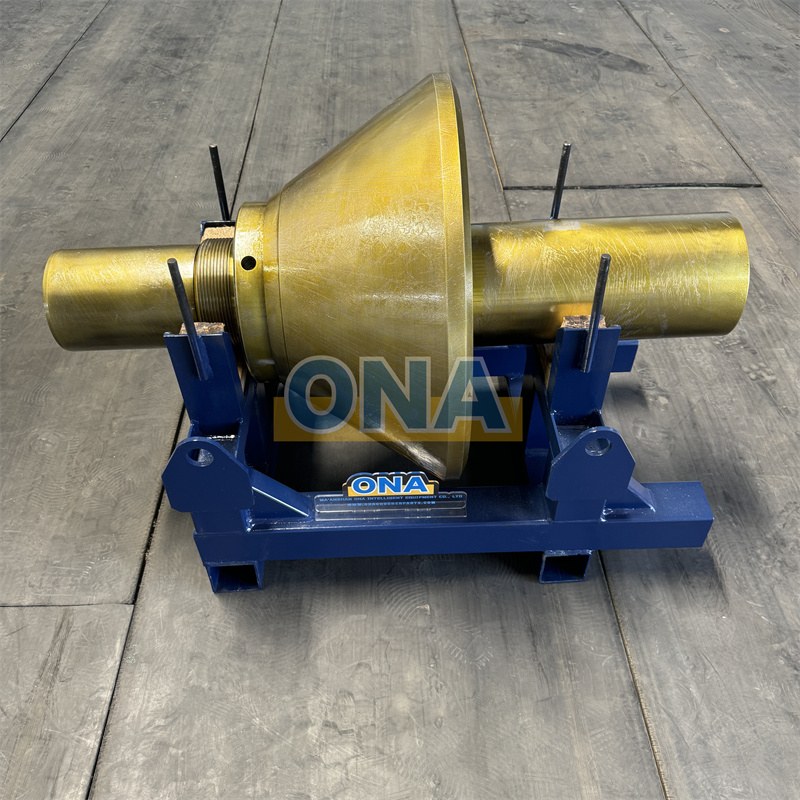

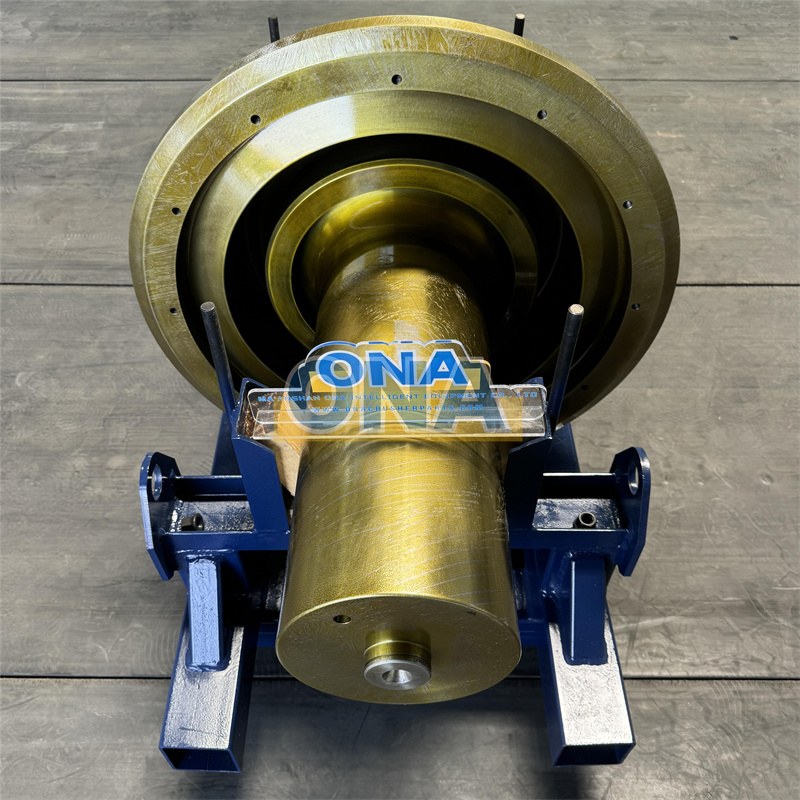

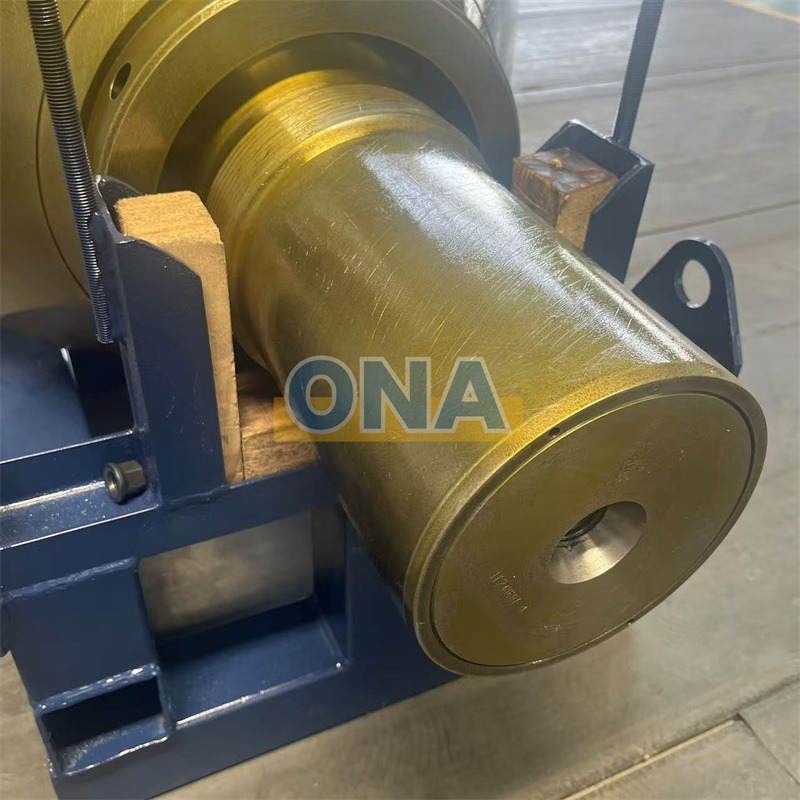

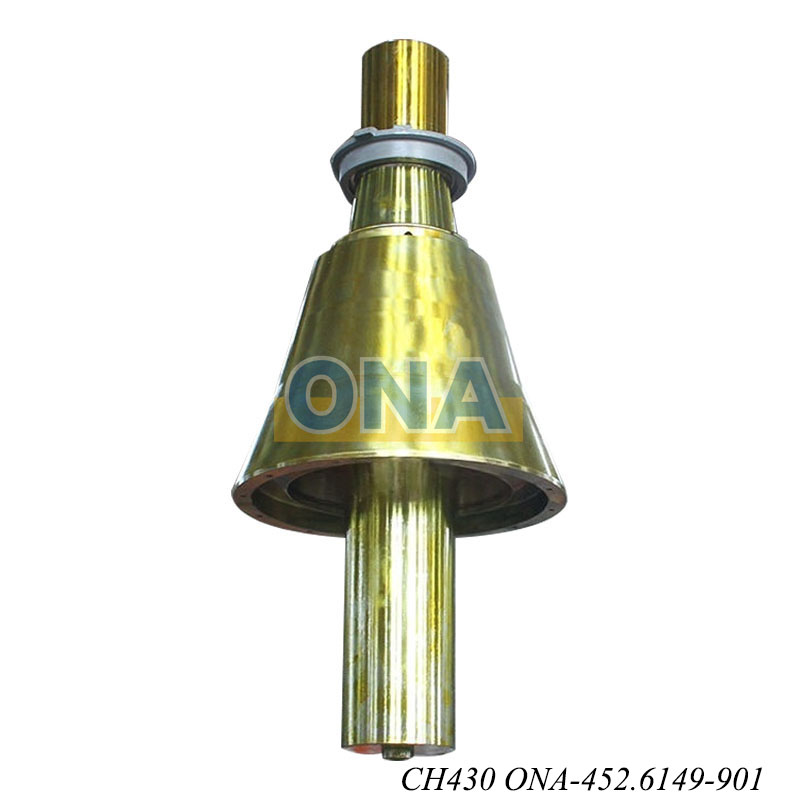

For Sandvik CH420/CH430 Cone Crusher ONA-442.7591-00 ONA-452.6149-901
Beyond Sandvik: ONA also manufactures main shaft assemblies for Metso, Symons, Tri0 , and other major crusher brands.

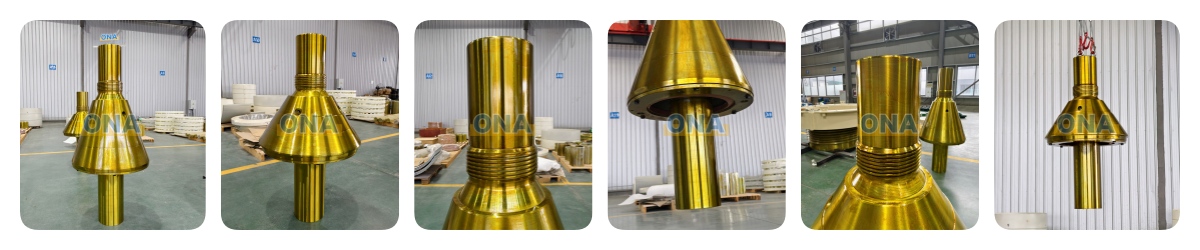

For Metso GP100/100S Cone Crusher ONA-916186 ONA-91618

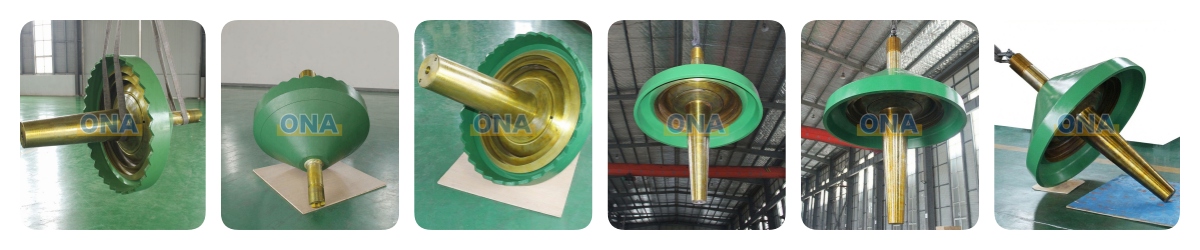

For Symons 4FT/4.25FT ONA-9005-0107 ONA-9445-8317

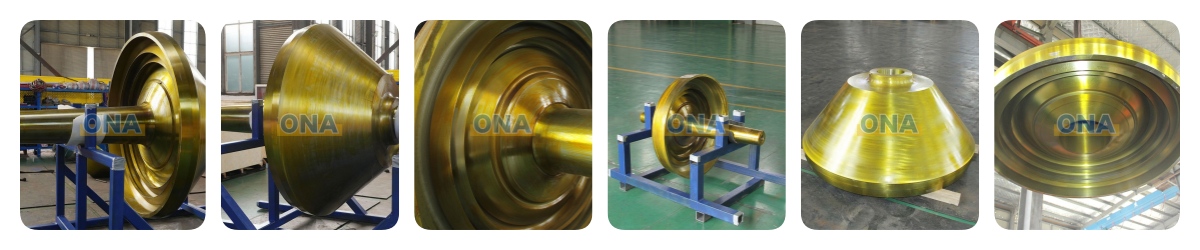

For Tri0 TC66 TC36 ONA-TC6821100 ONA-TC6871001
Below are some of ONA's most popular main shaft assemblies.
| Brand | Applicable Model | Part Number |
| Suit to Sandvik | CH420, CH430, CH440, CH660, CH870, CH880, CS420, CS430, CS440, CS660, H2000 | ONA-442.7591-00, ONA-BG00566212, ONA-442.8313-902, ONA-442.7259, ONA-442.7591-902, ONA-452.5504-901, ONA-452.0522-901, ONA-442.9998-901, ONA-442.9732-AD, ONA-452.6149-901 |
| Suit to Metso | GP11F, GP100, GP100S, GP200, GP200S, GP220, GP300, GP300S, GP500S, GP550 | ONA-936406, ONA-916187, ONA-916231, ONA-916186, ONA-MM0262456, ONA-MM0310133, ONA-MM0301237, ONA-MM0528601, ONA-916173, ONA-MM0310111, ONA-MM0260020, ONA-MM0262457, ONA-932956, ONA-MM0301263, ONA-916197 |
| Suit to Symons | 3 FT, 4 FT, 4 1/4 FT, 5 1/2 FT, 7 FT | ONA-9443-0733, ONA-9443-8112, ONA-9444-8376, ONA-9446-2143, ONA-9447-1012, ONA-9450-1815, ONA-9005-0107, ONA-9445-8317 |
| Suit to Tri0 | TC36, TC51, TC66 | ONA-TC6821100, ONA- TC6871001, ONA-ONA-TRI017000172 |

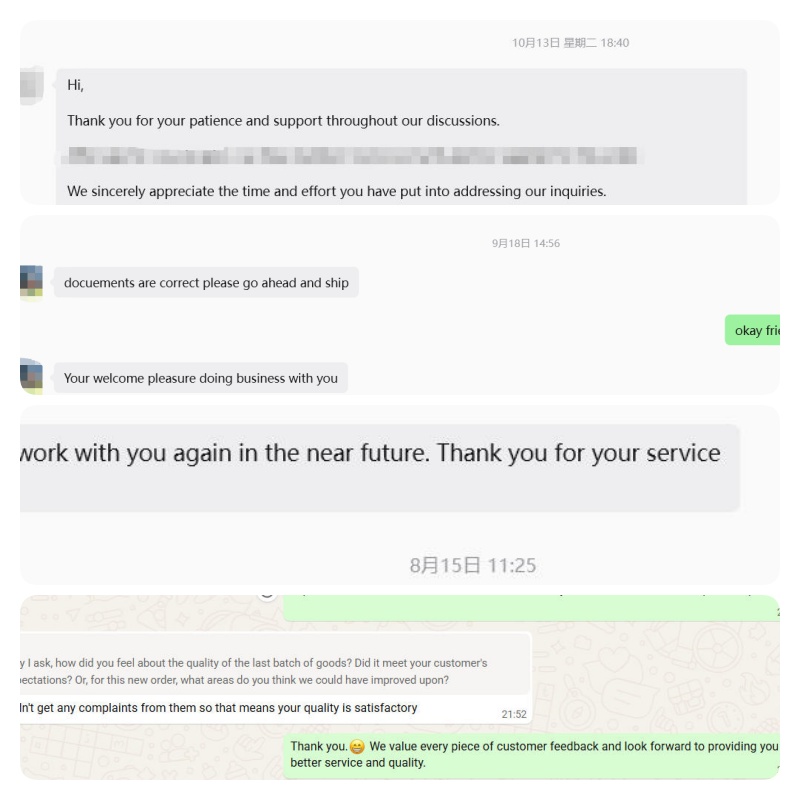

Packing, Service & Customer Feedback

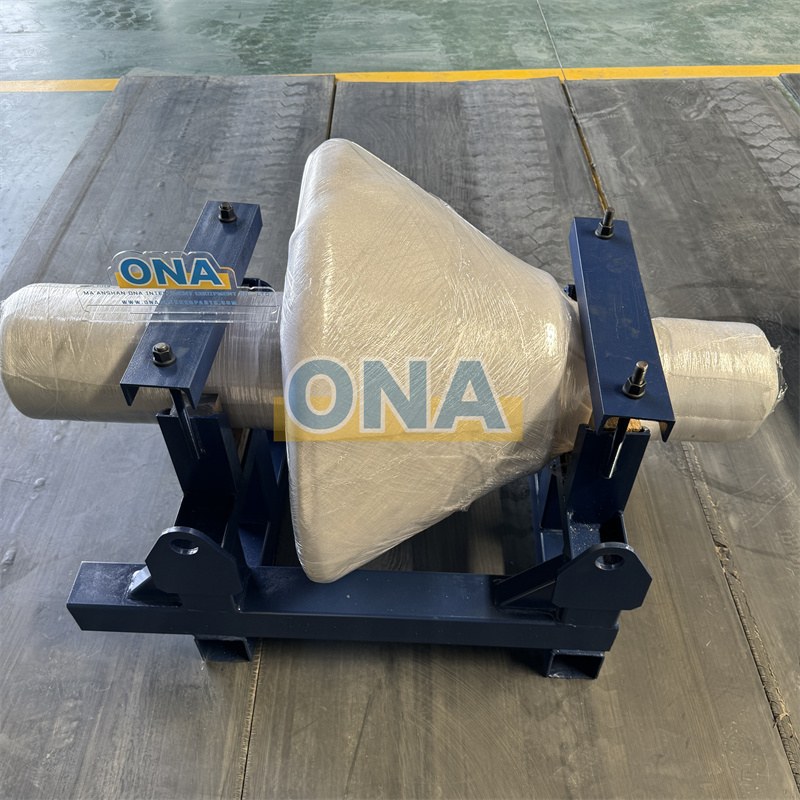

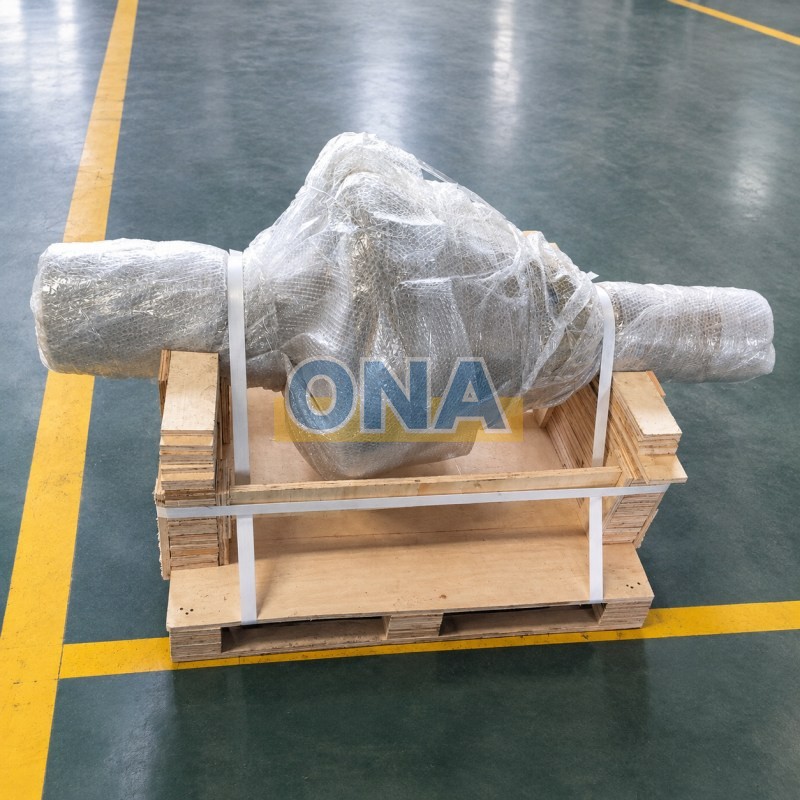

At ONA, packing is part of quality control. For main shaft assemblies, we provide both steel pallets and wooden pallets, depending on weight, shipping method, and customer preference. All machined surfaces are protected with anti-rust oil, VCI film, and shock-absorbing supports, then secured for long-distance transport. Service is just as important as the product. Our team responds quickly, follows up closely, and supports customers from inquiry to after-sales. We aim to deliver first-class service among peers in the same tier. That is why positive customer feedback keeps coming in, and why customers continue to choose ONA. ONA’s purpose is simple: reliable products, dependable service, and a better experience for every customer.
FAQ
1: Can ONA supply the complete main shaft assembly, or only individual parts?
Both. We supply complete assemblies (ONA-442.8313-902, ONA-442.7259, etc.) and individual components. Send your part number or drawing.
2: How do you ensure the head center fits the main shaft correctly?
We hydraulic press-fit in our workshop and verify concentricity before shipment. Field assembly is not required.
3: Do you provide inspection reports with the assembly?
Yes. Dimensional inspection and hardness reports are standard. Assembly dimension inspection is available on request.
