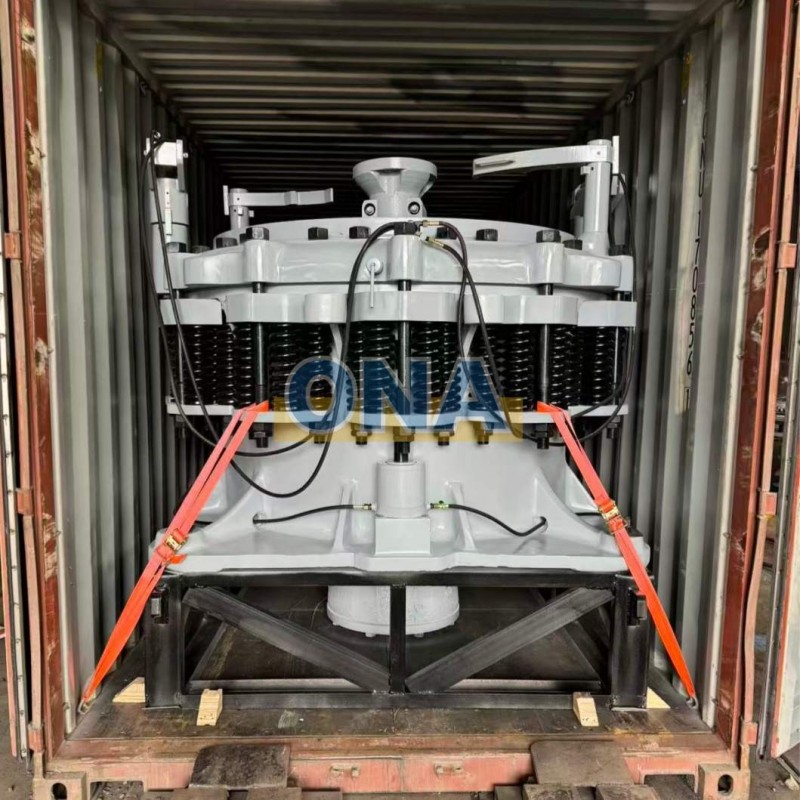

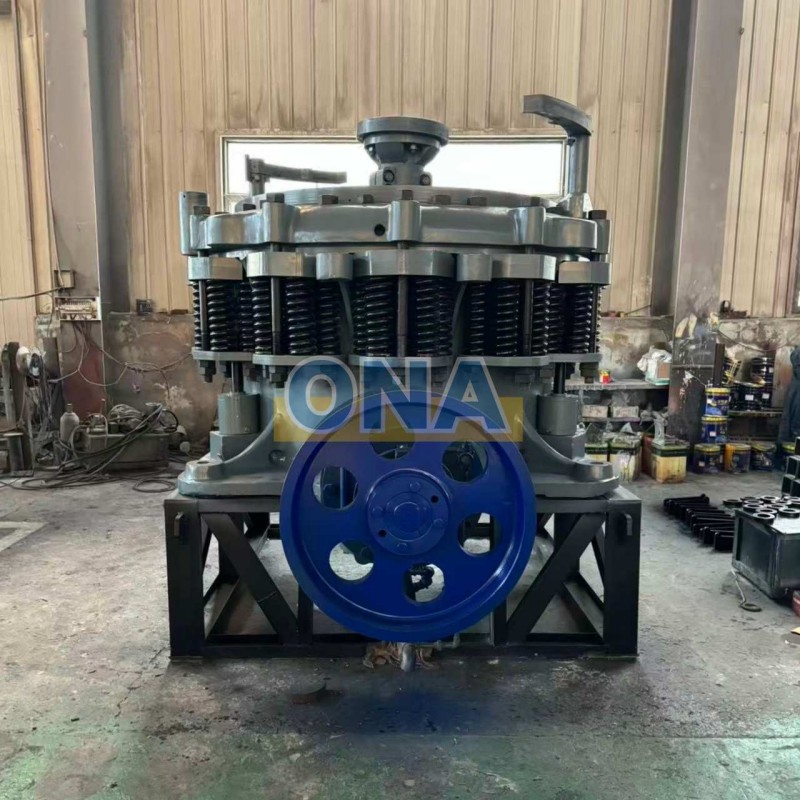

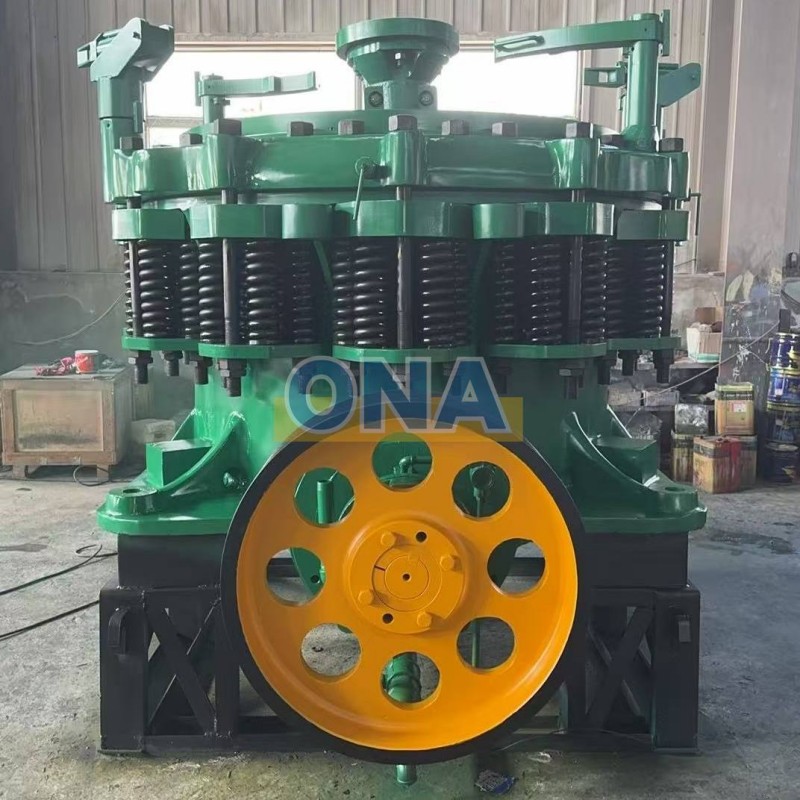

Symons 4.25FT Standard Shorthead Cone Crusher

Symons 4.25FT Standard Shorthead Cone Crusher

We specialize in manufacturing high-quality replacement parts suit for the entire classic Symons cone crusher series, including the 2ft, 3ft, 4.25ft, 5.5ft, and 7ft models. Our components are guaranteed for precision fit, superior performance, and extended service life, ensuring your crushing operations run smoothly and efficiently.

  • Item No :

    2ft, 3ft, 4.25ft, 5.5ft, 7ft
  • Payment :

    TT
  • Product Origin :

    China
  • Color :

    Customized
  • Shipping Port :

    Shanghai
  • Lead Time :

    30 Days
  • Order(MOQ) :

    1

Product Introduce

The Symons 4.25ft cone crusher is a widely used secondary or tertiary crushing machine in mining, quarrying, and aggregate production. It comes in two main configurations: Standard and Symons short head cone crusher, each suited for different applications.



Main Features

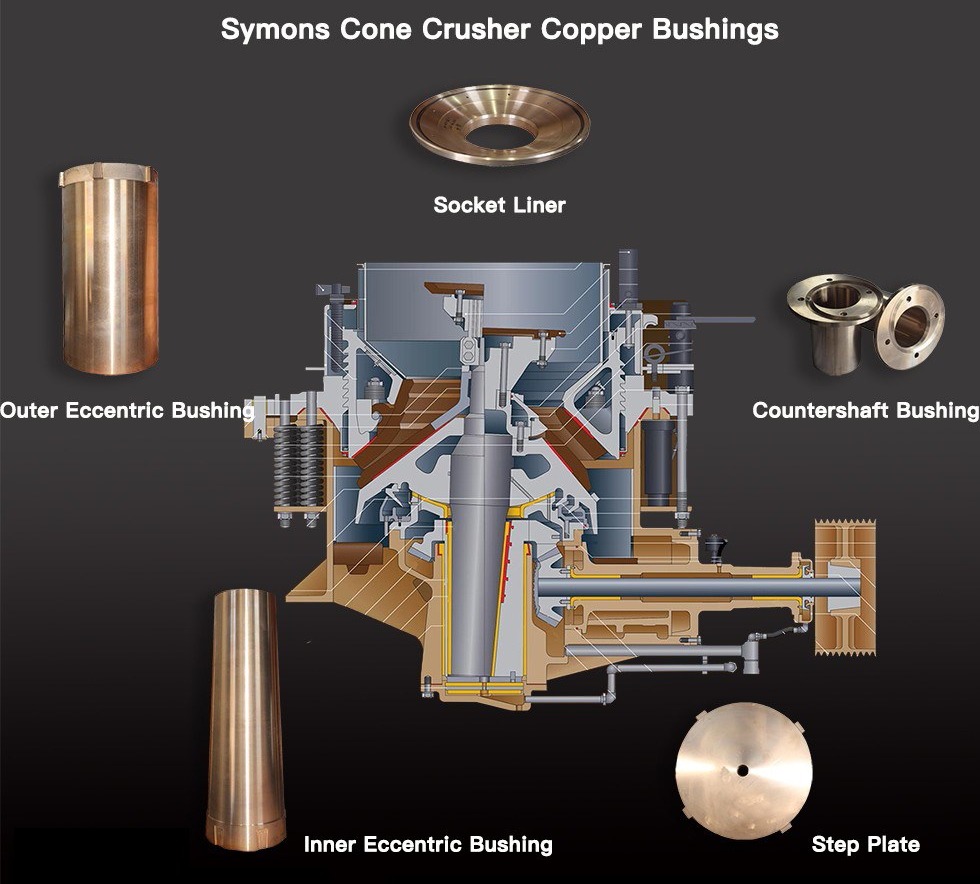

symons 3ft cone crusher

*High crushing efficiency and uniform product size due to upgraded crushing chamber design.

*Hydraulic adjustment and overload protection for safe and easy operation.

*Interchangeable parts with original Nordberg Symons crushers, ensuring wide parts availability.

*Durable construction with long service life and low maintenance costs.

*Spring or hydraulic clearing system to prevent damage from uncrushable materials.





Applications

1. Secondary or tertiary crushing in mining and quarrying.

2. Suitable for medium to hard materials like iron ore, copper ore, limestone, quartz, granite, etc.

3. Used in metallurgy, construction, road building, and chemical industries.





Complete Parts Support suit for Symons Cone Crushers

We provide precision-manufactured replacement wear parts suit for all major Symons cone crusher sizes:

Symons 2ft

Symons 3ft

Symons 4.25ft

Symons 5.5ft

Symons 7ft

All parts are guaranteed for compatibility and durability.

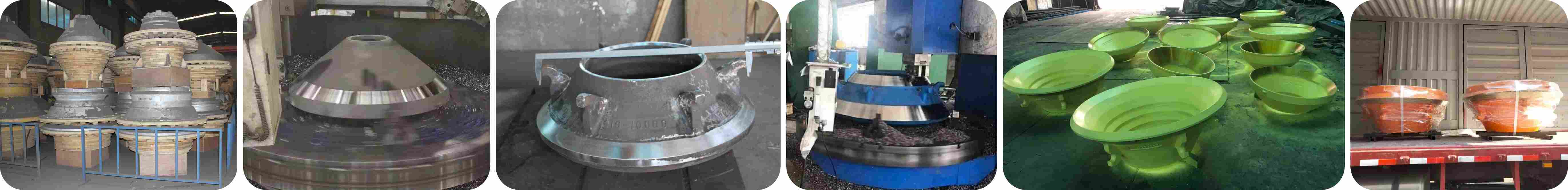

symons cone crusher

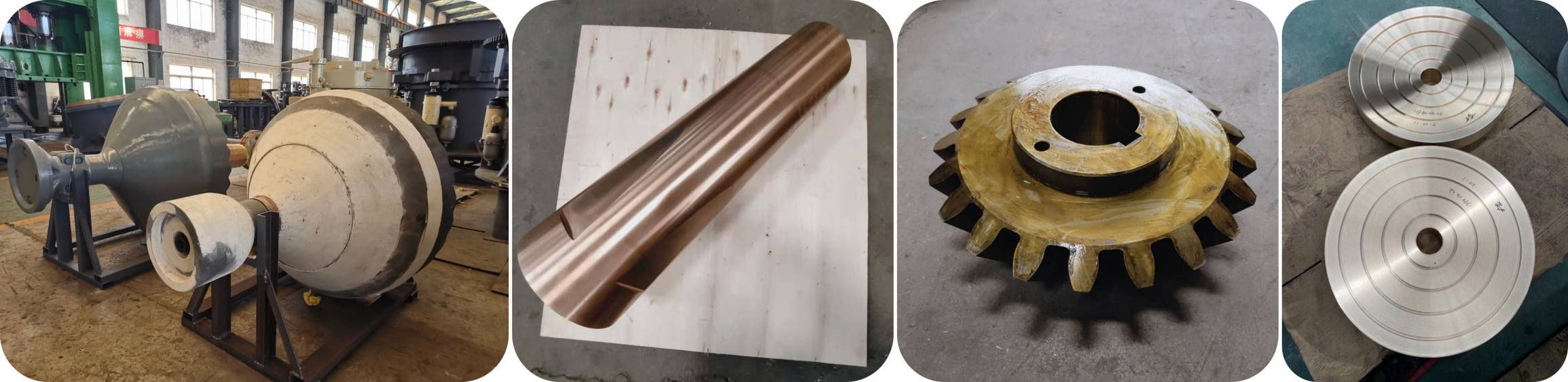

symons crusher



What parts do you have for symons 4 1 4 cone crusher?



Spare Parts Number with Symons 4 1 4 Cone Crusher Manual
Model Description Part Number
4¼ SEALING RING 6380-8055
4¼ SOCKET SEALING RING SPRING 3605374
4¼ FEED CONE 1026183190
4¼ GASKET 1035558467
4¼ O-RING 1035716419
4¼ ARM GUARD 1038065701
4¼ MAIN FRAME LINER 1048516161
4¼ MAIN FRAME LINER 1048516180
4¼ MAIN FRAME LINER 1048516186
4¼ Mantle STD 1050136001
4¼ MANTLE,4 1/4 FT. SH HD 5013 4726 IN XT720 MATE 1066665514
4¼ PROTECTION PLATE 7000104348
4¼ CLAMPING CYLINDER ASSEMBLY 7000107414
4¼ ANTIFRICTION COATING 7000430030
4¼ SCREW, HEXAGONAL 7001530860
4¼ PIN 7001614447
4¼ REDUCTION NIPPLE 7002003018
4¼ FLOW SWITCH 7002125210
4¼ STRIP, FELT 7002705005
4¼ HUB 7003241820
4¼ PIN 7014852001
4¼ KEY 7031400000
4¼ NUT, LOCK 7035930750
4¼ SOCKET 7039602505
4¼ NUT, SAHFT 7041031000
4¼ OIL FILTER 7043800000
4¼ SEAT 7049600044
4¼ MOTOR PUMP 7057490010
4¼ MOTOR PUMP 7057490501
4¼ TORCH RING 8.1434E+11
4¼ HOPPER 10-1063-2901
4¼ APPRON CLAMP 10-1228-0301
4¼ FEED PLATE BLOCK 10-1341-3376
4¼ FEED PLATE ASSY 10-9439-6522
4¼ BOWL LINER 2005-4330
4¼ COUNTERSHAFT BOX GUARD 3806-4092
4¼ SOCKET SEALING RING HOUSING 4545-2731
4¼ BOWL LINER 4829-8603
4¼ BOWL LINER 4829-8671
4¼ BOWL LINER 4829-8941
4¼ BOWL LINER 4829-9211
4¼ BOWL LINER 4829-9481
4¼ BOWL LINER 4829-9751
4¼ BOWL LINER 4830-0023
4¼ BOWL LINER 4830-0024
4¼ BOWL LINER 4830-0158
4¼ BOWL LINER 4830-0200
4¼ BOWL LINER 4830-1288
4¼ BOWL LINER 4830-1371
4¼ BOWL LINER 4830-1826
4¼ BOWL LINER 4830-1911
4¼ BOWL LINER 4830-2451
4¼ BOWL LINER 4830-2800
4¼ BOWL LINER 4830-2957
4¼ BOWL LINER 4830-2958
4¼ BOWL LINER 4830-4071
4¼ BOWL LINER,STD M 4830-4341
4¼ BOWL LINER 4830-4344
4¼ BOWL LINER 4830-4612
4¼ BOWL LINER 4830-4699
4¼ BOWL LINER 4830-4881
4¼ BOWL LINER 4830-4992
4¼ MAIN FRAME LINER 4851-6161
4¼ MAIN FRAME LINER 4851-6180
4¼ SOCKET LINER 4872-6430
4¼ MANTLE 5013-4451
4¼ MANTLE 5013-4551
4¼ MANTLE 5013-4726
4¼ MANTLE 5013-4801
4¼ MANTLE 5013-4803
4¼ MANTLE 5013-5401
4¼ MANTLE 5013-5601
4¼ MANTLE 5013-5801
4¼ MANTLE 5013-6001
4¼ MANTLE 5013-6007
4¼ MAIN SHAFT NUT 5168-5836
4¼ DOWEL PIN 5433-5481
4¼ FEED PLATE 5598-4581
4¼ SOCKET SEALING RING 6360-4161
4¼ TORCH RING 6391-3321
4¼ MANTLE 6666-5514
4¼ MANTLE 6666-5538
4¼ MANTLE 6666-5544
4¼ MANTLE 6666-5545
4¼ MANTLE 6666-5549
4¼ MANTLE 6666-5550
4¼ MANTLE 6666-5551
4¼ BOWL LINER,4 1/4' SHHD COARSE,XT720 EQUIV TO 6666-5612
4¼ BOWL LINER 6666-5640
4¼ BOWL LINER 6666-5642
4¼ BOWL LINER 6666-5644
4¼ BOWL LINER 6666-5646
4¼ BOWL LINER 6666-5647
4¼ BOWL LINER 6666-5648
4¼ BOWL LINER 6666-5650
4¼ BOWL LINER 6666-5651
4¼ BOWL LINER 6666-5652
4¼ BOWL LINER 6666-5653
4¼ BOWL LINER 6666-5655
4¼ BOWL LINER 6666-5656
4¼ BOWL LINER,SH F 6666-5660
4¼ BOWL LINER 6666-5661
4¼ BOWL LINER 6666-5663
4¼ BOWL LINER,SHORT HEAD, HEAVY MEDIUM FOR C 6666-5664
4¼ BOWL LINER 6666-5666
4¼ BOWL LINER 6666-5667
4¼ BOWL LINER 6666-5668
4¼ BOWL LINER 6666-5669
4¼ FEED DISTRIBUTOR 700004012T
4¼ UNCLEANED 700005514T
4¼ ECCENTRIC BUSHING 700005535T
4¼ WASHER 700005569T
4¼ WASHER 700005570T
4¼ WASHER, SPHERICAL 700005652T
4¼ WASHER, SPHERICAL 700005653T
4¼ KEY 700005654T
4¼ SCREW 700005759T
4¼ O-RING 70036A1005
4¼ MAIN SHAFT SLEEVE 7320-4331
4¼ BOWL LINER MM0402612
4¼ BOWL LINER MM0404802
