C140 C Series Primary Jaw Crusher

ONA Casting's C Series jaw crushers are often utilized in primary crushing applications to process various types of hard materials efficiently.

Item No :
C80, C100, C96, C106, C116, C3054, C120, C125, C140, C150, C160, C200
Payment :
TT
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
30 Days
Order(MOQ) :
1

Inquiry Now

Product categories

New products

Product Details

Product Introduce

The primary applications of the Metso C Series jaw crushers include quarried stone, mining and recycling, aggregate and surface mining, and construction materials.

Technical Specifications

Model	Inlet size mm	Feed size mm	Outlet size mm	Processing capacity t/h	Motor power kw	Weight tons
C140	1400*1070	≤850	120-850	380-940	200	54.01

Weight & Dimensions

		C80	C100	C96	C106	C116	C3054	C120	C125	C140	C150	C160	C200
A	mm	800	1000	930	1060	1150	1380	1200	1250	1400	1400	1600	2000
	in.	32	40	37	42	45	54	47	50	56	56	63	79
B	mm	510	760	580	700	800	760	870	950	1070	1200	1200	1500
	in.	21	30	23	28	32	30	34	38	43	47	48	60
C	mm	1526	2420	1755	2060	2400	2640	2690	2800	3010	3200	3700	4040
	in.	61	96	70	81	95	104	106	111	119	126	146	160
D	mm	2577	3670	2880	3370	3600	3540	3740	4100	4400	5060	5900	6700
	in.	102	145	114	133	144	140	147	162	174	199	233	264
E	mm	1990	2890	2120	2490	2675	3130	3220	3440	3950	4500	4580	4950
	in.	79	114	83	98	105	123	127	136	156	177	181	195
F	mm	1750	2490	1970	2490	2730	2730	2940	2980	3140	3960	3750	4465
	in.	69	99	78	98	107	107	116	118	124	156	148	176
G	mm	1200	1700	1370	1650	1790	1750	1960	2100	2260	2400	2650	2800
	in.	48	67	54	65	71	69	77	83	89	95	105	111
H	mm	2100	2965	2500	2630	2885	2950	2820	3470	3755	3710	4280	4870
	in.	83	117	99	104	114	117	111	137	148	146	169	192
Basic crusher	kg	7670	20060	9759	14350	18600	25900	26000	37970	47120	51200	76500	121510
weight 1	lbs	16900	44240	21520	31650	40920	57100	57200	83730	103900	113000	168300	267930
Operational crusher	kg	95200	23300	11870	17050	21500	30300	29300	43910	54010	61430	88500	137160
weight 2	lbs	21000	51390	26170	37590	47300	66800	64700	96830	119100	135200	194700	302440

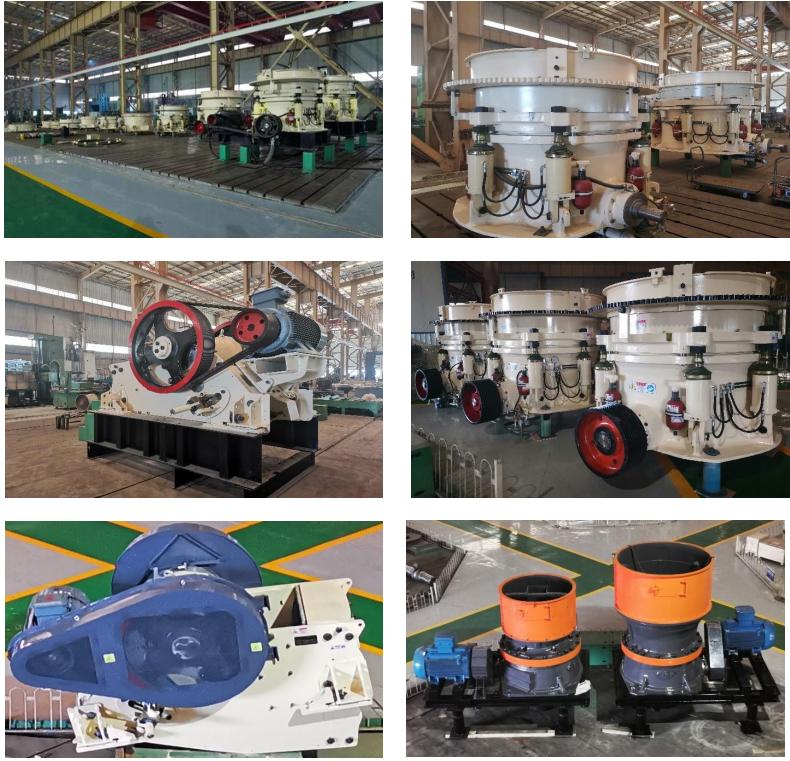

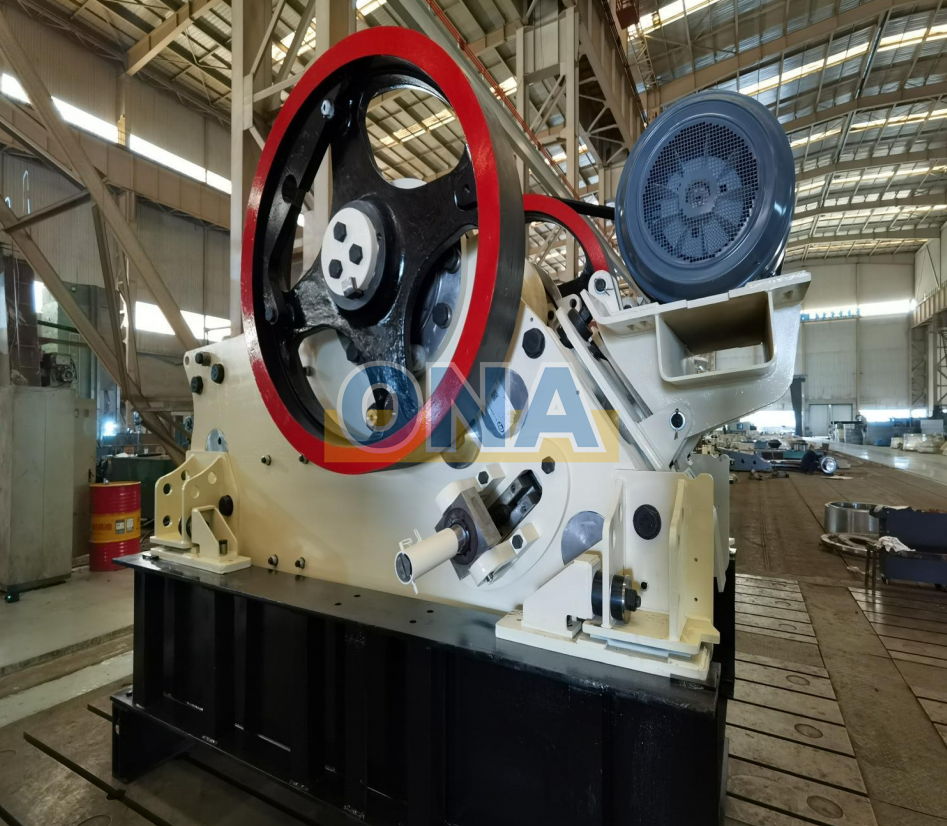

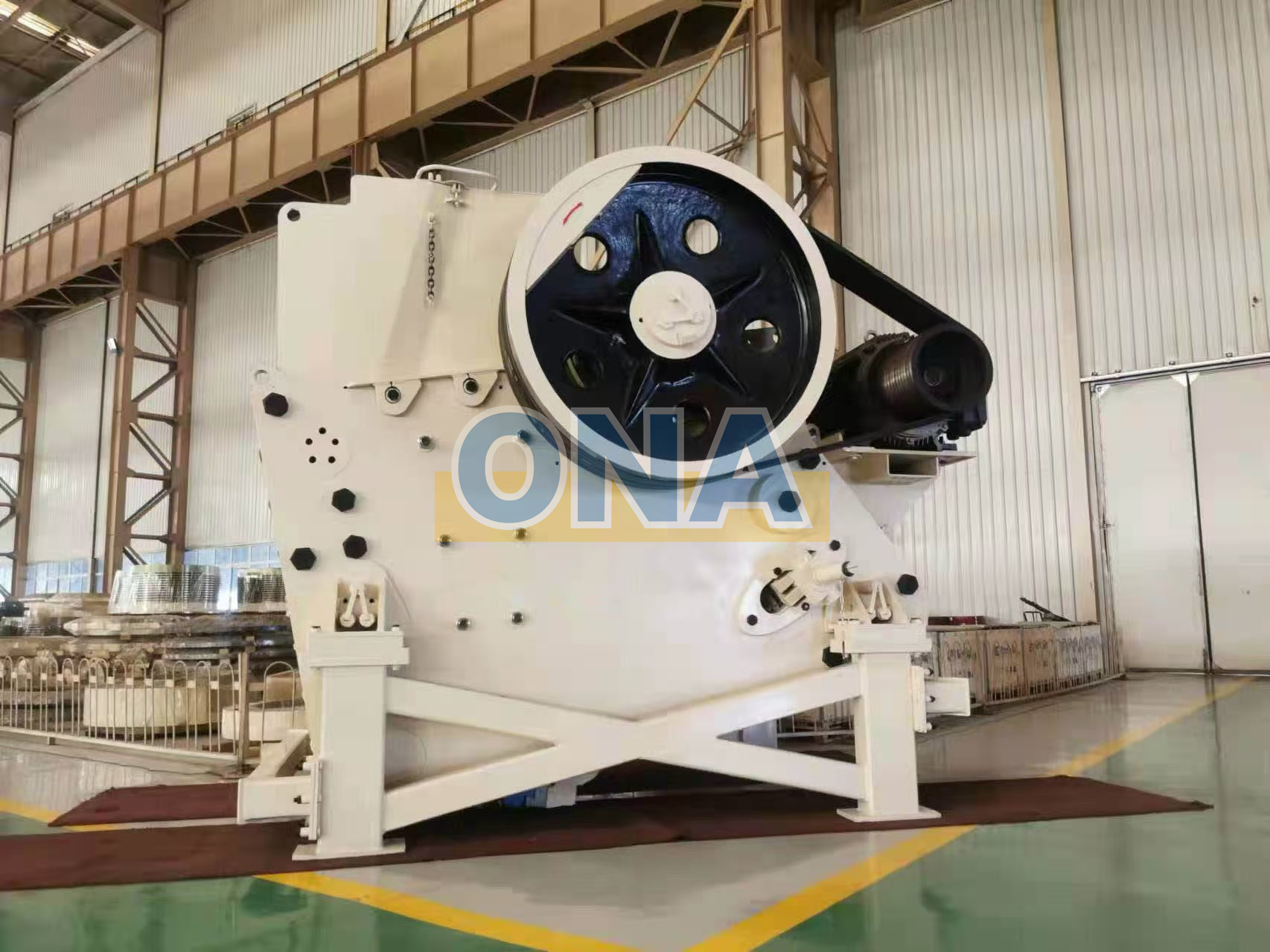

Factory Show

metso c140

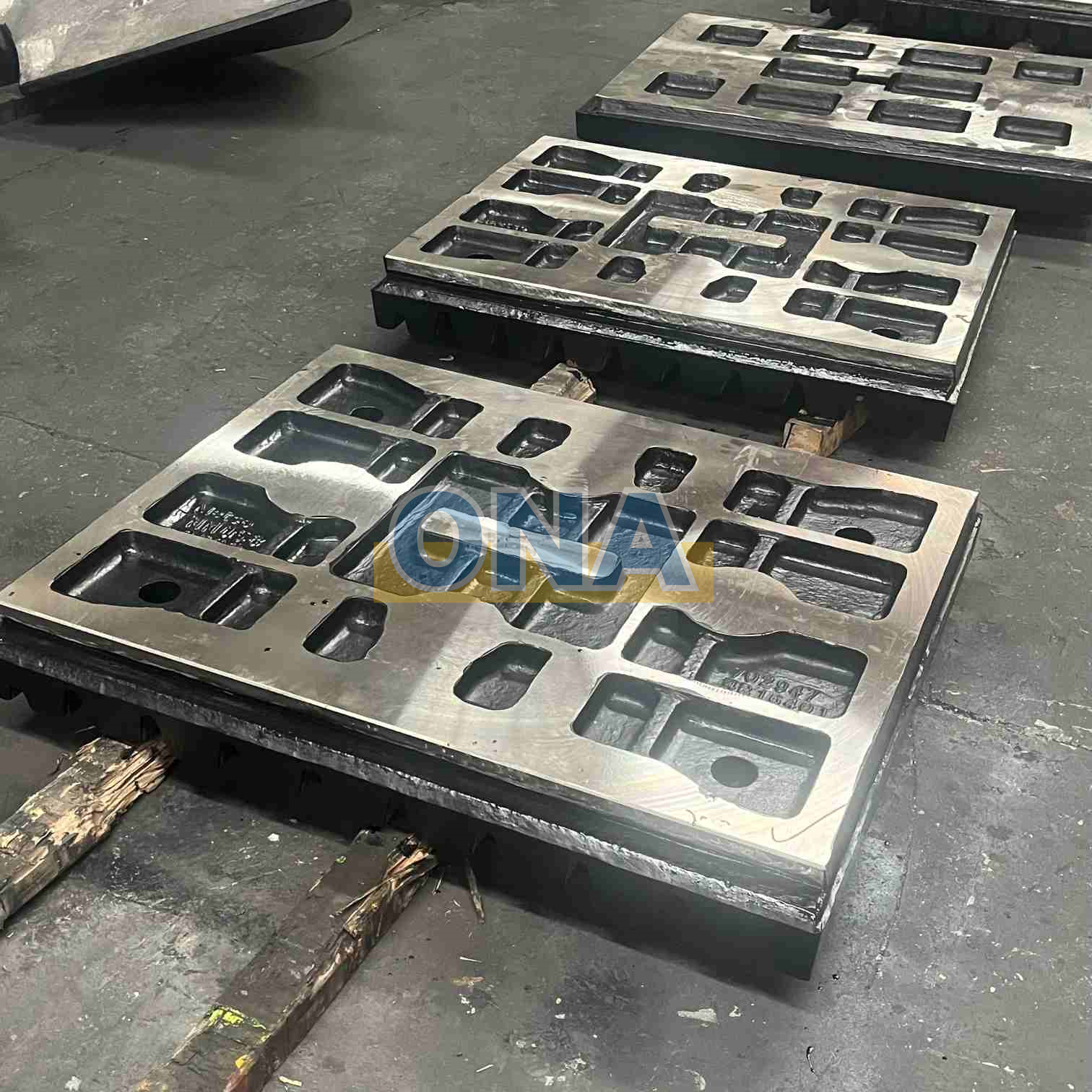

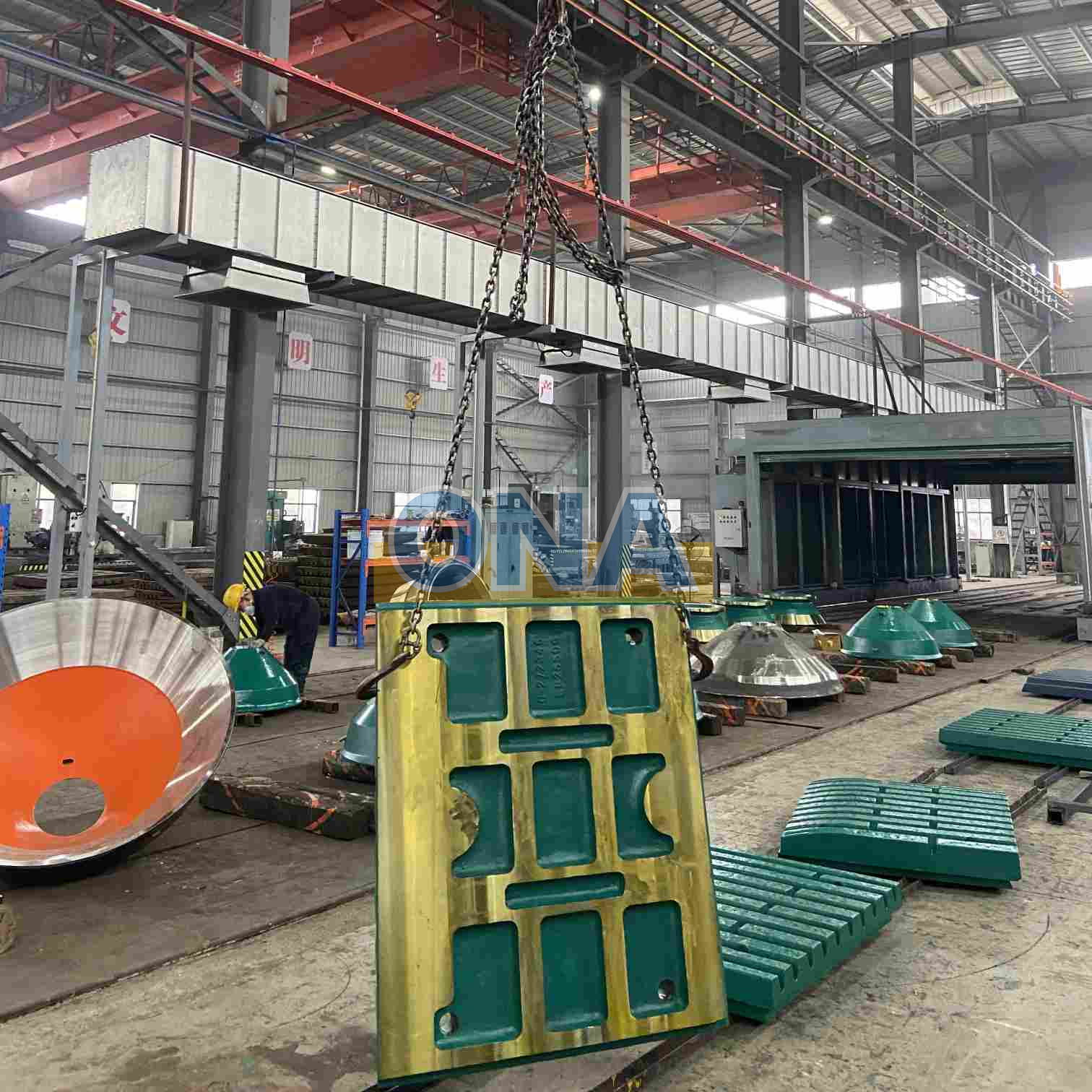

Types of jaw plate

C80 Jaw Plate

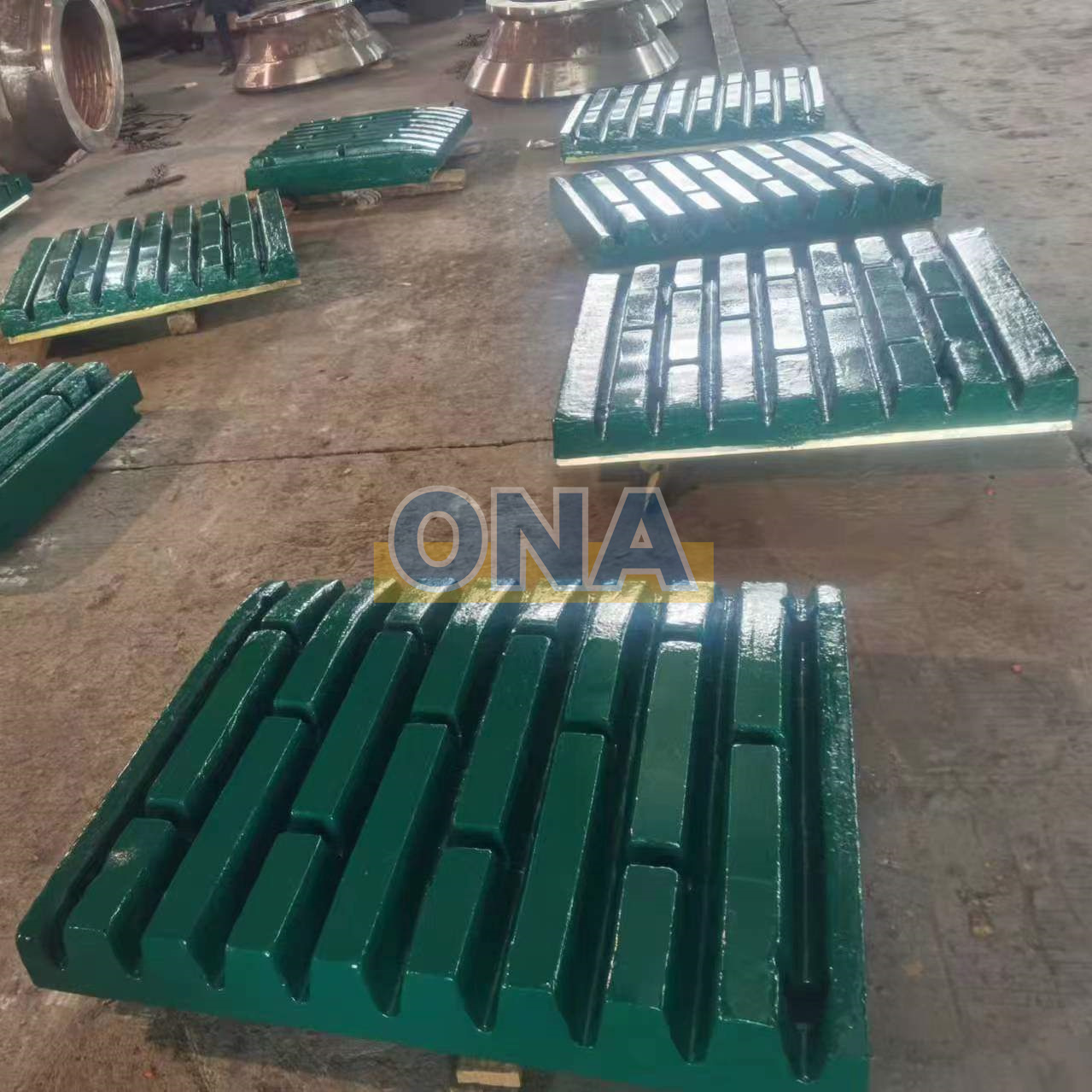

C160 Jaw Liner
OEM Quality

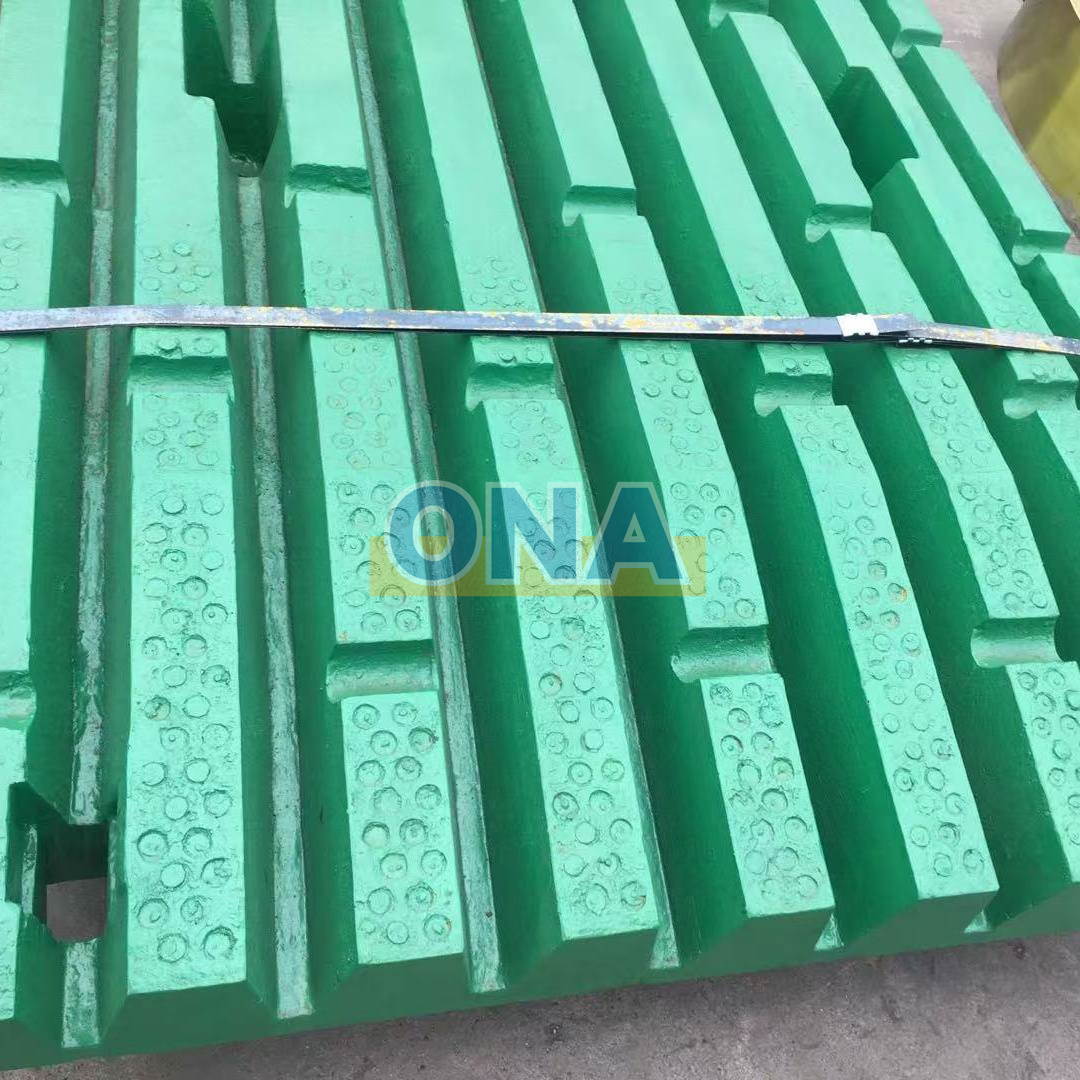

Inlaid ceramics
C130 Inlaid titanium carbide

Hot Tags : metso c200 jaw crusher metso c106 jaw crusher jaw crusher size chart metso c96 jaw crusher c130 jaw crusher nordberg c200
