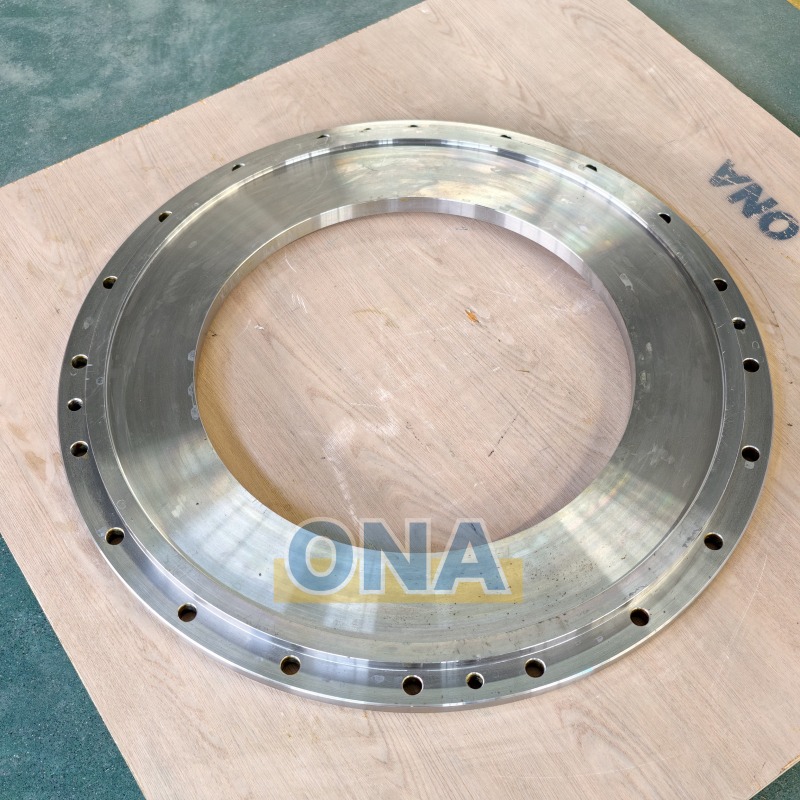

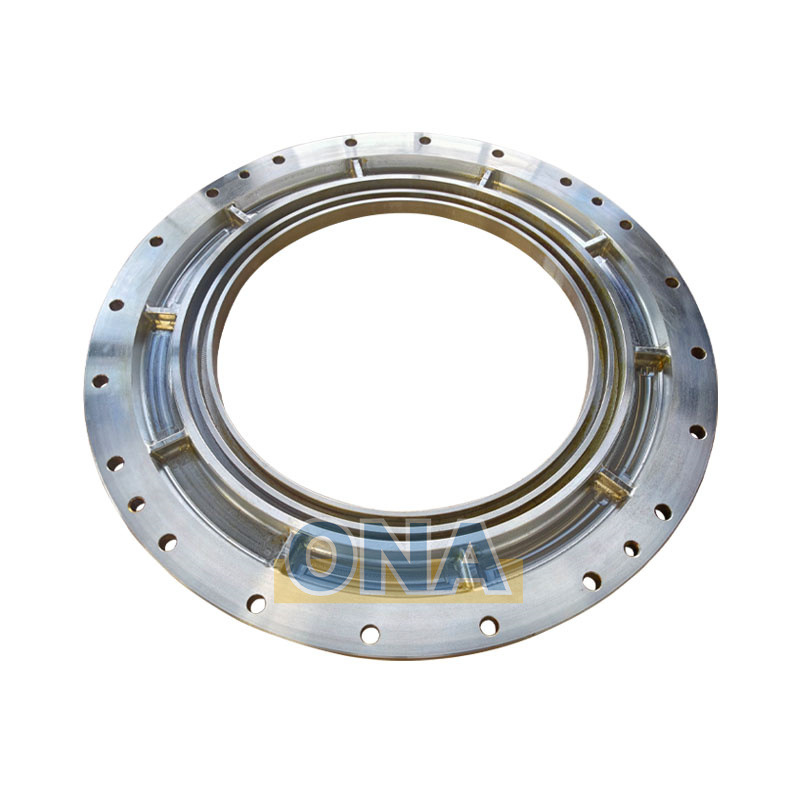

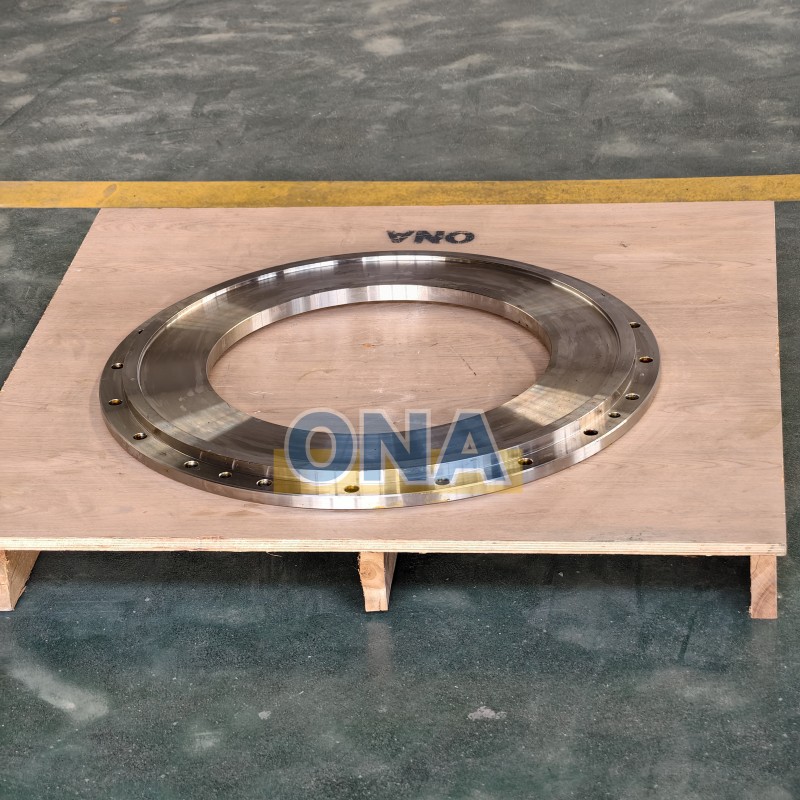

A bearing cover seals the eccentric shaft bearings, blocks dust and moisture, and keeps lubricant inside for longer crusher life.
Item No :
C80, C95, C96, C100, C125, C140, C160, C200, C3055Part Number :
ONA-949630791400, ONA-949630786900, ONA-285304, ONA-949638632300, ONA-MM0212955, ONA-915822, ONA-915809, ONA-908595, ONA-N02149022, ONA-933255Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1The bearing cover is a vital component that seals and protects the eccentric shaft bearings in C series jaw crushers. It is installed on the pitman assembly, with four covers per crusher – two on each side of the eccentric shaft. These covers prevent dust, dirt, and moisture from entering the bearing housing while keeping lubricant safely inside. A well‑designed bearing cover directly extends bearing life and reduces unplanned downtime. Weight varies depending on the crusher model; please refer to the specific model for exact data.
The Position of the Bearing Cover

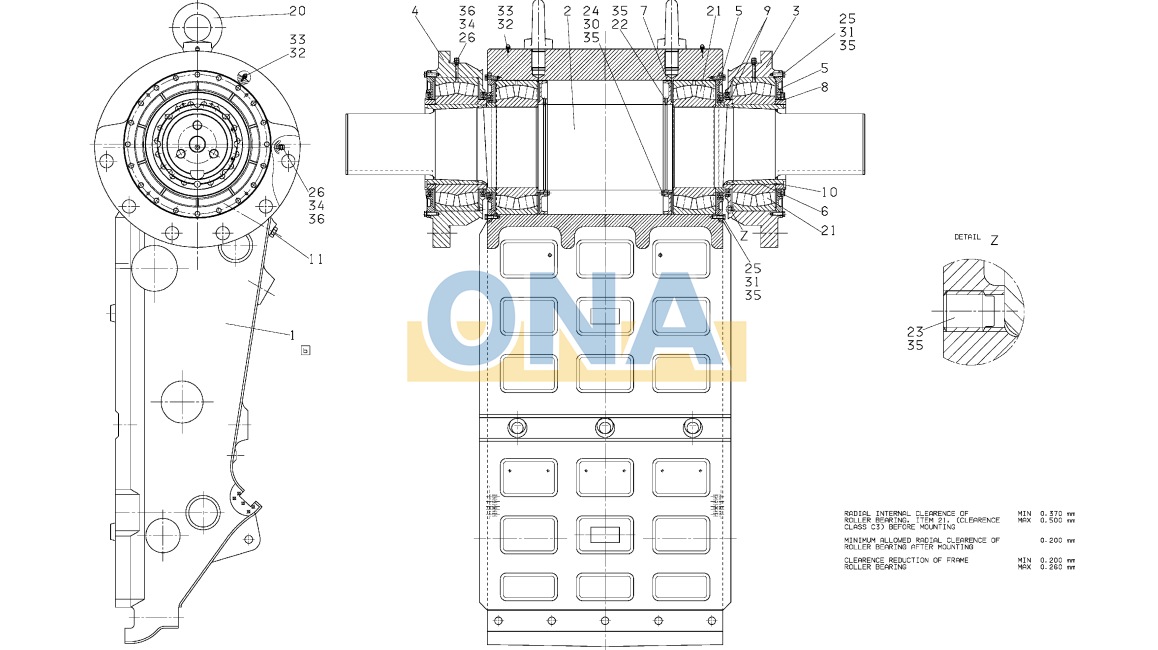

Eg: C140 ONA-928380 pitman assy drawing
| Pos. | Part No. | Description | Qty | Net Wght |
| 1 | ONA-924473 | PITMAN | 1 | 7530 |
| 2 | ONA-285302 | ECCENTRIC SHAFT | 1 | 2515 |
| 3 | ONA-930765 | BEARING HOUSING | 1 | 570 |
| 4 | ONA-930766 | BEARING HOUSING | 1 | 570 |
| 5 | ONA-285304 | COVER | 4 | 41 |
| 6 | ONA-285312 | TIGHTENING BUSHING | 2 | 64.8 |
| 7 | ONA-312173 | SEAL RING | 2 | 34.5 |
| 8 | ONA-312179 | LABYRINTH | 2 | 17.9 |
| 9 | ONA-418606 | LABYRINTH | 4 | 16.4 |
| 10 | ONA-418621 | LOCK PLATE | 2 | 0.08 |
| 11 | ONA-949648703500 | PLUG | 2 | 0.6 |
| 20 | ONA-704102176010 | EYE BOLT | 2 | 23.3 |
| 21 | ONA-705302736500 | ROLLER BEARING | 4 | 350 |
| 22 | ONA-804104437000 | RETAINING SCREW | 4 | 0.01 |
| 23 | ONA-704104480000 | RETAINING SCREW | 6 | 0.01 |
| 24 | ONA-704200980000 | HEX SCREW | 6 | 0.03 |
| 25 | ONA-704201431000 | HEX SCREW | 60 | 0.11 |
| 26 | ONA-704404215000 | GREASE NIPPLE | 4 | 0.04 |
| 30 | ONA-704006970000 | WASHER | 6 | 0.01 |
| 31 | ONA-704007040000 | WASHER | 60 | 0.0113 |
| 32 | ONA-706302339200 | MEASURE ADAPTER | 4 | 0.02 |
| 33 | ONA-706303277000 | PROTECTION CAP | 4 | 0.01 |
| 34 | ONA-704602304500 | PLASTIC PLUG | 4 | 0.01 |
| 35 | ONA-703401955000 | BOLT FASTENER | 1 | 0.1 |
| 36 | ONA-708801226500 | UNIVERSAL GREASE | 1 | 2 |
Key Features for Reliable Performance

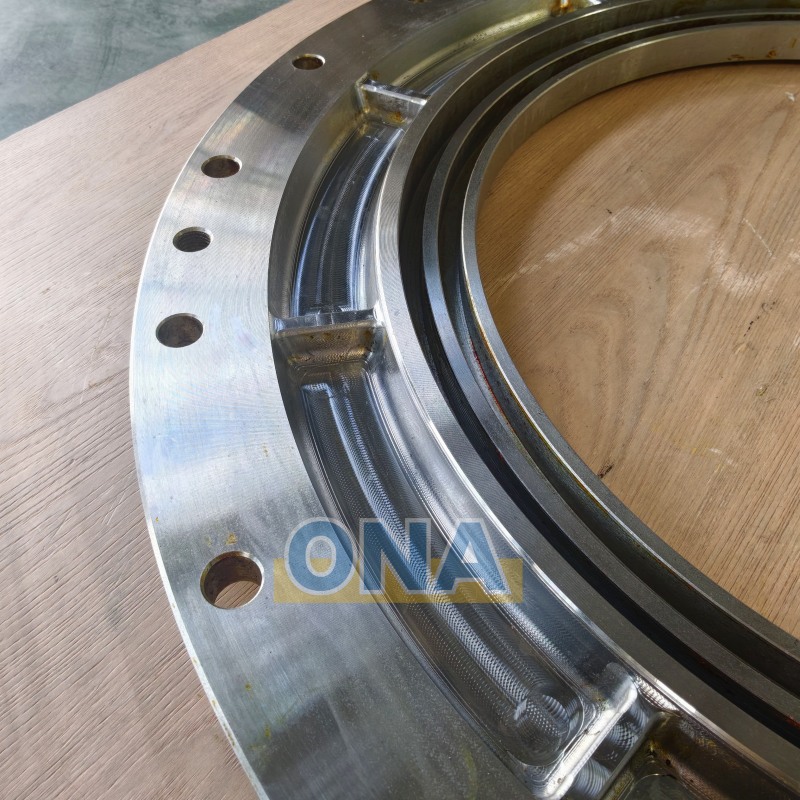

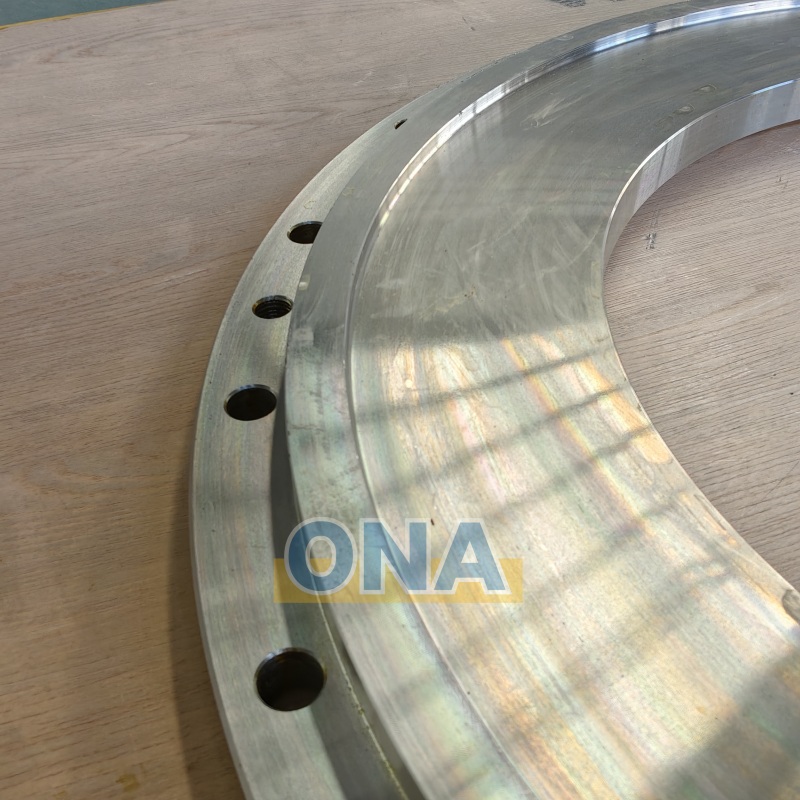

ONA bearing covers suitable for C series jaw crushers are manufactured to exact OEM specifications. Each cover is CNC-machined for perfect alignment, ensuring a tight, leak-free seal. Made from high-quality alloy steel, they withstand heavy vibration and shock loads without deformation. Precision-cut sealing grooves and bolt hole patterns match original designs, providing reliable protection against abrasive dust and fines. All bolt holes are pre-aligned for direct mounting – no modifications or extra machining required, simplifying maintenance and reducing downtime.
Complete Support for C Series Jaw Crusher Parts
ONA offers a wide range of bearing covers suitable for C series jaw crushers, as well as bearing housings for rigid support, labyrinth seals to block dust and retain lubricant, eccentric shafts to convert flywheel rotation into jaw movement, and pitmans that connect the eccentric shaft to the jaw crusher toggle plate. In addition, ONA can supply a complete C140 jaw crusher, any C series part, jaw crusher cheek plate, and movable jaw plate – just provide your drawing or part number.
Cheek plate, which suit to Metso, Nordberg C series Jaw Crushing Plant. We prepare many stock like C80, C110, C120, C150, etc...
Details
Side plate, which made of alloy steel, suit to Metso Nordberg C63, C80, C95, C96, C100, C110, C120, C130, C140, C145, C150, C200
Details
Pitman assembly, which used in jaw crusher basic assembly, play a important role parts in the equipment.
Details
Eccentric shaft, which used in jaw crusher pitman assembly, suit to Metso, Nordberg equipment.
Details
Bearing housing, which used in jaw crusher pitman assembly, suit to Metso, Nordberg equipment. You can send the part number to us to confirm if have stock.
Details
Toggle plate, which used in jaw crusher basic assembly. Toggle seat, which installed in pitman assy, suit to Metso, Nordberg, Sandvik equipment.
Details
Spring, which can used in jaw crusher, cone crusher, impact crusher, etc... We also accept customized spring, you can share the drawing with us to get price!
Details
ONA can provide different models flexible coupling which suit to Metso Nordberg HP series, C series, we have ISO 9001, 14001, 45001, SGS certification.
Details
