ONA Grizzly Bar can be customized according to customer-provided drawings or samples to meet the needs of different applications.
Item No :
Z036, VF500, VF886, TK11422V, B13, B16, VG600, LT110, NP1213, LT106Part Number :
ONA-N17000281, ONA-N17000267, ONA-N17000266, ONA-7049702515, ONA-7049702516, ONA-591852, ONA-7017000215, ONA-MM0215395, ONA-7017000218, ONA-7017000219, ONA-7017000220, ONA-7017000221, ONA-7017000201, ONA-7017000202, ONA-MM1375398Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :

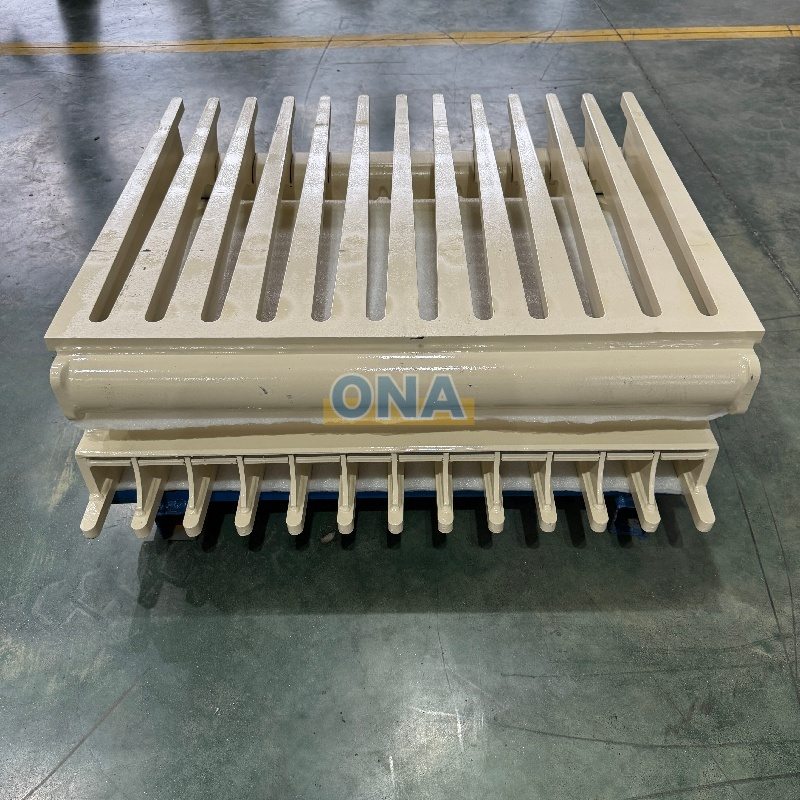

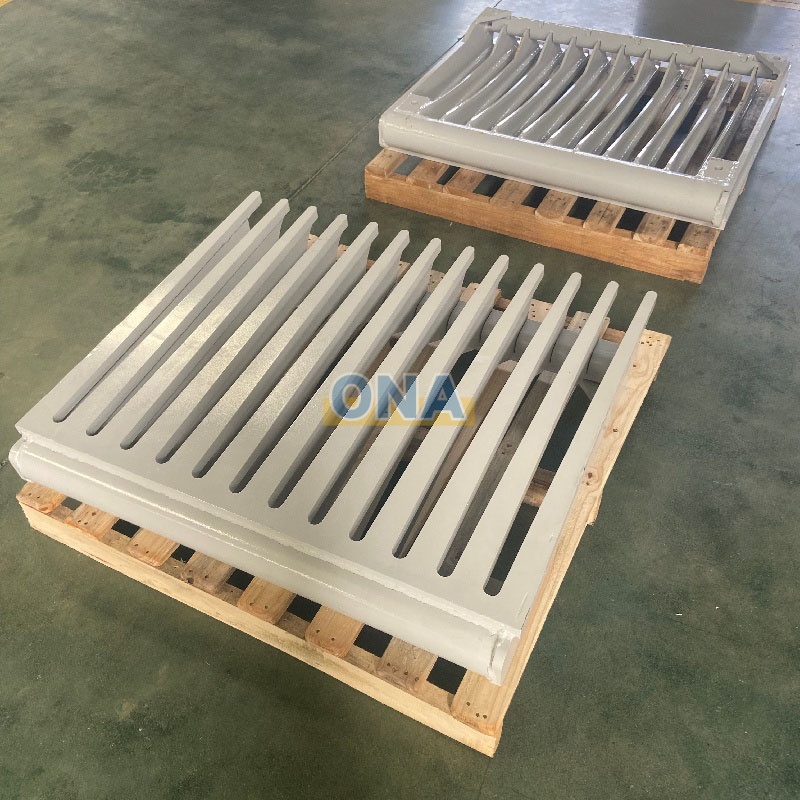

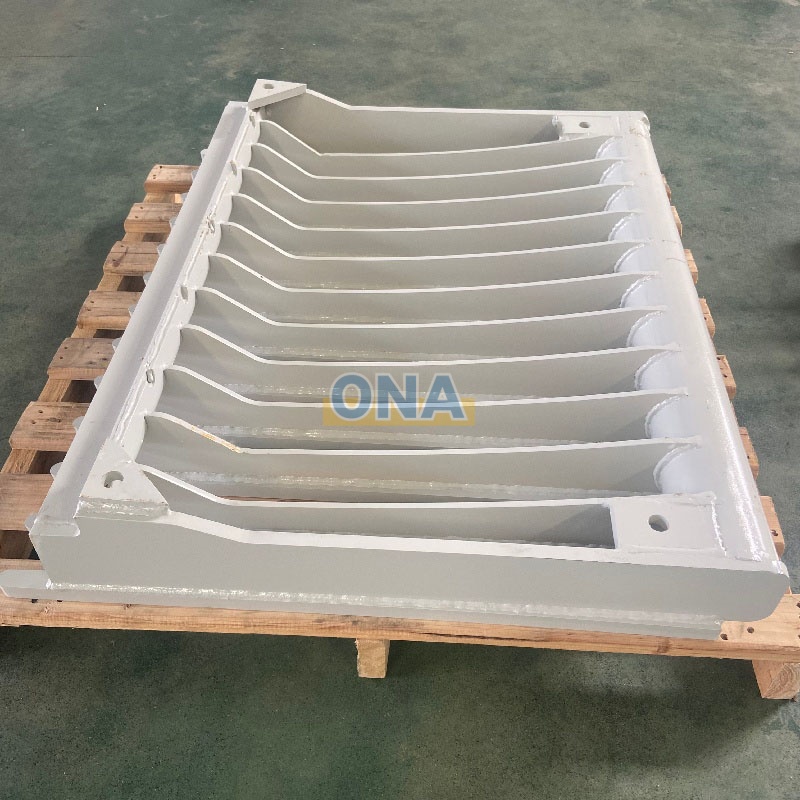

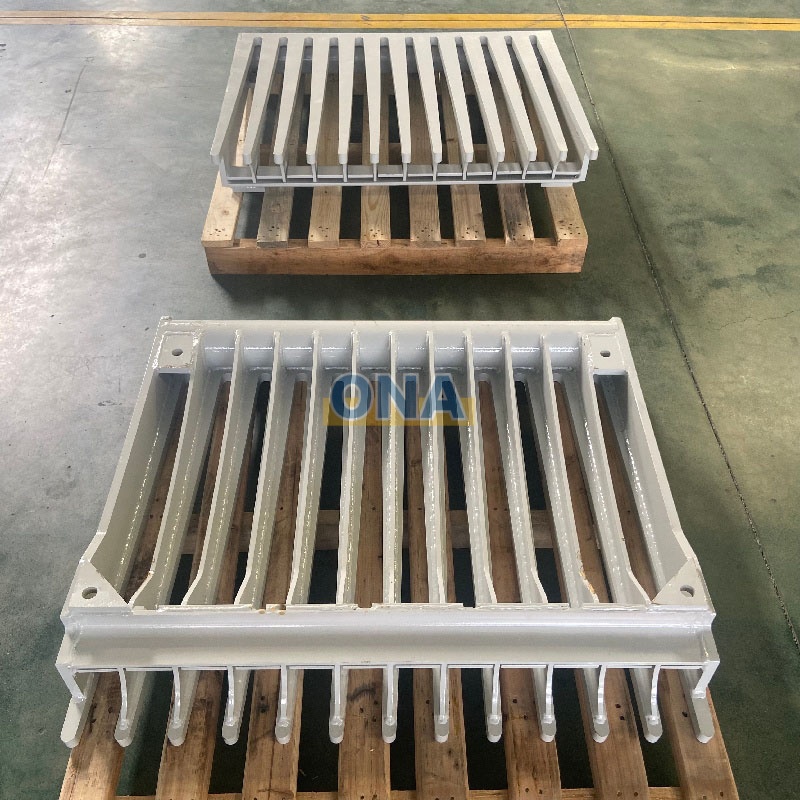

1ONA grizzly bars are precision-engineered for an exact fit in vibrating grizzly feeders used in mining, quarry, and aggregate applications. These parallel steel bars screen materials, allowing fines to pass while directing larger rocks to the crusher, improving crushing efficiency and reducing downstream wear—all made from high-quality abrasion-resistant materials for extended service life.

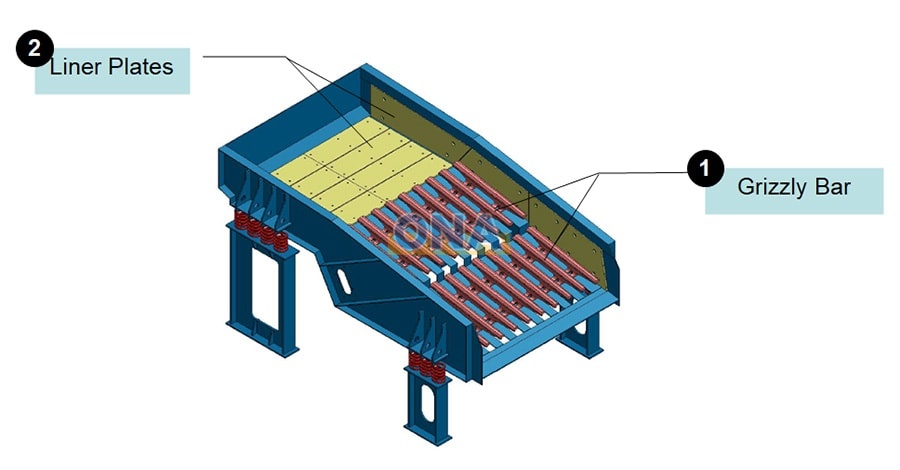

Grizzly Bar Location
Eg: Z036 ONA-N17000281
Grizzly Bar (Label 1): The red, bar-like structure located in the central region of the equipment. These bars screen and separate materials, allowing smaller particles to pass through while blocking larger ones.
Liner Plates (Label 2): The yellow, plate-like structures on the internal surfaces. Like jaw crusher side plates that protect the crusher frame side walls, these liner plates protect the inner walls from wear and abrasion and also help guide material flow.
Applications
ONA grizzly bars are manufactured from Hardox 500 abrasion-resistant steel with a hardness of 55-60 HRC, delivering exceptional wear resistance for heavy-duty screening applications. Precision-engineered to OEM tolerances, the wedge-shaped profile ensures free material flow and prevents blinding, while the replaceable design simplifies maintenance. Every unit is 100% inspected. Typical applications include coal mining, ore mining, quarrying, aggregates production, and C&D recycling. ONA grizzly bars suit for Metso VF Series and Sandvik, boosting scalping efficiency and reducing downstream crusher wear.
Customization Support

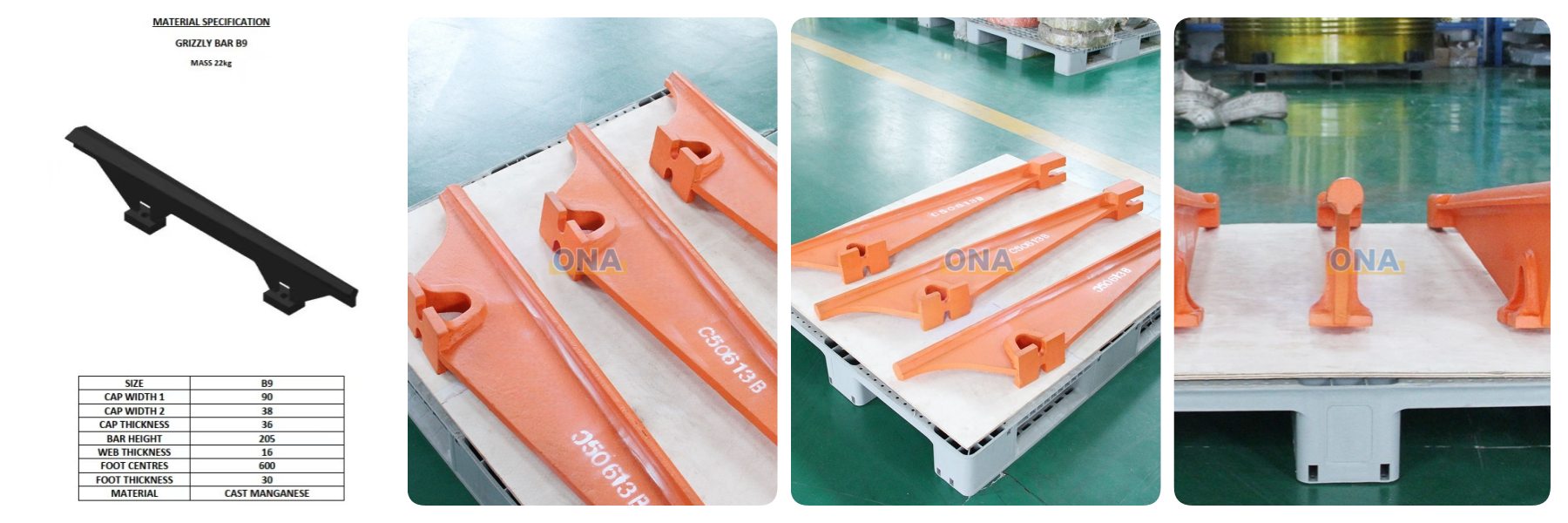

ONA offers full customization for grizzly bars based on your drawings or samples. Provide your equipment model or original part number, and we will manufacture precisely to your specifications. Our team reviews all critical dimensions before production to ensure an exact fit. Custom material grades, special profiles, or non-standard sizes are all available with no minimum order quantity. Contact ONA with your requirements for a competitive quote and drawing confirmation.
Eg: ONA-C50613B
Bearing housing, which used in jaw crusher pitman assembly, suit to Metso, Nordberg equipment. You can send the part number to us to confirm if have stock.
Details
Spring, which can used in jaw crusher, cone crusher, impact crusher, etc... We also accept customized spring, you can share the drawing with us to get price!
Details
Pitman assembly, which used in jaw crusher basic assembly, play a important role parts in the equipment.
Details
Side plate, which made of alloy steel, suit to Metso Nordberg C63, C80, C95, C96, C100, C110, C120, C130, C140, C145, C150, C200
Details
Eccentric shaft, which used in jaw crusher pitman assembly, suit to Metso, Nordberg equipment.
Details
Toggle plate, which used in jaw crusher basic assembly. Toggle seat, which installed in pitman assy, suit to Metso, Nordberg, Sandvik equipment.
Details
ONA can provide different models flexible coupling which suit to Metso Nordberg HP series, C series, we have ISO 9001, 14001, 45001, SGS certification.
Details
Cheek plate, which suit to Metso, Nordberg C series Jaw Crushing Plant. We prepare many stock like C80, C110, C120, C150, etc...
Details
