Cone Crusher Parts HP300 HP400 HP500 Clamping Cylinder

Product Introduce

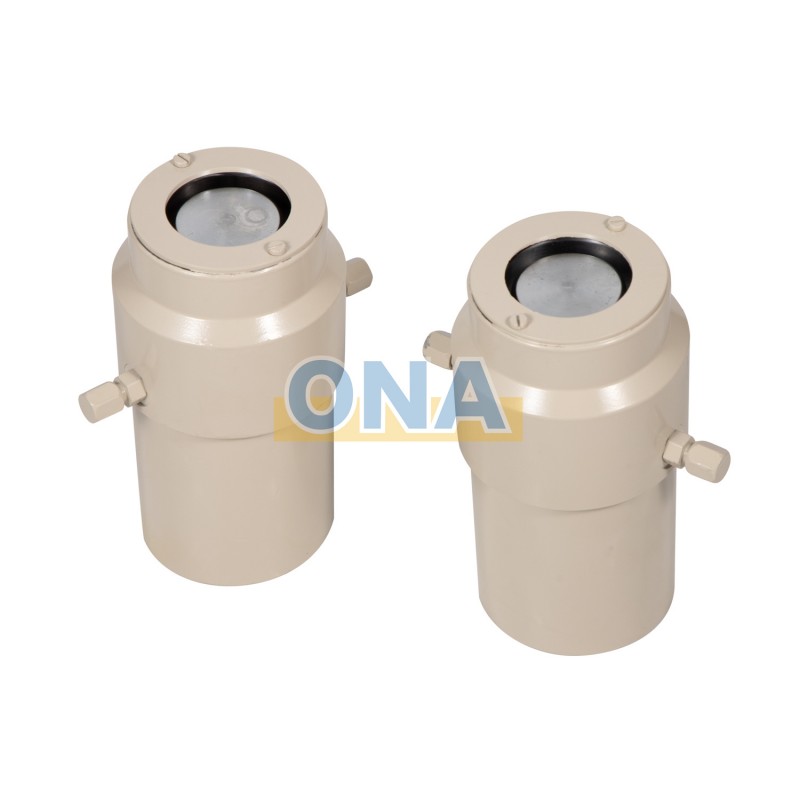

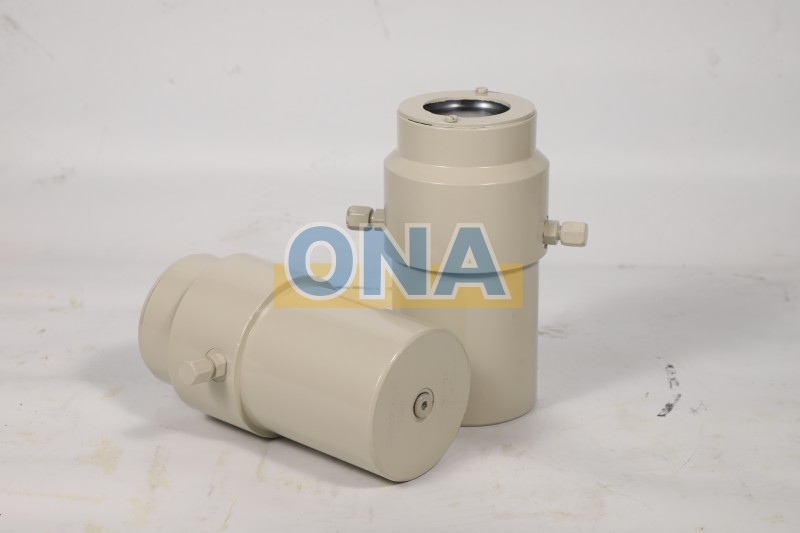

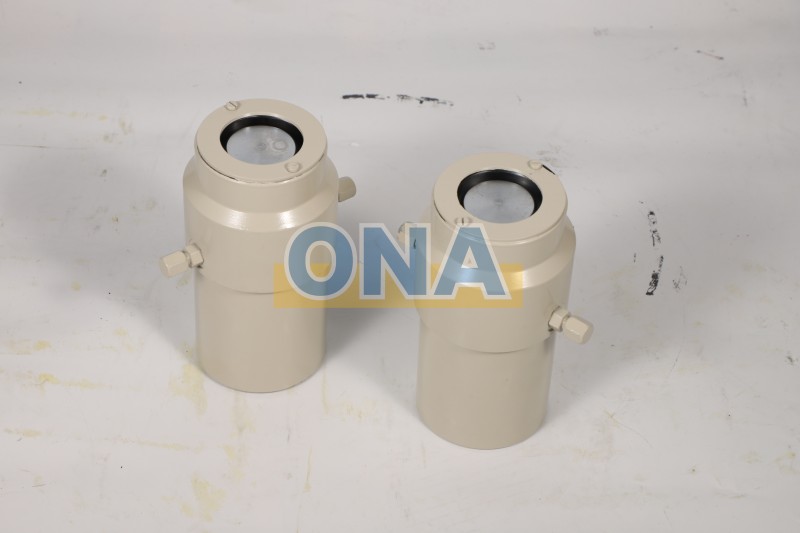

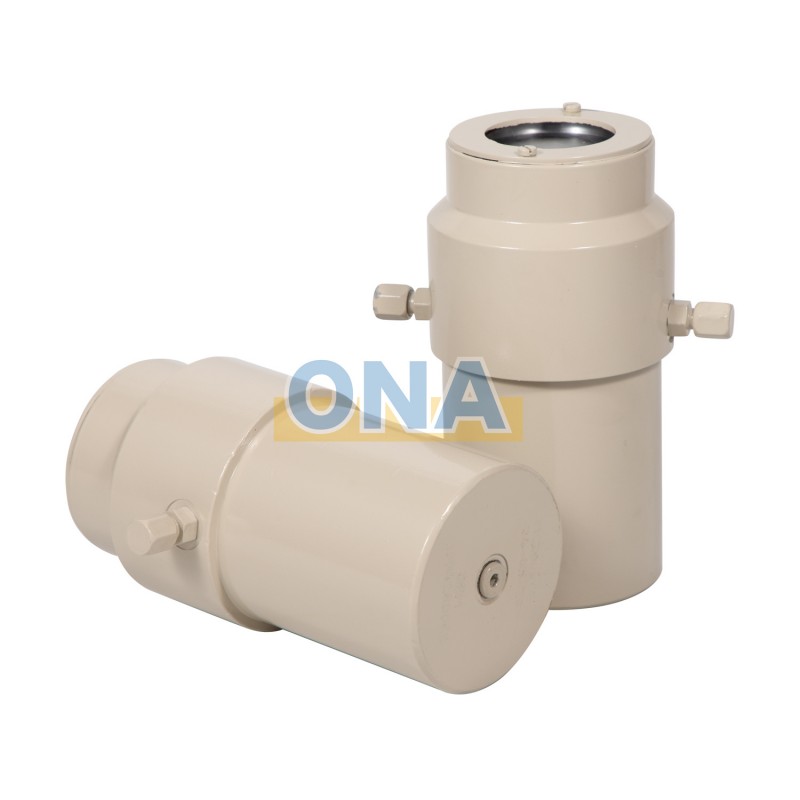

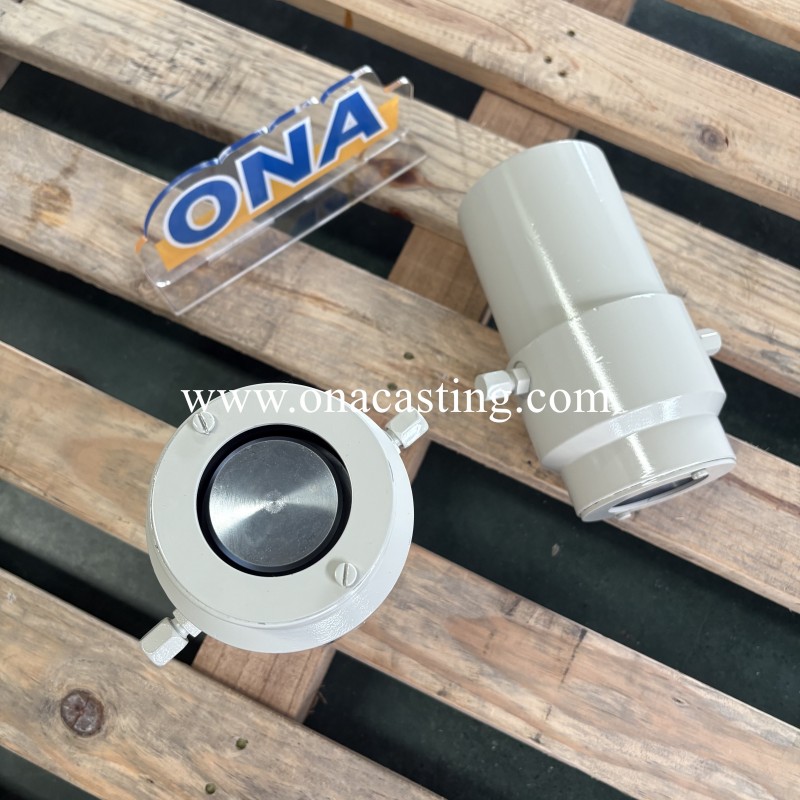

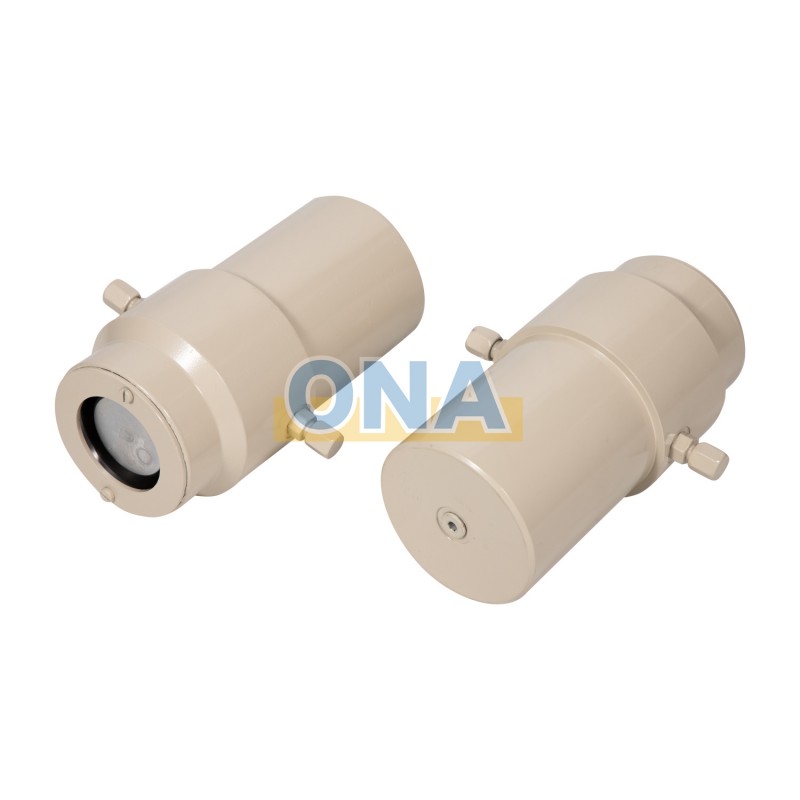

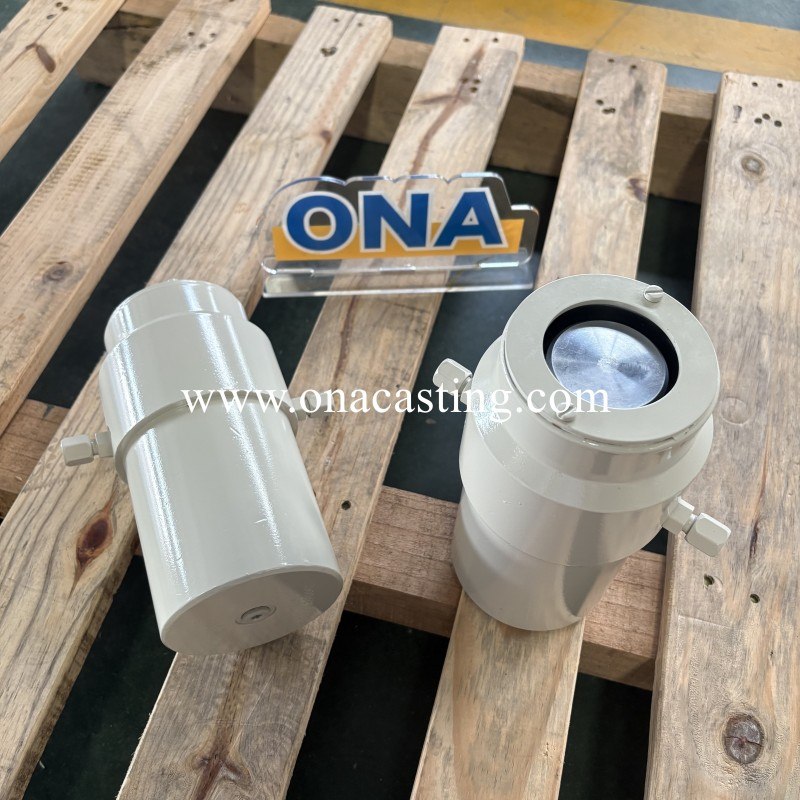

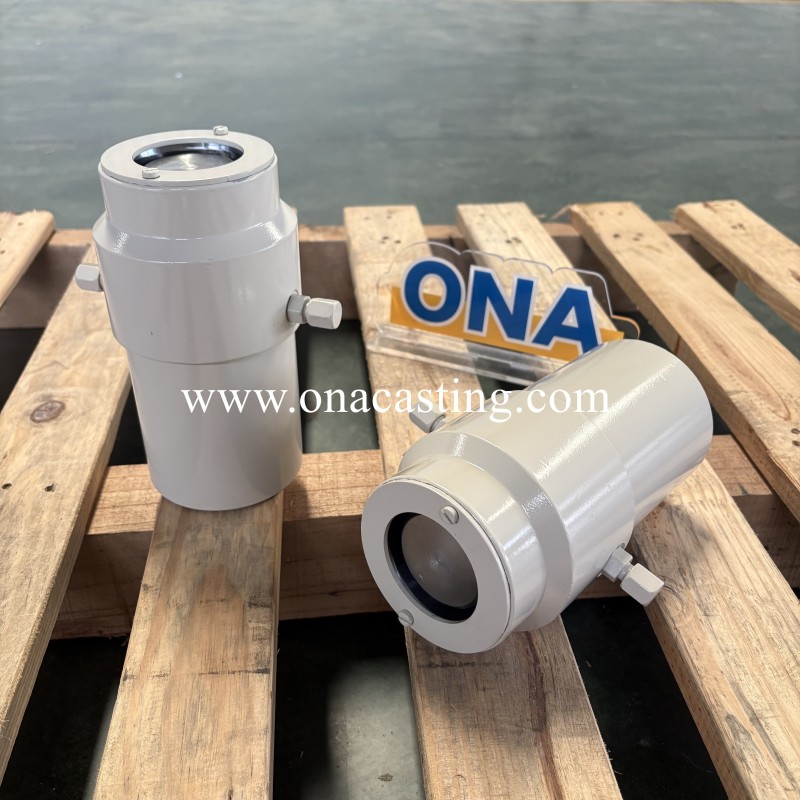

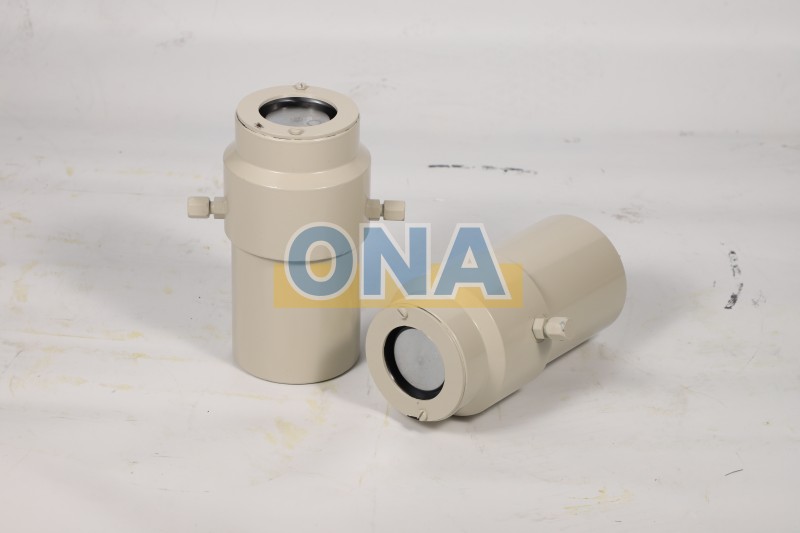

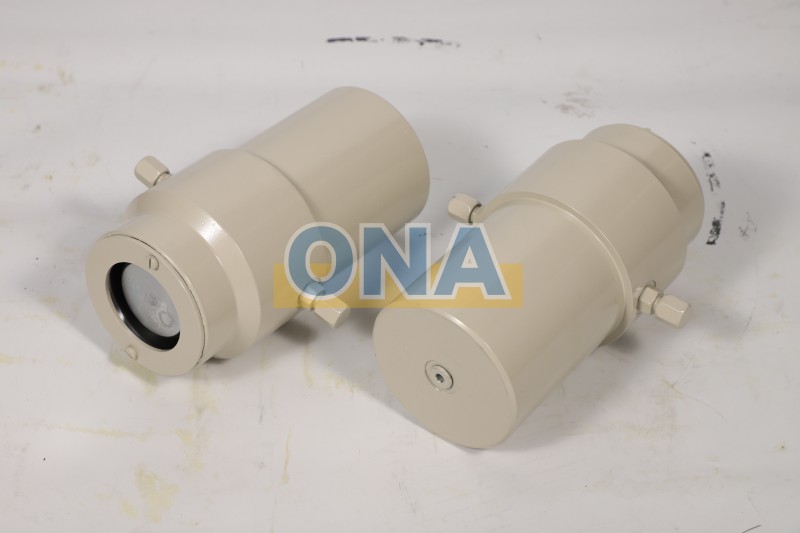

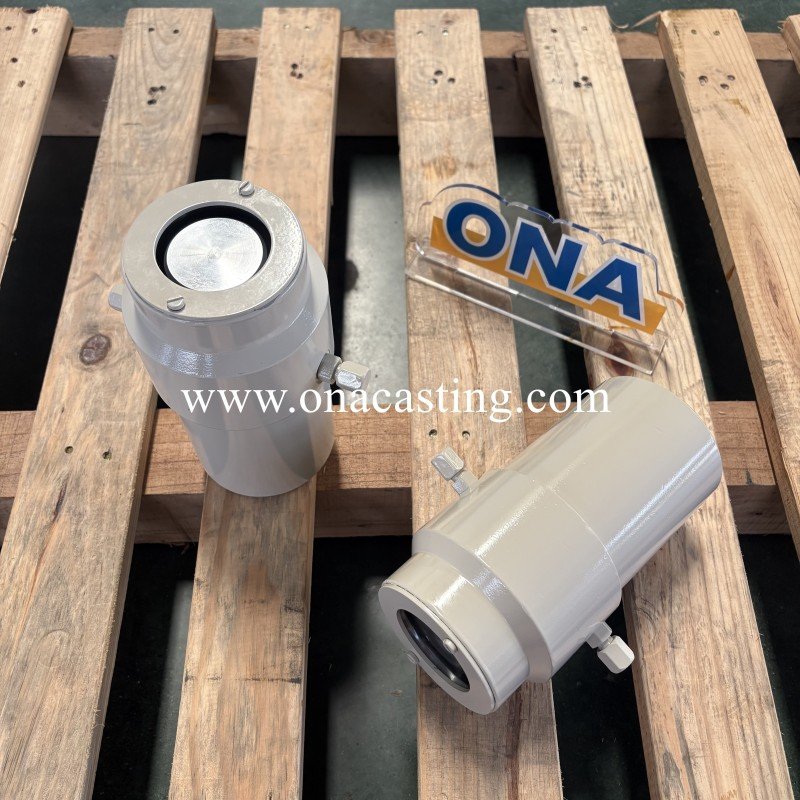

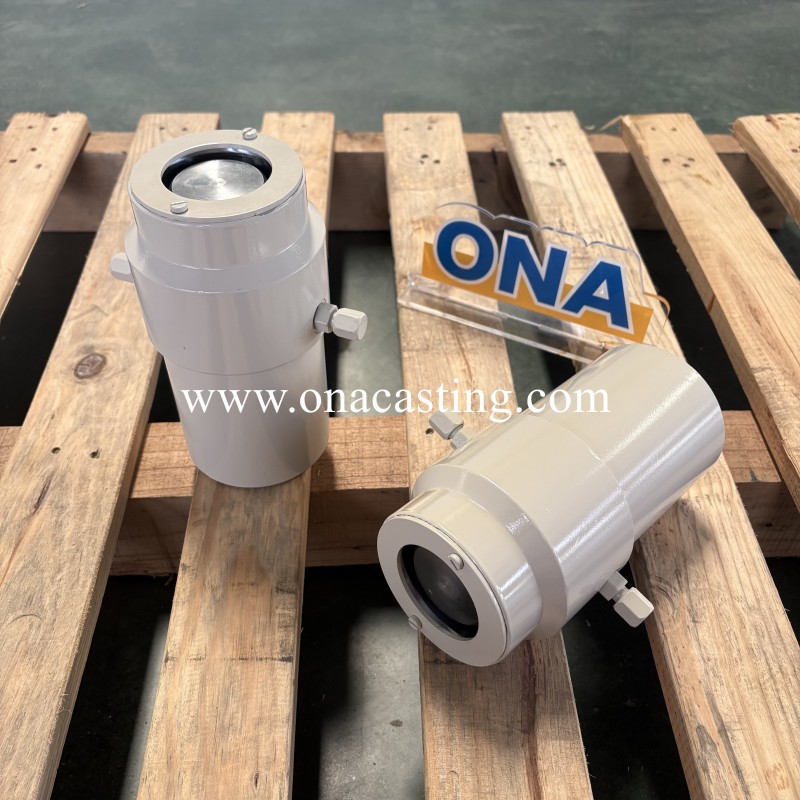

Clamping Cylinder (Internal Thread)

Quantity:

Metso HP300 cone crusher: 8 pcs

Crushing screening parts HP400: 10 pcs

Metso HP500 crusher parts: 12 pcs

HP100/Metso HP3/HP4/HP5/HP6 are hydraulic clamping ring.

Material: Alloy steel / Pressure-maintained by a seal.

Function: During operation, the locking cylinder pushes up the locking ring. The inner ring of the locking ring is threaded, tightly locking the bowl assembly to the clamping ring, preventing it from loosening during operation. The clamping cylinder operates as the equipment operates.

Testing: Pressure-maintaining testing is performed before shipment.

1. Ensure Equipment Stability: The cmalping cylinder is responsible for tightly locking the head and bowl of the cone crusher together, ensuring stability during the crushing process and preventing equipment failure or damage due to vibration or other factors.

2. Prevent Bowl Rotation: The locking cylinder is hydraulically controlled to lock the fixed cone to the adjustment ring, preventing it from rotating during crushing and ensuring a stable crushing process.

3. Ensure Maintenance Safety: During maintenance or overhaul, the clamping cylinder locks the equipment in a fixed position, preventing accidental start-up or movement and ensuring the safety of maintenance personnel. ‌

Produce

Test
