HP500 Cone Crusher Parts Main Frame Seat Liner for Mining Machine
ONA has a large stock of HP500 mainframe saddles for Metso Nordberg, feel free to contact us for a wider range of stock parts!
Item No :
HP100, HP200, HP300, HP400, HP500, HP3, HP4, HP6, HP800, MP800,Part Number :
ONA-1048516296Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiWeight :
27.6kgOrder(MOQ) :
1 kit
The main frame seat liner pad of the cone crusher is a critical part serving as a foundational buffer. Installed between the main frame and the equipment foundation (or base support), it is a vital wear part responsible for bearing the weight of the entire machine, cushioning crushing impacts, and isolating equipment vibration.
Application Scenarios: Mining, aggregate production, metallurgy, cement, hydropower, and construction waste recycling — for medium-to-fine and heavy-duty crushing.
Material Specification Sheet
| Material: CuZn38AIPbFe | Cu | Zn | Ai | Pb | Fe | ||
| Part Number | Description | Quantity | 38% | 38% | 2% | 0.1-0.4% | 0.1-0.5% |
| ONA-1048516296 | Main Frame Seat Liner | 2 | 38% | 38% | 2% | 0.1-0.4% | 0.1-0.5% |

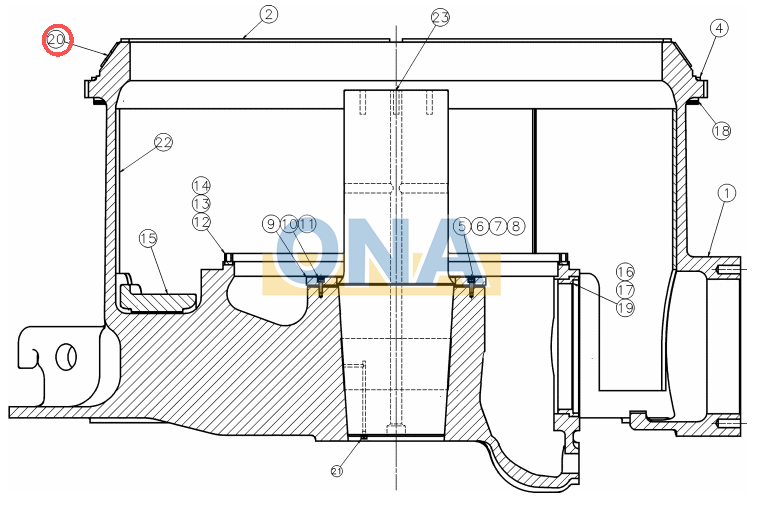

Installation Location
Eg: HP400 ONA-1093040131 Main Frame Assembly
| Pos. | Part Numer | Description | Qty | Net Wght |
| 1 | ONA- 1033781826 | MAIN FRAME | 1 | 5260 |
| 2 | ONA-1064668564 | PROTECTION PLATE | 4 | 4 |
| 4 | ONA-1022133692 | MAIN FRAME BUSHING | 6 | 6 |
| 5 | ONA-1070589788 | SHIM | 1 | 2.5 |
| 6 | ONA- 1070589786 | SHIM | 1 | 1.4 |
| 7 | ONA-1070589784 | SHIM | 1 | 0.6 |
| 8 | ONA- 1070589782 | SHIM | 1 | 0.3 |
| 9 | ONA-1057605172 | THRUST BEARING, LOWER | 1 | 60 |
| 10 | ONA-7001632010 | WASHER, SPRING | 6 | 0.01 |
| 11 | ONA-7001540156 | SCREW, CAP, HEXAGON SOCKET HEAD | 6 | 0.028 |
| 12 | ONA-1063518943 | U-SEAL | 1 | 2 |
| 13 | ONA- 7008010103 | ACTIVATOR | 1 | 0.16 |
| 14 | ONA-7008010102 | GLUE | 1 | 0.38 |
| 15 | ONA-1038067401 | ARM GUARD | 3 | 42 |
| 16 | ONA-7008010050 | GLUE | 1 | 0.08 |
| 17 | ONA-7008010051 | ACTIVATOR | 1 | 0.2 |
| 18 | ONA-N01602095 | RING, RETAINING, EXTERNAL | 6 | 0.049 |
| 19 | ONA-1063915541 | FRAME RING | 1 | 25 |
| 20 | ONA-1048516272 | FRAME SEAT LINER | 1 | 24 |
| 21 | ONA- 1002098744 | PLUG | 1 | 0.03 |
| 22 | ONA-N21900352 | MAIN FRAME LINER | 1 | 396 |
| 23 | ONA-1068863509 | MAIN SHAFT | 1 | 710 |
Data Sheet
| Production Name | Main Frame Seat Liner |
| HS Code | 847490 |
| OEM Number | ONA-1048516296 |
| Material | Copper alloy |
| Weight | 27.6KG |
| Customization Services | Customization of materials, dimensions, and branding |
| Brand | ONA |

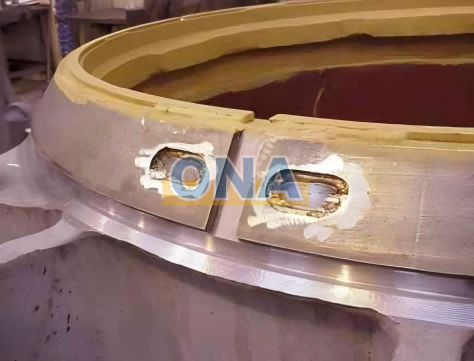

Fault Symptoms and Countermeasures
Issue: Damage to the main frame seat liner.
Main frame seat liner welding issues often stem from poor process control. Follow these requirements:
Welding methodL:
✅ Thoroughly clean the welding area.
✅ Preheat to 100°C before welding.
✅ Weld from the center outwards.
✅ Maintain heat preservation for approximately 1 hour after welding.

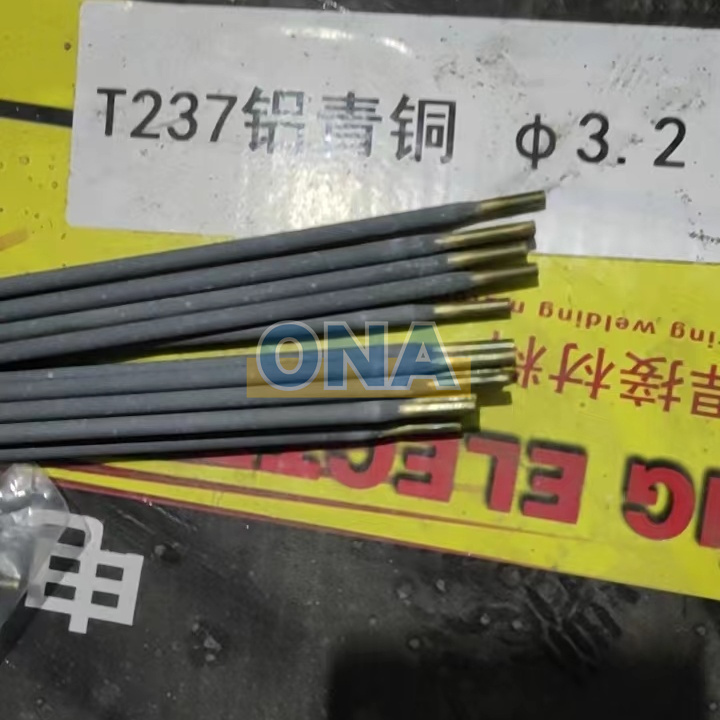

The T237 welding electrode is a copper alloy electrode featuring an aluminum-manganese bronze core and a low-hydrogen sodium-type coating. The deposited metal is aluminum-manganese bronze, which offers excellent wear and corrosion resistance; it is primarily used for welding aluminum bronze and copper alloys to steel, as well as for the repair welding of cast iron.
Material Composition:
| Ai | Mn | Fe | Si | Cu | Pb+Zn | Ni | Pb | |
| Standard Value | 6.5-10.0 | ≤2.0 | ≤1.5 | ≤1.0 | margin | ≤0.50 | ≤0.50 | ≤0.02 |
| An example | 8.80 | 0.23 | 0.30 | 0.70 | 89.00 | 0.50 | 0.35 | 0.01 |
Mechanical properties of deposited metal
| Tensile Strength Rm (MPa) | Elongation A/% | |
| Standard value | ≥390 | ≥15 |
| An example | 470 | 31 |
Welding rod specifications and reference current (DC+)
| Welding rod diameter (mm) | 3.2 | 4.0 | 5.0 |
| Welding rod length (mm) | 100 | 350 | 350 |
| Welding current(A) | 120-140 | 150-170 | 180-200 |
⚠️ Warning
✅ Before welding, the electrodes must be baked at approximately 200°C for one hour. Moisture, oil, oxides, and other impurities must be removed from the surface of the workpiece prior to welding.
✅ When welding aluminum bronze to carbon steel, preheating is not required for thin sections, but thick sections must be preheated to approximately 200°C.

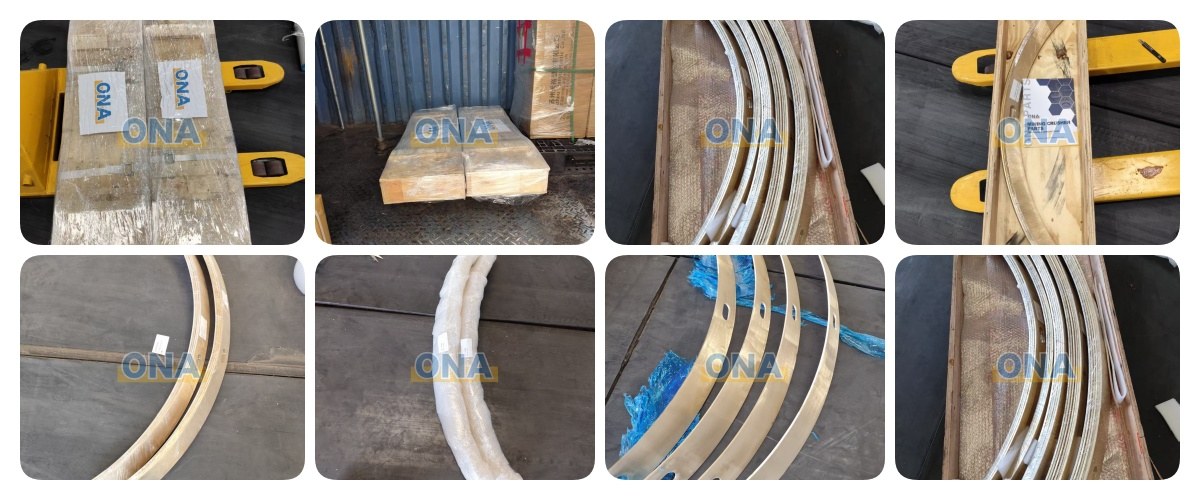

Packaging and Shipping
Given the characteristics of the main frame seat cushion—specifically its copper alloy material (prone to oxidation), substantial weight, and high precision requirements—we employ industrial-grade, multi-layer protective packaging (protective film, EPE foam, and solid wood crates) to prevent moisture, oxidation, and crushing damage. We offer options for self-pickup, dedicated vehicle transport, and full-truckload shipping, all with end-to-end tracking to ensure the product arrives in perfect condition with its precision intact.

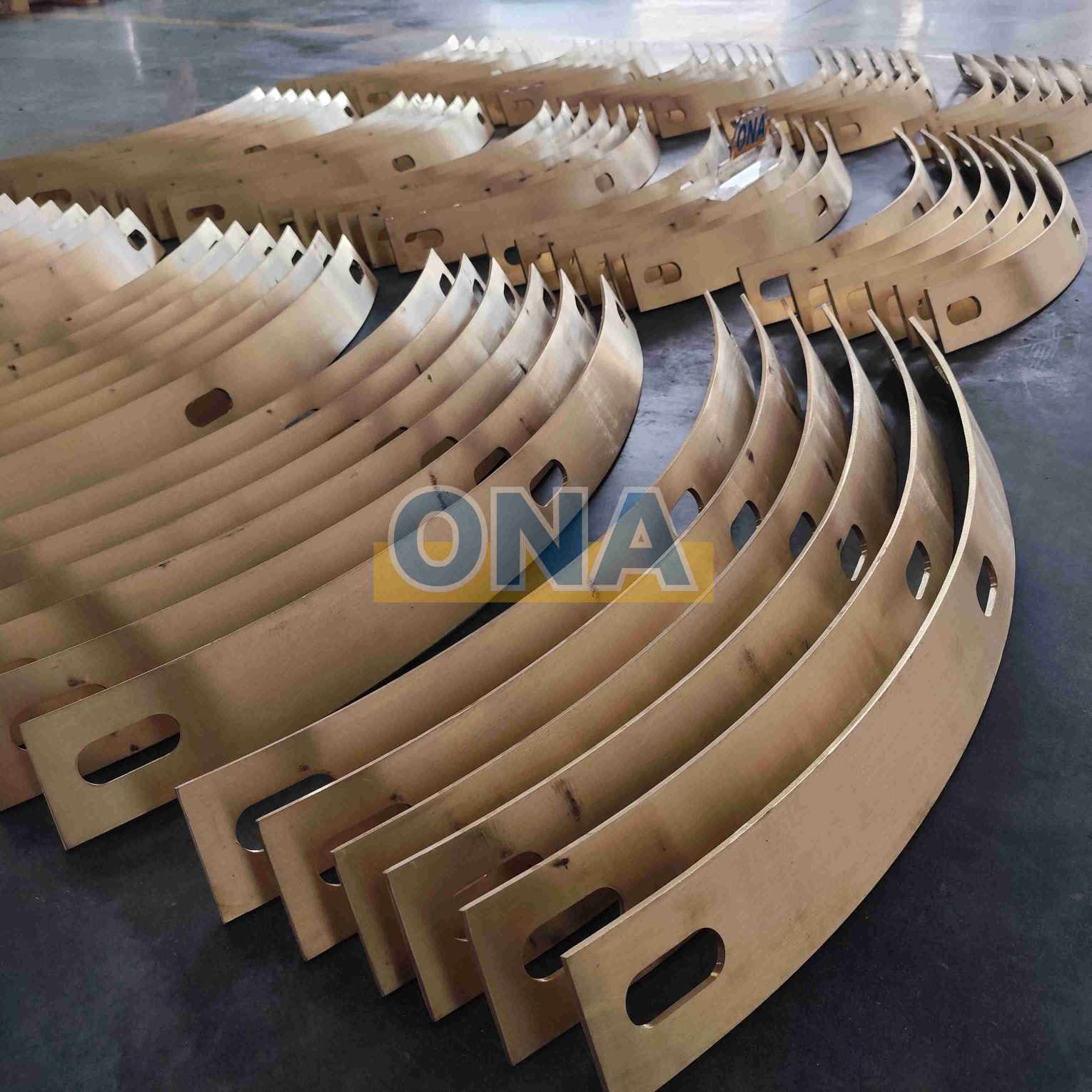

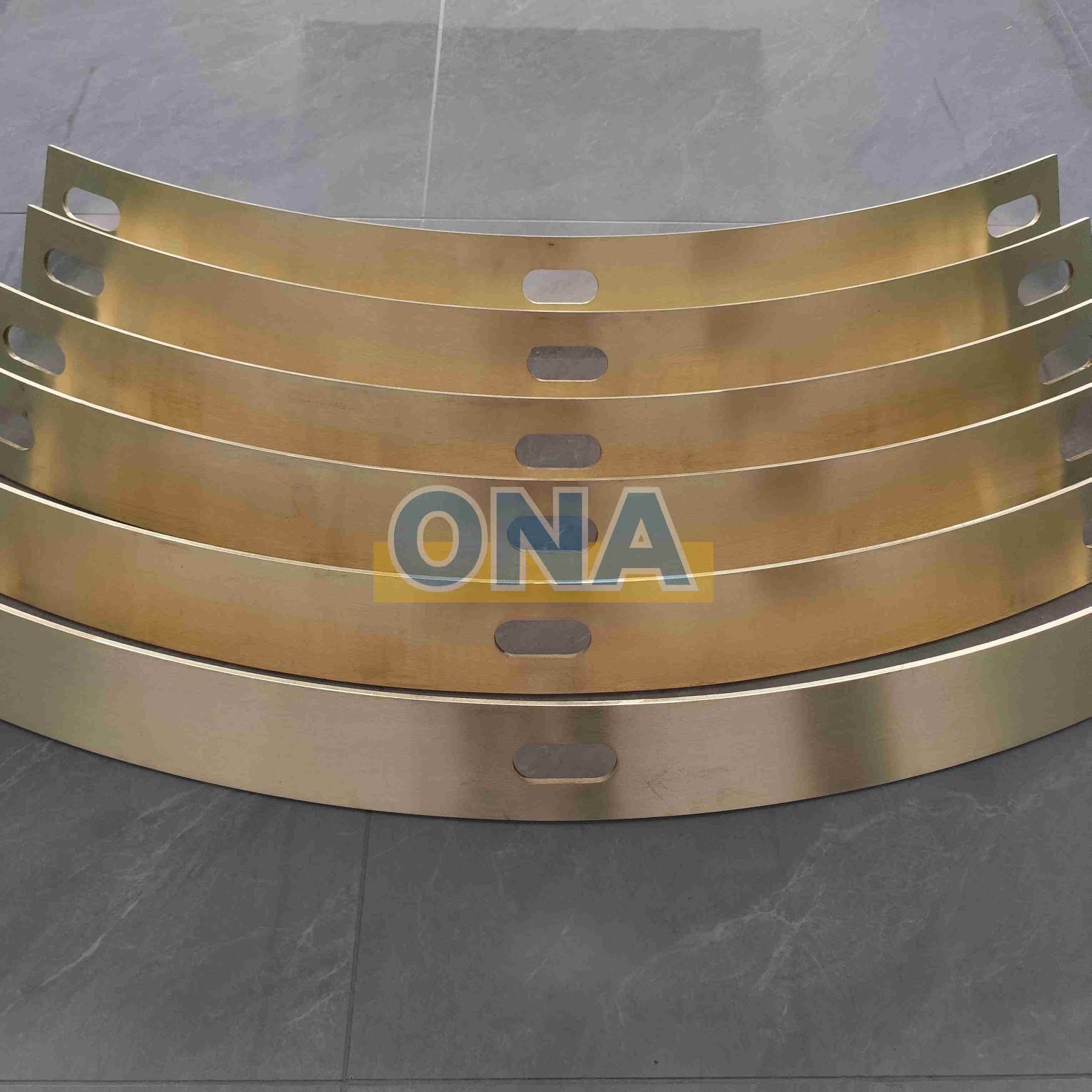

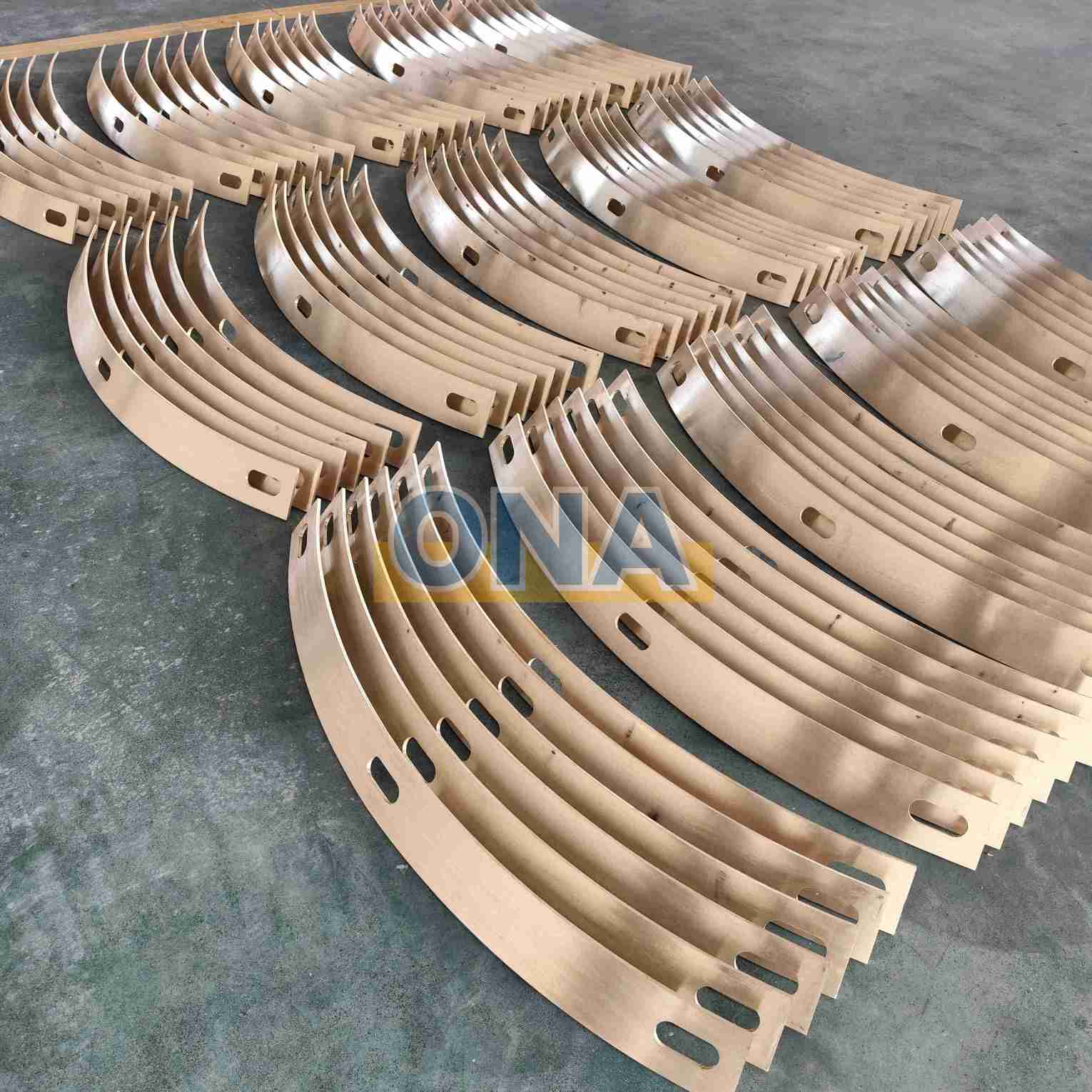

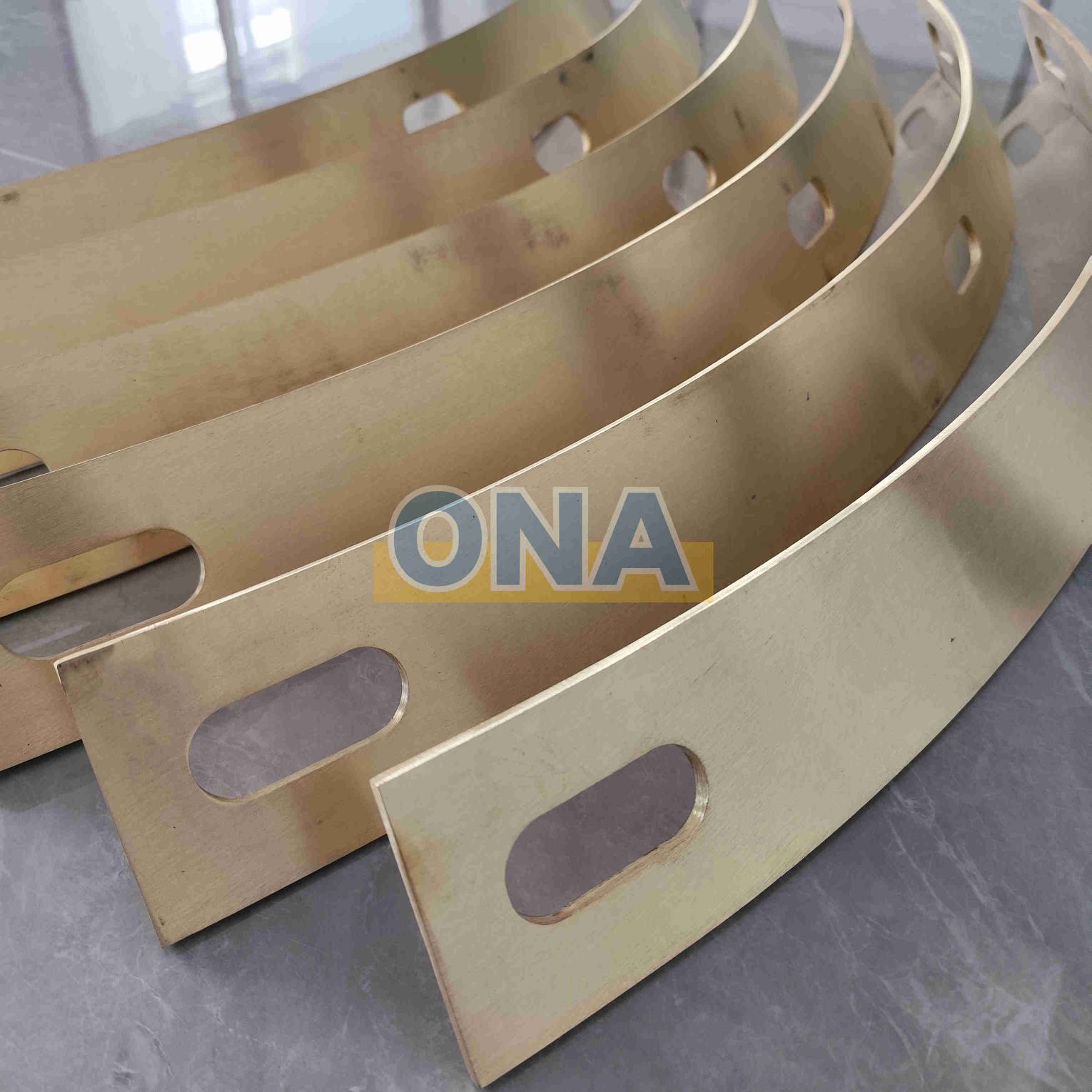

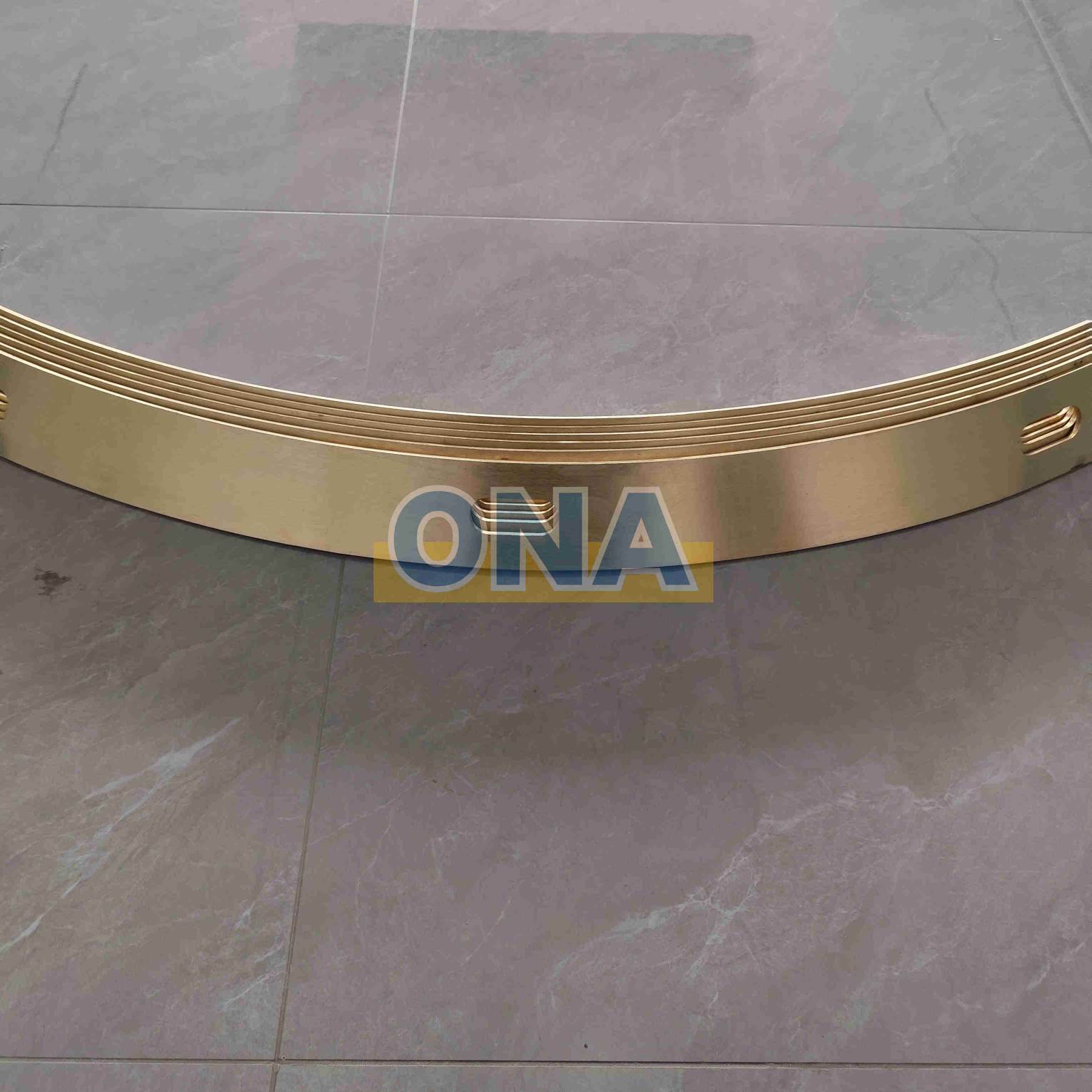

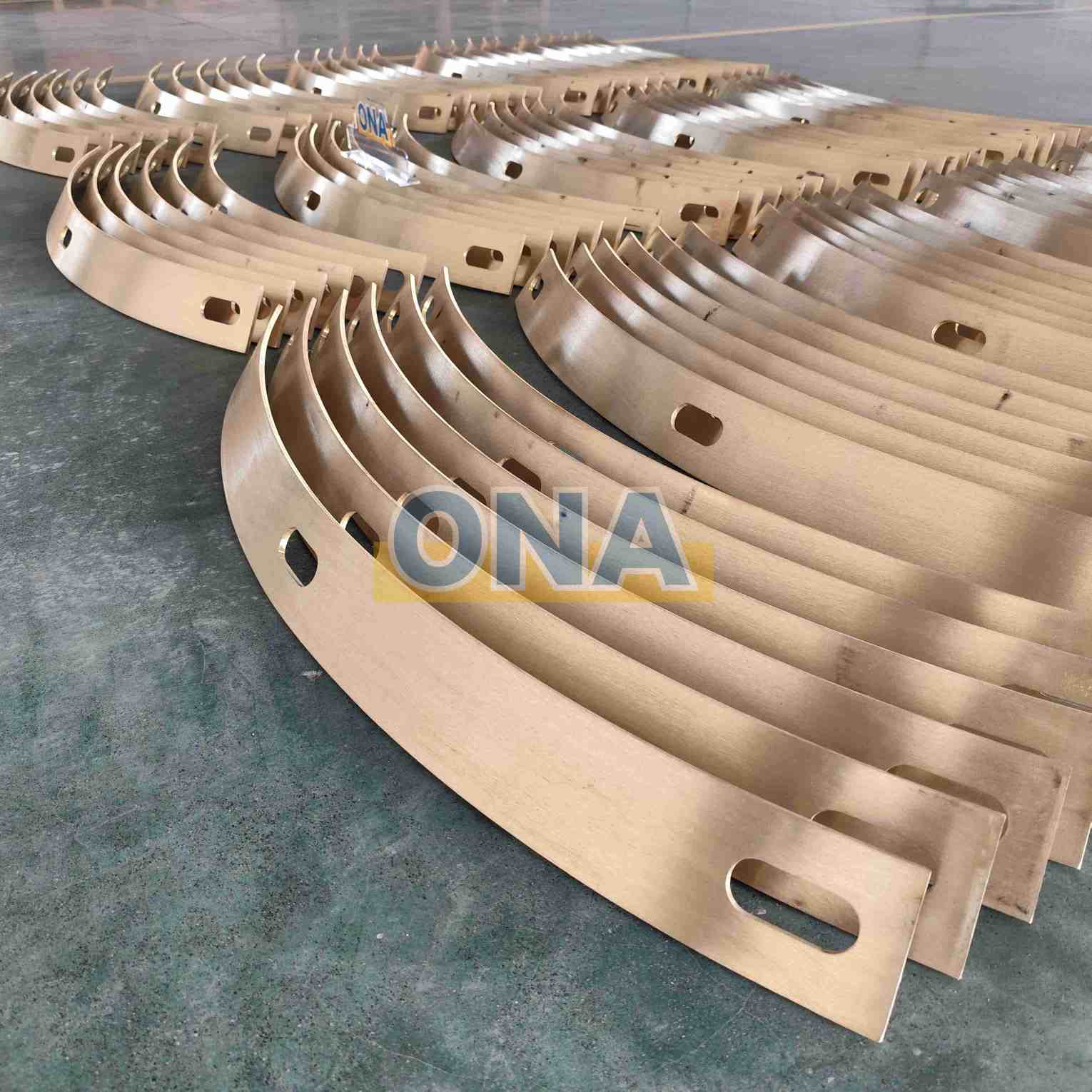

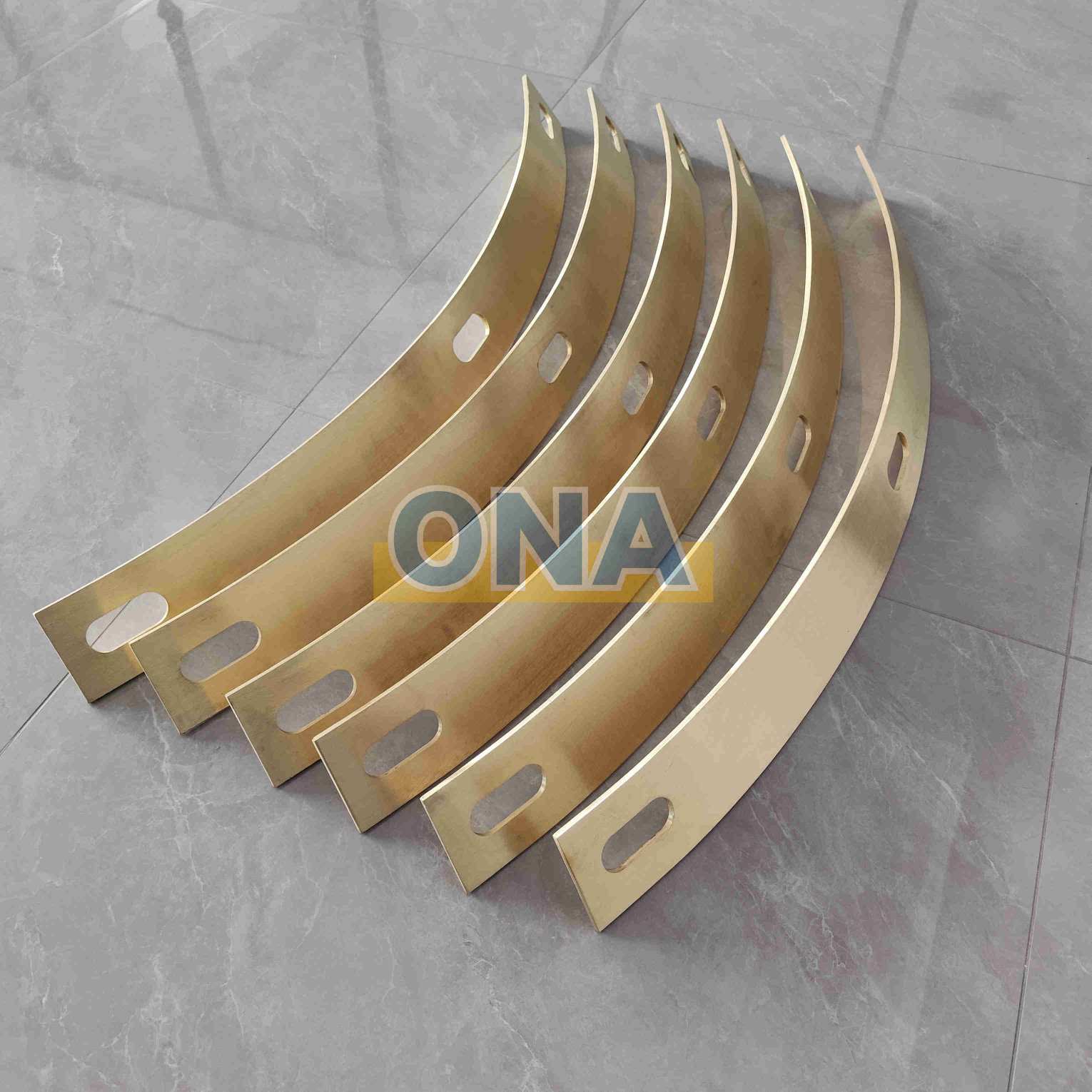

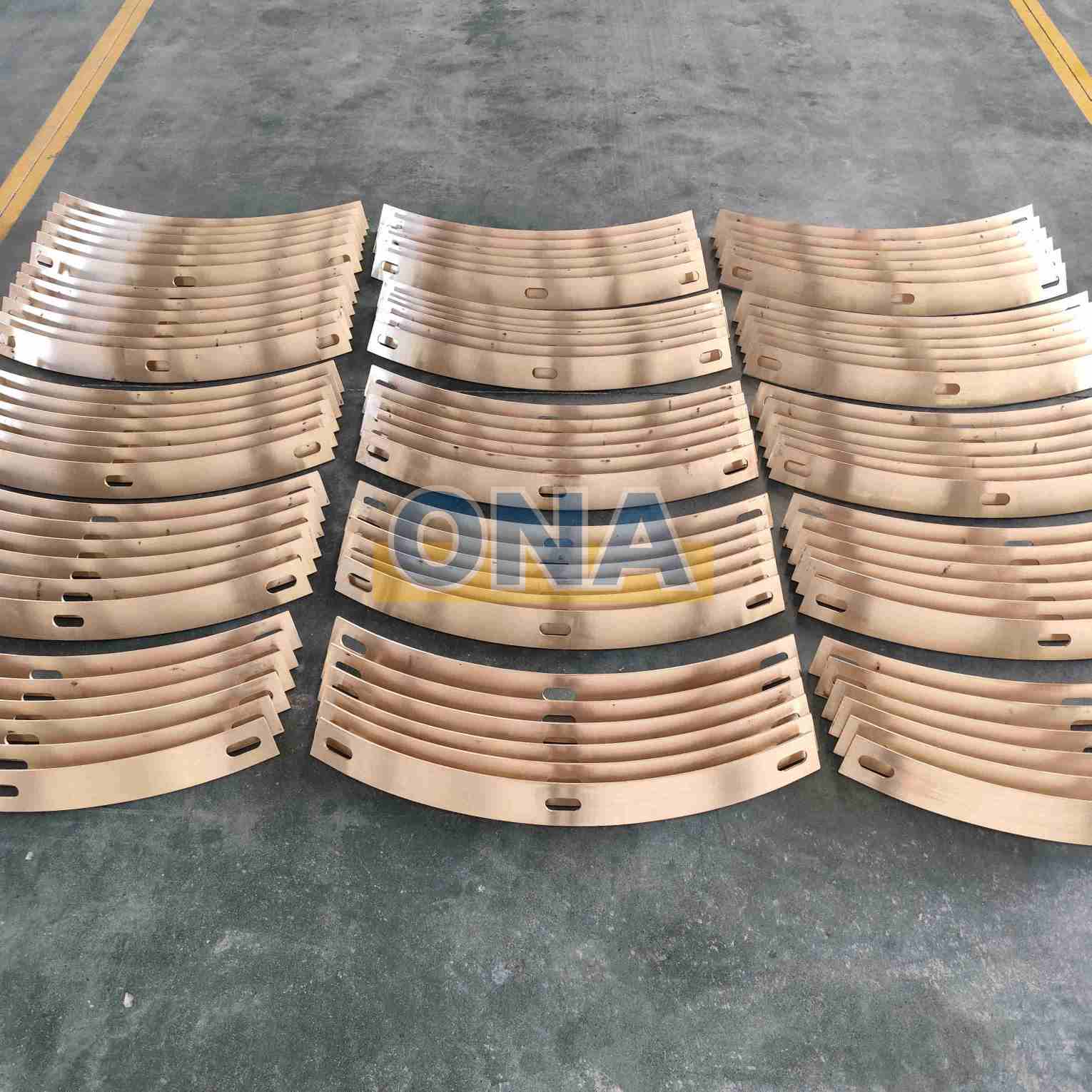

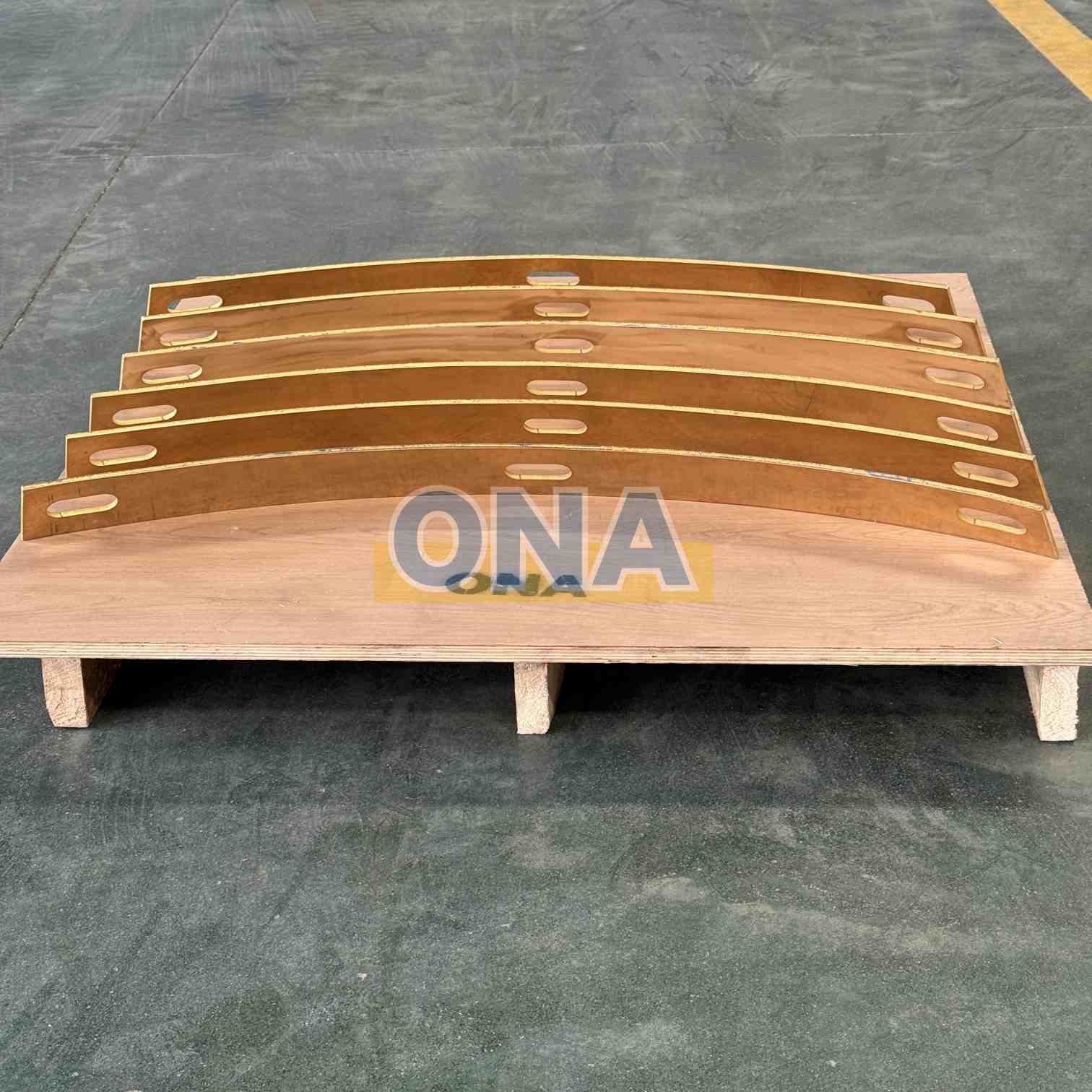

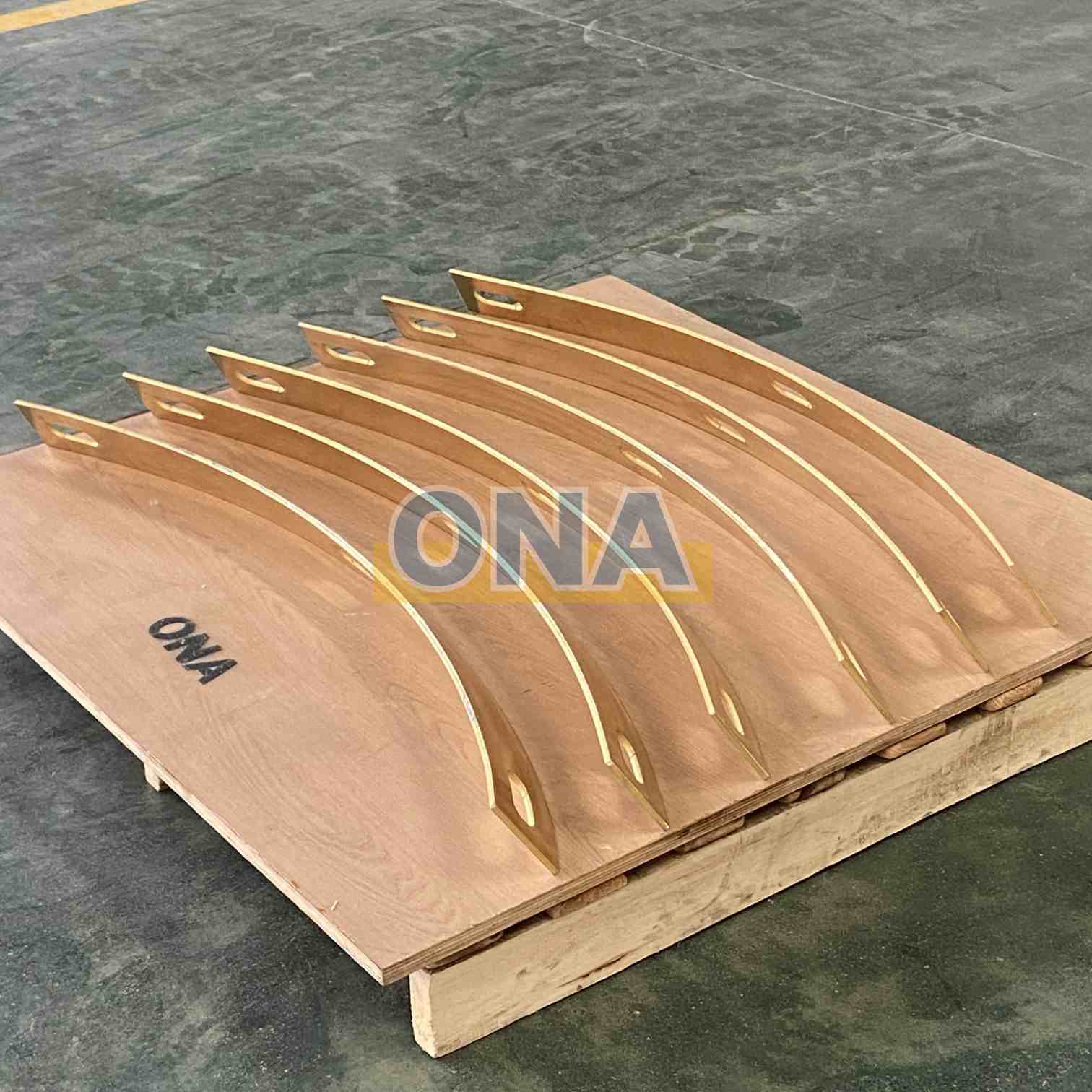

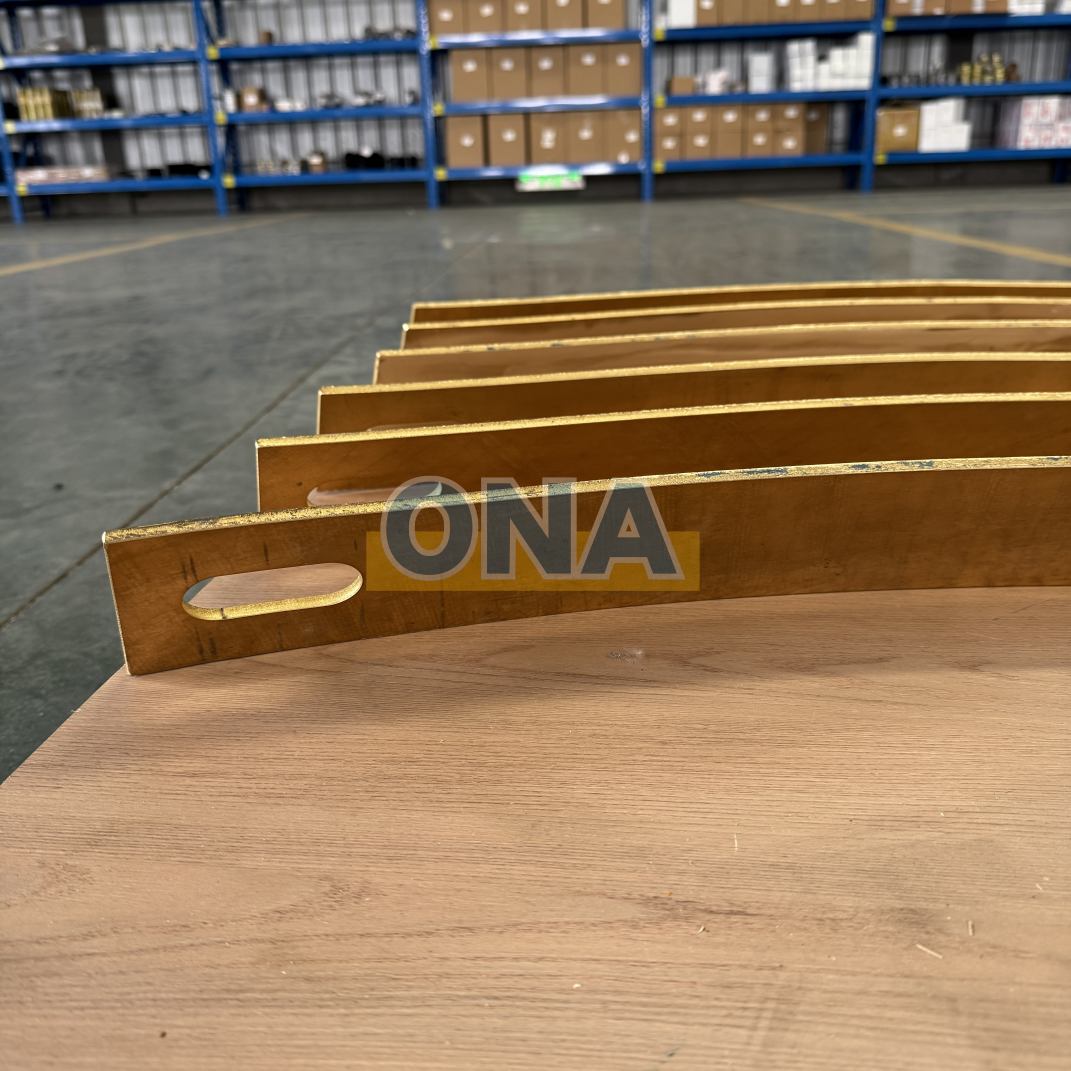

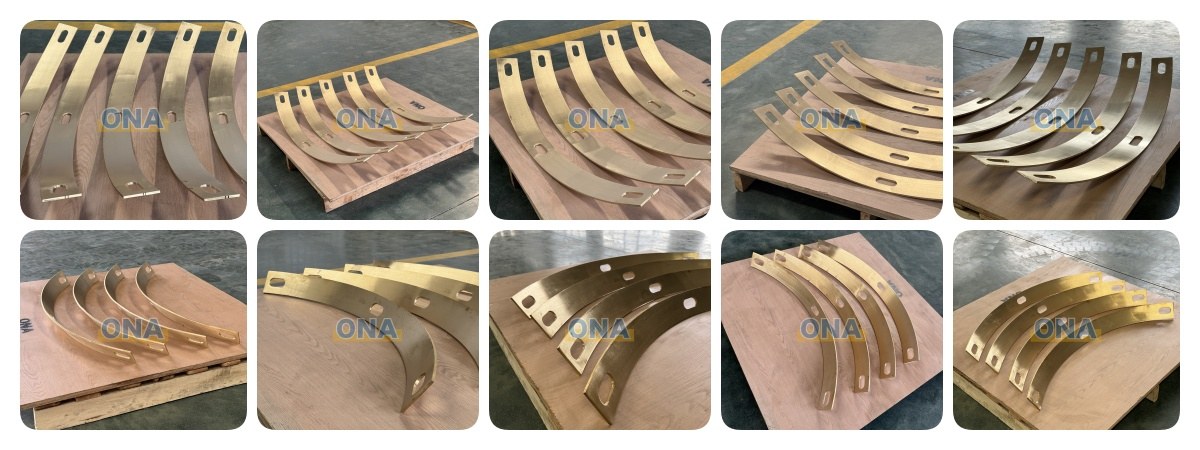

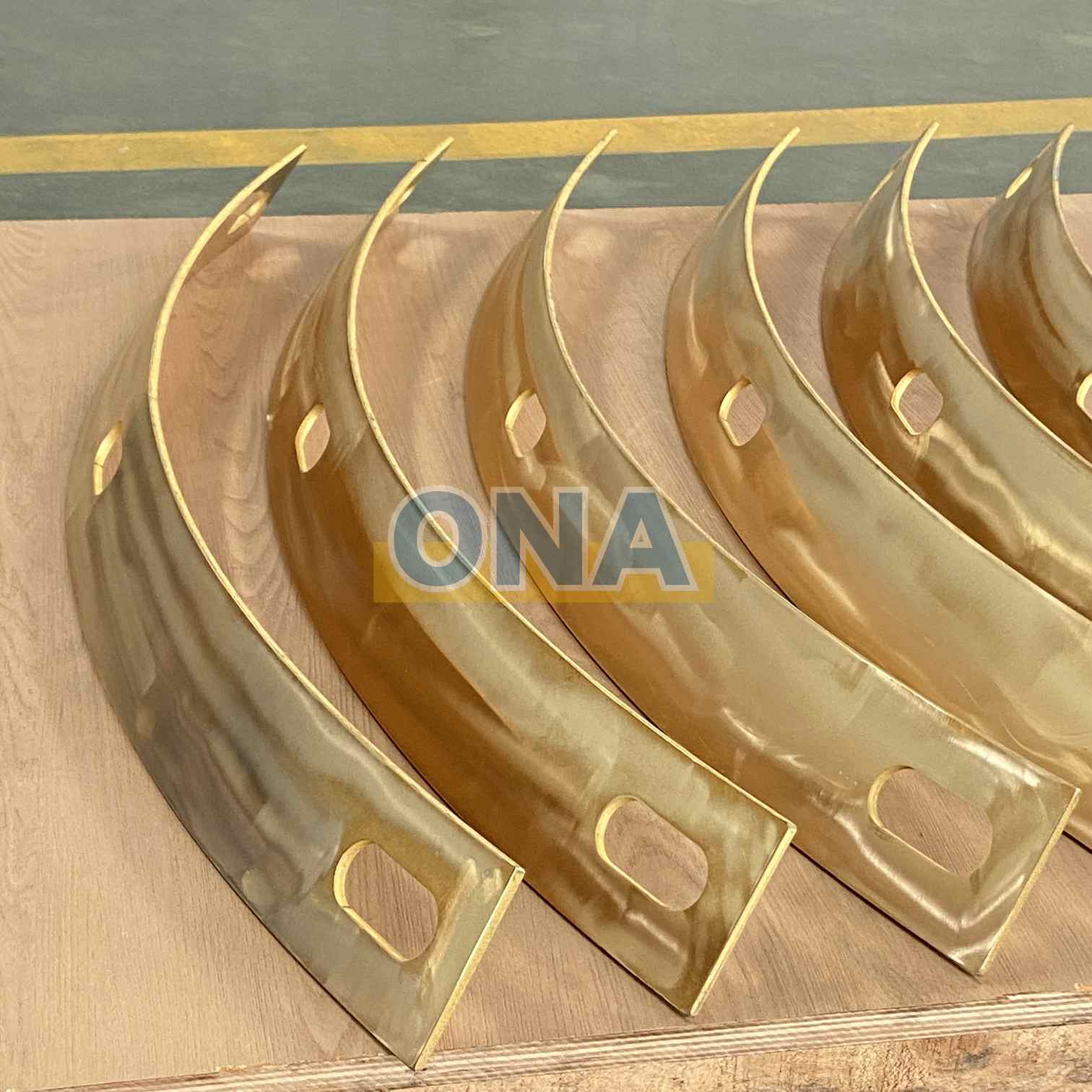

Product Image Display

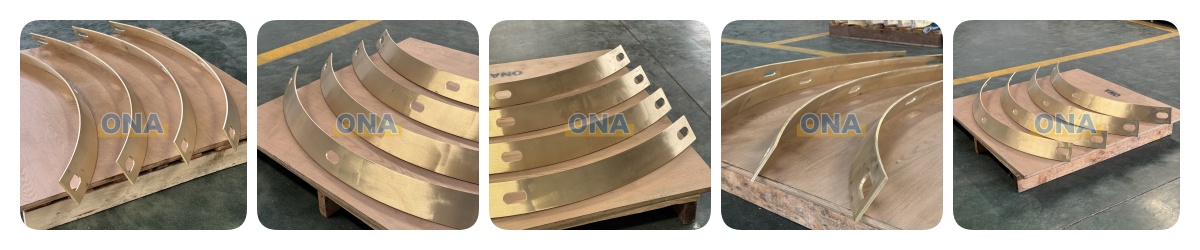

1. ONA-N84101518 HP4 Main Frame Seat Liner
2. ONA-1048516271 HP200 Main Frame Seat Liner
ONA-1048516272 HP400 Main Frame Seat Liner
Please note the part numbers for other popular ONA main frame seat liners listed below.
| ONA-1048517581 | HP800 | ONA-N84101518 | HP4 |
| ONA-N84101519 | HP6 | ONA-1048514410 | HP300 |
| ONA-N98000323 | HP6 | ONA-N98000924 | HP3 |
| ONA-1048517583 | MP800 | ONA-1048516271 | HP200 |
| ONA-1048516272 | HP400 | ONA-7084101513 | HP100 |
| ONA-N98000094 | HP4 | / | / |
FAQ
1. What is the function of the main frame seat liner?
It supports the adjustment ring assembly and provides a low-friction sliding surface to prevent contact wear; this offers protection and shock absorption, thereby extending the equipment's service life.
2. Under what conditions should it be replaced?
Binding or sticking during adjustment ring rotation; failure of the tramp iron release mechanism; stepped wear or scoring marks on the liner surface; or an increase in copper filings in the oil return filter element.
3. What are the requirements for installation and welding?
Thoroughly clean the welding area; preheat to 100°C before welding; weld from the center outwards; and maintain heat insulation for approximately one hour after welding.
