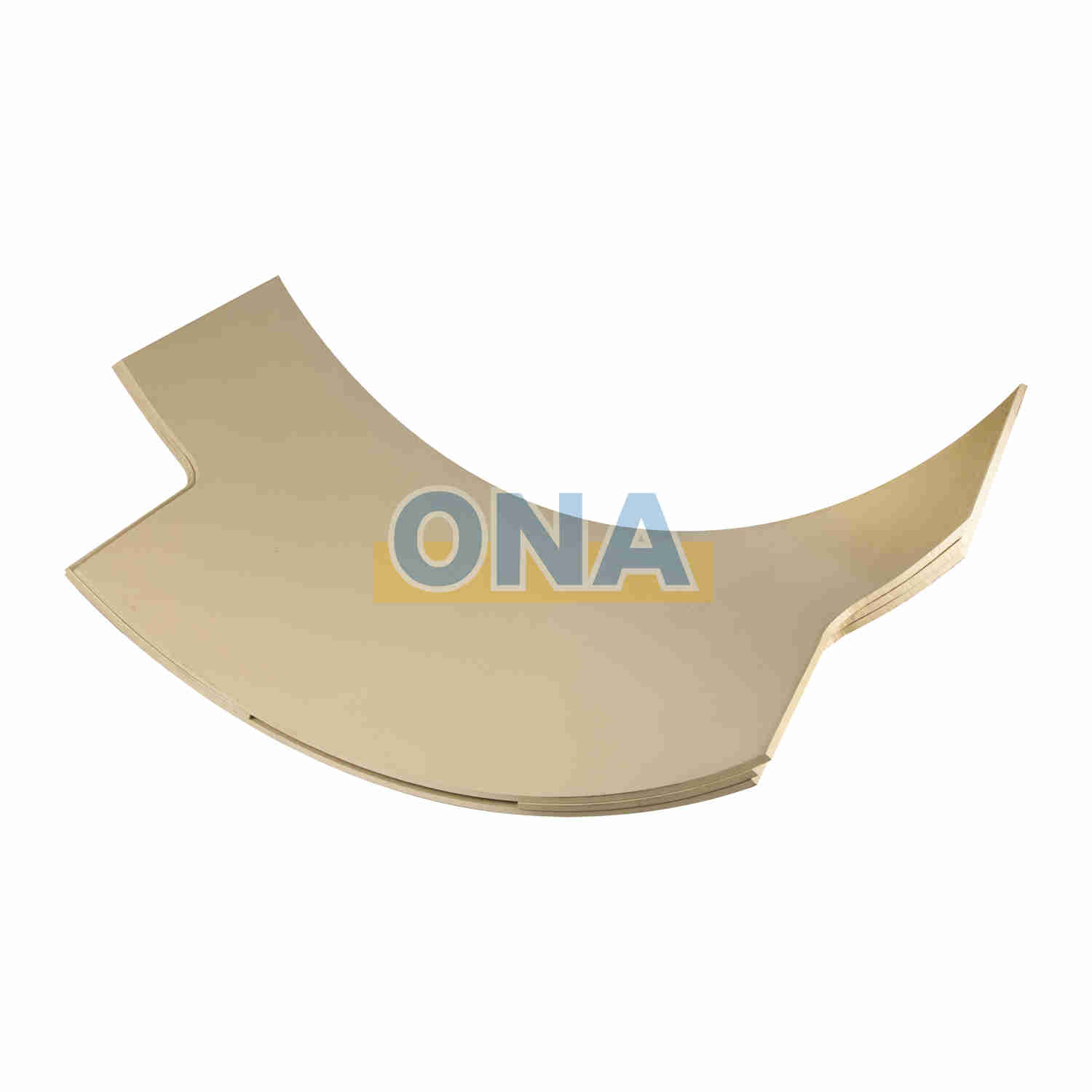

Mining Crusher Parts Main Frame Liner for HP Series Cone Crusher
Main Frame Liner, replacement wear part suit for Metso Nordberg HP/MP series & Symons cone crushers, protects main frame from rock abrasion and impact.
Item No :
HP100, HP200, HP300, HP400, HP500, HP800, HP3, HP4, HP6, MP800, MP1000Part Number :
ONA-7021900301Payment :
TT, Paypal, Credit CardProduct Origin :
ChinaColor :
WhiteShipping Port :
ShanghaiLead Time :
StockOrder(MOQ) :
1

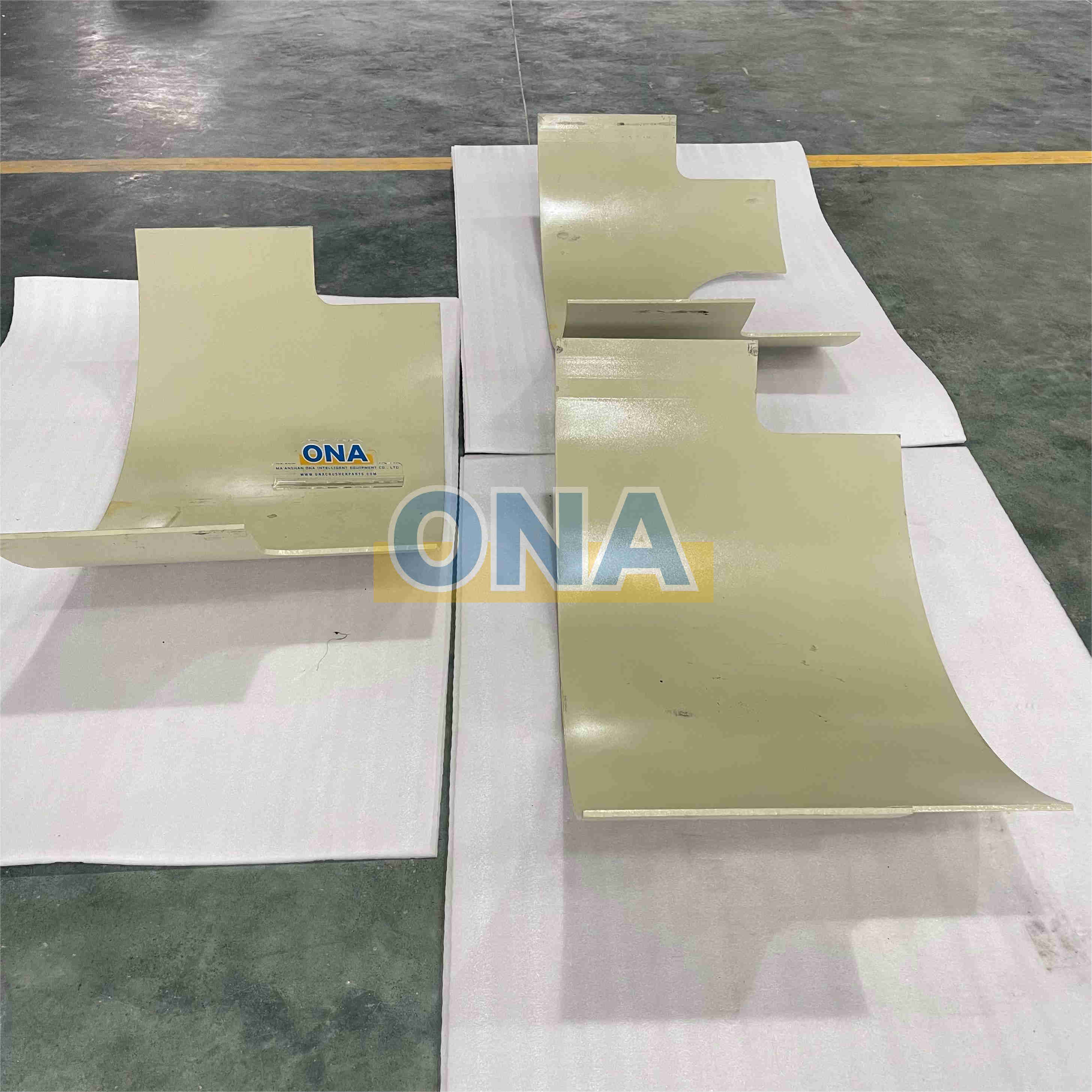

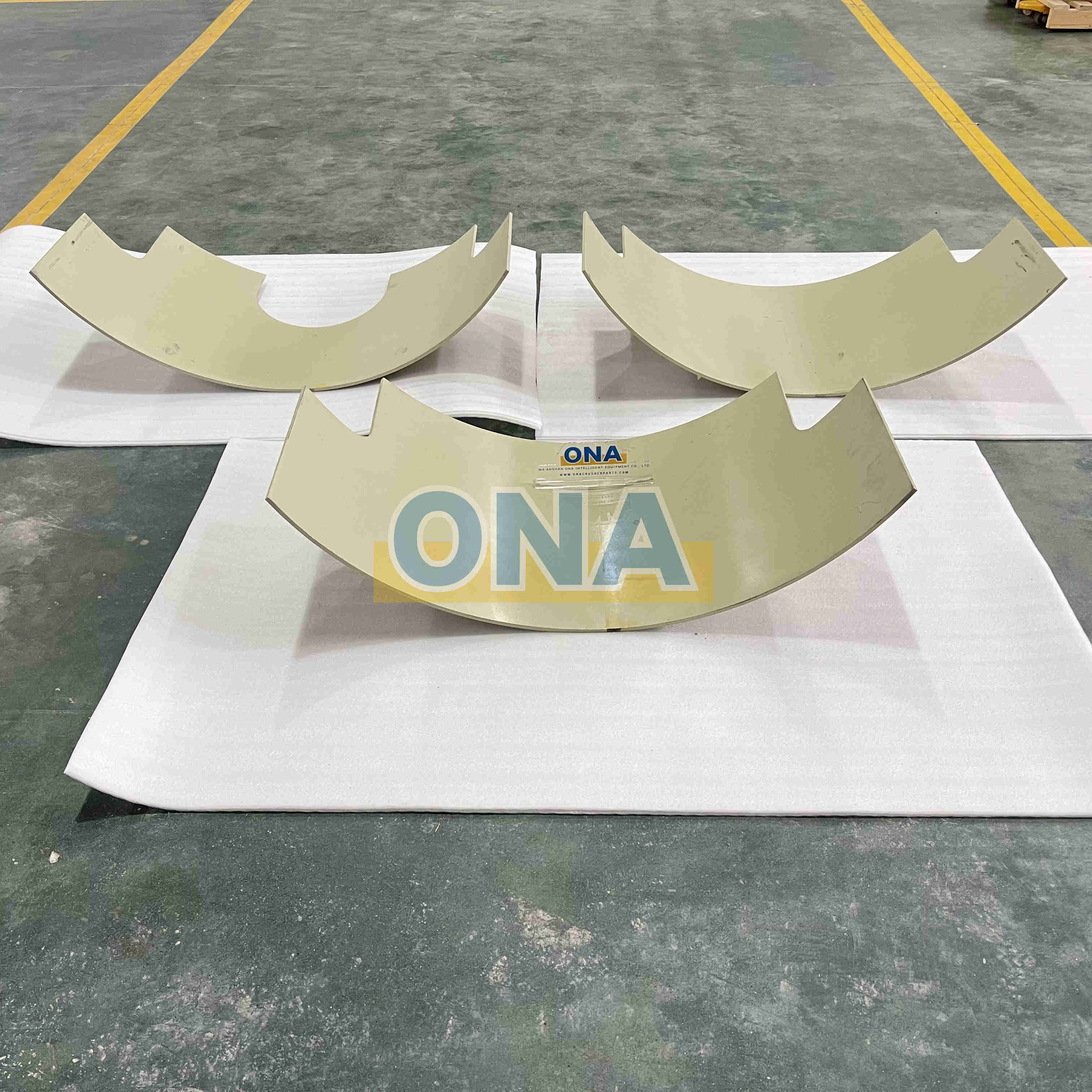

Crusher machine parts main Frame Liner, by means of welding located in the inner of main frame. Its function is to protect the main frame, preventing direct crush with the ore that could cause wear or even damage. Usually come with 3 pieces per set.
Material Composition
| Material | C | Si | Mn | P | S | Cr | Ni | Cu |
| Q345B | ≤ 0.20% | ≤ 0.50% | ≤ 1.70% | ≤ 0.035% | ≤ 0.035% | ≤ 0.30% | ≤ 0.50% | ≤ 0.30% |

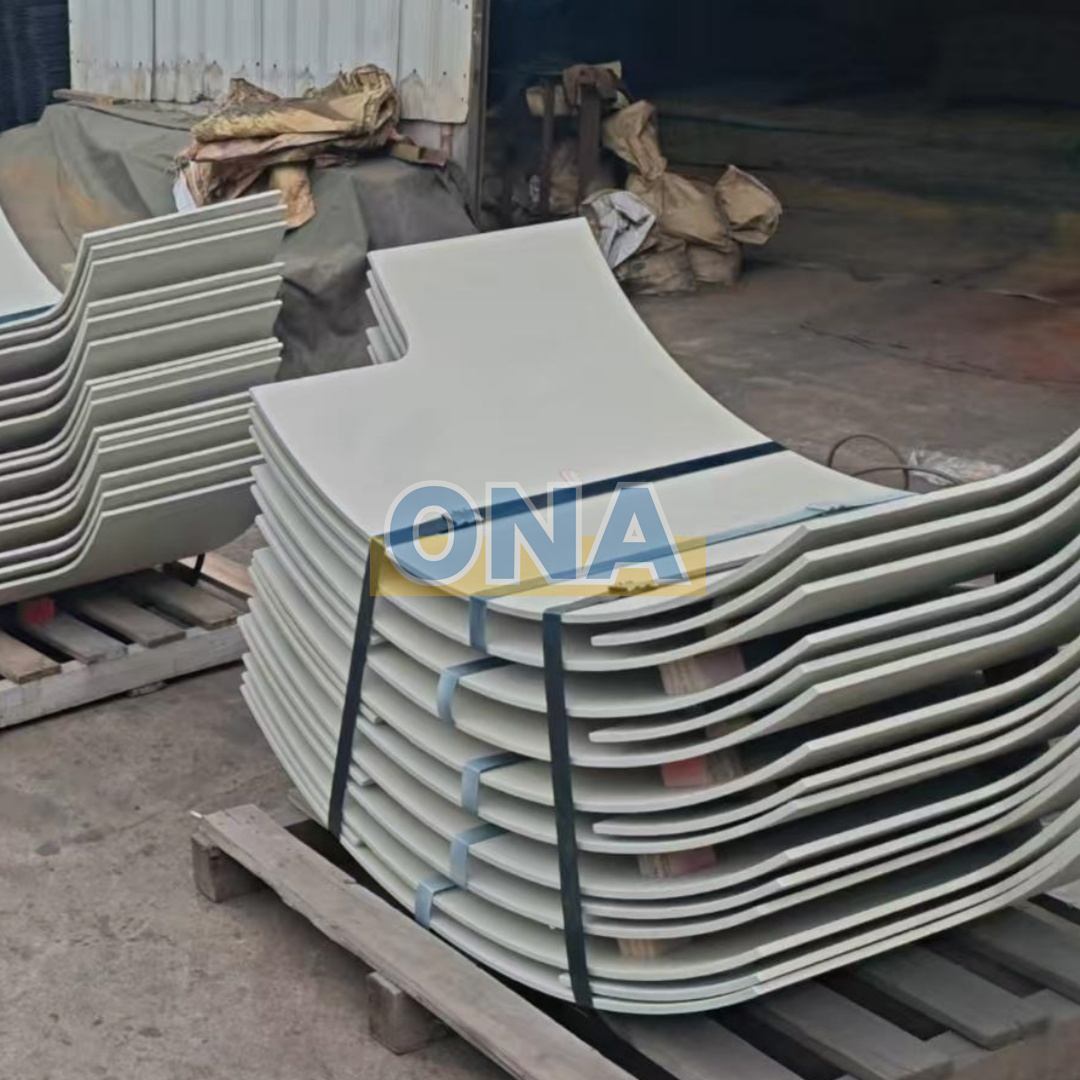

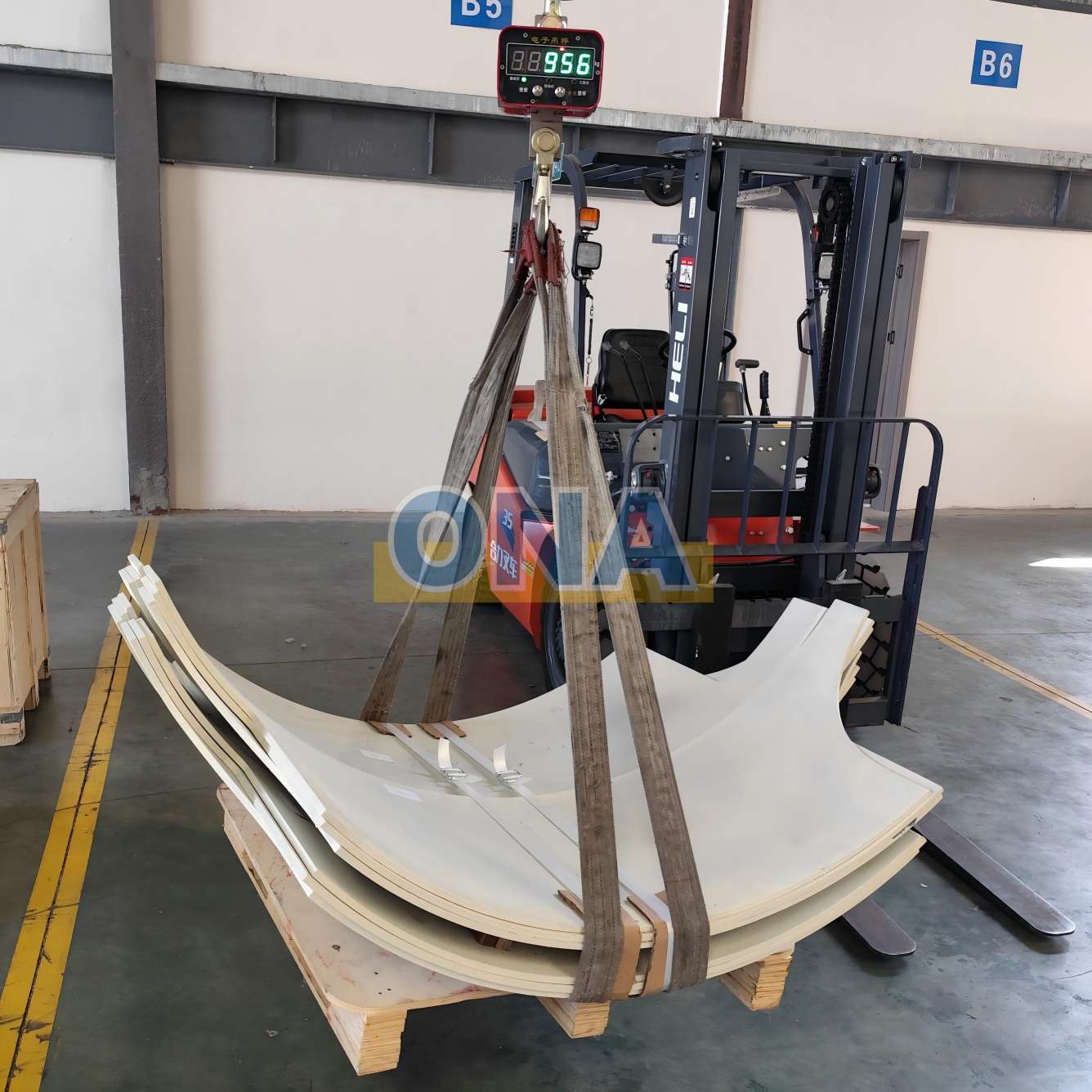

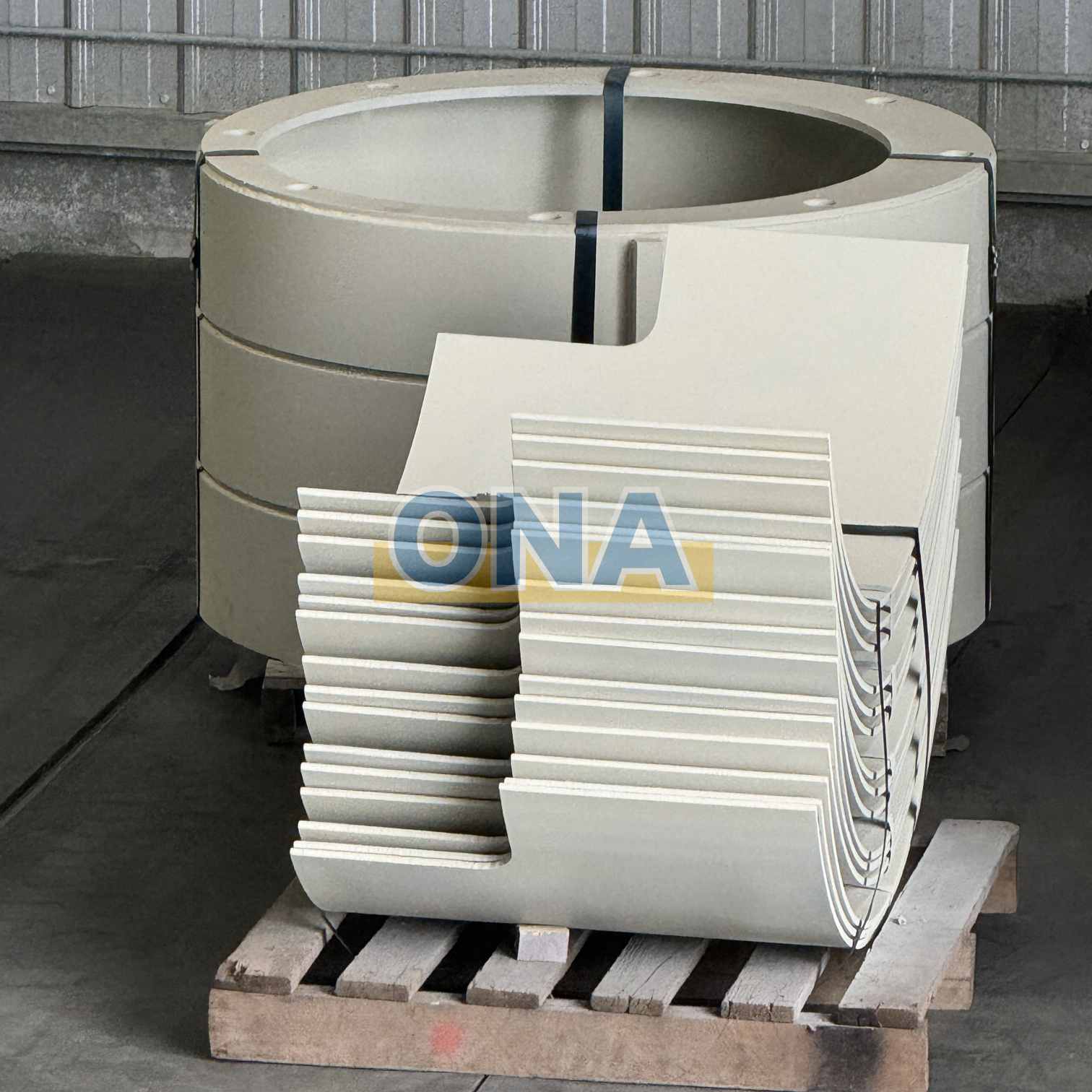

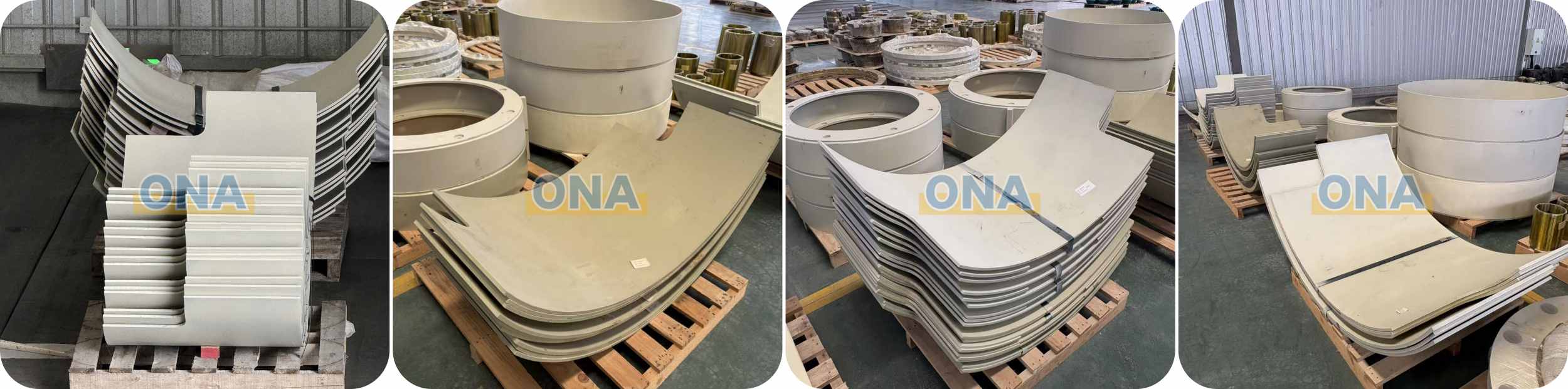

Product Show

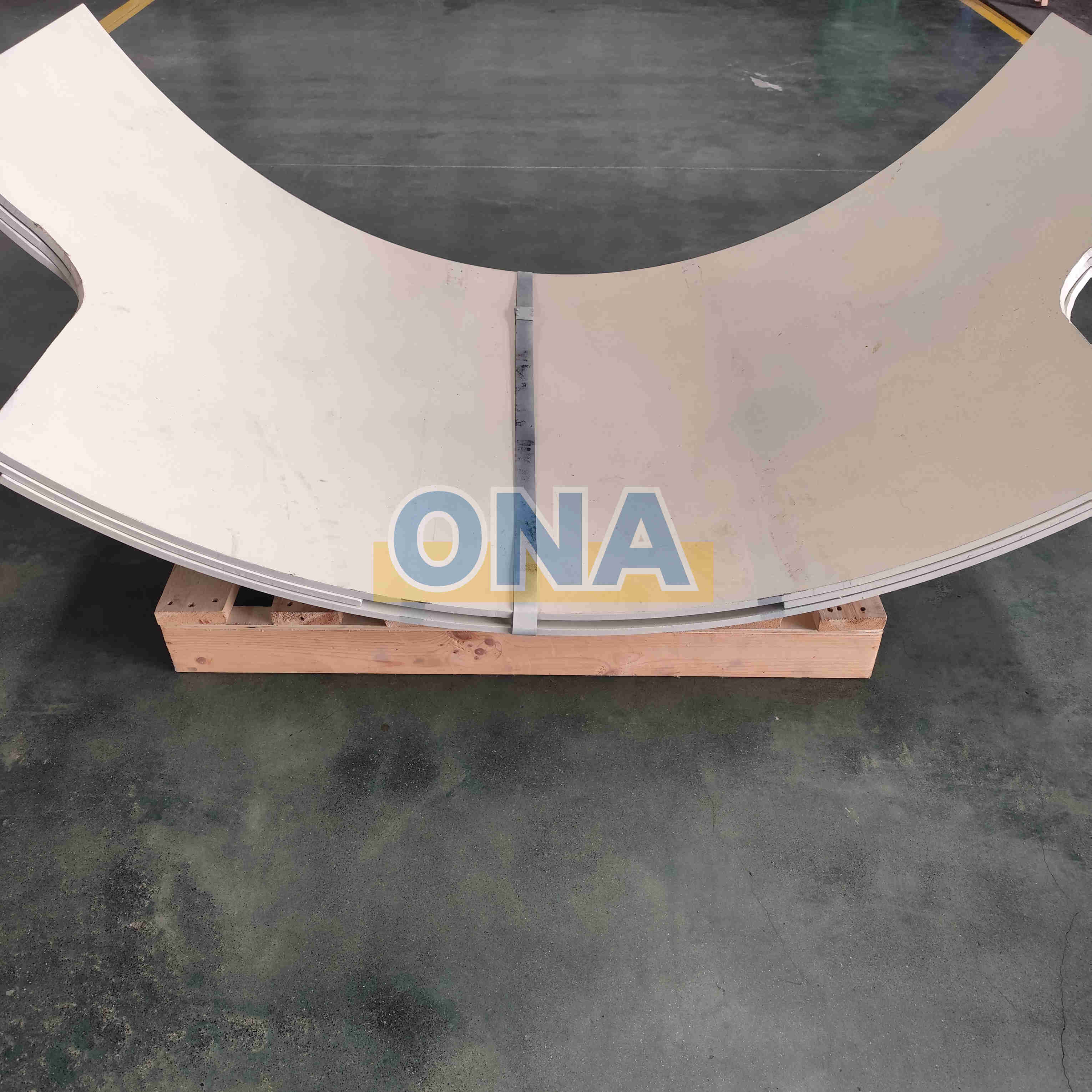

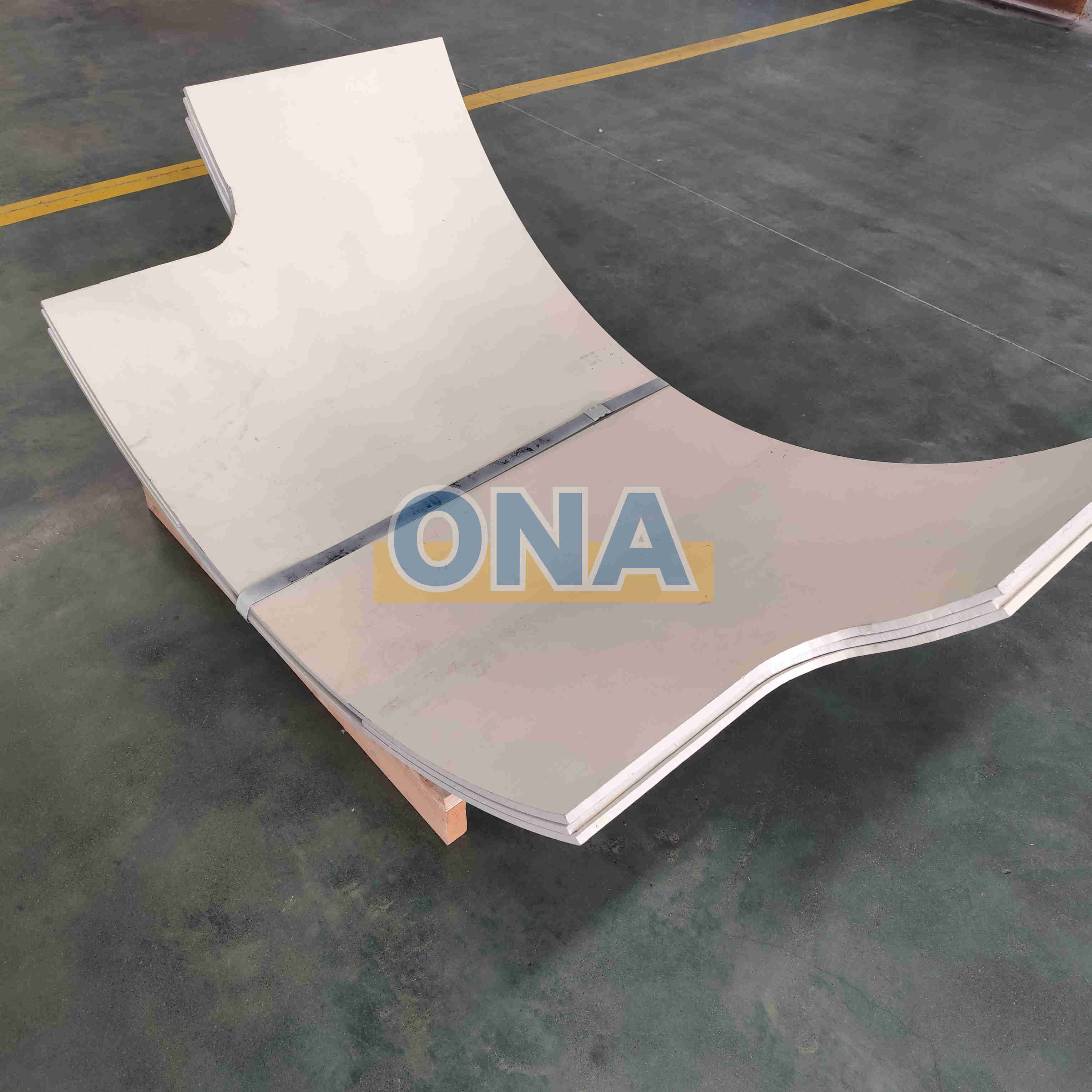

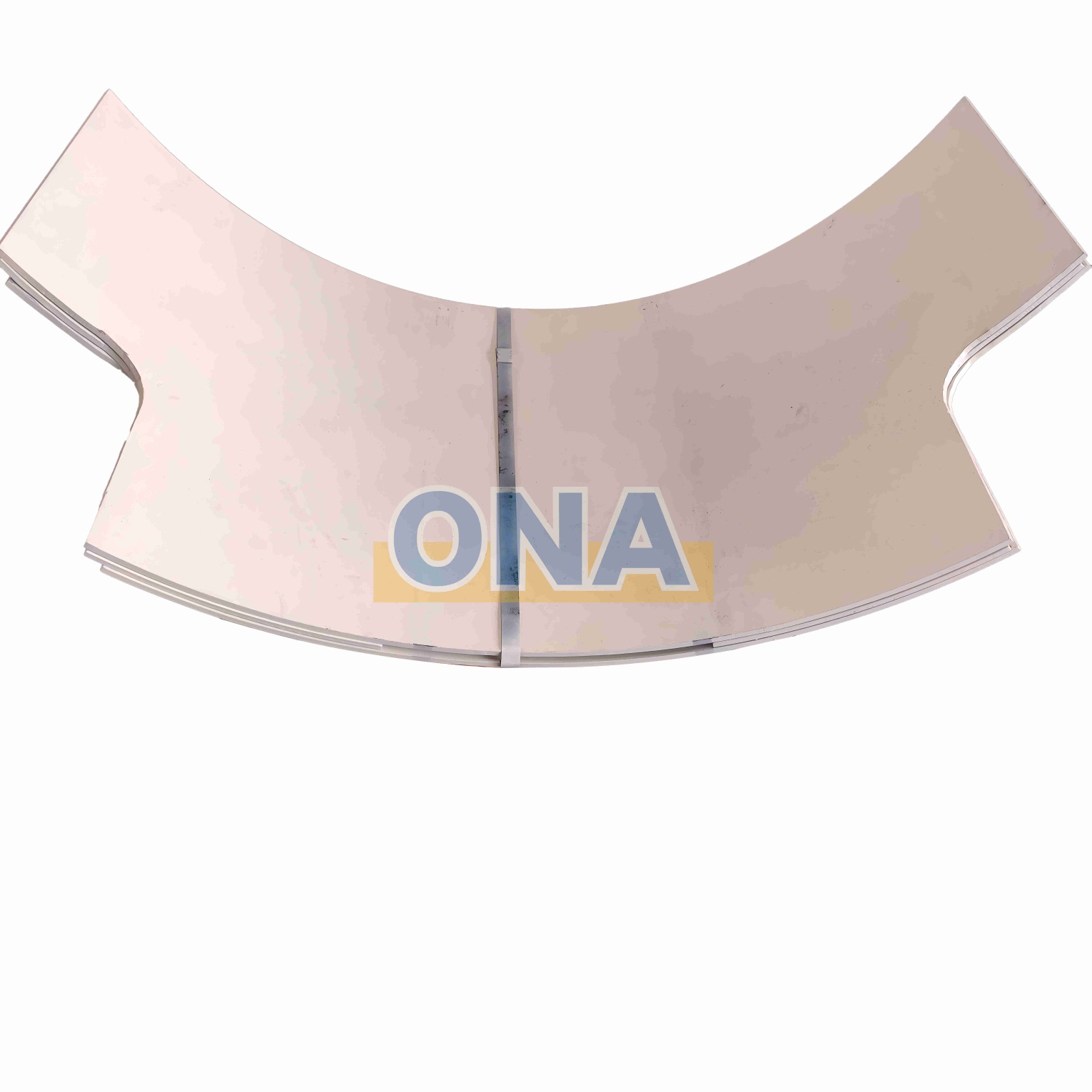

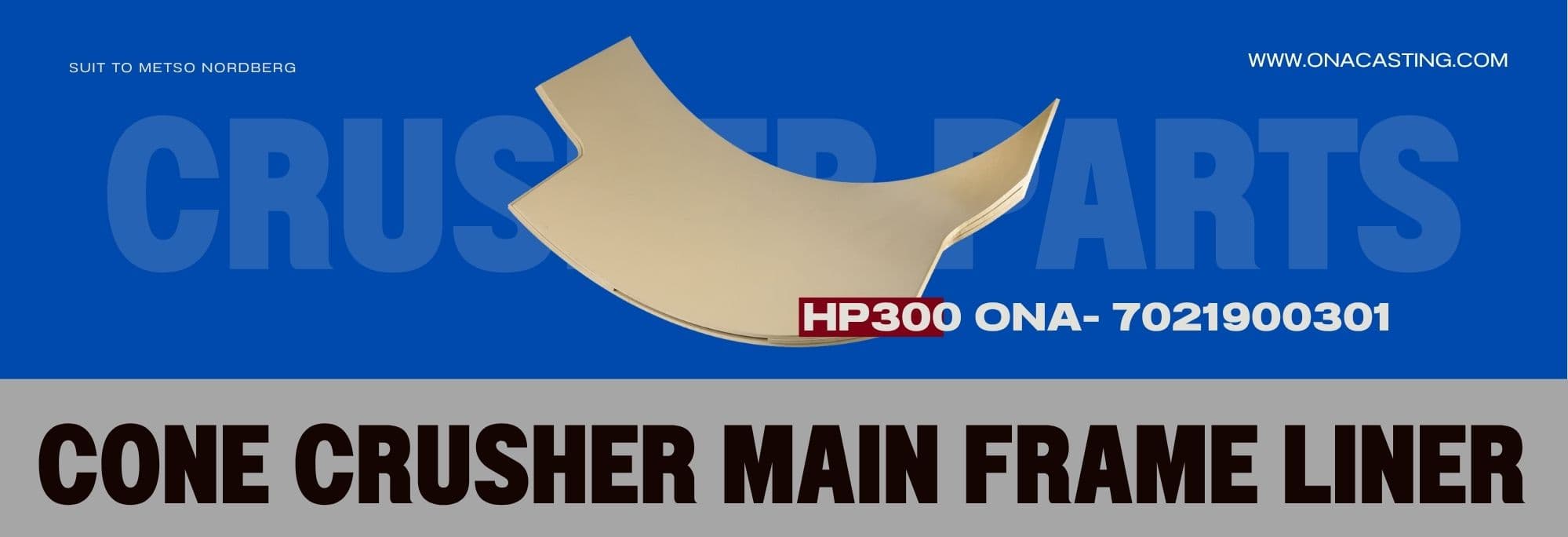

HP300 ONA-7021900301, always available on hand
| HP800 | ONA-1048517411 | HP6 | ONA-N21900359 | HP6 | ONA-N21900360 |
| HP500 | ONA-N21900353 | HP6 | ONA-SN318341 | HP6 | ONA-SN200548 |
| HP500 | ONA-1048516283 | HP400 | ONA-N21900352 | HP4 | ONA-N21900310 |
| MP800 | ONA-1048519601 | HP300 | ONA-7021900301 | HP3 | ONA-N21900311 |
| HP200 | ONA-1048512826 | HP100 | ONA-7021900200 | MP1000 | ONA-1048519630 |
| Symons Crusher Part 7FT | ONA-1048518481 | Symons 7 ft Cone Crusher | ONA-4851 8481 | HP800 | ONA-MM0325754 |
Application
Wear Assessment and Replacement Guidelines
- Key Inspection Areas: The discharge erosion zone at the bottom edge of the liner plate experiences the fastest wear.
- Replacement Criteria: Replacement is mandatory when the liner wears down to the minimum allowable thickness, develops cracks, or exhibits bolt hole deformation; continued operation after wearing through is strictly prohibited.
- Common Issues: Liner loosening → uneven wear; material buildup → localized rapid wear; impact from tramp iron → liner cracking.

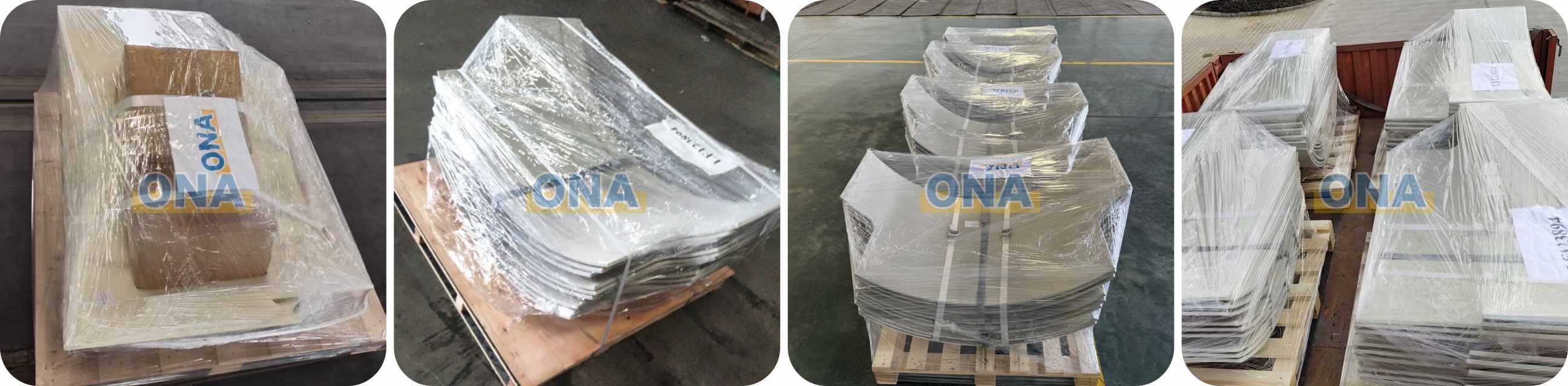

Packing & Shipping
