Product Details

Product Introduction

Drilled Block

Quantity: 1 of each in the crusher

Installation Location: Installed in the hydraulic station, containing a valve block and various valve components.

Material: Aviation-grade aluminum + Rexroth valves

Function: The relays in the electrical control cabinet transmit signals to each valve in the valve assembly, controlling the entire hydraulic system (clamping cylinder, tramp release cylinder, hydraulic motor assembly, hydraulic pump, and other hydraulic components).

More functions are as follows:

Material Flow Control: The drilled block controls the material flow into the crushing chamber by adjusting the valve opening, thus affecting crushing efficiency and output. Appropriate material flow reduces the risk of blockage and overload, ensuring stable crusher operation.

Crushing Chamber Pressure Adjustment: The drilled block changes the pressure within the crushing chamber by adjusting the valve position, thus affecting the crushing effect. Appropriate pressure ensures thorough crushing of the material within the chamber, improving the quality of the finished product.

Equipment Protection: During crushing, if encountering uncrushable foreign objects or overload conditions, the drilled block can react quickly to protect the equipment. For example, by closing or adjusting the valve position, it prevents equipment damage.

Adaptability to Different Working Conditions: By adjusting the drilled block settings, the crusher can adapt to different working conditions, such as processing materials of varying hardness or changing production requirements. This flexibility makes the crusher more suitable for diverse working environments.

More Models:

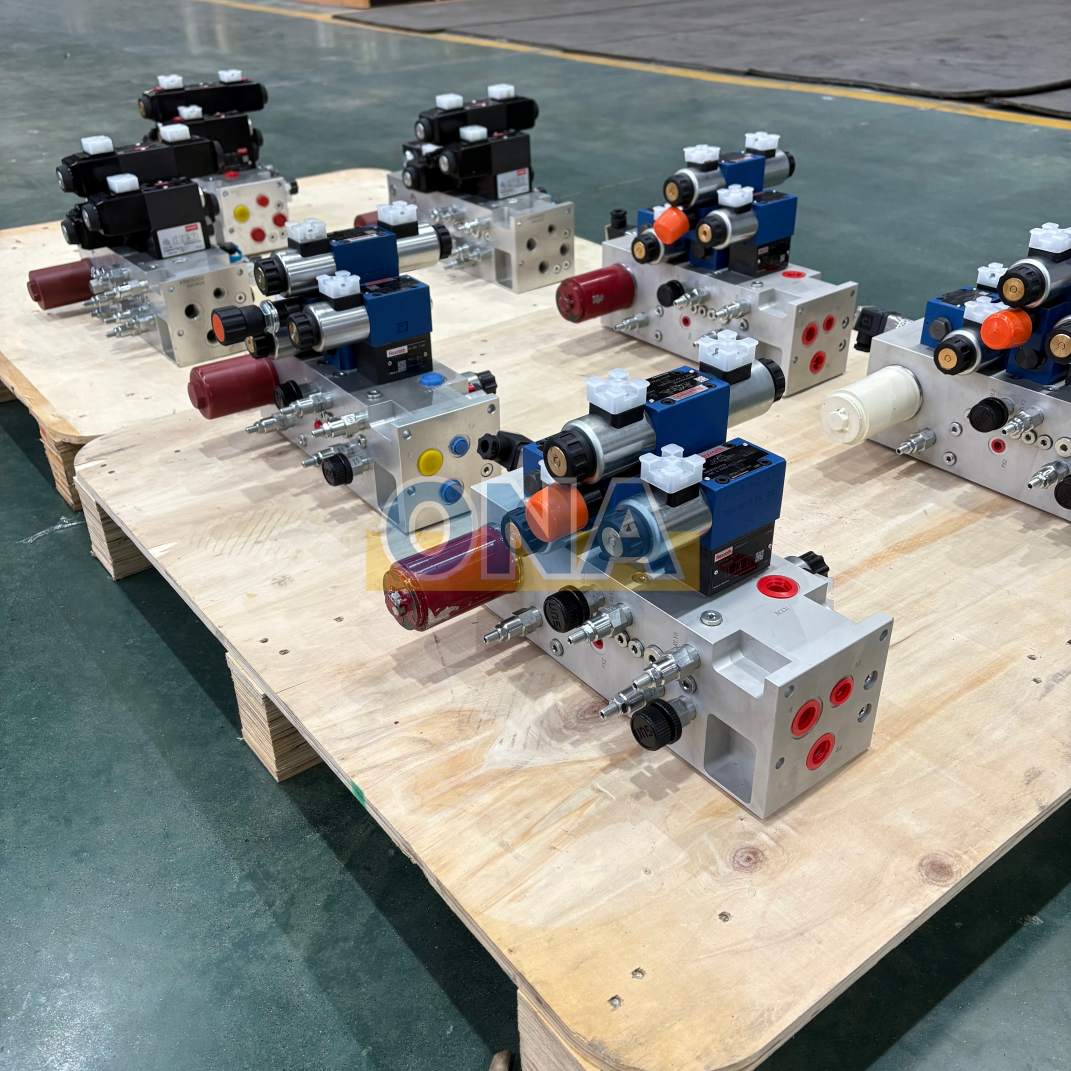

ONA-N29201816
Compatible with Metso Nordberg HP200, HP300, HP400 and HP500. OEM standard.
ONA-N29201813
Made in China, made of aerospace-grade aluminum, making it even lighter.

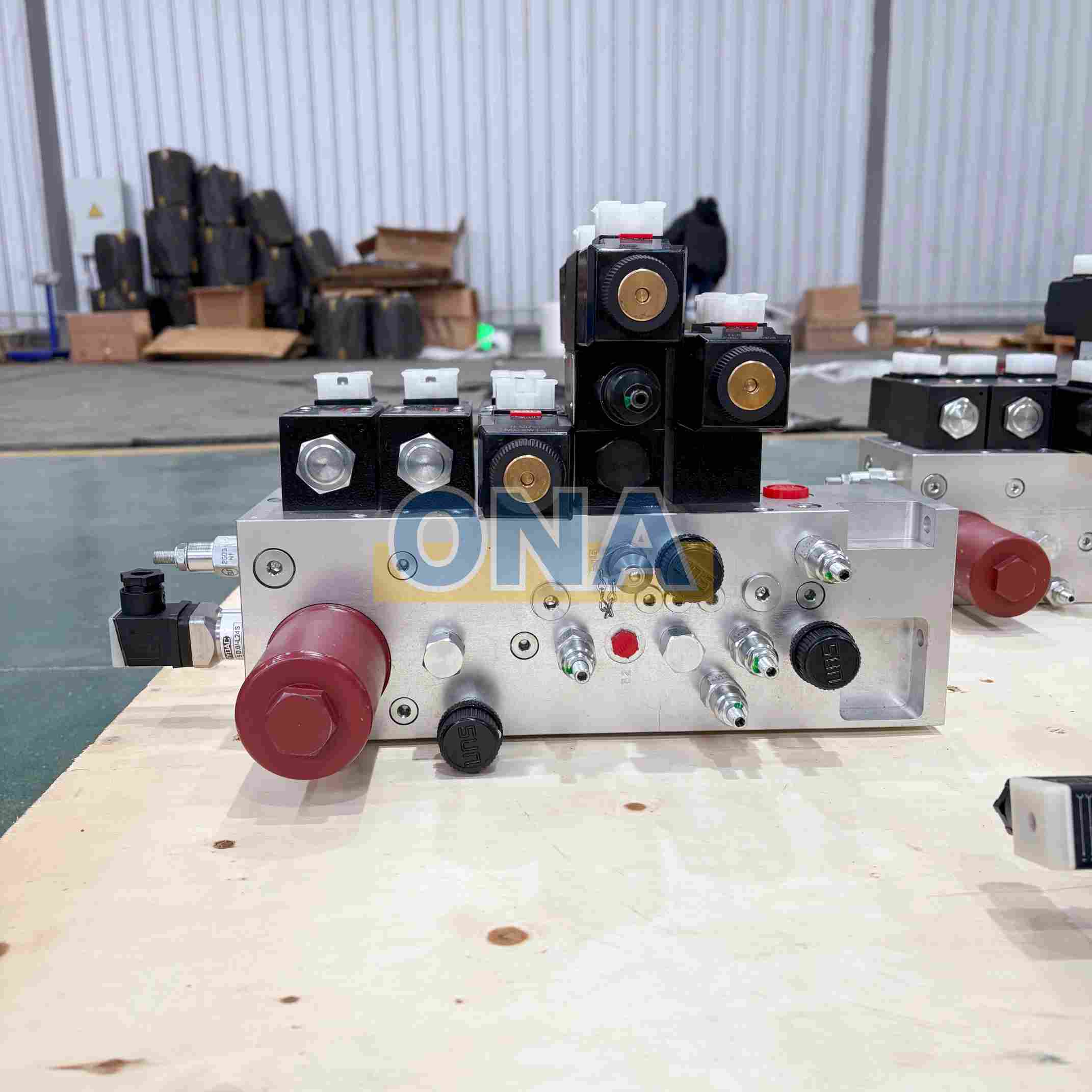

ONA-MM1176523
Compatible with Metso Nordberg HP6, pre-assembled and ready to use upon receipt.

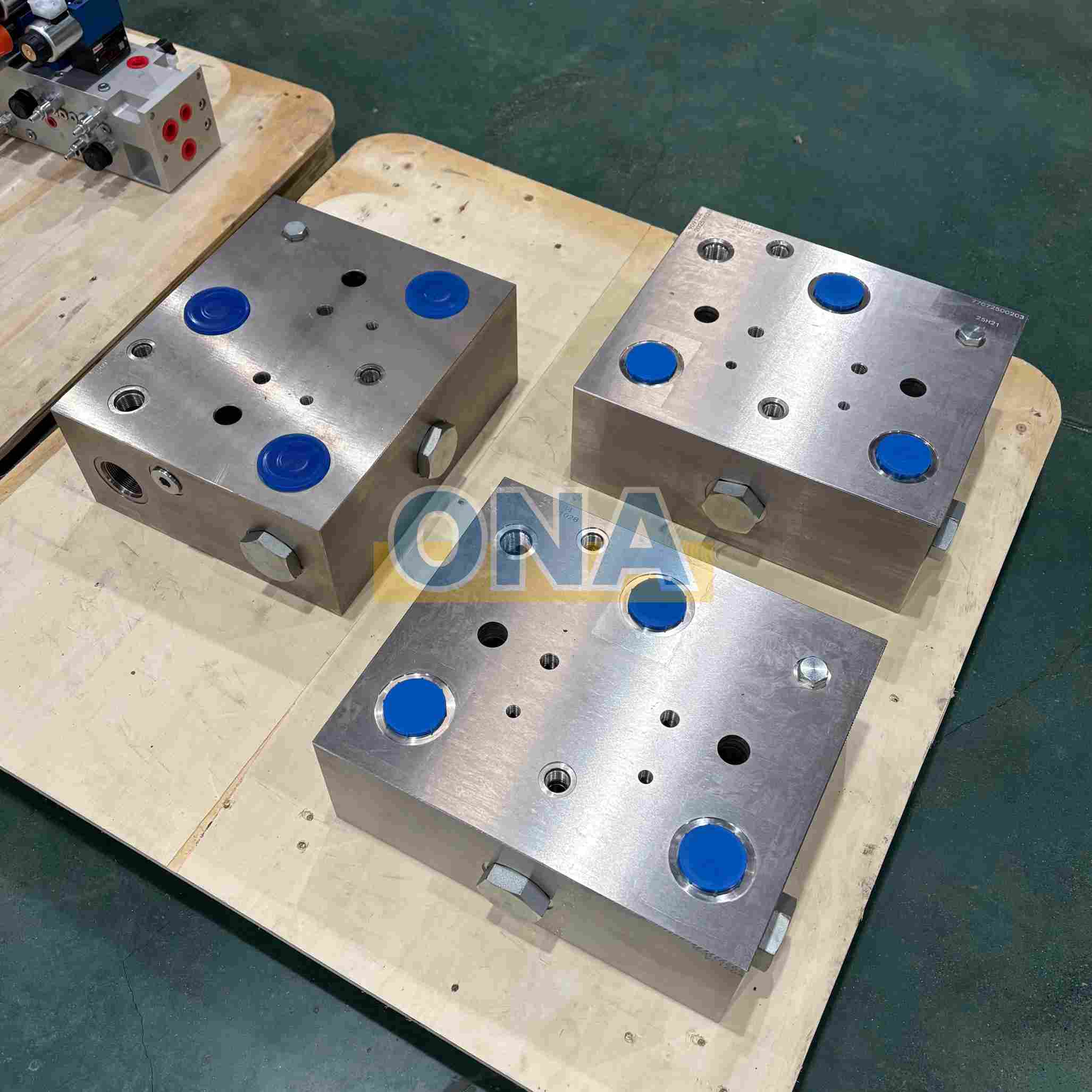

ONA-MM1174024
We provide after-sales service, including guidance and analysis, quality assurance.

Which Parts Included in The Drilled Block?

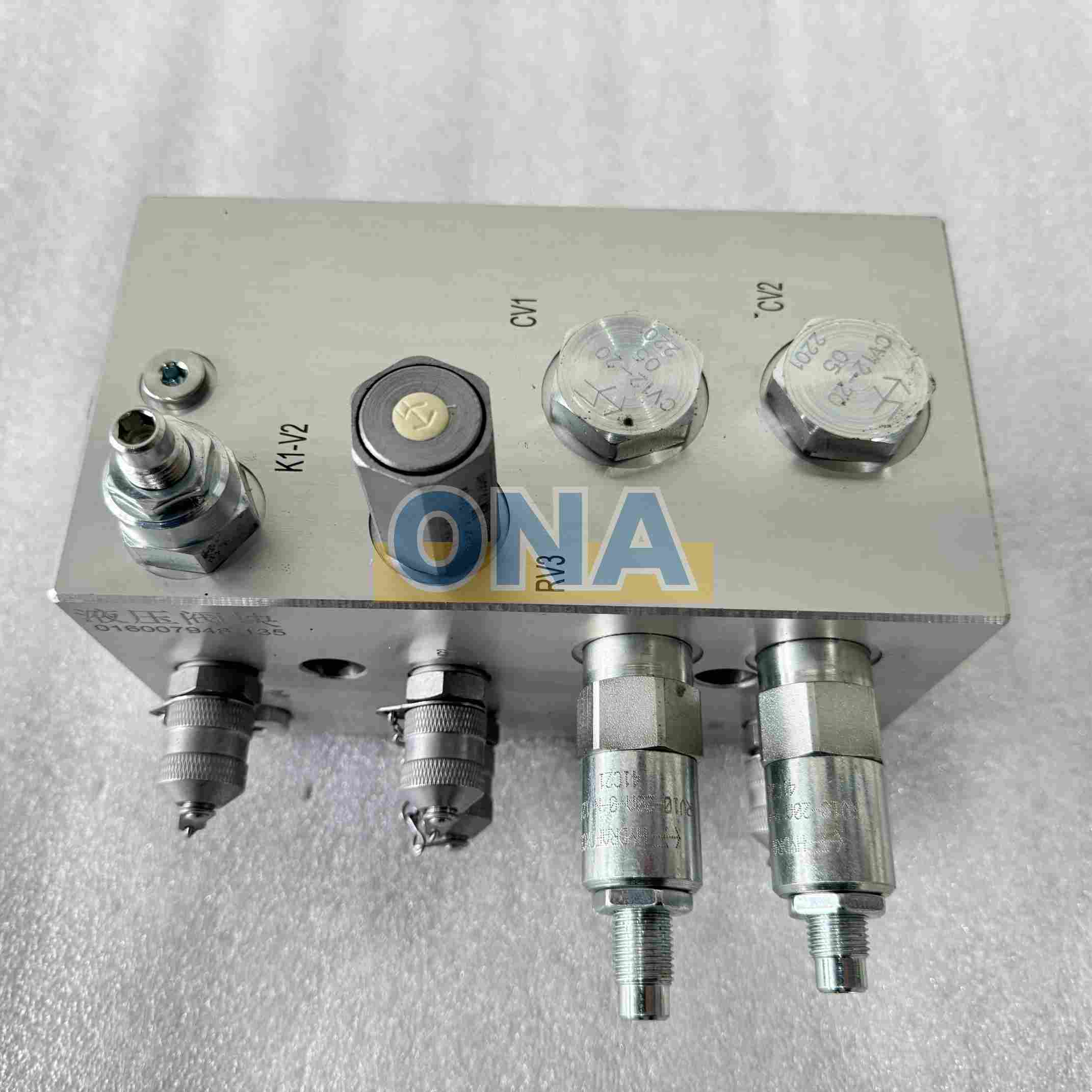

Eg: HP300: ONA-N29201816

We can provide the entire drilled block, also can provide valves in single.

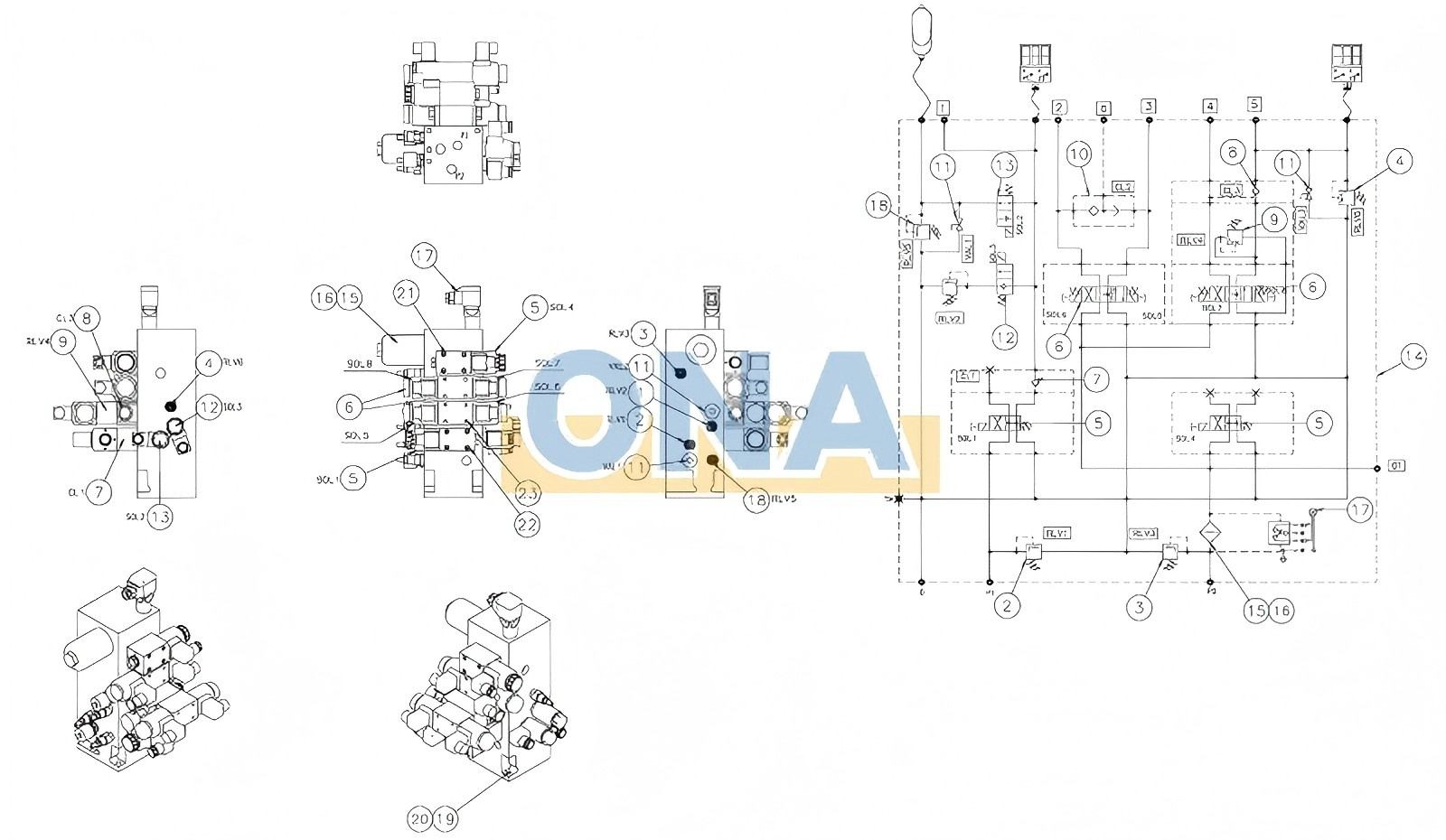

britador hp 400 metso

No.	Part Number	Description	Quantity
1	ONA-7002480887	PRESSURE RELIEF VALVE	1
2	ONA-7002480888	PRESSURE RELIEF VALVE	1
3	ONA-MM0232783	PRESSURE RELIEF VALVE	1
4	ONA-N02482102	PRESSURE RELIEF VALVE	1
5	ONA-N02482166	VALVE, DIRECTIONAL	2
6	ONA-N02482165	VALVE, DIRECTIONAL	2
7	ONA-7002480753	VALVE, CHECK	1
8	ONA-7002480754	VALVE, CHECK	1
9	ONA-N02482101	VALVE, PRESSURE RELIEF	1
10	ONA-7002480755	VALVE, SHUTTLE	1
11	ONA-MM0232727	VALVE, FLOW CONTROL	2
12	ONA-MM0232715	VALVE, DIRECTIONAL	1
13	ONA-MM0232725	VALVE, DIRECTIONAL	1
14	ONA-N29201813	DRILLED BLOCK	1
15	ONA-MM0233032	FILTER CASE	1
16	ONA-MM0232736	FILTER CARTRIDGE	1
17	ONA-MM0232739	INDICATOR, CLOGGING	1
18	ONA-7002480889	PRESSURE RELIEF VALVE	1
19	ONA-7001624008	WASHER, PLAIN	3
20	ONA-7001532104	SCREW, HEXAGONAL	3
21	ONA-704103348900	HEXAGON SOCKET HEAD CAP SCREW	8
22	ONA-704103356010	HEXAGON SOCKET HEAD CAP SCREW	4
23	ONA-MM0237246	HEXAGON SOCKET HEAD CAP SCREW	4

Is there any difference from ONA crushing cone crusher spare parts and original parts?

1. Design and Fit

ONA manufactured based on the original engineering drawings and specifications, ensuring optimal performance and compatibility.

2. Quality and Reliability

ONA has strict quality control processes and uses high-quality materials to ensure the durability and longevity of their crushing plant parts. This results in fewer breakdowns and longer service life.

3. Warranty

Using ONA crushing machinery parts ensures that your order remains under warranty. ONA stands behind their parts and can provide support and replacement if issues arise.

4. Expertise and Support

ONA has extensive expertise in the equipment. They can provide technical support and solutions to address issues effectively.

5. Cost

ONA often provide better long-term value. The same quality and reliability can lead to lower maintenance costs and fewer unexpected repairs. Compared with original price, ONA is more high-cost performance.
