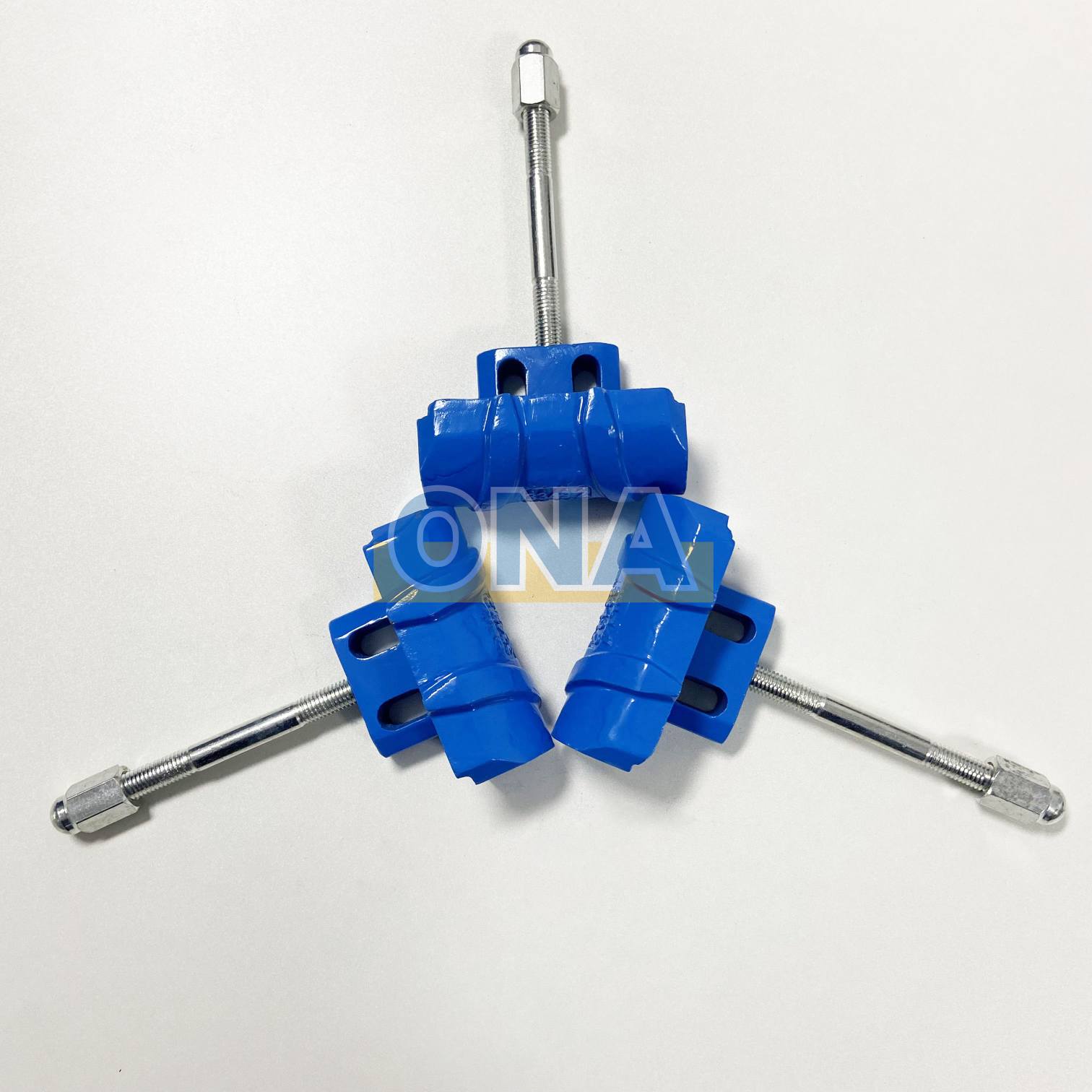

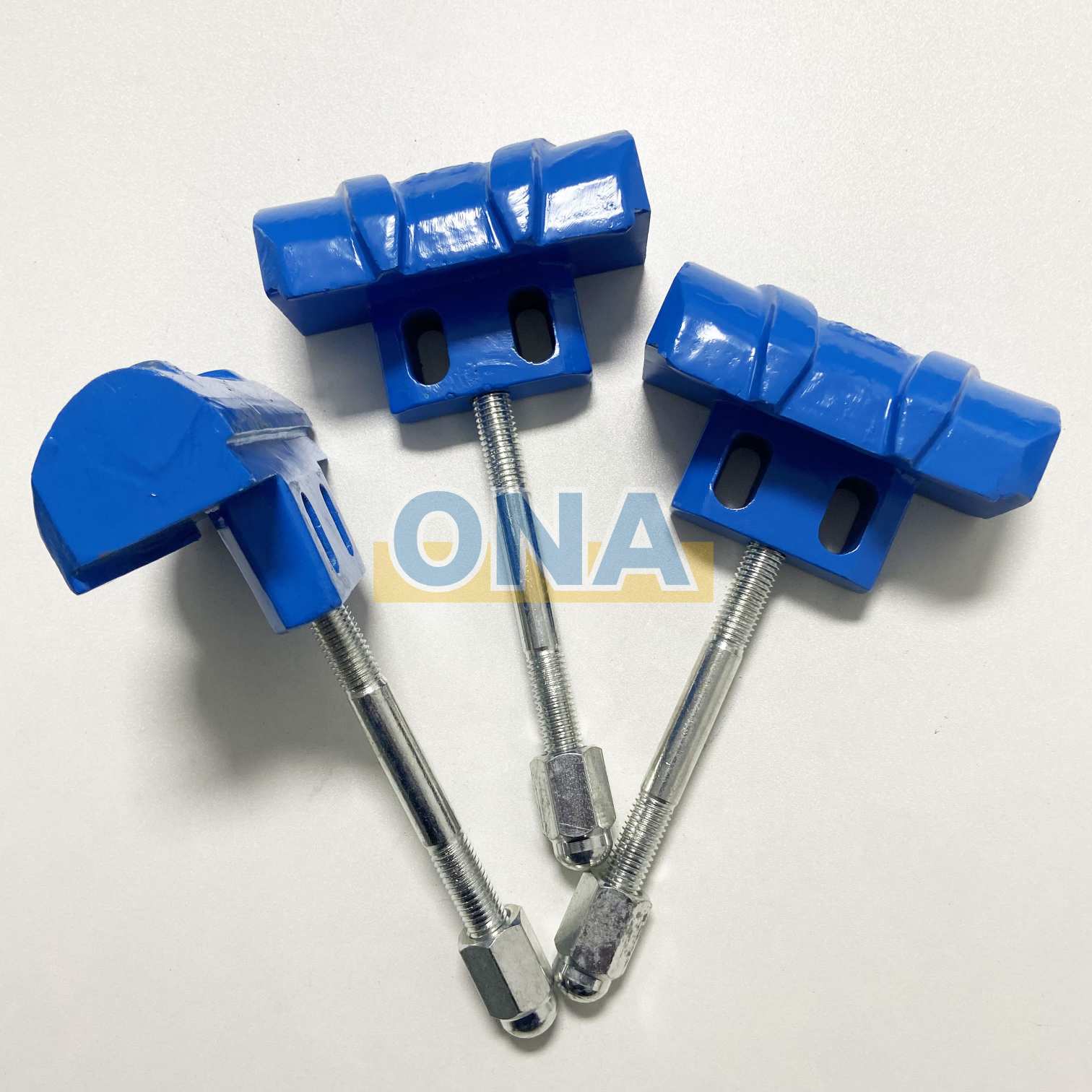

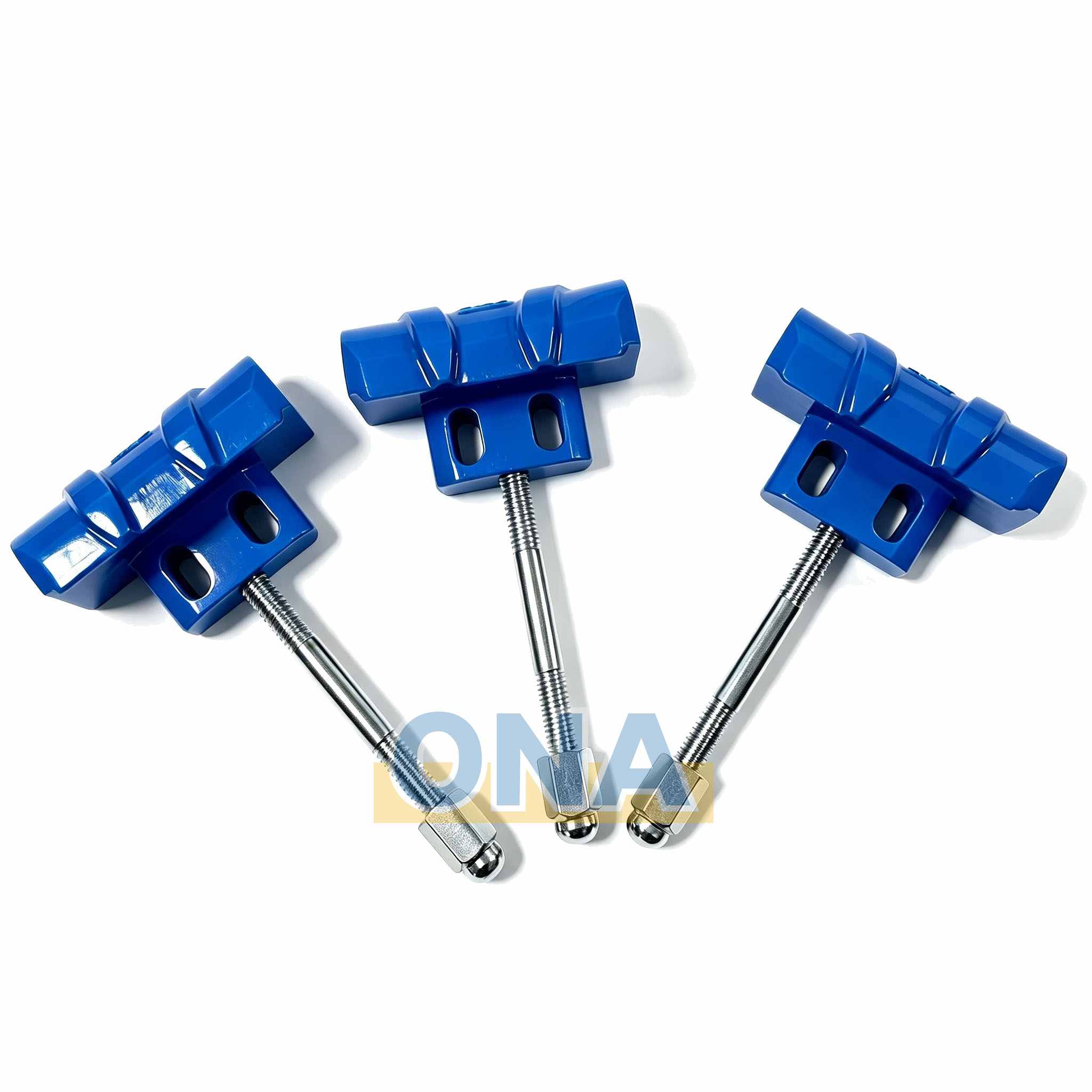

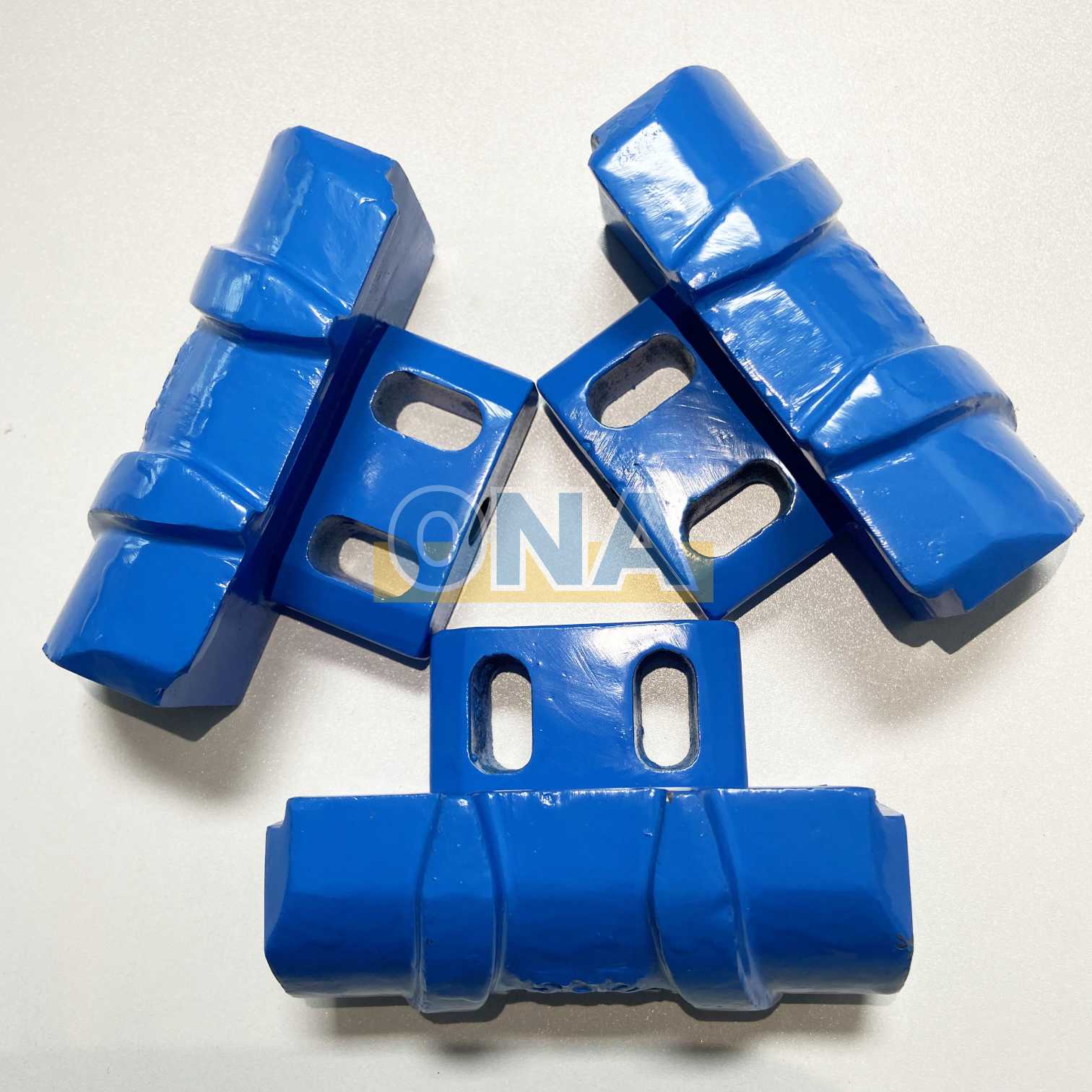

CV228 Rotor Tip Set 110mm Hard, Part No. 488.1456-901, high wear-resistant spare parts suitable for Sandvik CV228 VSI crusher.
Item No :
CV116, CV215, CV216, CV217, CV218, CV228, CV229Part Number :
ONA-488.1456-901Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
15-20 DaysWeight :
5.7KGOrder(MOQ) :
1
Sandvik CV228 Vertical Shaft Impact Crusher Rotor Tip Set
Compatible with: CV229;
Not compatible with CV216/Sandvik VSI CV218.
Please verify the part number when ordering.

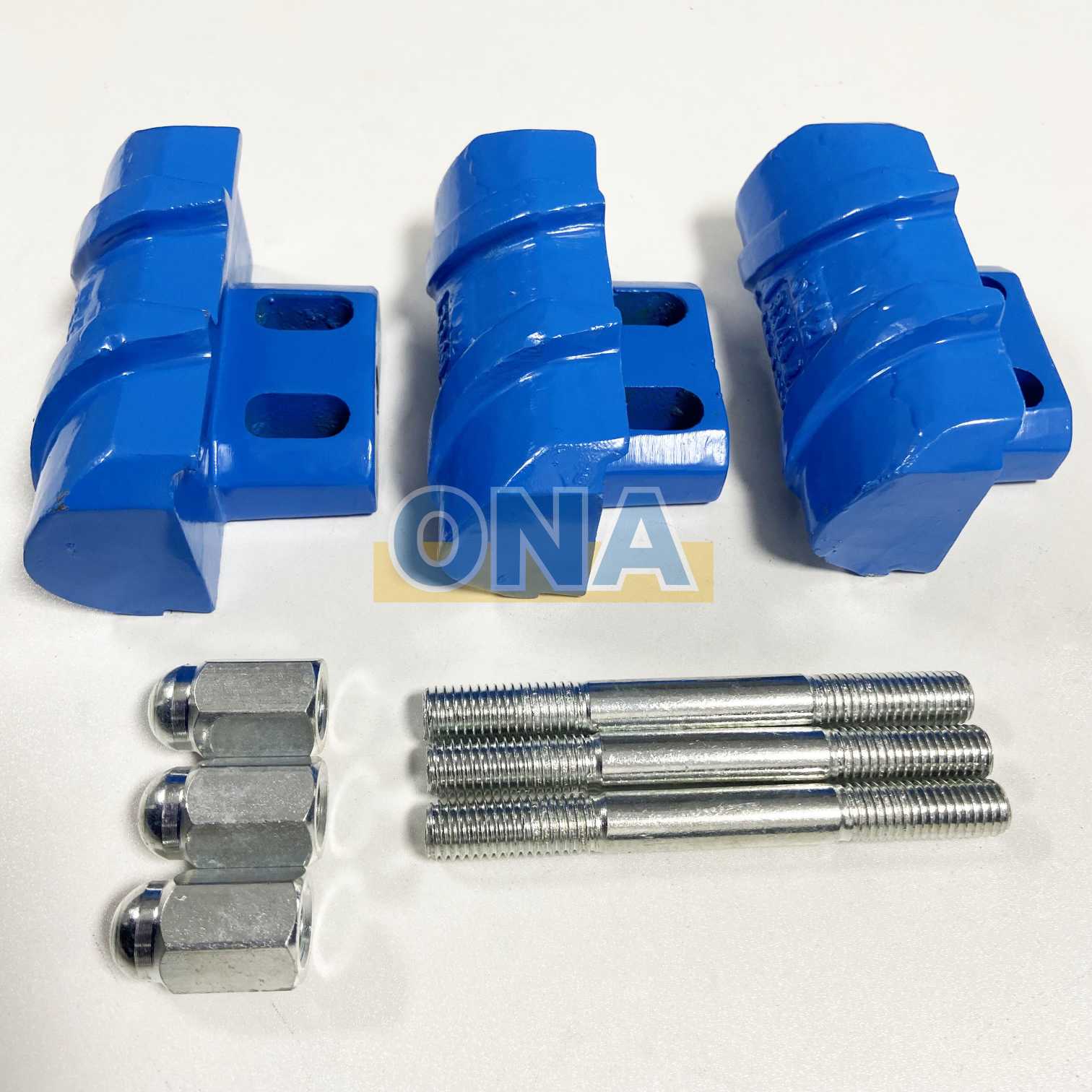

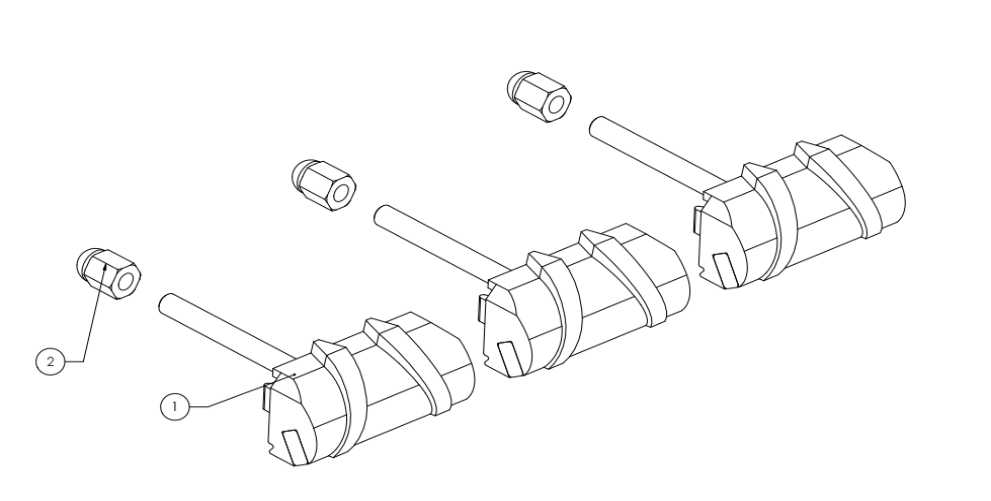

What components are included in a set of rotor tips?
| Part Number | Includes accessories | Description |
|
488.1456-901 |
488.1313-001 488.1737-001 |
NUT, NEX THREADED ROD |
Related parts:
VSI Crusher parts cavity wear plate, trial plate, distributor plate, upper & lower wear plate, top & bottom wear plate, feed tube...
Installation Location
Installed at the discharge port of the CV228 three-channel turbine rotor;
The complete rotor set consists of 3 units per group.
Product Function
● Material enters the high-speed rotating rotor, where the throwing head directly impacts and accelerates the stone, using centrifugal force to propel it out at high speed;
● Achieving "stone-on-stone" self-impact crushing, controlling the output particle shape, and increasing the cubic content of aggregate;
● Protecting the rotor matrix: once the throwing head wears through, the stone directly erodes the rotor housing, causing permanent rotor wear and imbalance;
Date Sheet
| Production Name | Rotor Tip |
| Material | High-Strength Alloy Steel + Inlaid Tungsten Carbide Alloy |
| OEM Part Number | ONA-488.1456-901 |
| Compatible rotor | CV228 |
| Quantity | 3 pieces/set |
| Mounting Method | Bolted Fastening |
Applicable Material List
Granite, basalt, river pebbles, quartzite, limestone, dolomite, iron ore, bauxite, concrete solid waste, building aggregates, artificial sand, stone shaping.
✅【Precise Interchangeability】Manufactured according to original drawings, disassembly and assembly require no grinding, minimizing downtime for replacement.
✅【Longer Wear-Resistant Lifespan】High-quality alloy working surface, reducing frequent downtime.
✅【Impact Resistance and Less Prone to Cracking】Balancing hardness and toughness, it is less likely to break the blade when the feed contains iron blocks or large stones.
✅【Ensuring Rotor Dynamic Balance】Strictly controlled weight error, complete replacement avoids rotor vibration, protecting the main shaft and bearings.
✅【Stable Finished Product Particle Shape】Maintains consistent material ejection angle, ensuring cubic particles of sand and gravel, reducing needle-like and flaky particles.
❌Common Problems with Inferior Parts: Dimensional deviation, installation jamming; easy alloy detachment; severe short-term wear; chipping; increased rotor vibration and poor output particle shape.
| Carton Box Size (mm) | Details |
Content |
Part Number | Description |
| 450*210*70 |
With Two Layers, 3mm Thick |
3pcs/set |
ONA-488.0360-901 | Upper & Lower Wear Plate |
| ONA-488.0851-901 | ||||
| ONA-488.0850-901 |
||||
| ONA-488.0361-901 | ||||
| 360*310*80 |
Standard Distribution Plate |
1pc/set |
ONA-488.0076-001 | Distributor Plate |
| ONA-488.0770-001 |
||||
| 350*350*150 | Feed Tube | 1pc/set | ONA-485.0091-001 | Feed Tube |
| ONA-488.0258-001 | ||||
| 130*100*195 |
With Two Layers |
3pcs/set | ONA-488.1644-901 | Cavity Wear Plate |
|
ONA-488.1703-901 |
||||
| ONA-488.1704-901 |
FAQ
1. What's the production time for VSI crusher wear parts?
We have many parts available for VSI crusher, for big quantity, production time abour 15-20 days.
2. Can I hava my own logo on the parts?
Sure, we provide different customized logo, such as casting, laser print.
3. I don't have part number of my parts, can you help me?
Sure, first, you can try to provide more information which you have, our technician will confirm it. Or send the sample to us.
ONA manufacture high-performance replacement rotors and wear parts compatible with Sandvik VSI crushers. All products are engineered to meet OEM standards, ensuring seamless integration and reliable performance.
Details
CV228 Rotor Tip Set 110mm Hard, Part No. 488.1456-901, high wear-resistant spare parts suitable for Sandvik CV228 VSI crusher.
