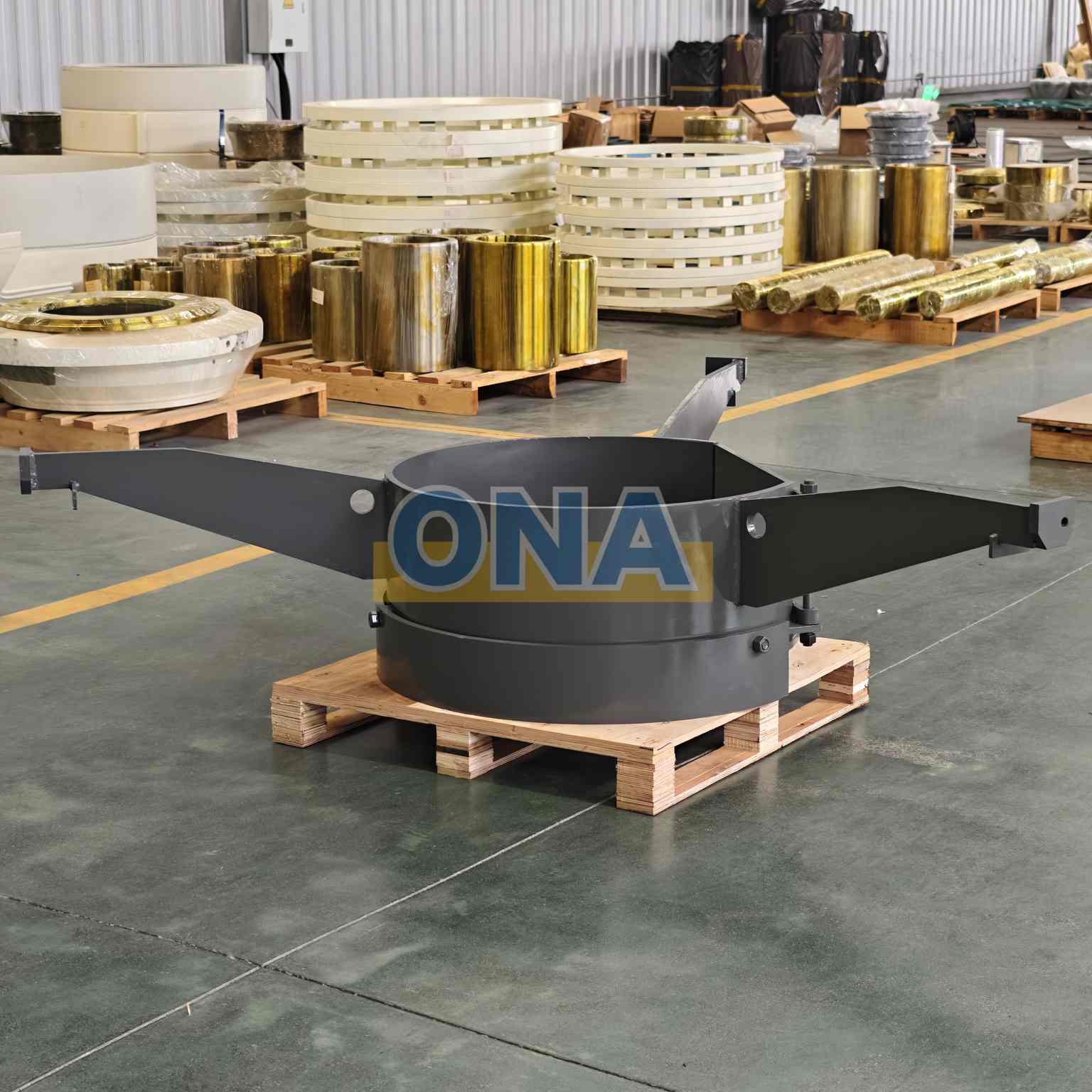

ONA Casting manufactures the feed kit holder assembly suit to Sandvik VSI sand making machines. Precision machining ensures proper assembly original standards. It features high rigidity, impact and vibration resistance, compatible with Sandvik CV series vertical shaft impact sand making machines.
Item No :
CV228, CV229Part Number :
ONA-488.1672-901Payment :
TT, Paypal, VTB BankProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
15-20 DaysOrder(MOQ) :
1
The feed kit holder assembly, located on the rotor(crushing chamber), is used to position and secure internal wear-resistant components (rotor, tip sets, distributor plate), ensuring the assy clearance and positional accuracy of each wear-resistant parts; preventing displacement and loosening of wear parts under high-speed rotation. And to withstand vibrations and lateral loads from material impacts, protecting the rotor body from direct impact damage.

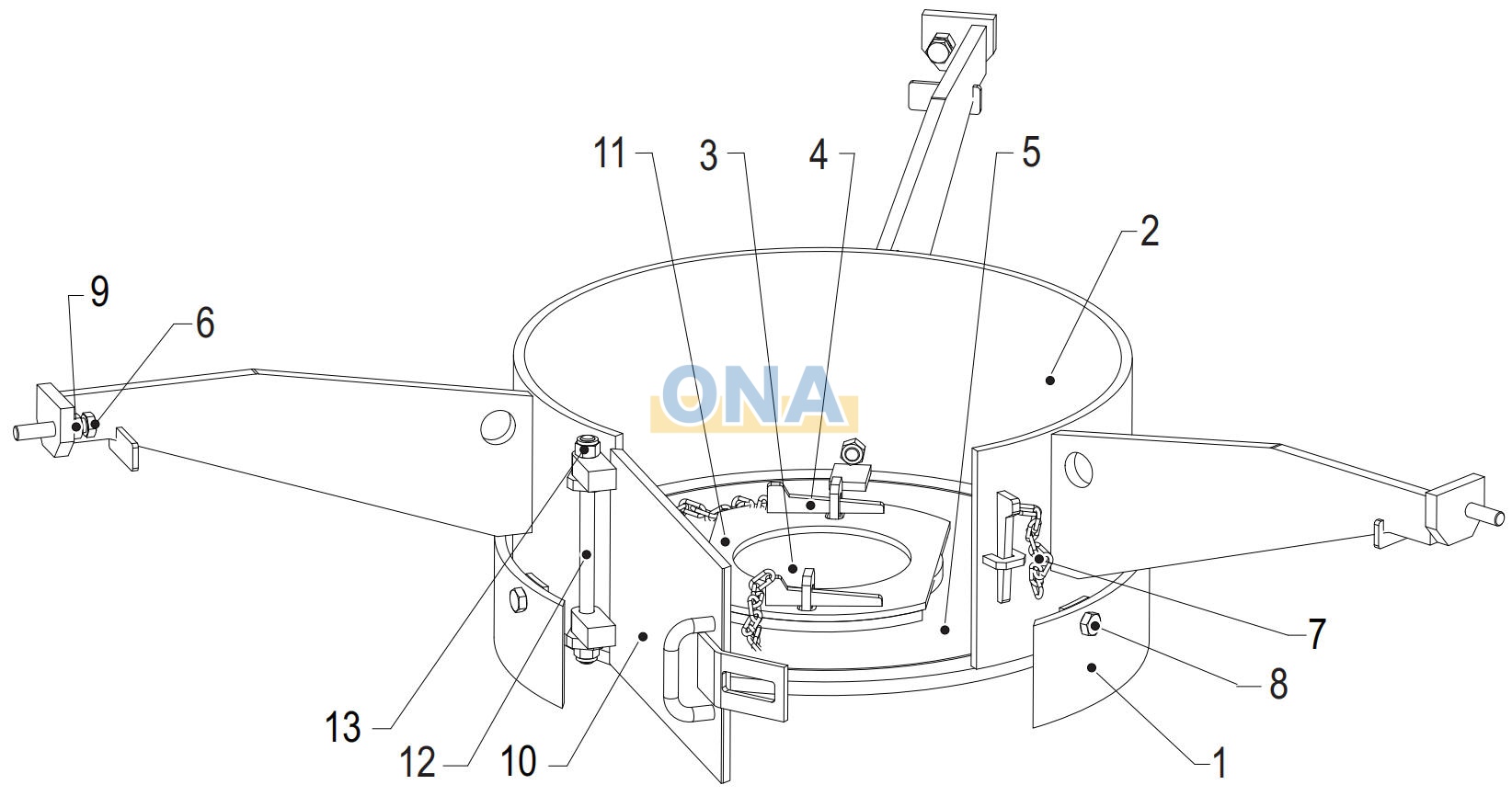

Installation Location
| Pos. No. | Quantity | Part Number | Description |
| 1 | 1 | ONA-488.1676-001 | Ring |
| 2 | 1 | ONA-488.1673-901 | VSI Feed kit assembly |
| 3 | 1 | ONA-488.0258-001 | Feed tube |
| 4 | 3 | ONA-488.0270-001 | Wedge |
| 5 | 1 | ONA-488.1677-901 | Plate |
| 6 | 6 | ONA-845.0010-00 | Nut |
| 7 | 3 | ONA-488.0499-901 | Chain |
| 8 | 3 | ONA-840.0078-00 | Screw |
| 9 | 3 | ONA-840.0653-00 | Screw |
| 10 | 1 | ONA-488.1679-901 | Hatch |
| 11 | 1 | ONA-488.1624-901 | Locking plate |
| 12 | 1 | ONA-488.1671-001 | Bolt |
| 13 | 2 | ONA-845.0203-00 | Nut Lock |

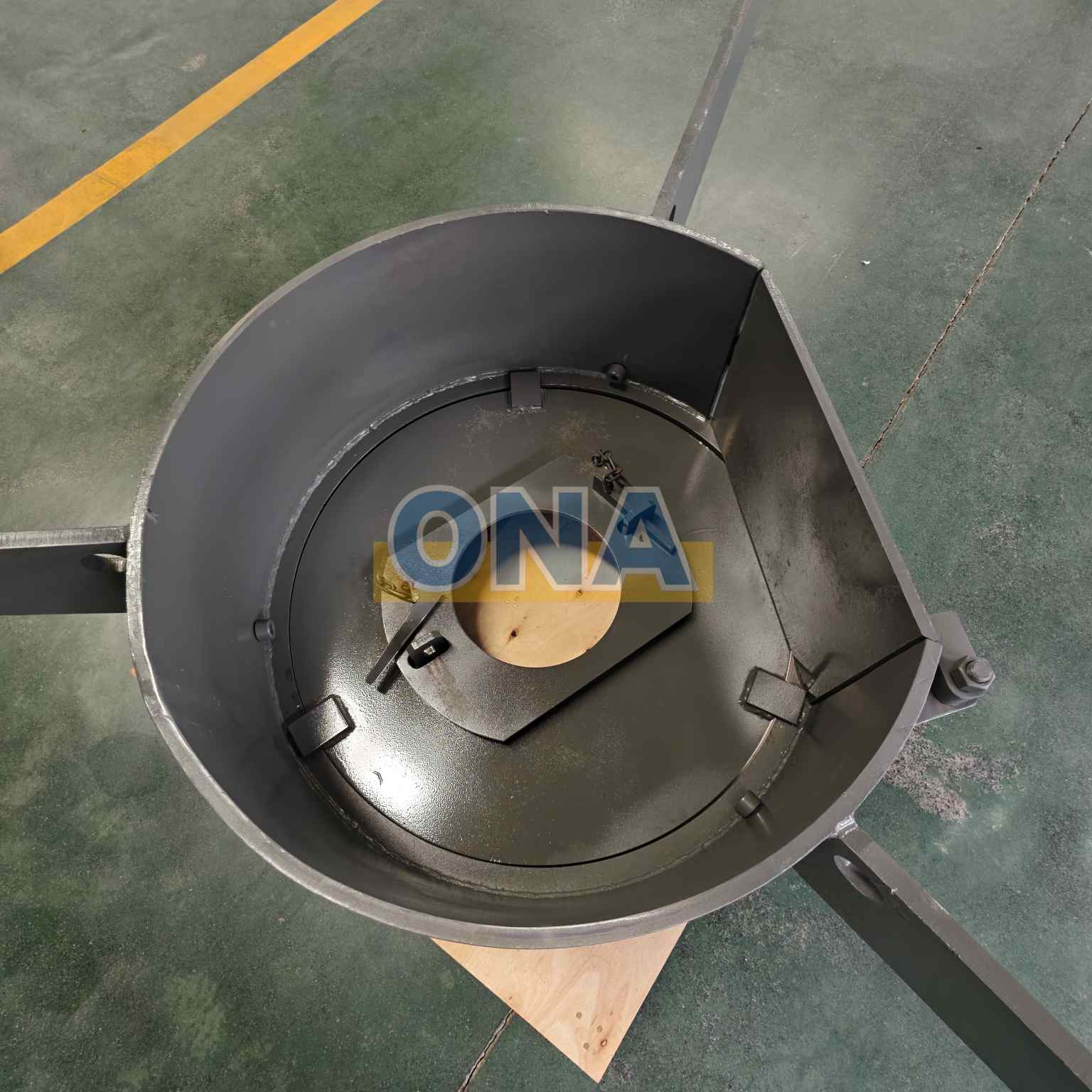

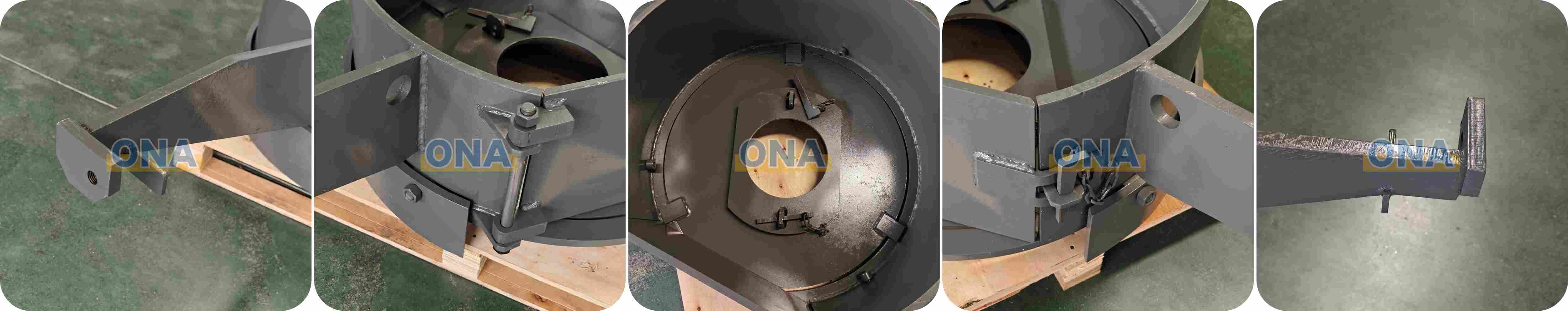

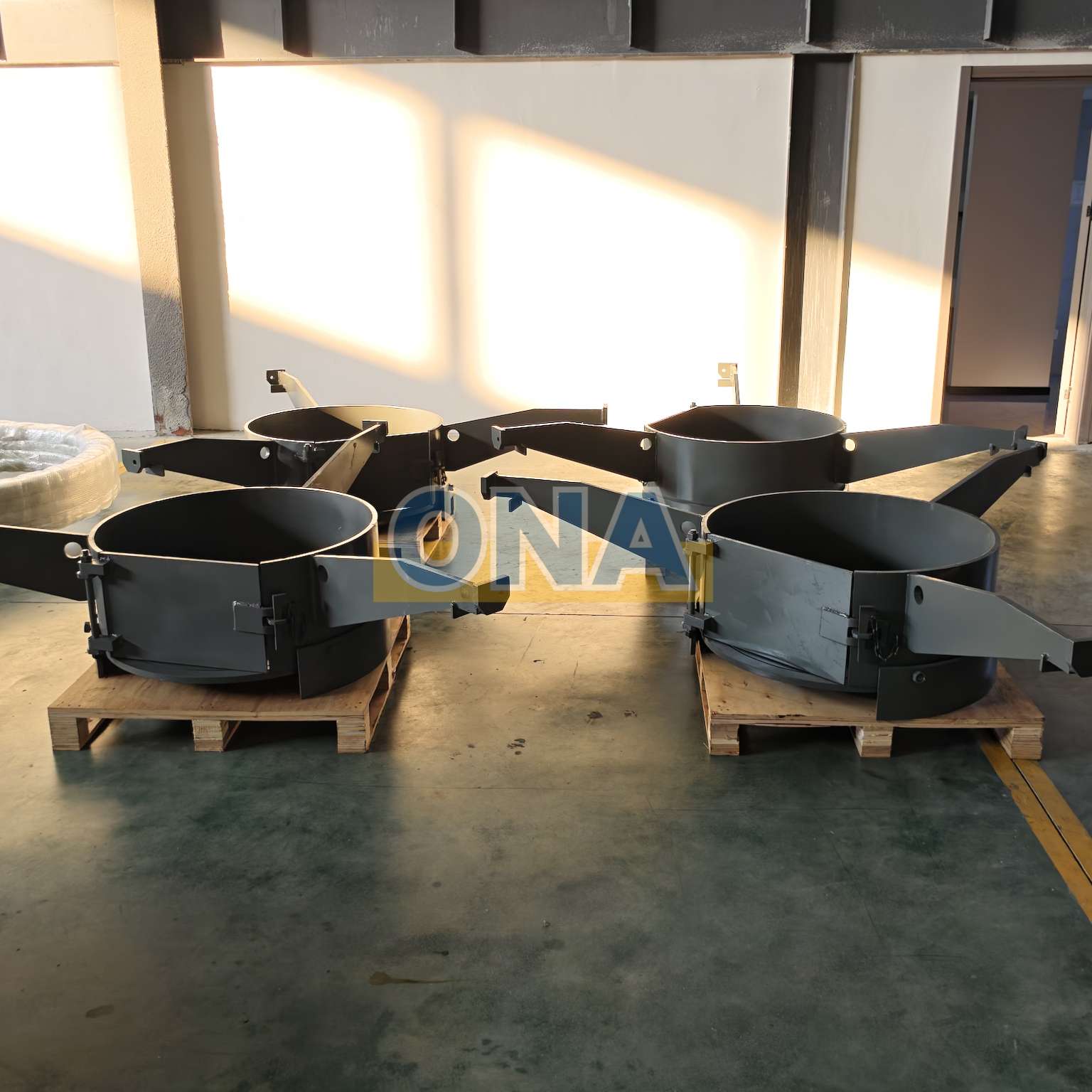

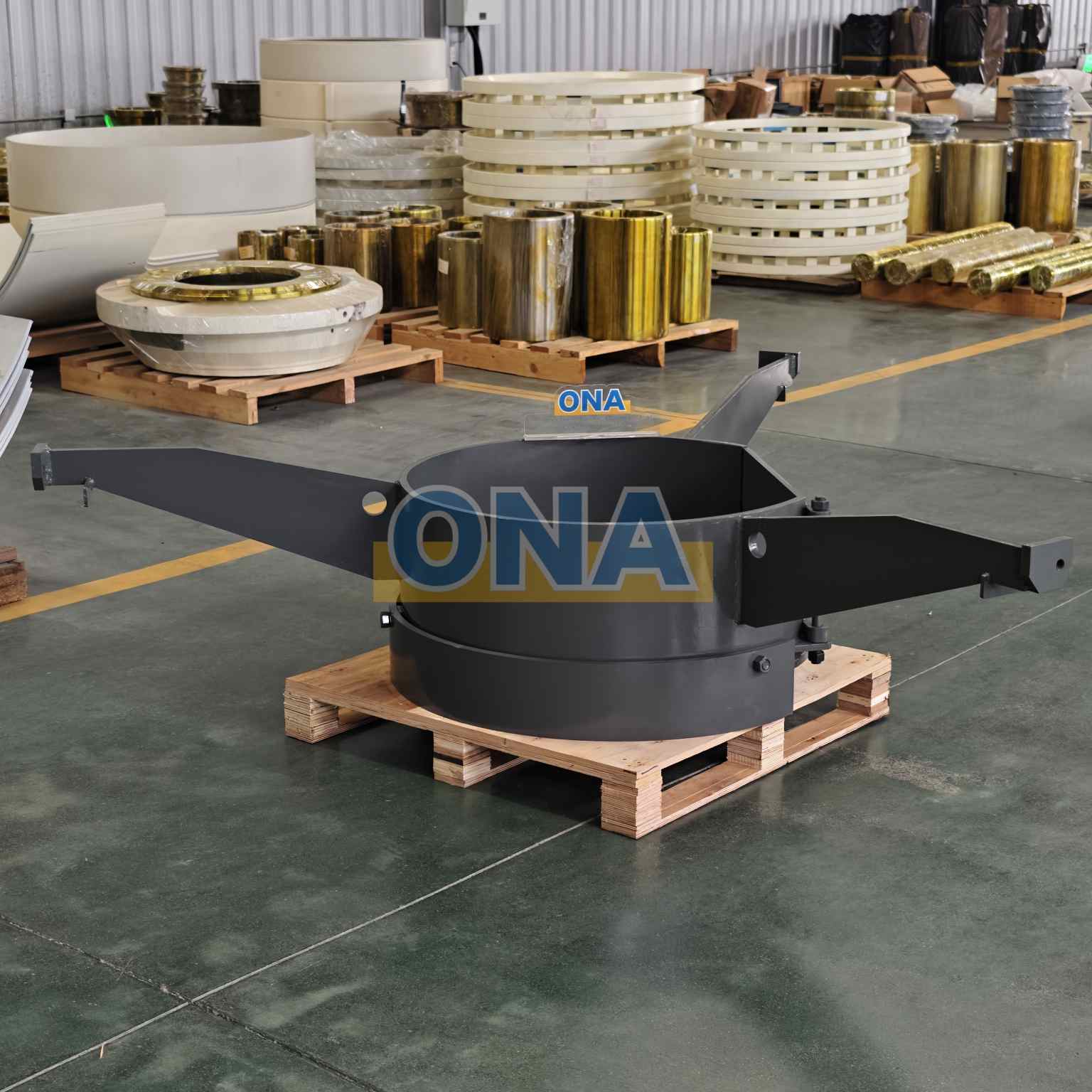

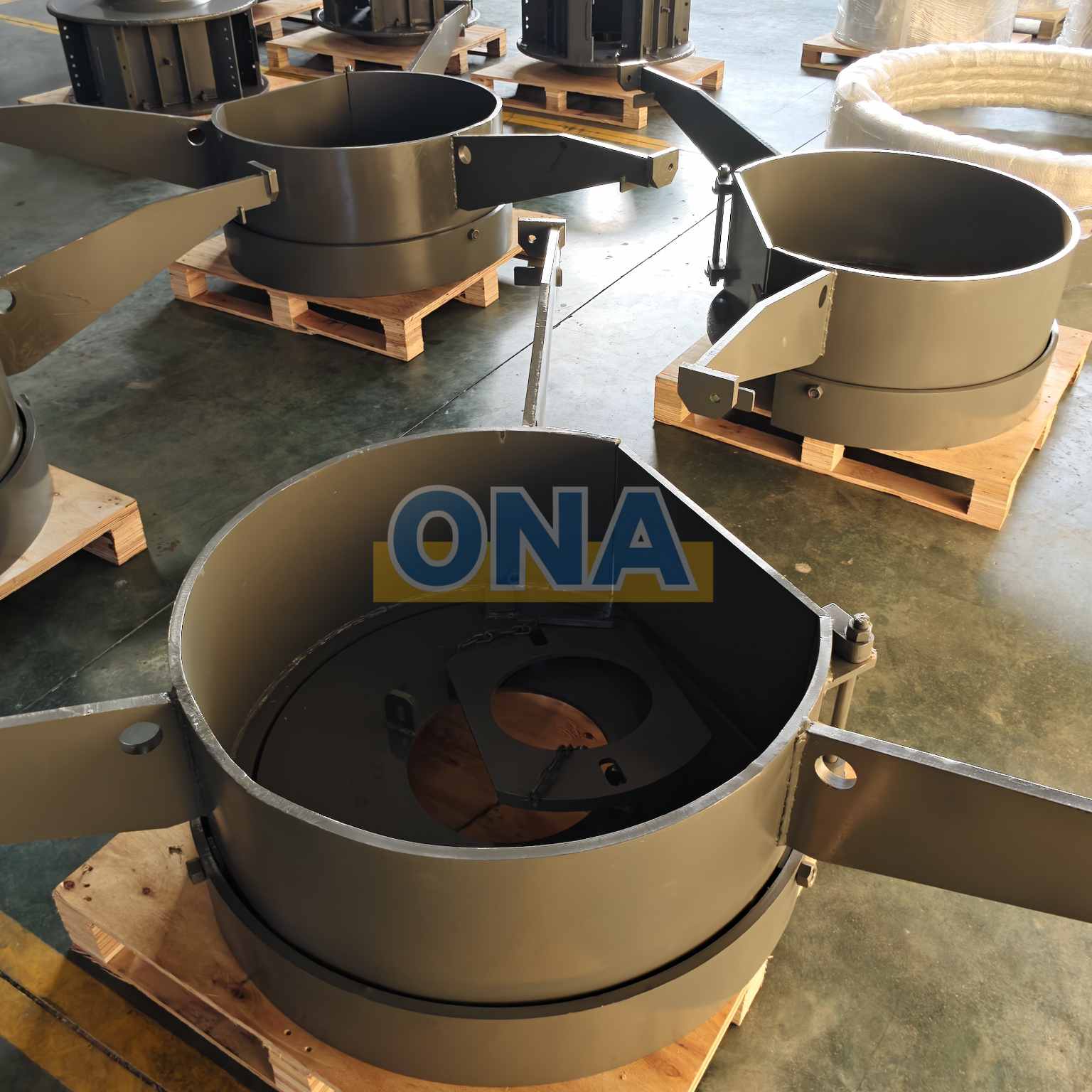

Product Details
Application Scenarios
a. Granite, basalt, and river pebble sand production; mixing plant; dry mortar plant.
b. Cubic aggregate shaping for highways, high-speed railways, water conservancy dams, and airport projects.
c. Pre-crushing of metallic/non-metallic ores before grinding (iron ore, quartz, feldspar, etc.).
d. Processing of recycled aggregates from construction waste, tailings, and steel slag. Adaptable to both stone-on-stone and stone-on-iron crushing modes, capable of withstanding long-term continuous impact and vibration, ensuring stable and continuous operation of the production line.
About ONA Casting
ONA Casting (MAANSHAN ONA INTELLIGENT EQUIPMENT CO., LTD) is a professional manufacturer of mining castings, specializing in the casting and machining of complete sets of accessories for vertical shaft impact crushers (VSI). We focus on wear-resistant parts which suit to Metso Barmac and Sandvik CV series VSI crushers, including the rotor assembly, feed cone, upper and lower wear plates, and tip set, among other accessories.
Based on mature steel casting technology, our products are suitable for high-impact, heavy-duty applications such as hard rock sand making, aggregate shaping, tailings and construction waste recycling. We support customized production according to original factory drawings, and each product comes with material testing, dimensional inspection reports. We offer both spot and bulk casting orders, providing one-stop service for crusher overhauls and spare parts replacement.
Who has used our product?
Customers of ONA Casting are spread across all provinces in China and many countries worldwide. We serve aggregate plants, mining companies and solid waste recycling projects domestically and overseas. Many long-term global partners purchase our crusher spare parts suit to Sandvik VSI including rotor assembly, tip sets and wear liners. We ensure reliable product supply and online technical support for clients around the world.
FAQ
1. Can I customized my logo?
Yes, we provide laser printing.
2. What's the material of the feed kit assembly?
The material is alloy steel.
3. What's the production time?
About 20-25 days.
ONA manufacture high-performance replacement rotors and wear parts compatible with Sandvik VSI crushers. All products are engineered to meet OEM standards, ensuring seamless integration and reliable performance.
Details
CV228 Rotor Tip Set 110mm Hard, Part No. 488.1456-901, high wear-resistant spare parts suitable for Sandvik CV228 VSI crusher.
Details
ONA Casting manufactures the feed kit holder assembly suit to Sandvik VSI sand making machines. Precision machining ensures proper assembly original standards. It features high rigidity, impact and vibration resistance, compatible with Sandvik CV series vertical shaft impact sand making machines.
Details
The Shaft assembly with housing is the core part of the power transmission system in a VSI crusher and one of the critical parts of the entire machine subjected to the highest rotational speeds and maximum torque.
Details
