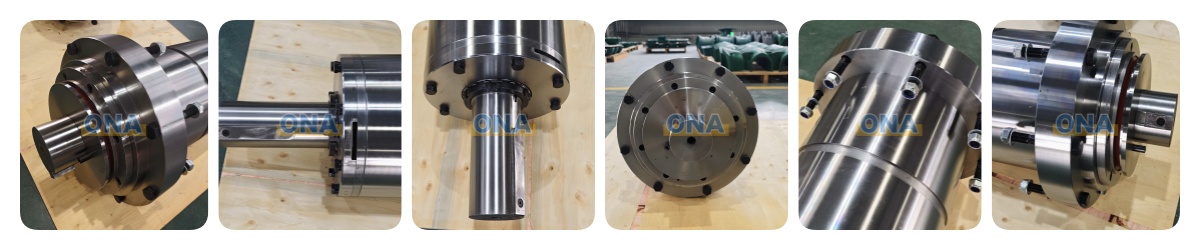

VSI Crusher Shaft assembly with housing to Sandvik CV228 CV229
The Shaft assembly with housing is the core part of the power transmission system in a VSI crusher and one of the critical parts of the entire machine subjected to the highest rotational speeds and maximum torque.
Item No :
CV228, CV229Part Number :
ONA-488.0113-901, ONA-488.0113-902Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1
The Shaft assembly with housing is the core transmission of a VSI sand making machine, transferring motor power to the impeller. Its performance directly affects machine stability, crushing efficiency, and service life.
Application Scenarios: Stone crushing and sand making production lines in industries such as mining, building materials, metallurgy, and highway construction.
Material Specification Sheet
| Material: High-strength alloy steel 42CrMo | C | Si | Mn | Cr | Mo | P | S | ||
| Part Number | Description | Quantity | 0.38‑0.45% | 0.17‑0.37% | 0.50‑0.80% | 0.90‑1.20% | 0.15‑0.25% | ≤0.035% | ≤0.035% |
| ONA-488.0113-901 | Shaft assembly with housing | 2 | 0.41% | 0.26% | 0.7% | 1.1% | 0.2% | 0.018% | 0.012% |
Product Composition and Installation
The drive shaft assembly with housing is primarily composed of core parts such as the shaft, sealing cap, cover, gasket, sealing sleeve, housing, key, V-seal, O-ring, lock nut, and bearing housing, all precisely assembled. When installing ONA bearings, the shaft and inner ring must be interference-fitted, while the housing bore and outer ring must be clearance-fitted. It is essential to ensure that the moving ring is interference-fitted and the stationary ring is clearance-fitted. Cleaning and lubrication of the mating surfaces must be performed according to standards.
Product Details
Package

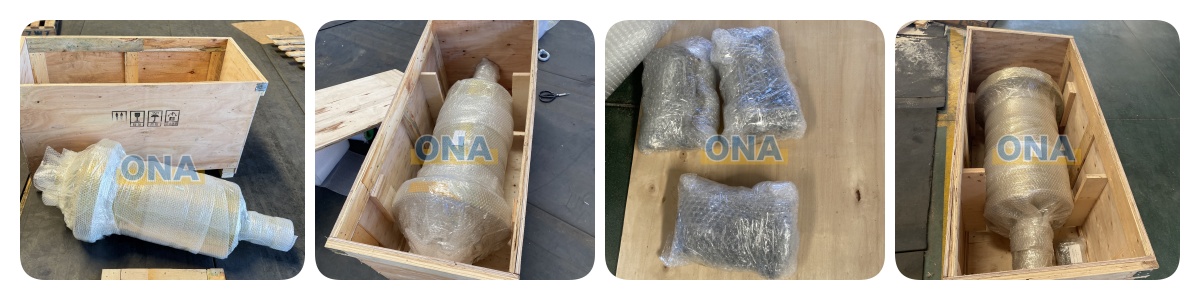

This product is packaged with a double protection method: an inner moisture-proof film wrapping and an outer solid wooden crate. The film layer isolates moisture and dust, while the wooden crate has built-in shock-absorbing and fixing brackets to effectively resist bumps and impacts during transportation, ensuring that the shaft assembly with housing is delivered to the site safely and undamaged.
Data Sheet
| Production Name | Shaft Assembly With Housing |
| OEM Number | ONA-488.0113-901 |
| Material | High-strength alloy steel |
| Compatible models | CV228 CV229 |
| Machining accuracy | ±0.05mm |
| Sealing method | Double protection sealing structure |
Applicable Equipment Range
1. VSI Series Vertical Shaft Impact Crusher.
2. 5X Series High-Efficiency Crusher.
3. PCL Series Vertical Shaft Impact Crusher.
4. Various Types of Vertical Shaft Impact Crusher.
FAQ
1.Do I need to assemble it myself after delivery?
No. The product is pre-assembled at the factory; simply hoist it into place and connect the conveyor belts for immediate use.
2.What should be paid attention to in routine maintenance?
Regularly add grease, check the sealing condition, and pay attention to any abnormal noises or temperature rises during operation.
3.How can I confirm if my sand making machine is compatible?
Provide the equipment brand and model, or parameters such as spindle diameter and bearing model, and our technical team will assist in accurate matching.
ONA manufacture high-performance replacement rotors and wear parts compatible with Sandvik VSI crushers. All products are engineered to meet OEM standards, ensuring seamless integration and reliable performance.
Details
CV228 Rotor Tip Set 110mm Hard, Part No. 488.1456-901, high wear-resistant spare parts suitable for Sandvik CV228 VSI crusher.
Details
ONA Casting manufactures the feed kit holder assembly suit to Sandvik VSI sand making machines. Precision machining ensures proper assembly original standards. It features high rigidity, impact and vibration resistance, compatible with Sandvik CV series vertical shaft impact sand making machines.
Details
The Shaft assembly with housing is the core part of the power transmission system in a VSI crusher and one of the critical parts of the entire machine subjected to the highest rotational speeds and maximum torque.
Details
