Clamping Cylinder Seal Kit for HP200 & HP300 & HP500 Cone Crushers
ONA clamping cylinder seal kits are precision‑engineered sealing solutions specifically designed for the clamping cylinders of cone crushers, suitable for Nordberg HP200, HP300, and HP500 models.
Item No :
HP200, HP300, HP500, HP800Part Number :
ONA-1094260094, ONA-1094280087, ONA-1093070002Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1ONA clamping cylinder seal kits are essential for maintaining the hydraulic integrity and reliable operation of your crusher's clamping system, which directly affects crushing force stability and safety.

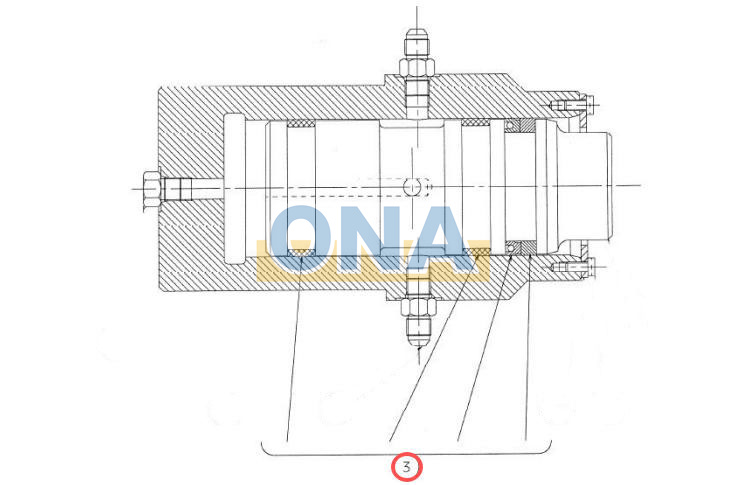

Typically, the seal kit consists of 4 pieces installed in different positions; refer to the drawing on the right, where label 3 indicates the clamping cylinder seals. All of them are part of the clamping cylinder assembly. These sealing components are engineered to withstand the most demanding mining and quarrying conditions, offering excellent resistance to high hydraulic pressure, wide temperature fluctuations, and aggressive contamination from dust, sand, and moisture. By effectively sealing the cylinder, they prevent fluid leakage and keep contaminants out, thereby extending the service life of both the seal kit and the cylinder itself.
Each ONA seal kit contains all necessary sealing elements for a complete overhaul of the clamping cylinder. The seals are carefully matched to OEM specifications to ensure a perfect fit, eliminating the risk of fluid bypass, pressure loss, or external leakage. By restoring the cylinder’s original sealing performance, our kits help prevent unplanned downtime and reduce the need for frequent maintenance.

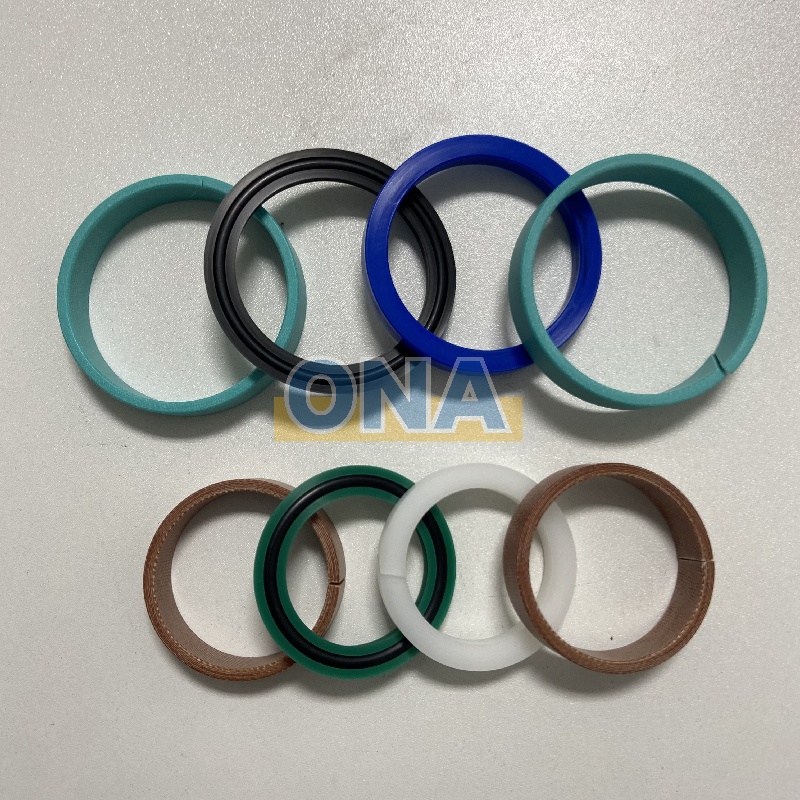

ONA clamping cylinder seal kits are direct‑fit replacements, requiring no modifications for installation. They are manufactured under strict quality control, and every kit is 100% inspected before shipment to guarantee reliable performance and zero leakage. For HP200 (clamping cylinder part no. ONA-1094260094), the seal kit is supplied as a set of 4 pieces. For HP300 & HP500 (clamping cylinder part no. ONA-1094280087), the seal kit also consists of 4 pieces, but the seals are significantly larger in size – see the left image, where the top row shows HP300/HP500 seals and the bottom row shows HP200 seals.
ONA also offers clamping cylinder seal kits for many other crusher models. For part number cross-references, kit configuration, availability, or technical support, reach out to ONA today.
