denp cone crusher spare parts spare parts for cone crusher

Cone Crusher Parts HP300 HP6 Pressure Accumulator

HP300: N02445269, Net Weight 15.5kg

HP6: MM0258881, Net Weight 3.3kg

Item No :
HP100, HP200, HP300, HP400, HP500, HP700, HP800, HP900, HP3, HP4, HP5, HP6
Part Number :
ONA-N02445271, ONA-N90155811, ONA-N02445275, ONA-N02445272, ONA-N02445267, ONA-MM0235245, ONA-N90155810, ONA-N02445281
Payment :
TT
Product Origin :
China
Color :
Customized
Shipping Port :
Shanghai
Lead Time :
Stock
Order(MOQ) :
1

Inquiry Now

AVAILABLE PARTS

Product categories

New products

Product Details

Product Introduce

Quantity:

HP crusher replacement parts HP200, Nordberg HP300 crusher parts, China cone crusher spare parts HP400, Metso HP500 crusher parts, HP700, HP800, 6 units/unit.

HP3, HP4, HP5, and HP6 are two large accumulators + one small accumulator.

Material: Alloy steel

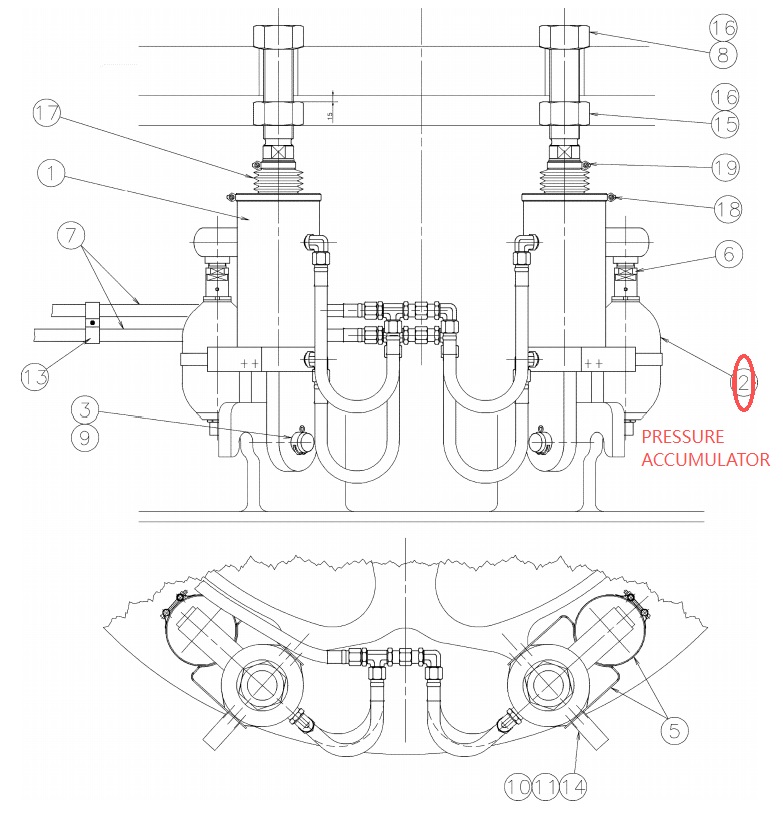

Eg. HP300, N90158030, Tramp release cylinder assembly, suit to Metso Outotec

N02445269

Position	Part Number	Description	Quantity	Net Weight. KG
1	1093030108	TRAMP RELEASE CYLINDER	6	120.8
2	N02445269	PRESSURE ACCUMULATOR	6	15.5
3	1054268497	AXLE	6	4.8
5	7033100511	COLLAR	6	1
6	1002077185	ADAPTER	6	0.34
7	1093030021	CLEARING/ RELEASE CIRCUIT	2	3
8	1051495225	NUT, SPHERICAL	6	2.5
9	7001612100	PIN, SPLIT	12	0.04
10	7001530098	SCREW, HEXAGONAL	24	0.01
11	7001630008	WASHER, LOCK, SERRATED	24	0.005
13	MM0289218	CLAMP FASTENER	6	0.2
14	7001624008	WASHER, PLAIN	24	0.004
15	7001563272	NUT, HEXAGONAL	6	2.5
16	7008010002	THREADLOCKER, HARD	1	0.32
17	7080200502	PROTECTIVE BELLOWS	6	0.3
18	7002118105	CLAMP	6	0.1
19	7002118061	CLAMP	6	0.05
20	7007503014	GREASE	1	1.8

Installation Location: Installed next to the tramp release cylinder. Nitrogen is filled to provide energy for the release cylinder.

Charging Phase: The hydraulic pump presses hydraulic oil into the accumulator, compressing the nitrogen in the internal bladder. Energy is stored as "oil pressure + air pressure."

Discharging Phase: When system pressure drops, the gas expands, pushing hydraulic oil back into the pipeline to compensate for any flow or pressure shortfalls.

Produce

Test

Hot Tags : metso hp6 metso hp300 pressure accumulator metso hp6 pressure accumulator nordberg hp300 cone crusher metso cone crusher parts hp cone crusher parts
