ONA is an OEM factory specializing in the production of crusher parts for well-known brands such as Metso, Sandvik, Trio, etc.
Item No :
HP100, HP200, HP300, HP400, HP500, HP800, MP800, MP1000, HP4, HP6Part Number :
ONA-7074129001, ONA-1057602103, ONA-1057612200, ONA-1057605169, ONA-1057605168, ONA-1057612405, ONA-1057610201, ONA-1057605258, ONA-N74129030, ONA-N74129032Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiOrder(MOQ) :
1Product Introduction

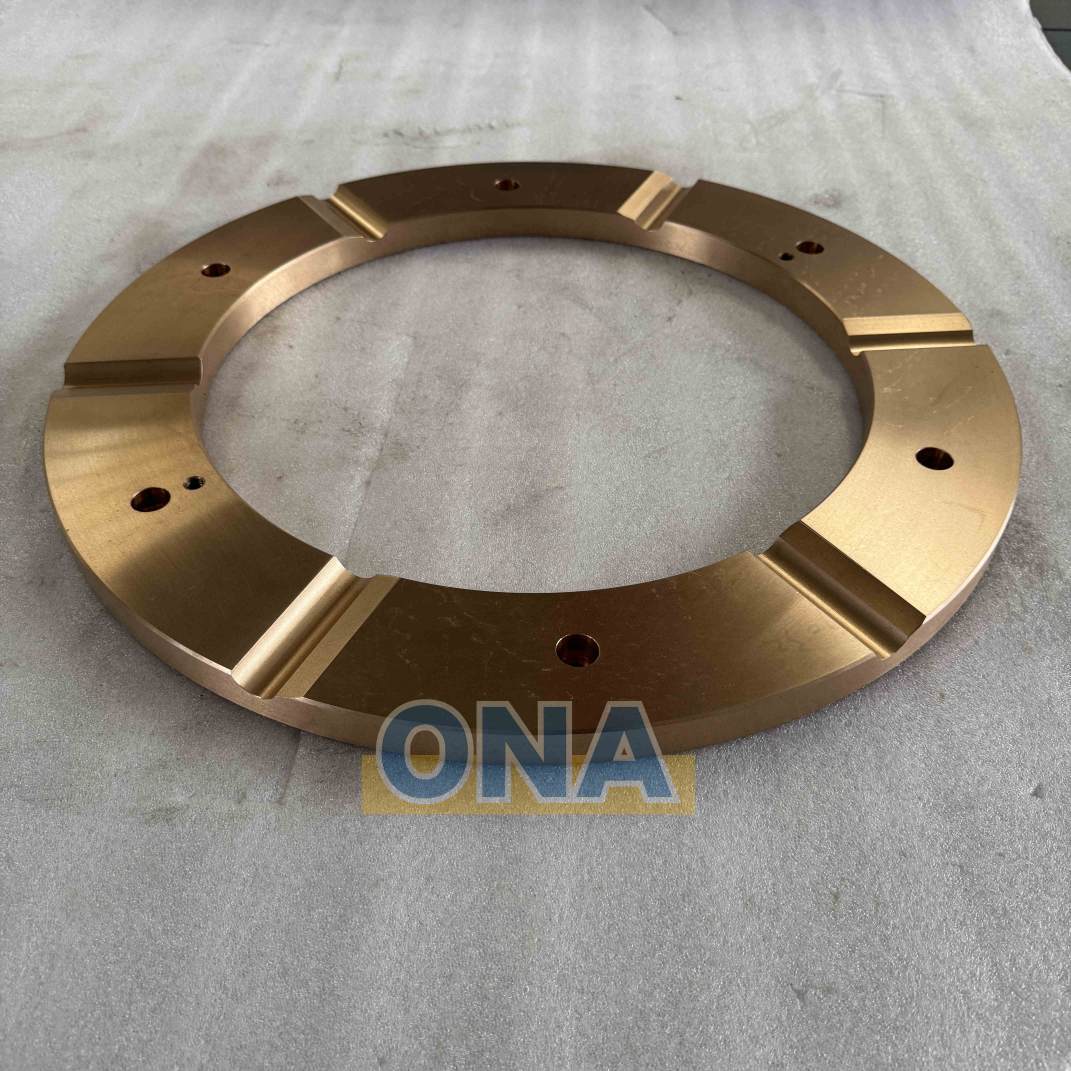

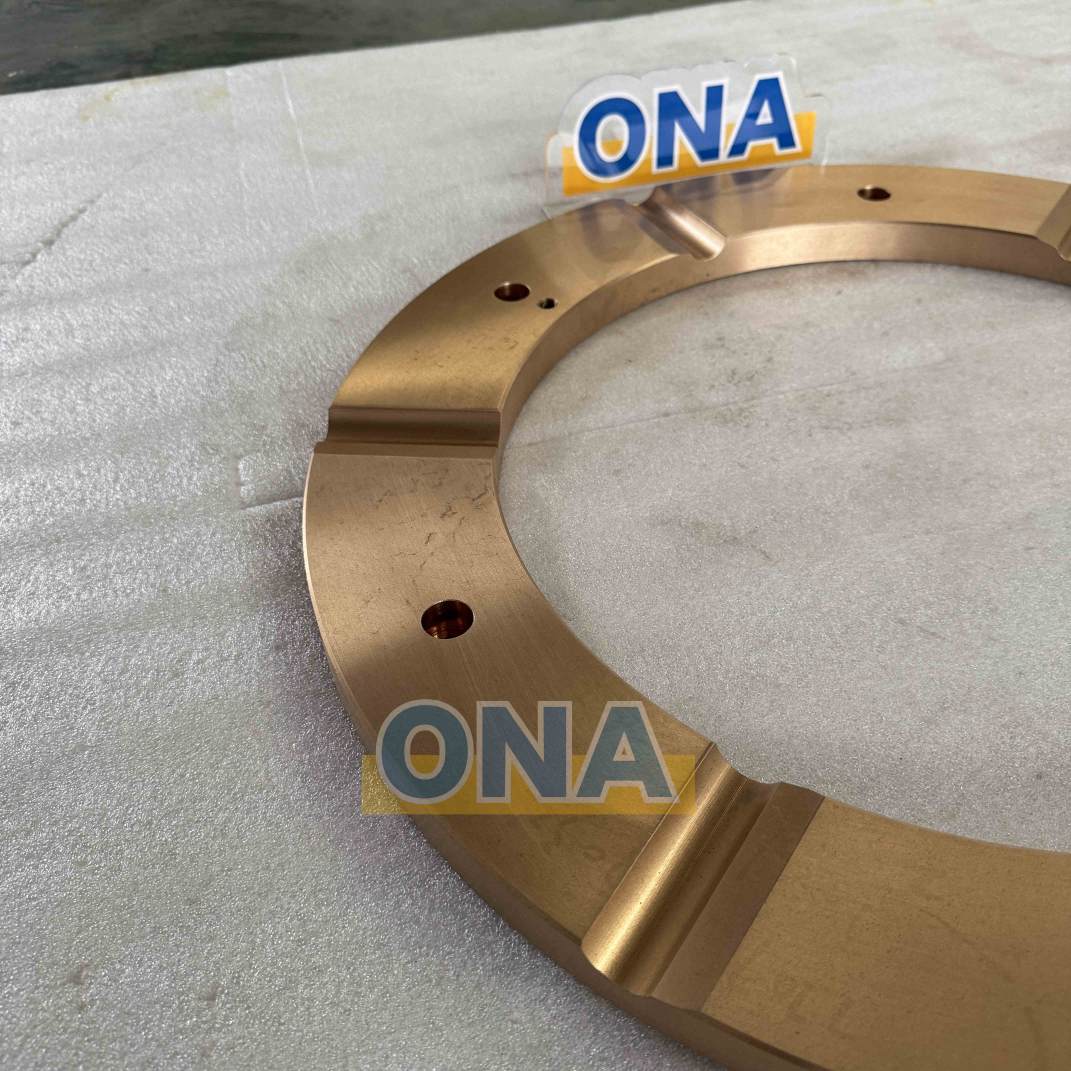

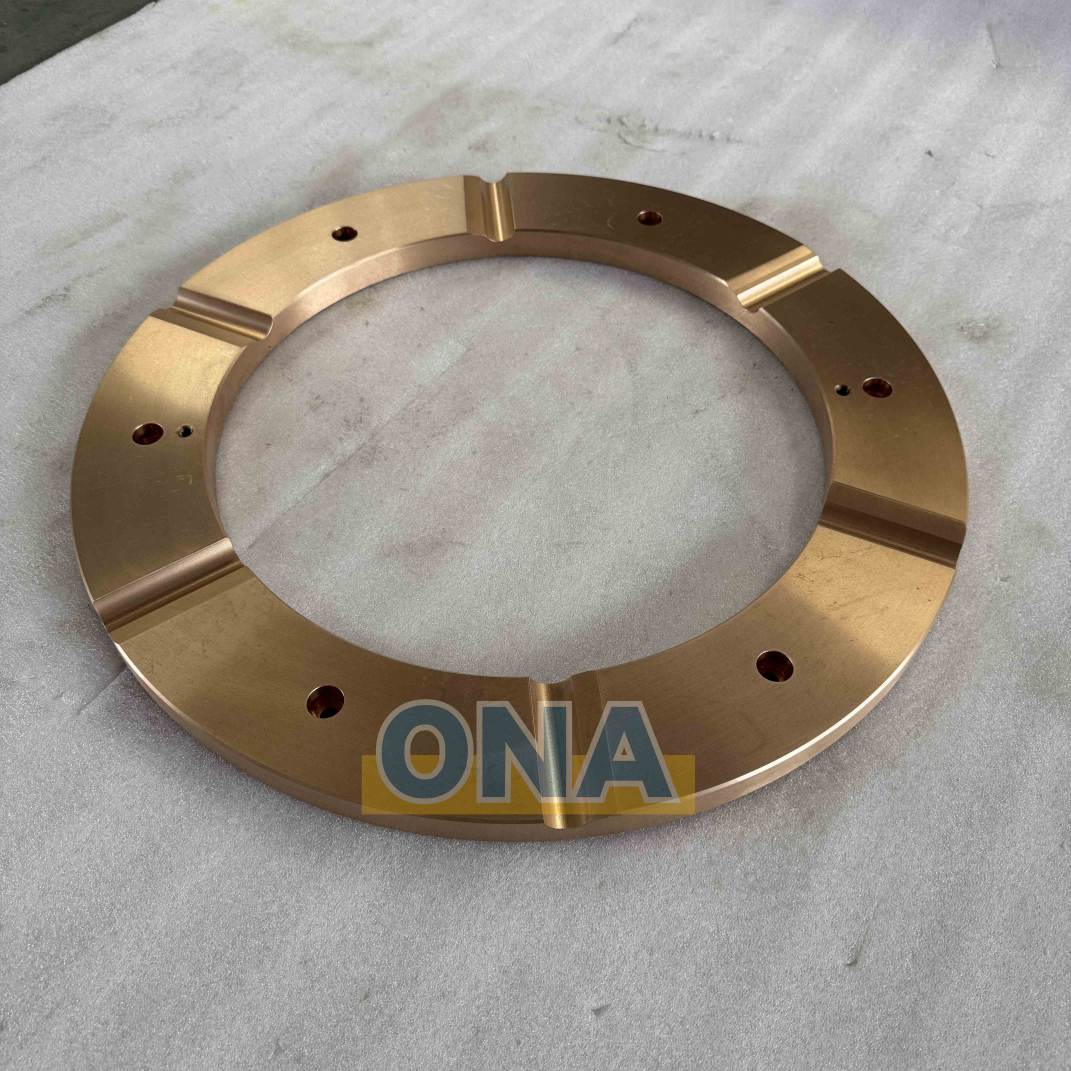

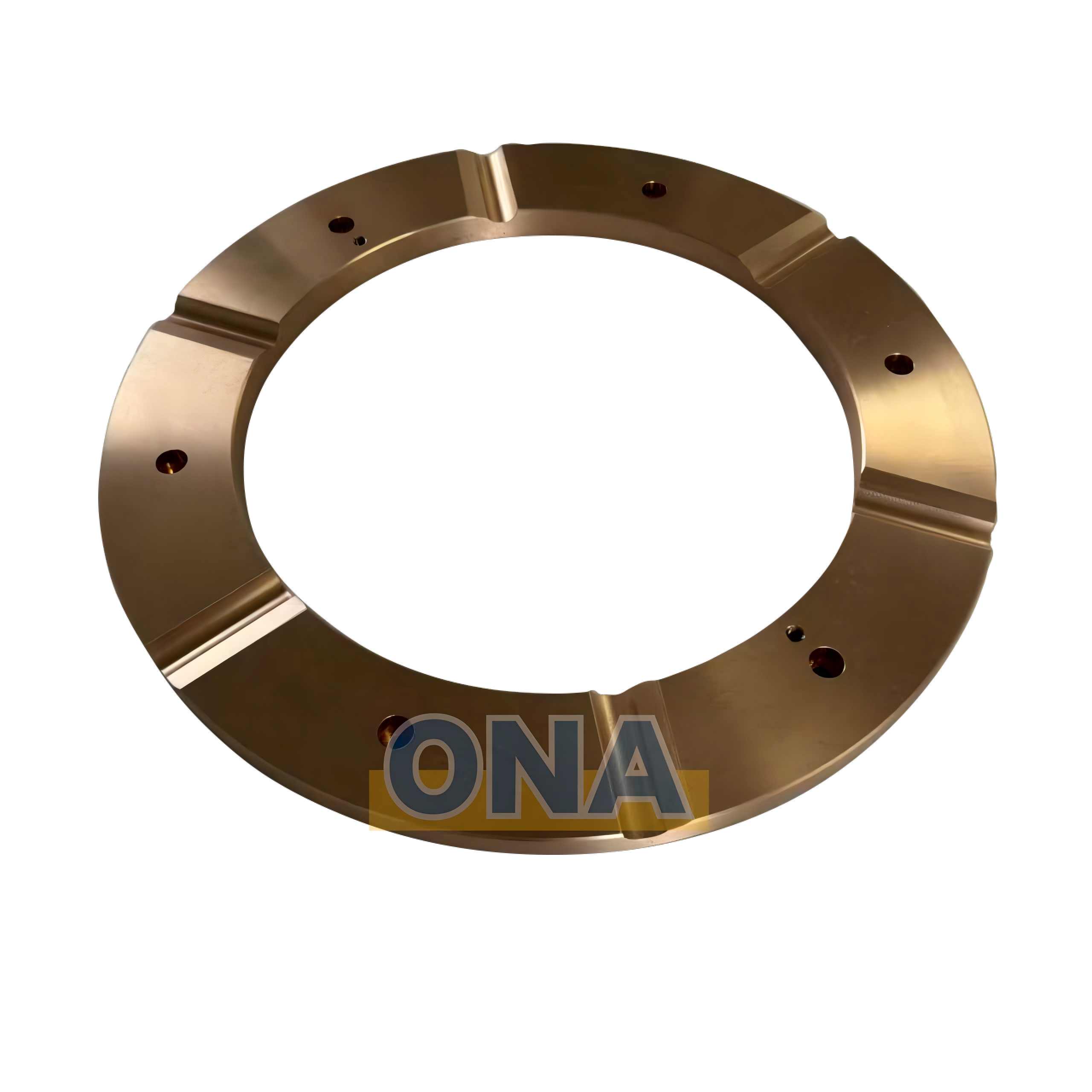

Material: Upper thrust bearing is copper alloy, lower thrust bearing is alloy steel

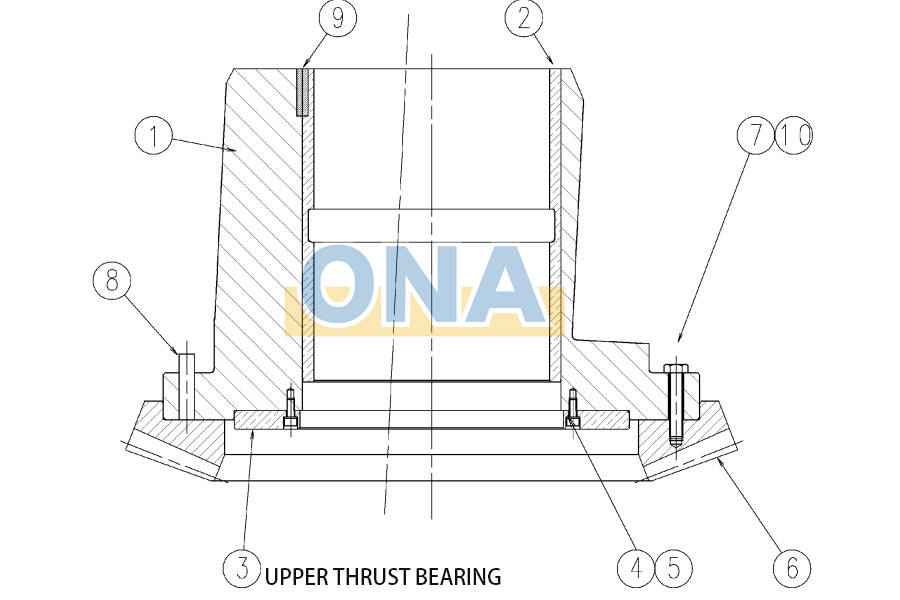

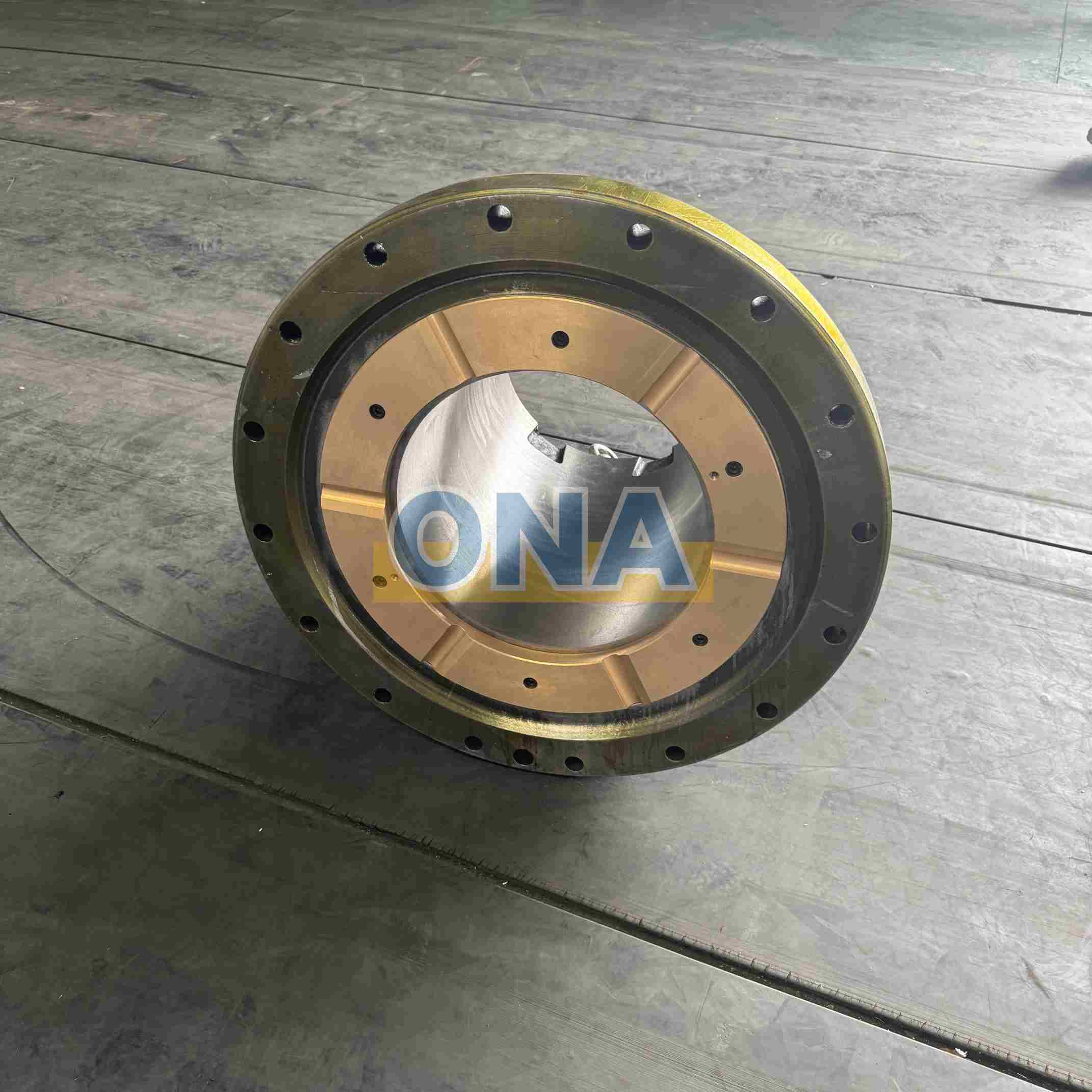

Installation Location: The lower thrust bearing is installed inside the main frame, in the thrust bearing mounting position, while the upper thrust bearing is installed at the bottom of the eccentric
Mounting Method: Bolt-on
Function: The upper and lower thrust bearings work together, and lubricating oil lifts the upper thrust bearing. Driven by a pinion, the upper thrust bearing rotates on the lower thrust bearing, providing lubrication and ensuring the proper eccentric movement of the eccentric assembly.
| PN | Machine | PN | Machine |
| 1057602103 | HP200 | 1057612405 | HP800 |
| 1057612200 | HP300 | N98000028 | HP4 |
| 1057605169 | HP400 | N74129020 | HP4 |
| 1057605168 | HP500 | 1057610201 | MP800 |
| N74129030 | HP4 | 1057605258 | MP1000 |
| 7074129001 | HP100 | N74129032 | HP6 |
The main functions of a crusher's thrust bearing include bearing axial loads, limiting axial displacement, securing the relative position of mechanical components, and reducing friction and handling stress. Specifically:
- Primarily used in cone crushers, the upper thrust bearing supports the eccentric assembly, reducing operating resistance. Its installation accuracy impacts the meshing clearance of the bevel gears, ensuring a proper fit and preventing "runaway" (flying).
- Mainly made of copper alloy, it offers excellent wear resistance, a low coefficient of friction, and a strong load-bearing capacity, extending its service life. It maintains OEM quality and precisely mates with the eccentric assembly for eccentric movement.
- Axial load bearing: It withstands the downward pressure of the crusher's main shaft, ensuring shaft stability during operation and enabling normal crushing.
- Friction and wear reduction: It reduces friction during main shaft rotation, minimizing component wear and extending the crusher's service life.
