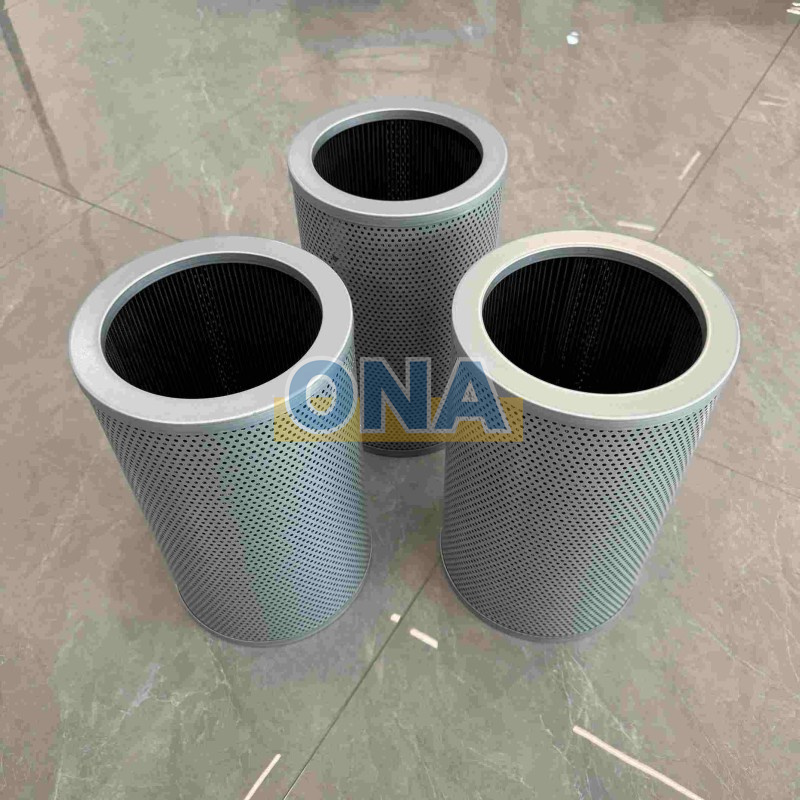

Cone Crusher Plant Replacement Parts Filter Cartridge

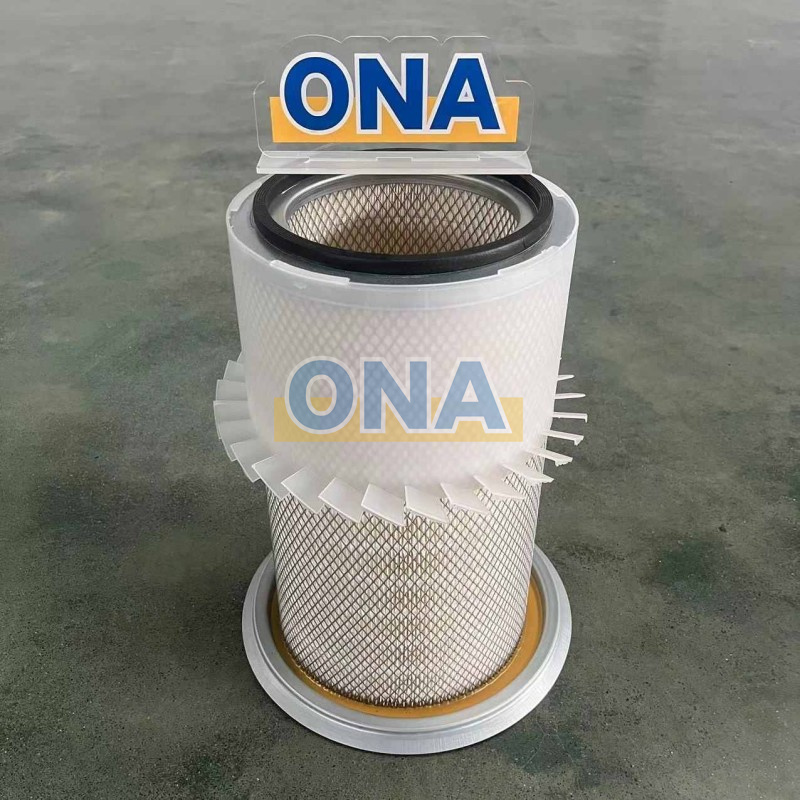

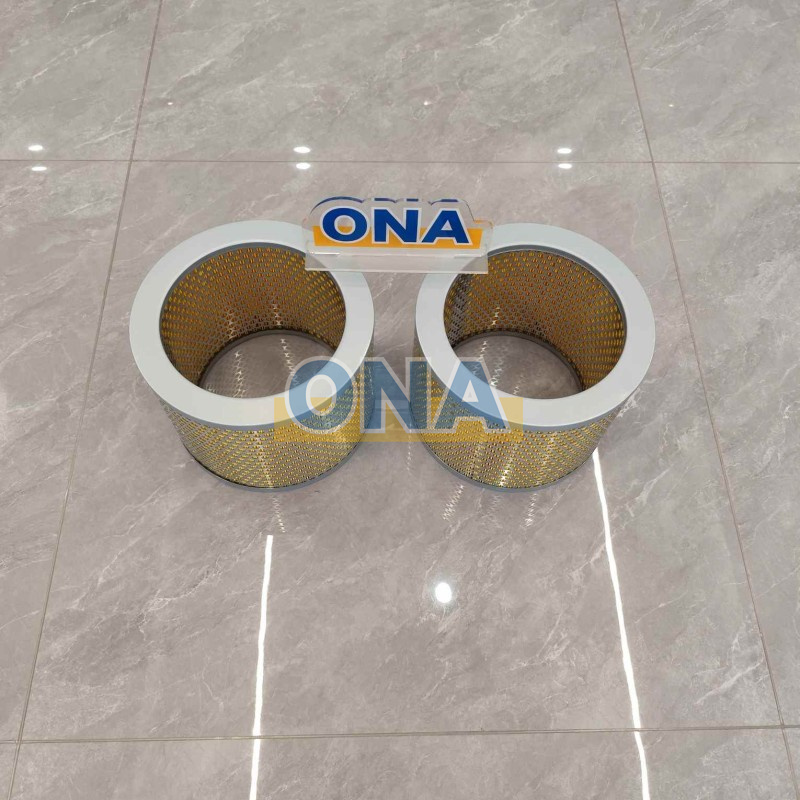

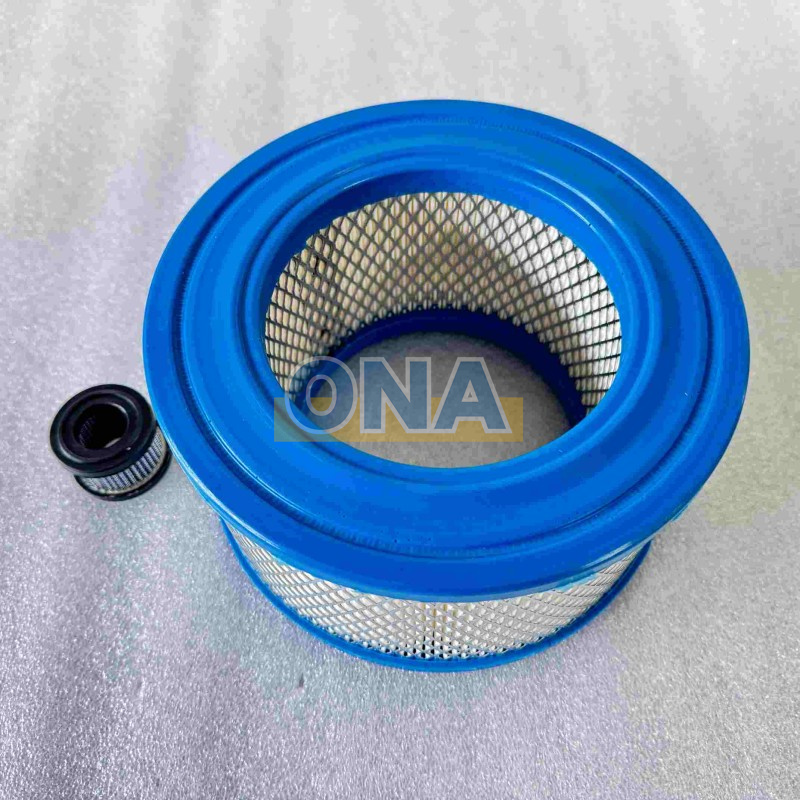

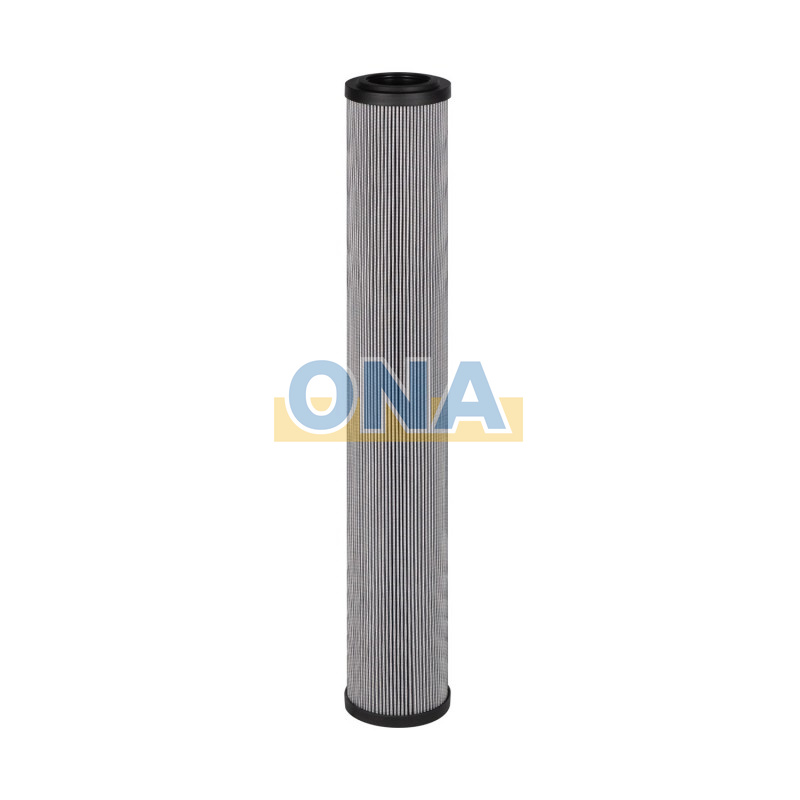

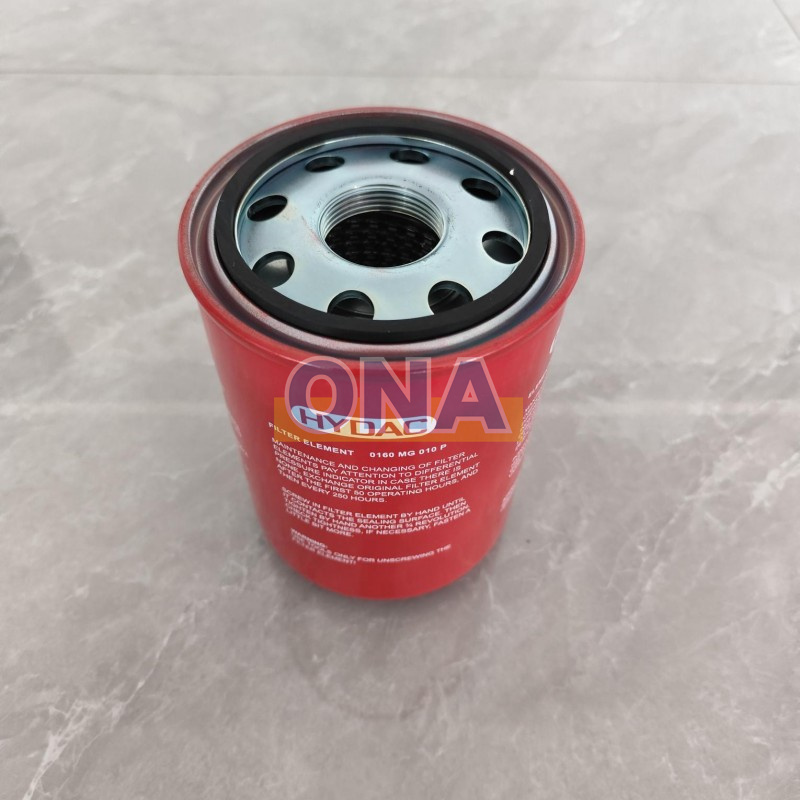

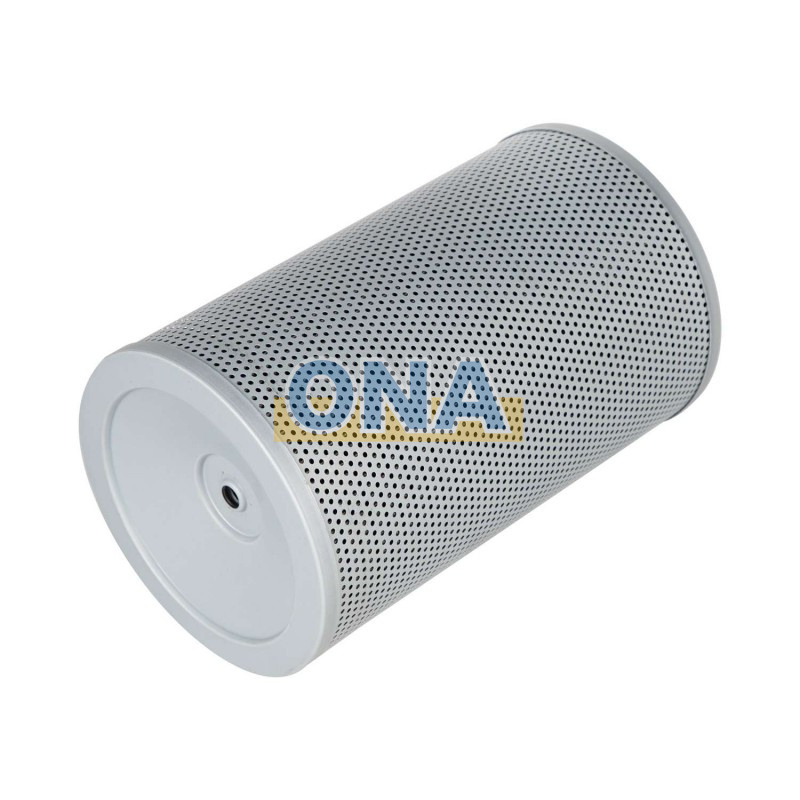

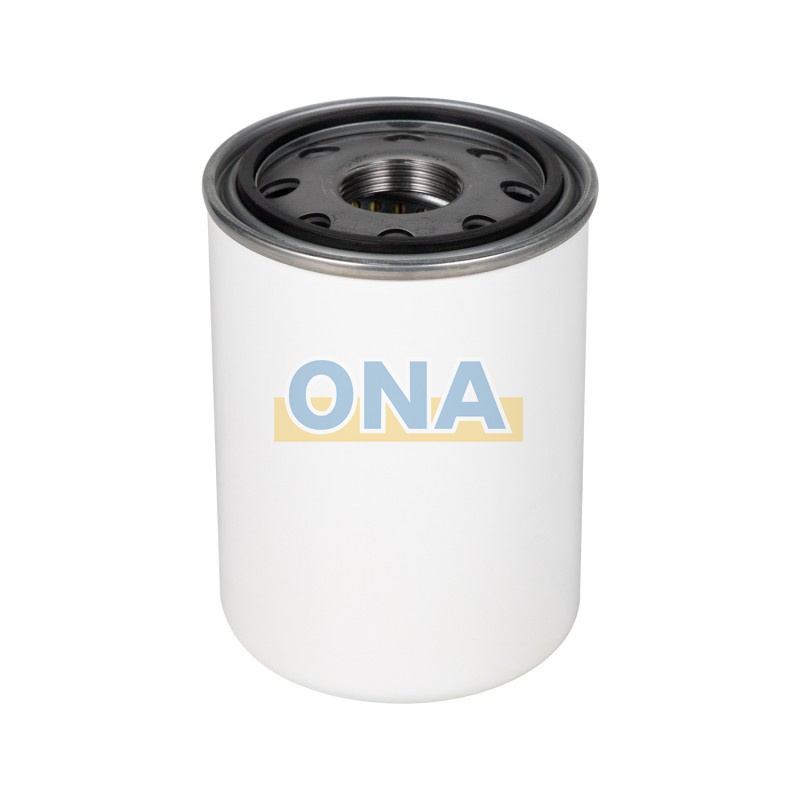

ONA can provide different models filter which suit to Metso Nordberg HP, GP series, Sandvik CH, CS series, such as filter element, filter cartridge oil, filter air, filter assembly, you can send us part number for model of filter to confirm!
Item No :
HP300, HP400, HP500, HP700, HP800, HP900, HP3, HP4, HP5, HP6Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
StockOrder(MOQ) :
1

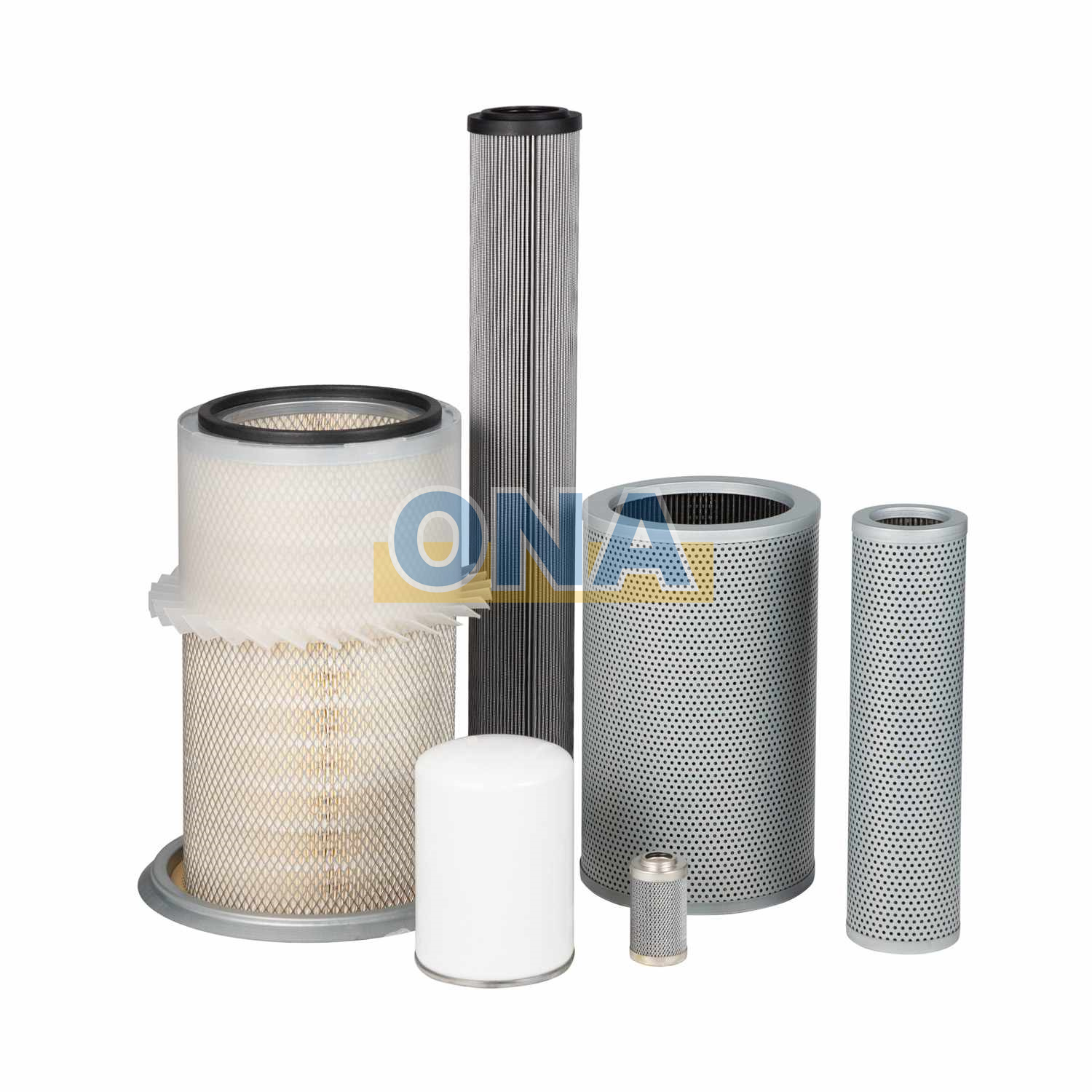

Filter elements for crushing equipment fall into three main categories: hydraulic oil filter elements, which purify hydraulic systems by removing metal shavings, dust, and oxidation impurities; air filter elements, which filter intake air to prevent dust ingress, making them suitable for outdoor operations; and oil filter elements, which remove metal shavings, dust, and sludge from the oil to maintain cleanliness and reduce wear. Together, these three types of filters ensure the stable operation of the hydraulic, lubrication, and air intake systems.
ONA cone crusher filter elements are manufactured in strict accordance with OEM specifications and are compatible with mainstream cone crushers—such as suit for Metso Nordberg HP/GP series and suit for Sandvik CH/CS series—ensuring a precise fit, easy installation, and reliable filtration performance.

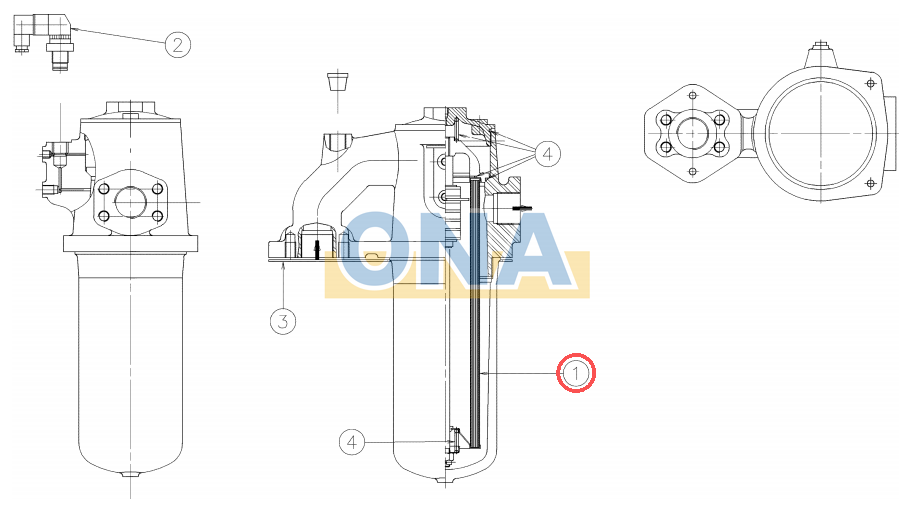

Installation Location
Eg: HP300 ONA-7043800008 FILTER
| Pos. | Part Number | Description | Qty | Net Wght |
| 1 | ONA-7002445751 | FILTER CARTRIDGE | 1 | 0.932 |
| 2 | ONA-7002445800 | CLOGGING INDICATOR | 1 | 0.55 |
| 3 | ONA-7053001003 | SEAL | 1 | 0.1 |
| 4 | ONA-N53000160 | SEAL KIT | 1 | 0.5 |
✅ Applications:
Widely used in cone crusher operations—such as mining and quarrying, sand and aggregate production, ore crushing, construction waste processing, metallurgy, and road engineering—and suitable for filtration in the return, suction, and pressure lines of hydraulic and lubrication systems.
Data Sheet
| Production Name | Filter |
| HS Code | 847490 |
| Brand | ONA |
| Production Capacity | Cone Crusher |
| Customized Services | Customized Dimensions and Precision |
Product Advantages
✅ High filtration precision: Imported graded fiberglass media, 10μm filtration, high dirt-holding capacity, and long service life.
✅ High structural strength: Dual-layer stainless steel support mesh and high-strength end caps; withstands pressures up to 21 MPa.
✅ Reliable sealing: Nitrile rubber seals—oil-resistant and aging-resistant—preventing bypass flow.
✅ Easy installation: Manufactured to OEM specifications for direct interchangeability; no piping modifications required.
✅ Factory-direct supply (orders starting from 1 unit): No middlemen, competitive pricing, and ample stock of standard models.

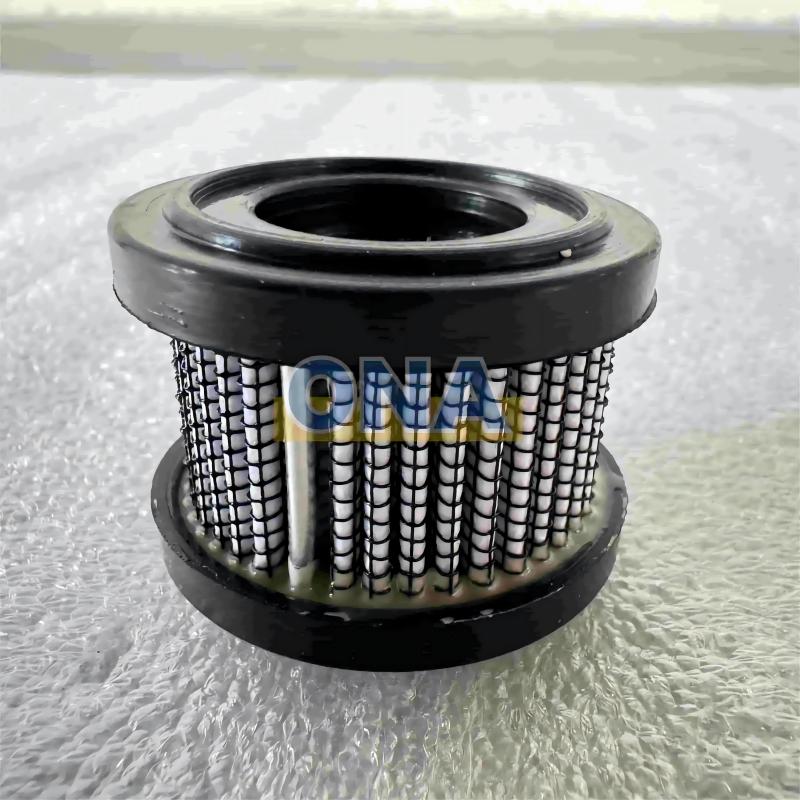

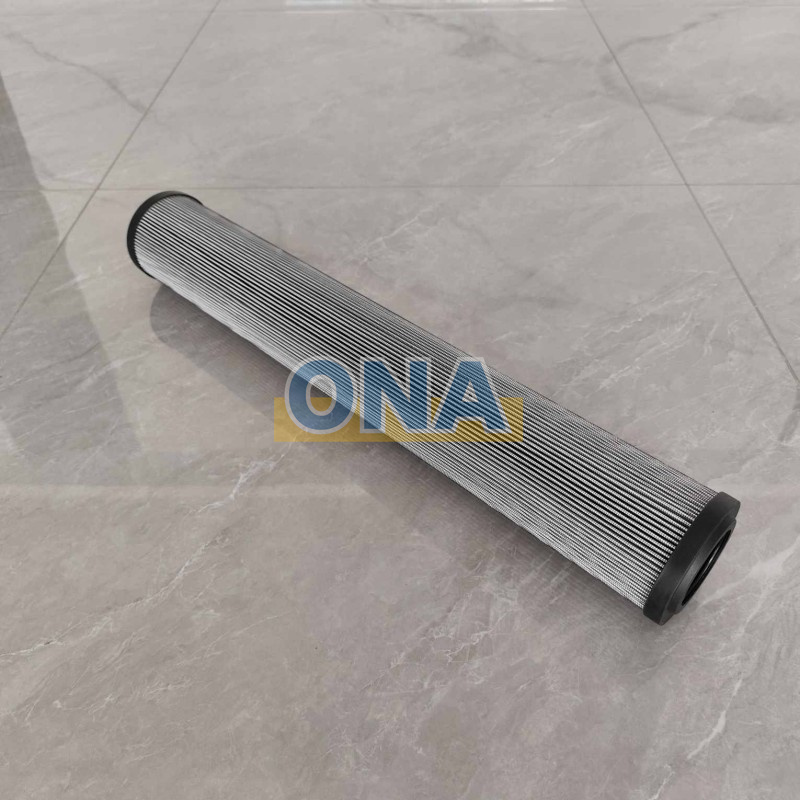

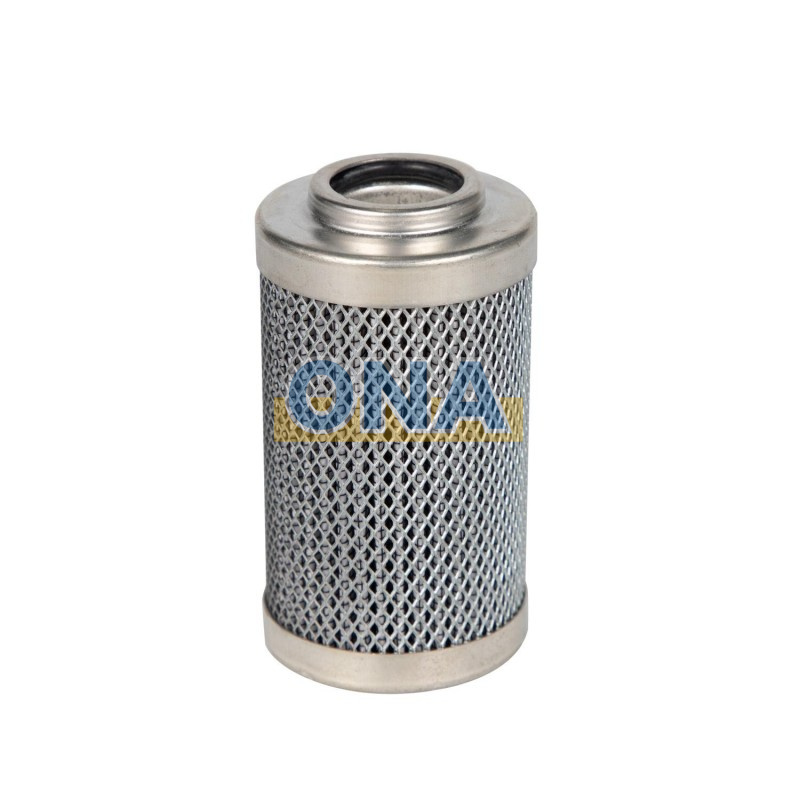

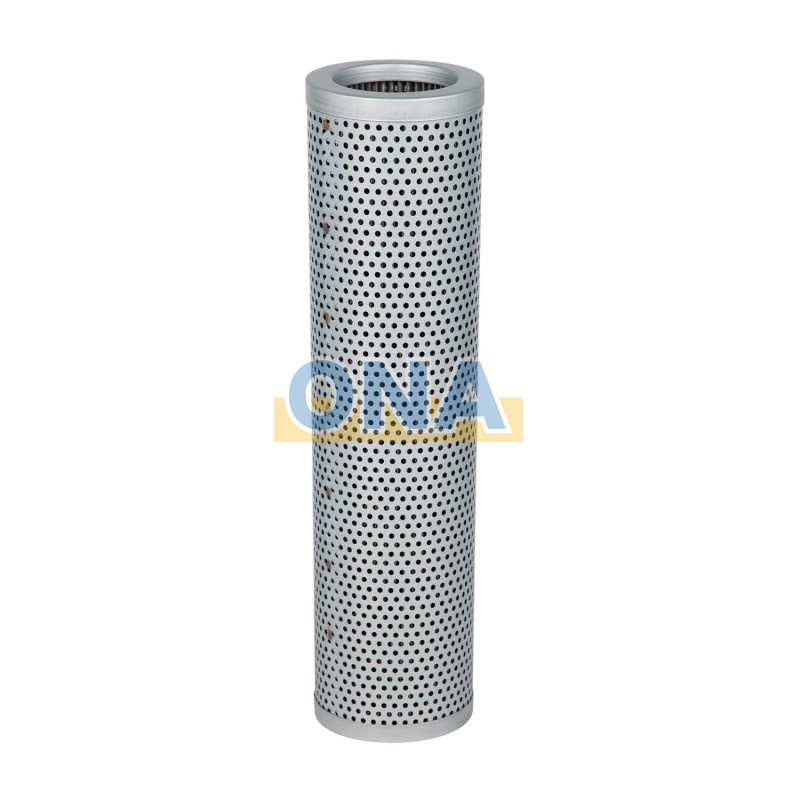

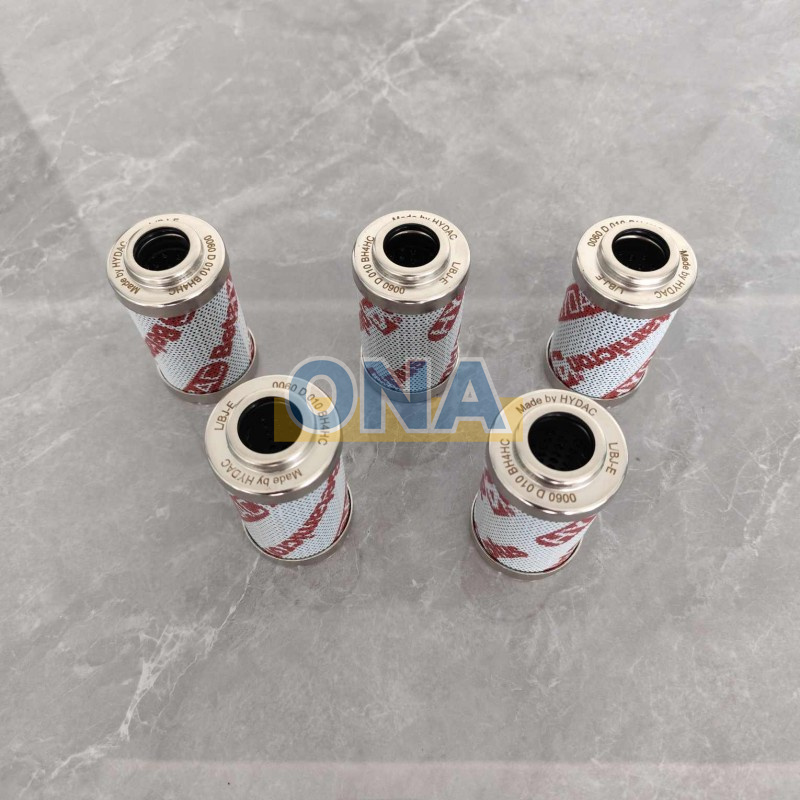

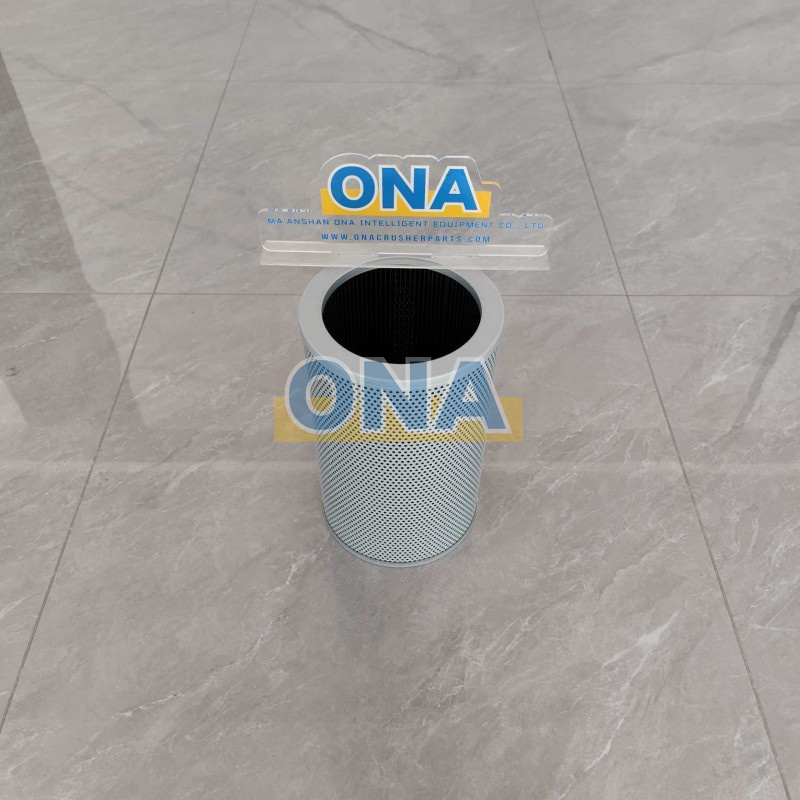

Product Showcase

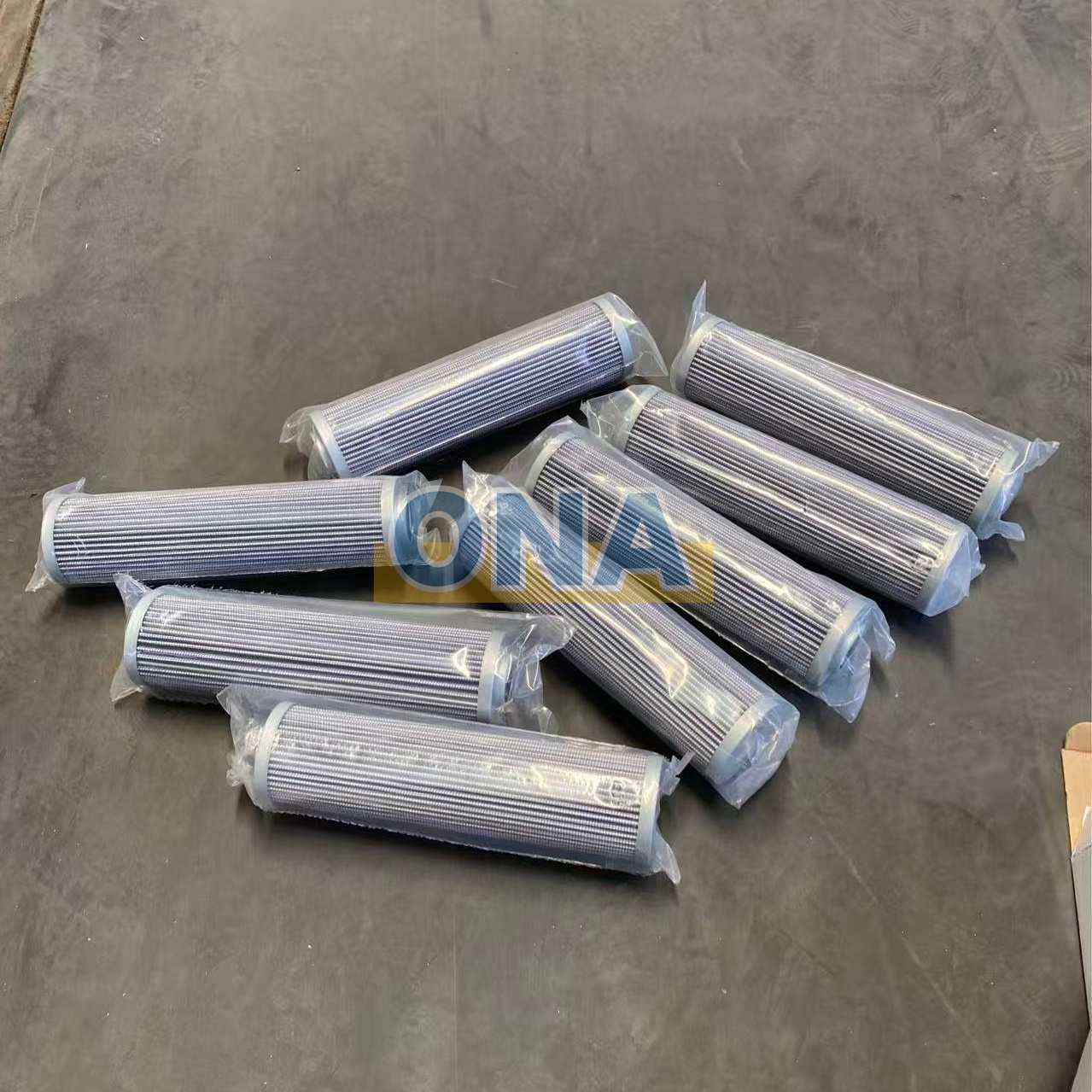

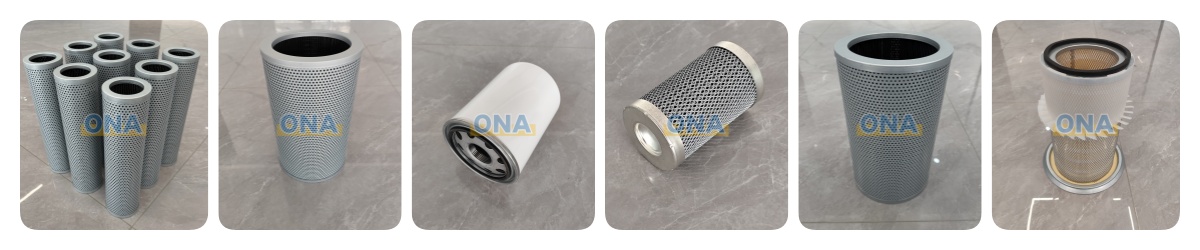

1. ONA-7002445751 HP300, ONA-MM0374877 HP6
ONA-N02445788 HP400, ONA-MM0232736 HP500
ONA-MM0374877 HP400, ONA-N05502281 HP300

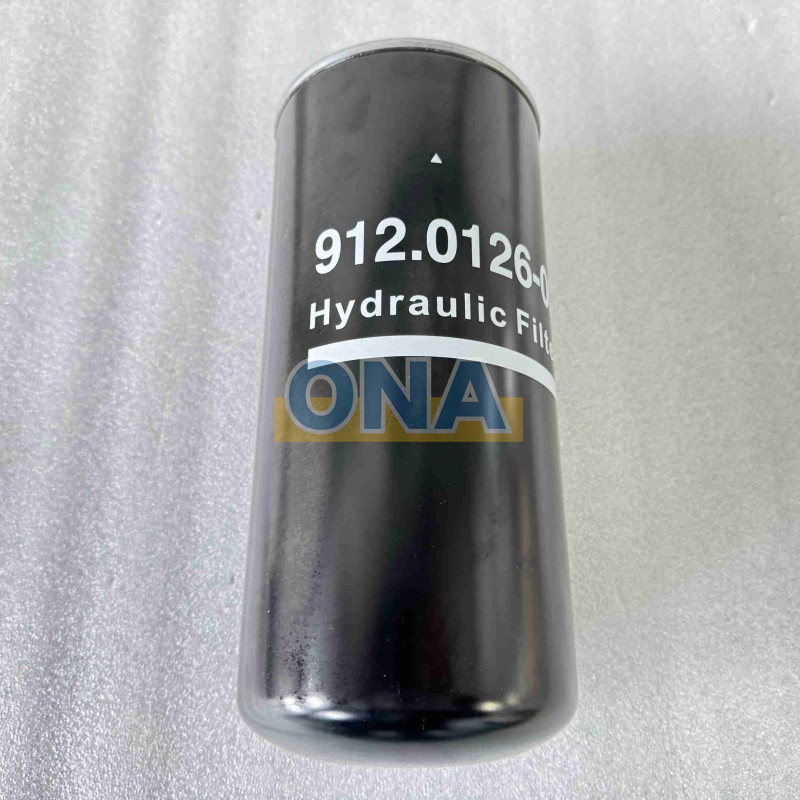

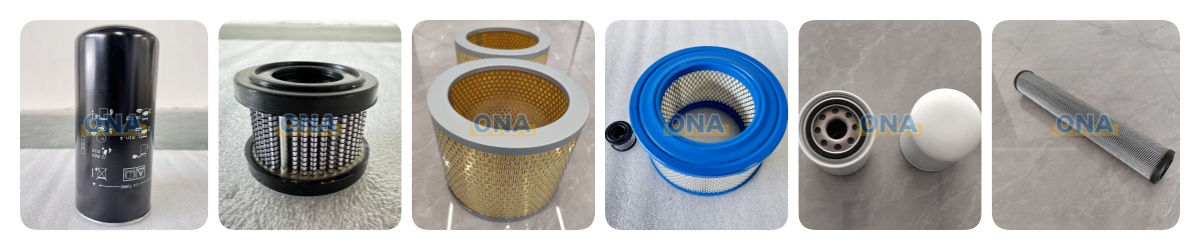

2. ONA-912.0126 CH880, ONA-912.0155-00 CH430
ONA-912.0374-00 CH440, ONA-912.0139-00 CH440
ONA-BG00517170 CH550, ONA-BG01292117 CH660
Packaging and Shipping
Individual filter elements are shrink-wrapped and packed in moisture-resistant cartons; bulk shipments use export-grade wooden crates with protective cushioning. Outer packaging is clearly labeled with the model, part number, quantity, and compatible equipment. In-stock items ship the same day, while custom orders follow the production schedule. We support sea, air, express, and dedicated line shipping options with end-to-end tracking to ensure safe and timely delivery.
Please find below the filter element part numbers for the relevant ONA models
| Brands | Models | Part Numbers |
| Suit to Metso HP/GP Series | HP300, HP500, HP800, HP6, GP100, GP200 | ONA-1021880063, ONA-MM0297258, ONA-MM0374877, ONA-N02445787, ONA-MM0232736, ONA-1003894082, ONA-N05502281, ONA-7002445751, ONA-MM1424219, ONA-SN201644, ONA-SN513271, ONA-SN518277, ONA-MM0288323, ONA-MP47M60AP04, ONA-N02445792, ONA-N02445793, ONA-706301319000, ONA-MM0311583, ONA-N02445790, ONA-MM0284764, ONA-MM0457967, ONA-MM0311584, ONA-MM0461052, ONA-MM0630614 |
| Suit to Metso MP/LT/C/SG Series | MP800, MP1000, LT100, LT105, LT106, LT1100, LT116, LT200HP, LT300GP, LT3054, C100, SG4265, SG6089 | ONA-MM0429820, ONA-MM0263243, ONA-N02445778, ONA-N02445782, ONA-N02445783, ONA-N02445798, ONA-MM0360233, ONA-MM0288323, ONA-MM0221727, ONA-P785427, ONA-706202569110, ONA-N05502362, ONA-MM0235314, ONA-804481, ONA-706203395200, ONA-17-105-973-001, ONA-17-107-488-002, ONA-17-107-560-003, ONA-17-107-490-003 |
| Suit to Vibrating Screen Spare Parts | Z036 | ONA-N02482022, ONA-MM0360614, ONA-MM0360611 |
| Suit to Sandvik CH Series | CH430, CH440, CH550, CH660, CH880 | ONA-912.0126-00, ONA-BG00517170, ONA-912.0373-00, ONA-BG00517155, ONA-912.0142-00, ONA-912.0156-90, ONA-BG01292117, ONA-BG00517156, ONA-452.8006-901, ONA-912.0374-00, |
| Other Filters | ST272, ST620, OMNICONE 937 SX | ONA-MM0300210, ONA-MM0238690, ONA-7002445771 |
| Suit to Trio | TC84X | ONA-CMDY17005761 |
⚠️ Kind tips
Aside from the crusher spare parts filters listed, ONA can assist with specific part numbers or models for confirmation purposes. Remember, filter elements have a shelf life and should not be stored unused for over a year.
FAQ
1. Can the filter element be cleaned and reused?
It is not recommended. The filter element is a disposable consumable; cleaning it damages the gradient structure of the filter material, resulting in reduced filtration precision.
2. How often should the filter element be replaced?
The standard recommendation is to replace it every 200–500 hours, or immediately when the differential pressure reaches 138 kPa. For a new machine, an early replacement is recommended after the first 100 hours of operation.
3. Is it in stock? Do you offer customization and private labeling?
We have massive stock of standard models; we also support customization for special sizes and precision specifications, as well as private labeling and bulk orders.
