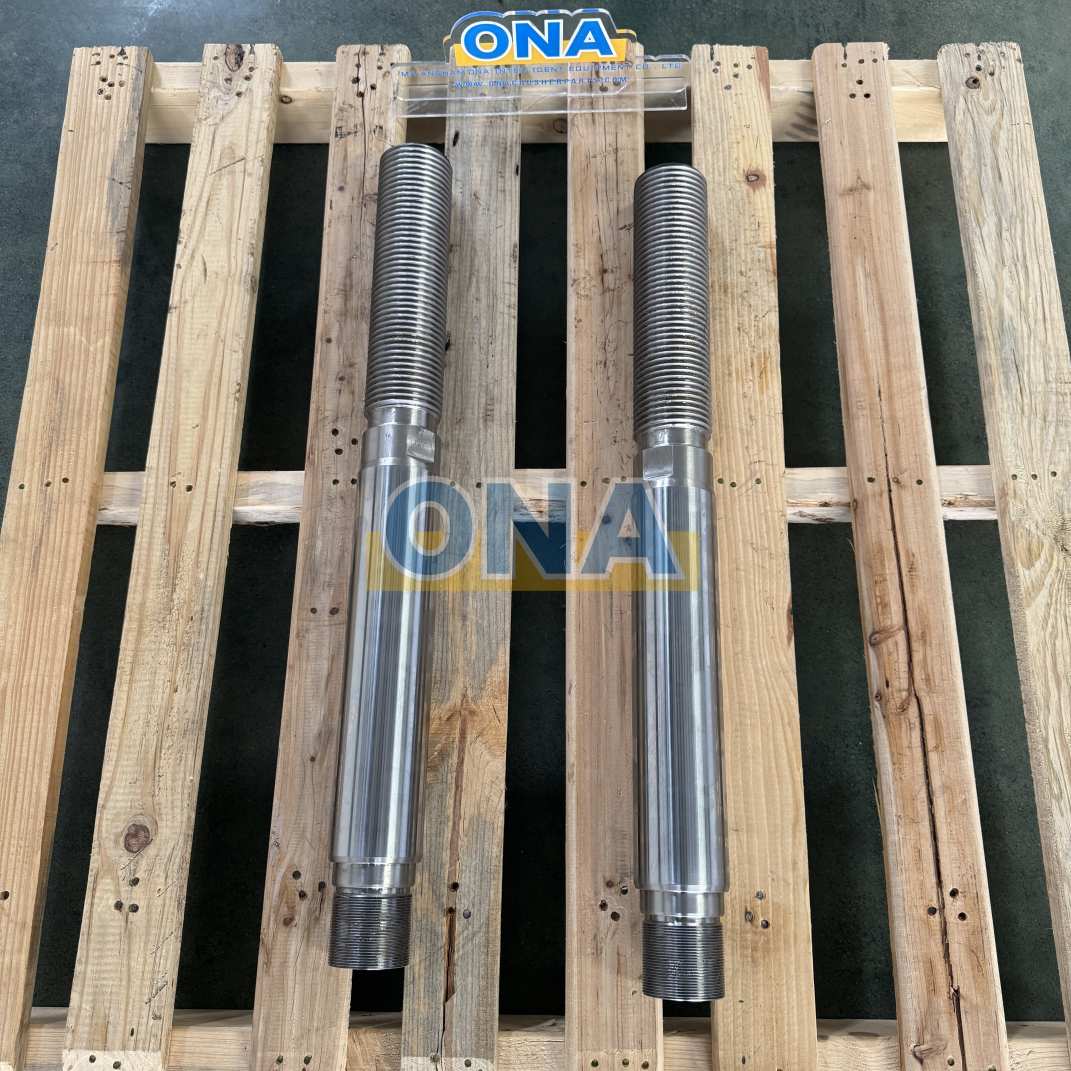

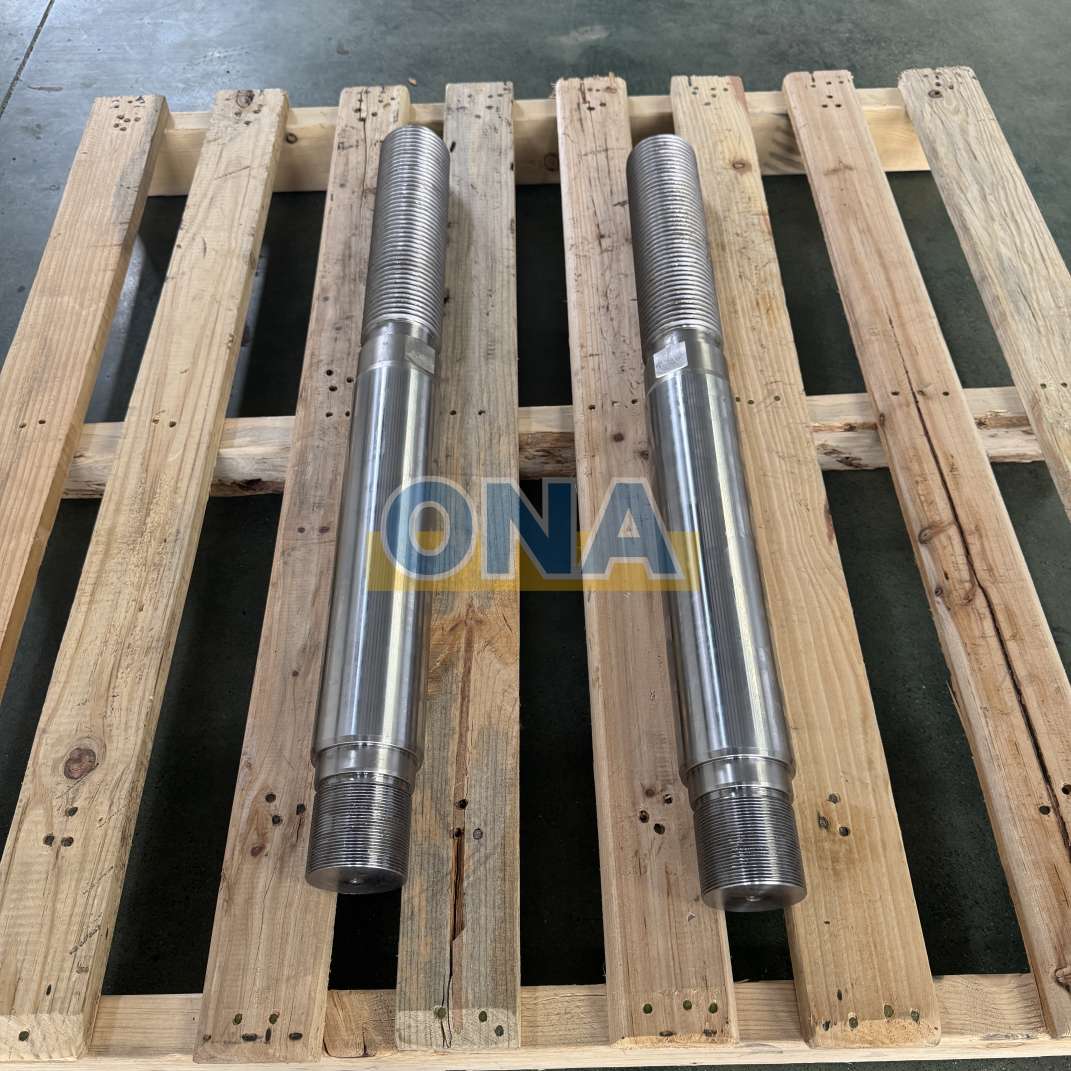

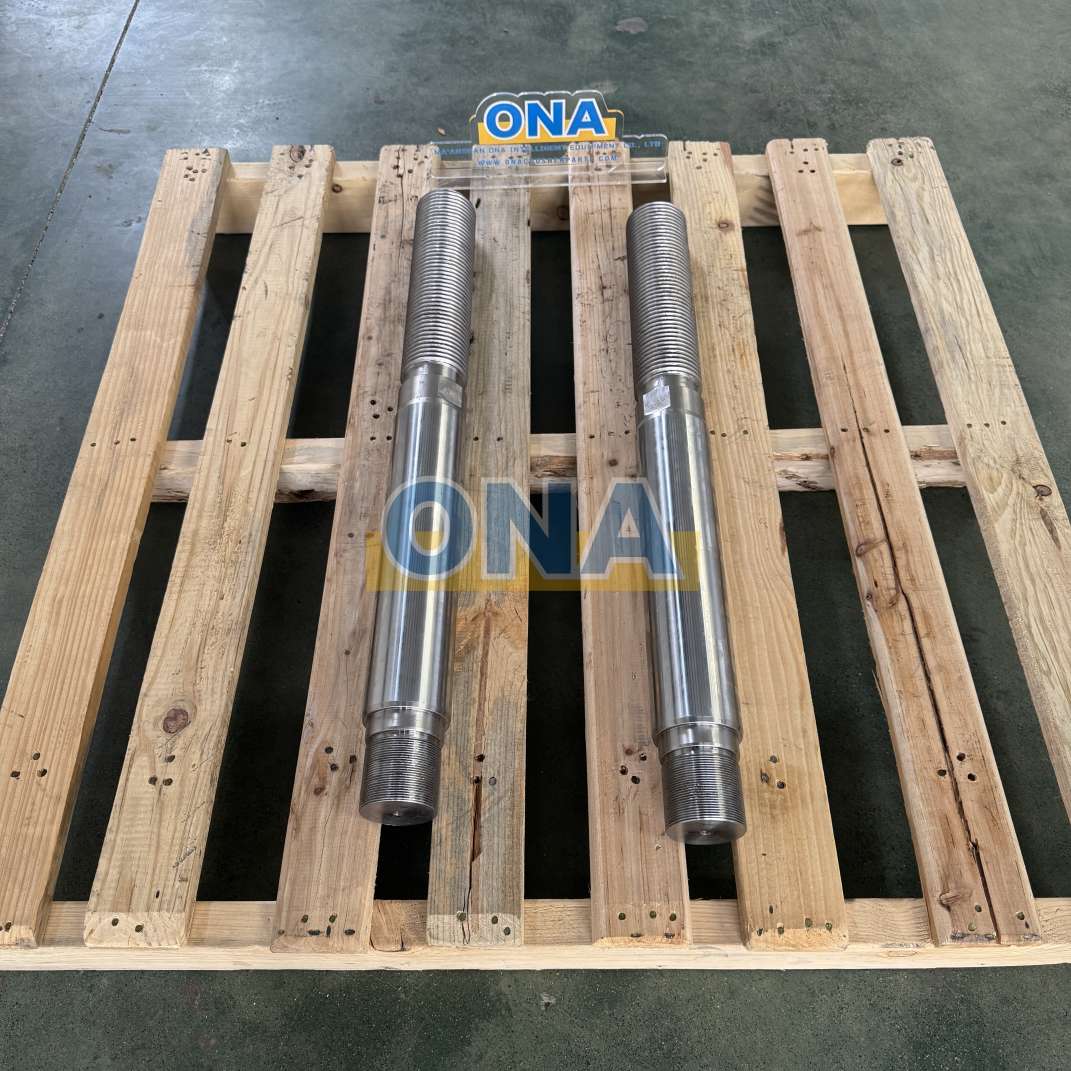

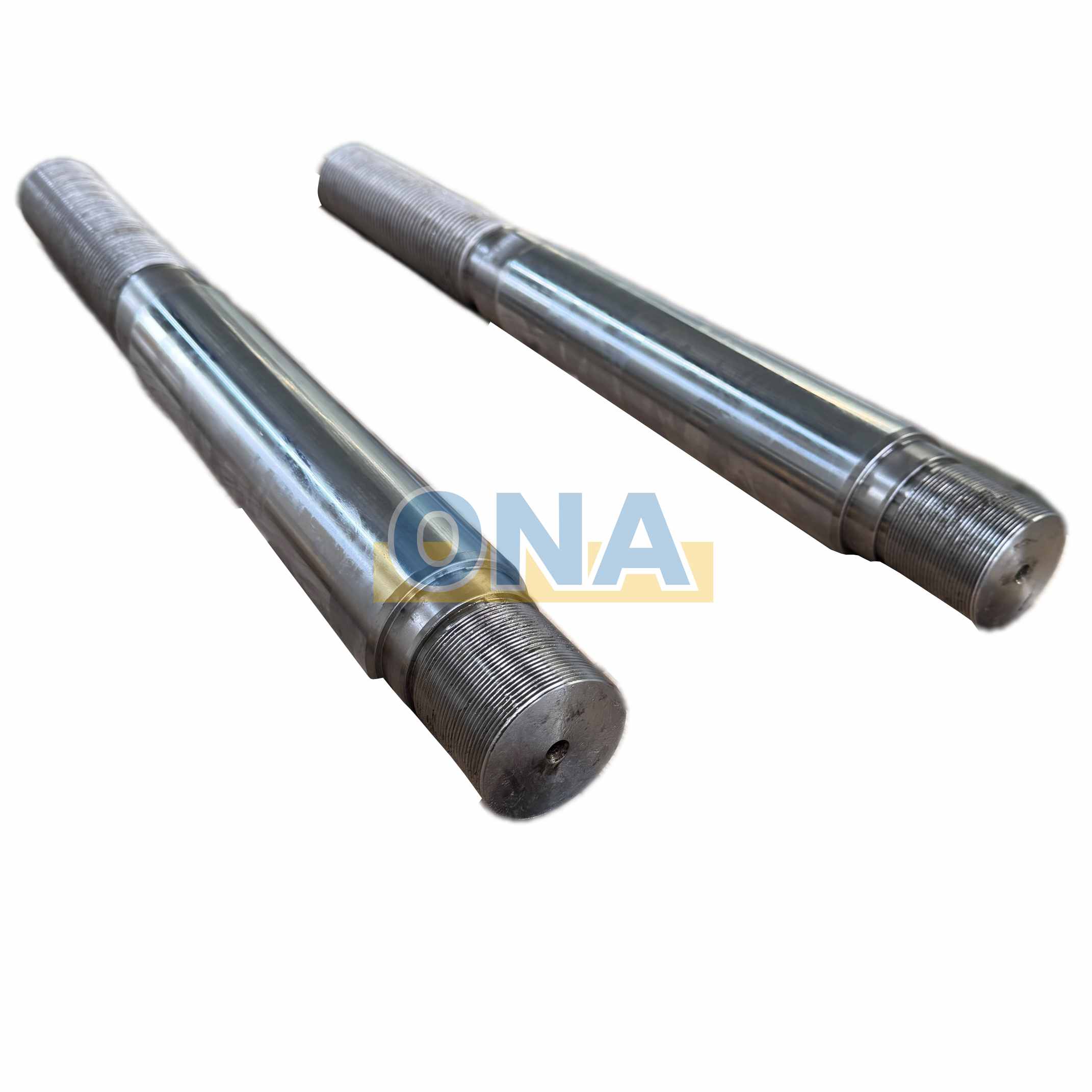

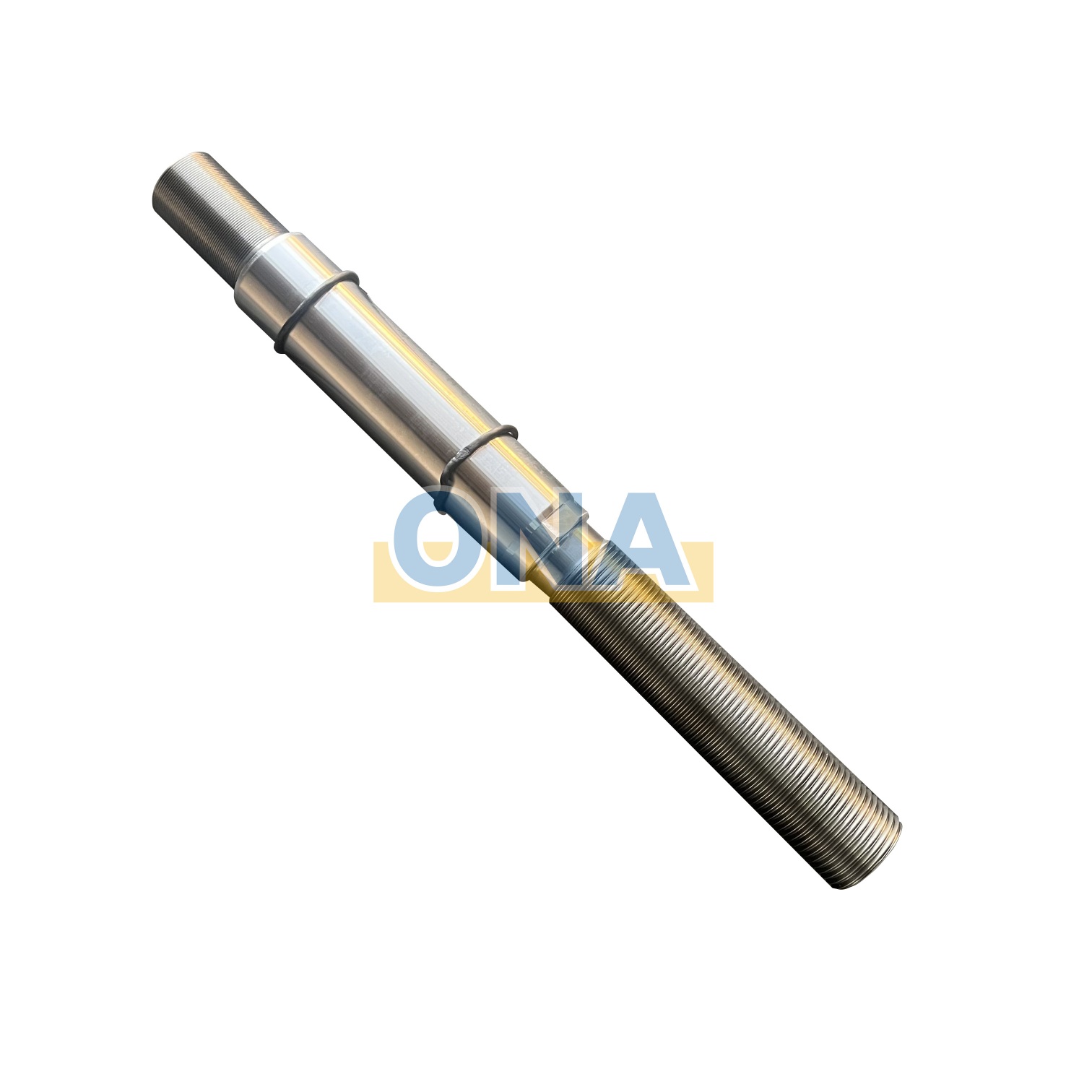

Cone Crusher Replacement Parts Piston Rod Suitable for HP100 HP200 HP300
ONA crusher parts are manufactured in strict accordance with original factory drawings, accurately restoring original factory dimensions and performance standards to ensure consistent quality and worry-free adaptability and reliability.
Item No :
HP200, HP300, HP400, HP500, HP4, HP6, SG4265Part Number :
ONA-1065633691, ONA-1065634305, ONA-1065634357, ONA-1065634356, ONA-N88100011, ONA-N88100013, ONA-17-102-891-802Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiOrder(MOQ) :

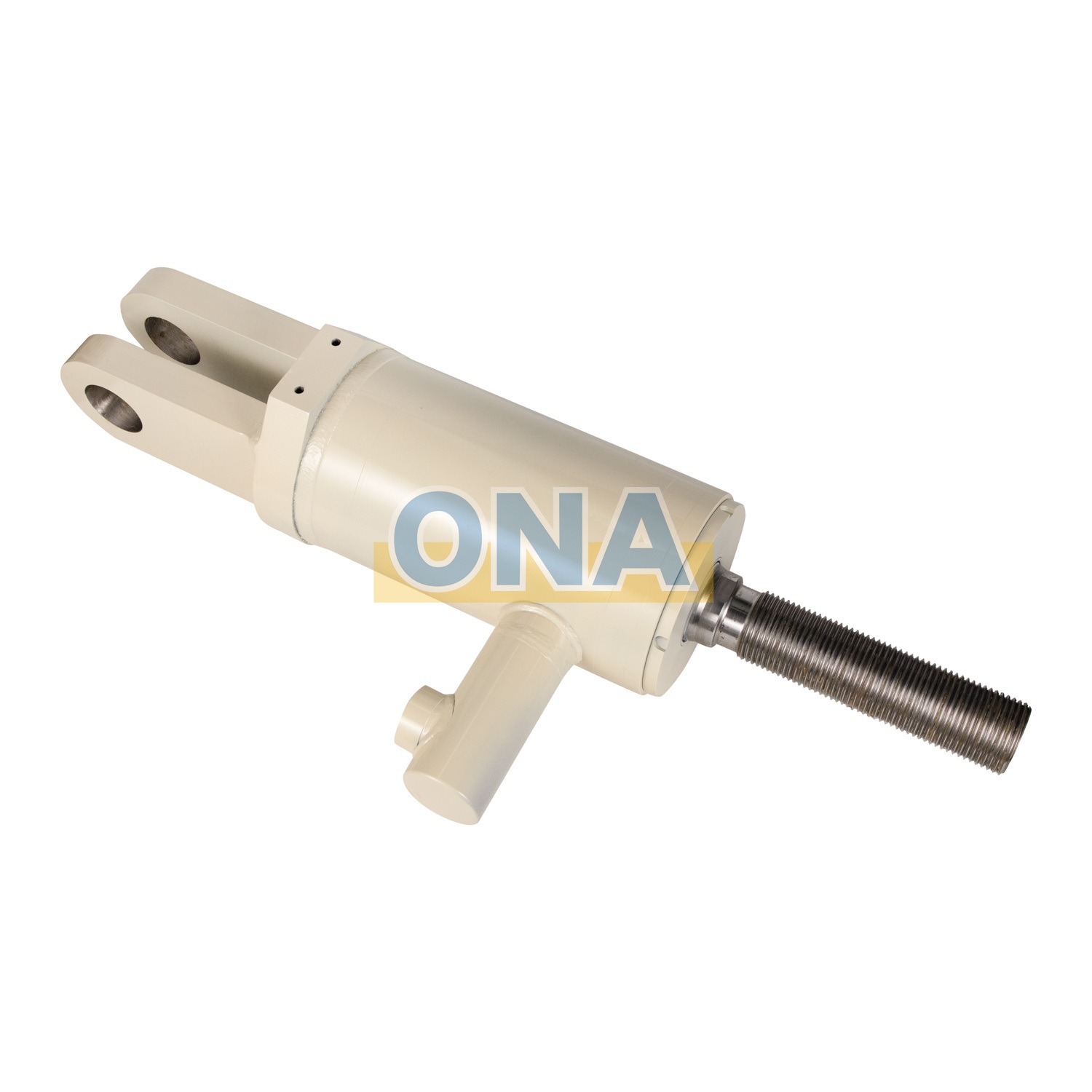

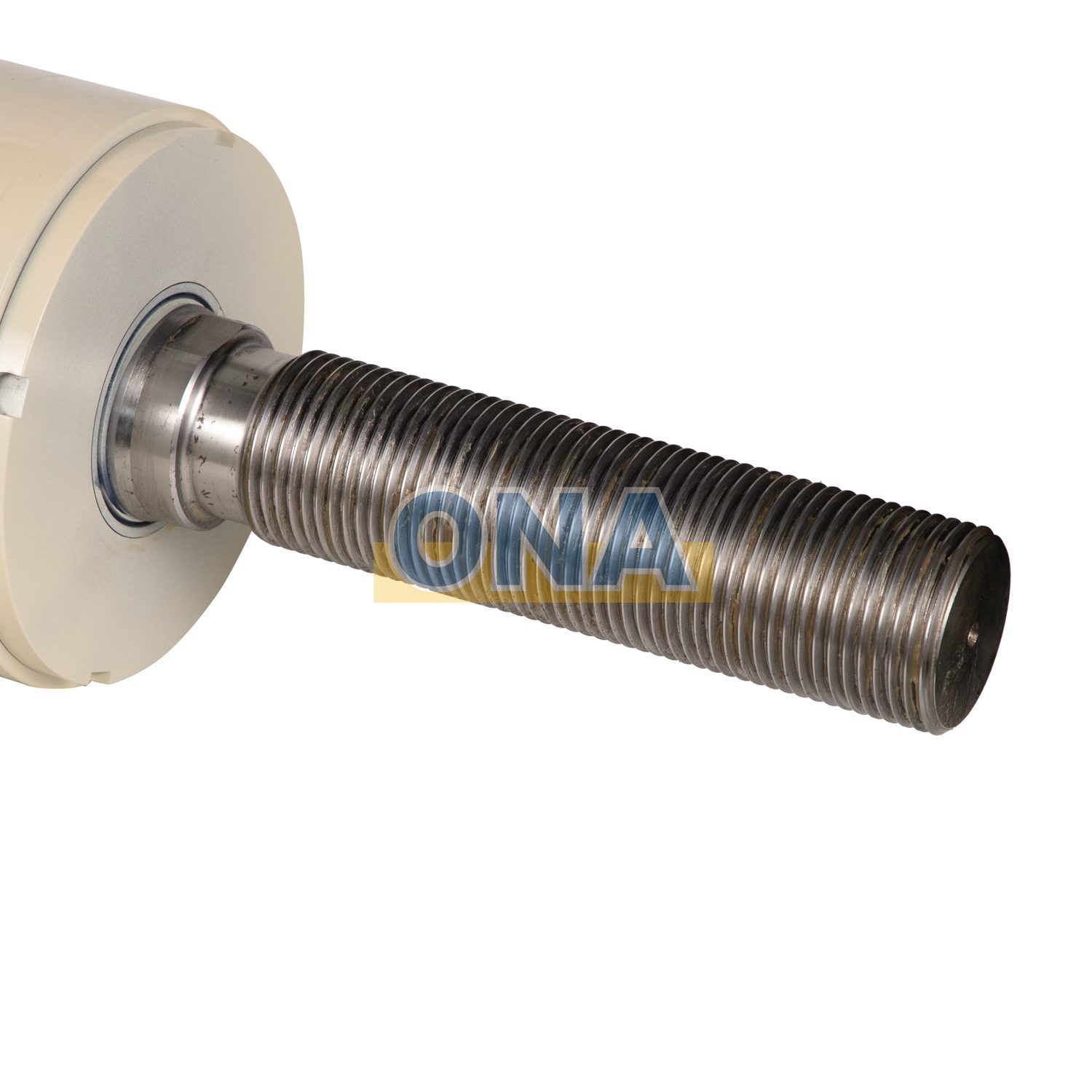

1The piston rod is a key component in the crusher's tramp release cylinder. When the crusher experiences over-melting or encounters unbreakable material, the release cylinder releases pressure through the piston rod's movement, allowing the metal and other debris to pass smoothly through the crushing chamber, preventing damage to the mantle and concave. Some models also feature a cavity-clearing function for automatic discharge.

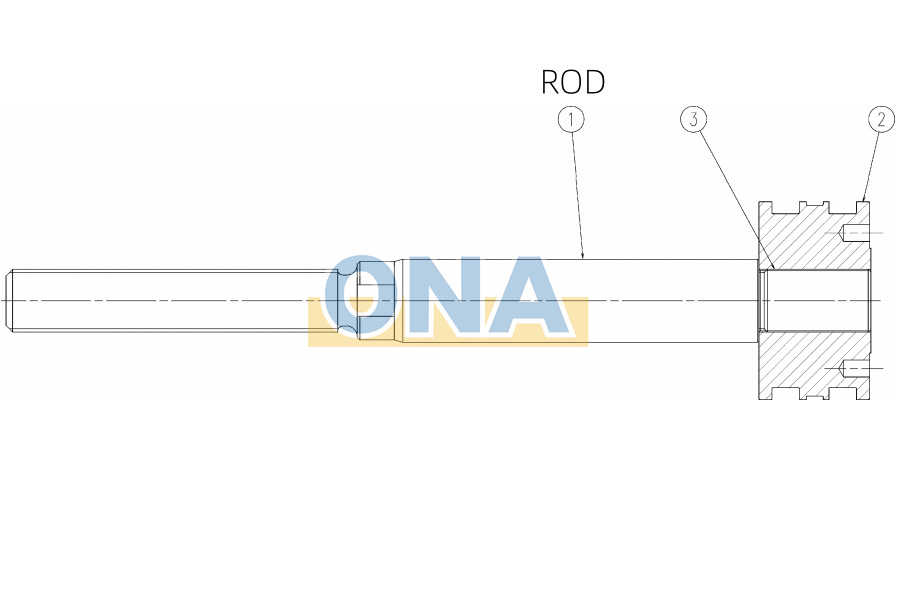

- Basic Structure: Made of alloy steel, it features a mounting head at the bottom, threaded into the piston mounting hole. It also features a raised ring, annular retaining groove, and a retaining ring to prevent loosening. Some piston rods are equipped with an adjusting nut, and the joints can be reinforced with saddle screws. The piston rod of the tramp release cylinder in a multi-cylinder hydraulic cone crusher may have a spherical working area.
- Compatible Models: These are often designed for specific crushers. For example, Metso's HP Series cone crusher release cylinder piston rods are available in various models, including the HP100, HP200, HP300, H400, and HP500.
- Materials and Manufacturing Process: High-strength materials such as alloy steel are typically used, heat-treated for enhanced hardness and wear resistance.
