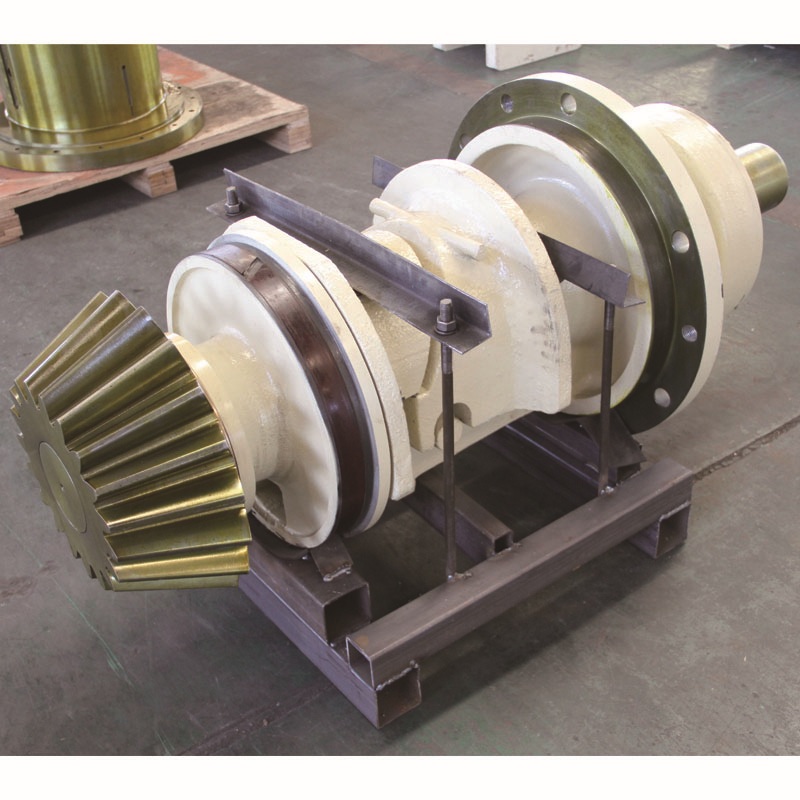

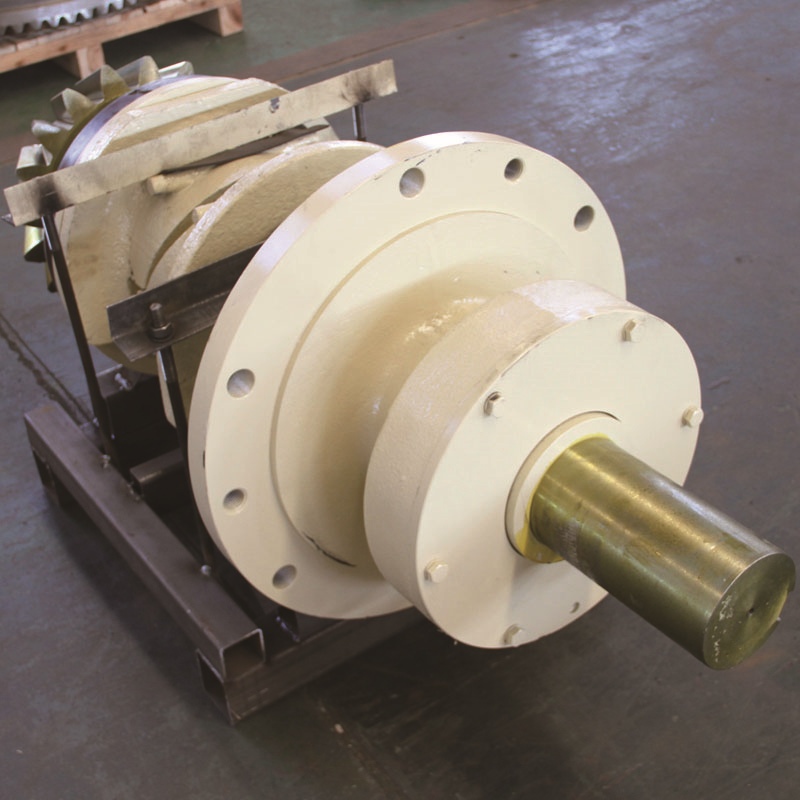

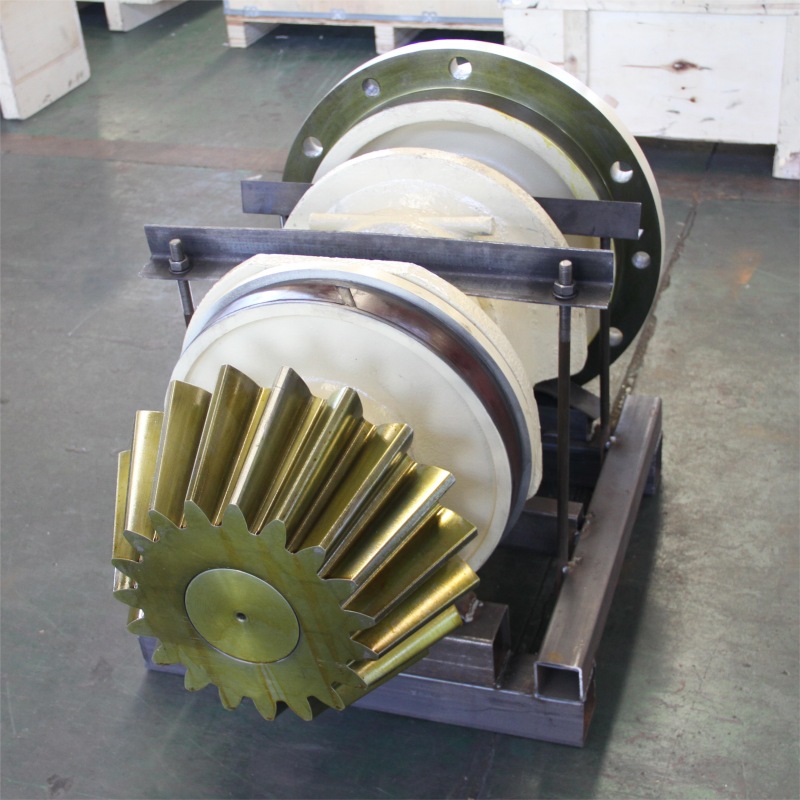

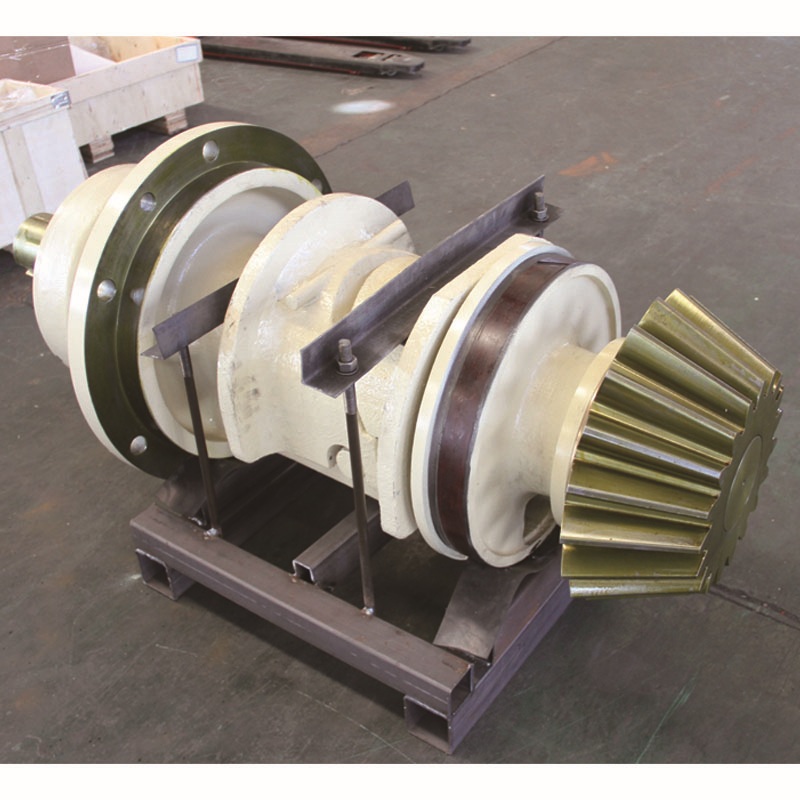

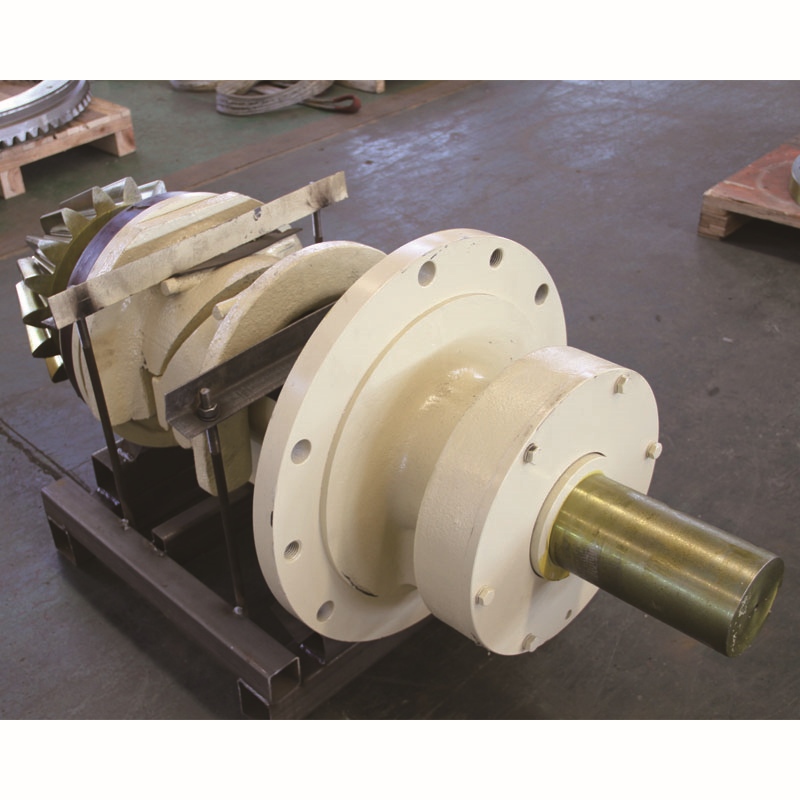

HP500 Countershaft Assembly Cone Crusher Spare Part
ONA Casting delivers a ready-to-install HP500 countershaft assembly suit to Metso cone crusherThe shaft is forged from alloy steel. Material certificate, dimensional report and 12-month warranty included. OEM quality, attractive price!
Item No :
HP100, HP200, HP300, HP400, HP500, HP700, HP800, HP900, HP3, HP4, HP5, HP6Part Number :
ONA-7090018004, ONA-1093050095, ONA-N90018011, ONA-7090018006Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1Product Introduce
Quantity: 1 piece/unit
Material: Alloy Steel
Installation Location: Installed in the drive shaft hole of the mainframe. A pinion on one end works with a gear to transmit power, causing the equipment to move eccentrically. A pulley on the other end transmits the motor's kinetic energy via a V-belt.
The crusher spares countershaft assembly primarily transmits the motor's power to the crushing cone, achieving ore crushing. Specifically, the countershaft assembly transmits the motor's power to the crushing cone through the main shaft, bearings, gears, and other components, thereby completing the ore crushing process.
Structural Design and Function

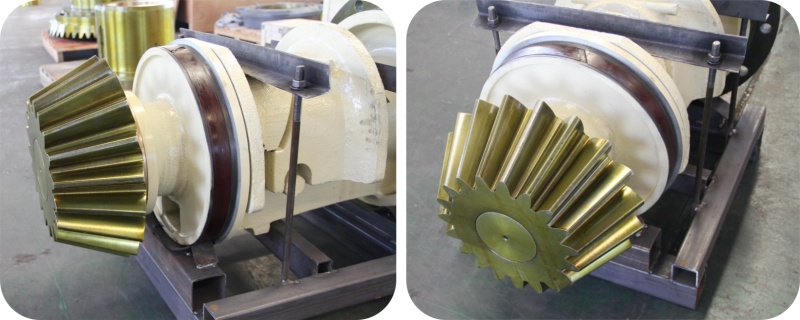

The cone crusher components countershaft assembly of a multi-cylinder cone crusher primarily consists of the main shaft, bearings, gears, and seals. The cone crusher parts name main shaft adopts a stepped design, ensuring strength while reducing weight. High-precision double-row roller bearings are used for bearings capable of withstanding significant radial and axial loads. Gears are ground to GB/T Grade 5 accuracy.
Material Selection and Heat Treatment
The material selection of the crusher mining spares countershaft assembly directly impacts its service life. Nanchang Mining Machinery uses 42CrMo alloy steel as the main shaft material. After tempering heat treatment, the hardness reaches HRC28-32, combining high strength and toughness. The gear part uses 20CrMnTi carburizing steel with a surface hardness of HRC58-62 and a core that maintains good toughness.

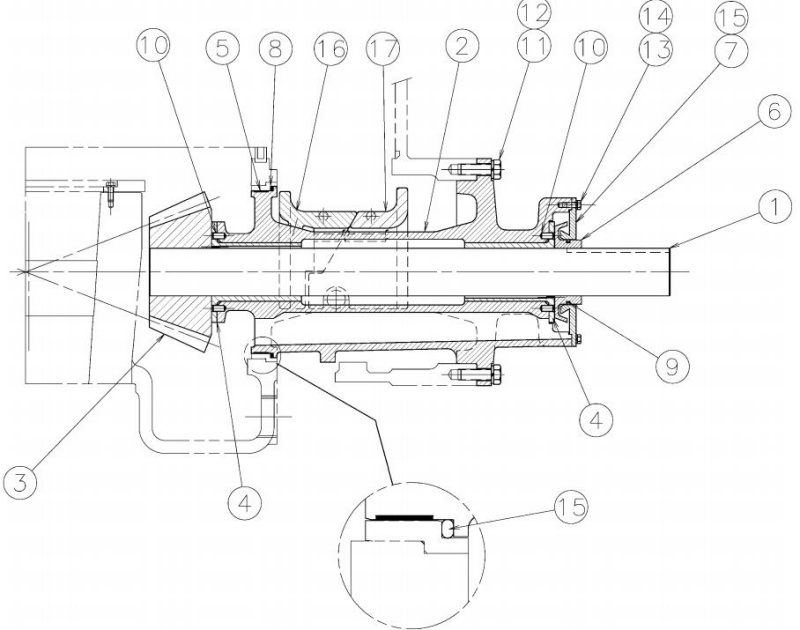

Eg. HP500, PN: 1093050095
| Pos. | PN | Description | Qty | Weight. KG |
| 1 |
1068634890
|
COUNTERSHAFT | 1 | 148 |
| 2 |
1045376019
|
COUNTERSHAFT BOX
|
1 | 360 |
| 3 |
1036831527
|
PINION
|
1 | 109 |
| 4 |
1022065500
|
BUSHING
|
2 | 17 |
| 5 |
1063192846
|
WEAR RING
|
1 | 0.263 |
| 6 |
1062807442
|
OIL FLINGER
|
1 | 9.7 |
| 7 |
1027471761
|
COVER
|
1 | 19 |
| 8 |
1035715063
|
O-RING
|
1 | 0.454 |
| 9 |
1063084705
|
PISTON SEAL
|
1 | 0.1 |
| 10 |
7001619270
|
PIN
|
4 | 0.05 |
| 11 |
7001530622
|
SCREW, HEXAGONAL
|
6 | 0.7 |
| 12 |
7001632030
|
WASHER
|
6 | 0.1 |
| 13 |
7001530252
|
SCREW, HEXAGONAL
|
6 | 0.1 |
| 14 |
N01632014
|
WASHER
|
6 | 0.1 |
| 15 |
7008010040
|
SILICONE SEAL
|
1 | 0.01 |
| 16 |
1038067481
|
COUNTERSHAFT BOX GUARD
|
1 | 41 |
| 17 |
1038067482
|
COUNTERSHAFT BOX GUARD
|
1 | 53 |
