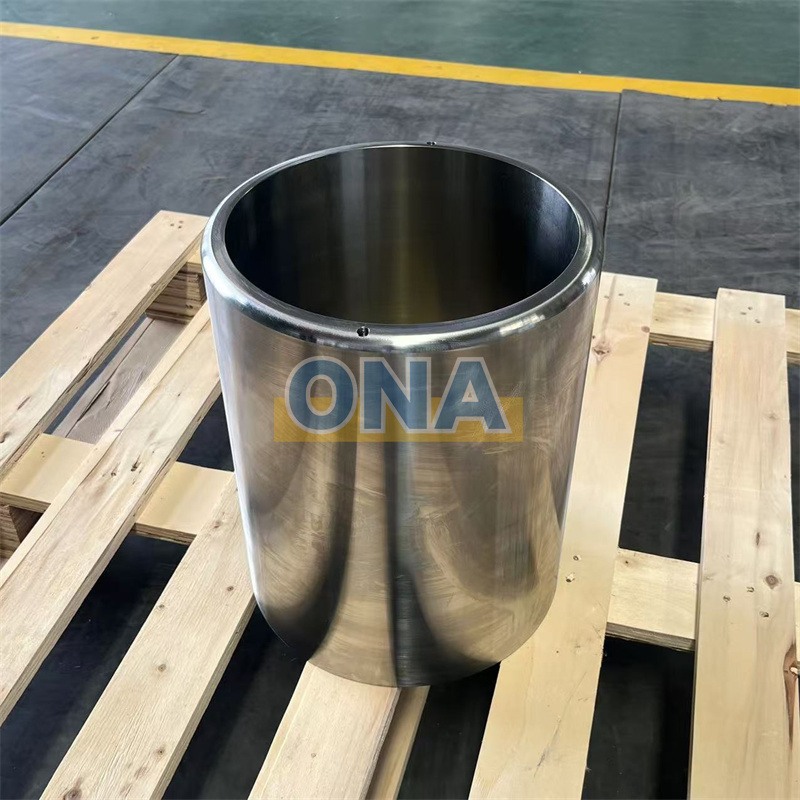

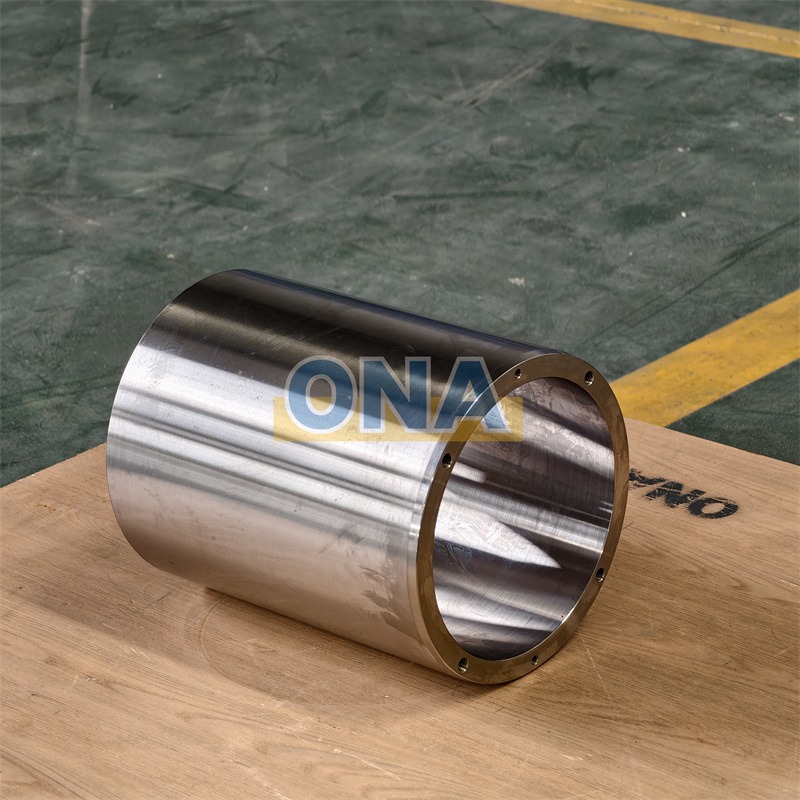

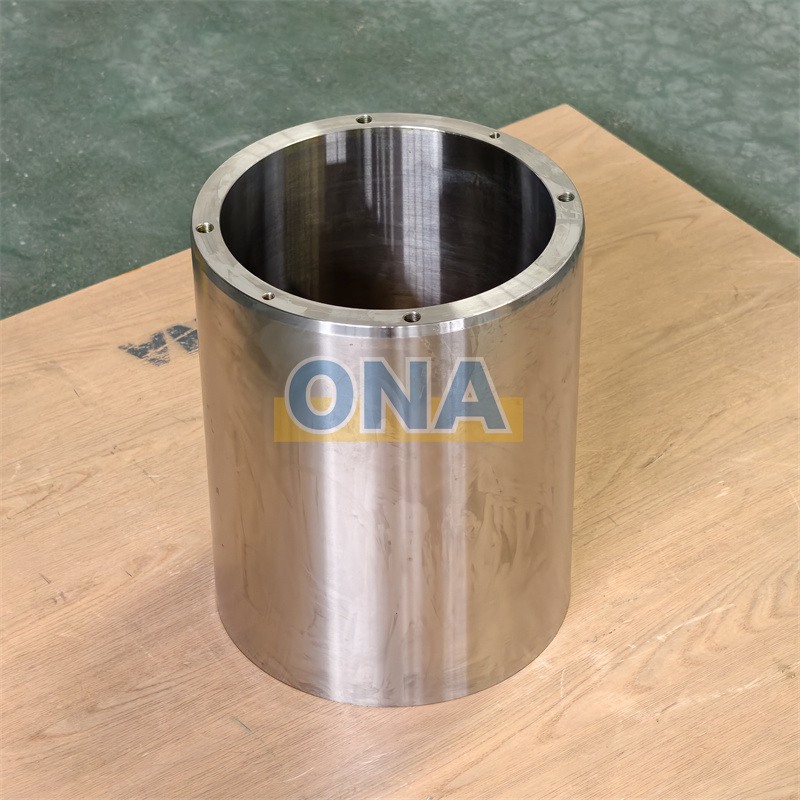

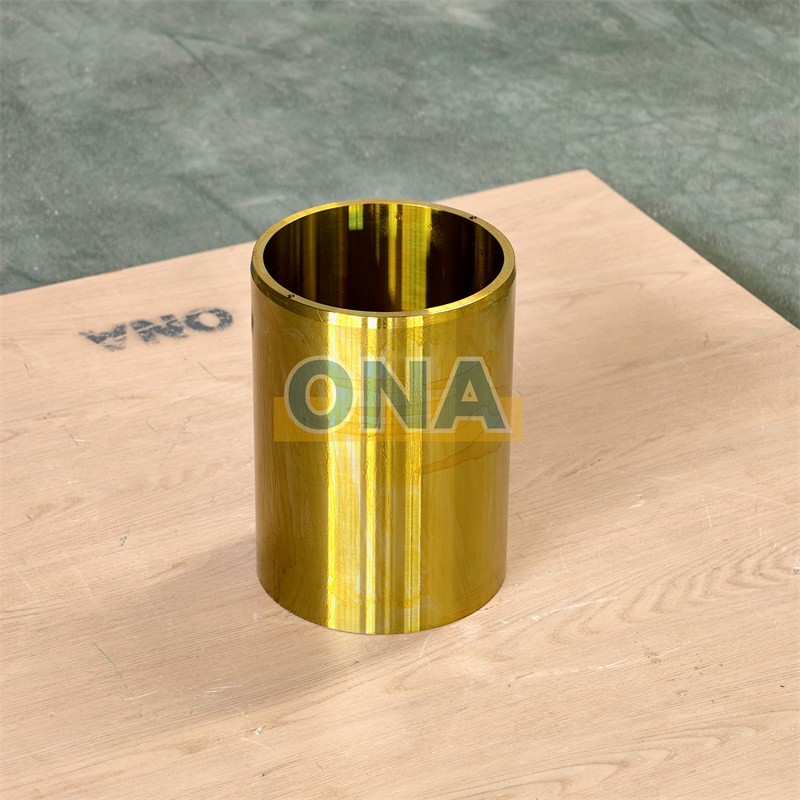

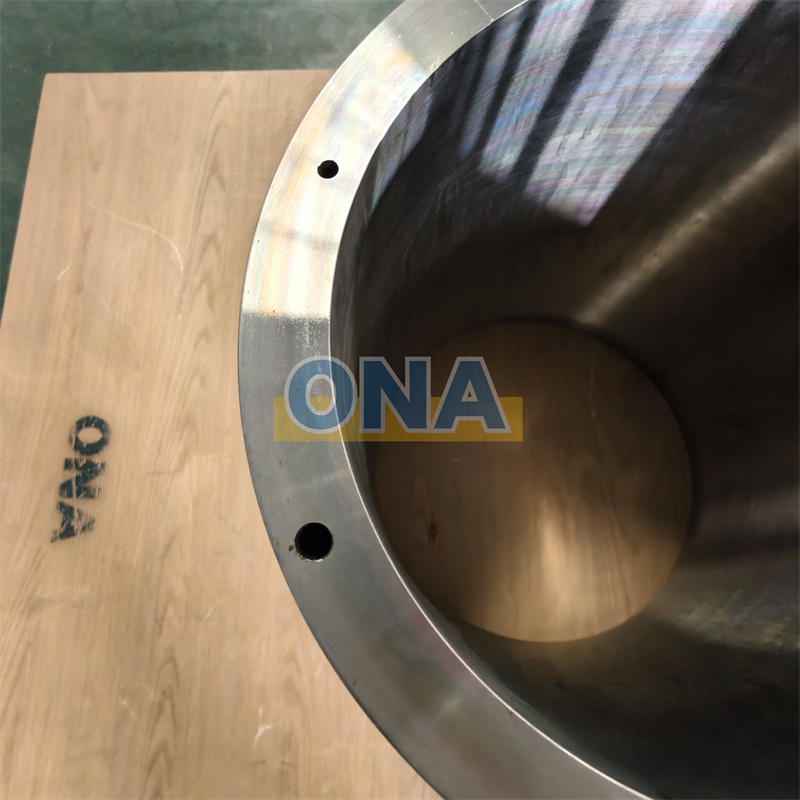

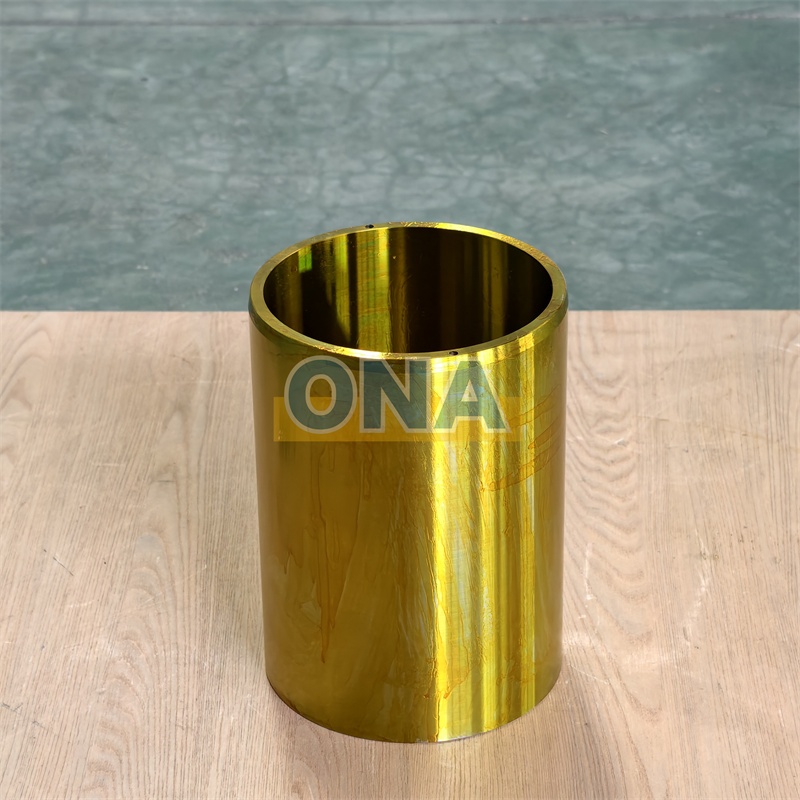

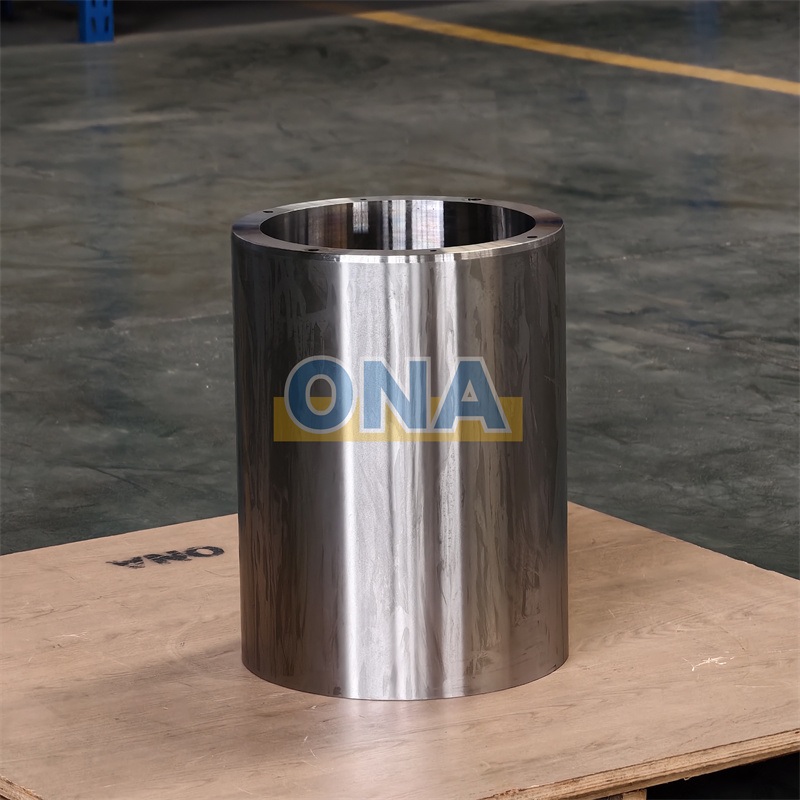

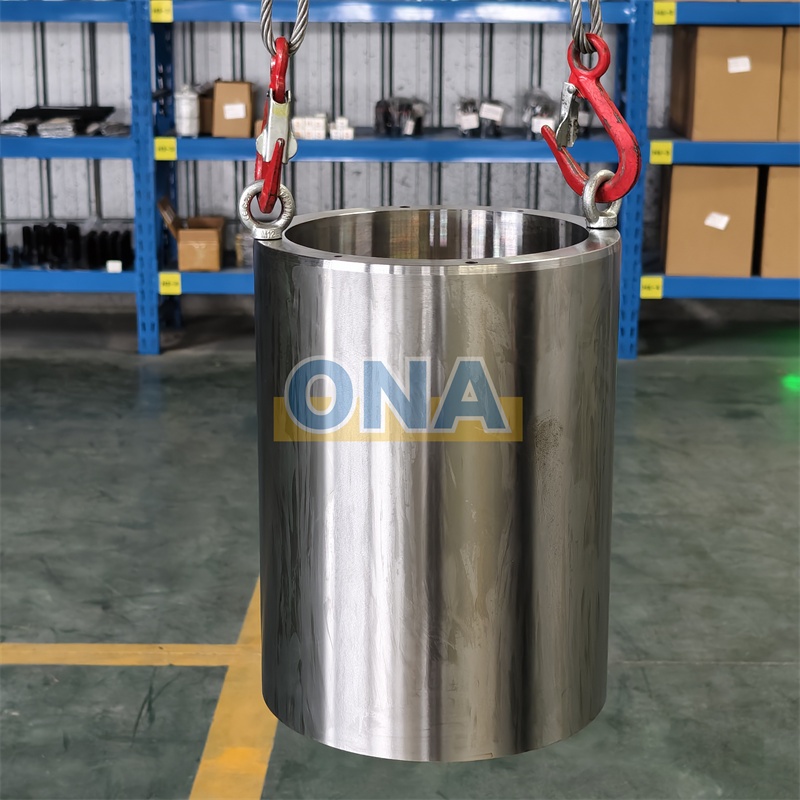

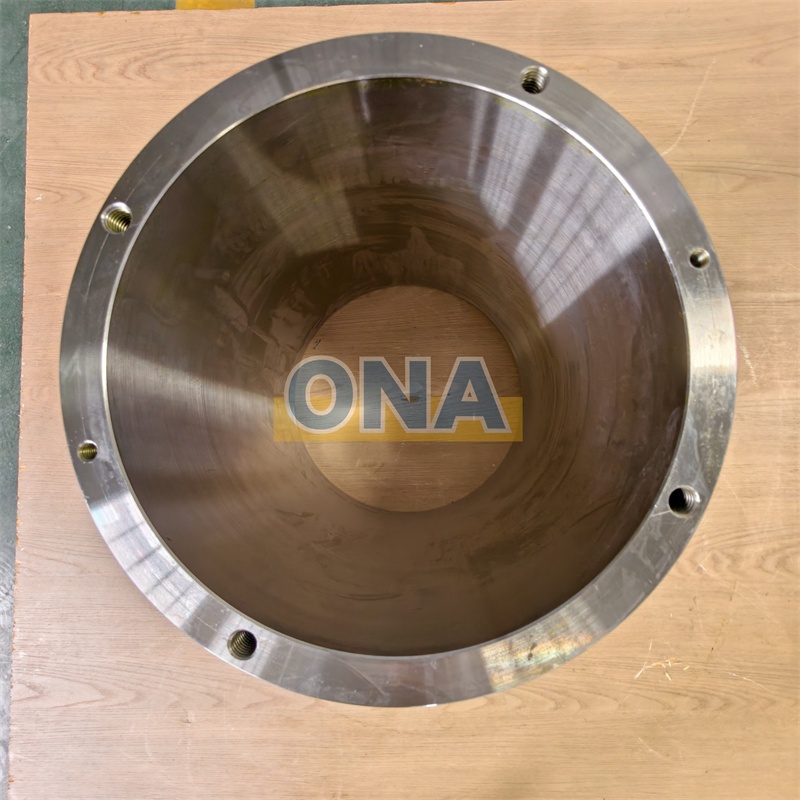

The main shaft sleeve (known as the protection bushing suitable for Metso and the main shaft sleeve suitable for Sandvik) is the key component that protects the main shaft from direct wear.
Item No :
GP11F, GP100, GP200, GP300, GP330, GP500, GP550, CH420, CS420, CH430, CS430, CH440, CS440, CH660, CH870, CH880Part Number :
ONA-312150, ONA-418481, ONA-932594, ONA-341336, ONA-MM0577438, ONA-312707, ONA-582422, ONA-442.6140-01, ONA-442.7913-01, ONA-442.7117-01, ONA-442.8792-01, ONA-452.0505-001, ONA-442.9294-01Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 DaysOrder(MOQ) :
1
Two Names, One Function

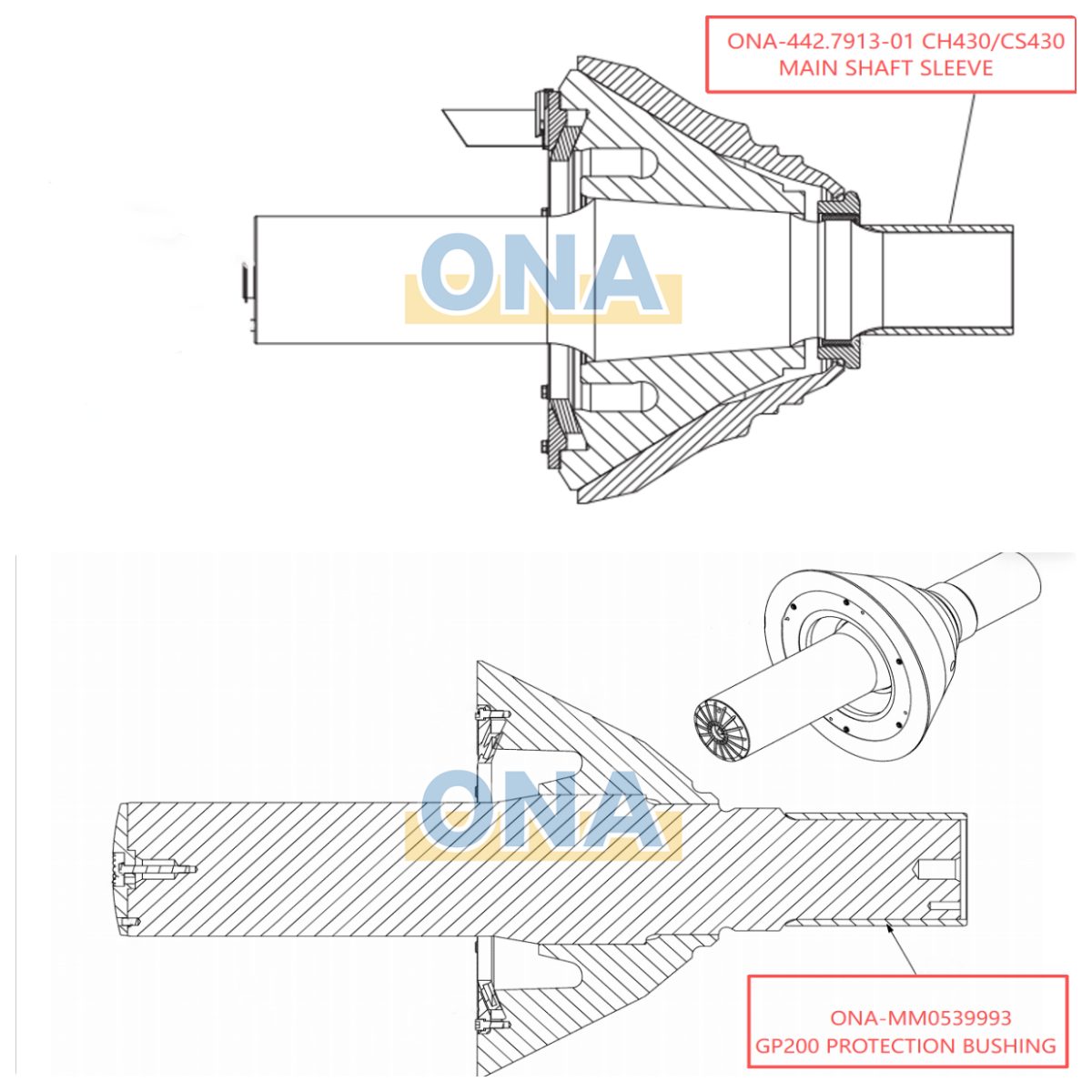

The main shaft sleeve is installed at the top of the main shaft assembly, where it serves as the primary contact surface between the main shaft and the eccentric bushing. This location subjects it to the highest radial loads during crushing. By shielding the main shaft from direct friction at this critical point, the sleeve extends the service life of the entire shaft assembly. The main shaft sleeve is suitable for Sandvik, and the protection bushing is suitable for Metso – both components serve the identical function of forming the primary sliding contact surface between the main shaft and the eccentric bushing. In both designs, the sleeve is a sacrificial bronze wear part that absorbs friction, protects the expensive main shaft from scoring, and maintains proper oil film clearance during crusher operation.
Wide Series Coverage and Ready Stock
ONA maintains a broad stock of main shaft sleeves suitable for GP series and suitable for CH/CS series cone crushers, covering the most commonly demanded models and part numbers. In addition, we also supply sleeves for HP series, suitable for Symons crushers and gyratory crushers, with ready-to-ship inventory for popular sizes. For any models not listed or custom requirements, ONA offers manufacturing based on your drawings or original part numbers.
| Part No. | Machine Type | Part No. | Machine Type |
| ONA-442.8792 | CH660 | ONA-949641827400 | GP100S |
| ONA-442.7117 | CH440 | ONA-908632 | GP200S |
| ONA-442.7913 | CH430 | ONA-315929 | GP300S |
| ONA-442.7117-02 | HS400 D280 -0.3 | ONA-341573 | GP500S |
| ONA-442.7913-02 | HS300 | ONA-MM0539993 | GP200 |
| ONA-BG00213813 | CS440 | ONA-949630751900 | G14FINE |
| ONA-BG01004353 | CH890 | ONA-949630465000 | G10SEC |
| ONA-BG00325390 | CS660 | ONA-17-303-214-001 | SG60109 |
| ONA-7320 4331 | 4 1/4FT | ONA-17-302-053-001 | SG6089 |
| ONA-949630749600 | G14SEC | ONA-442.1630-01 | / |
| ONA-7320 4202 | 4 1/4FT | ONA-442.0807-01 | / |
Contact ONA
ONA supplies precision‑machined main shaft sleeves and protection bushings suitable for Metso, suitable for Sandvik, and suitable for Symons crushers, with broad stock coverage and fast delivery. For part number confirmation or custom orders, contact ONA today.

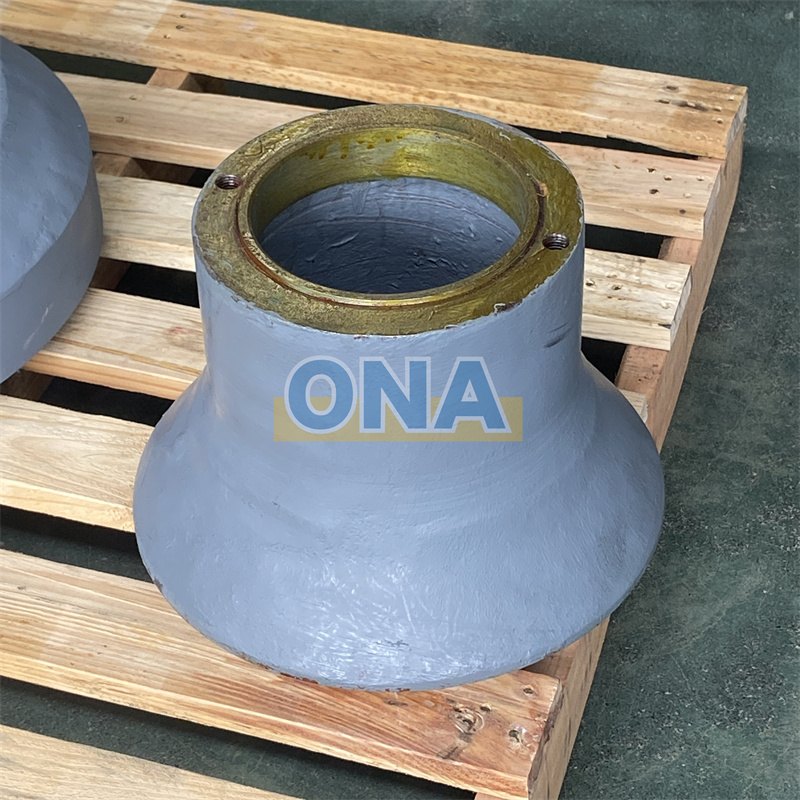

Feed cone, which also known as feed plate, which suit to Metso, Nordberg, Sandvik, etc..
