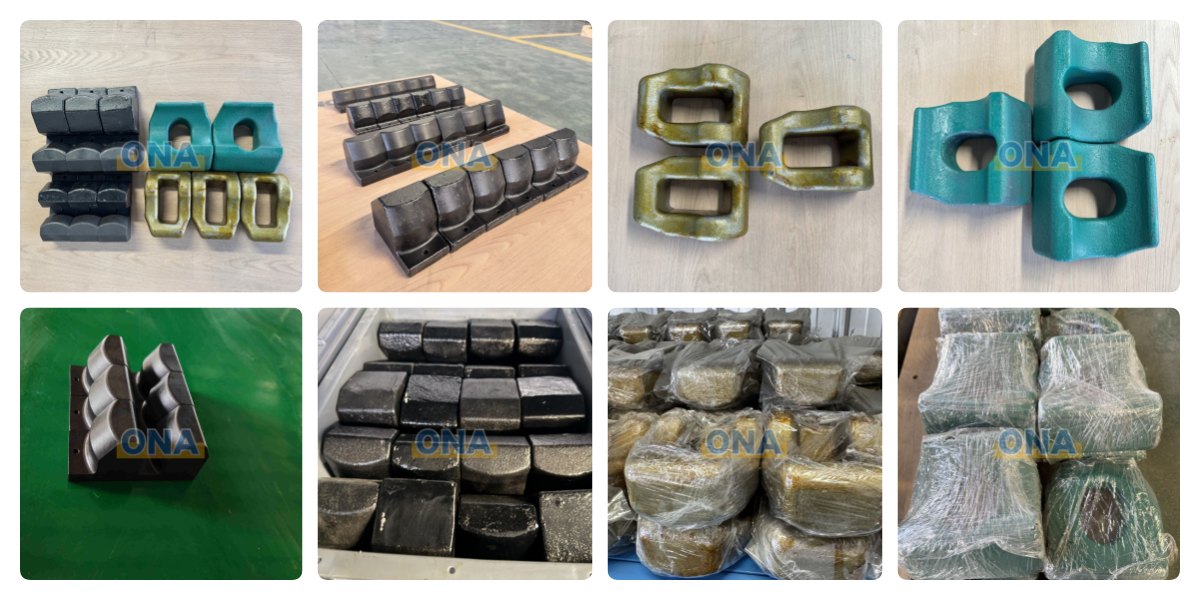

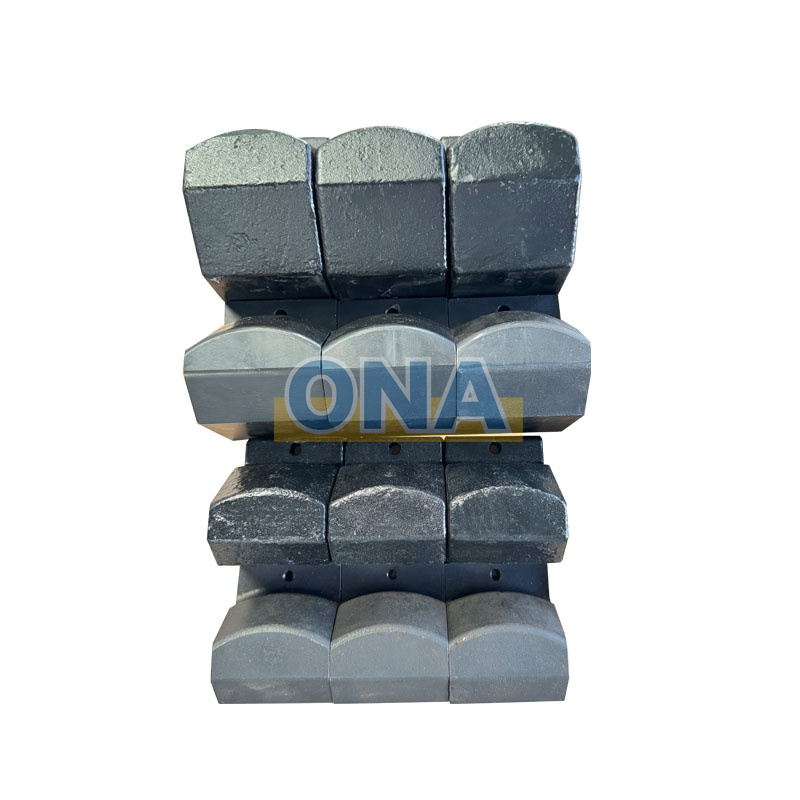

HP4 HP200 HP300 HP400 HP500 Cone Crusher Wedge
Cone crusher parts wedge are used to fix the cone crusher bowl liner, preventing it from loosening.
Item No :
HP100, HP200, HP300, HP400, HP500, HP800, HP4, MP1000Part Number :
ONA-7032902500, ONA-1086342201, ONA-1086342700, ONA-1086342846, ONA-1086342866, ONA-1086343192, ONA-N43202032, ONA-1086345380Payment :
TTProduct Origin :
ChinaColor :
CustomizedShipping Port :
ShanghaiLead Time :
StockOrder(MOQ) :
1Working principle
When the cone crusher is working, the main shaft rotates, driving the eccentric bushing and head to move eccentrically, and the material is squeezed and crushed between the head and bowl. The wedge tightly fixes the liner so that the liner can withstand the impact and friction of the material, ensuring the shape and size of the crushing chamber are stable, thereby achieving efficient and stable crushing operations.
Structural design and features
Wedge design: Unique wedge shape fits closely with the liner and cone for reliable support and locking.
High‑strength bolt connection: Square head bolts pass through the wedge, firmly locking the liner and wedge against loosening.
Material and quantity: Made of high‑quality alloy steel, each crusher uses 6 wedge blocks.

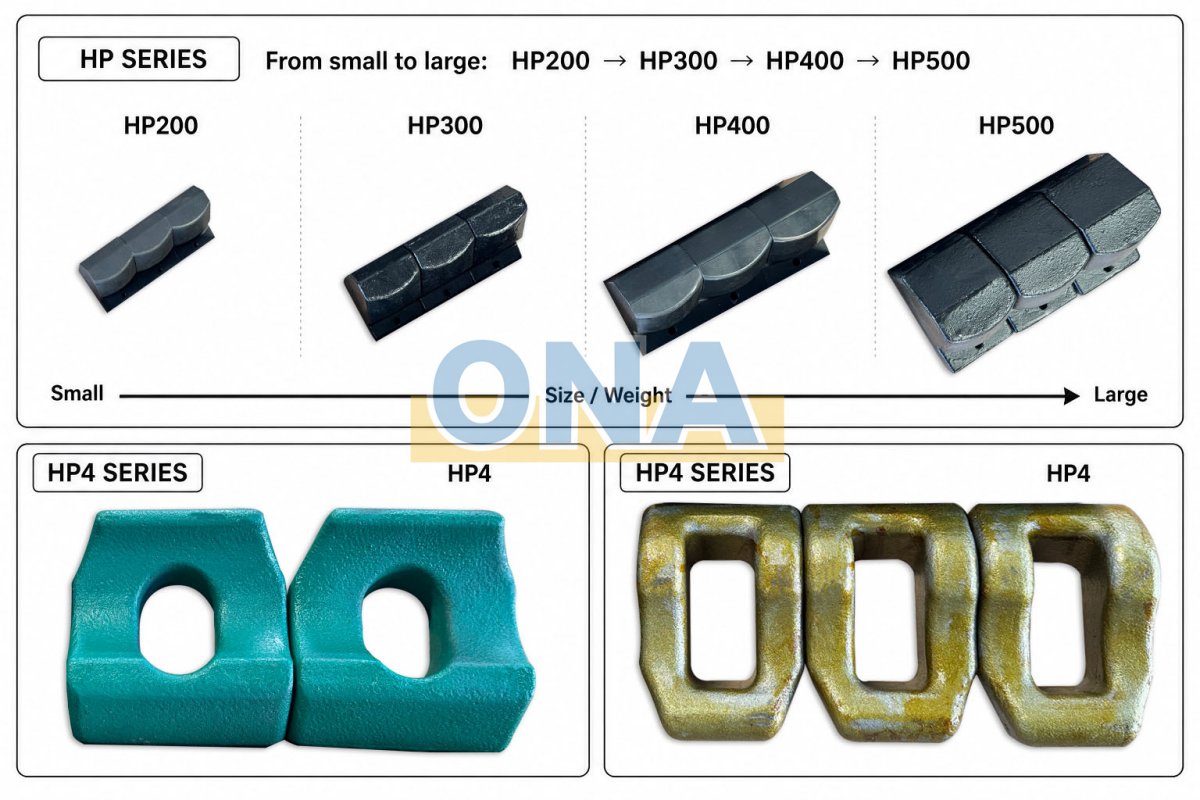

Size and weight: Wedge size and weight vary by model; HP4 is the largest and heaviest, HP200 is the smallest and lightest.
Our Service Commitment
We keep large stocks of wedges for popular models, ready to ship. For urgent needs, contact us anytime – we are here to solve your problems quickly.
Every wedge is fully inspected by our quality control team before delivery. High‑quality alloy steel and original‑spec design ensure longer life, fewer replacements, and lower maintenance costs.
Our professional technicians offer expert support for wedge installation, commissioning, and maintenance. Whatever your need, feel free to reach out at any time.
