What Is a Lower Frame Assembly and Why Can’t You Ignore It?

A cone crusher relies on several structural assemblies, and the lower frame assembly is the solid foundation that supports everything above it. Sitting at the very bottom of the crusher, it holds the eccentric bushing, the main shaft, and the hydraulic adjustment components. It also contains the main lubrication channels that keep internal parts running smoothly. Without a robust lower frame assembly, the entire crushing process would become unstable and unreliable. In simple terms, the lower frame assembly is the ankle and foot of the crusher. It takes all the load and keeps the machine standing tall.

What is the Lower Frame Assembly?
The lower frame assembly is the lowest major structural part of a cone crusher, typically cast from high-strength steel or ductile iron. It serves as the main base that connects the crusher to its supporting foundation, while also providing precise mounting surfaces for critical rotating components. Inside this assembly, you will find the eccentric drive mechanism, the main shaft socket, and the oil distribution system. Unlike the upper frame (which handles the feed and initial crushing), the lower frame assembly deals with transmitting crushing forces down to the foundation and housing the drive gear train. In many designs, the Lower Frame Assembly also incorporates hydraulic cylinder mounting points for adjusting the closed side setting (CSS).

Key Components of a Lower Frame Assembly
Several key components work together inside the lower frame assembly. Here are four of the most important ones:

• Lower Frame: This is the main cast body that supports all other components, absorbs crushing forces, and mounts the crusher to its foundation.
• Countershaft Assembly: This unit transmits power from the drive motor to the eccentric bushing via the pinion and large gear, enabling the gyratory motion.
• Thrust Bearing: This component carries the entire axial load from the main shaft and eccentric, preventing metal-to-metal contact and ensuring smooth rotation.
• Eccentric Bushing: This rotating part fits within the lower frame bore and provides the main shaft with its gyratory motion. It is driven by the countershaft pinion and directly supports the main shaft socket.


What are the Parts Included in the Lower Frame Assembly?

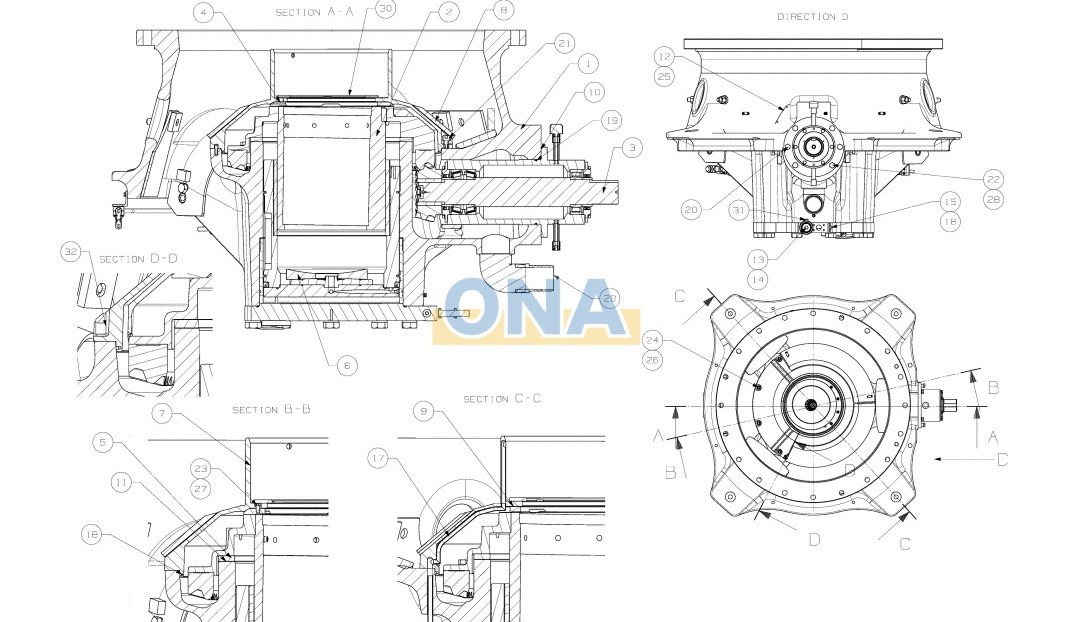

Eg: GP200 ONA-MM0309979

Common Signs of Wear and Failure
Over time, the lower frame assembly can suffer from wear and fatigue. The most common issues include cracks in the casting (often due to tramp iron or overloading), worn eccentric bushing (causing abnormal gyration and power spikes), and gear tooth pitting or breakage (leading to noisy operation and inaccurate CSS adjustment). Oil leaks around the lower frame assembly seals are another red flag, as they indicate seal degradation or a distorted mating surface. Regular visual and dimensional inspections are essential – especially after any tramp iron event.

Maintenance Tips for the Lower Frame Assembly
To extend the life of your lower frame assembly, always follow the manufacturer’s lubrication schedule. Use the correct oil viscosity and keep the oil clean, because dirt is the number one killer of eccentric bushings and gears. During maintenance, check the mounting bolts between the lower frame assembly and the foundation – loose bolts can cause frame fatigue cracks. Also, inspect the sealing surfaces when replacing the lower frame assembly liner or dust seal. If you notice any cracks in the casting, do not weld it without professional advice; some cracks can be repaired, but many require full replacement for safety.

When Should You Replace the Lower Frame Assembly?

Unlike wear parts (such as mantle and bowl liner or concave mantle for cone crusher), the lower frame assembly itself is not a consumable component. However, replacement becomes necessary when:

• The main bore for the eccentric is worn beyond spec.
• The casting has developed a critical crack that affects structural integrity.
• The mounting surfaces for hydraulic cylinders are damaged beyond repair.

In many cases, a worn lower frame assembly can be rebuilt by line-boring and installing new bushings, but severe damage means replacement is more cost-effective and safer.
The following is a list of the lower frame assemblies suitable for Metso and Sandvik cone crushers:

Conclusion – Why It Matters

The lower frame assembly might not be the most glamorous part of a cone crusher, but it is undeniably the most critical for stability and precision. Understanding its role, key components, and failure signs helps you plan proactive maintenance and avoid unexpected downtime. Whether you are an operator, a maintenance engineer, or a spare parts purchaser, treating the lower frame assembly with respect will pay off in longer crusher life and more consistent product quality.
